| Model NO. | HZH XF120 |
| Type | Portable Extinguisher Drone |
| Effective Range | 20m |
| Power Source | Electric |
| Maximum Load Weight | 150 Kg |
| Max. Takeoff Weight | 257.8 Kg |
| Max. Flight Altitude | 500 M |
| Max. Flight Time | 45 Min |
| Axis | 8 |
| Dimensions | 4605*4605*990mm |
150kg Big Payload Fire Extinguisher Fire Fighting Drone Equipment
| HZH XF120 Performance Specifications | |
|---|---|
| Dimensions (Unfolded) | 4605*4605*990mm |

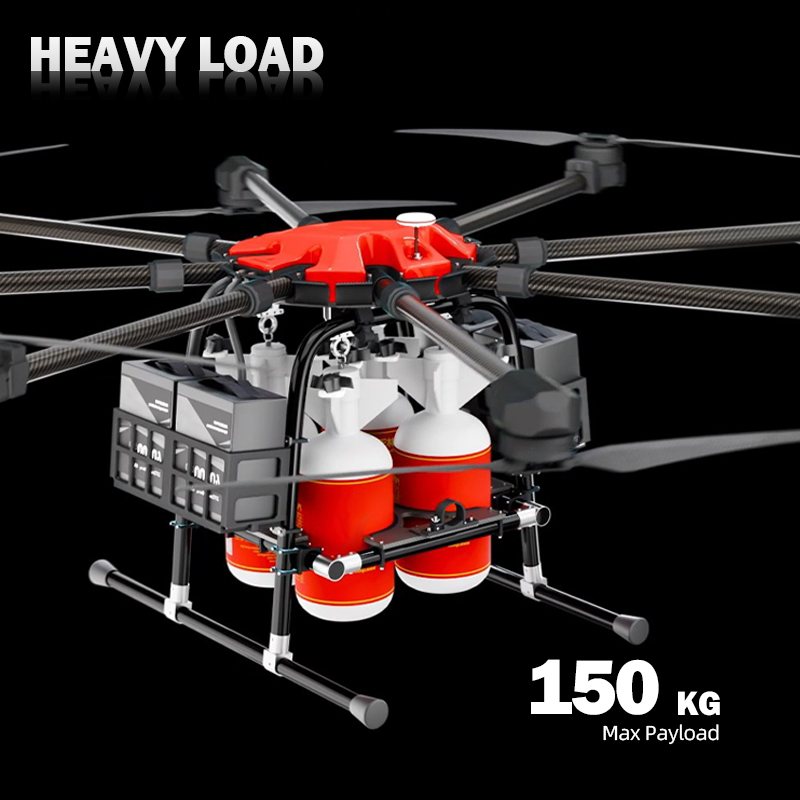

| Max. Payload | 150kg |
| Max. Takeoff Weight | 257.8 kg |
| Max. Flight Altitude | 500 M |
| Max. Altitude Limit | 4500 m |
| Operation Height | ≤ 1000m |
| Max. Flight Time | 45 minutes |

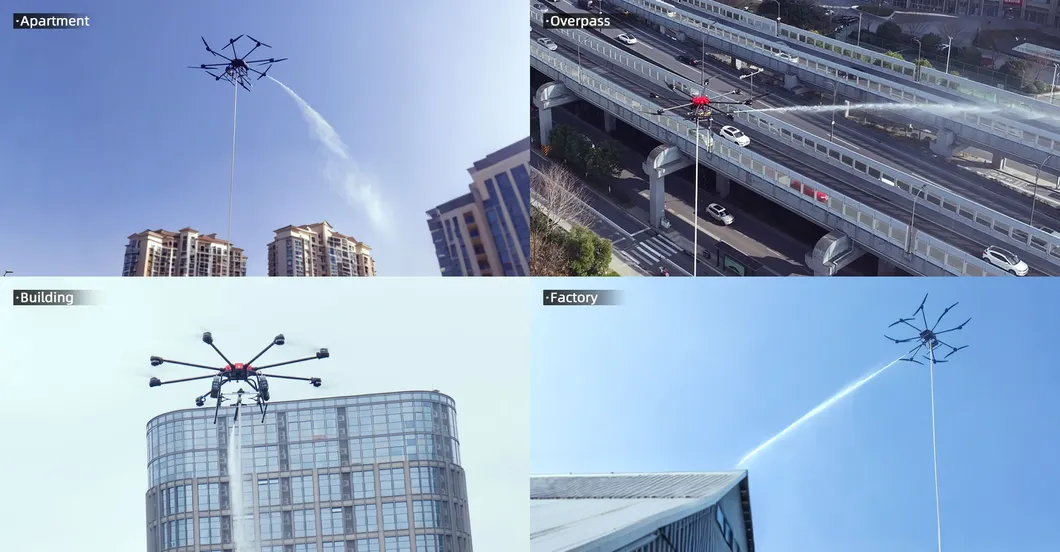

Quickly assess scale and spread in densely populated complexes. Equipped with high-pressure water nozzles to prevent vertical fire spread and enhance resident safety.
Excel in elevated fires triggered by accidents. Drones operate above traffic, deploying extinguishing bombs precisely onto flames, avoiding road congestion.
Ascend rapidly to upper stories, bypassing blocked stairwells. Drenching fires with continuous water flow to curb horizontal and vertical progression.
Versatile solutions for machinery and combustible materials. Uses extinguishing bombs for flammable liquids and water-spraying for open-air production areas.

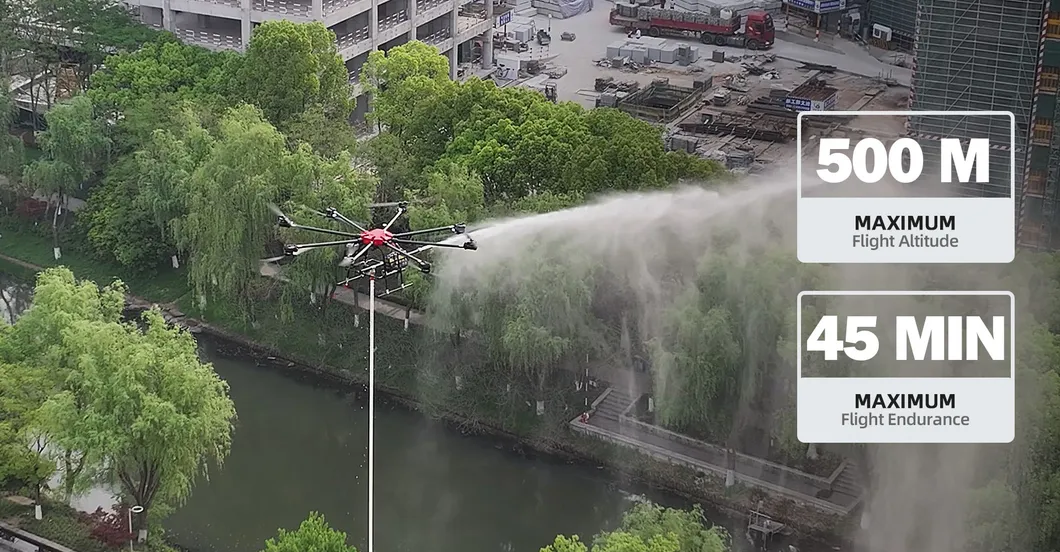

500-meter maximum flight altitude allows access to skyscraper fires. 45-minute flight endurance enables sustained missions without frequent recharging.

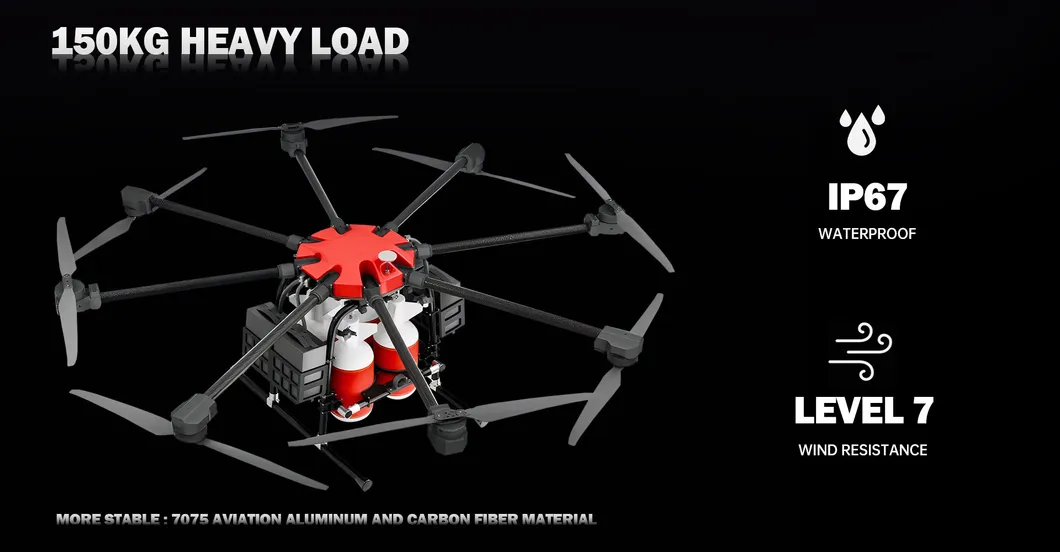

Constructed from 7075 aerospace aluminum and carbon fiber for optimal durability and agility. IP67 waterproof rating and Level 7 wind resistance.

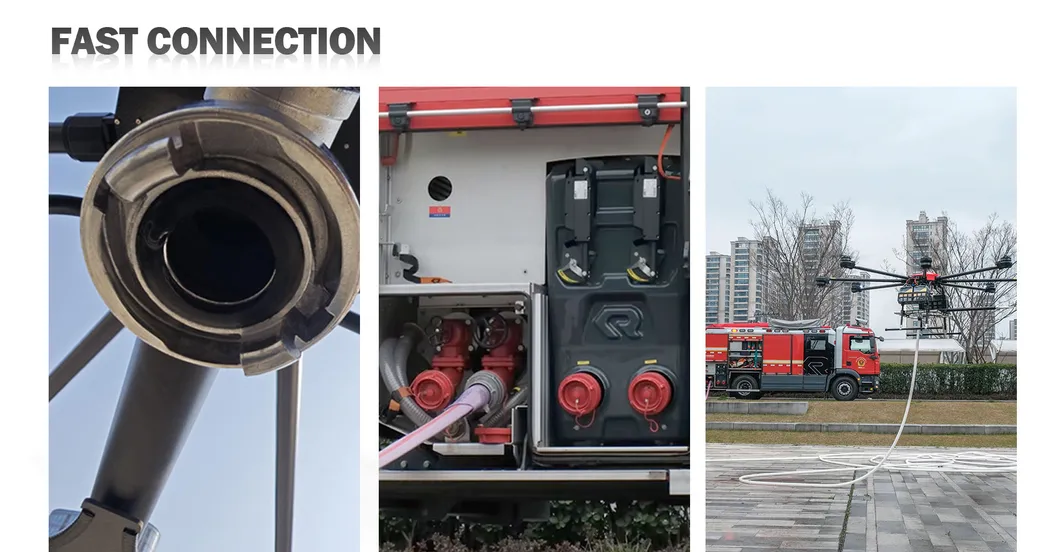

Assembled and ready for operation in just 5 minutes. Modular design allows for easy transport on standard fire trucks or utility vehicles.

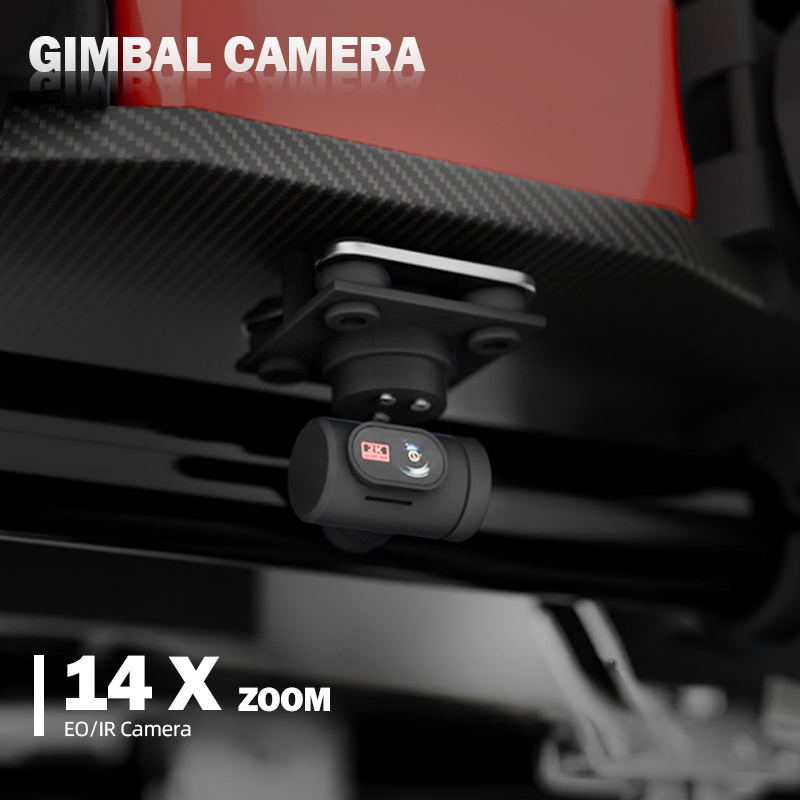

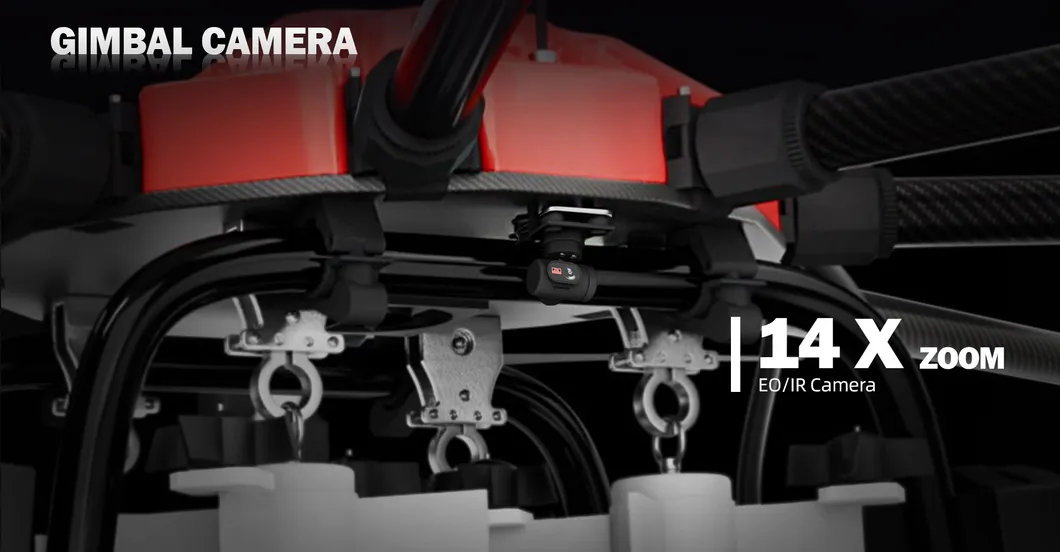

High-precision imaging with visible light and infrared sensors to detect heat signatures, hidden fire sources, and trapped individuals in low-visibility environments.

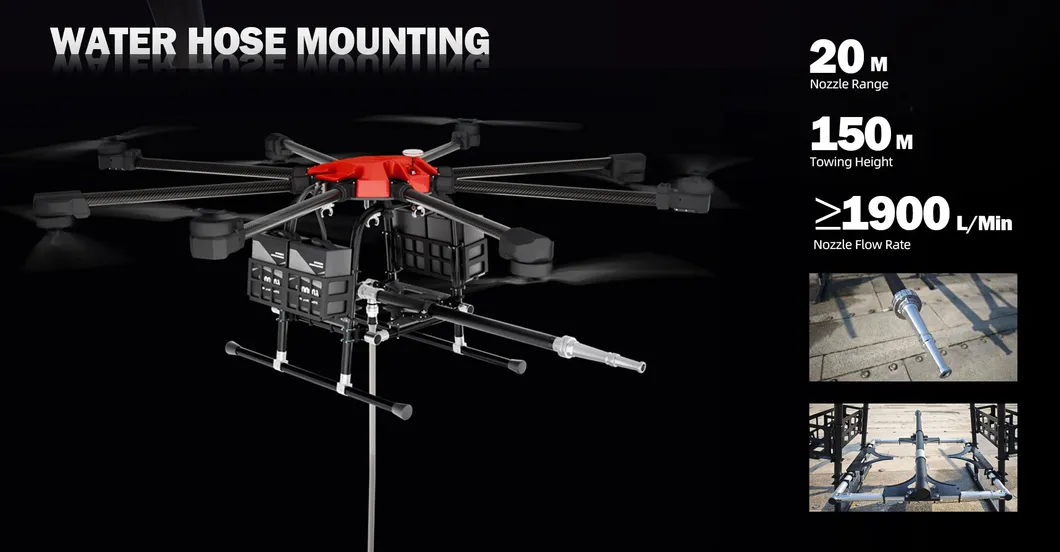

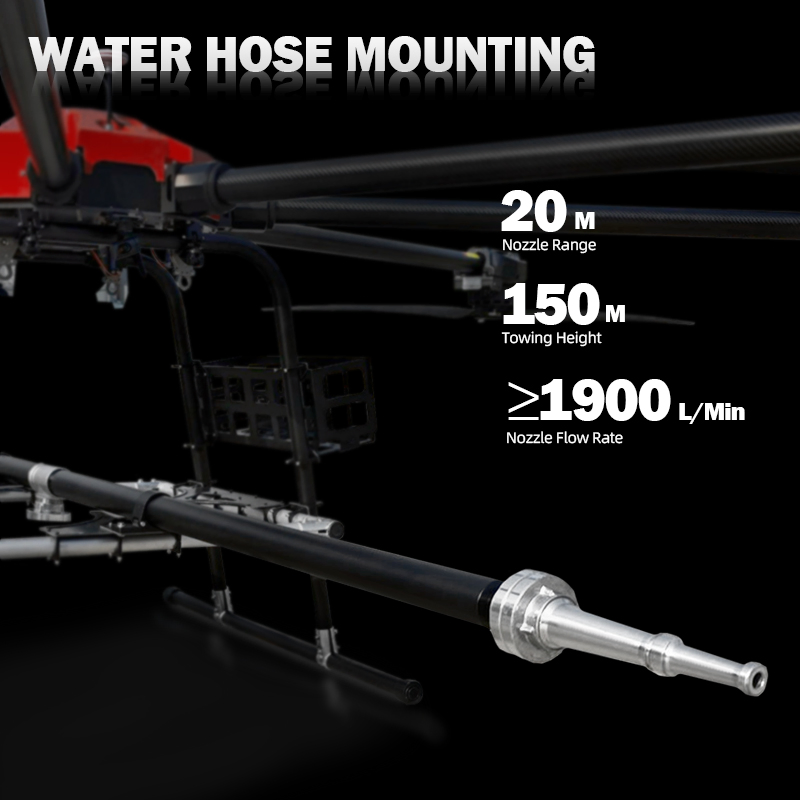

| Water Hose System | |
|---|---|
| Hose Diameter | 50mm |
| Nozzle Length / Range | 3m / 20m |
| Nozzle Flow Rate | ≥1900L/min |
| Towing Height | 150m |

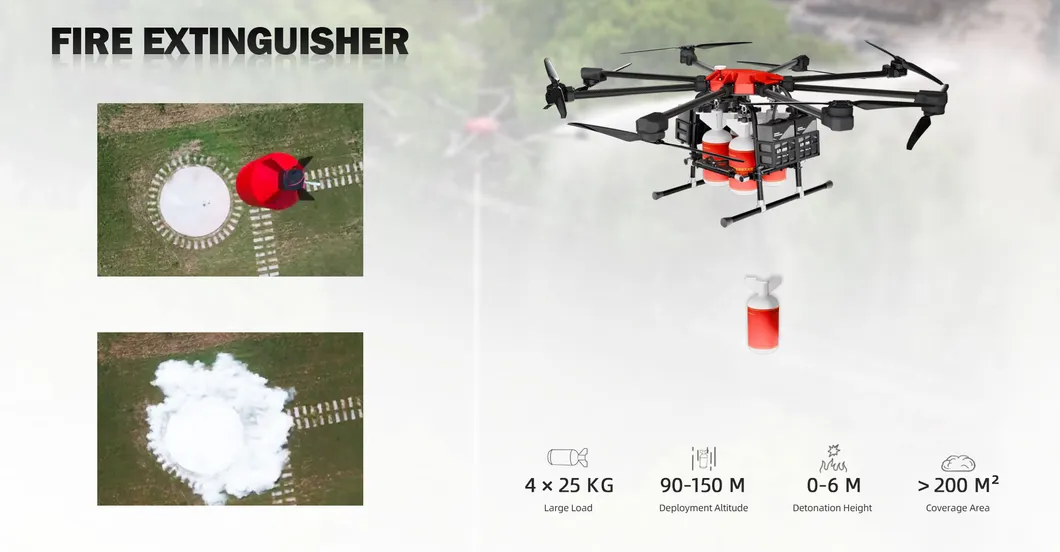

| Fire-Extinguisher Bomb System | |
|---|---|
| Total Weight / Net Weight | ≤ 23kg / ≥ 25 kg |
| Agent Type | ABC Dry Chemical or Water-based |
| Dispersion Radius | ≥ 5 m |
| Coverage Area | ≥ 50 m² |
| Safety Arming Height | ≥ 50 m |
