150kg Heavy Lift Professional GPS Autonomous Fire Fighting Drone
| Technical Specifications | |
|---|---|
| Dimensions (Unfolded) | 4605*4605*990mm |

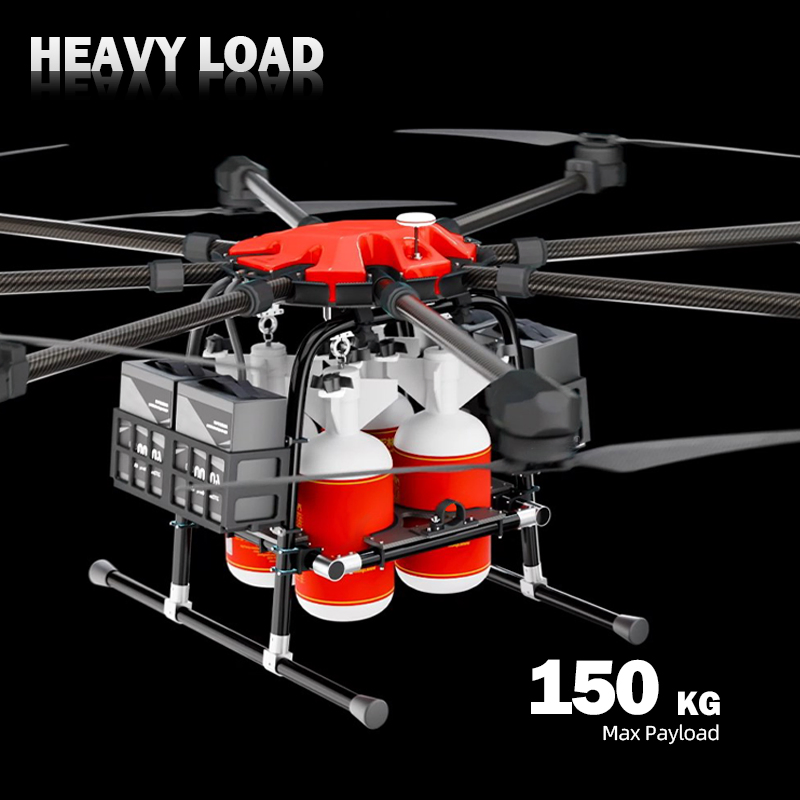

| Max. Payload | 150kg |
| Max. Takeoff Weight | 257.8 kg |
| Max. Flight Altitude | 500 M |
| Max. Altitude Limit | 4500 m |
| Operation Height | ≤ 1000m |
| Max. Flight Time | 45 minutes |

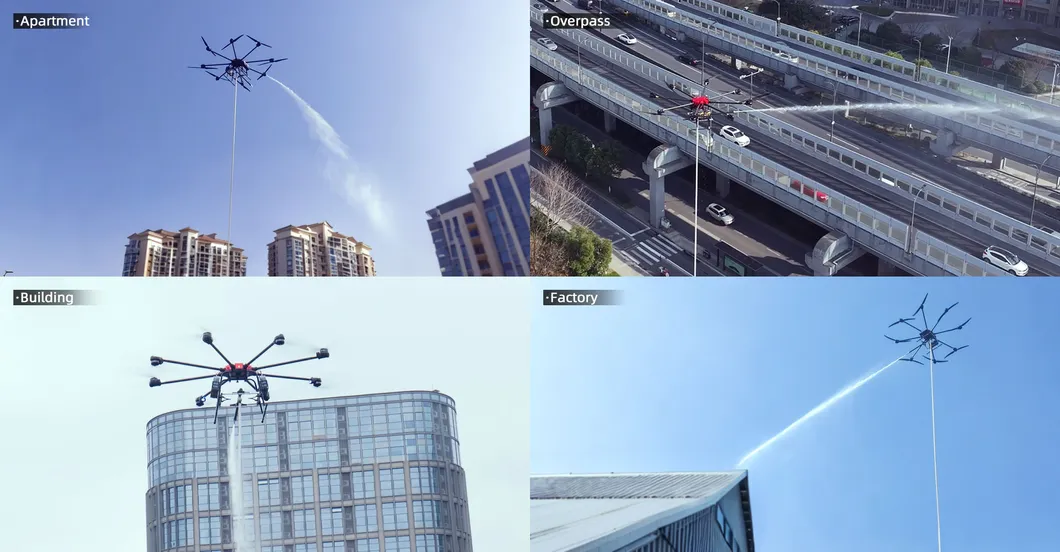

In densely populated apartment complexes, drones assess the scale of fire and provide real-time footage. Equipped with high-pressure nozzles, they cool fires and prevent vertical spread, enhancing safety for residents.
Ideal for fires triggered by vehicle accidents on elevated roads. Drones bypass traffic congestion, deploying fire extinguishing bombs precisely to suppress flames and restore traffic flow quickly.
Drones ascend rapidly to upper stories, bypassing blocked elevators. They deliver a continuous flow of water to cool flames and curb fire progression in towering structures.
Capable of handling fires in combustible or explosive environments. Drones can deploy dry chemical bombs to smother liquid fires or spray water on large machinery.

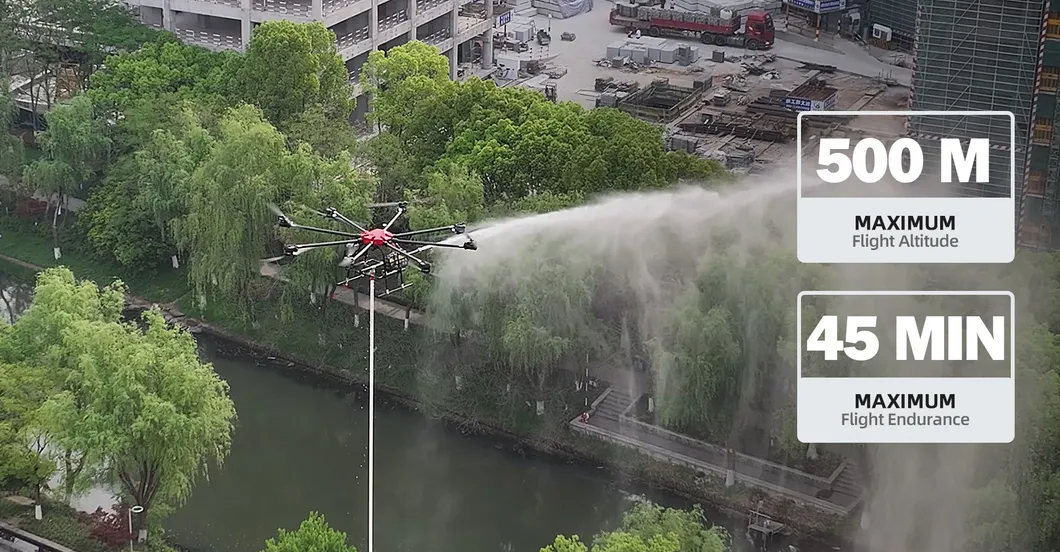

500-meter maximum flight altitude allows access to skyscraper upper floors and high industrial structures that are otherwise inaccessible to ground equipment.
An impressive 45-minute flight time enables sustained firefighting missions, intelligence gathering, and multiple rounds of suppression without frequent recharging.

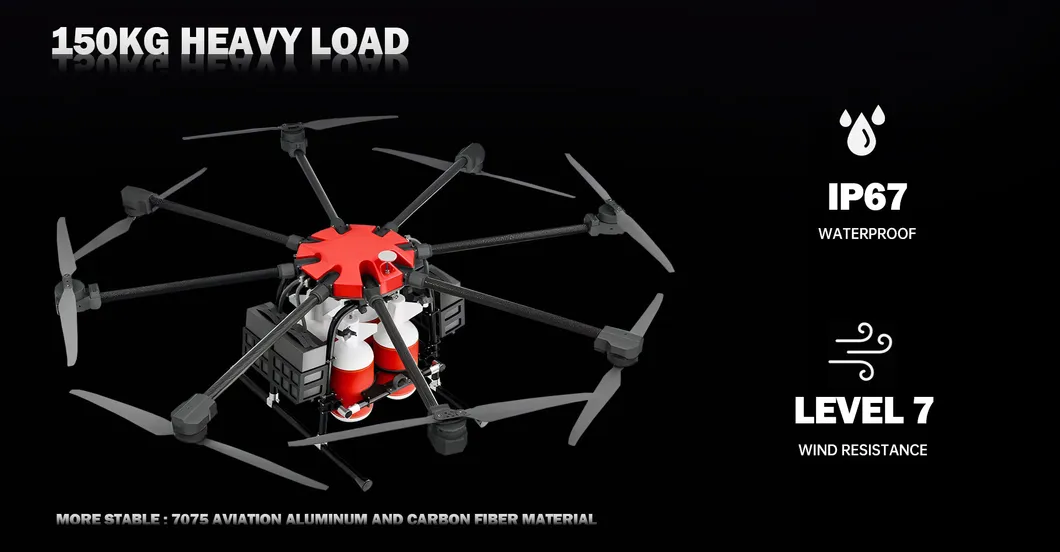

Constructed from 7075 aerospace aluminum and carbon fiber, providing an optimal balance of durability, agility, and resistance to harsh fire-scene conditions.
IP67 waterproof rating for water-intensive operations and level 7 wind resistance for stable flight paths in complex aerodynamic environments.

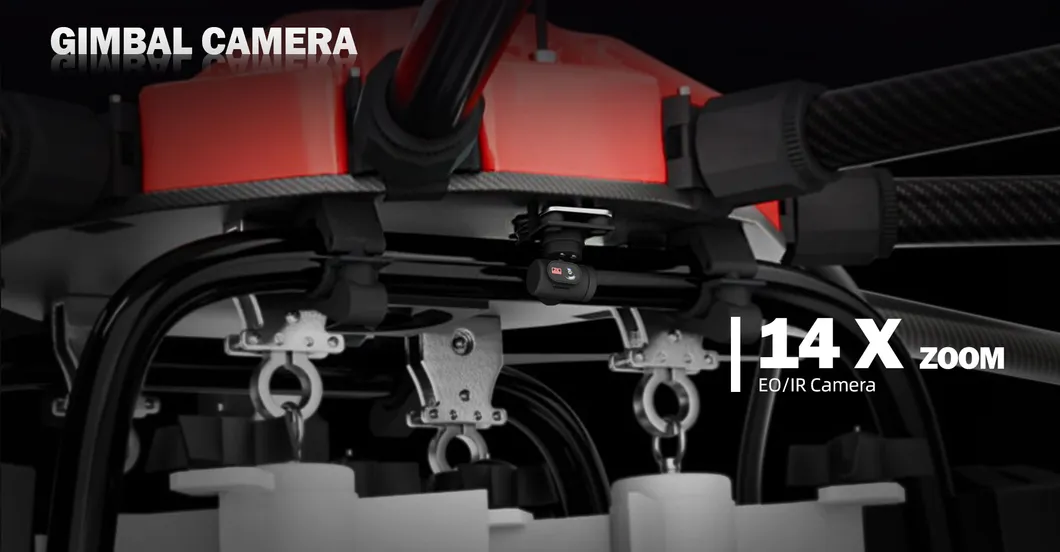

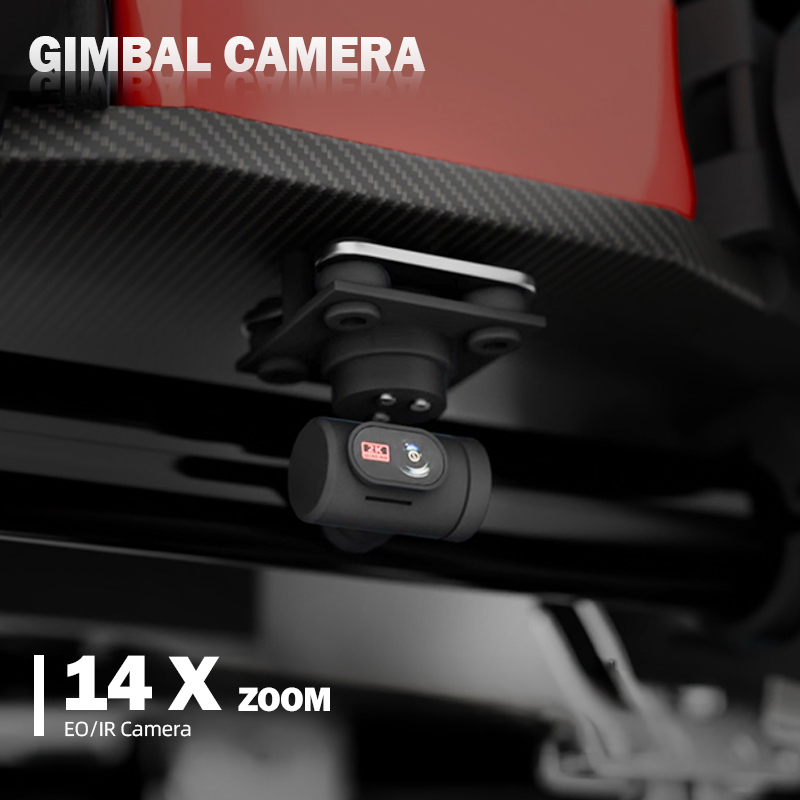

Outfitted with a 14X Zoom EO/IR camera for both visible light and thermal imaging, detecting hotspots and trapped individuals through thick smoke.

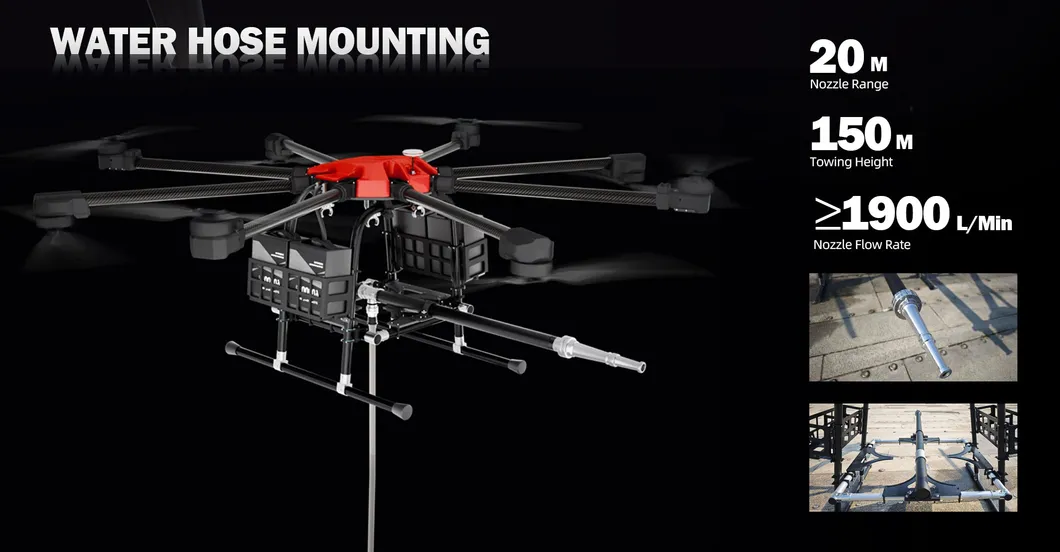

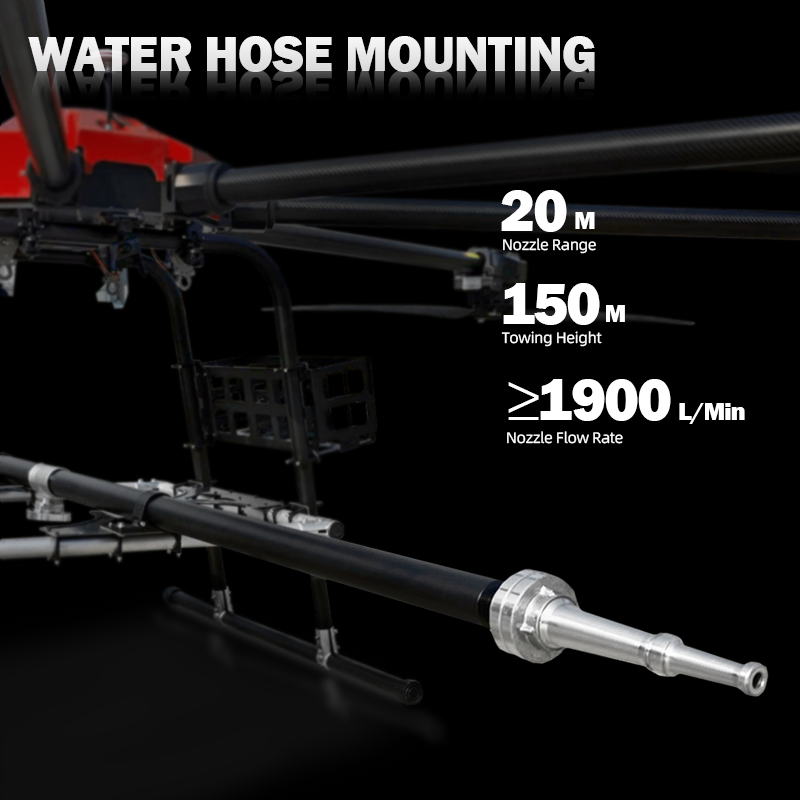

| Water Hose Mounting Parameters | |
|---|---|
| Hose Diameter | 50mm |
| Nozzle Length | 3 M |
| Nozzle Range | 20m |
| Nozzle Flow Rate | ≥1900L/min |
| Towing Height | 150m |

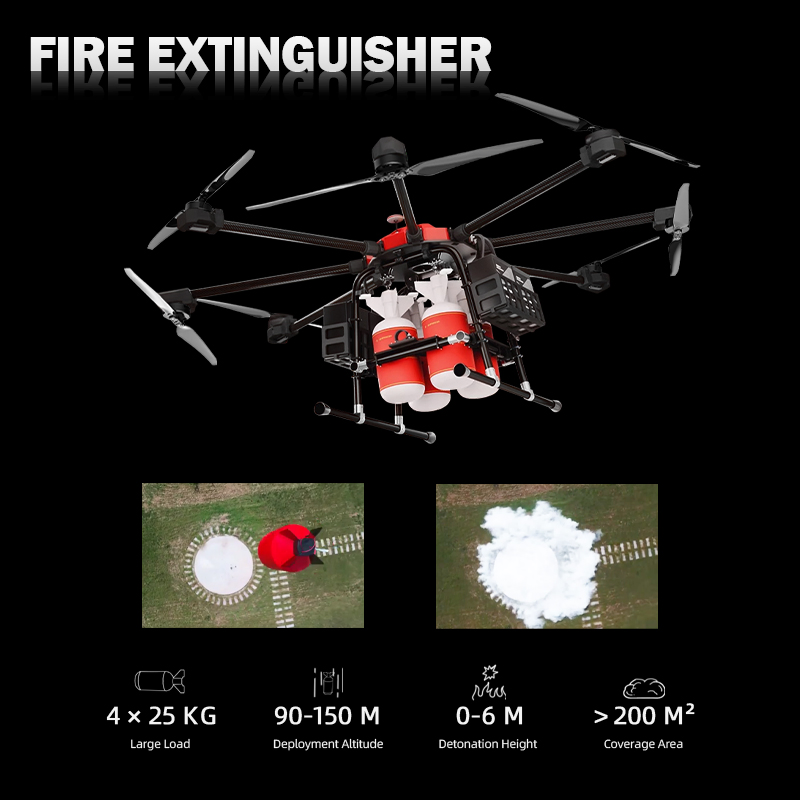

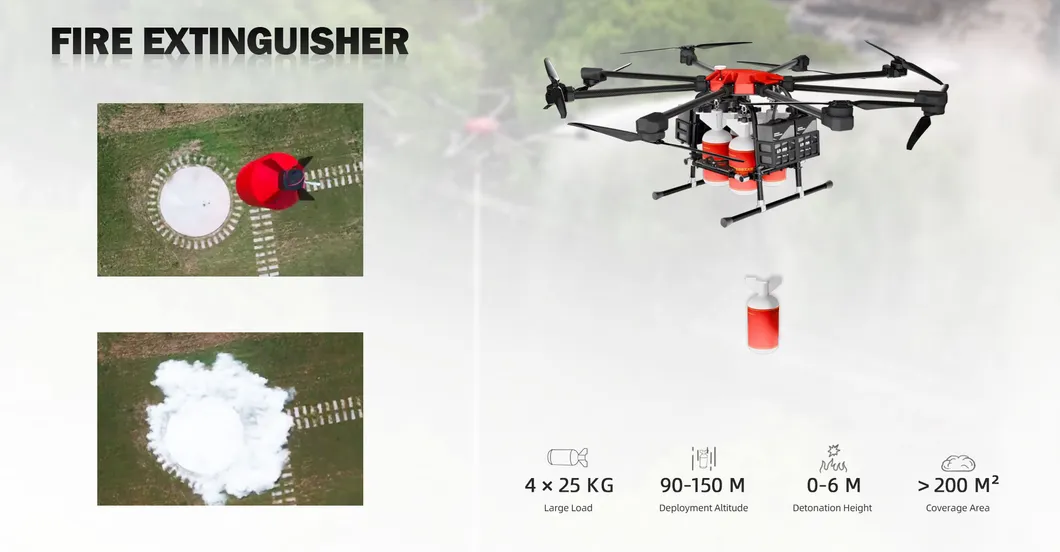

| Fire-extinguisher Specifications | |
|---|---|
| Caliber | ≤ φ 260 mm |
| Total Weight | ≤ 23kg |
| Agent Type | ABC dry chemical or water-based |
| Dispersion Radius | ≥ 5 m |
| Coverage Area | ≥ 50 m² |
| Safety Radius | ≥ 20 m |
