300kg Hairline Stainless Steel Restaurant Food Elevator Service Dumbwaiter Lift

Customization:	Available
After-sales Service:	by Factory or Local Agent
Warranty:	18 Months After Shipment

i Basic Information

Model NO.

ZW001

Type

Wellhole

Load Capacity

300kg

Speed

0.40m/s

Drive Mode

AC

Open & Close Type

Automatic

Lift Mechanism

Telescoping Lift

Guide Rail

Hollow Guide

Main Power

AC 380V, 3 Phase 50Hz

Packing

Plywood Box

★ Product Description

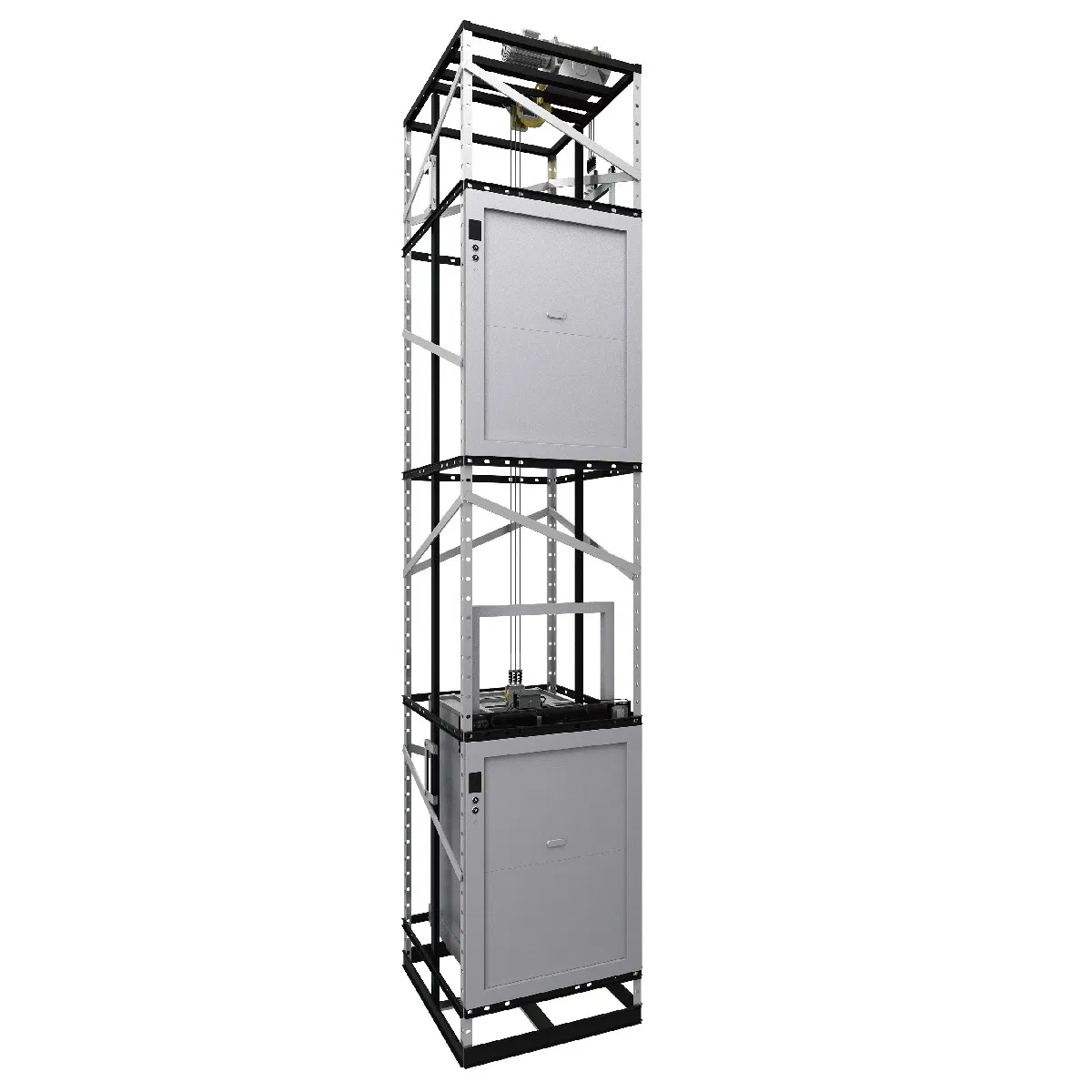

300kg Hairline Stainless Steel Restaurant Food Elevator Service Dumbwaiter Lift

The dumbwaiter is the smallest member of the elevator family. According to different use occasions, it is also called the food elevator, the food dumbwaiter, or the kitchen lift. It silently serves various industries, playing the biggest role with the smallest space requirement.

Key Advantages

1 Space Saving: Occupies a small footprint and requires minimal civil engineering bearing capacity.

2 Advanced Control: Uses PC control modules for smooth operation and accurate leveling.

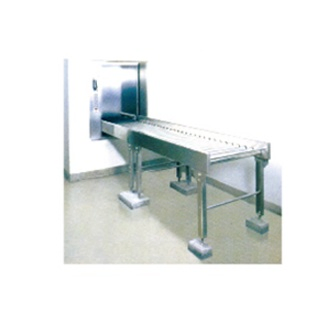

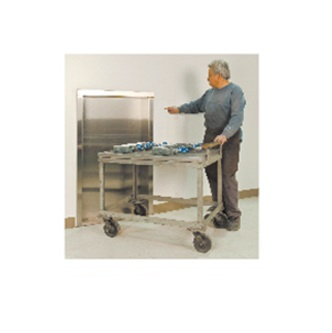

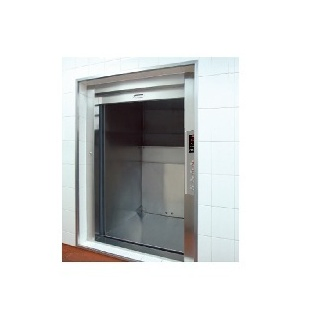

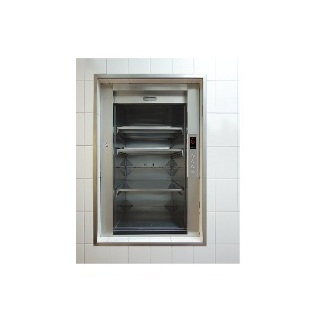

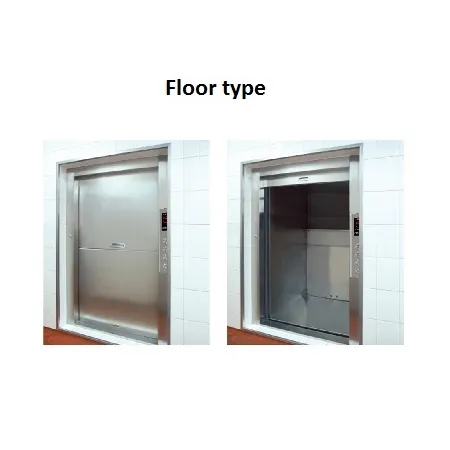

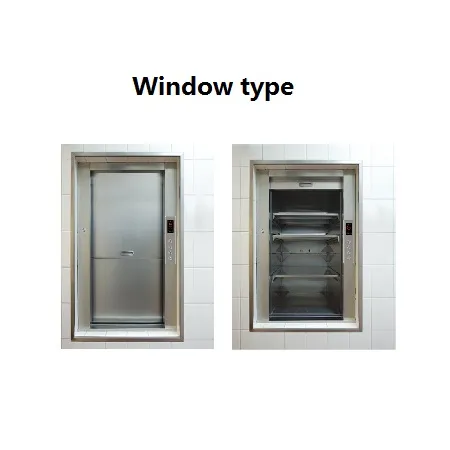

3 Flexible Design: Available in window type and floor type configurations.

4 Easy Maintenance: Elegant, quiet, and designed for long-term reliability.

📋 Technical Parameters

Type	Load (kg)	Speed (m/s)	Cabin Size (WxDxH)mm	Door Size (WxH)mm	Shaft Size (WxD)mm	Pit Depth	OH (mm)
Window	100	0.4	500x500x900	500x900	1000x800	700mm	4500
Window	200	0.4	600x600x900	600x900	1100x900	700mm	4500
Floor	250	0.4	800x800x1000	800x1000	1500x1100	1000mm	4000
Floor	300	0.4	900x900x1000	900x1000	1400x1200	1000mm	4000

🛡️ Safety Functions

✔ Motor overheat protect

✔ Power phase fault detect

✔ Drive running time detect

✔ Inspection running

✔ Emergency door opening key

✔ Car door contact

✔ Shaft emergency stop switch

✔ Safety gear contact

✔ Main power switch

✔ Running direction indicator

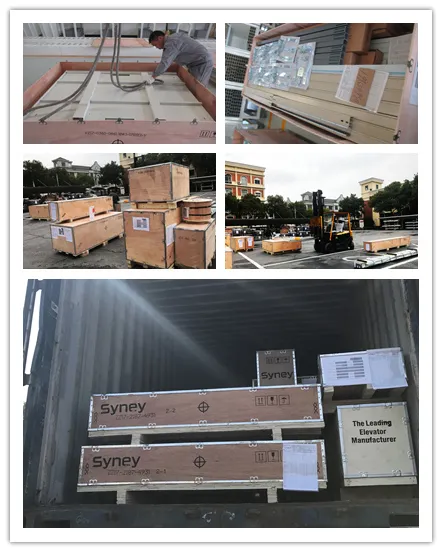

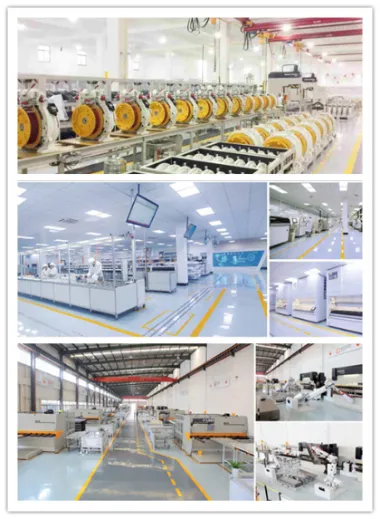

📦 Manufacturing & Packing

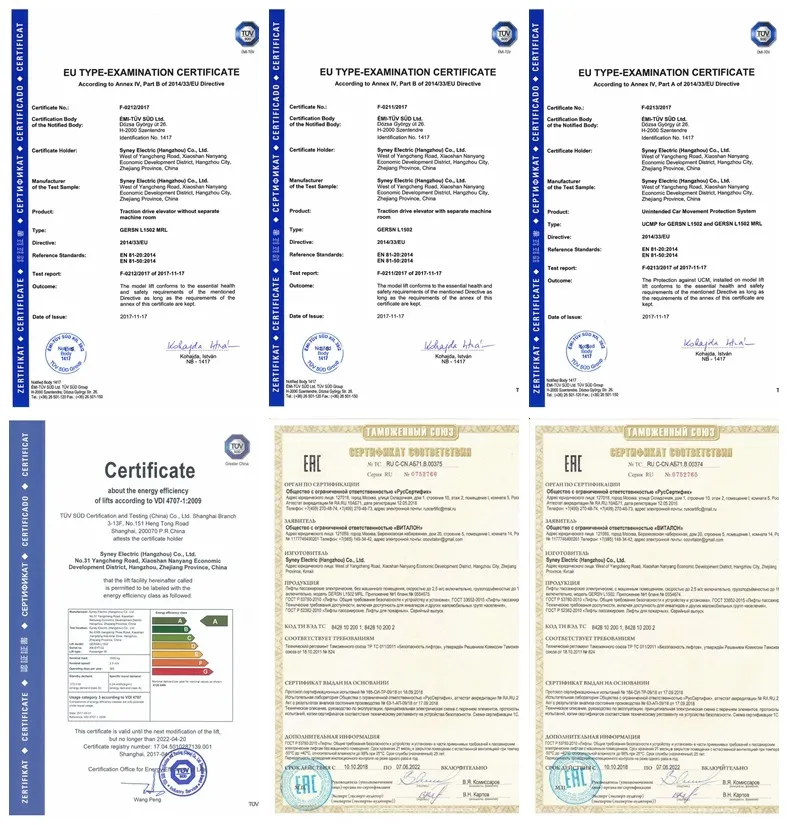

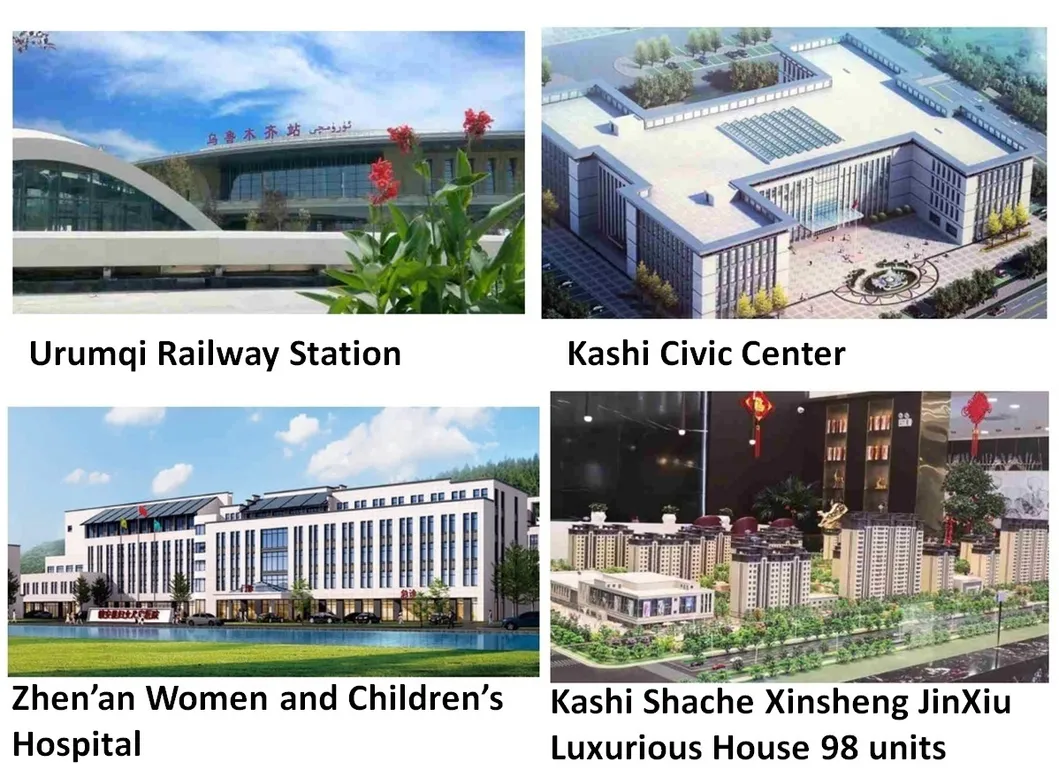

📜 Certifications & Global Projects

Our products have gained TÜV SÜD marks, indicating that our quality certification system meets the highest international requirements. We hold CE Certificates for elevators with and without machine rooms, and our energy-efficiency is rated as Grade A.

? Frequently Asked Questions

1. What information is needed for a fast inquiry?

Please provide the required capacity (e.g., 100kg, 300kg), the number of floors/stops, preferred type (window or floor), and shaft dimensions if available.

2. What is the typical delivery time for a dumbwaiter?

The standard production time is usually 30 days after the deposit is received. Urgent production options may be available for specific project needs.

3. What is the product warranty period?

We provide a comprehensive warranty of 18 months for our elevators starting from the date of delivery.

4. How is the installation and commissioning handled?

We provide a complete set of installation manuals. For commissioning, remote guidance is available, and for special projects, engineers can be dispatched to the site.

5. Can the elevator be customized for specific shaft sizes?

Yes, while we have standard specifications, our factory can design a suitable lift based on your specific jobsite parameters and shaft dimensions.

6. What safety certifications do your lifts carry?

Our lifts are CE certified and meet EN81 and GB7588-2003 standards. We also hold TÜV SÜD and EAC certifications for various international markets.
