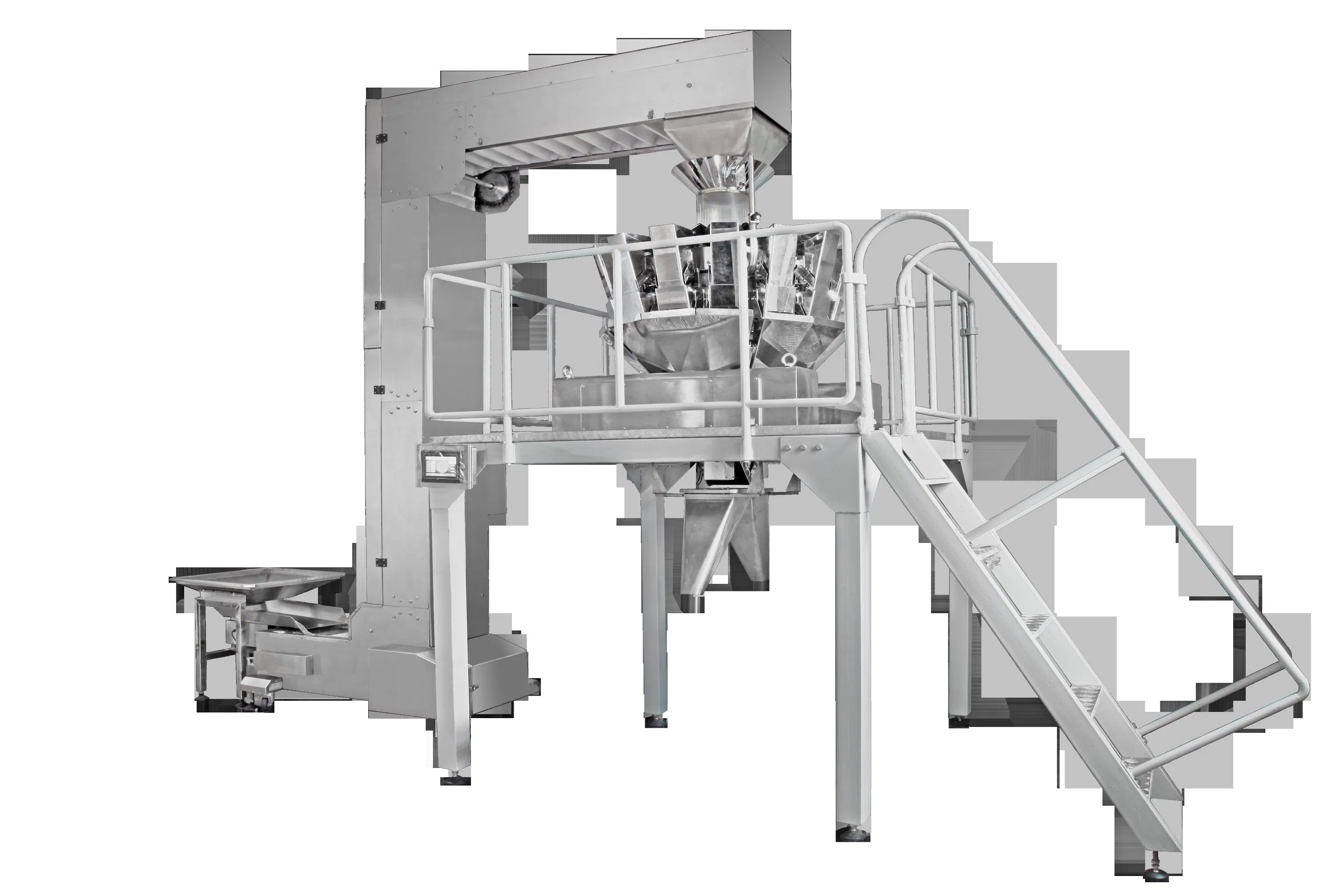

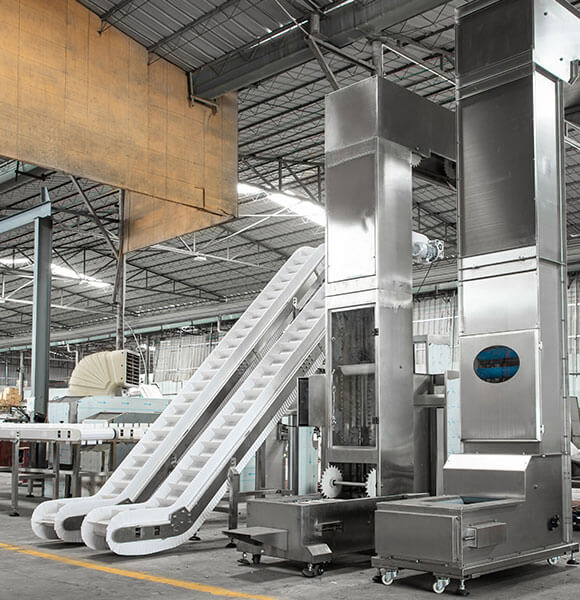

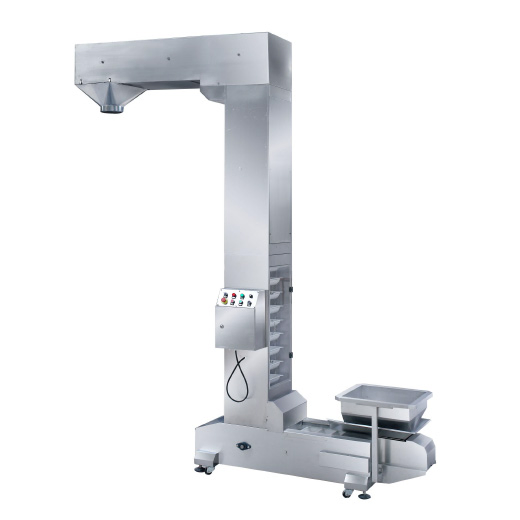

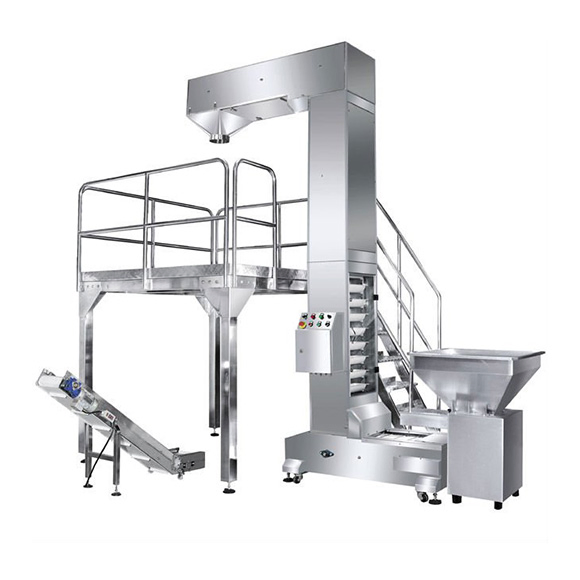

4L Full Auto Plastic High-Speed Bucket Elevator Food Processing Plants Stainless Steel Construction Lifting Elevator

Customization: Available
Warranty: 1 Year
Structure: Conveyor System

Product Description

Basic Info.

Model NO.
FPB-1
Material
Stainless Steel
Application
Chemical Industry
Condition
New
Name
Bucket Elevator
Discharge Height
3.25m
Capacity
4-6m3 / H
Bucket Volume
1.8L
Power
0.75 Kw
Voltage
380V 3phase/ 220V Single Phase
Weight
450 Kg
Transport Package
Export Standard Plywood Case

Product Description

304 Stainless Steel Z Type Bucket Conveyor

Application: Bucket Elevators are very well suited for a broad range of free flowing products in the food, agriculture, pharmaceutical, cosmetic, chemical industry, such as snack foods, frozen foods, vegetables, fruits, confectionary, chemicals and other granules.

Key Features:
  • Buckets made of food grade reinforced polypropylene, handling -10 to 120 degrees Fahrenheit.
  • Vertical conveyor for feeding dry products vertically into hoppers of multihead or linear weighers.
  • Equipped with easy-to-remove inspection covers, windows, and quick release mechanisms for buckets.
  • Automatic chain tensioning device and built-in overload protection included.
  • Geared reducer motor for stable performance and prolonged machine life.

Technical Specifications

Bucket Volume1L / 1.8L / 3.8L / 6.5L
Machine Structure#304 Stainless Steel or Carbon Steel
Production Capacity2-3.5 / 4-6 / 6.5-8 / 8.5-12m3/H
Machine Height3896mm (Standard 1.8L) or Customization
Discharge Height3256mm (Standard 1.8L) or Customization
Hopper MaterialFood Grade PP / ABS
Power SupplyAC 220V Single phase / 380V, 3 Phase, 50Hz; 0.75kw
Packing Dimension2050(L) * 1350(W) * 980mm(H) for standard 1.8L

Factory & Workshop

Office Area

Office Area

Assembly & Production

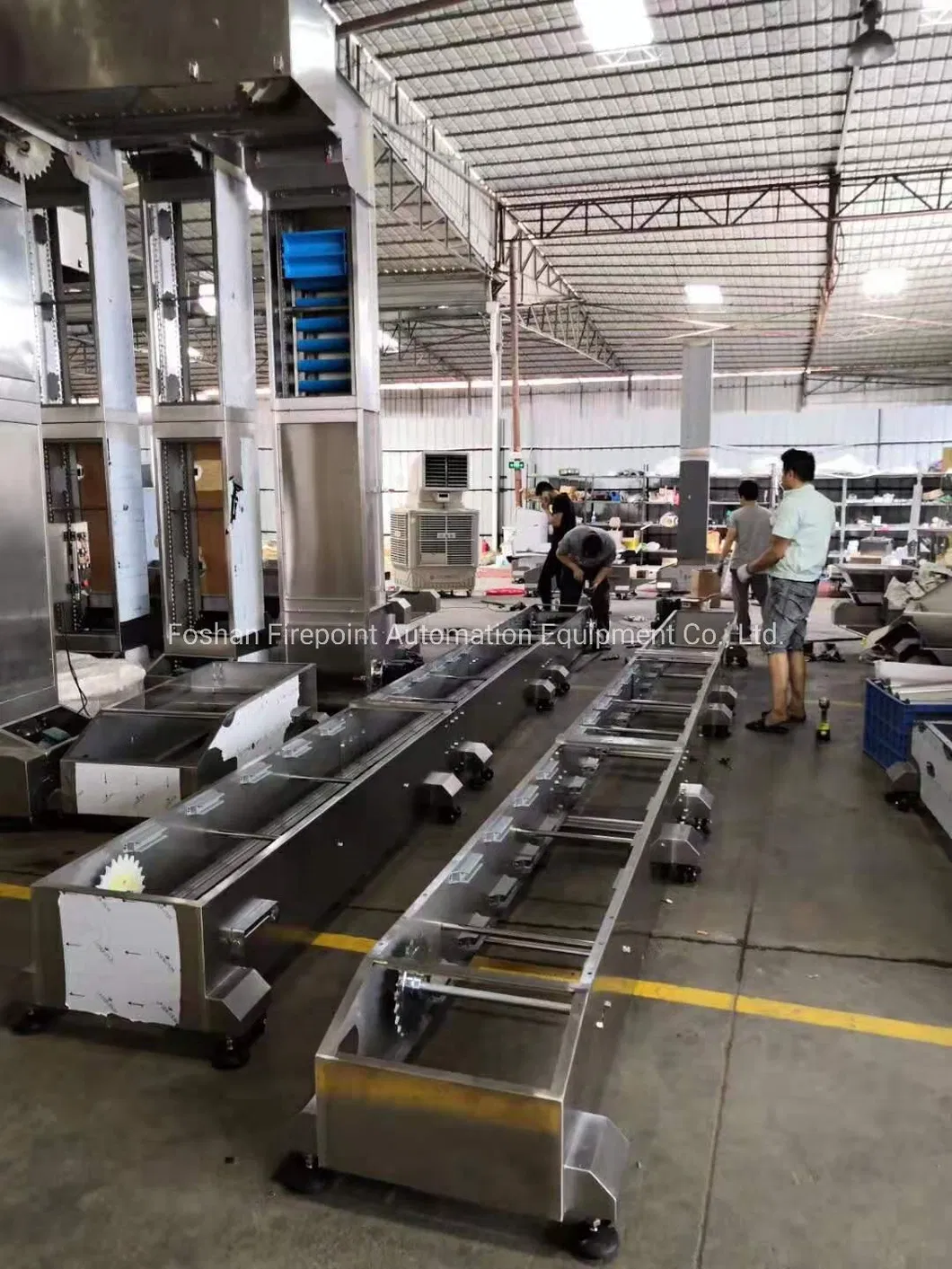

Assembly Area 1 Assembly Area 2

Packing & Shipping Area

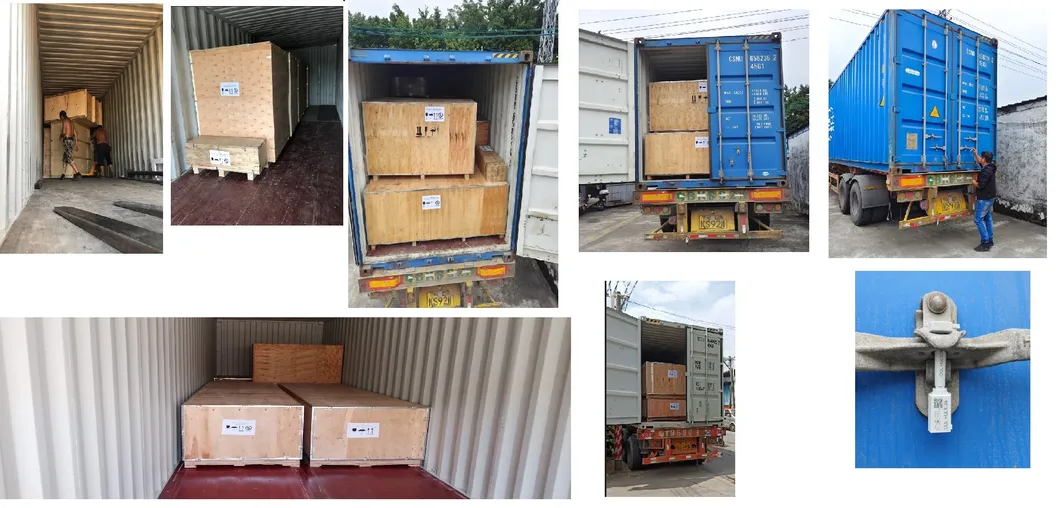

Packing Area

Material Processing

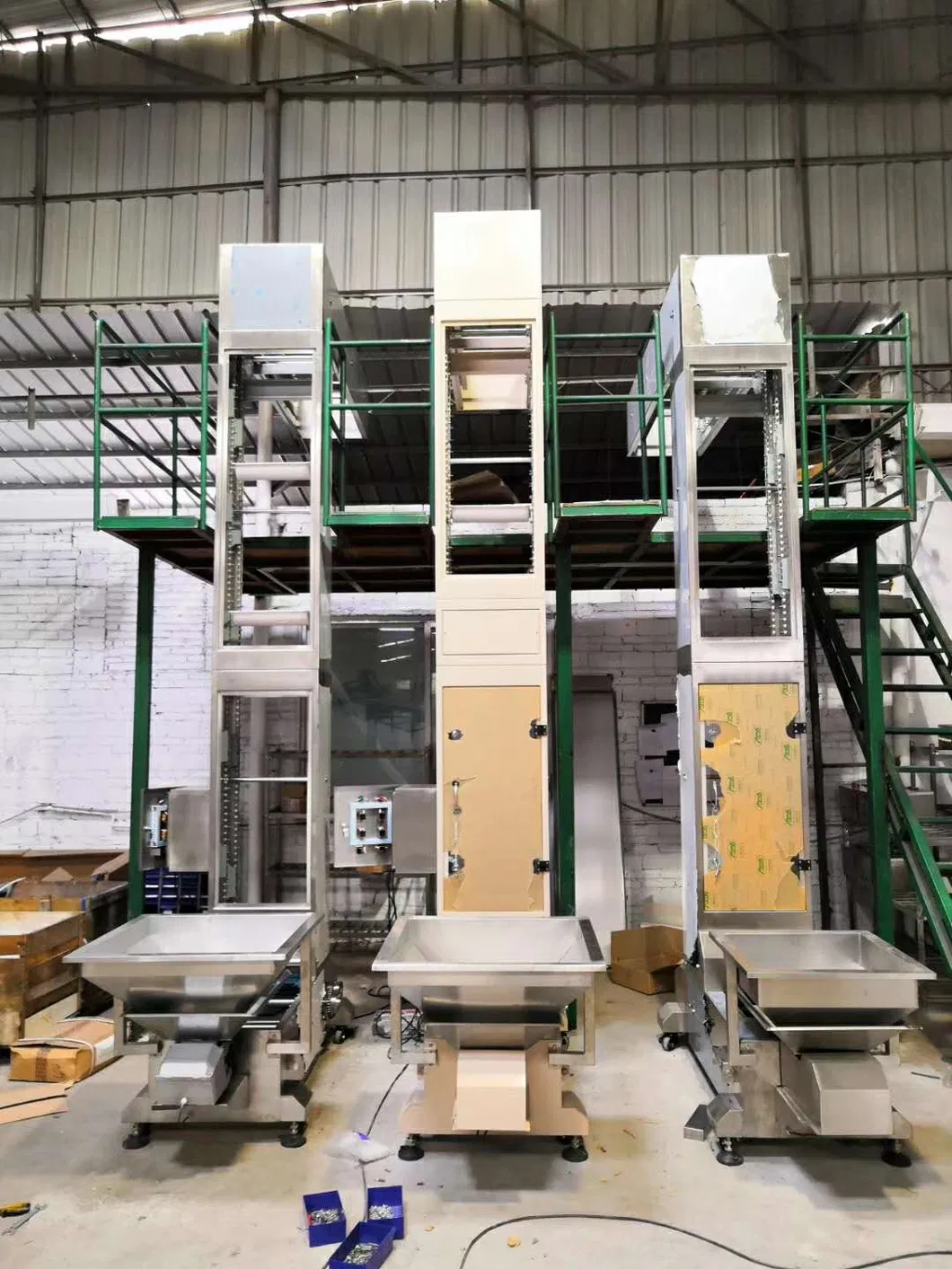

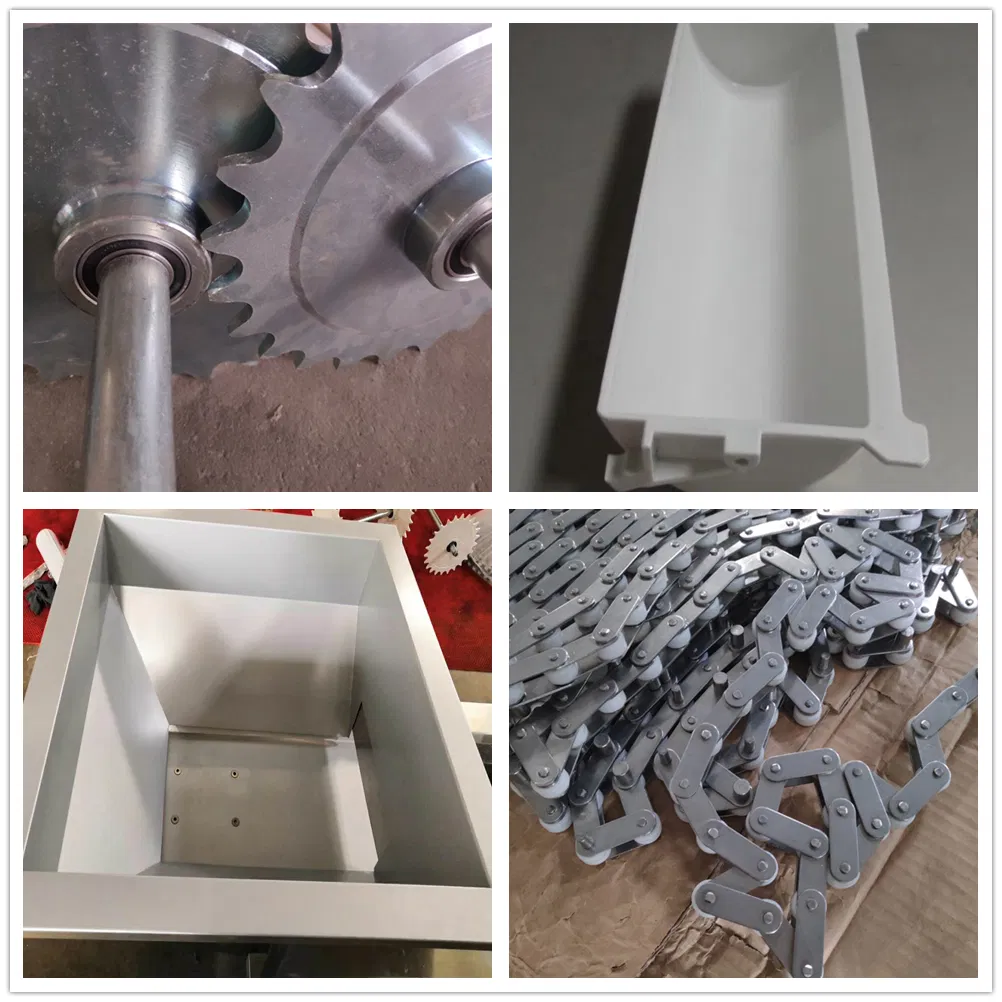

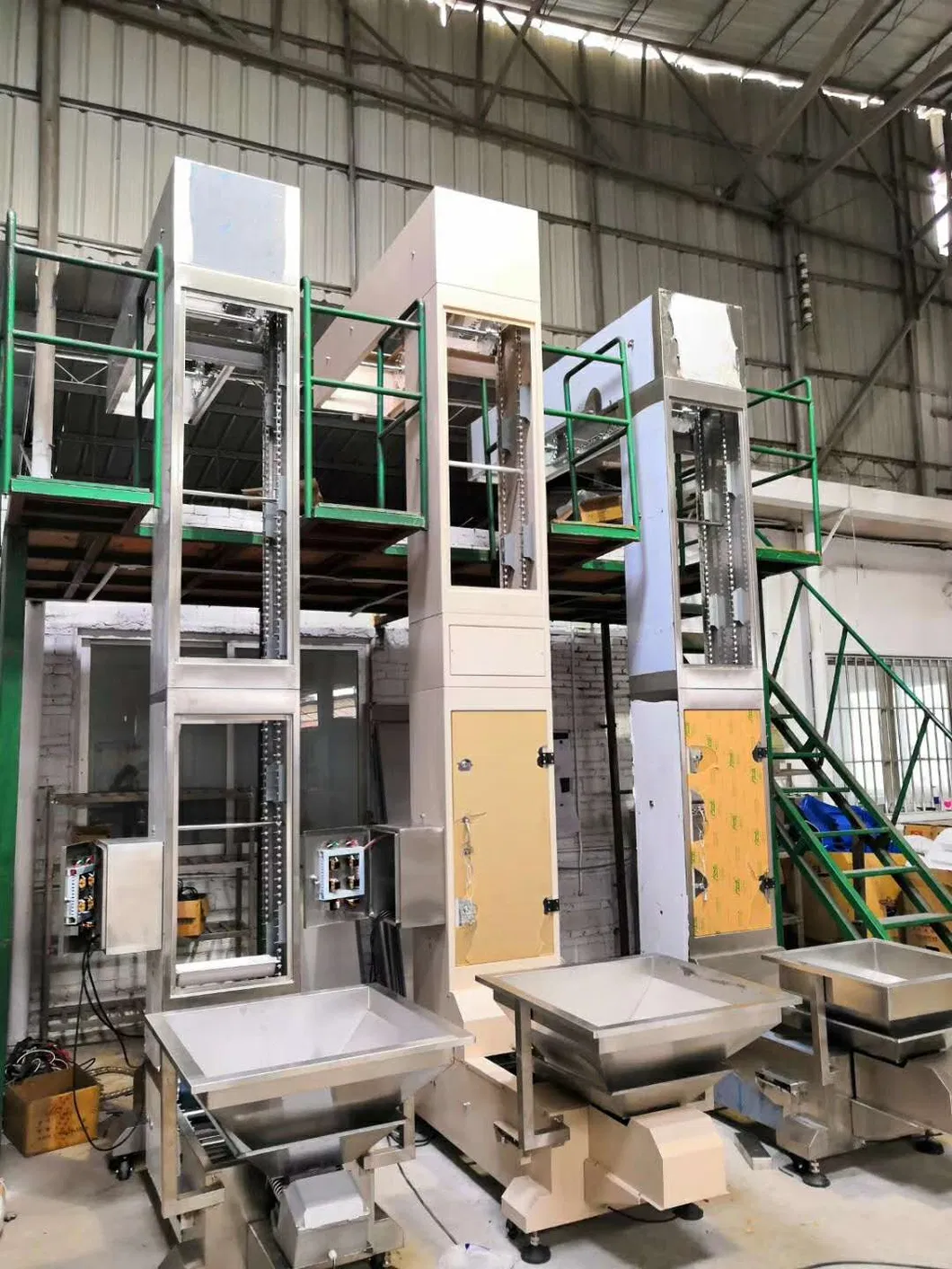

Processing 1 Processing 2 Processing 3

Project Cases

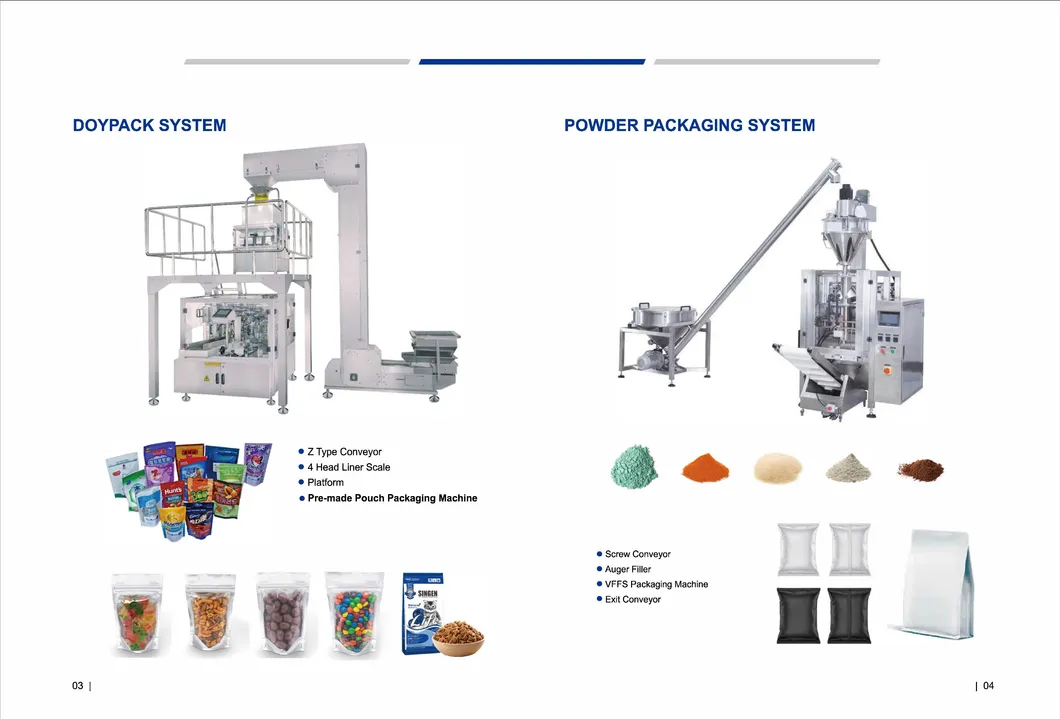

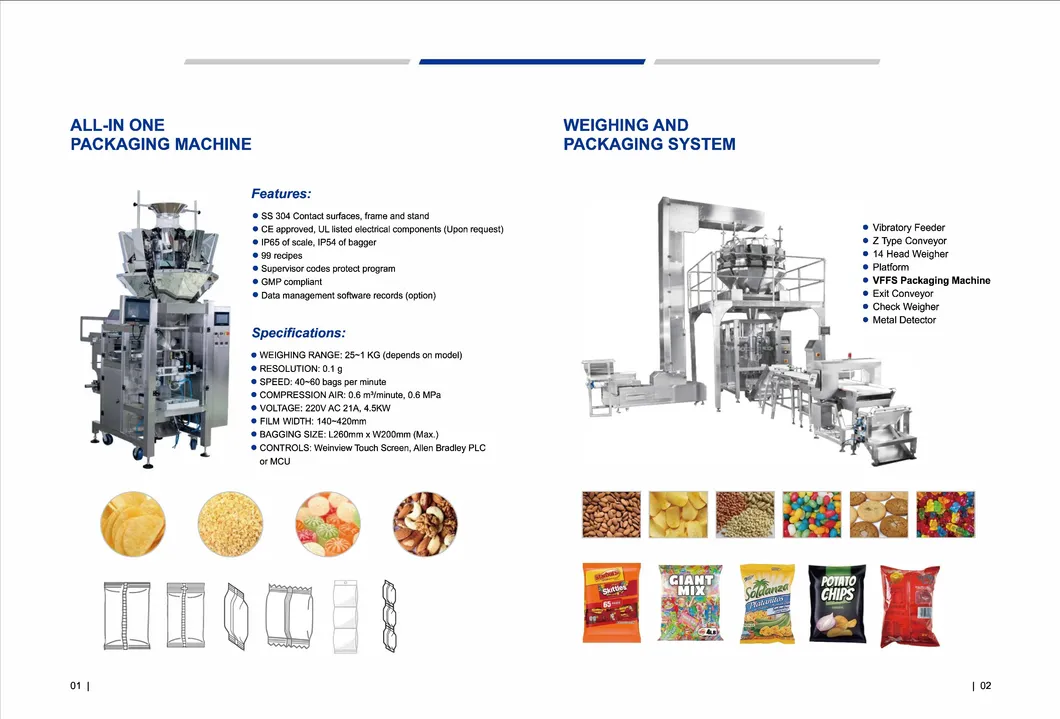

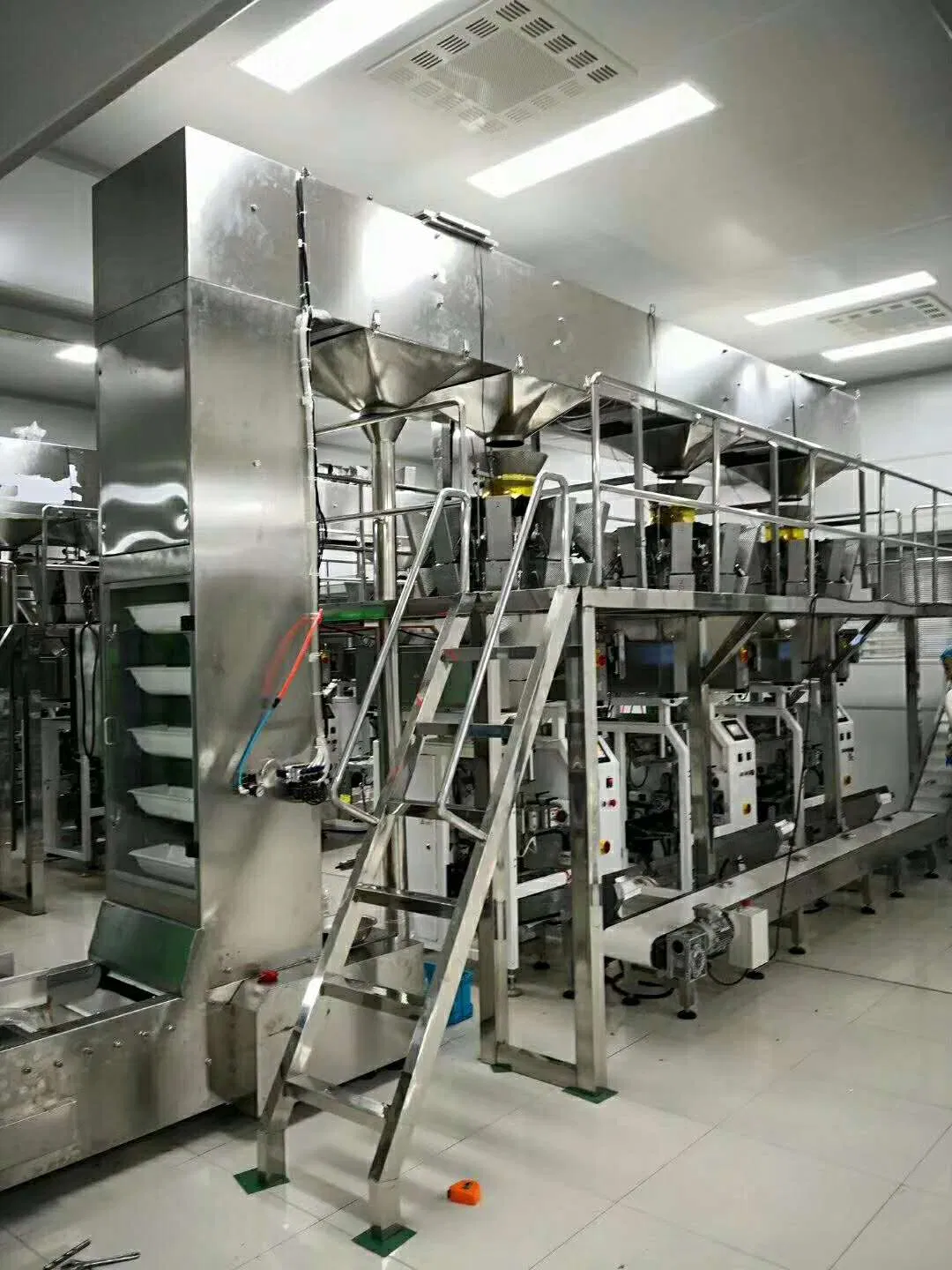

Project Case 1 Project Case 2

Professional Services

Pre-sales Support:

• 2 hours inquiry feedback | 24 hours technical proposal | Full assistance in selection | Free designing & drawing

In-sales Commitment:

• 4 times production feedback | Full supervision | 24/7 standby | Free installation & debugging before delivery | Operator training

After-sales Service:

• Regular follow-ups | Online technical help | Overseas installation available | Cost price for parts after warranty

Frequently Asked Questions

Q1: What are the accepted trade and payment terms?
We accept EXWORK, FOB, CIF, and CFR. Payment requires a 30% T/T deposit, with the 70% balance due before delivery.
Q2: What is the typical delivery time for the bucket elevator?
Usually, production takes 25-35 days, depending on the specific order quantity and customization requirements.
Q3: How is the equipment shipped?
We can arrange shipment by sea, air, railway, or truck according to your specific requirements.
Q4: How is the machine packed for international transport?
The machine is protected with bubble film wrapping inside and packed in an Export Standard Plywood Case for maximum safety.
Q5: What kind of warranty do you provide?
We provide a one-year warranty for free replacement of wearing parts. Beyond the warranty period, parts are provided at cost price.
Q6: Can the discharge height be customized?
Yes, while the standard discharge height is 3.25 meters, both the height and discharge positions can be built to client requirements.
