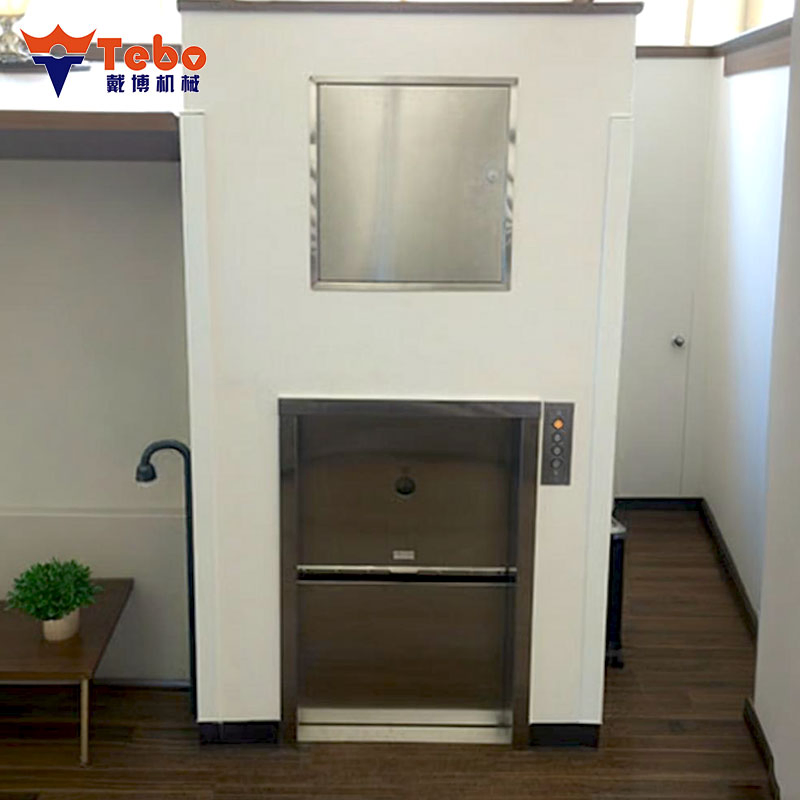

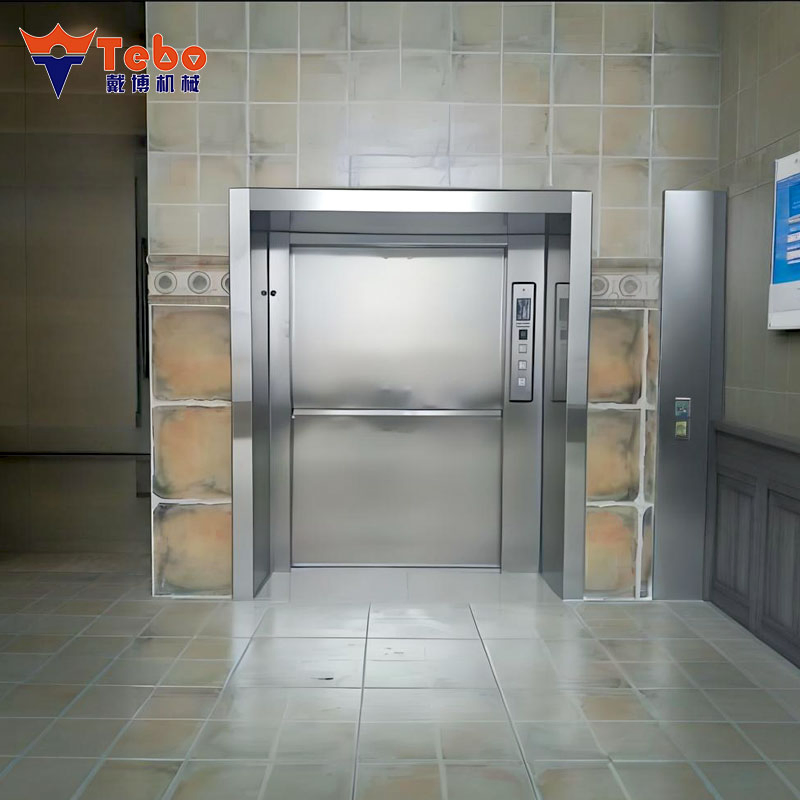

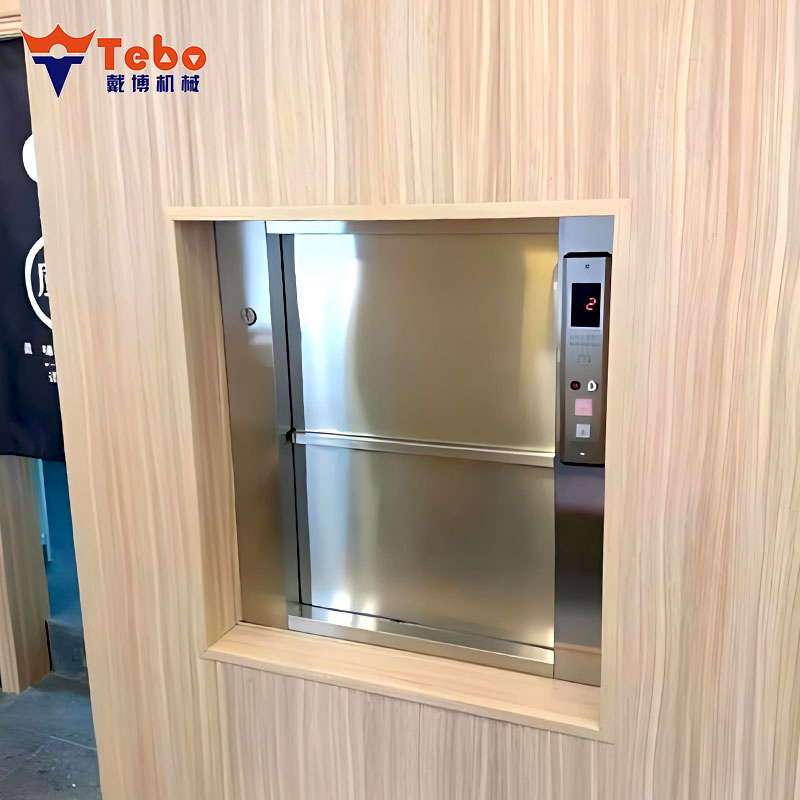

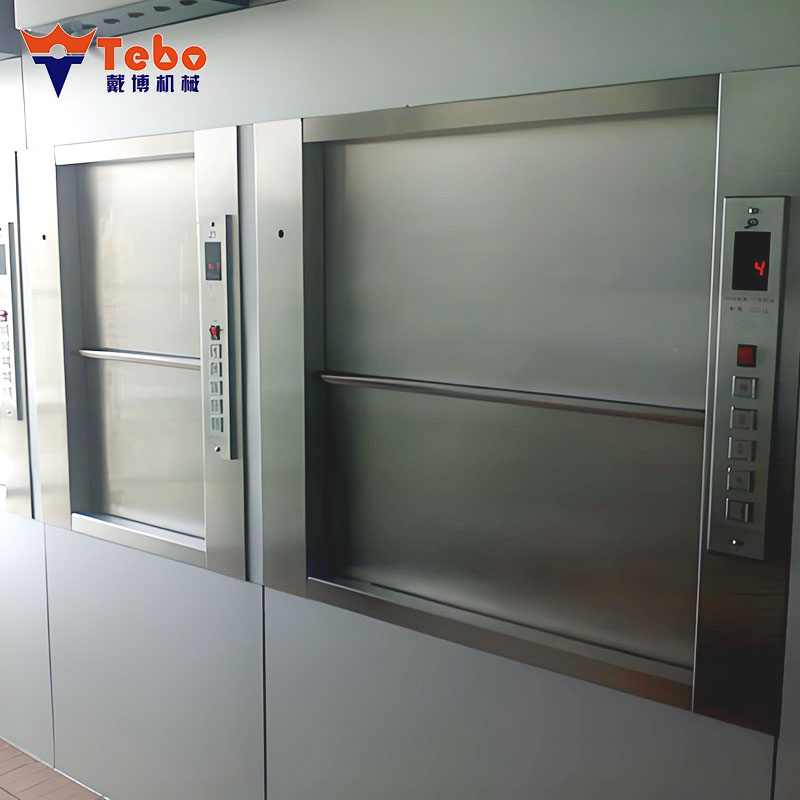

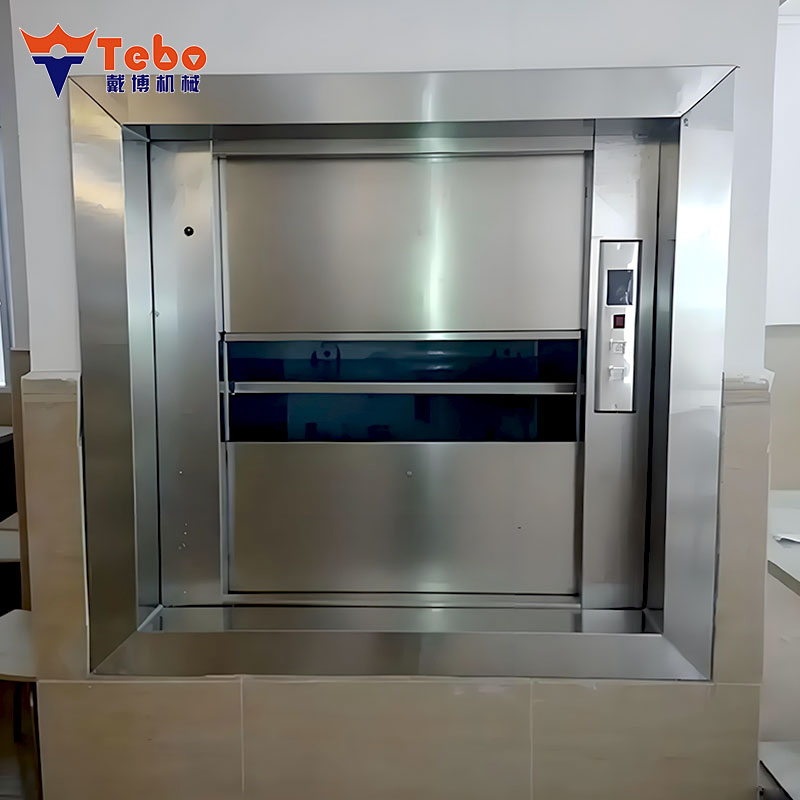

Automatic Dumbwaiter for Fast Vertical Dish Transportation

Still deciding? Get samples of $ !
Request Sample

Product Description

📋

Basic Specifications

Model NO.TBD-23
TypeWellhole
Load Capacity50kg-300kg
Speed0.40m/s
Drive ModeAC
Open & Close TypeManual
Lift MechanismTelescoping Lift
Guide RailT Guide
Elevator DoorCenter Opening Door
OriginChina
Automatic Dumbwaiter for Fast Vertical Dish Transportation
🍴

Product Description

The food delivery lift is a vertical transportation device designed for restaurants, hotels, cafés, and multi-floor dining environments. It is mainly composed of a shaft structure, a stainless-steel cabin, a driving mechanism, and an intelligent control system. With a durable stainless-steel cabin and a robust steel shaft frame, the lift ensures excellent corrosion resistance and easy cleaning. The traction driving system provides smooth and low-noise movement, fully meeting the hygiene and quietness requirements of food-service settings.

The primary advantage of a dumbwaiter is its ability to significantly improve the efficiency of food delivery between floors, making service flow smoother during peak hours. Its enclosed cabin keeps food clean, preventing contamination and avoiding spills that often occur during manual handling. Multiple safety features, such as door interlocks, overload protection, and emergency stop functions, ensure reliable performance.

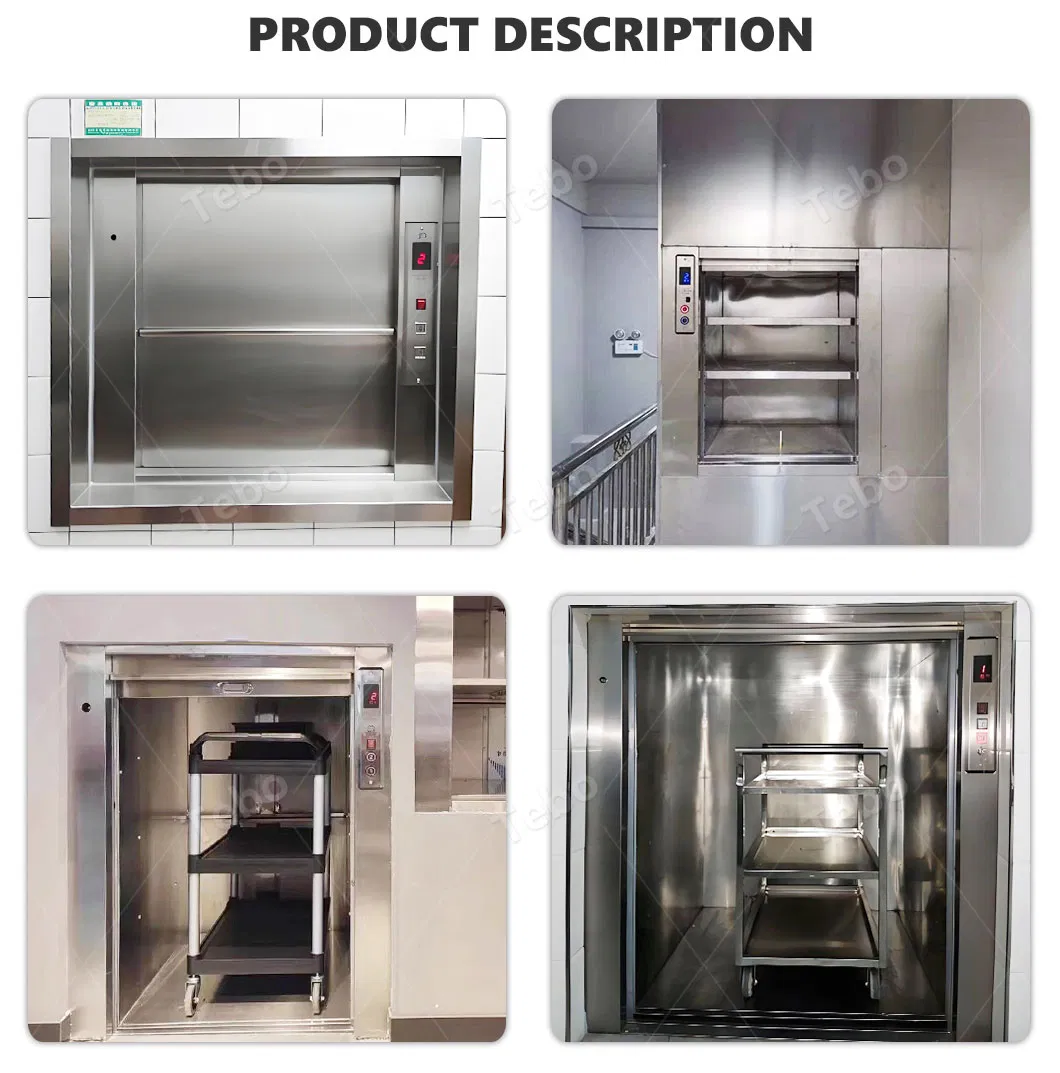

Dumbwaiter Structure and Application
📏

Window Type Parameters

Load(kg) Cabin Dimension (W*D*H) Landing Door Door Size (W*H) Window Sill Height Overhead Height
100600*400*800Standard600*8008002800
100600*600*800Standard600*8008002800
200800*800*800Standard800*8008002800
200800*800*1000Standard800*10008003000
2001000*1000*800Standard1000*8008003000
2001000*1000*1000Standard1000*10008003200
🏗️

Floor Type Parameters

Load(kg) Cabin Dimension (W*D*H) Landing Door Door Size (W*H) Min. Pit Depth Overhead Height
200800*800*1000Standard800*10006002800
2001000*1000*1000Standard1000*10006002800
200800*1000*1200Standard800*12007003200
3001000*1000*1200Standard1000*12007003200
3001000*1200*1200Standard1200*12007003200
4001000*1200*1400Standard1200*14008003600
🔍

Product Details

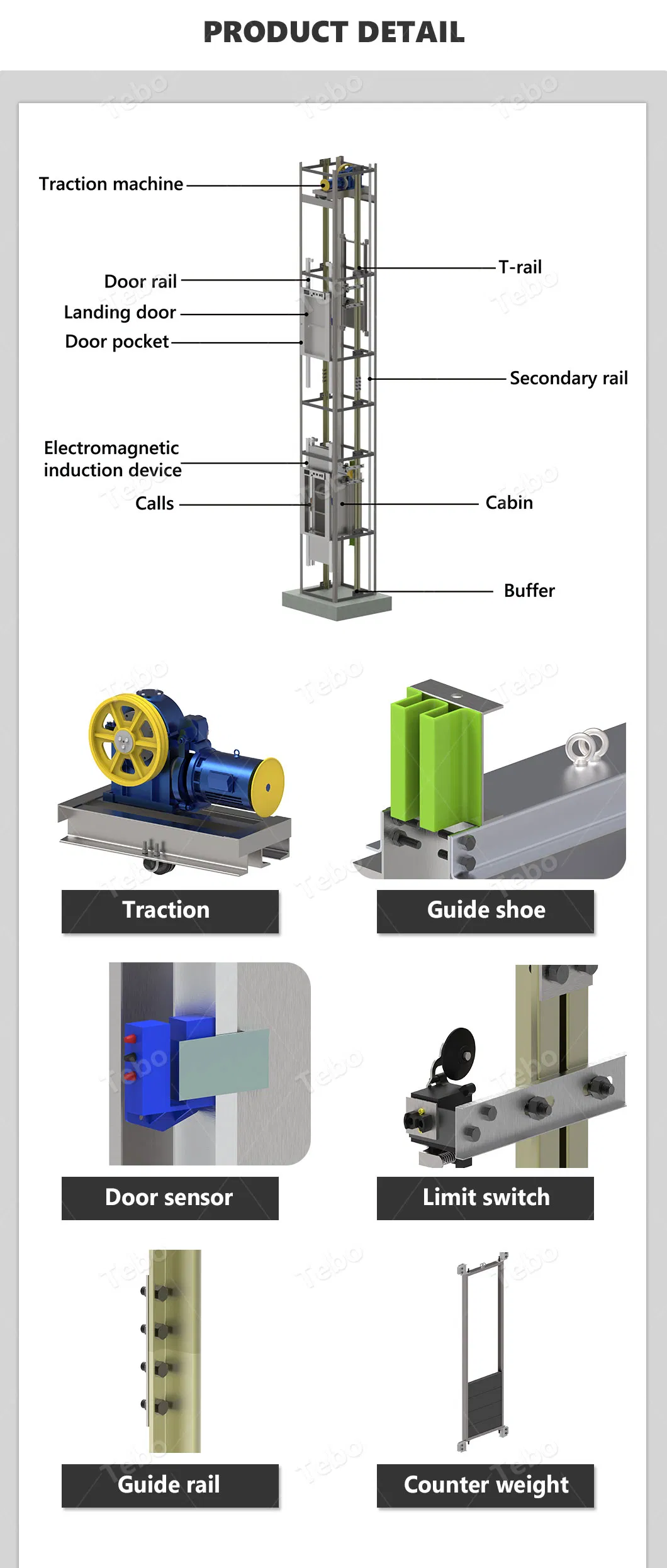

Dumbwaiter Component Detail 1

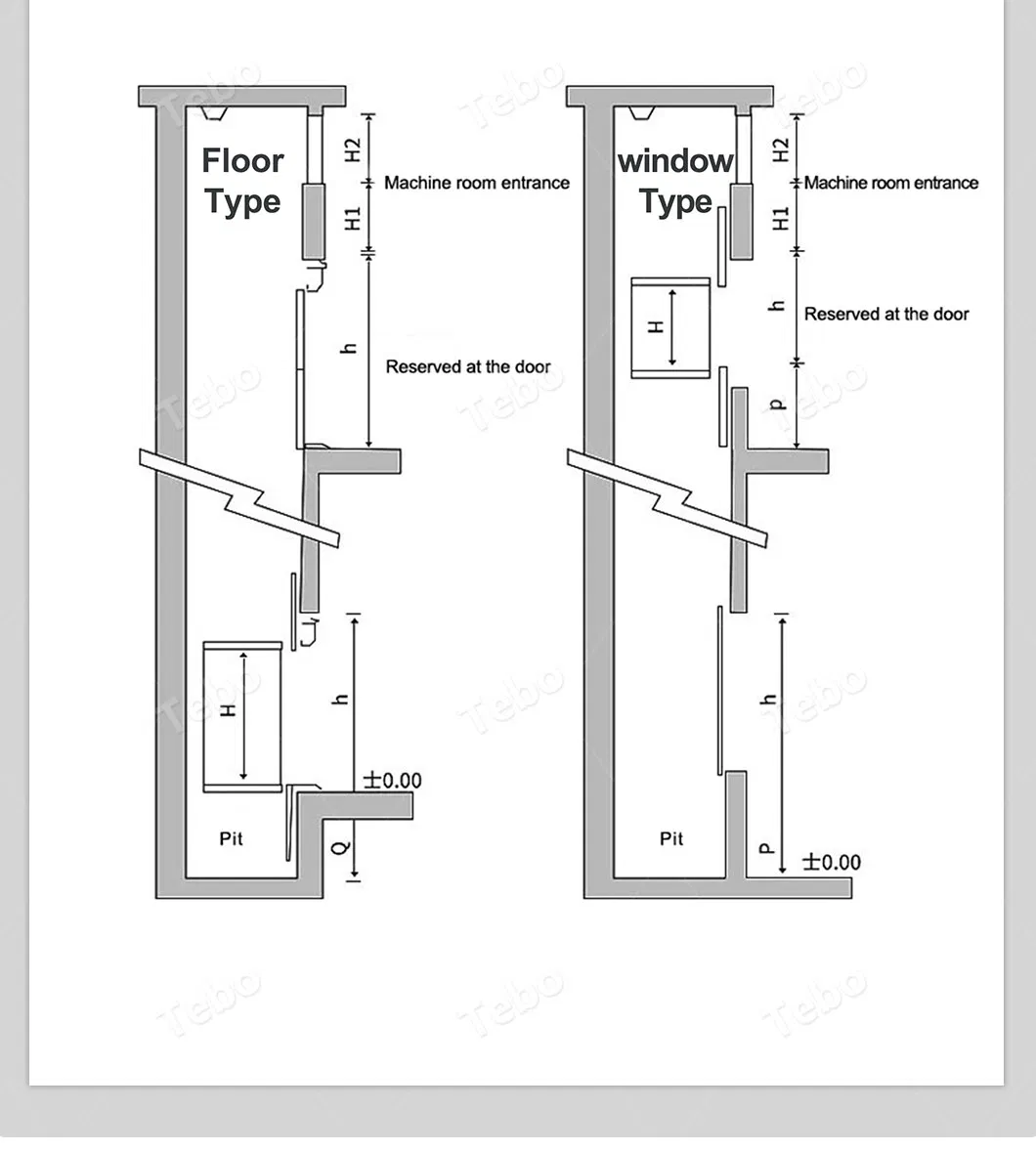

Dumbwaiter Component Detail 2

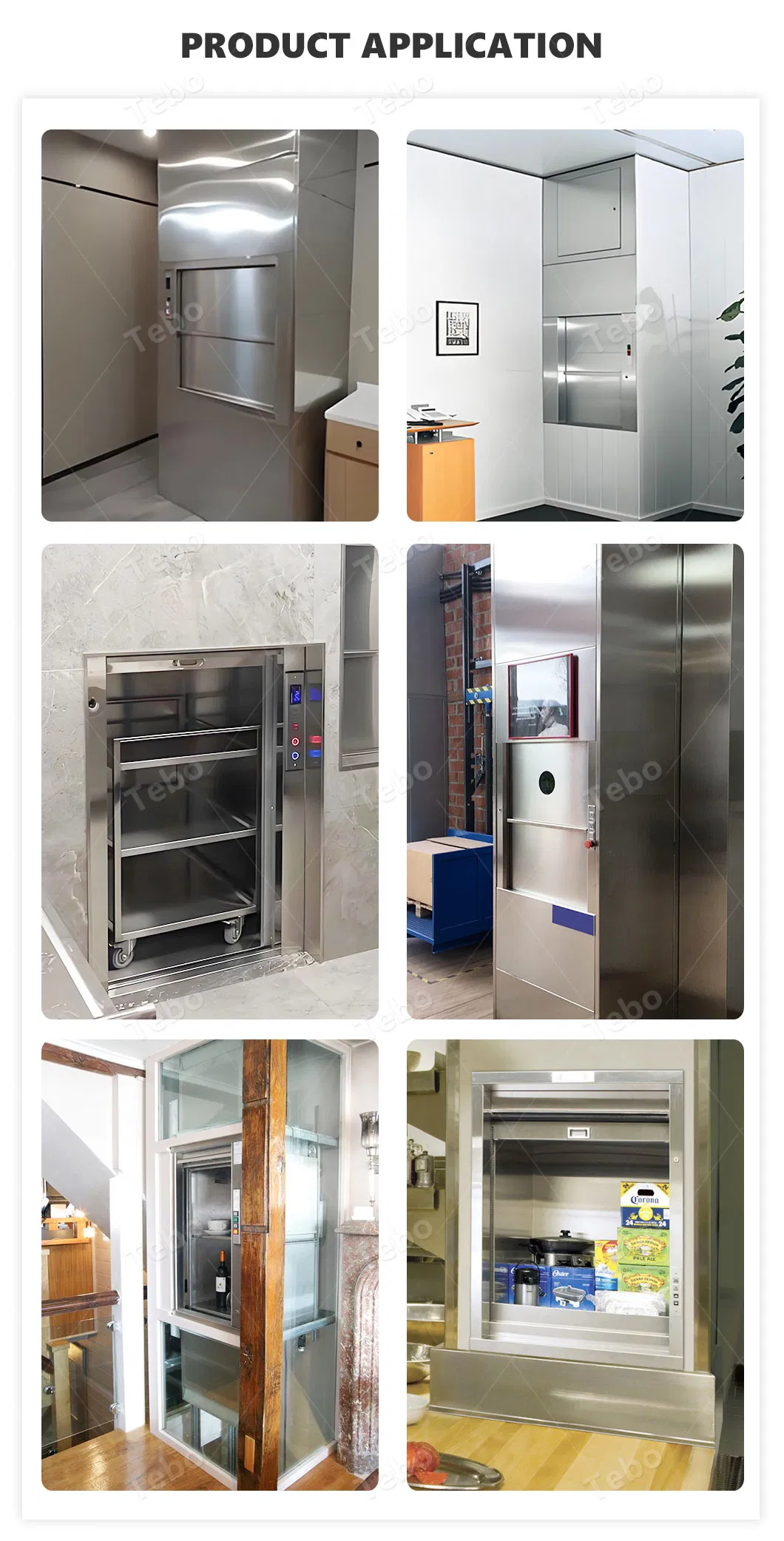

Dumbwaiter Component Detail 3
🏭

Manufacturing & Expertise

Our operational and production base is located in a well-connected industrial hub. We utilize an experienced technical team to continuously optimize product series including hydraulic home elevators, freight lifts, and scissor lift platforms. Our production facility is equipped with advanced CNC machining centers and automated welding equipment to ensure precision and reliability. We provide a comprehensive service system encompassing market analysis, customized design, and full lifecycle technical support.

Factory Overview
Production Process
📦

Packaging & Shipping

Quality Certification
Packaging Detail

Frequently Asked Questions

1. What are the key advantages of your lifts?
We offer competitive pricing and high-quality standards. Our equipment includes a 12-month warranty, and we provide professional guidance for installation and after-sales support.
2. Can the food delivery lift be customized?
Yes, we provide detailed blueprints and modifications based on your specific space requirements, load capacity, and cabin dimensions.
3. How is the equipment packaged for international shipping?
We typically use robust plywood cases for export. Special shipping marks and specific packaging requirements can be accommodated upon request.
4. What is the typical lead time for production?
Production generally takes about 10 working days after payment is received, though this may vary depending on the complexity of the customization.
5. What safety features are included in the dumbwaiter?
Standard safety features include door interlocks, limit switches, anti-fall devices, and overload protection to ensure reliable and safe vertical transportation.
6. What payment terms do you offer?
We accept EXW, FOB, CFR, and CIF terms. Payment is typically required before production starts, with the balance settled before final delivery.
