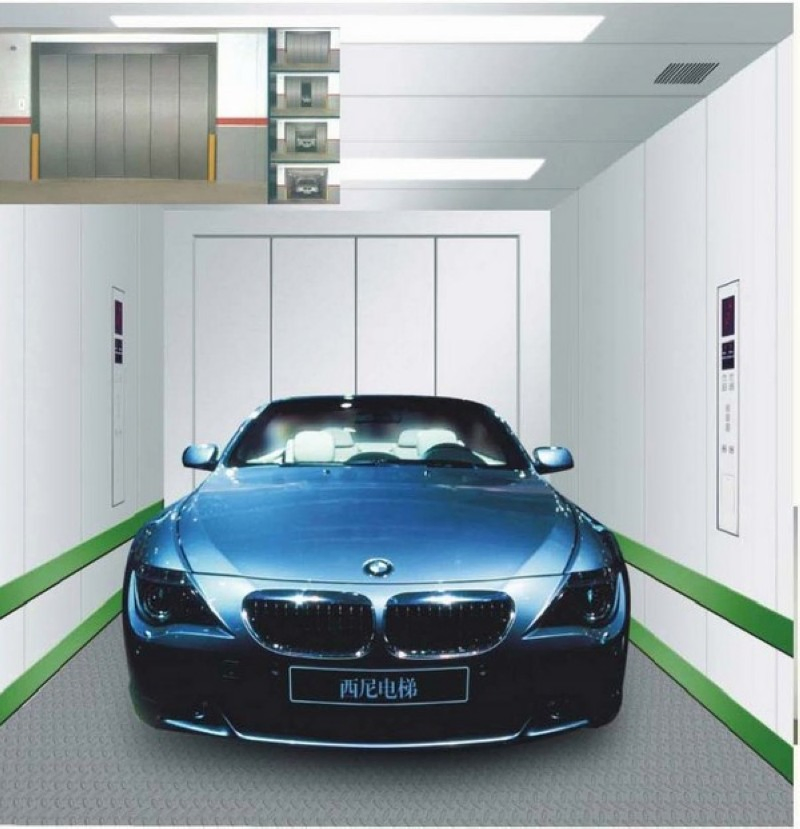

Automobile 4s Dealer Car Elevator Warehouse Freight Goods Lift

1 / 5

Automobile 4s Dealer Car Elevator Warehouse Freight Goods Lift

Customization:	Available
Type:	Wellhole
Load Capacity:	5000kg

Send Inquiry

Product Description

Basic Specifications

Model NO.

21Q001

Speed

0.25m/s

Drive Mode

Open & Close Type

Automatic

Lift Mechanism

Telescoping Lift

Guide Rail

T Guide

Capacity

3000~5000kg

Door Open Way

Center Open 4 Panel

Motor

Geared or Gearless

Production Time

About 35 Days

Transport Package

Plywood Box

Origin

Hangzhou, Zhejiang

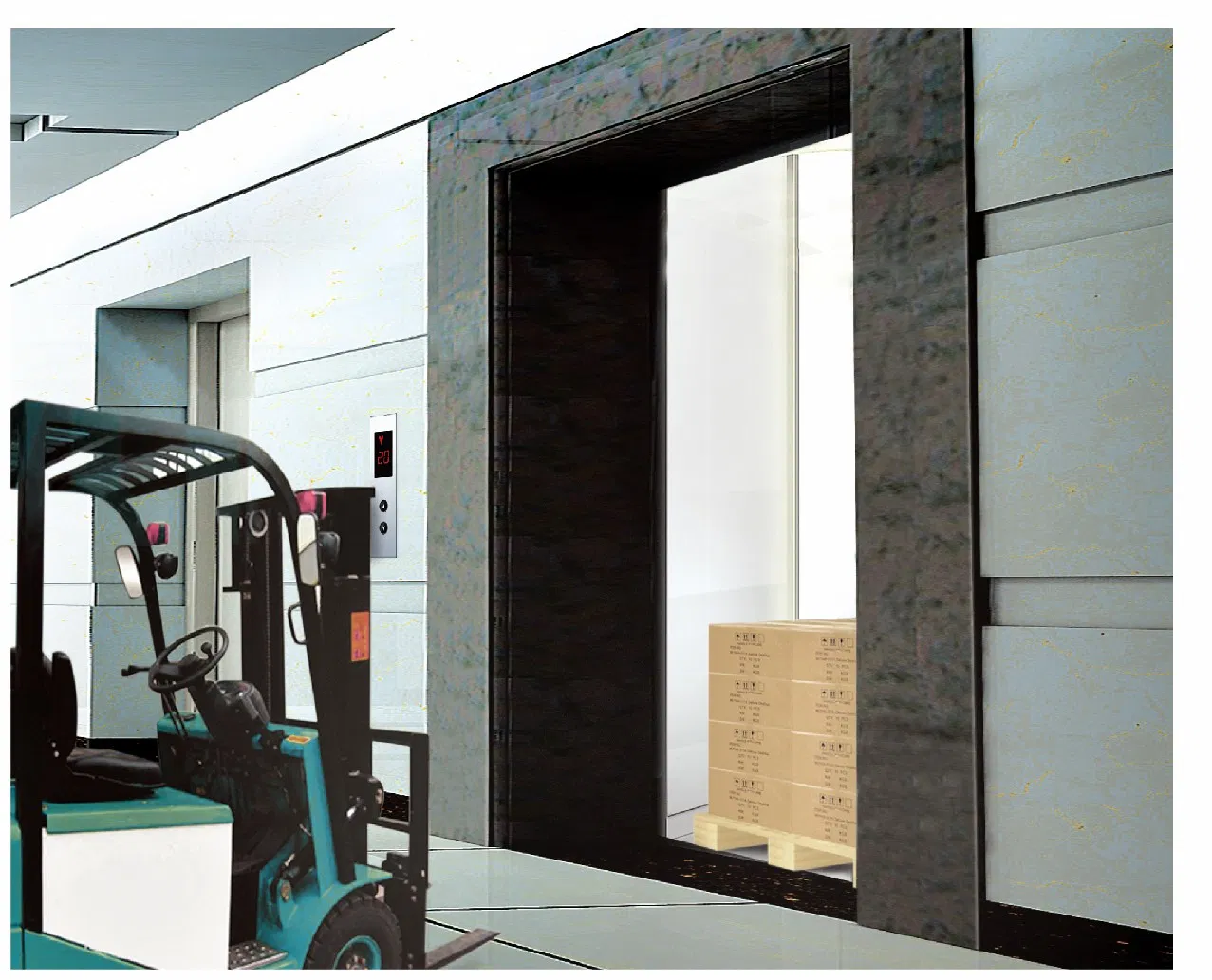

Automobile & Freight Goods Lift

This cargo elevator creates a new concept of goods moving, ensuring optimal loading capacity with wide open space. Built for safety and reliability, it features high structural strength and smooth running, making it the ideal choice for supermarkets, logistic centers, factories, and warehouses.

Key Features

1. Multi-beam Door Sensor Multi-infrared light covers the full door height to ensure safety. If a beam is blocked, the door reopens instantly to protect passengers and goods.

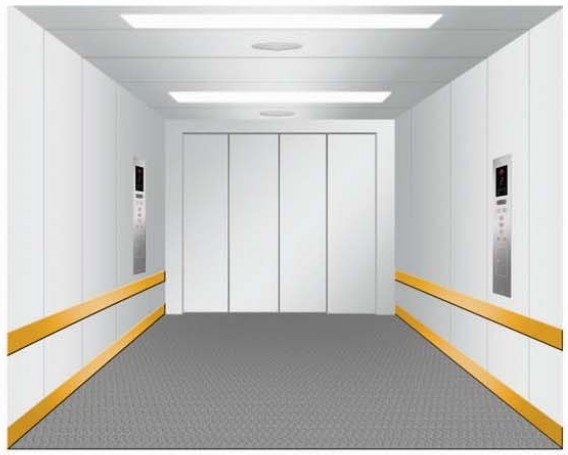

2. Enhanced Durability The cabin is designed with a steel structure and bumper panels to protect against impacts, significantly increasing the service life.

3. Anti-skid Floor Design Adopts floating-point rubber flooring, which is both skid-proof and highly durable for heavy-duty use.

4. VVVF Door Operator Equipped with a VVVF technology drive system for high reliability and a low failure rate.

5. Flexible Installation Standardized components allow for flexible installation either with or without a machine room.

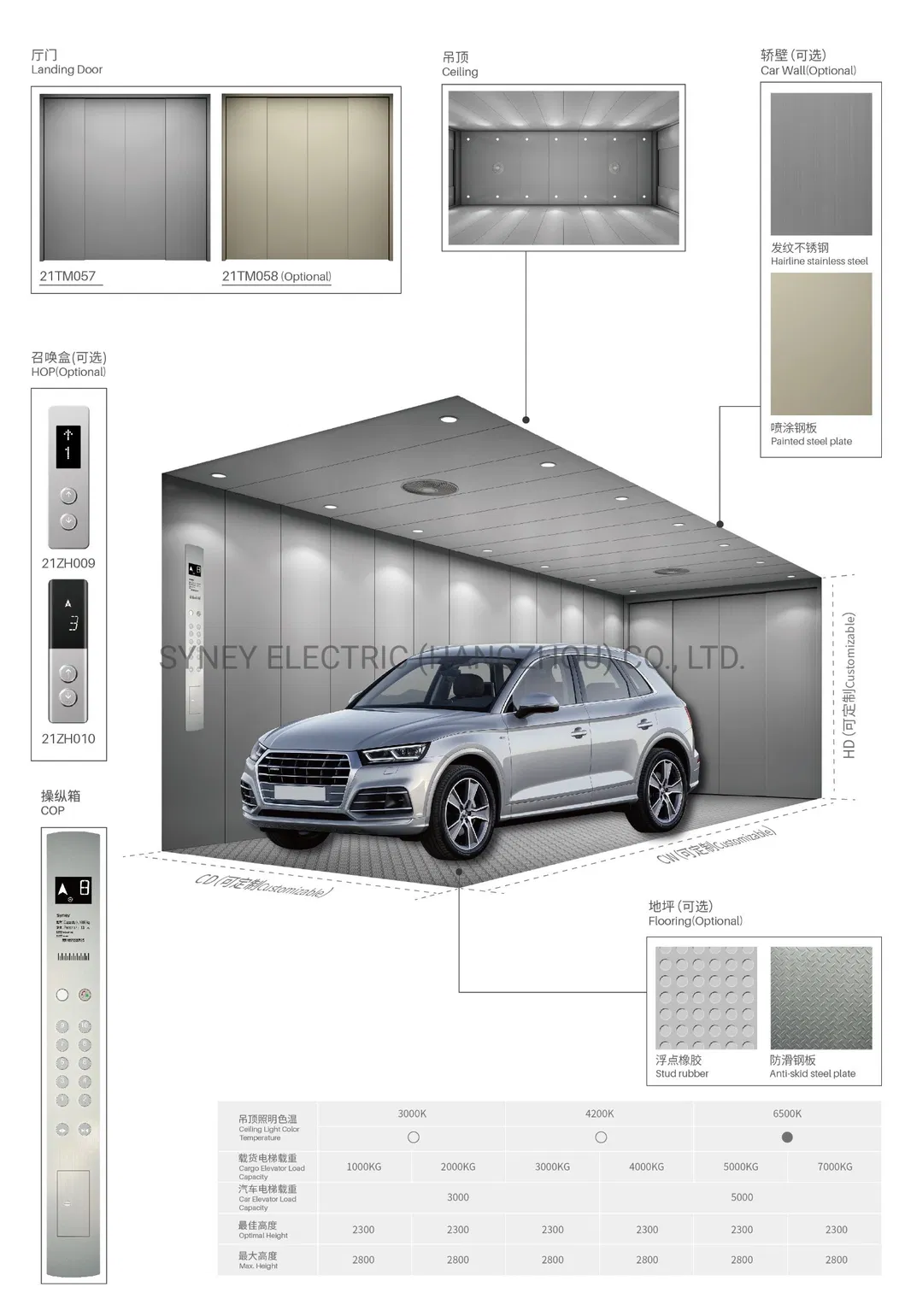

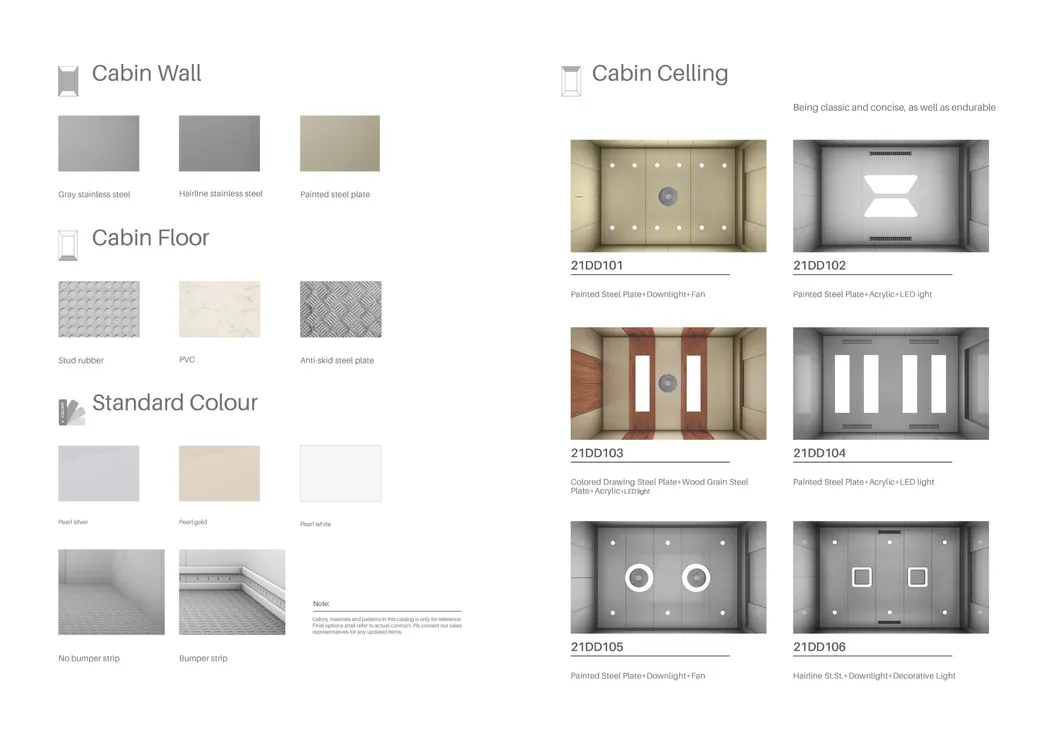

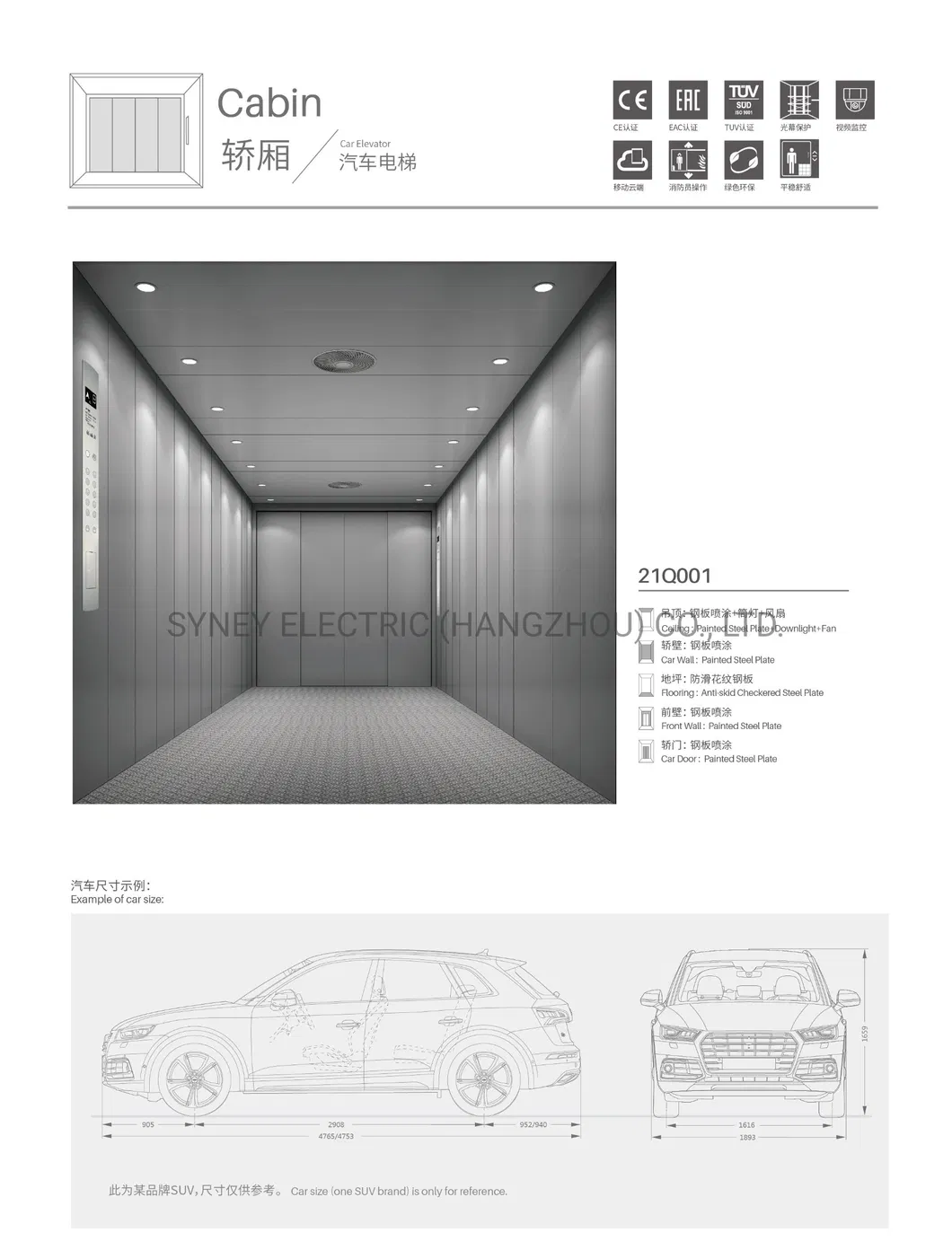

Cabin Design & Layout

Technical Parameters

Capacity (kg)	Speed (m/s)	Cabin Size (WxD mm)	Shaft Size (WxD mm)	Max Travel (m)
1000	0.5 / 0.63	1500 x 1500	2400 x 2100	30
1600	0.5 / 0.63	1700 x 2000	2700 x 2600	30
2000	0.5 / 0.63	2000 x 2000	3000 x 2700	30
3000	0.5 / 0.63	2000 x 2800	3100 x 3400	30
5000	0.25 / 0.5	2400 x 3700	3600 x 4300	25

* Note: Above specifications are for reference. Custom designs are available based on site parameters.

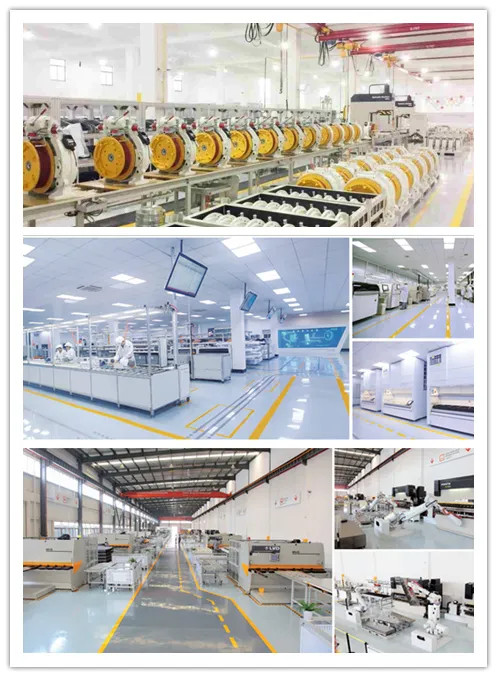

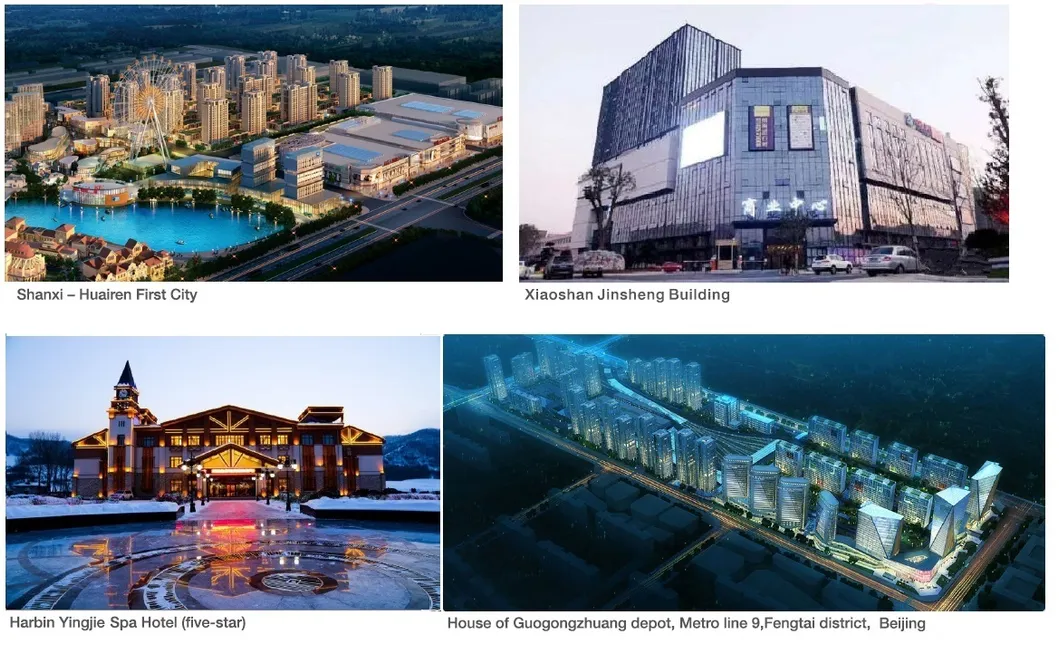

Quality & Projects

Frequently Asked Questions

Q1: What is the maximum loading capacity for this lift? The capacity ranges from 3000kg to 5000kg, depending on the model and requirements.

Q2: Can the elevator be installed without a machine room? Yes, the design is flexible and supports both "With Machine Room" and "Without Machine Room" configurations.

Q3: What safety features are included? It includes multi-beam infrared door sensors, anti-skid floors, and bumper structures to protect the cabin from impact.

Q4: What is the lead time for production? Standard production time is approximately 35 days.

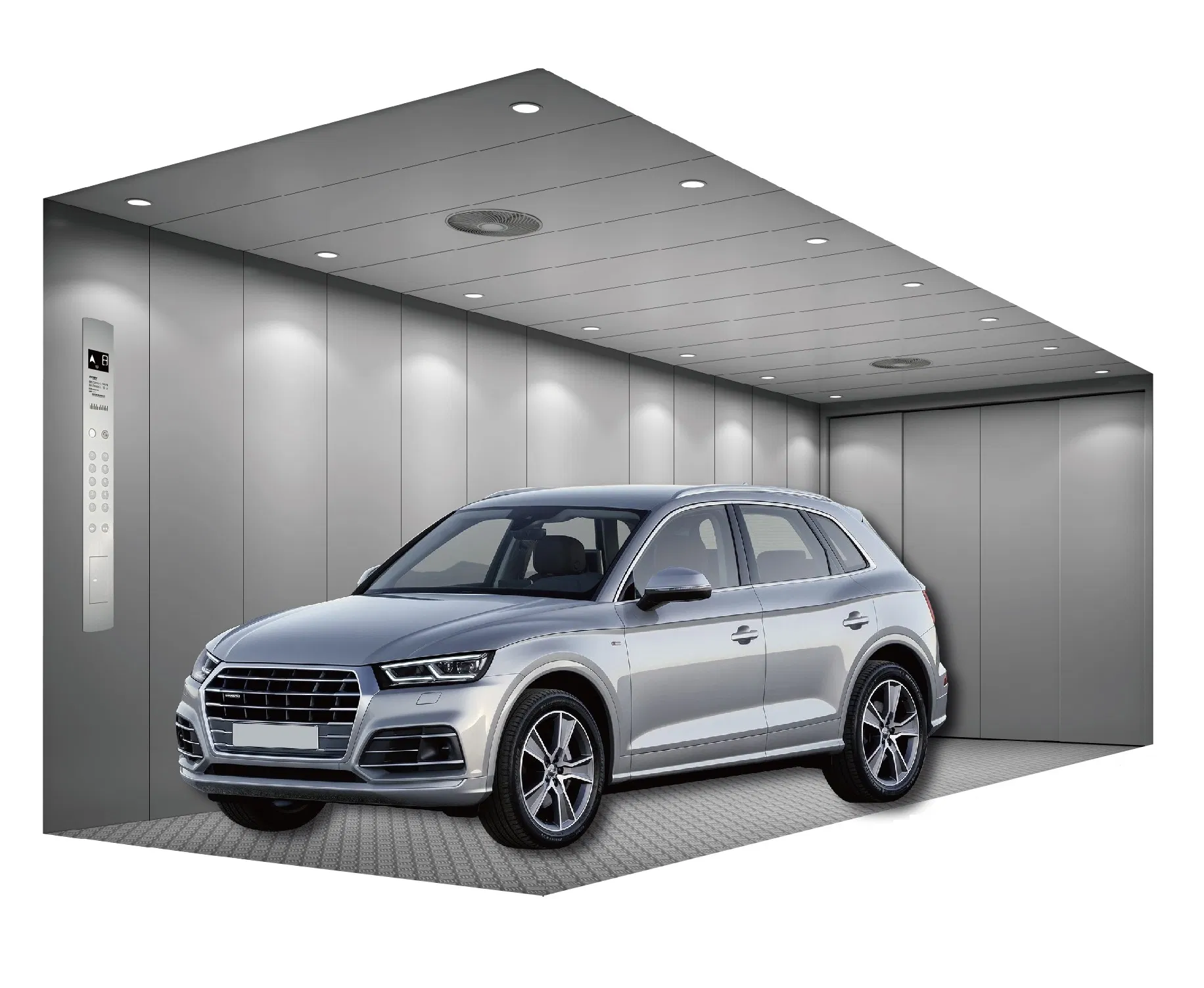

Q5: Is the lift suitable for car dealerships? Yes, it is specifically designed for automobile 4S dealers, warehouses, and industrial freight applications.

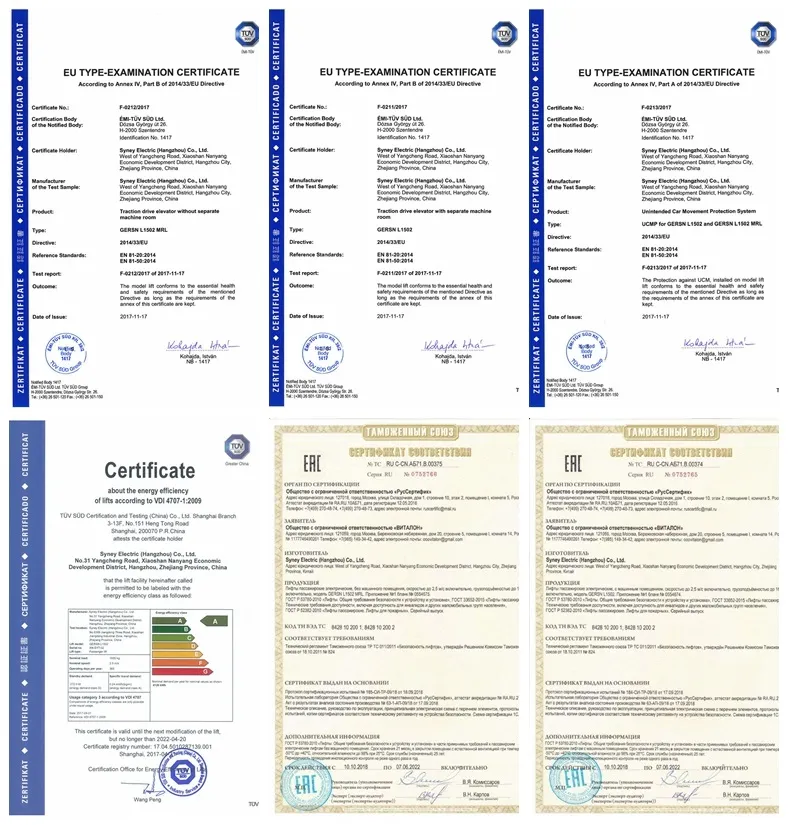

Q6: What certifications do these elevators hold? Our products hold CE Certificates for energy efficiency (Grade A), EAC certificates, and comply with EN81 standards.
