Automobile Vehicle Elevator 4 Post Auto Hoist Car Elevator with CE Certification

Still deciding? Get samples of $ !
Order Sample

Product Description

📋 Basic Information
Model NO.
HE-7745K
Type
Double Cylinder Hydraulic Lift
Lifting Capacity
4.2t
Driving Type
Hydraulic
Certification
CE
Max. Lifting Height
1800mm
Min. Height
130mm
Lifting Time
60s
Weight
1210kg
Design
Four Post
🚗 Product Description

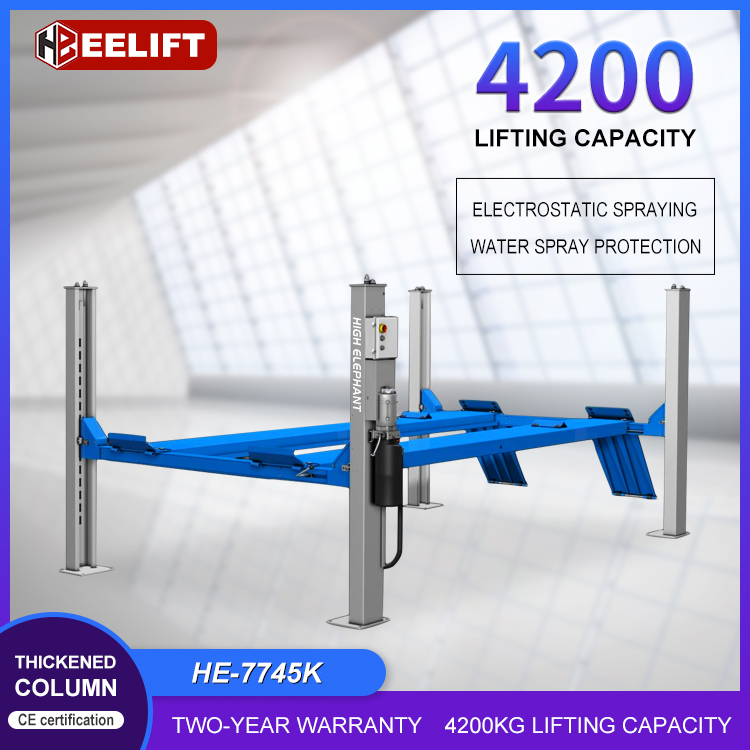

Automobile Vehicle Elevator 4 Post Auto Hoist Car Elevator with CE Certification (Model: He-7745K)

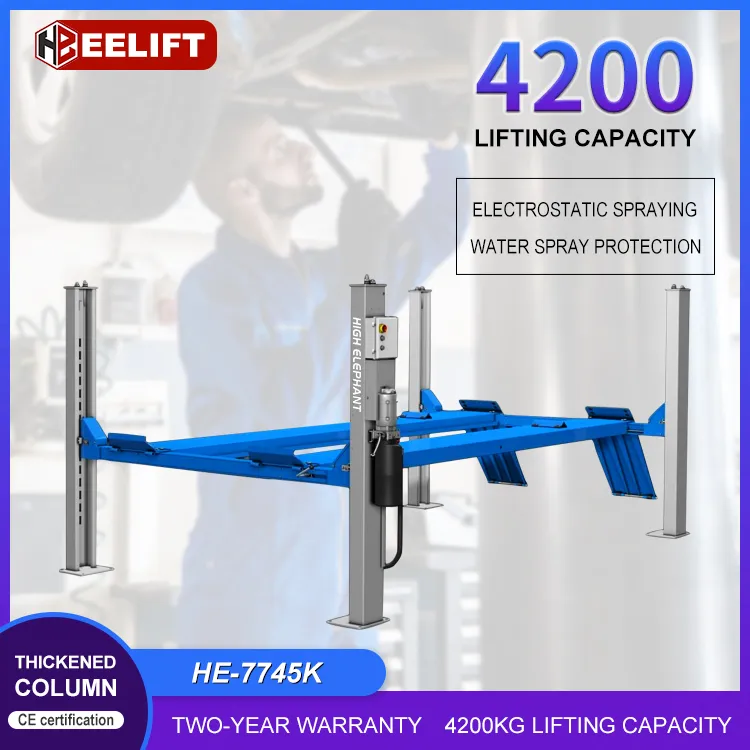

Car Elevator 1

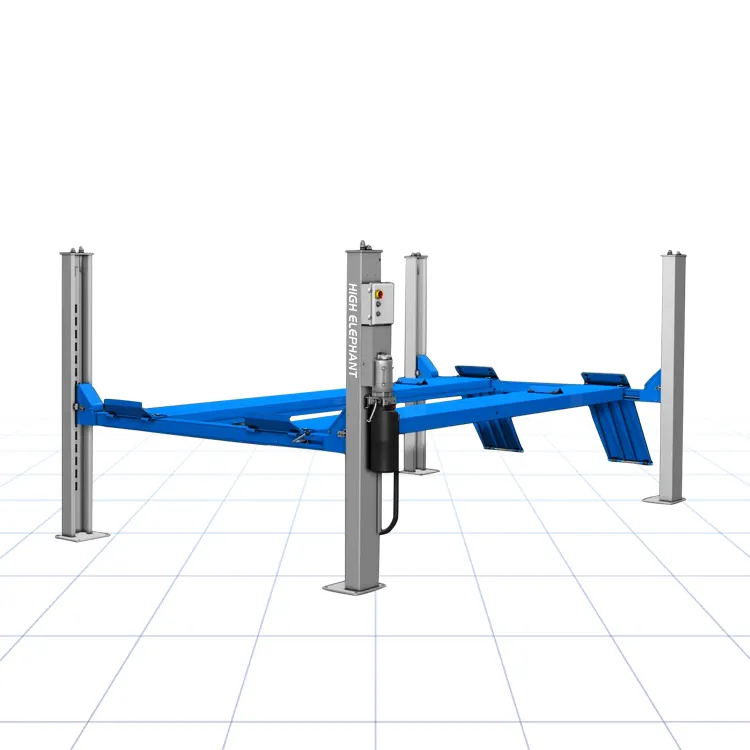

Car Elevator 2

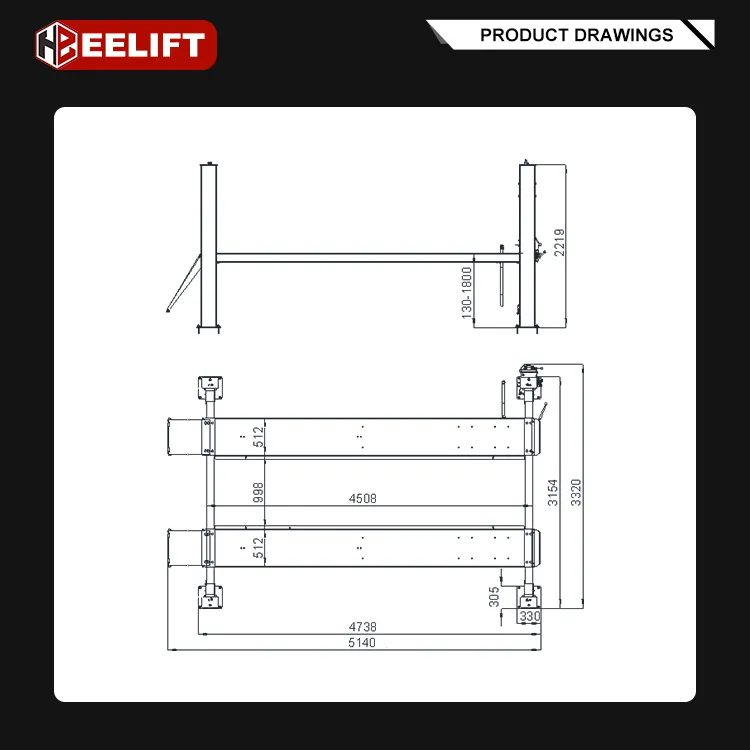

📐 Dimension Drawing
Dimension Drawing
⚙️ Technical Specifications
Technical Specs Diagram

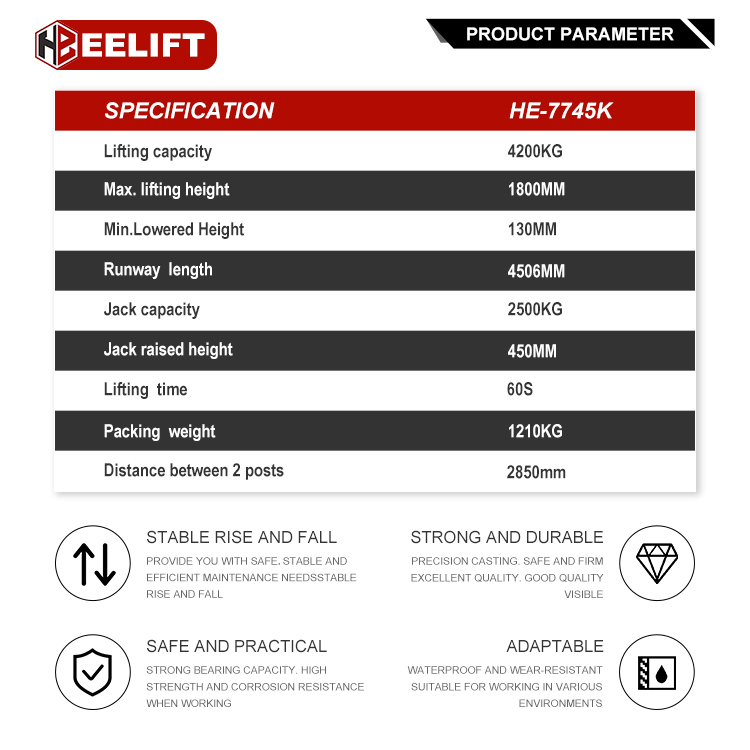

SPECIFICATION HE-7745K
Lifting capacity4200kg
Jack capacity2500kg
Runway length4506mm
Max. lifting height1800mm
Min. Lowered Height130mm
Distance between 2 posts2850mm
Jack raised height450mm
Raised time60s
Packing Weight1210kg
🌟 Product Features
Product Features Image
Homologous and certified product according to European Directive EN1493:2010.
Mechanical synchronization driven by steel cables.
Mechanical lock with automatic engagement and manual release.
Bolted-on alignment kit, jacking beam or turntables available for option.
Dual drive-off capability (rear or front) with applicable ramps.
Pressure overload valve equipped in power unit.
24V safety control system.
Safety Features
🔍 Product Details

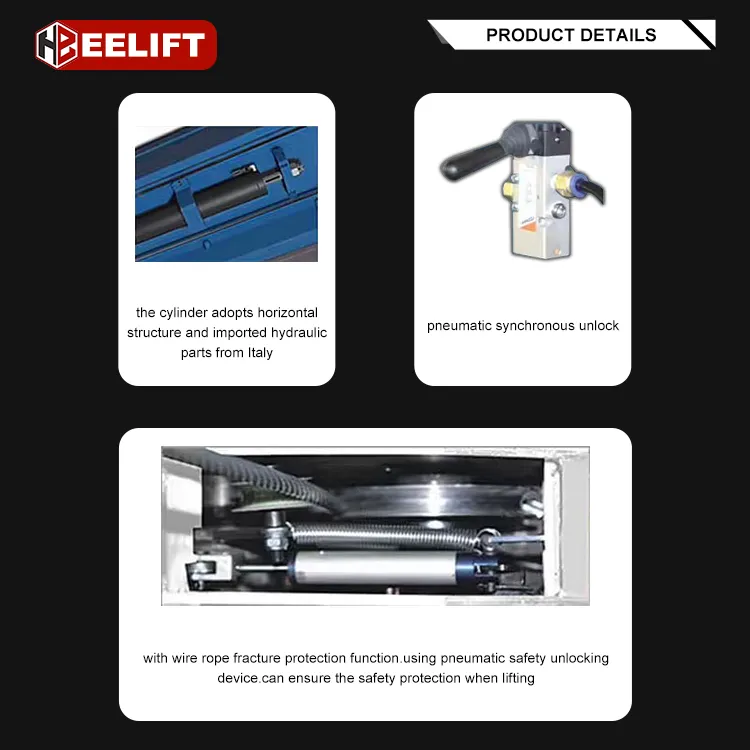

Details Image 1

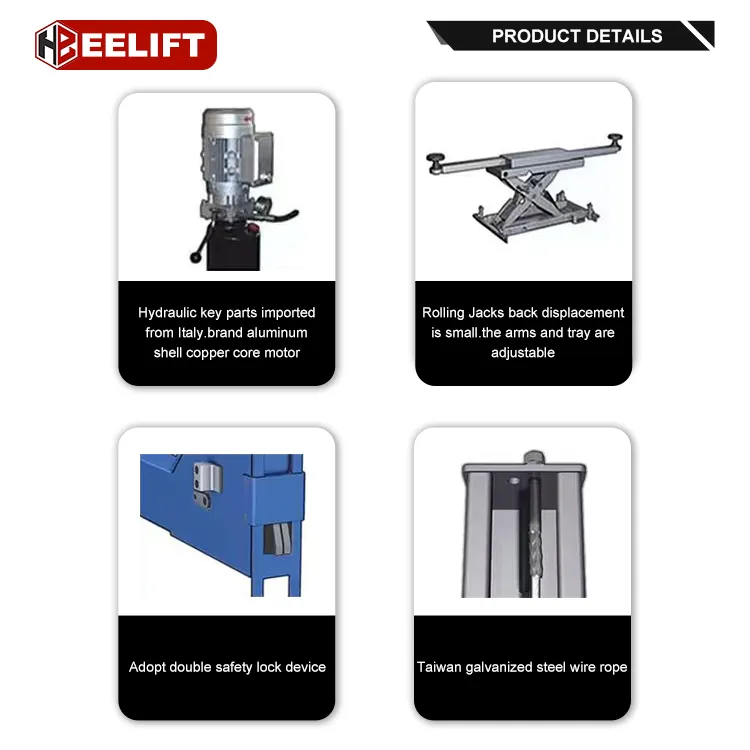

Horizontal cylinder structure with imported hydraulic components.
Pneumatic synchronous unlocking mechanism.
Wire rope fracture protection with pneumatic safety device.
Aluminum shell copper core motor for superior durability.
Small rolling jack back displacement with adjustable arms/trays.
Double safety lock device for maximum protection.
Taiwan-sourced galvanized steel wire rope.
Details Image 2
📊 Trade Information
Trade TermsFOB / CFR
MOQ3 UNITS (Additional charges for LCL shipment)
PortQINGDAO
Payment TermsT/T (30% prepayment, balance before shipment)
Supply Capability1000 units/month
Lead Time25-30 days (Rush season 5-10 days longer)
PackingMetal frame & Carton
Service1% free parts; 1-year warranty

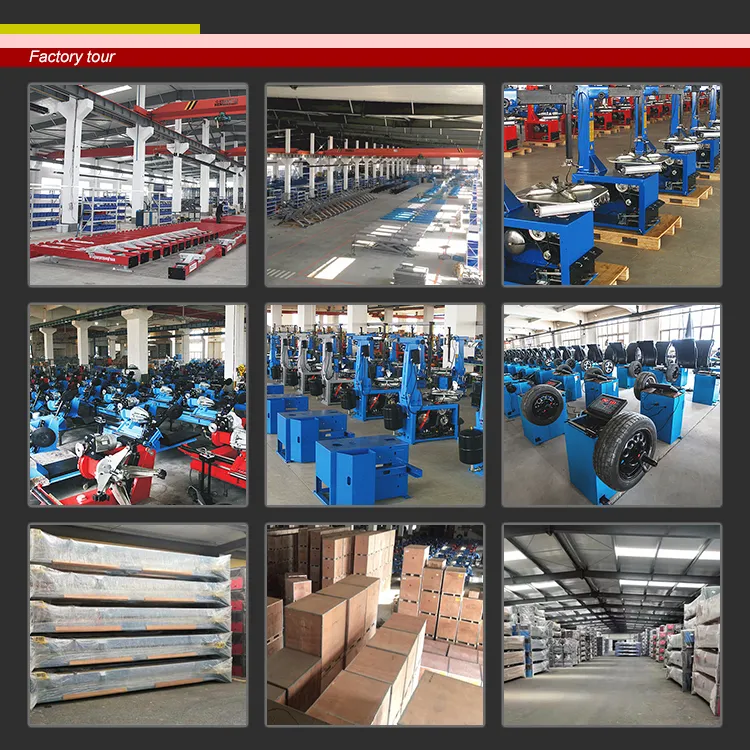

Shipping Info
Frequently Asked Questions
1. Why should I choose this car lift? Our lifts are built using professional cost-effective equipment and top-tier raw materials. We offer professional customer service with 24-hour replies and a comprehensive warranty to ensure long-term productivity.
2. How safe is the car lift? Safety is our priority. Our car lifts are tested and CE certified, meeting European EN1493:2010 standards, as well as American and Australian requirements.
3. Is this lift designed for commercial use? Yes, all our car lifts are engineered for heavy-duty commercial applications and can be used in professional garages without issues.
4. What is the lifting capacity of the HE-7745K? The main lift has a capacity of 4200kg (4.2t), and the optional secondary jack has a capacity of 2500kg.
5. Do you offer custom designs? Yes, we provide OEM/ODM services for professional partners, allowing for superior products customized to your specific design requirements.
6. Should I keep replacement parts in stock? While we provide 1% free parts and a warranty, we recommend keeping commonly required repair and replacement parts in stock to minimize downtime.
