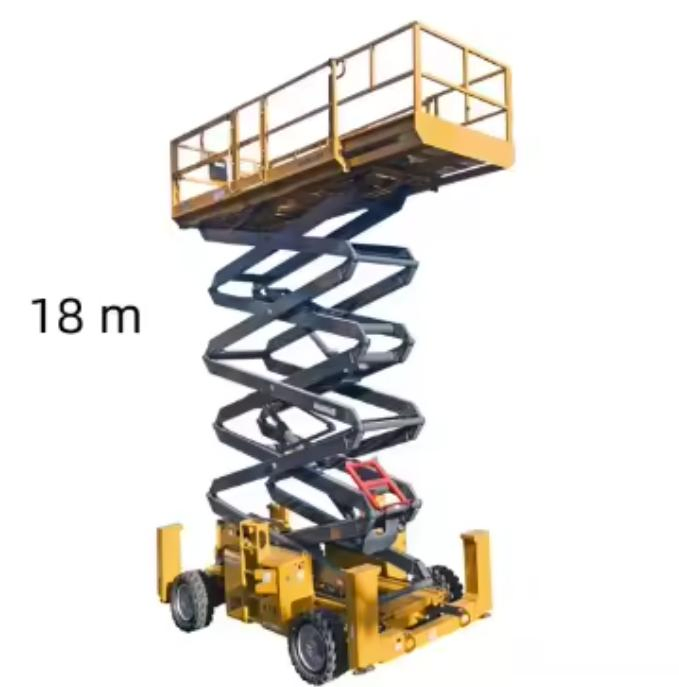

18m Battery Powered Electric Scissors Lift Platform Working Platform Xg1823rt
18m Battery Powered Electric Scissors Lift Platform Working Platform Xg1823rt
18m Battery Powered Electric Scissors Lift Platform Working Platform Xg1823rt
18m Battery Powered Electric Scissors Lift Platform Working Platform Xg1823rt
18m Battery Powered Electric Scissors Lift Platform Working Platform Xg1823rt
1 / 5
18m Battery Powered Electric Scissors Lift Platform Working Platform Xg1823rt
18m Battery Powered Electric Scissors Lift Platform Working Platform Xg1823rt
18m Battery Powered Electric Scissors Lift Platform Working Platform Xg1823rt
18m Battery Powered Electric Scissors Lift Platform Working Platform Xg1823rt
18m Battery Powered Electric Scissors Lift Platform Working Platform Xg1823rt

18m Battery Powered Electric Scissors Lift Platform Working Platform Xg1823rt

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.
XG1823RT
Application
Workshop, Shipboard, Warehouse, Building Crane
Lift Mechanism
Scissor Lift
Driven Type
Hydraulic
Certification
CE, ISO 9001
Max Working Height
18.1m
Max Platform Height
16.1m
Load Capacity
680kg
Gross Mass
8000kg
Turning Radius
5.6m
Specification
4860*2286*2950mm
Origin
China

Product Description

  • High load capacity and spacious platform, ideal for multi-person collaboration and high-load installations such as firefighting pipelines, curtain walls, and paint spraying.
  • Advanced air suction type radiator system offers compact structure and superior heat dissipation compared to traditional blowing systems, ensuring stable performance in high-temperature summer environments.
  • Telescoping and extendible work platform provides a larger working area, while folding railings facilitate easy transportation and translocation.
  • Industry-leading load capacity of 680kg.
  • Efficient mobility with a 6.1km/h drive speed and 25% gradeability.

Product Parameters

Category Item Metric
Overall Dimensions Length (With/Without ladder) 4860mm (-)
Width 2286mm
Height (Platform folded) 3170mm (2510mm)
Work Platform Dimensions (L*W*H) 3980x1830x1329mm
Extensible Length 1450mm/1140mm
Maximum Working Height 18.1m
Maximum Platform Height 16.1m
Load Capacity 680kg
Load Capacity (Extension) 230kg
Max Gradeability (Without outriggers) 40% (-)
Turning Radius (Inner/Outer) 2.5m / 5.6m
Gross Mass 8000kg
Engine Model V2403-M-DI

Detailed Photos

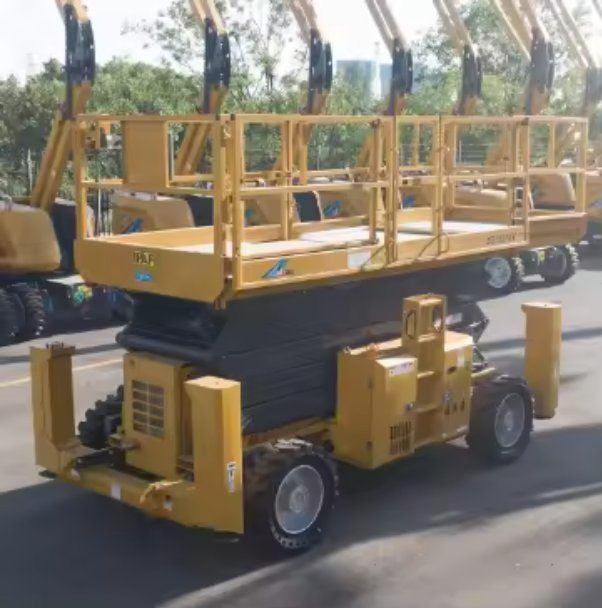

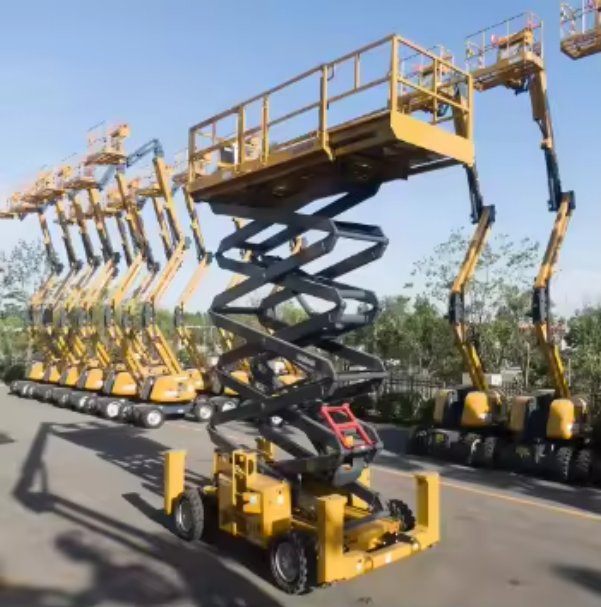

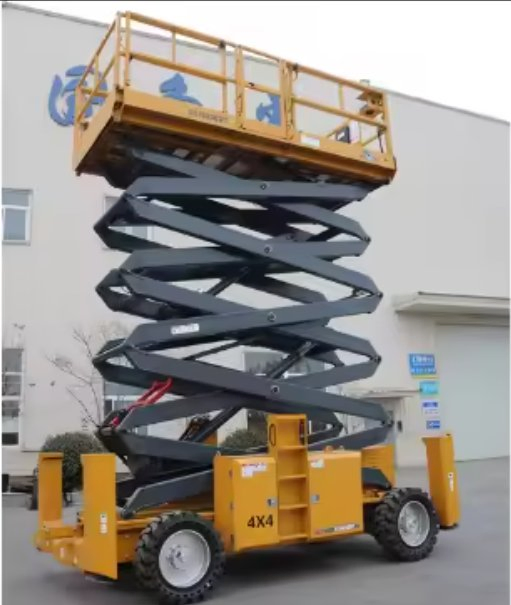

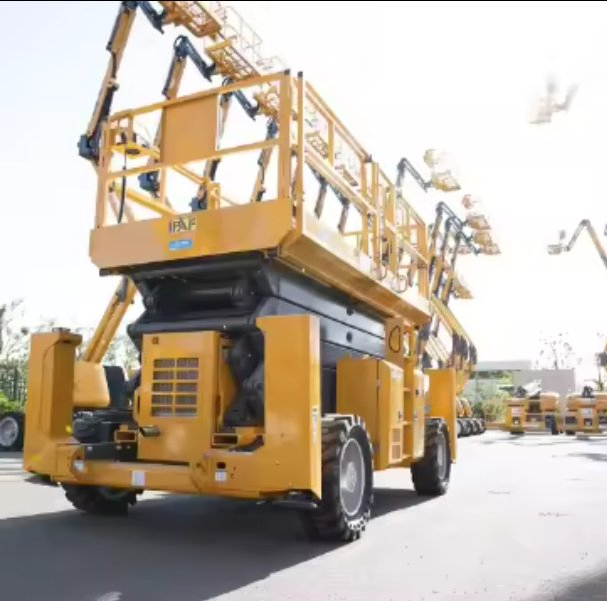

Scissors Lift Platform 1
Scissors Lift Platform 2
Scissors Lift Platform 3
Scissors Lift Platform 4

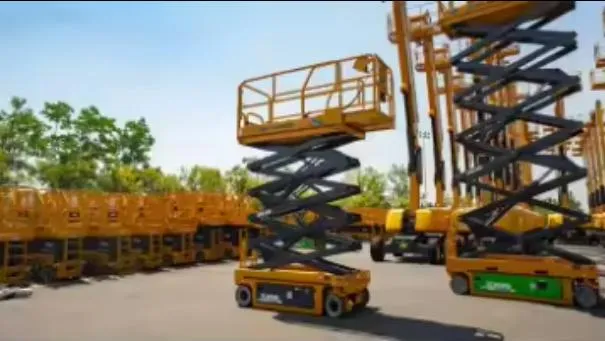

Scissors Lift Platform 5
Detailed View 1 Detailed View 2 Detailed View 3 Detailed View 4 Detailed View 5 Detailed View 6 Detailed View 7

Frequently Asked Questions

What is the maximum working height of the XG1823RT?
The maximum working height reaches up to 18.1 meters, with a maximum platform height of 16.1 meters.
What is the total load capacity?
The main platform has a leading load capacity of 680kg, and the extensible work platform can support up to 230kg.
How does the cooling system handle high temperatures?
It utilizes an air suction type radiator system which provides higher heat dissipation efficiency than traditional systems, specifically designed for operating in hot environments.
What type of engine is equipped in this model?
The XG1823RT is powered by a V2403-M-DI engine model.
Is the platform suitable for multi-person tasks?
Yes, the spacious platform and high load capacity make it perfect for multi-person collaboration on large-scale installations like ventilation pipelines and curtain walls.
What are the mobility specifications?
The machine features a 6.1km/h drive speed and a 40% maximum gradeability (without outriggers), ensuring easy maneuverability on various terrains.
