Product Description

Basic Information

Model NO.
TBD-52
Type
Wellhole
Load Capacity
50kg-300kg
Speed
0.40m/s
Drive Mode
AC
Open & Close Type
Manual
Lift Mechanism
Telescoping Lift
Guide Rail
T Guide
Origin
China
Production Capacity
1000 Sets/Year

Product Description

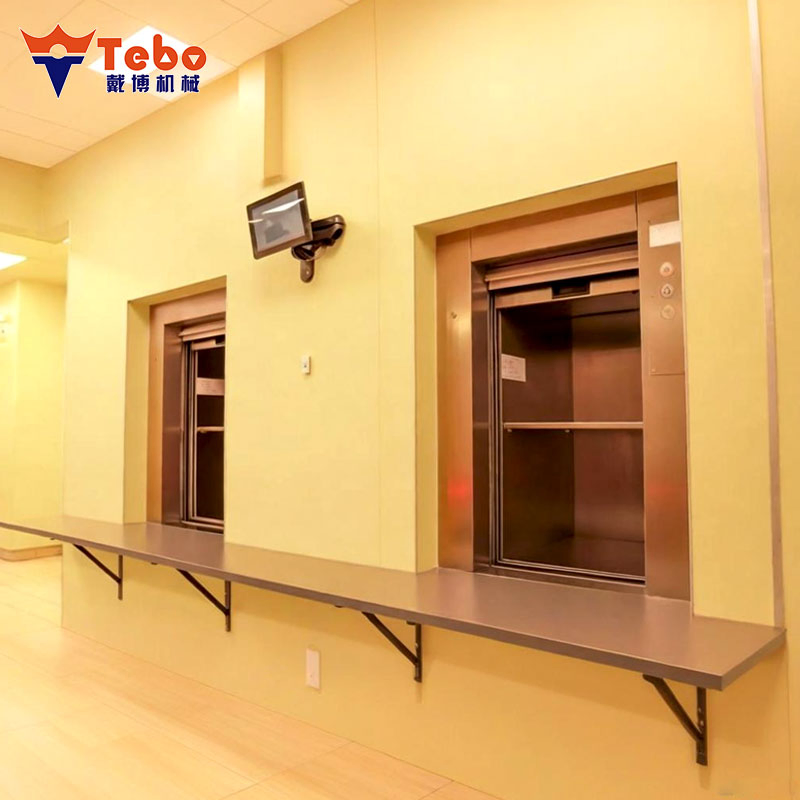

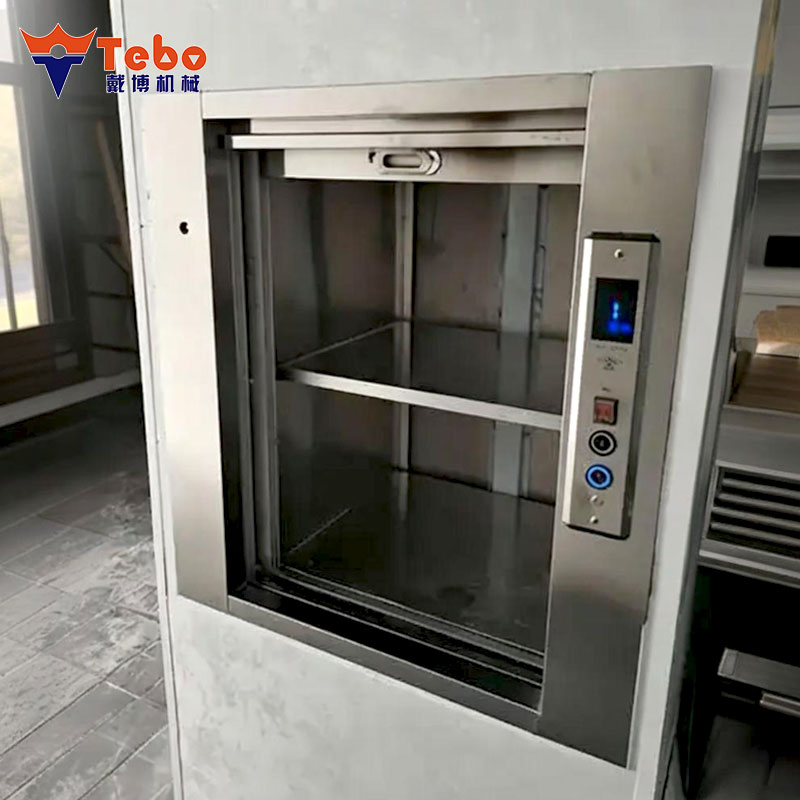

Residential Dumbwaiter System

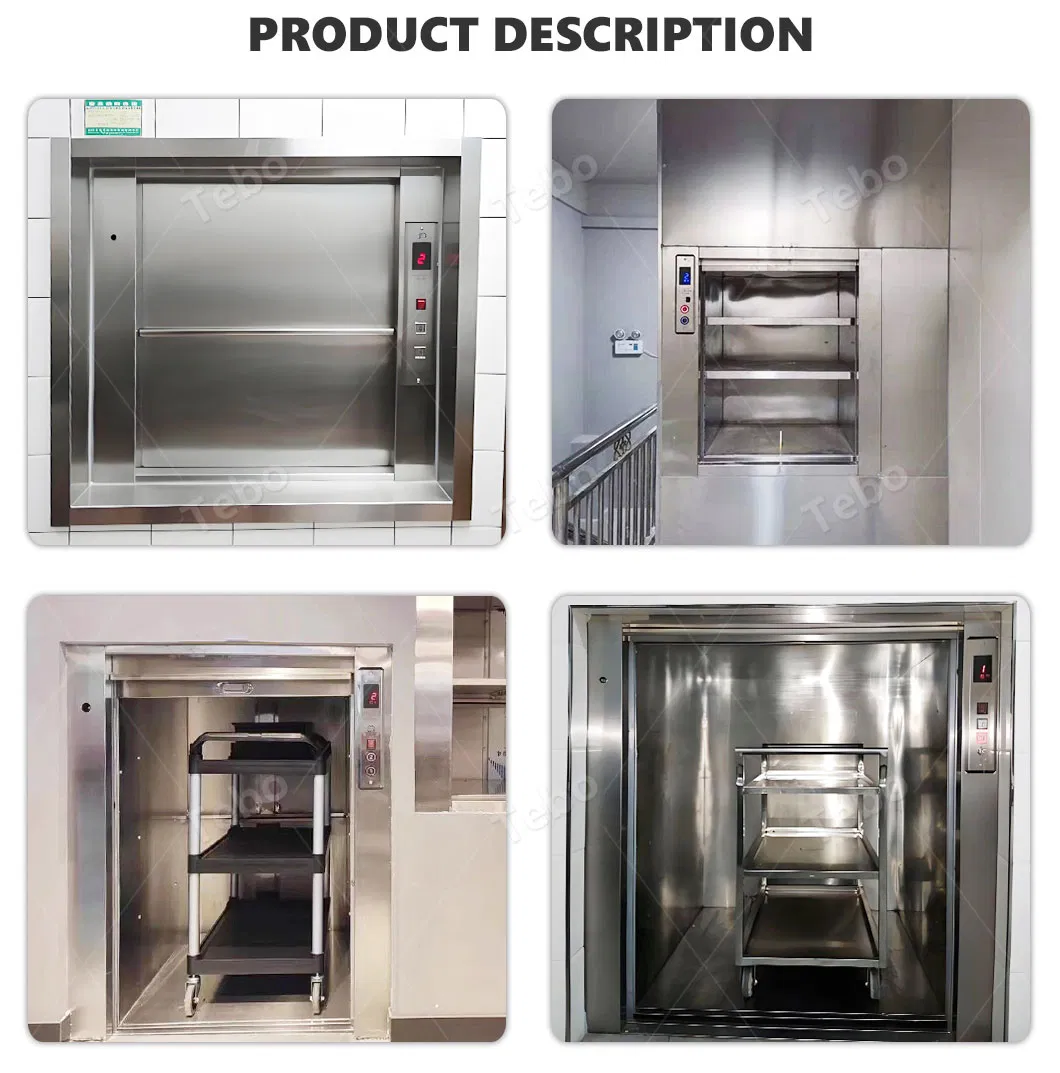

Electric Food Elevator

The food delivery lift is a vertical transportation device designed for restaurants, hotels, cafés, and multi-floor dining environments. It is mainly composed of a shaft structure, a stainless-steel cabin, a driving mechanism, and an intelligent control system. With a durable stainless-steel cabin and a robust steel shaft frame, the lift ensures excellent corrosion resistance and easy cleaning. The traction driving system provides smooth and low-noise movement, fully meeting the hygiene and quietness requirements of food-service settings.

Its control system enables floor calling, one-touch operation, and multiple safety functions, including door locks, anti-fall devices, limit switches, and overload protection to ensure safe and reliable transportation of meals. The lift significantly improves operational efficiency by quickly transferring dishes, beverages, and tableware between floors, reducing staff workload and minimizing physical strain.

Technical Parameters

Type Load(kg) Cabin Dimension (W*D*H mm) Landing Door Door Size (W*H mm) Window Sill Height Overhead Height
Window Type 100 600*400*800 Standard 600*800 800 2800
Window Type 200 800*800*800 Standard 800*800 800 2800
Floor Type 200 800*800*1000 Standard 800*1000 Pit 600 2800
Floor Type 300 1000*1000*1200 Standard 1000*1200 Pit 700 3200

* Customization services are available for all parameters.

Product Details

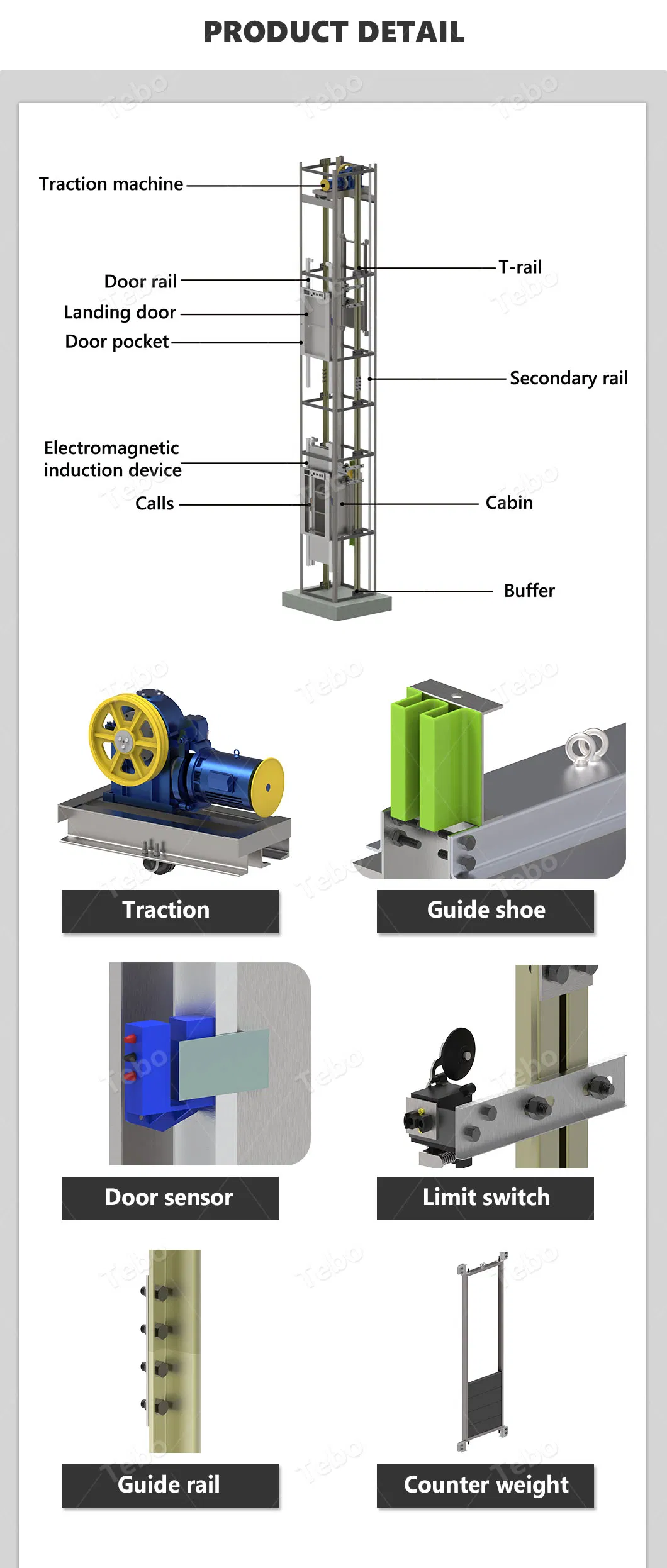

Detail 1

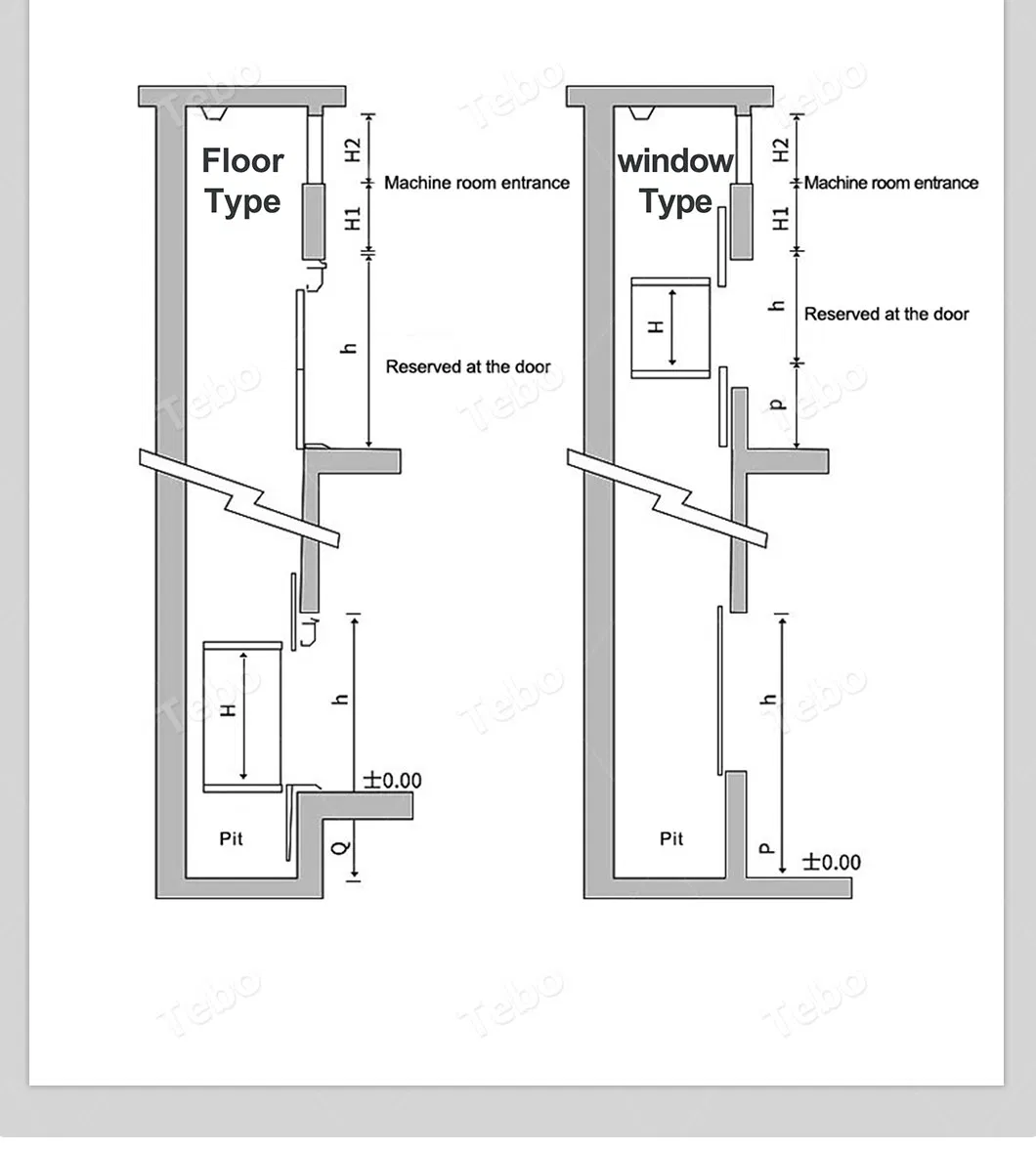

Detail 2

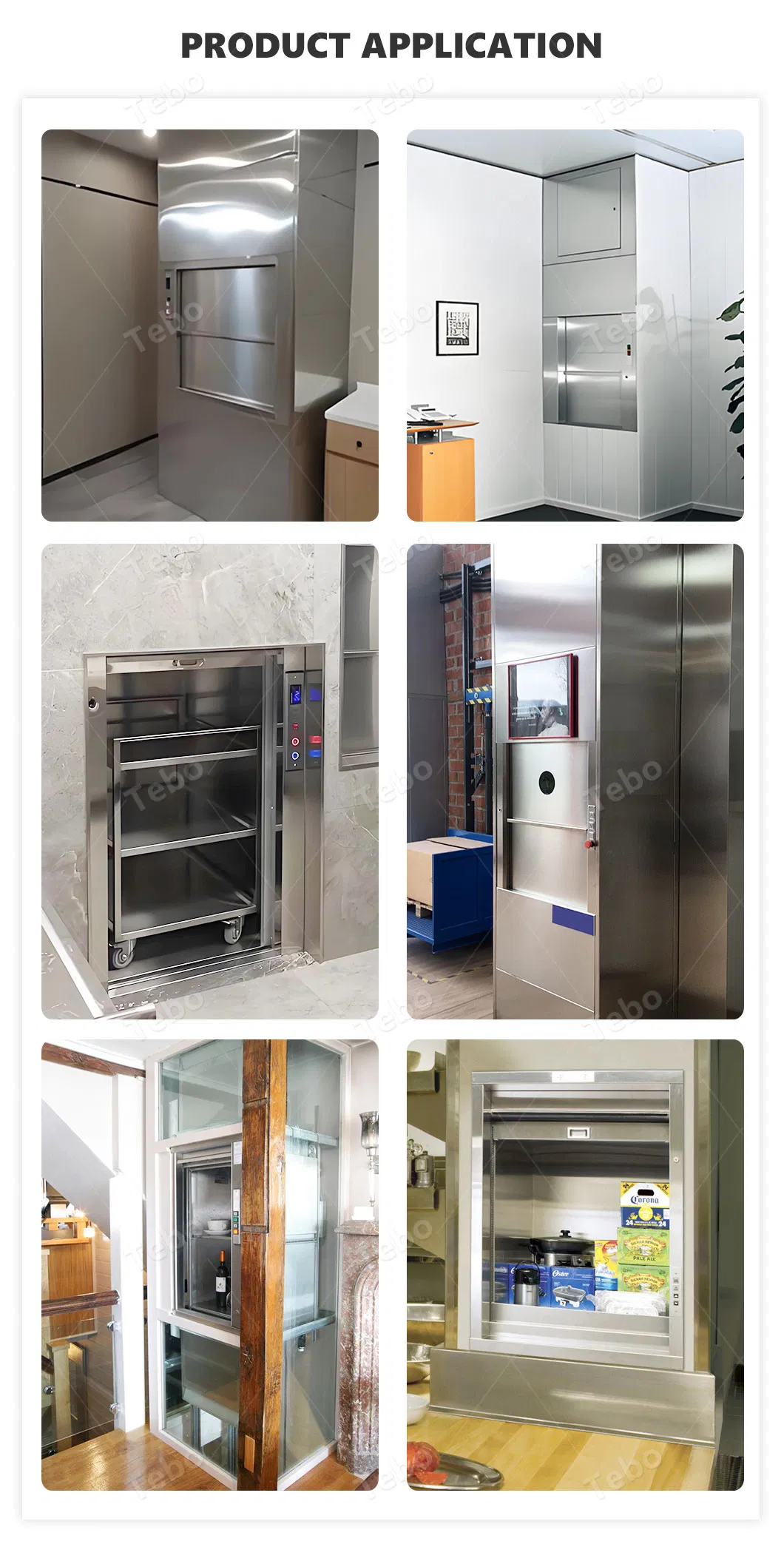

Detail 3

Company Profile

Production Base

Our company is a professional enterprise specializing in the R&D and manufacturing of mechanical equipment. Our production base is located in a well-connected industrial hub. We have assembled an experienced and highly innovative technical team, continuously optimizing multiple product series. We possess significant advantages in structural design, operational efficiency, and stability.

Our core product range includes hydraulic home elevators, hydraulic freight lifts, car lifts, and scissor lift platforms. Equipped with advanced CNC machining centers and automated welding equipment, we ensure efficient end-to-end production and rigorous quality control. We are dedicated to delivering integrated solutions from customized manufacturing to full lifecycle technical support.

Certifications & Packaging

Certificates
Quality Control
Packaging

Frequently Asked Questions

What are the advantages of your lift equipment?
We are a leading manufacturer in China with a dedicated production base. Our products offer absolute advantages in quality and price. We provide 12 months warranty and on-site guidance.
Do you provide customization for specific requirements?
Yes, our expert engineers provide detailed blueprints and bespoke designs for customers who require modifications to their machinery.
What kind of after-sales service do you offer?
We provide detailed assembly and installation manuals with clear drawings. Our technical team responds to operational inquiries within 2 hours.
How is the product packaged for international shipping?
We typically use robust plywood cases. Special shipping marks and specific packaging requirements can be accommodated upon request.
What is the typical lead time for an order?
Normally, shipping takes about 10 working days after payment is received, depending on the specific product and customization level.
What are your accepted payment and trade terms?
We support EXW, FOB, CFR, and CIF terms. Payment is generally required before production and delivery.
