| Model NO. | HZH XF120 |
|---|---|
| Size | Large |
| Usage | Firefighting |
| Structure | Wing UAV |
| Maximum Load Weight | 150 Kg |
| Max. Takeoff Weight | 257.8 Kg |
| Max. Flight Altitude | 500 M |
| Max. Flight Time | 45 Min |
| Axis | 8 |
| Specification | 4605*4605*990mm |

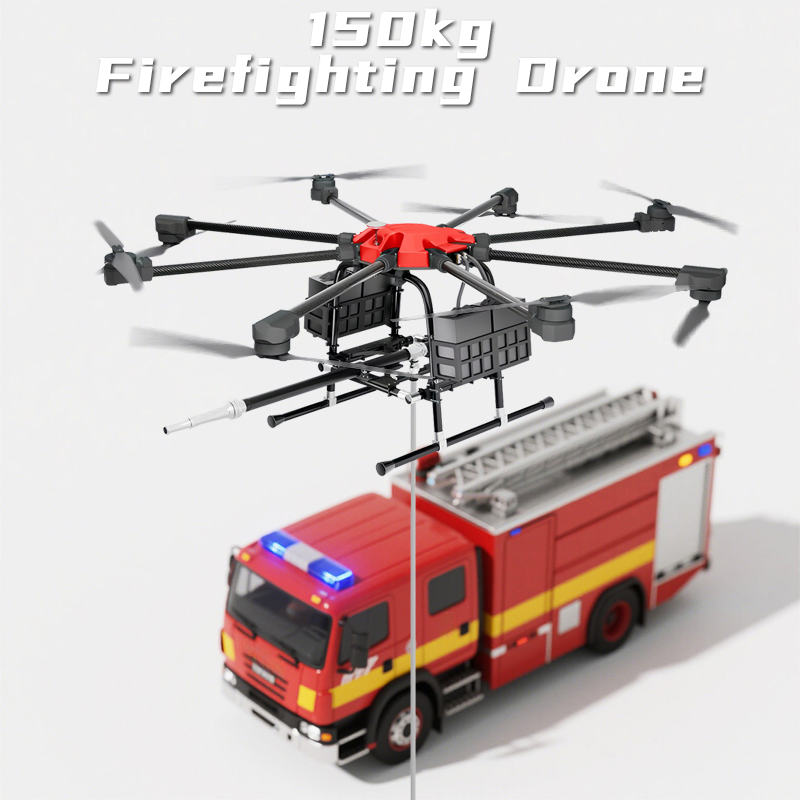

The HZH XF120 is a heavy-lift firefighting drone designed for aerial defense in home properties, forests, and urban environments. With a customizable payload capacity, it serves as a powerful tool for emergency response teams.
| HZH XF120 Technical Specifications | |
|---|---|
| Dimensions (Unfolded) | 4605*4605*990mm |
| Max. Payload | 150kg |
| Max. Takeoff Weight | 257.8 kg |
| Max. Flight Altitude | 500 M |
| Max. Altitude Limit | 4500 m |
| Operation Height | ≤ 1000m |
| Max. Flight Time | 45 minutes |

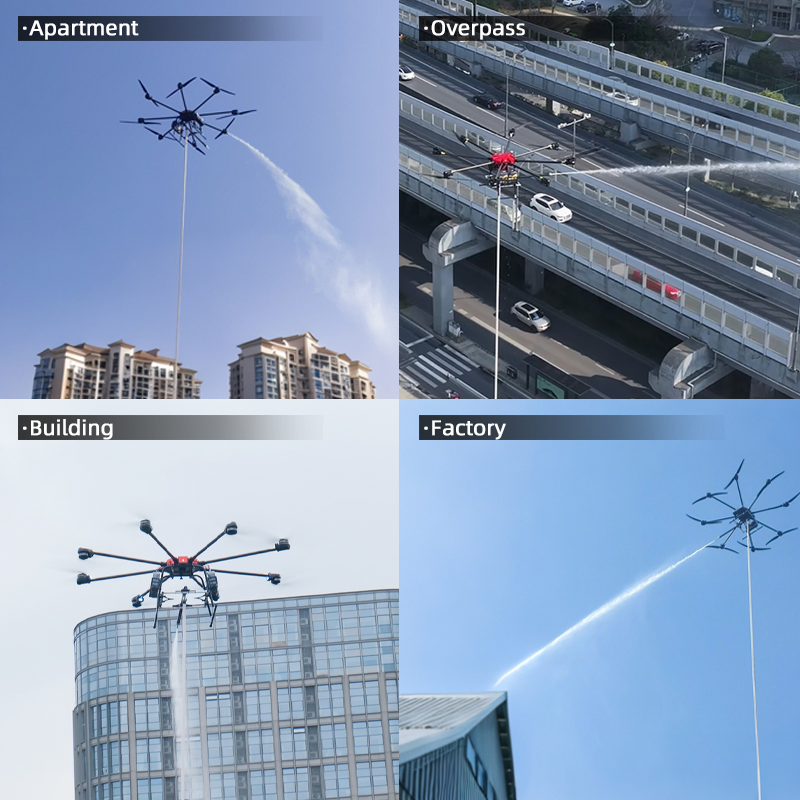

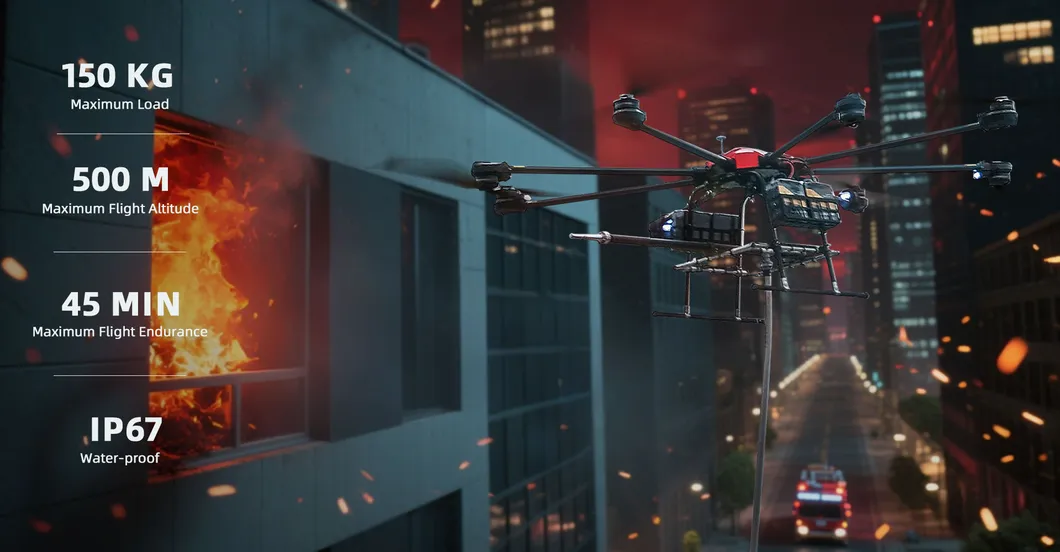

Quickly assess scales and spreads of fire in dense residential areas. Equipped with high-pressure nozzles to cool vertical spreads and facilitate rescue.
Reach elevated incident sites rapidly to deploy fire extinguishing bombs, avoiding traffic congestion and protecting infrastructure.

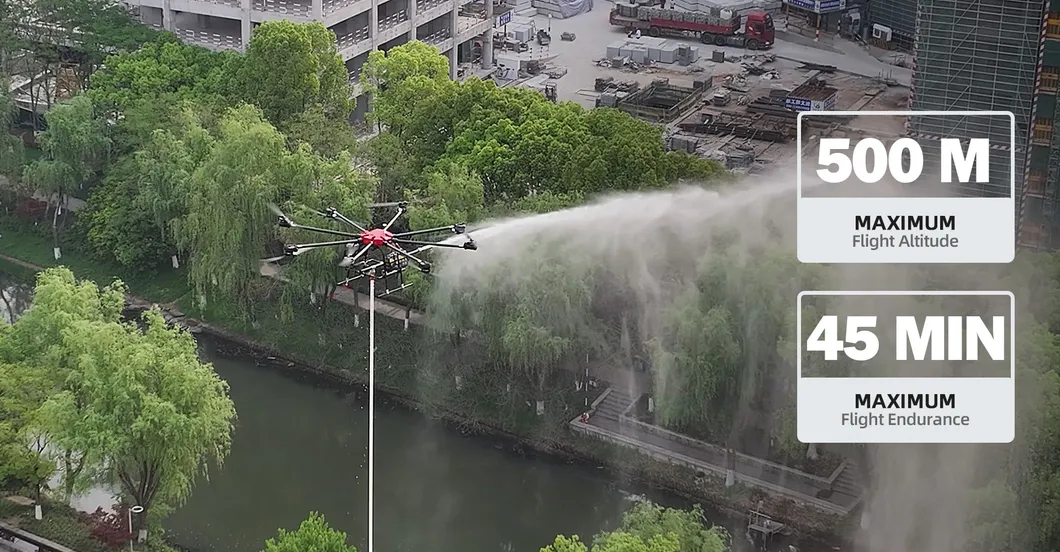

Bypass blocked stairwells in commercial towers to reach high floors, drenching flames with a continuous flow of water.
Versatile solutions for industrial environments, capable of deploying dry chemicals for liquid fires or water for machinery cooling.

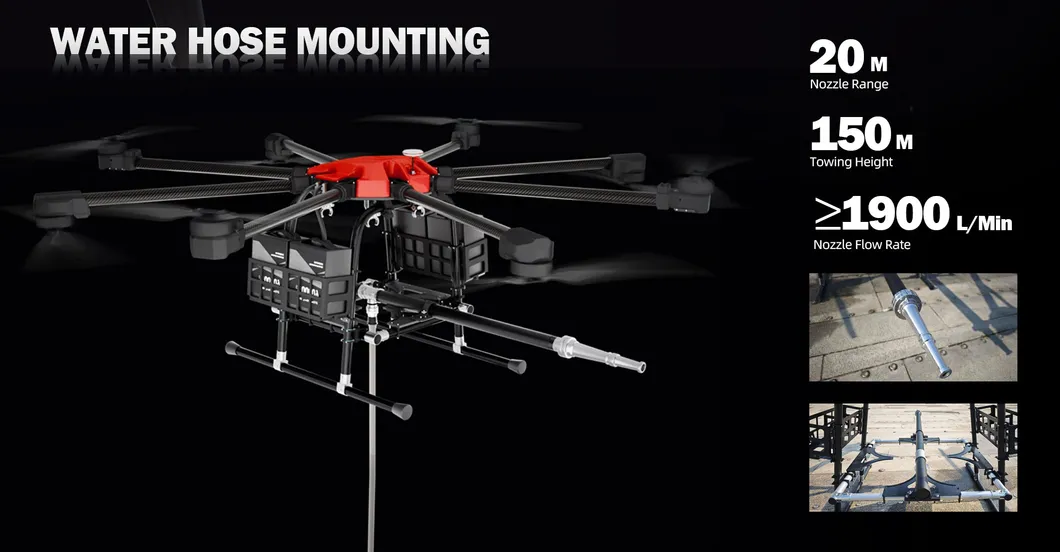

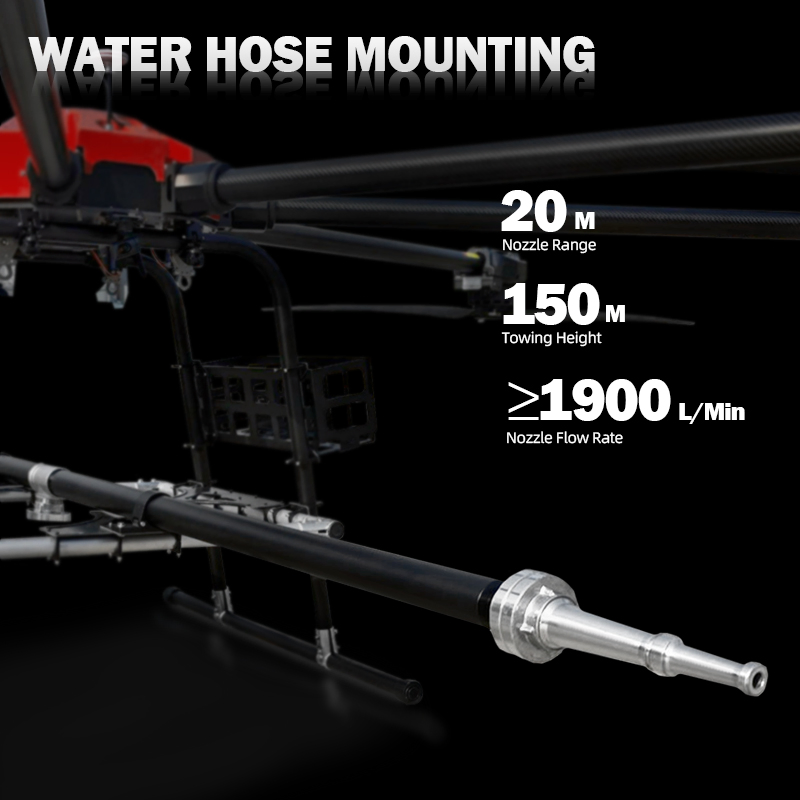

| Water Hose Mounting Parameters | |
|---|---|
| Hose Diameter | 50mm |
| Nozzle Length | 3m |
| Nozzle Range | 20m |
| Nozzle Flow Rate | ≥1900L/min |
| Towing Height | 150m |
| Fire-extinguisher Bomb Parameters | |
|---|---|
| Total Weight | ≤ 23kg |
| Type of Agent | ABC dry chemical or water-based |
| Dispersion Radius | ≥ 5 m |
| Coverage Area | ≥ 50 m² |
| Safety Arming Height | ≥ 50 m |
A: The drone can carry a maximum payload of 150kg, making it suitable for heavy-duty firefighting equipment and large water hoses.
A: It features a maximum flight endurance of 45 minutes, which allows for sustained fire suppression missions without frequent battery changes.

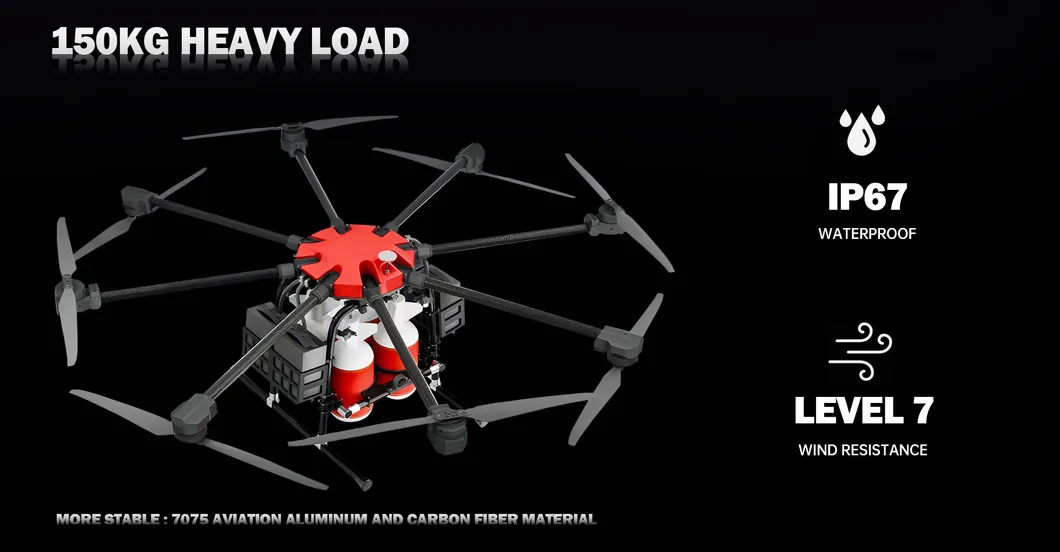

A: Yes, it is designed with an IP67 waterproof rating and can resist winds of up to Level 7, ensuring stability in harsh weather.
A: The drone is equipped with a nozzle that has a projection range of 20 meters and a flow rate of ≥1900 liters per minute.
A: The drone features a modular design that allows it to be fully assembled and ready for flight in just 5 minutes.
A: It supports both ABC dry chemical bombs and water-based extinguishing agents to handle different classes of fire effectively.
