China Gearless Residential Villa Panoramic Sightseeing Observation Freight Car Goods Service Cargo Home Lift Passenger Elevator

1 / 5

China Gearless Residential Villa Panoramic Sightseeing Observation Freight Car Goods Service Cargo Home Lift Passenger Elevator

Customization:	Available
After-sales Service:	by Factory or Local Agent
Warranty:	18 Months After Shipment

Send Inquiry

Product Description

Basic Information

Model NO.

16K018

Driving Type

AC Elevator

Capacity

400~1600kg

Persons

5~22 Persons

Speed

1.0m/S~4.0m/S

Control Mode

Collective Selective Control

Position of Computer Room

Elevator Door

Center Opening Door

Door Knife

Single

Deceleration Device

With Deceleration Device

Attendant

Without Attendant

Elevator Type

Passenger Elevator

Machine Room Type

with Machine Room

Door Open Way

Center Open, Side Open

Door Open Size

700mm~1300mm

Door Height

2100mm (Standard)

Control System

Step or Monarch

Main Power

AC 380V, 3 Phase 50Hz

Lighting Power

AC 220V, 1 Phase, 50Hz

Production Time

15~30 Days

Product Standard

En 81-20: 2014, En 81-50: 2014

Transport Package

1 Set One 20FT Container

Specification

Plywood box

Trademark

OEM

HS Code

8428101090

Production Capacity

11000 Sets Per Year

Product Description

China Gearless Residential Villa Panoramic Sightseeing Observation Freight Car Goods Service Cargo Home Lift Passenger Elevator

The manufacturer is dedicated to manufacturing high quality and superior performance elevators and escalators in accordance with international and professional standards. Various specialized workshops, including electronic, traction machine, door system, and assembly workshops, utilize full automatic production lines. This ensures an annual production capacity of more than 30,000 sets, covering passenger elevators, freight elevators, panoramic elevators, hospital elevators, home lifts, car lifts, and escalators.

Combined with modern technology and fashion art, our passenger lift satisfies all needs of hotels, office buildings, and shopping malls, providing a safe and comfortable riding experience.

Safe and ReliableSafety is the first priority to ensure each passenger's safe delivery to their destination.

Space ConfigurabilityNew layouts of the machine room improve space availability and efficiency.

Energy SavingAdopts gearless permanent magnet synchronous machines to protect the environment.

Smart EfficiencyAll-round computer control systems realize smart management and networking.

Technical Parameters

Capacity (kg)	Speed (m/s)	Cabin Size (mm) W*D	Door Open (mm)	Shaft Size (mm) W*D	Pit Depth (mm)	Overhead (mm)
630	1.0 - 1.75	1400 * 1150	800 * 2100	2000 * 1800	1500 - 1700	4500 - 4700
800	1.0 - 2.5	1350 * 1400	800 * 2100	2000 * 2100	1500 - 2100	4500 - 5200
1000	1.0 - 2.5	1600 * 1400	900 * 2100	2200 * 2100	1500 - 2100	4500 - 5200
1150	1.0 - 2.5	1800 * 1400	1000 * 2100	2400 * 2100	1500 - 2200	4500 - 5200
1600	1.0 - 2.5	2000 * 1700	1100 * 2100	2600 * 2400	1500 - 2200	4600 - 5300

Note: Above standard specifications are for reference. Custom designs are available based on specific jobsite parameters.

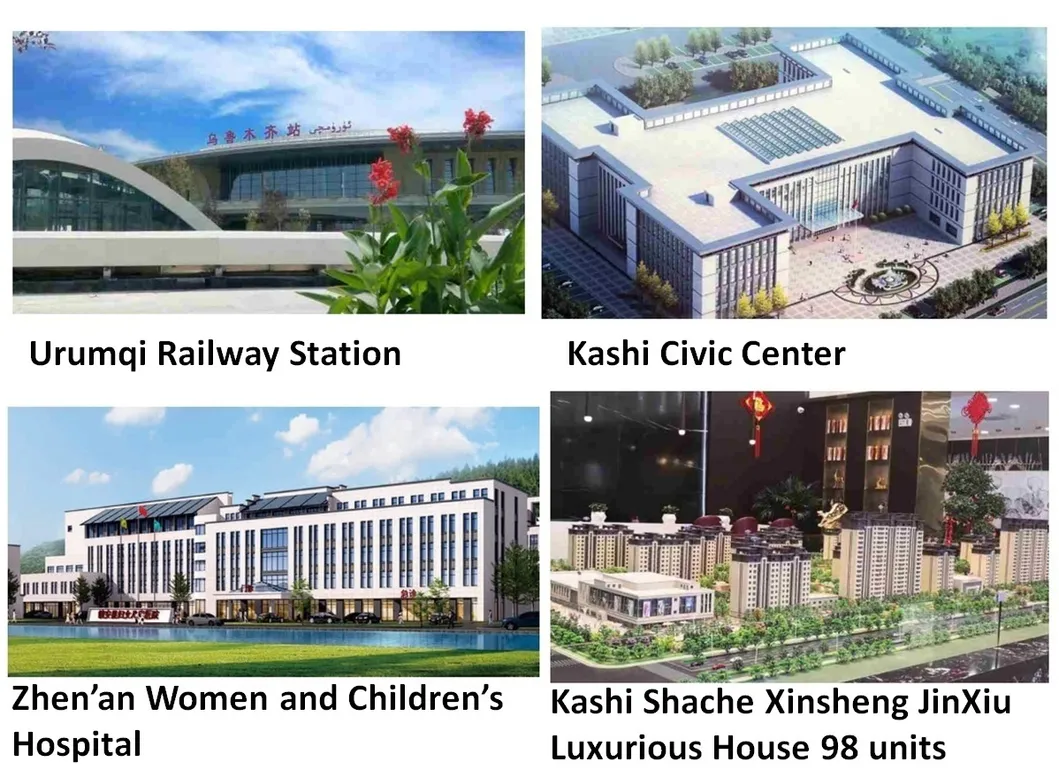

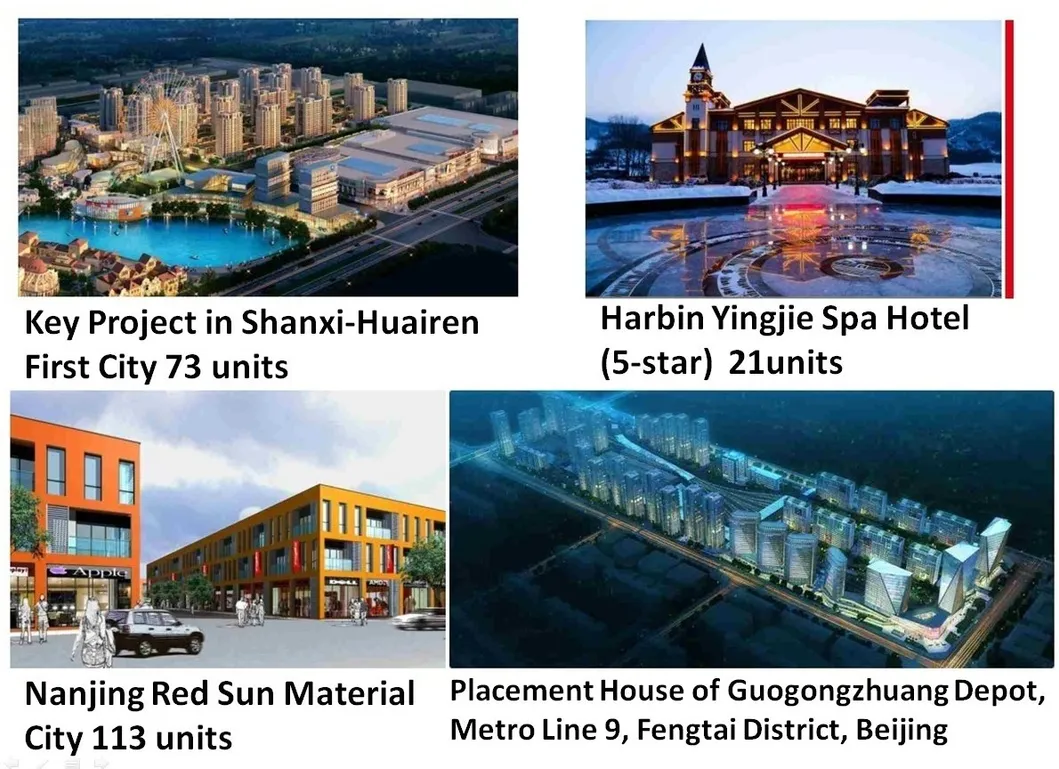

Certifications & Projects

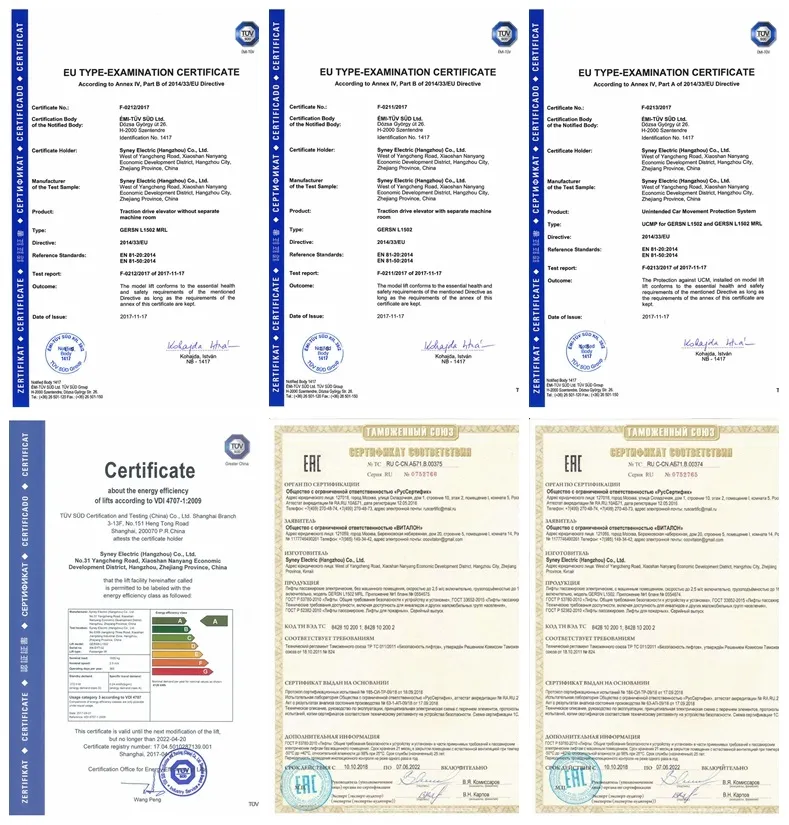

Our products have gained the Germany TÜV SÜD mark, one of the strictest certificates worldwide. This indicates our quality certification system meets international requirements.

✔ CE Certificate (With/Without Machine Room)
✔ CE Certificate for UCMP device
✔ Energy-efficiency Grade A
✔ EAC Certificates

Frequently Asked Questions

How to get a fast reply for an inquiry?

Please provide complete information including elevator type (passenger, panoramic, cargo, etc.), capacity/persons needed, number of floors/stops, speed, and shaft dimensions (width and depth).

What is the standard process to place an order?

1) Confirm specifications and drawings; 2) Sign the contract; 3) Production starts after payment; 4) Product finishing and shipping booking; 5) Delivery and document dispatch; 6) After-sale service follow-up.

What is your typical delivery time?

Usually 30 days after the arrival of the deposit. However, urgent production options are available to support specific project timelines.

What is the product warranty period?

The standard warranty for elevators is 18 months after the delivery date.

How are installation and commissioning handled?

We provide a complete installation manual and remote guidance for commissioning. For special projects, engineers can be sent to the site. We also offer training for technicians at our factory.

How do I report after-sale problems?

Please provide the contract number or the product serial number. The factory will check the specific product specifications according to the code to provide a solution.
