📋 Basic Specifications
Model
Passenger & Dumbwaiter Elevator
Speed Range
1.00 - 2.00m/s
Load Capacity
100 - 500 kgs
Control Mode
Collective Selective Control
Computer Room
Machine-Room-Less (WRL)
Material
High-Quality Stainless Steel
Drive System
Step AS380 / Monarch NICE3000 New
Traction Machine
Gearless / Geared Traction
Certification
ISO9001, ISO14001, OHSAS18001
🛠️ Technical Specifications
Professional dumbwaiter solutions designed for restaurants and commercial use, available in both Window and Trolley types.
| Load (KGS) |
Type |
Cabin Size (WxDxH) |
Shaft Size (WxD) |
Overhead Height |
Pit Depth |
Entrance Size |
Power (KW) |
| 100 |
Window |
750x750x900 |
1250x900 |
≥3600 |
- |
750x1000x600 |
1.1 |
| 100 |
Trolley |
750x750x900 |
1250x900 |
≥3600 |
600 |
750x1000 |
1.1 |
| 200 |
Window |
900x900x1000 |
1400x1100 |
≥3600 |
- |
900x1100x800 |
1.5 |
| 200 |
Trolley |
900x900x1000 |
1400x1100 |
≥3600 |
800 |
900x1100 |
1.5 |
| 300 |
Trolley |
1000x1000x1100 |
1500x1200 |
≥3600 |
1200 |
1000x1200 |
3.0 |
| 500 |
Trolley |
1100x1100x1200 |
1600x1300 |
≥3600 |
1200 |
1100x1300 |
4.0 |

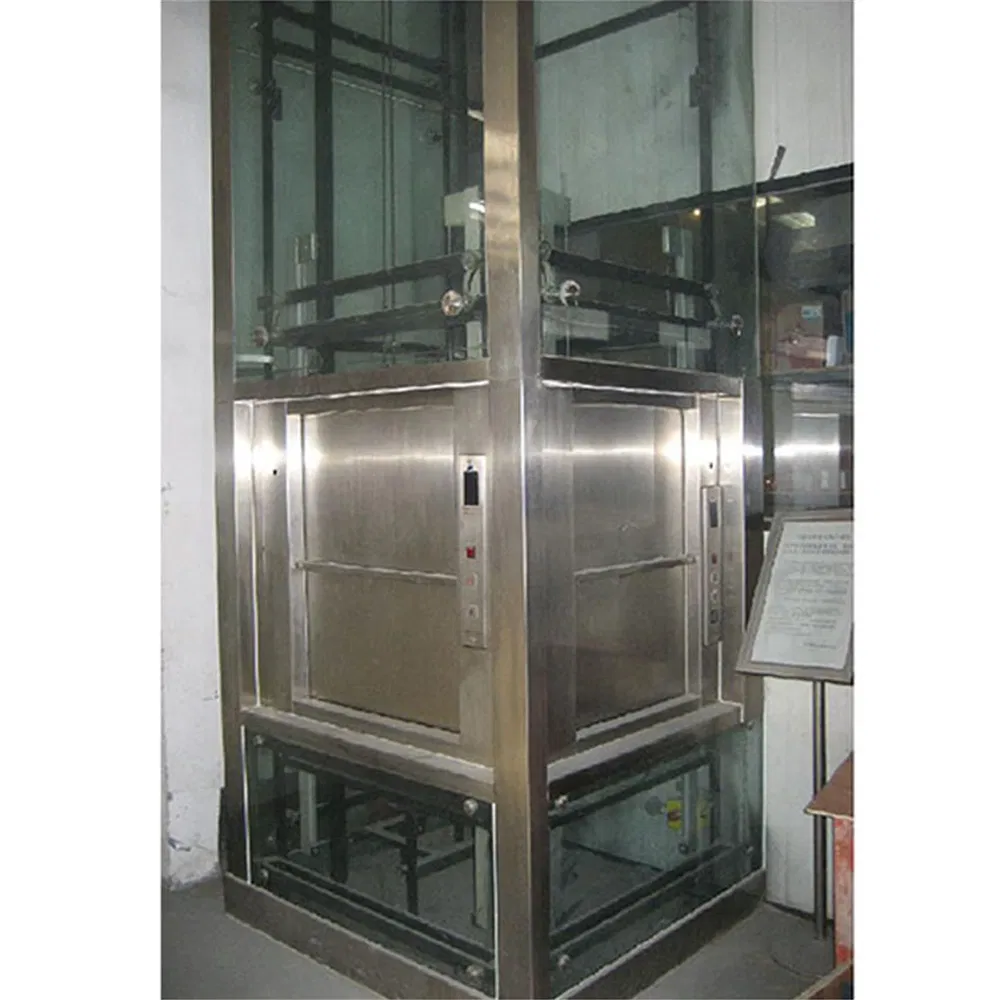

🖼️ Product Visuals
❓ Frequently Asked Questions
1. What is the difference between Window Type and Trolley Type?

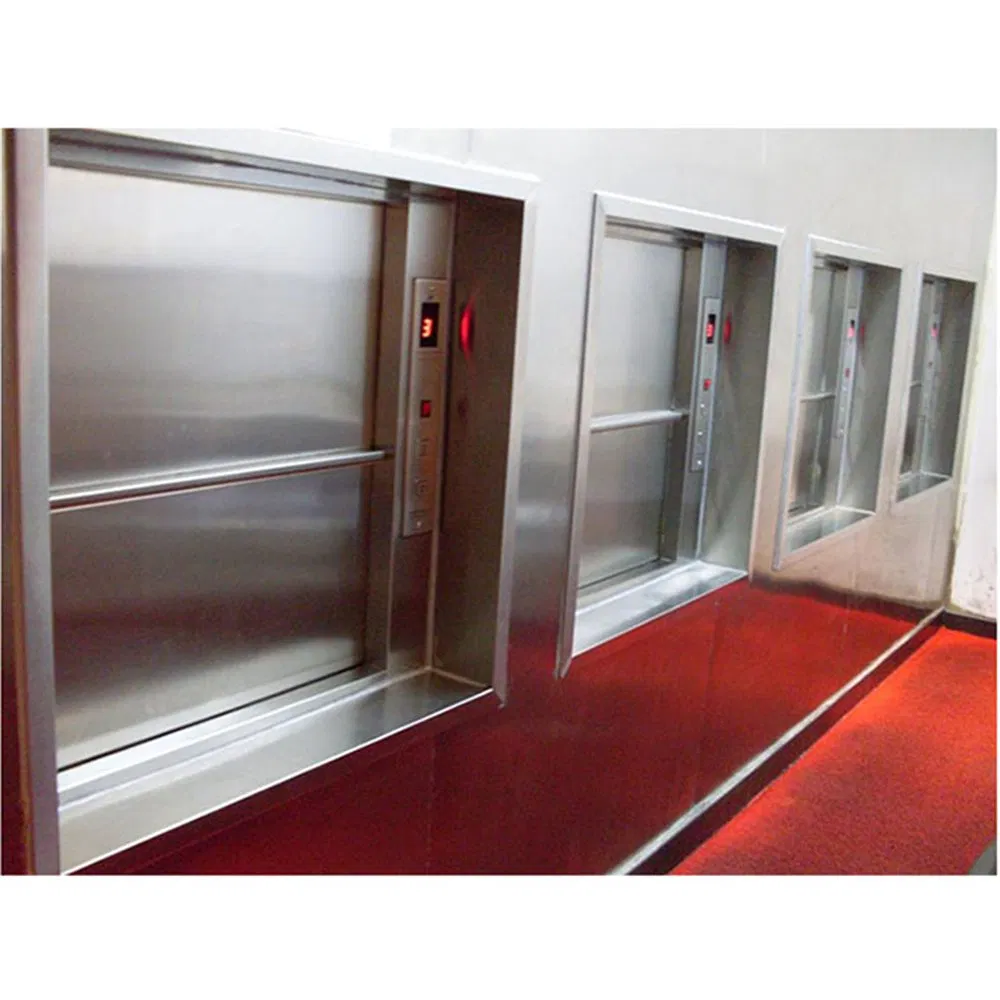

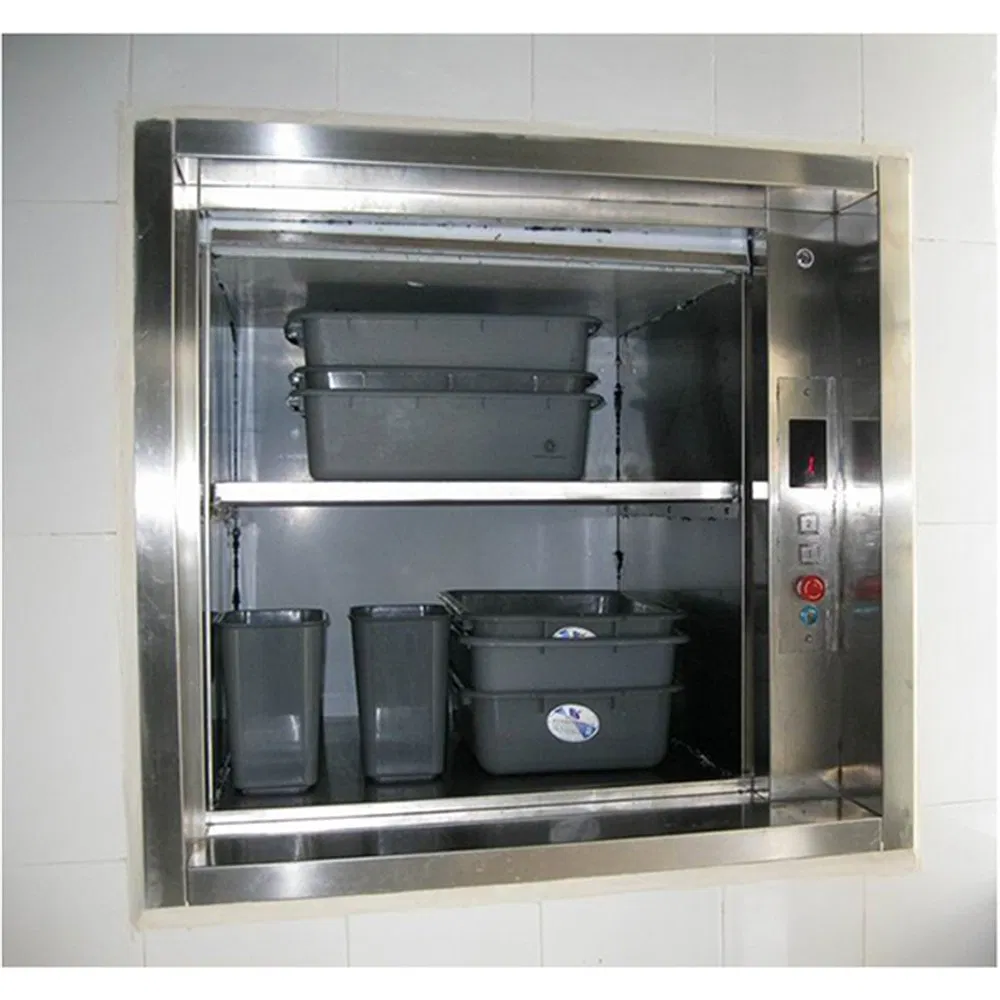

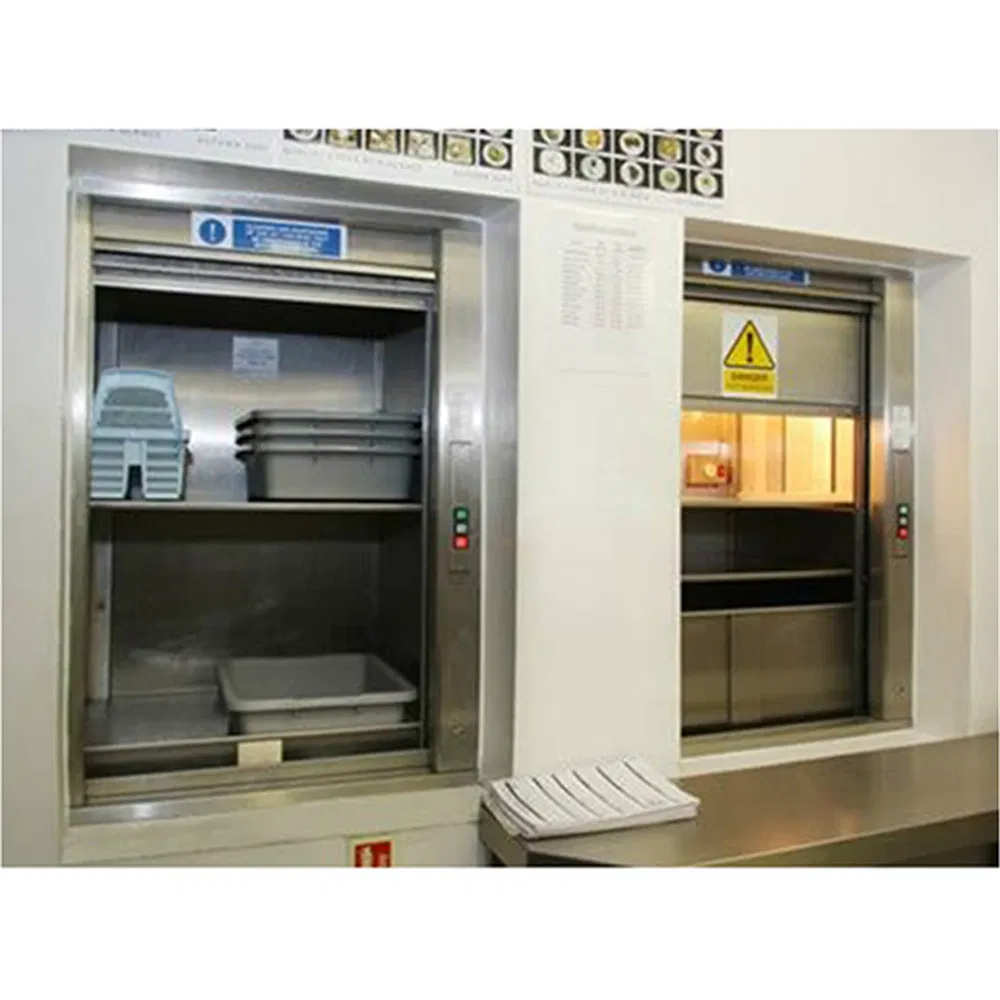

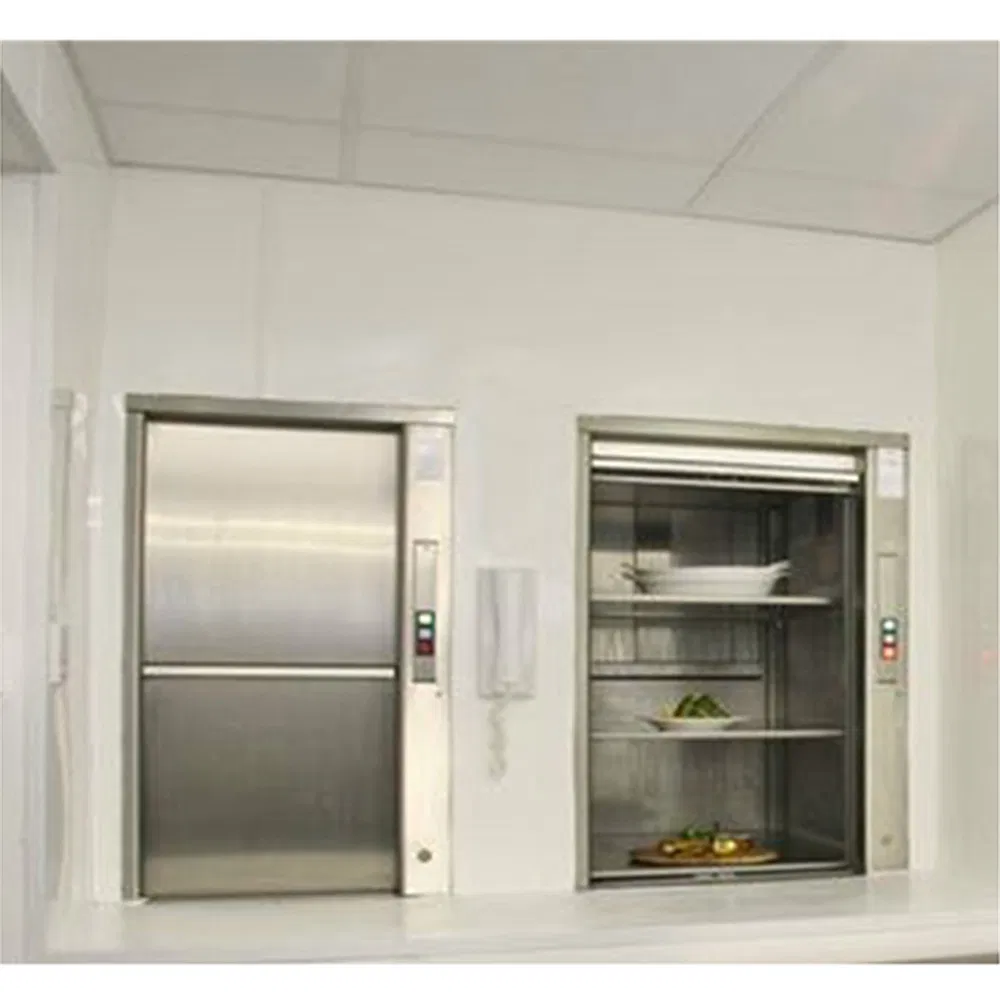

Window Type is typically installed at waist height (counter level), ideal for small food items and dishes. Trolley Type is installed at floor level, allowing carts or trolleys to be rolled directly into the elevator.
2. Does this dumbwaiter require a dedicated computer room?
No, this system is designed without a computer room (Machine-Room-Less), which saves space and simplifies architectural requirements.
3. What safety features and control systems are used?
The elevators utilize advanced Step AS380 or Monarch NICE3000 systems with collective selective control, ensuring precise leveling and smooth operation.
4. Can the load capacity be customized?
Our standard rated loads range from 100kg to 500kg. Please refer to the specification table for corresponding cabin and shaft dimensions.
5. What is the standard warranty and maintenance support?
All units come with a one-year warranty. We provide comprehensive installation and maintenance manuals. We recommend hiring a professional local company for routine servicing.
6. How are the products packaged for international shipping?
Products are secured in standard export wooden cases to ensure maximum protection during sea or land transport.
