DHI Lift
1 / 5

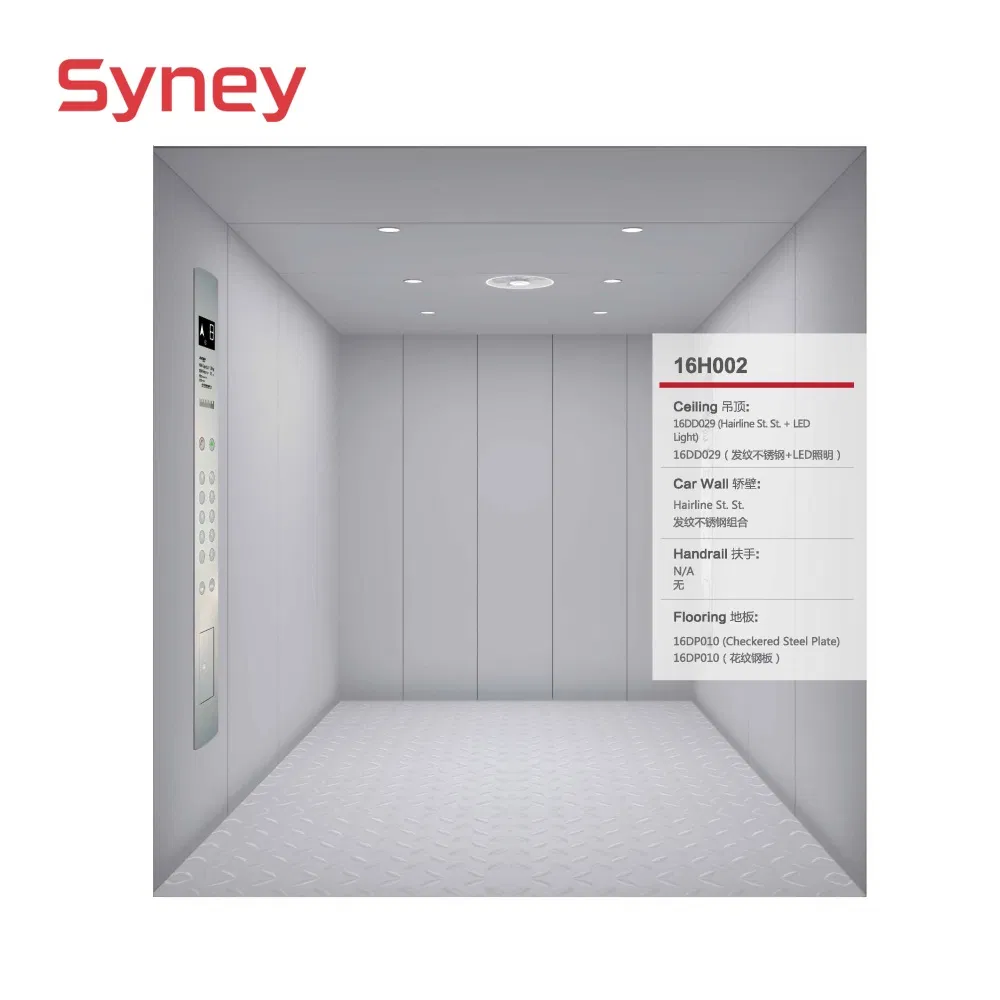

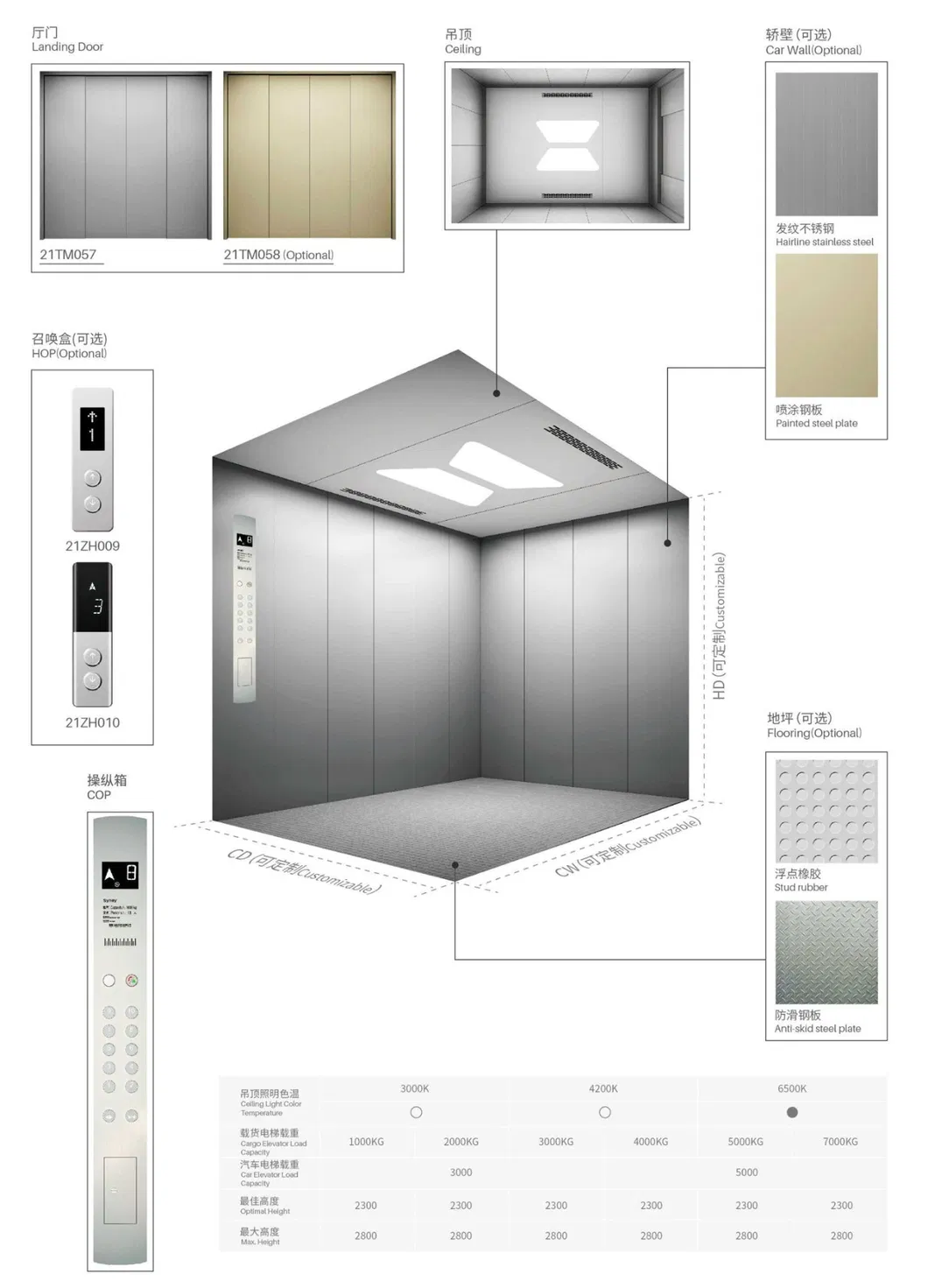

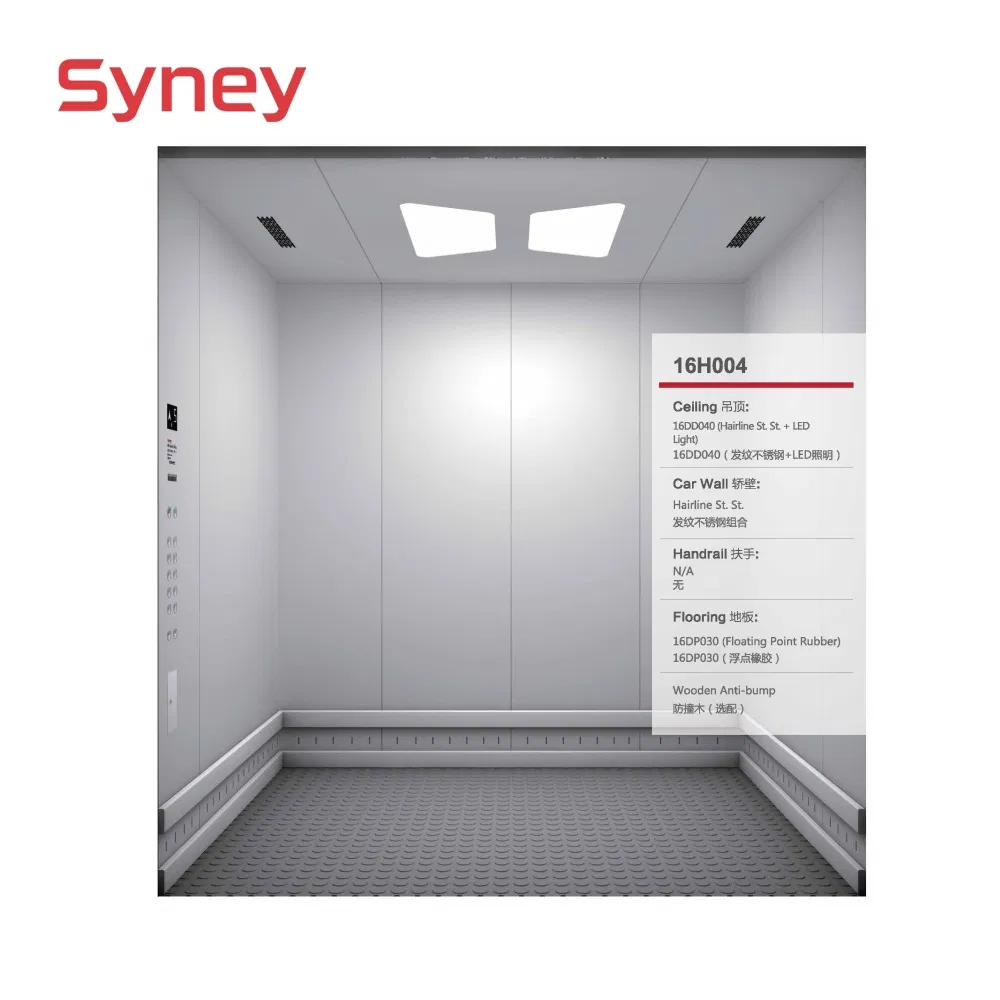

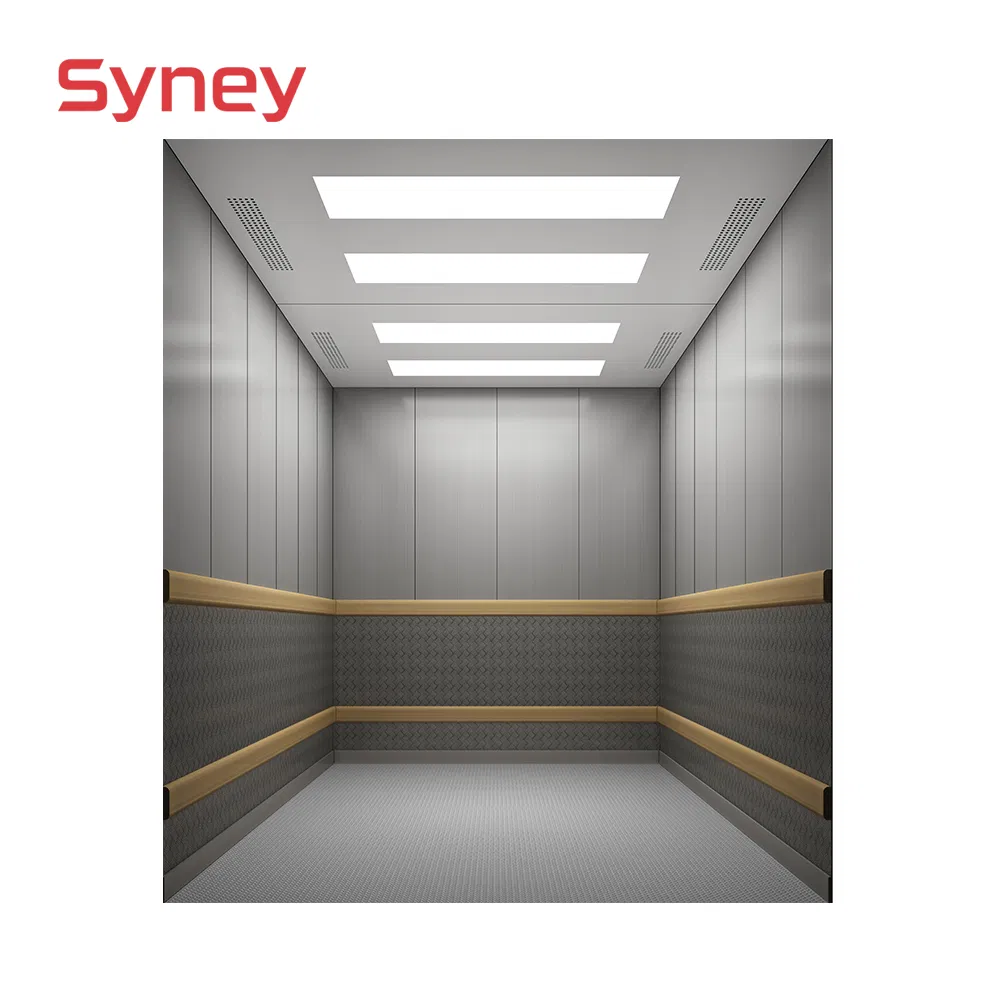

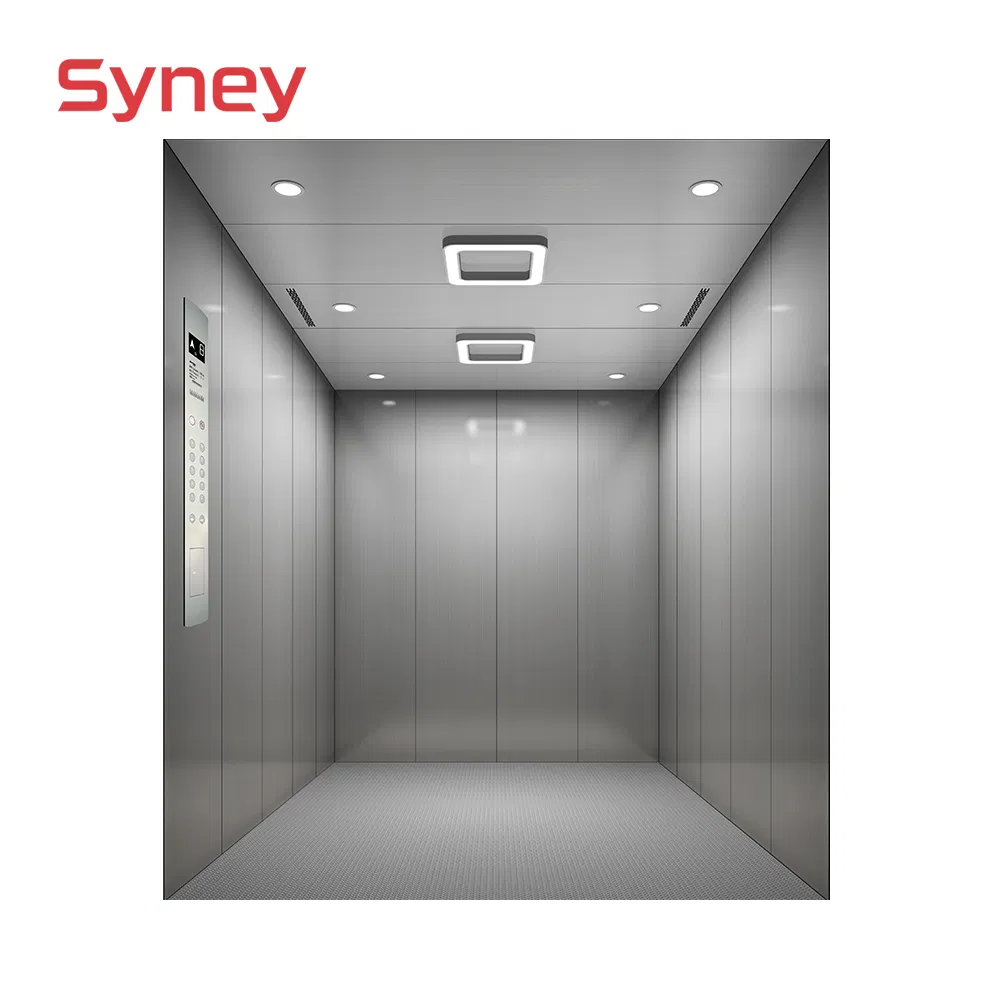

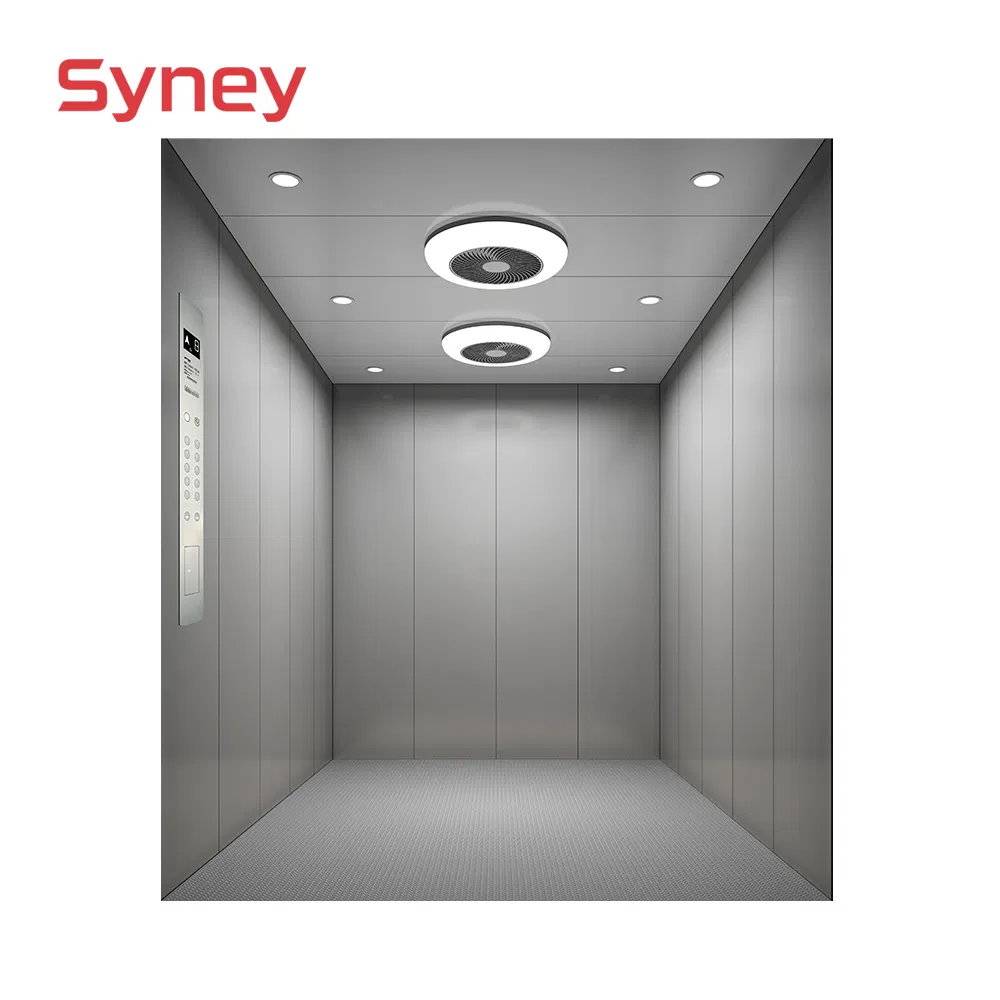

Our cargo lift creates a new concept of goods moving, ensuring the best loading capacity with wide open space. Safe and reliable, with high structural strength, endurable and smooth running, this freight lift is the best choice for supermarkets, shopping malls, logistic centers, factories, and warehouses under strict working conditions.
| Capacity (kg) | Speed (m/s) | Cabin Size (W*D mm) | Door Opening (mm) | Shaft Size (W*D mm) | Overhead (mm) | Pit (mm) | Max Travel (m) |
|---|---|---|---|---|---|---|---|
| 1000 | 0.5 / 0.63 | 1500 * 1500 | Side: 1200*2100 | 2400 * 2100 | 4500 | 1500 | 25 / 30 |
| 1600 | 0.5 / 0.63 | 1700 * 2000 | Side: 1300*2100 | 2700 * 2600 | 4500 | 1500 | 25 / 30 |
| 2000 | 0.5 / 0.63 | 2000 * 2000 | Center: 1500*2100 | 3000 * 2700 | 4500 | 1500 | 25 / 30 |
| 3000 | 0.5 / 0.63 | 2000 * 2800 | Center: 1600*2100 | 3100 * 3400 | 4500 | 1500 | 25 / 30 |
| 5000 | 0.25 / 0.5 | 2400 * 3700 | Center: 1800*2100 | 3600 * 4300 | 4500 | 1500 | 16 / 25 |
Note: Above standard specifications are for reference. If your site shaft size is different, the factory will design a suitable solution according to your parameters.

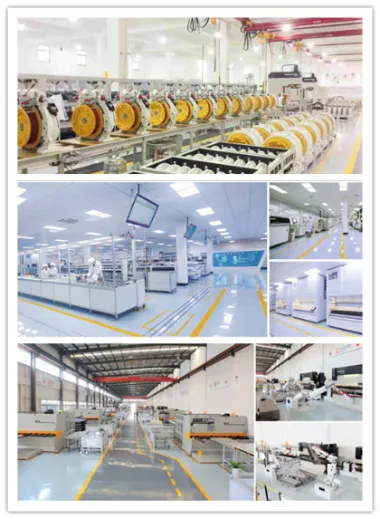

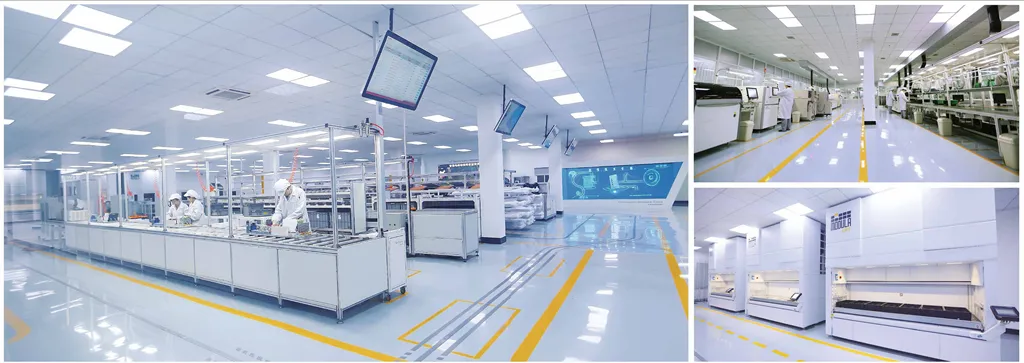

Our company is a professional enterprise integrating R&D, design, manufacture, marketing, installation, and customer service. We apply a whole set of advanced equipment and specialize in a wide range of products including passenger lifts, sightseeing elevators, bed elevators, cargo elevators, villa elevators, and escalators. With a network expanding to over 50 countries in Europe, Asia, Africa, and America, we are one of the most potential elevator companies in the region.

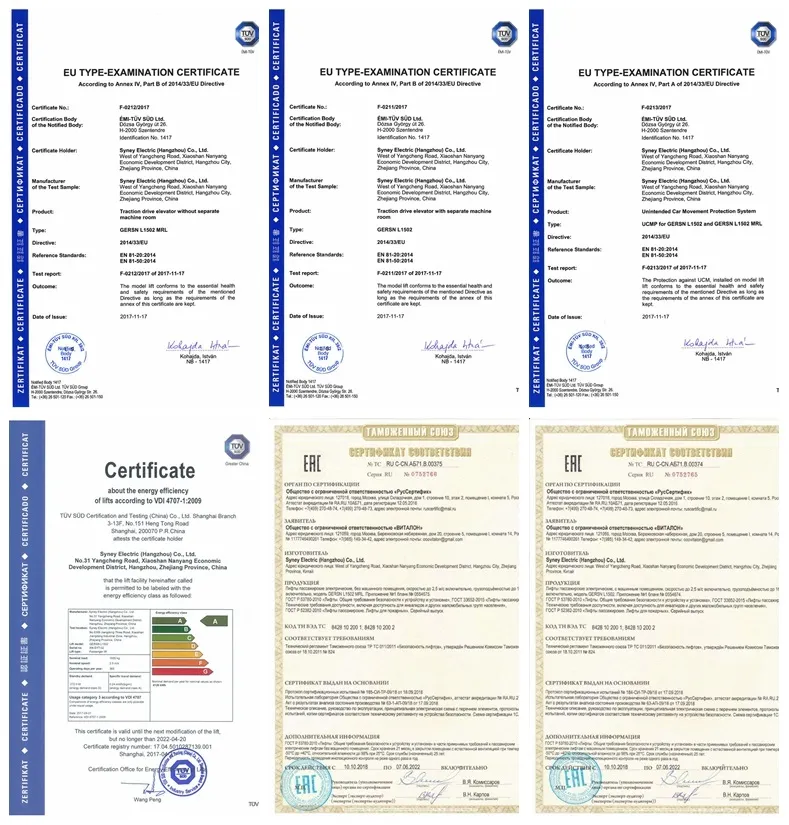

Germany TÜV SÜD Certification: One of the strictest worldwide quality marks. Our products have met international body requirements, ensuring a new stage of quality management.
