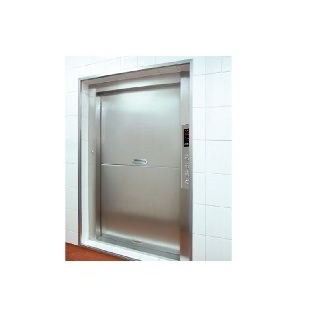

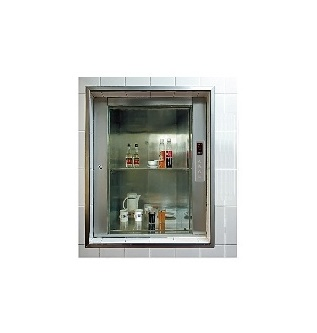

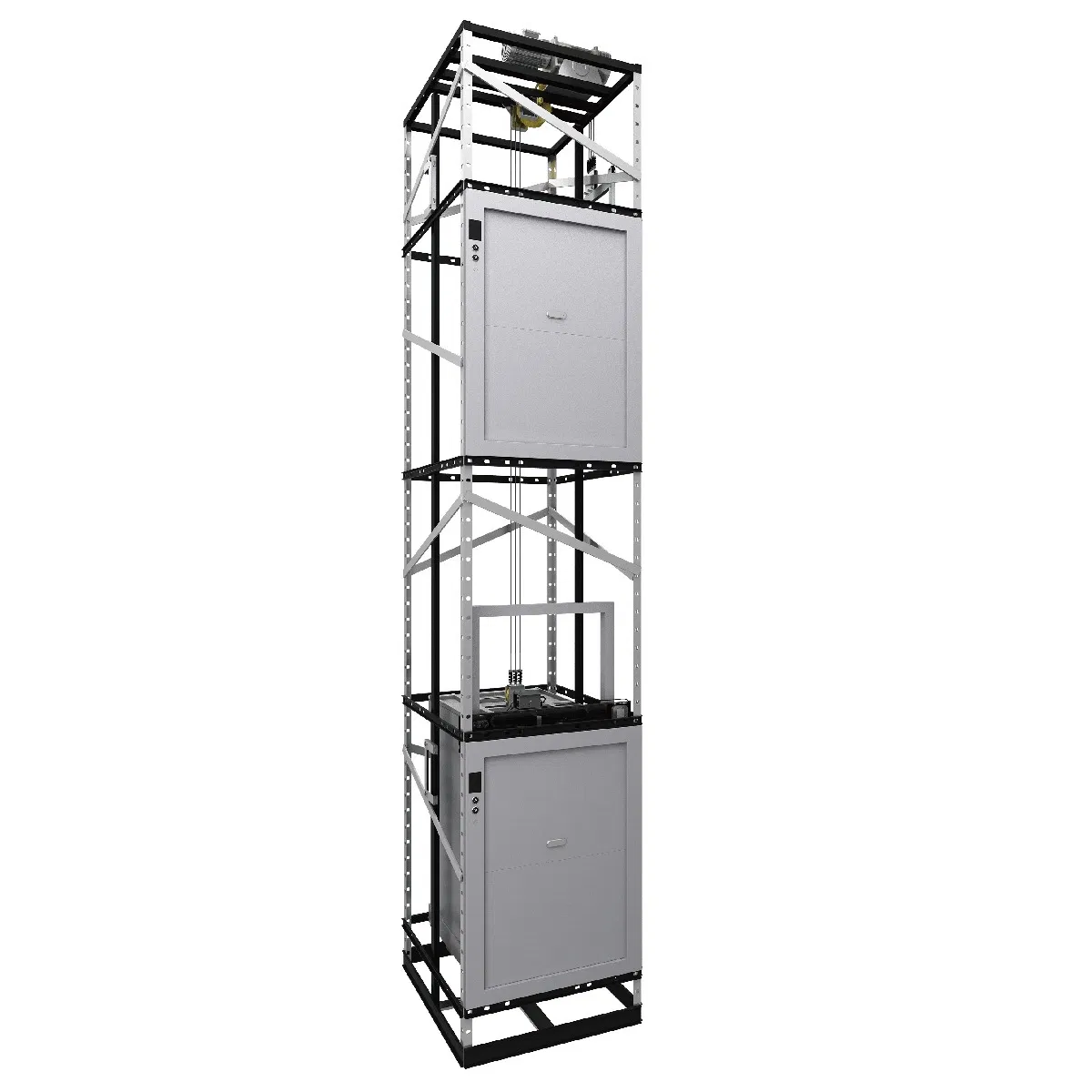

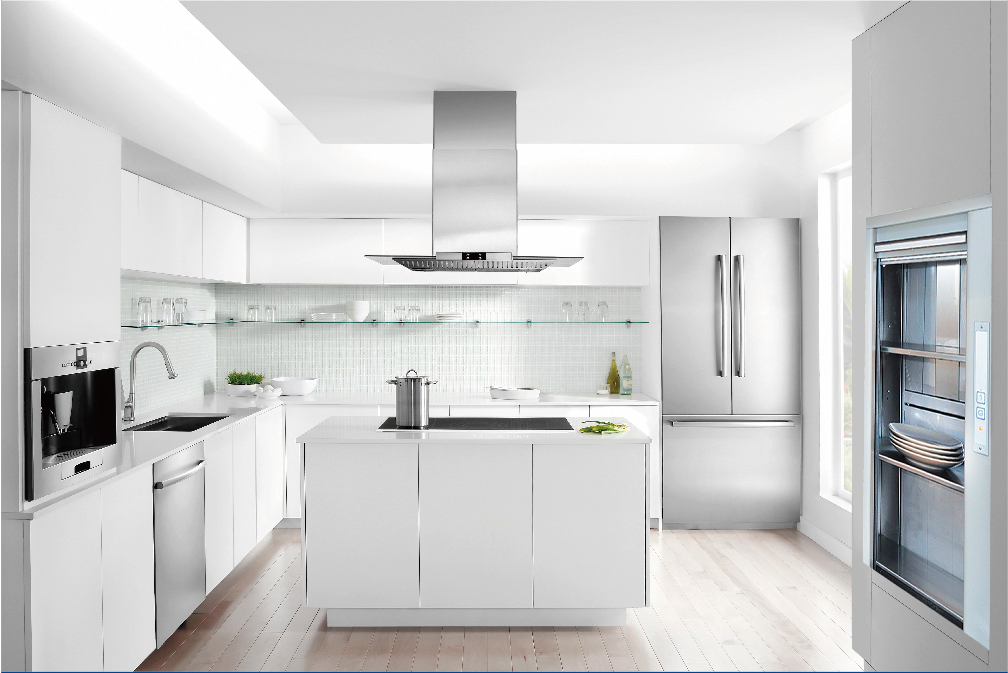

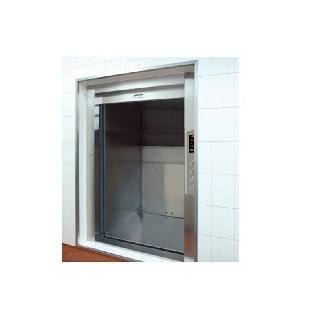

The dumbwaiter is the smallest member of the elevator family. It is also called a food elevator, food dumbwaiter, or kitchen lift depending on the application. These units serve various industries silently, playing a massive role while occupying minimal space.
| Load (kg) | Speed (m/s) | Cabin Size (WxDxH)mm | Shaft Size (WxD)mm | Pit Depth (mm) | Type |
|---|---|---|---|---|---|

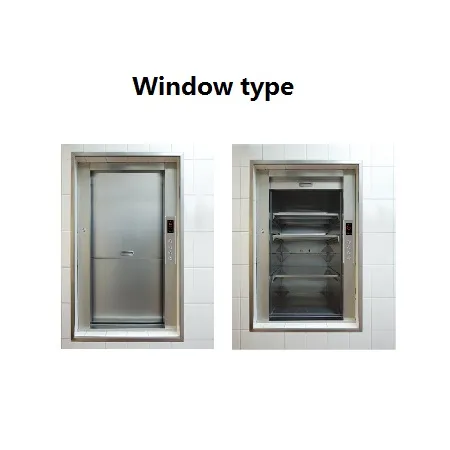

| 100 | 0.4 | 500x500x900 | 1000x800 | 700 (Window) | Window Type |
| 200 | 0.4 | 600x600x900 | 1100x900 | 700 (Window) | Window Type |
| 250 | 0.4 | 800x800x900 | 1300x1100 | 700 (Window) | Window Type |

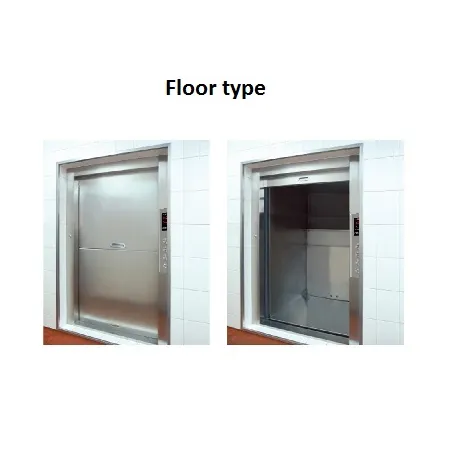

| 100 | 0.4 | 500x500x1000 | 1000x800 | 1000 | Floor Type |
| 200 | 0.4 | 600x600x1000 | 1100x900 | 1000 | Floor Type |
| 300 | 0.4 | 900x900x1000 | 1400x1200 | 1000 | Floor Type |
| Motor overheat protect | Safety gear contact |
| Power phase fault detect | Main fuse (controller) |
| Drive running time detect | Main power switch |
| Inspection running | Car lighting switch |
| Emergency door opening key | Hall calling register display |
| Car door contact | Car position indicator |
| Shaft emergency stop switch | Running direction indicator |

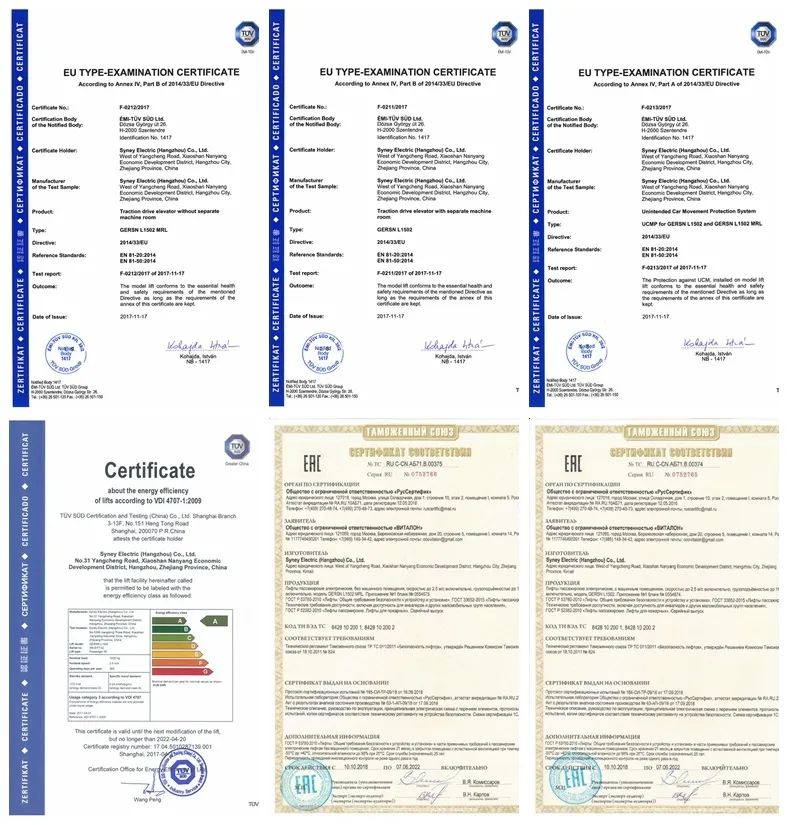

Our products meet the strictest international standards, including TÜV SÜD, which is widely accepted across Europe. We hold:
