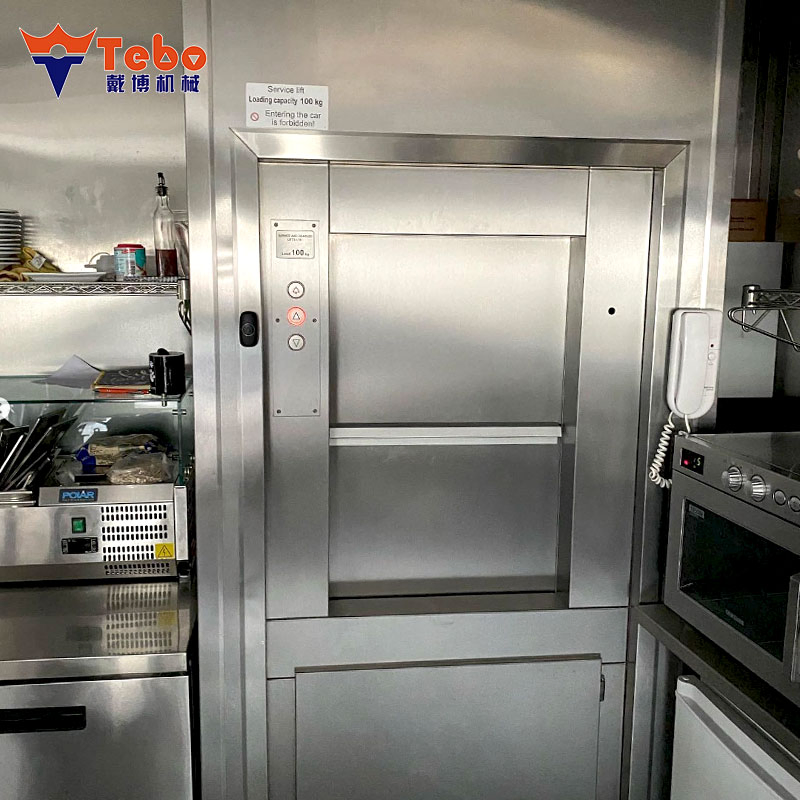

Commercial Goods Lift and Dumbwaiter Elevator for Restaurant Food Delivery

Still deciding? Get samples of $ !
Request Sample

Product Description

i Basic Information
Model NO.
TBD-36
Type
Wellhole
Load Capacity
50kg-300kg
Speed
0.40m/s
Drive Mode
AC
Open & Close Type
Manual
Lift Mechanism
Telescoping Lift
Guide Rail
T Guide
Elevator Door
Center Opening Door
Origin
China
Production Capacity
1000 Sets/Year

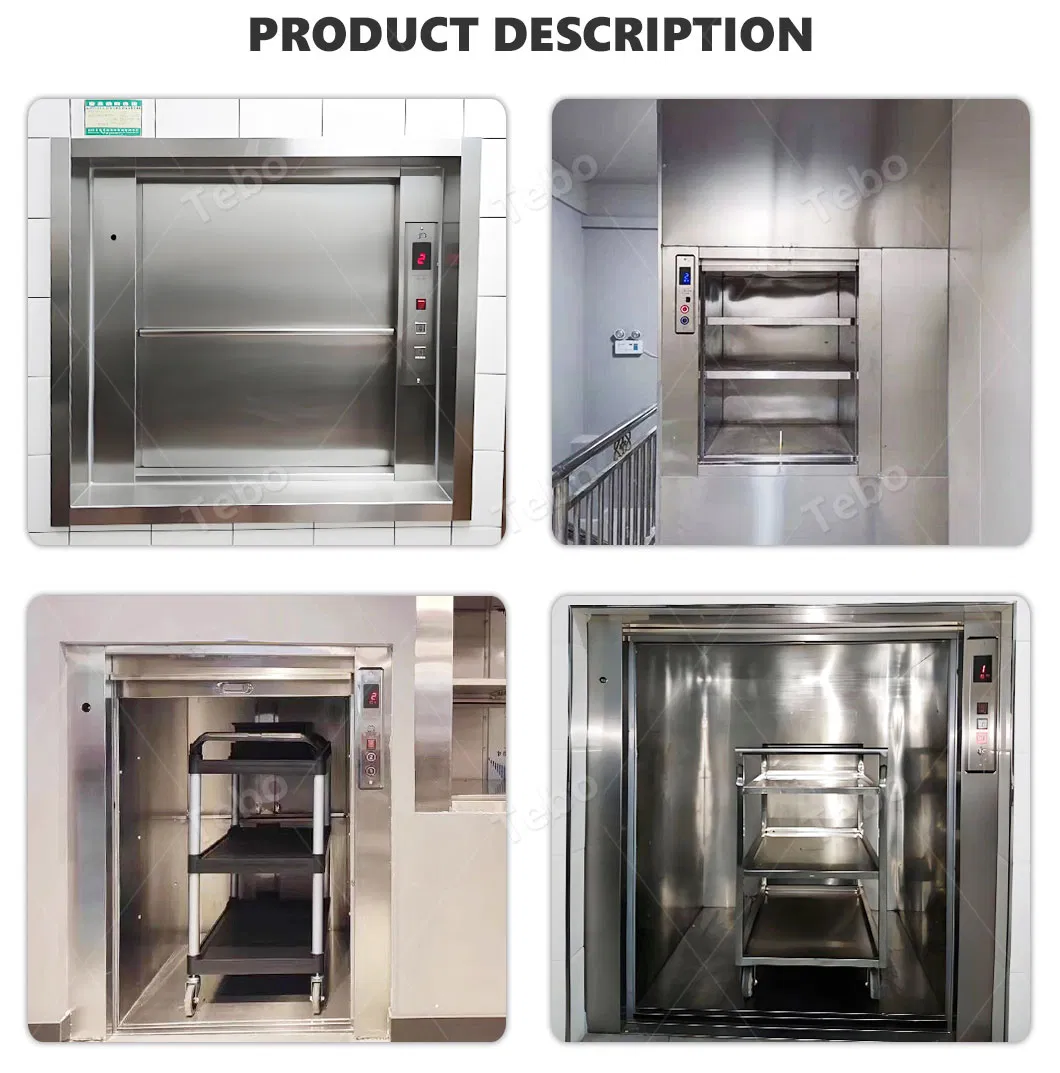

Product Description

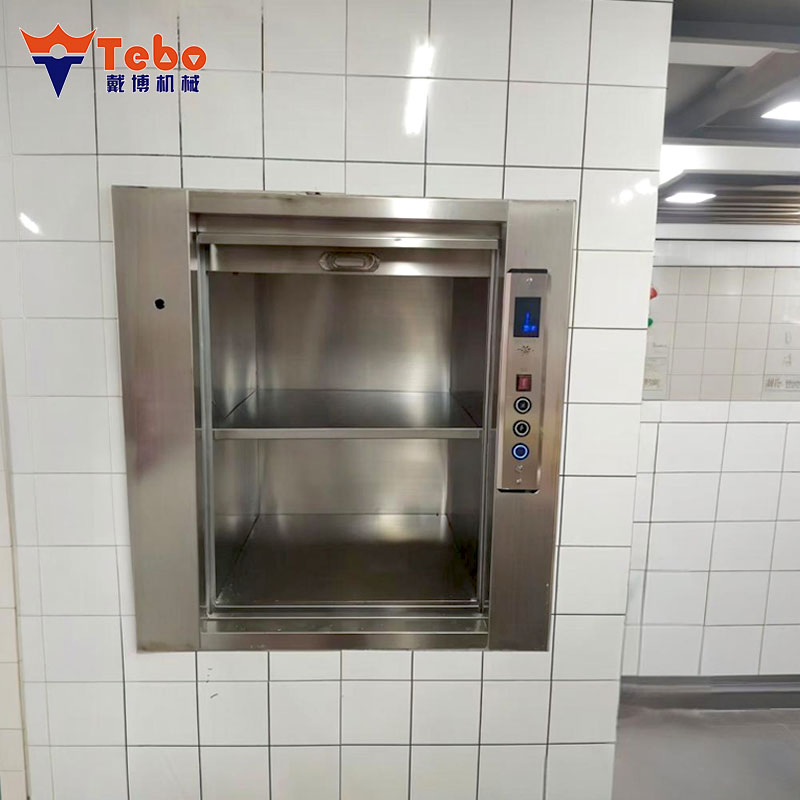

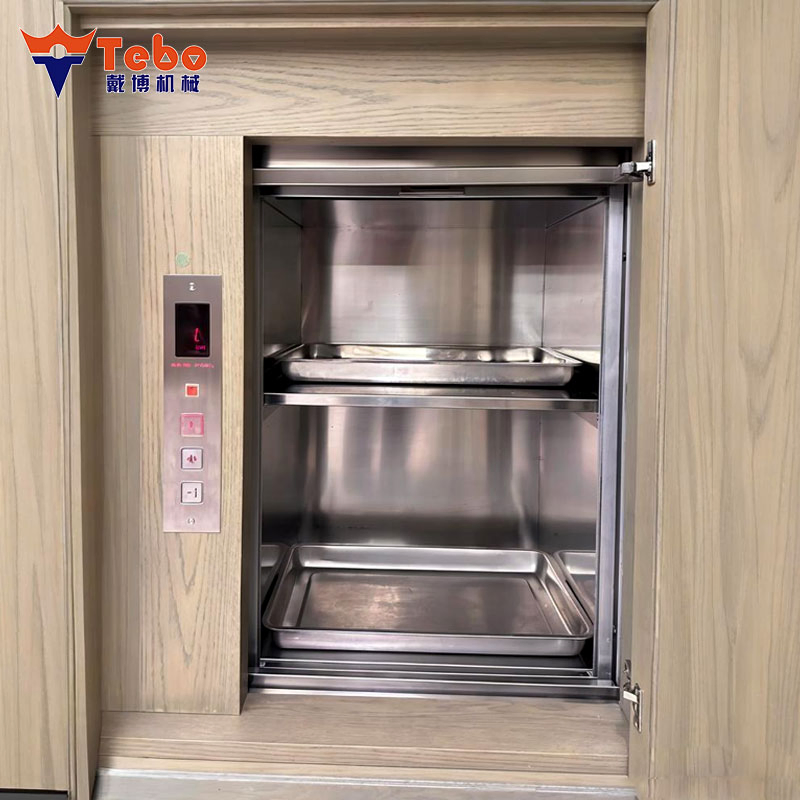

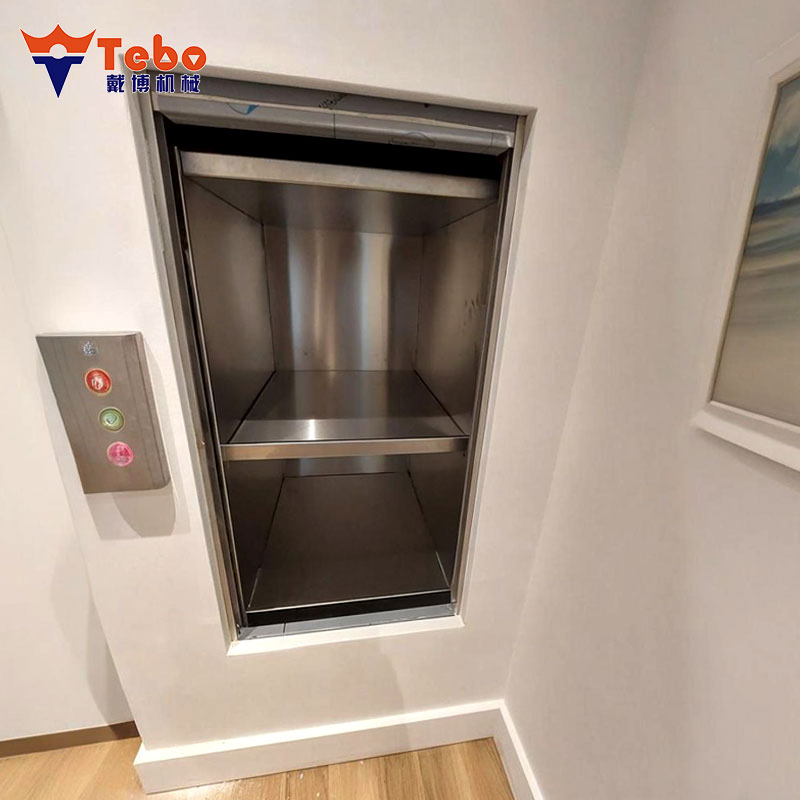

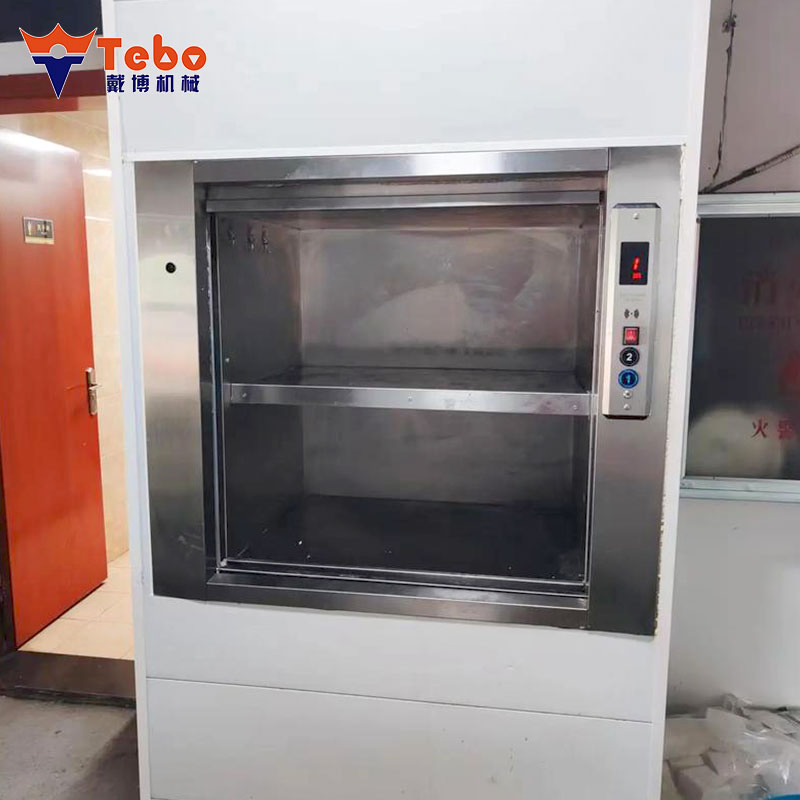

The food delivery lift is a vertical transportation device designed for restaurants, hotels, cafés, and multi-floor dining environments. It is mainly composed of a shaft structure, a stainless-steel cabin, a driving mechanism, and an intelligent control system. With a durable stainless-steel cabin and a robust steel shaft frame, the lift ensures excellent corrosion resistance and easy cleaning. The traction driving system provides smooth and low-noise movement, fully meeting the hygiene and quietness requirements of food-service settings.

The lift significantly improves operational efficiency by quickly transferring dishes, beverages, and tableware between floors, reducing staff workload and minimizing the physical strain caused by frequent stair use. Its enclosed design prevents contamination and meets food-hygiene standards. Thanks to its compact footprint and flexible installation options, it easily adapts to kitchens, dining areas, private rooms, and other spaces with limited layout conditions.

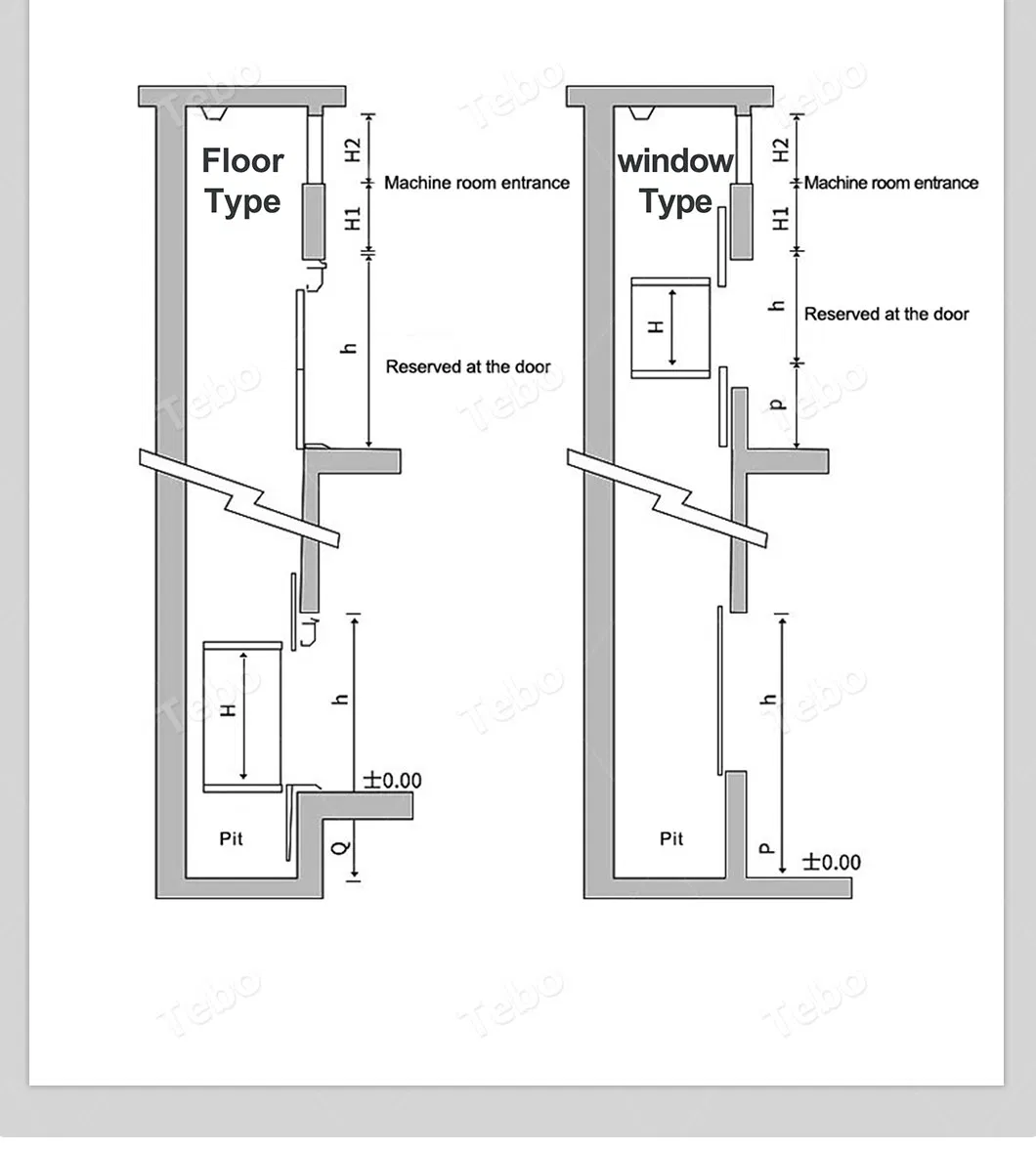

Technical Parameters
Window Type Parameters
Load(kg) Cabin Dimension (W*D*H mm) Landing Door Door Size (W*H mm) Window Sill Height Overhead Height
100600*400*800Standard600*8008002800
100600*600*800Standard600*8008002800
200800*800*800Standard800*8008002800
2001000*1000*1000Standard1000*10008003200
Floor Type Parameters
Load(kg) Cabin Dimension (W*D*H mm) Landing Door Door Size (W*H mm) Min Pit Depth Overhead Height
200800*800*1000Standard800*10006002800
3001000*1000*1200Standard1000*12007003200
4001000*1200*1400Standard1200*14008003600

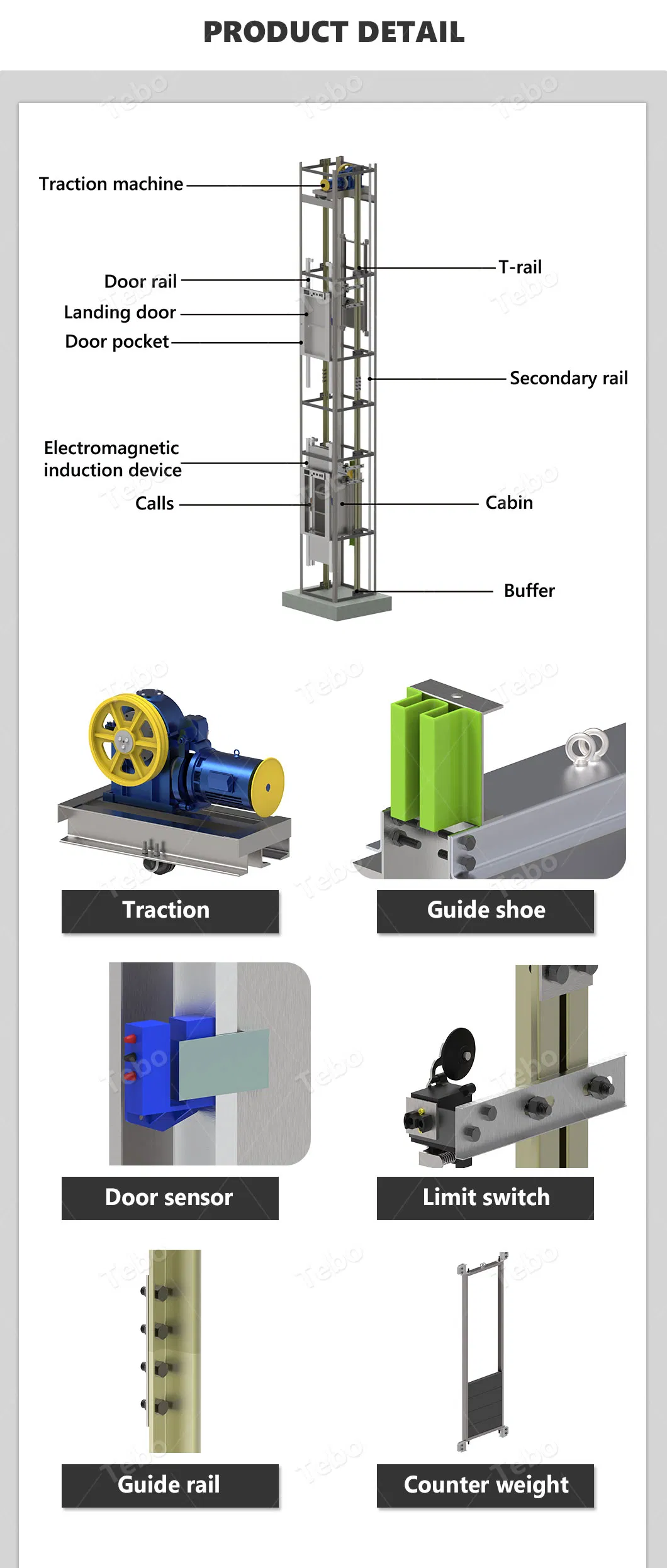

🔍 Product Details
🏢 Profile

Our enterprise specializes in the R&D and manufacturing of mechanical equipment. With an experienced and highly innovative technical team, we continuously optimize multiple product series. We possess significant advantages in structural design, operational efficiency, and stability, securing numerous independent intellectual property rights and patent technologies.

Our core product range includes hydraulic home elevators, hydraulic freight lifts, hydraulic car lifts, and hydraulic scissor lift platforms. Equipped with advanced production facilities and sophisticated manufacturing processes, we ensure efficient end-to-end production from component processing to complete unit assembly.

📜 Certifications & Logistics
? Frequently Asked Questions
1. What are the primary advantages of your lift equipment?
We are a leading manufacturer with a dedicated production base, ensuring quality and price advantages. We provide high-quality after-sales service, including on-site guidance and a 12-month warranty for the entire equipment.
2. What pre-sales services do you offer?
Our team offers professional recommendations and consultations. For custom requirements, our engineers provide detailed blueprints and technical designs to match your specific needs.
3. How is the equipment installed after delivery?
We provide detailed drawings, assembly manuals, and installation guides. Most customers can successfully install the machines by following these clear, step-by-step instructions.
4. What kind of packaging is used for international shipping?
We typically use robust plywood cases to ensure safety during transport. Special shipping marks or customized packaging requirements can be accommodated upon request.
5. What is the typical lead time for an order?
Shipping speed depends on the specific product. Generally, it takes approximately 10 working days after payment is received to prepare the equipment for dispatch.
6. What are the accepted terms of delivery?
We support various international trade terms, including EXW, FOB, CFR, and CIF, to provide flexibility for our global clients.
