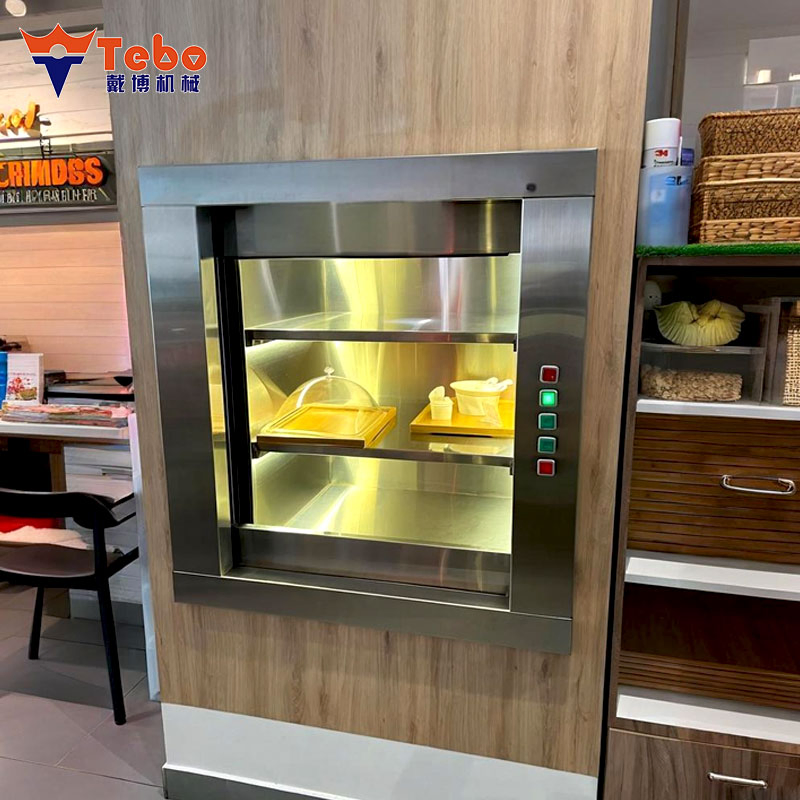

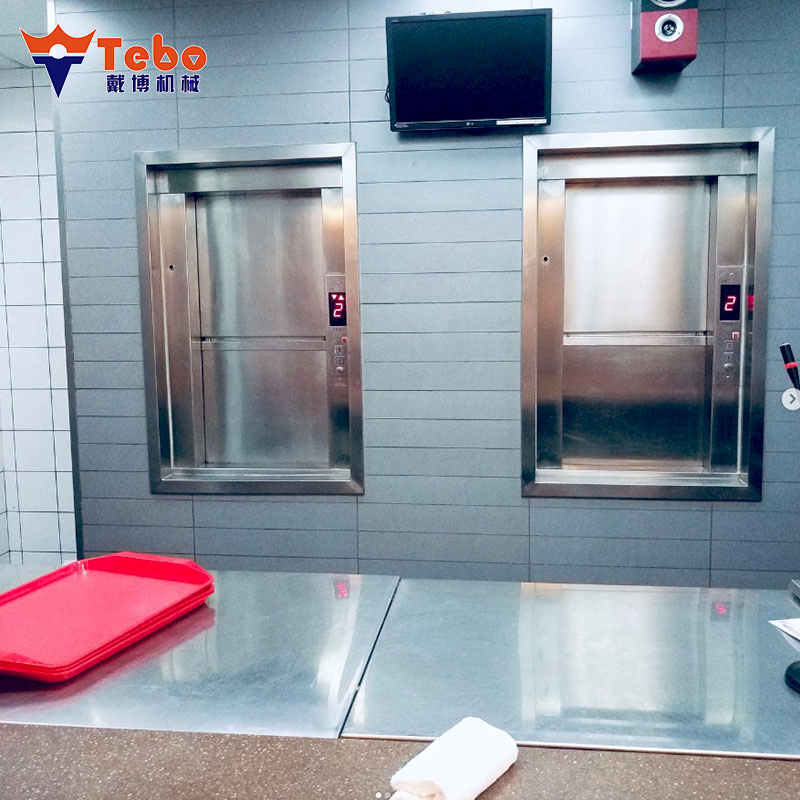

Commercial-Grade Dumbwaiter Lift for Efficient Delivery of Meals and Goods

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Information

Model NO.
TBDL-07
Type
Wellhole
Load Capacity
50kg-300kg
Speed
0.40m/s
Drive Mode
AC
Open & Close Type
Manual
Lift Mechanism
Telescoping Lift
Guide Rail
T Guide
Elevator Door
Center Opening Door
Origin
China
Production Capacity
1000 Sets/Year

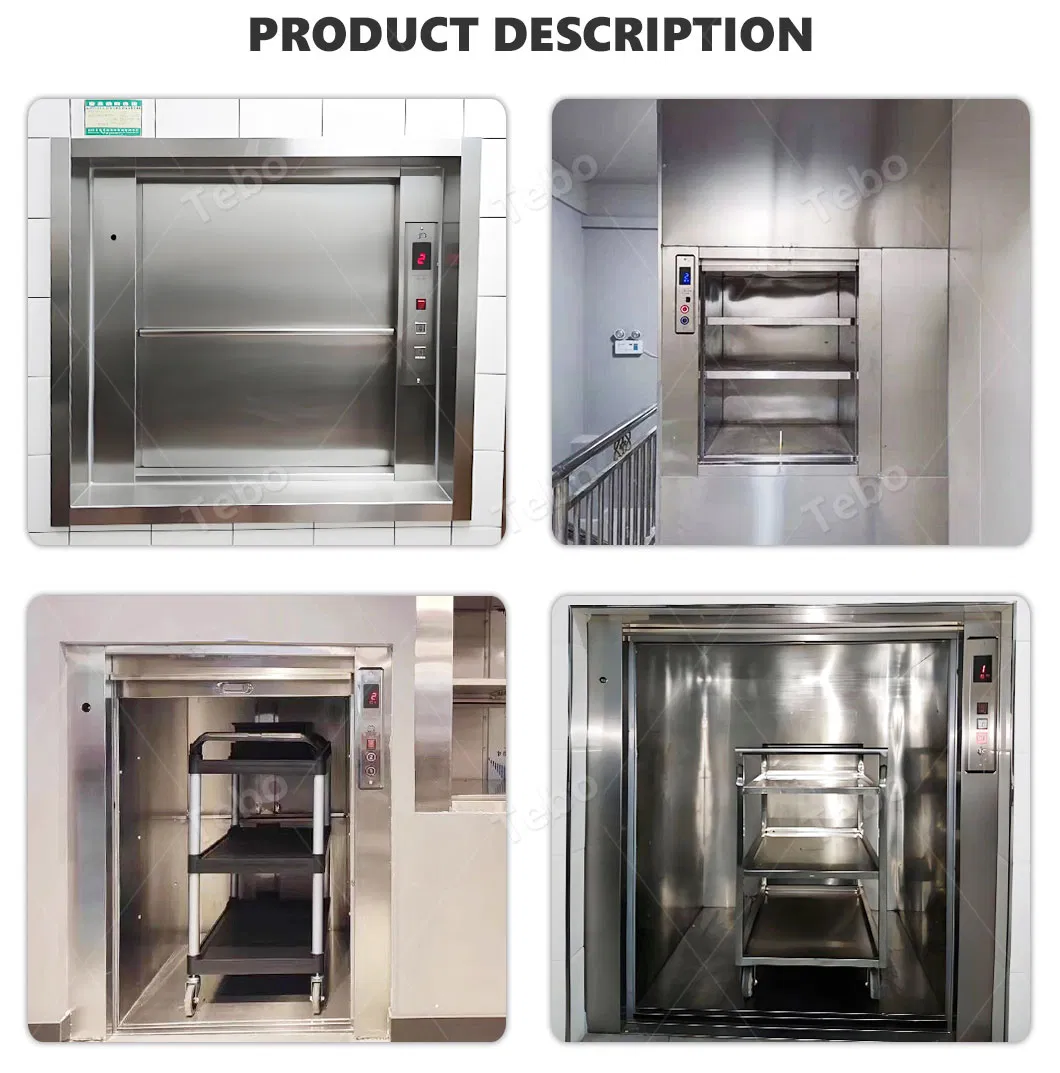

Product Description

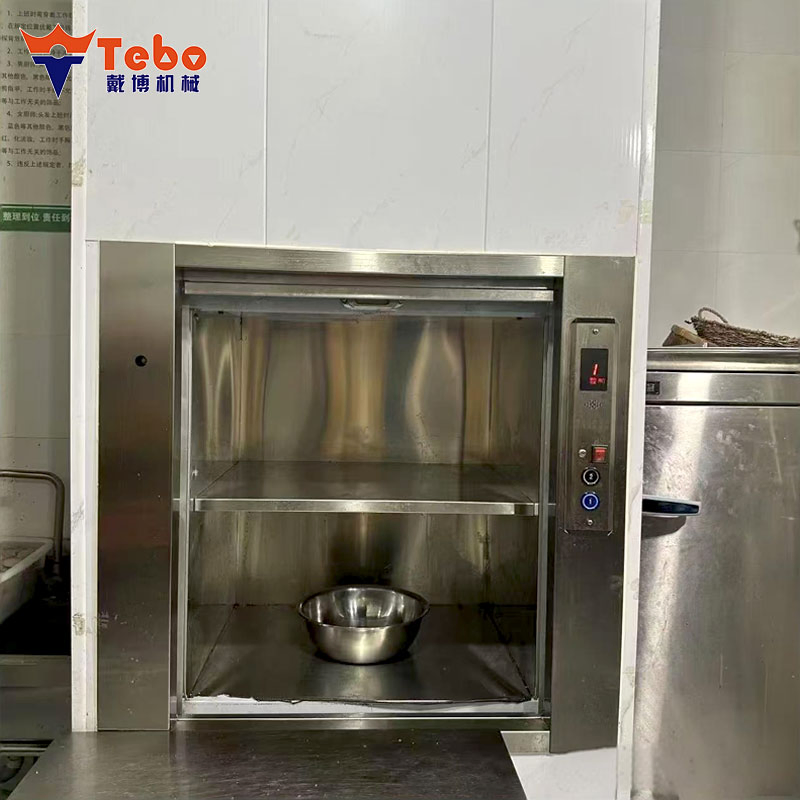

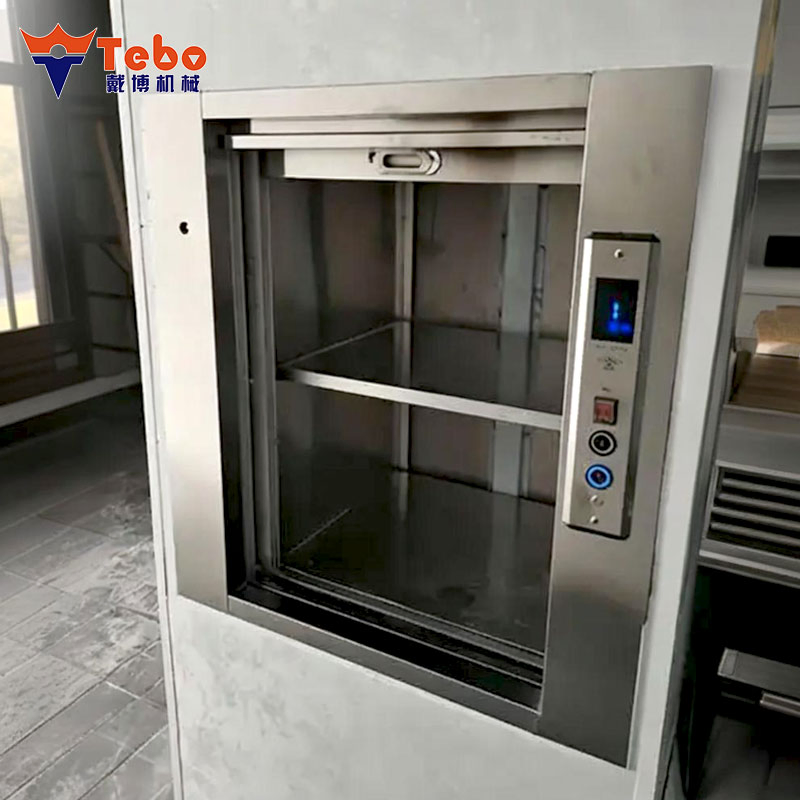

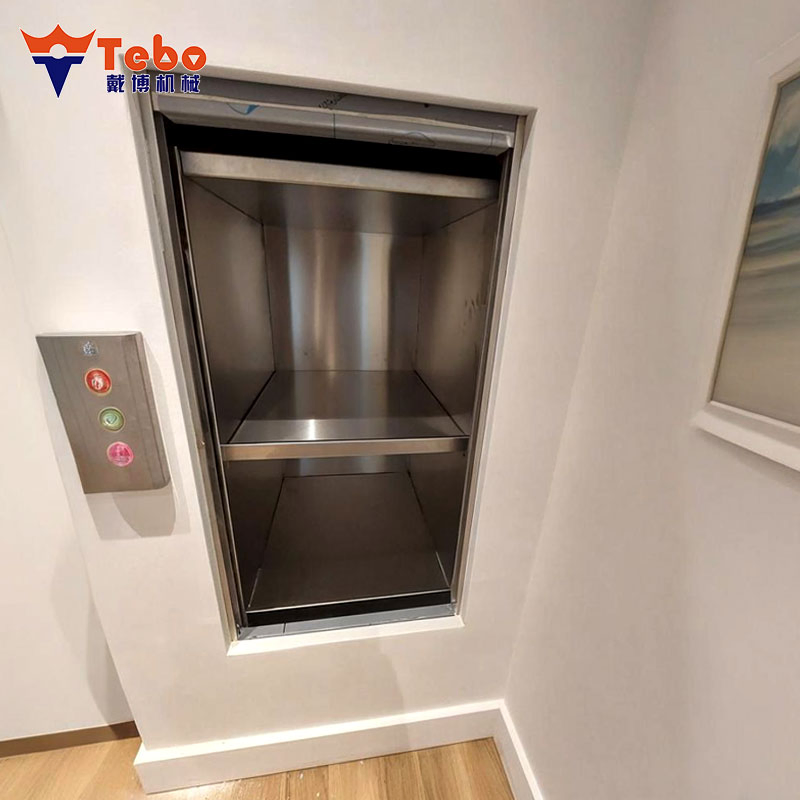

The food delivery lift is a vertical transportation device designed for restaurants, hotels, cafés, and multi-floor dining environments. It is mainly composed of a shaft structure, a stainless-steel cabin, a driving mechanism, and an intelligent control system. With a durable stainless-steel cabin and a robust steel shaft frame, the lift ensures excellent corrosion resistance and easy cleaning. The traction driving system provides smooth and low-noise movement, fully meeting the hygiene and quietness requirements of food-service settings.

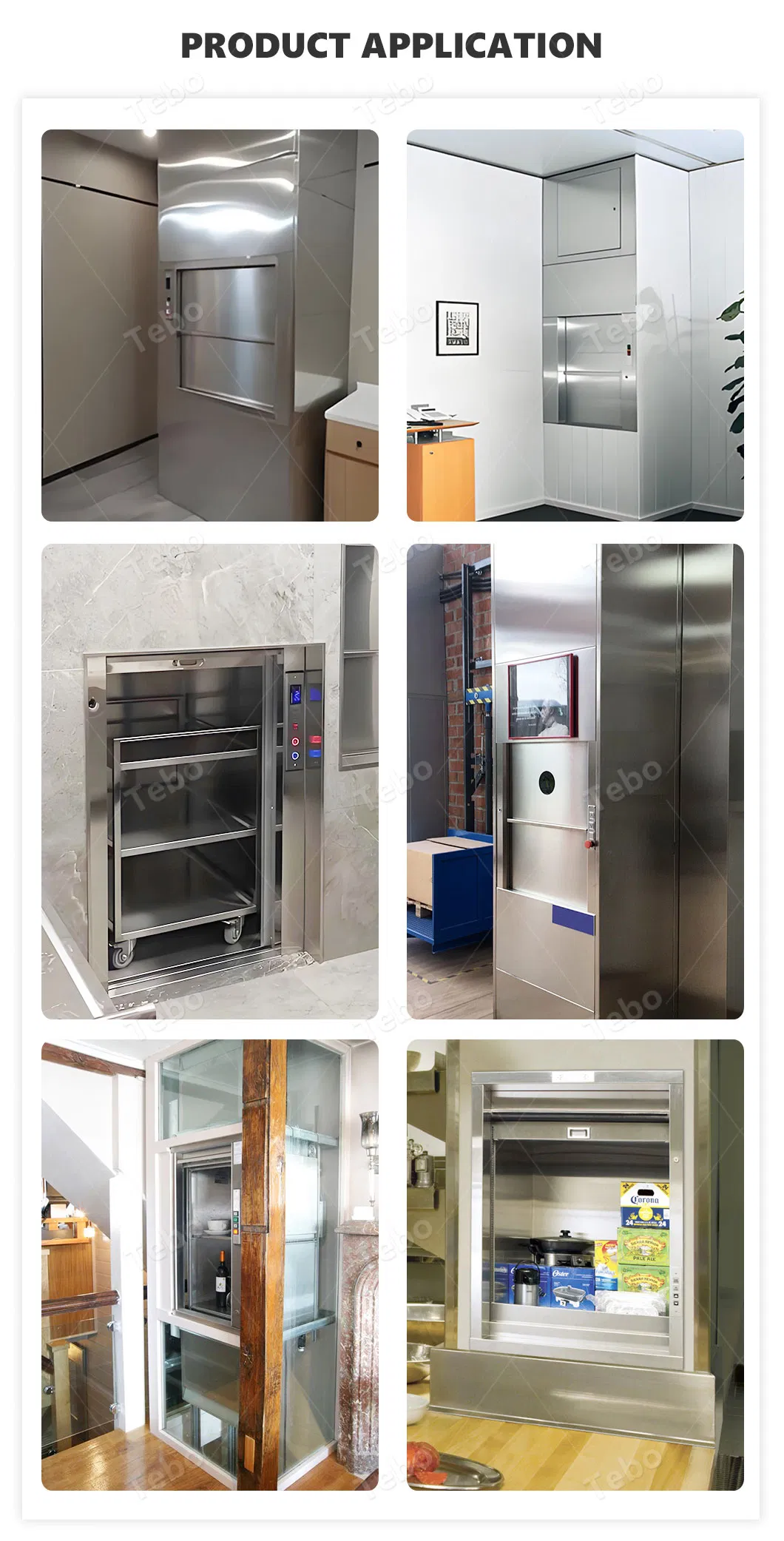

The lift significantly improves operational efficiency by quickly transferring dishes, beverages, and tableware between floors, reducing staff workload and minimizing the physical strain caused by frequent stair use. Its enclosed design prevents contamination and meets food-hygiene standards. Thanks to its compact footprint and flexible installation options, it easily adapts to kitchens, dining areas, private rooms, and other spaces with limited layout conditions.

📋

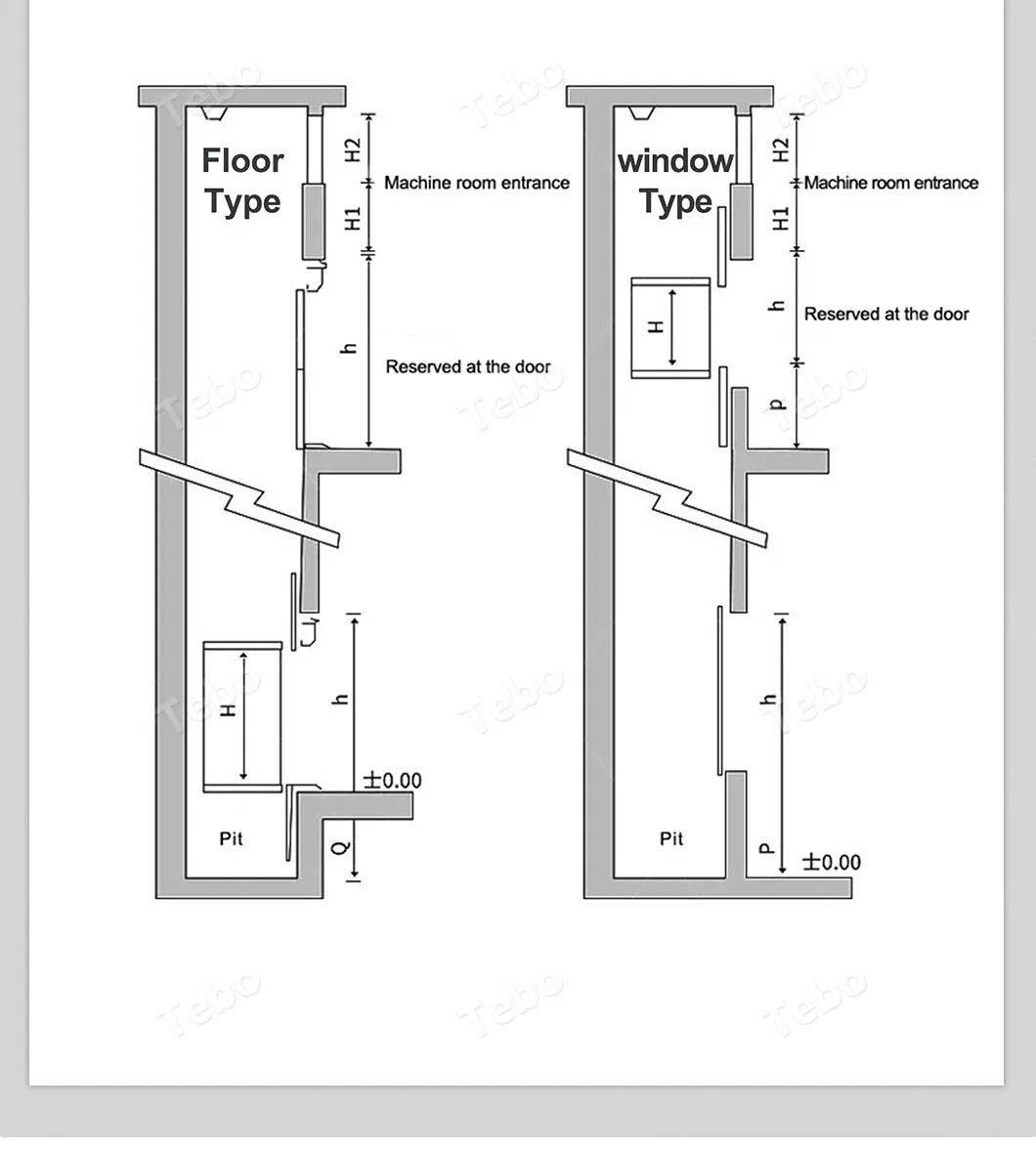

Technical Parameters

Window Type Parameters
Type Load(kg) Cabin Dimension (W*D*H) Landing Door Cabin Door Door Size (W*H) Sill Height Overhead Height
Window Type100600*400*800StandardOptional600*8008002800
100600*600*800StandardOptional600*8008002800
200800*800*800StandardOptional800*8008002800
2001000*1000*1000StandardOptional1000*10008003200
Floor Type Parameters
Type Load(kg) Cabin Dimension (W*D*H) Landing Door Cabin Door Door Size (W*H) Min Pit Depth Overhead Height
Floor Type200800*800*1000StandardOptional800*10006002800
2001000*1000*1000StandardOptional1000*10006002800
3001000*1000*1200StandardOptional1000*12007003200
4001000*1200*1400StandardOptional1200*14008003600
🔍

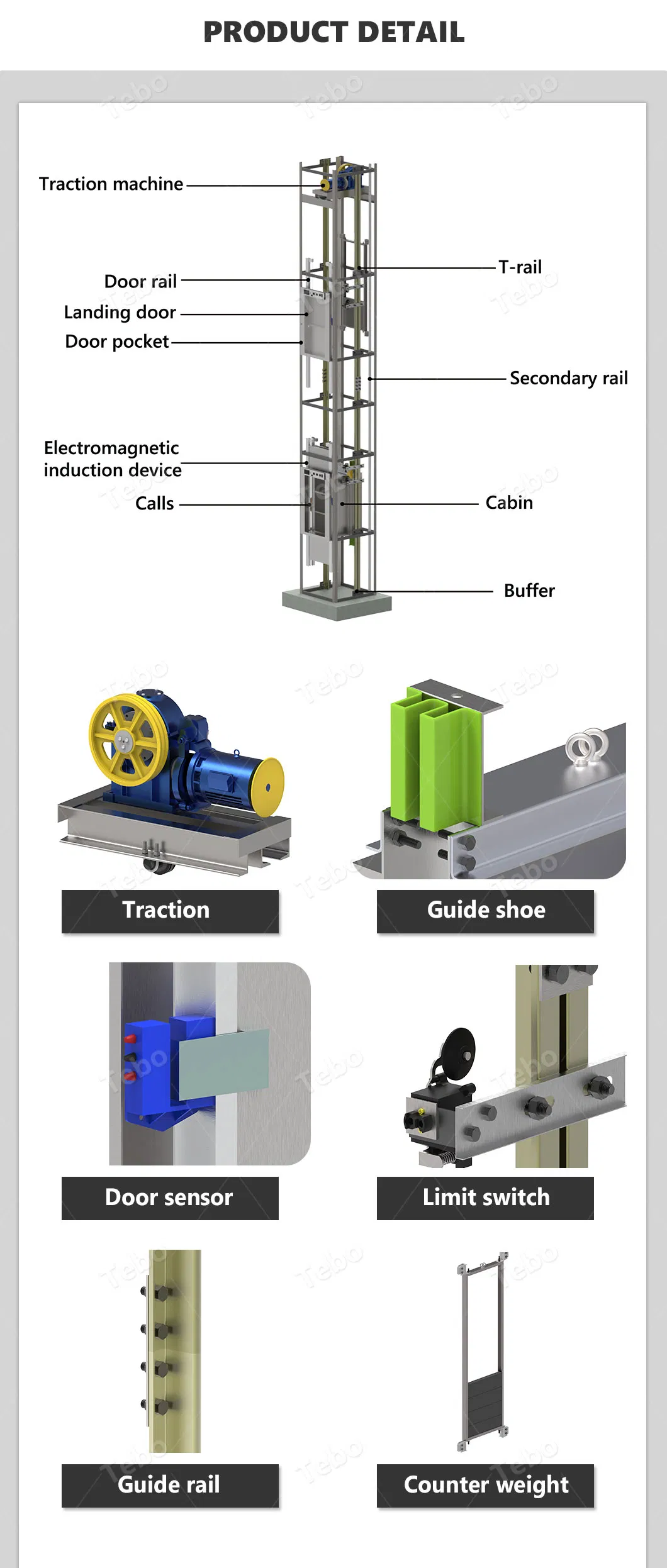

Product Details

🏢

Company Profile

We are a Chinese enterprise specializing in the R&D and manufacturing of mechanical equipment. The company has assembled an experienced and highly innovative technical team, continuously developing and optimizing multiple product series. We possess significant advantages in structural design, operational efficiency, and stability, and have secured numerous independent intellectual property rights and patent technologies.

Our core product range includes hydraulic home elevators, hydraulic freight lifts, hydraulic car lifts, and hydraulic scissor lift platforms. Utilizing modern CNC machining centers, automated welding equipment, and precision inspection instruments, we ensure efficient end-to-end production from component processing to complete unit assembly.

📜

Certifications & Packaging

?

Frequently Asked Questions

What are the primary advantages of your lift equipment?
As a leading manufacturer in China, we offer absolute advantages in quality and market pricing. We provide high-quality after-sales service, including on-site installation guidance and a 12-month warranty for the entire equipment.
What pre-sales and after-sales services do you provide?
Pre-sales include professional consultation and detailed bespoke blueprints. After-sales includes follow-up services, detailed assembly drawings, and installation manuals. Technical support is available with a 2-hour response time.
How is the equipment packaged for international shipping?
We typically use robust plywood cases. We can also accommodate special requirements for shipping marks and customized packaging details to ensure safe transit.
What is the typical lead time for shipping?
Shipping speed depends on the specific product. Generally, it takes approximately 10 working days after payment is received to prepare the equipment for dispatch.
What are the accepted payment terms and methods?
We accept EXW, FOB, CFR, and CIF terms. Typically, a payment is required before production starts, with the remaining balance due before delivery.
