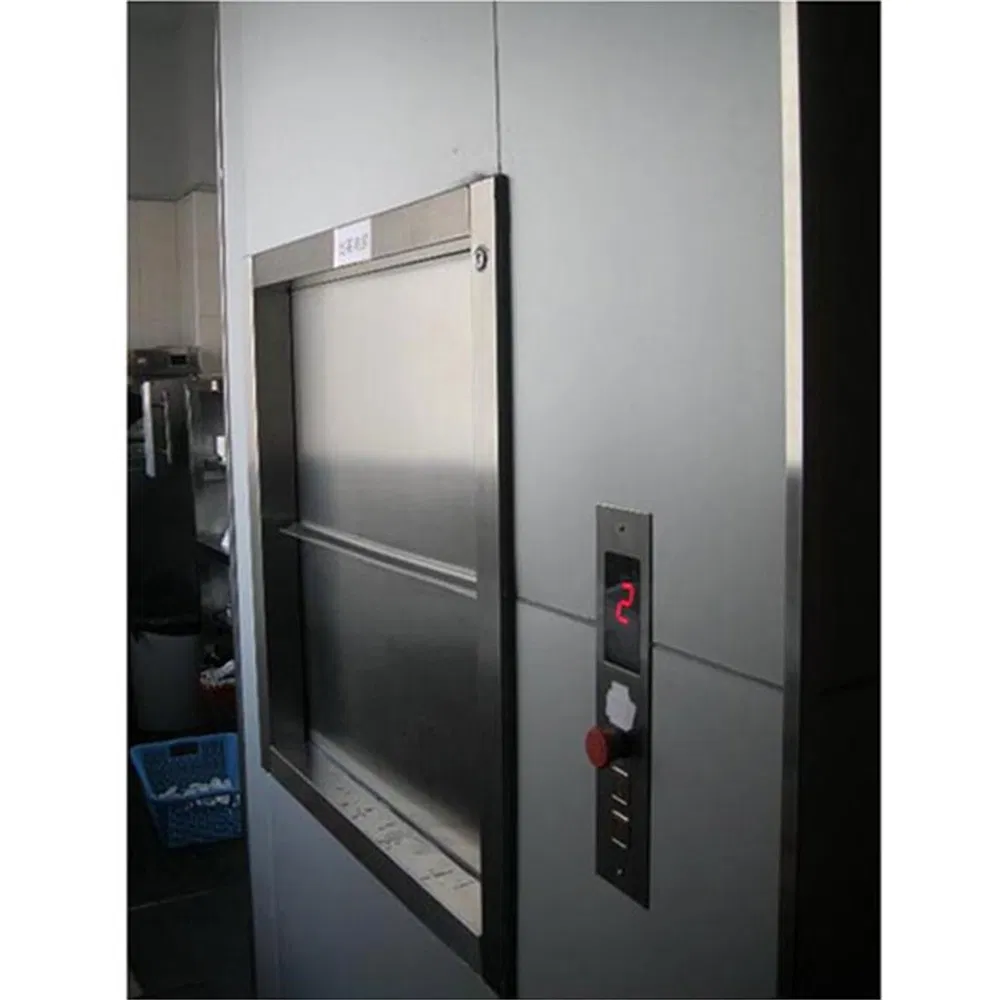

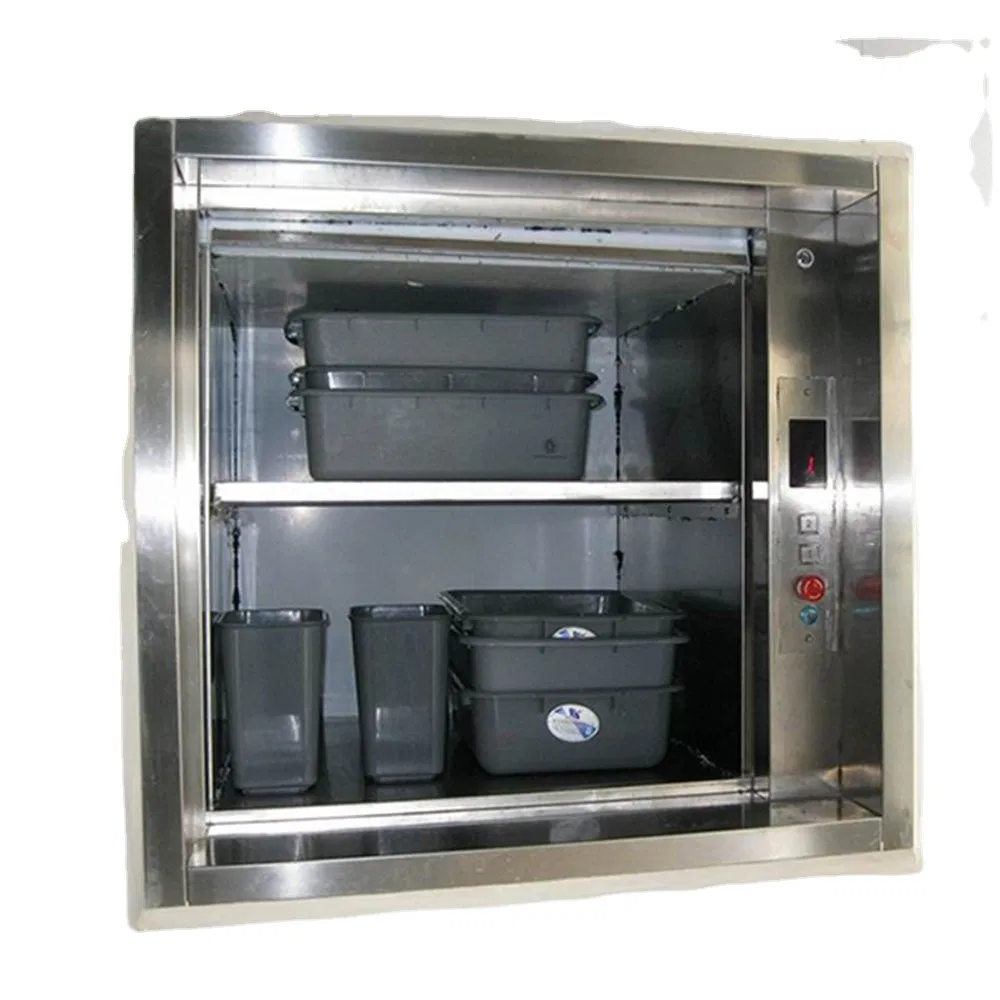

Dumbwaiter Elevator Lift 0.4m/S 50kgs Load
Dumbwaiter Elevator Lift 0.4m/S 50kgs Load
Dumbwaiter Elevator Lift 0.4m/S 50kgs Load
Dumbwaiter Elevator Lift 0.4m/S 50kgs Load
Dumbwaiter Elevator Lift 0.4m/S 50kgs Load
1 / 5
Dumbwaiter Elevator Lift 0.4m/S 50kgs Load
Dumbwaiter Elevator Lift 0.4m/S 50kgs Load
Dumbwaiter Elevator Lift 0.4m/S 50kgs Load
Dumbwaiter Elevator Lift 0.4m/S 50kgs Load
Dumbwaiter Elevator Lift 0.4m/S 50kgs Load

Dumbwaiter Elevator Lift 0.4m/S 50kgs Load

Customization: Available
After-sales Service: Online Technical Support
Warranty: One Year
Send Inquiry

Product Description

📋

Basic Information

Model NO.
Dumbwaiter
Type
Food Elevator Dumbwaiter
Load Capacity
100kgs-300kgs
Speed
0.25-0.5m/S
Drive Mode
AC
Open & Close
Manual
Lift Mechanism
Lift Chain
Guide Rail
T Guide
Shaft
Concrete or Steel Structure
Cabin
Painted, Stainless Steel
Door Panel
Painted, Stainless Steel
Controller
Step As380 or Monarch Nice3000 New
🍴

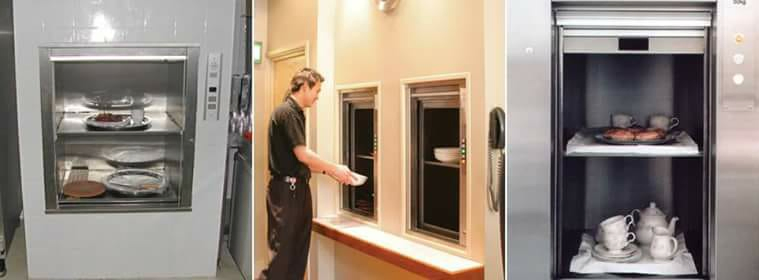

Food Elevator & Restaurant Dumbwaiter

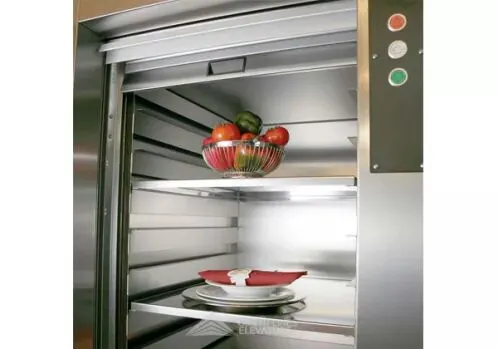

Dumbwaiter Elevator Lift
Dumbwaiter Elevator Lift

Main Functions

✔ Floor display
✔ Door state display
✔ Key switch
✔ Calling response
✔ Running direction display
✔ Overtime protection
✔ Trouble self diagnosis
✔ Emergency stop switch
✔ Wrong/Short phase protection
✔ Motor overcurrent protection
✔ Inspection operation
Basic Specification:
Capacity: 100~300kgs | Speed: 0.4m/s
📊

Product Parameters

Load (kg) Power (kw) Category Car Size (CW*CD*CH) mm Hoistway Size (HW*HD) mm
100 1.1 Workable 700*700*800 1200*1000
200 1.5 Workable 800*800*900 1350*1100
200 1.5 Level ground type 900*900*1000 1500*1250
300 2.2 Level ground type 1000*1000*1200 1650*1350

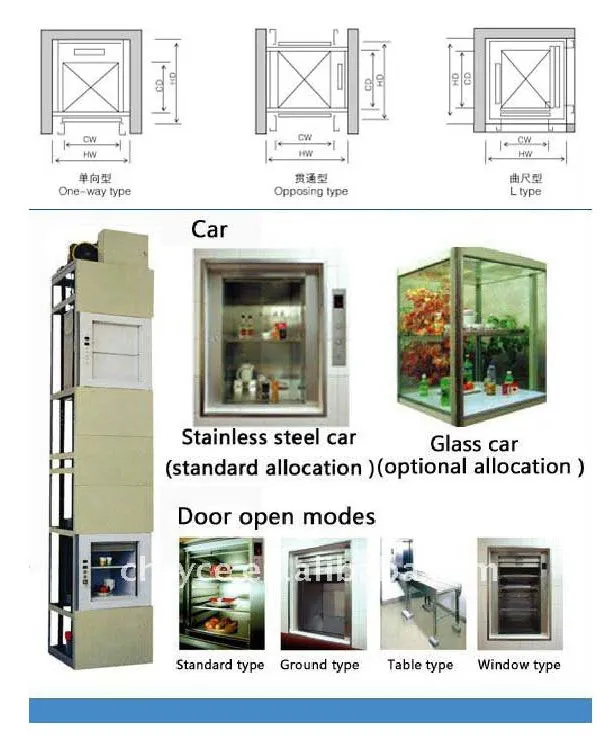

Dumbwaiter Structure
🏢

Production & Quality Control

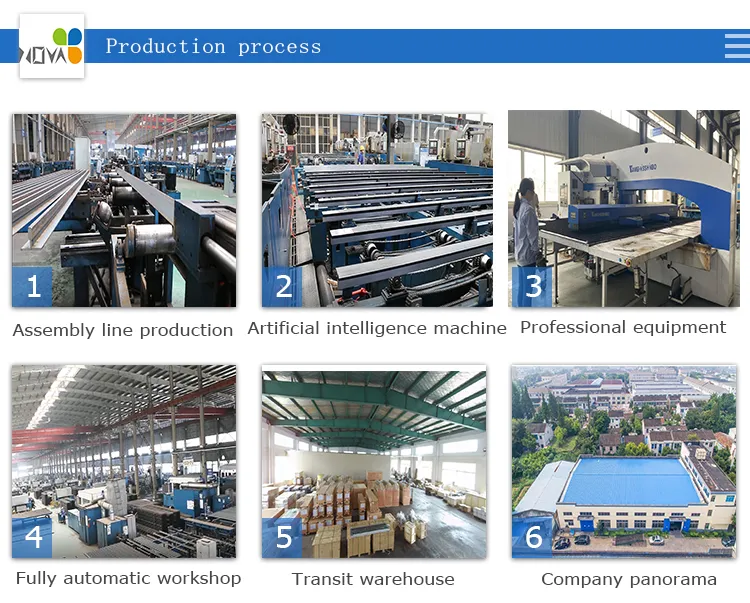

Production Process
Factory Information
📜

Certifications & Shipping

Certifications
Packaging and Shipping
❓

Frequently Asked Questions

What is the load capacity of these dumbwaiters?
Our dumbwaiter elevators are designed to handle loads ranging from 100kg to 300kg, making them ideal for restaurant and food service use.
What safety features are included?
The system includes emergency stop switches, overtime running protection, motor overcurrent protection, and wrong or short phase protection.
Can the cabin material be customized?
Yes, the cabin and door panels can be finished in either painted steel or high-quality stainless steel according to your requirements.
What are the available speeds?
The standard operating speed is between 0.25m/s and 0.5m/s, ensuring steady and safe transport of food and goods.
What kind of shaft structure is required?
The dumbwaiter is compatible with both concrete and steel structure shafts.
How is the elevator controlled?
We use advanced control systems like Step As380 or Monarch Nice3000 New for reliable and efficient operation.
