Duable Passenger Elevator Used for Construction Equipment
Duable Passenger Elevator Used for Construction Equipment
Duable Passenger Elevator Used for Construction Equipment
Duable Passenger Elevator Used for Construction Equipment
Duable Passenger Elevator Used for Construction Equipment
1 / 5
Duable Passenger Elevator Used for Construction Equipment
Duable Passenger Elevator Used for Construction Equipment
Duable Passenger Elevator Used for Construction Equipment
Duable Passenger Elevator Used for Construction Equipment
Duable Passenger Elevator Used for Construction Equipment

Duable Passenger Elevator Used for Construction Equipment

Customization: Available
After-sales Service: Gaoli
Warranty: 12 Months
Send Inquiry

Product Description

Basic Information
Model NO.:
SC320/320
Type:
Vertical Construction Hoist
Load Capacity:
3000kg
Speed:
0.63m/s
Drive Mode:
AC
Lift Mechanism:
Rack and Pinion
Lifting Speed:
36m/Min
Max Lifting Height:
450m
Dimension(L*W*H):
4*2*2.5m
Production Capacity:
3000 Sets Per Year
Specification:
CE, SGS
HS Code:
8428109000
Product Description

Rack and Pinion Construction Building Equipment/Hoist/Lift

Construction hoist is also called building construction elevator, outdoor elevator, building lifts. It is widely used as construction machinery to lift people and building materials.

SC series Construction Hoist/Elevators adopts rack-and-pinion transmission. It features a compact structure, convenient operation, easy installation and disassembly, and reliable performance.

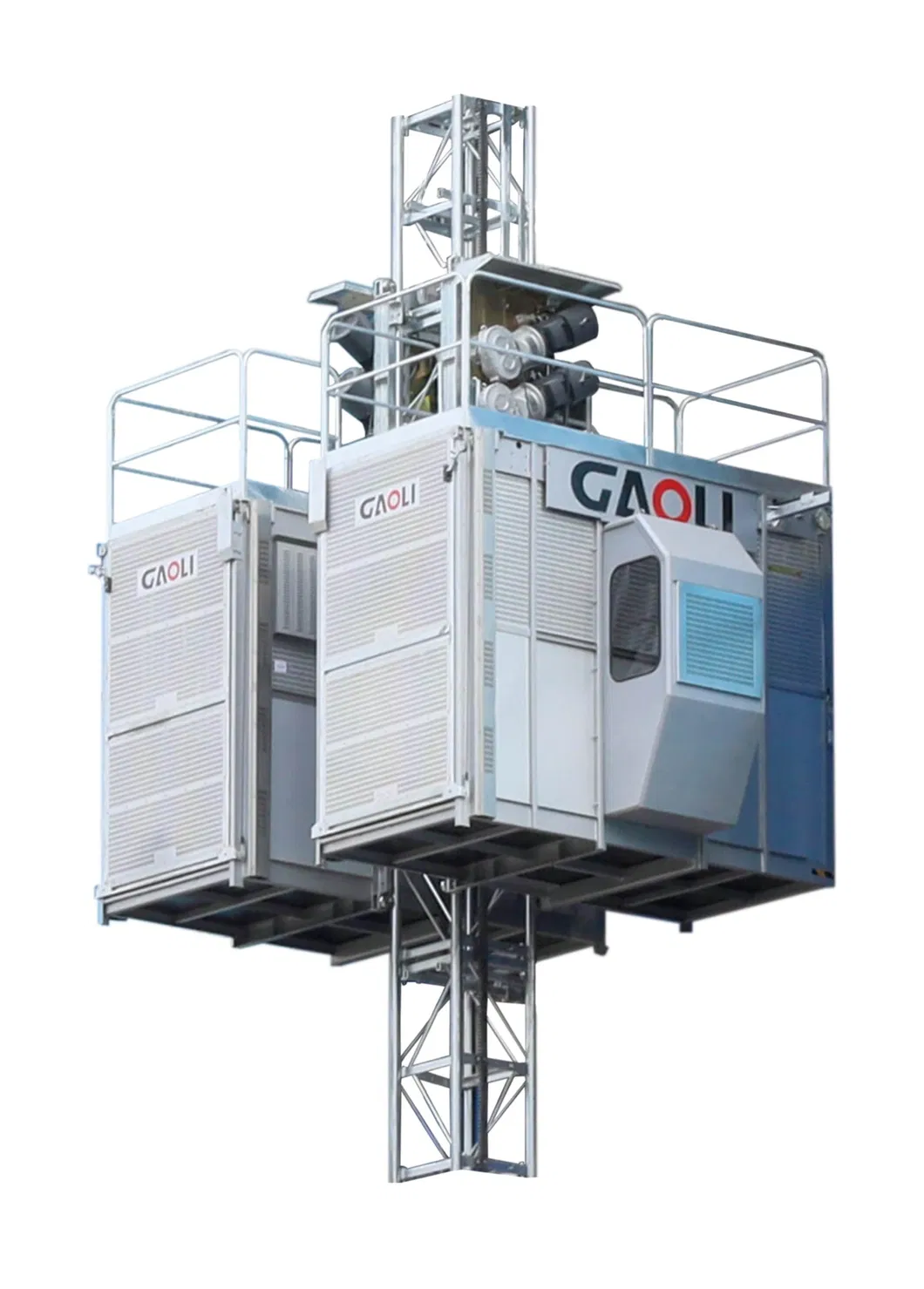

Construction Hoist

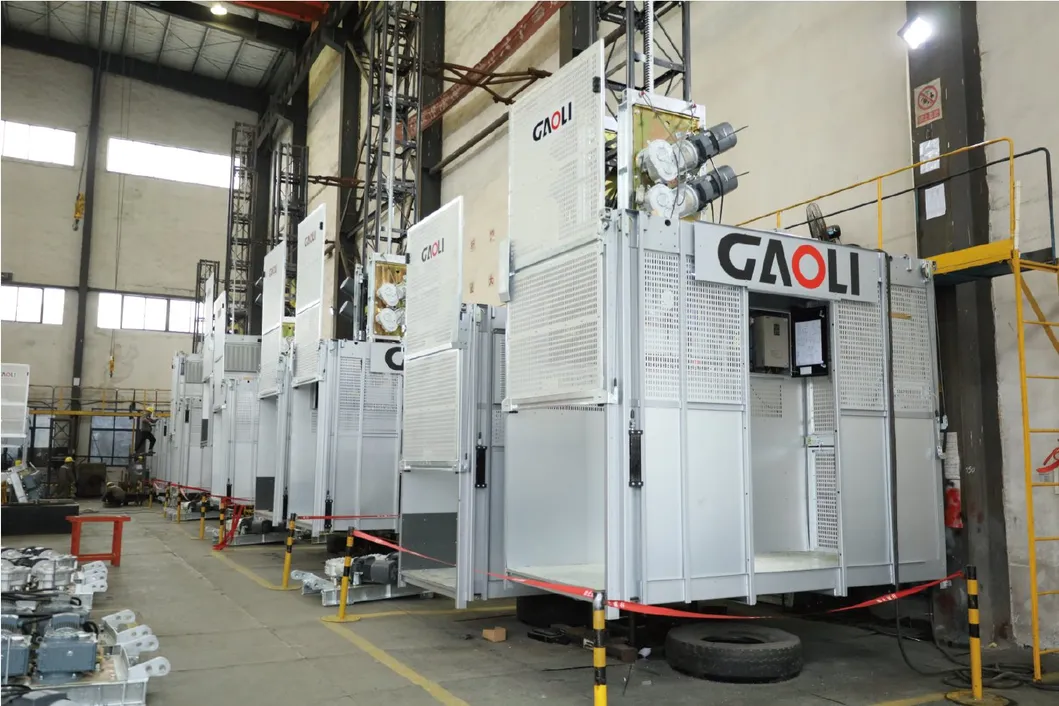

Building Lift Details

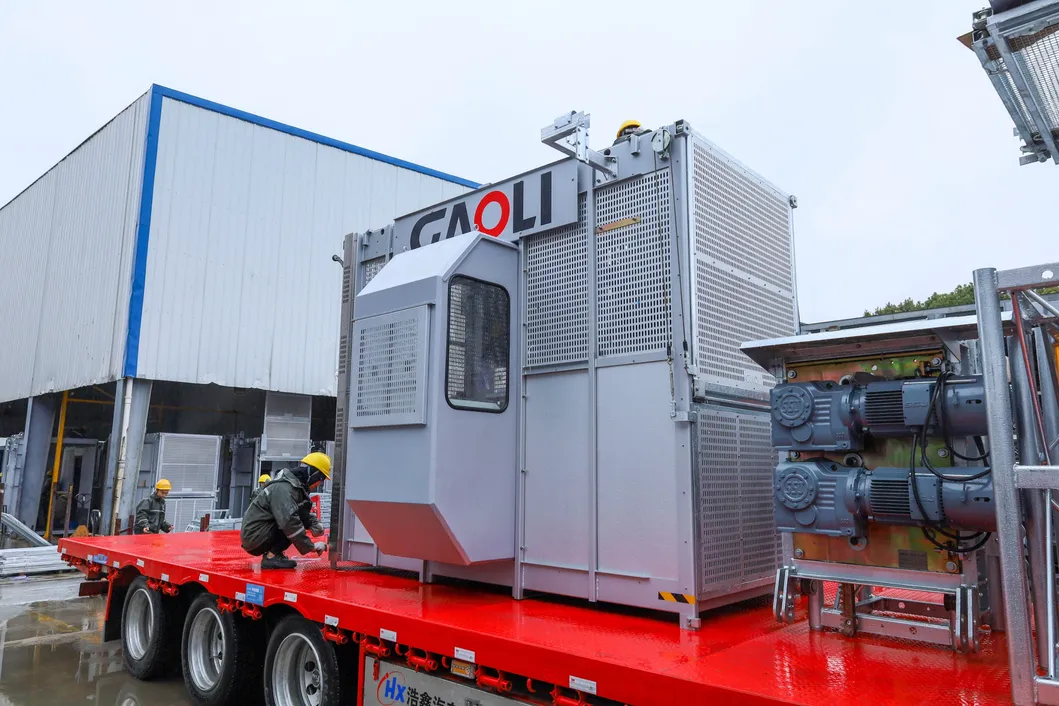

Passenger Elevator Equipment
  • Mast Section Dimension: 650 * 650 * 1508 / 800 * 800 * 1508
  • Main Chord: Φ76 * 4.5, Φ76 * 6.0, Q345B
  • Applications: High building construction (>60m), bridges, chimneys, mansions, warehouses, and wharfs.
Technical Parameters
Parameter Unit SC100 SC100/100 SC200 SC200/200
Rated capacity kg 1000 2×1000 2000 2×2000
Number of people No. 12 2×12 16 2×16
Rated lifting speed m/min 36 36 36 36
Max. lifting height m 200 200 200 200
Motor power kw 2×11 2×2×11 3×11 2×3×11
Cage inner size m 3×1.3×2.2
Mast Section mm 650×650×1508 / 800×800×1508
Salient Features

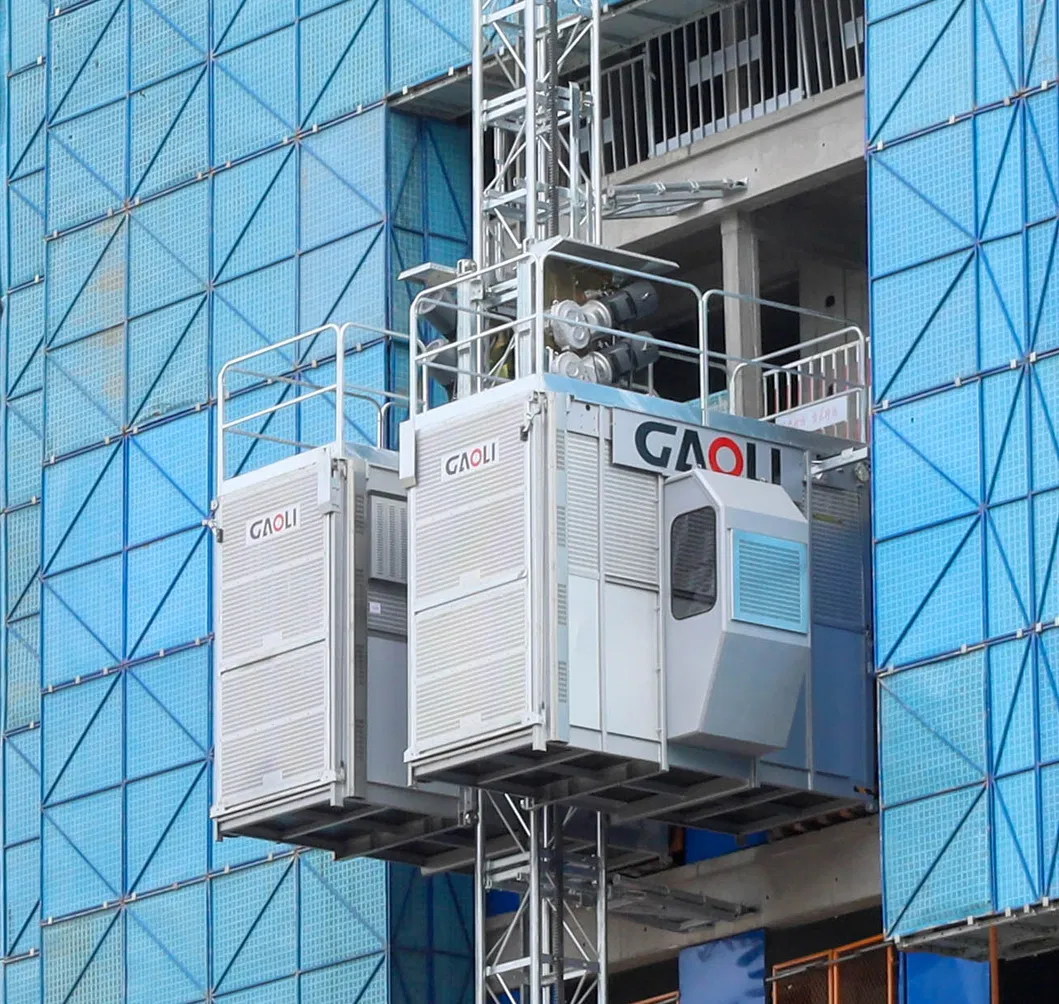

Hoist Features
  • ✓
    Mast section welded by Robot ensures reliable quality and elegant appearance.
  • ✓
    All steel structures are processed with blasting technology to remove rust for outstanding paint adhesion.
  • ✓
    Suspension cage uses lightweight figured aluminum plate for an artistic look.
  • ✓
    Transmission mechanism provides high efficiency, long service life, and stability.
  • ✓

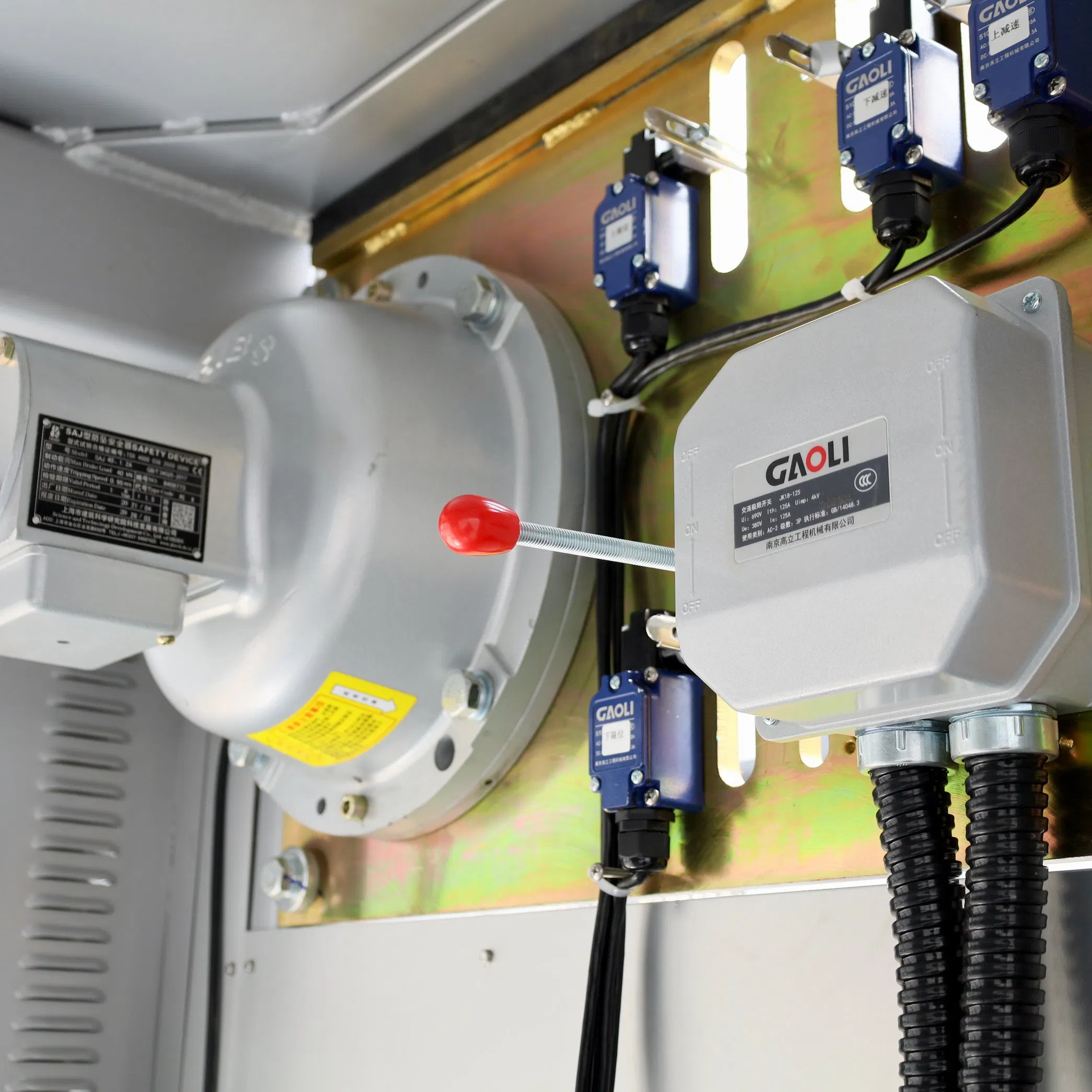

    Equipped with SAJ40-1.2 anti-falling safety device and complete overload protection.
  • ✓

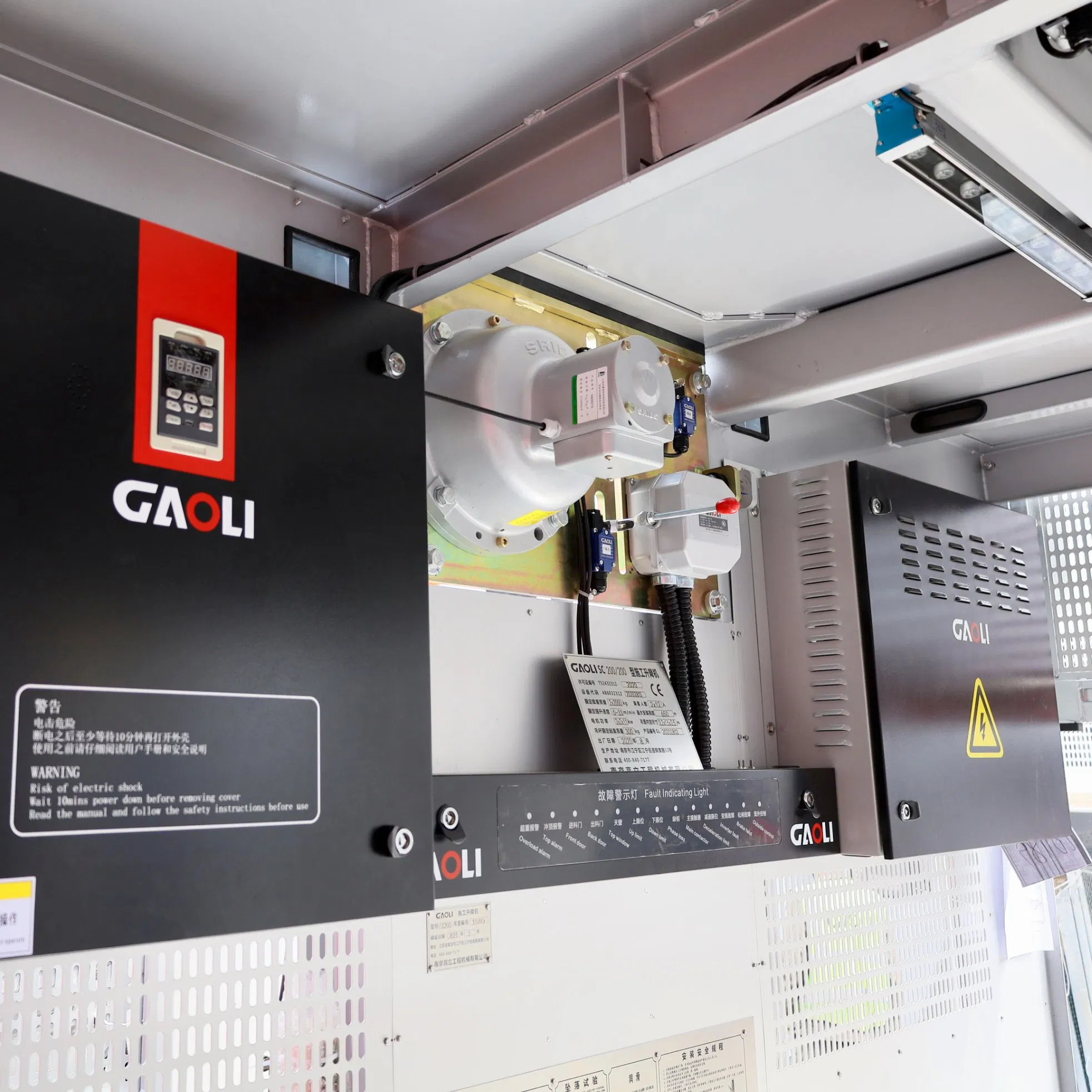

    Frequency conversion control ensures safe, stable, and energy-saving operation.
Manufacturing Overview

Established in 2003, our production facility covers an area of 36,000 square meters with a construction area of 20,000 square meters. We adhere to the philosophy of "Quality First and Pursuit of Excellence," providing high-quality and technologically advanced products to our global partners.

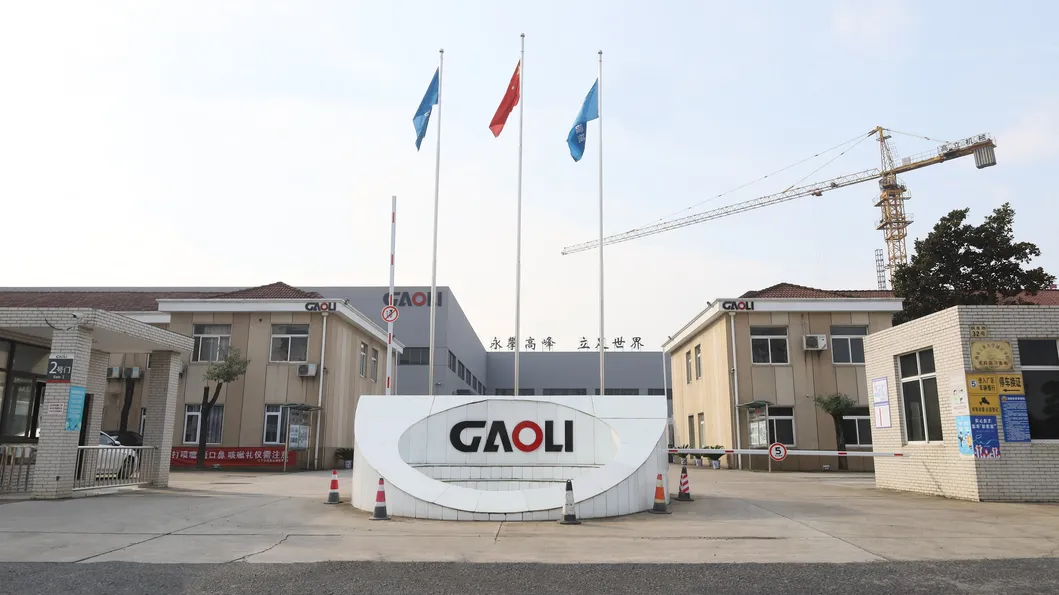

Manufacturing Facility

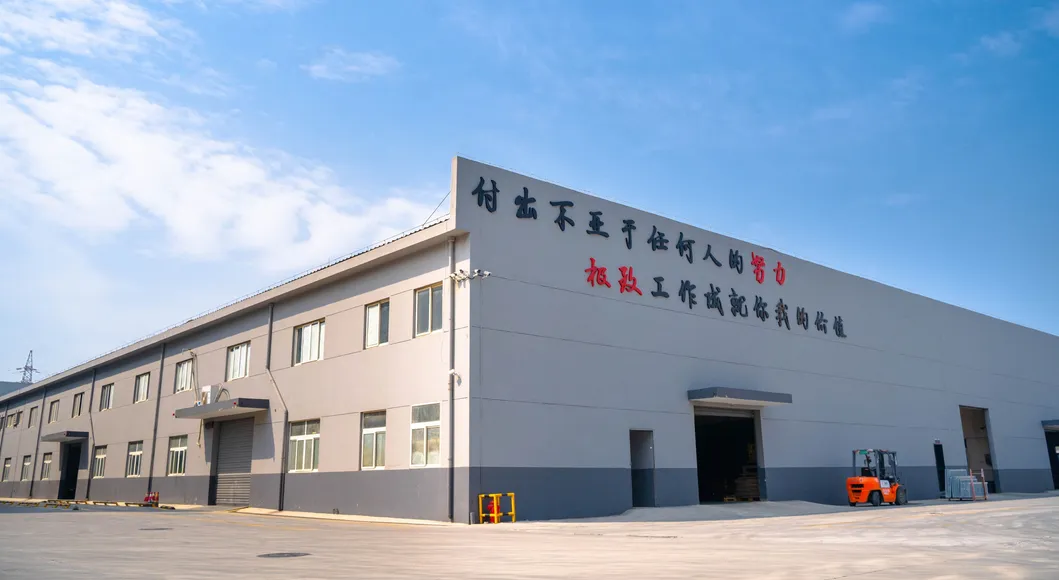

Workshop

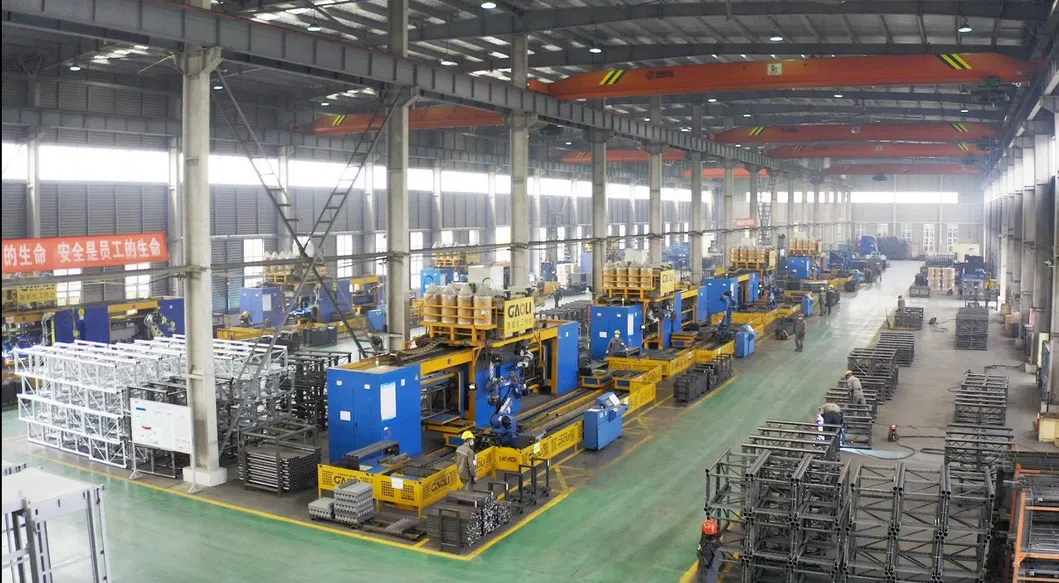

Production Line
Frequently Asked Questions
Q1: Are you a factory or manufacturer?
Yes, we are a professional factory with over 10 years of experience in producing construction machinery.
Q2: What is the typical delivery time for orders?
The delivery time depends on the specific machine configuration and order quantity required.
Q3: How is the equipment packed for international shipping?
Each unit is securely packed in cartons, then placed in wooden cases before being loaded into containers.
Q4: Why should I choose your construction hoists?
Our products offer high quality at reasonable prices. We also provide a set of assembly auxiliary tools and wearing parts with your purchase.
Q5: What safety features are included in the hoists?
The hoists include SAJ40-1.2 anti-falling devices, overload protection, mechanical chain devices, and various limiters to ensure operational safety.
Q6: Can we visit your production facility?
We warmly welcome all customers to visit our factory to inspect our production processes and quality control.
