Electric Kitchen Dumbwaiter Elevator for Restaurant or Home Food Lift

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
TBD-33
Type
Wellhole
Load Capacity
50kg-300kg
Speed
0.40m/s
Drive Mode
AC
Open & Close Type
Manual
Lift Mechanism
Telescoping Lift
Guide Rail
T Guide
Elevator Door
Center Opening Door
Origin
China

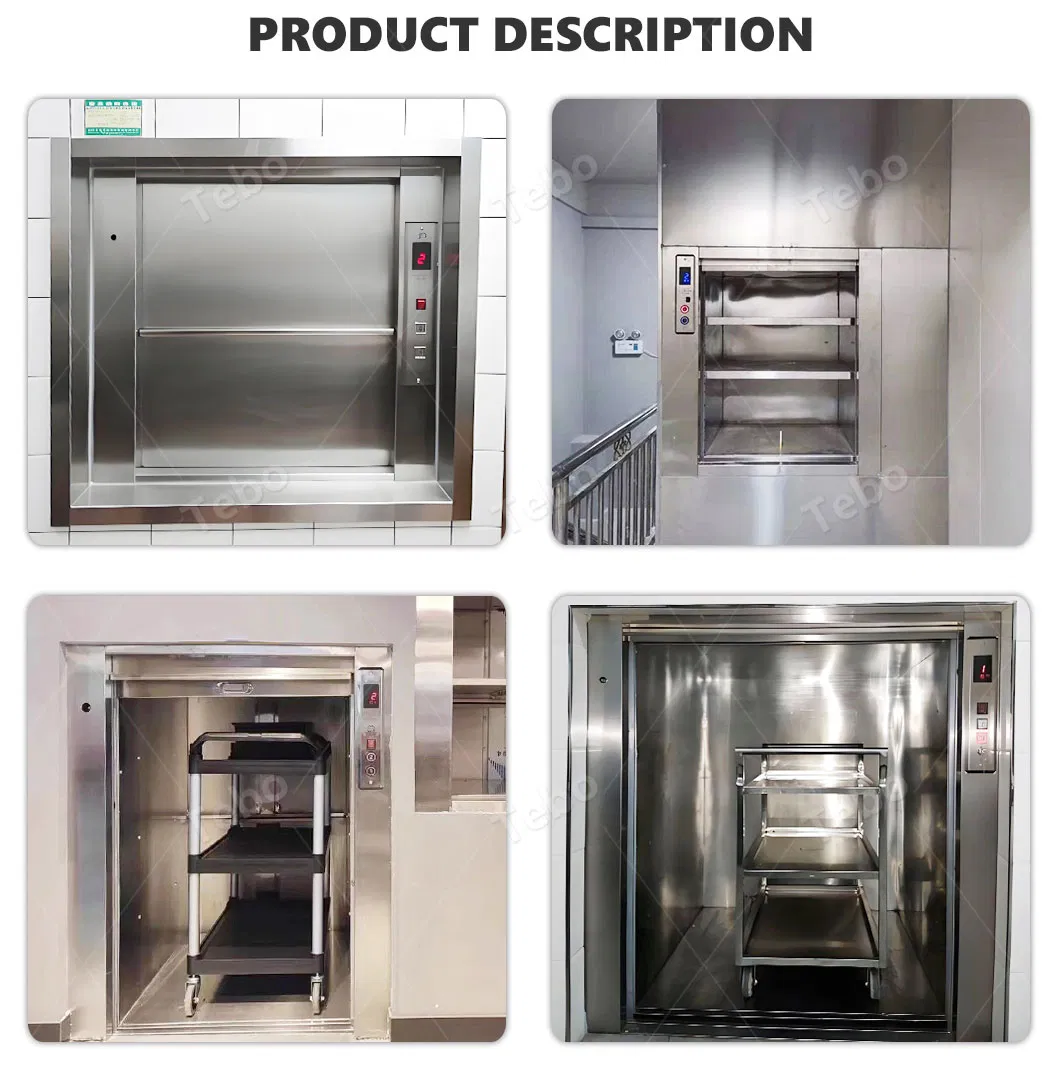

Product Description

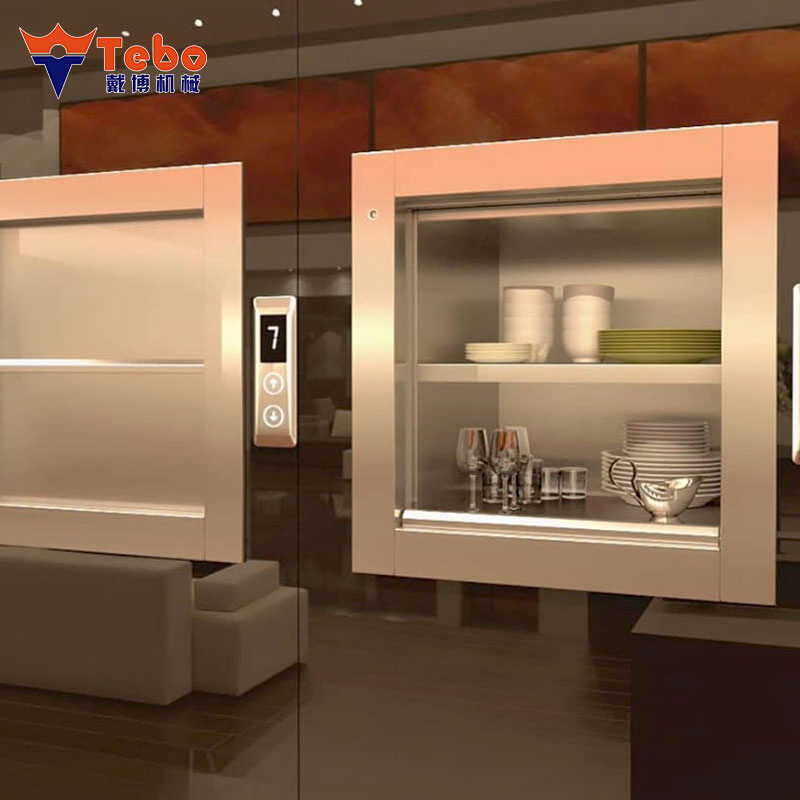

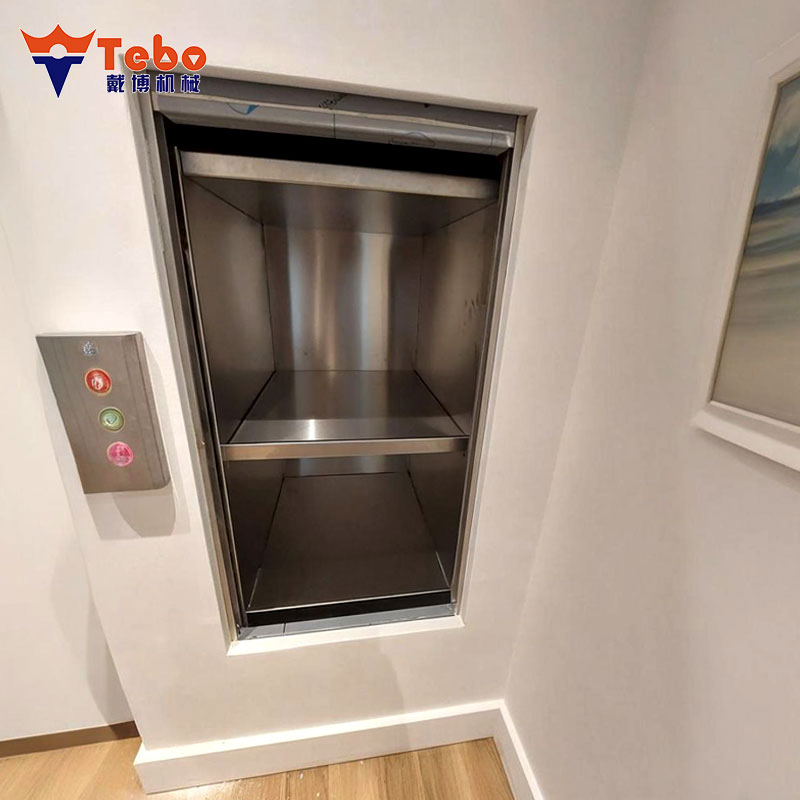

The food delivery lift is a vertical transportation device designed for restaurants, hotels, cafés, and multi-floor dining environments. It is mainly composed of a shaft structure, a stainless-steel cabin, a driving mechanism, and an intelligent control system. With a durable stainless-steel cabin and a robust steel shaft frame, the lift ensures excellent corrosion resistance and easy cleaning. The traction driving system provides smooth and low-noise movement, fully meeting the hygiene and quietness requirements of food-service settings.

Its control system enables floor calling, one-touch operation, and multiple safety functions, including door locks, anti-fall devices, limit switches, and overload protection to ensure safe and reliable transportation of meals. The lift significantly improves operational efficiency by quickly transferring dishes, beverages, and tableware between floors, reducing staff workload and minimizing physical strain.

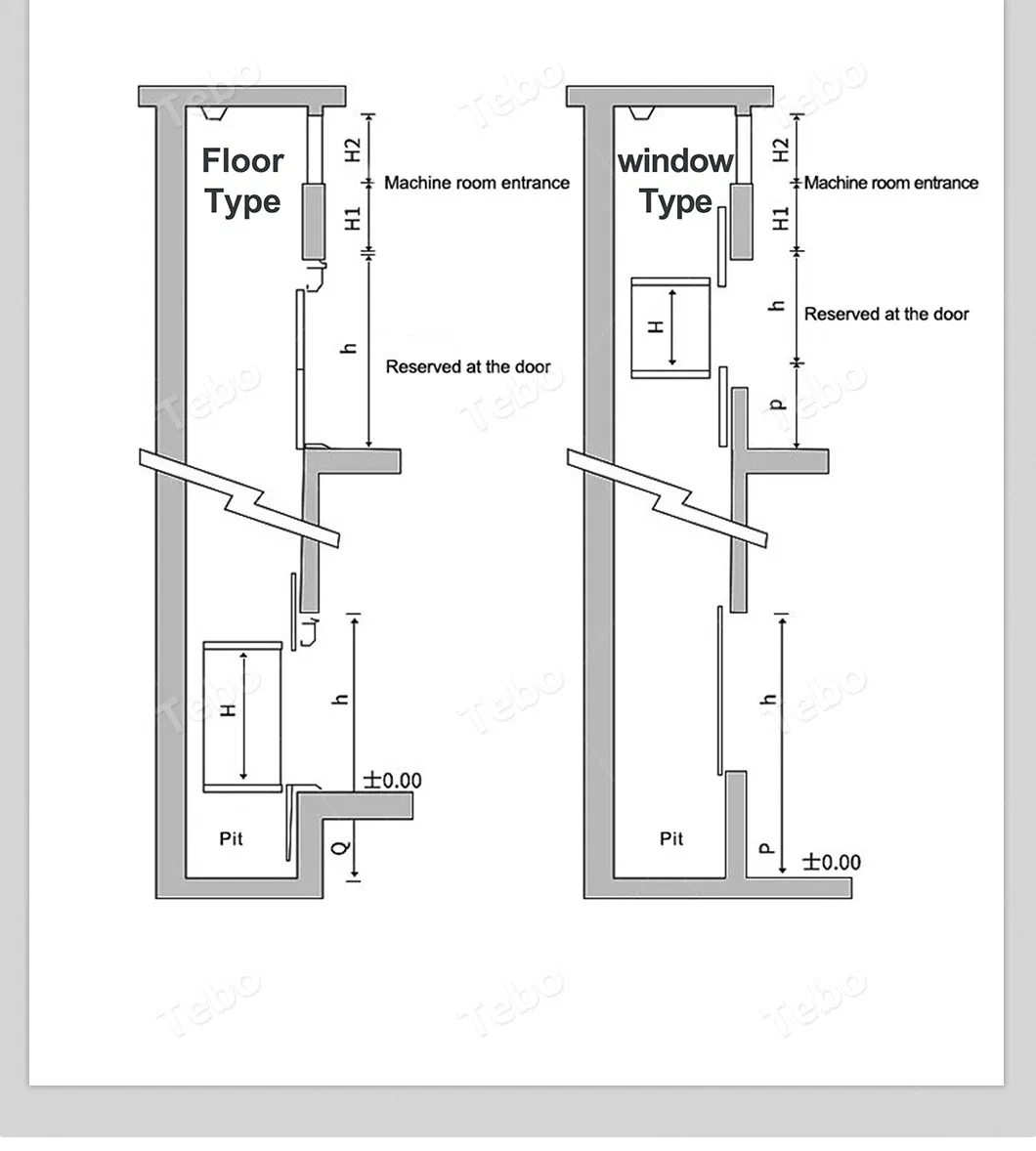

Technical Parameters
Window Type Parameters
Type Load(kg) Cabin Size (W*D*H mm) Landing Door Cabin Door Door Size (W*H mm) Sill Height Overhead Height
Window Type100600*400*800StandardOptional600*8008002800
100600*600*800StandardOptional600*8008002800
200800*800*800StandardOptional800*8008002800
200800*800*1000StandardOptional800*10008003000
2001000*1000*800StandardOptional1000*8008003000
2001000*1000*1000StandardOptional1000*10008003200
Floor Type Parameters
Type Load(kg) Cabin Size (W*D*H mm) Landing Door Cabin Door Door Size (W*H mm) Min Pit Depth Overhead Height
Floor Type200800*800*1000StandardOptional800*10006002800
2001000*1000*1000StandardOptional1000*10006002800
200800*1000*1200StandardOptional800*12007003200
3001000*1000*1200StandardOptional1000*12007003200
3001000*1200*1200StandardOptional1200*12007003200
4001000*1200*1400StandardOptional1200*14008003600

* All parameters support customized services to meet specific requirements.

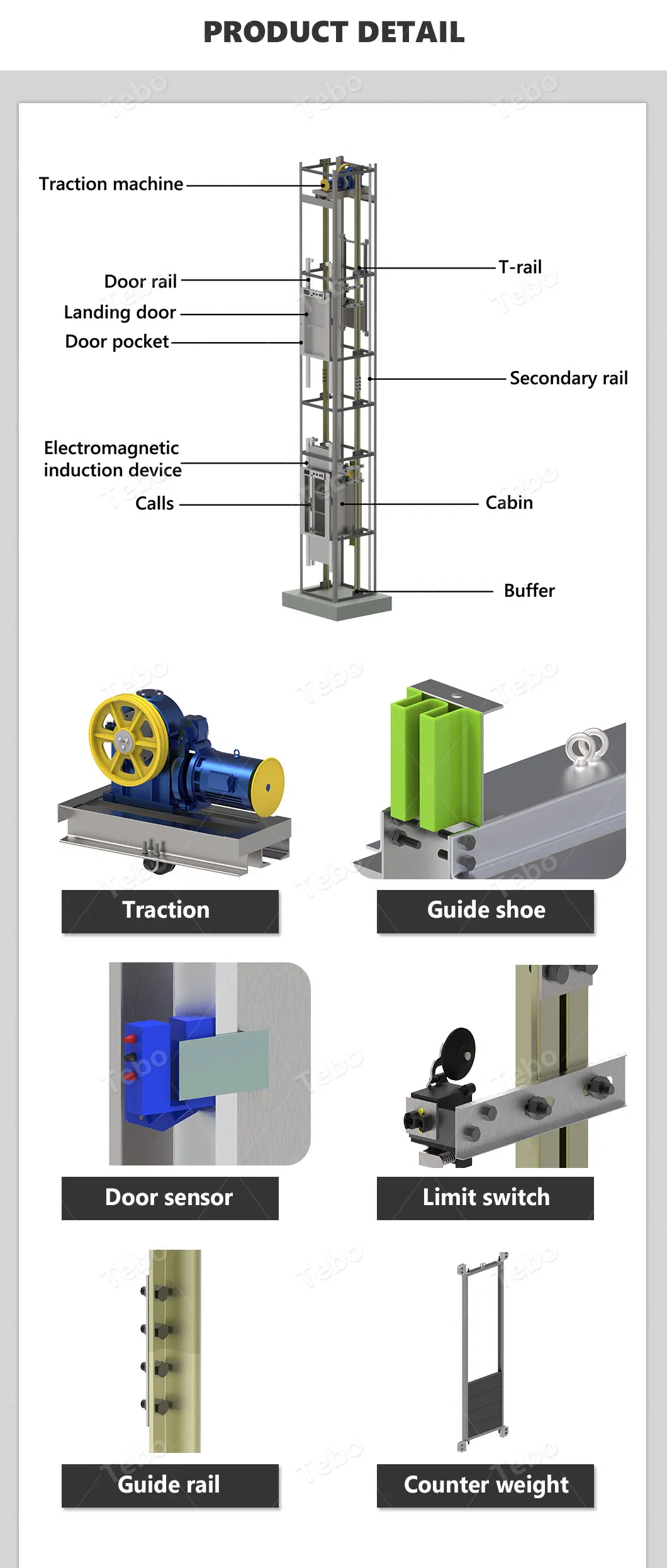

Product Details
About Our Manufacturing

Our enterprise specializes in the R&D and manufacturing of mechanical equipment. Our production base is located in a well-connected industrial region. We have assembled an experienced and highly innovative technical team, continuously optimizing multiple product series. We possess significant advantages in structural design, operational efficiency, and stability.

Our core product range includes hydraulic home elevators, freight lifts, car lifts, and scissor lift platforms. Equipped with advanced production facilities, including modern CNC machining centers and automated welding equipment, we ensure efficient end-to-end production and rigorous quality control.

Certifications & Logistics
Frequently Asked Questions
What are the main advantages of your lift equipment?
We are among the leading manufacturers in China with a dedicated production base. This allows us to offer superior quality and competitive pricing. We provide comprehensive after-sales service, including a 12-month warranty and technical guidance.
Do you provide support for installation?
Yes. For custom models, we provide detailed drawings, assembly manuals, and installation guides. Our clear instructions allow customers to handle setup smoothly by following the step-by-step documentation provided.
How is the equipment packaged for international shipping?
We typically use robust plywood cases to ensure safety during transit. We can also accommodate special packaging requirements or specific shipping marks based on your needs.
What is the typical lead time for an order?
Lead times depend on the specific product and customization requirements. Generally, standard orders are ready for shipping within 10 working days after payment is confirmed.
What payment terms and methods do you accept?
We accept various international trade terms including EXW, FOB, CFR, and CIF. Typically, a production deposit is required upon order confirmation, with the remaining balance due before delivery.
Can the cabin dimensions be customized for small spaces?
Absolutely. We specialize in customized services. Whether you need a specific cabin size, load capacity, or overhead height to fit your building's constraints, our engineers can design a bespoke solution for you.
