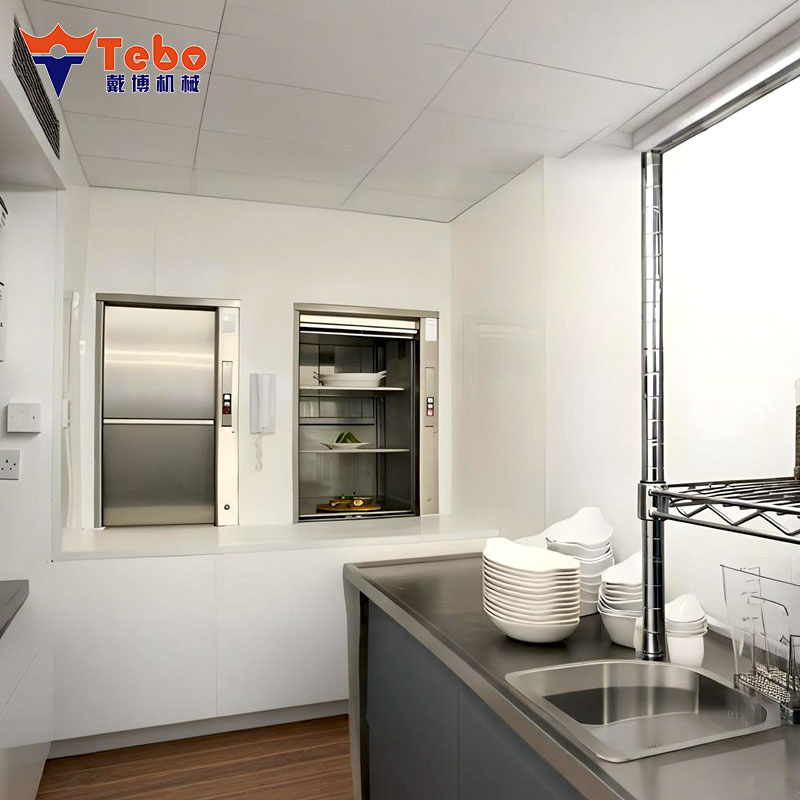

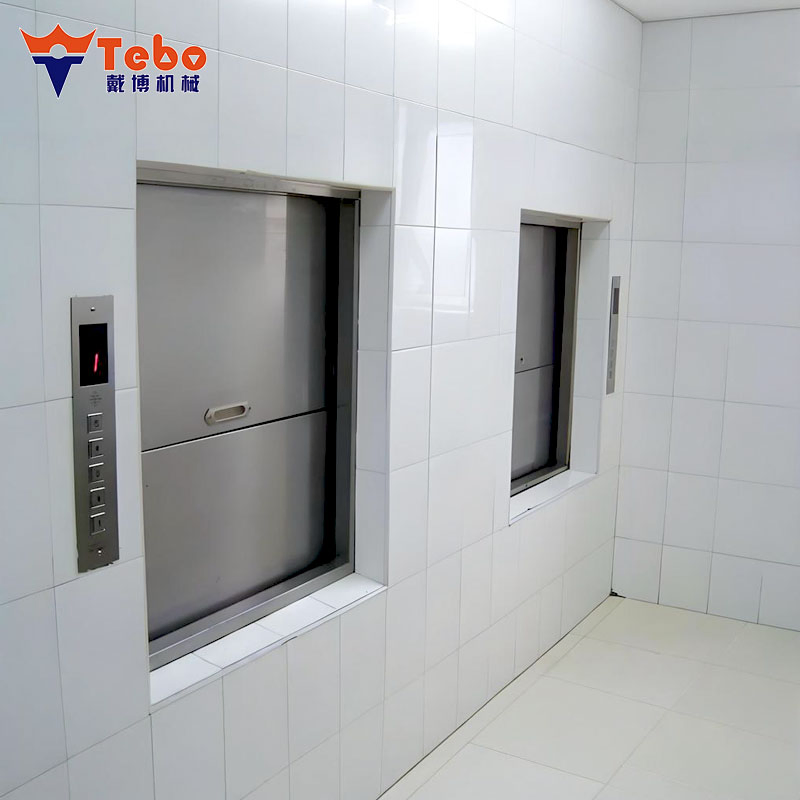

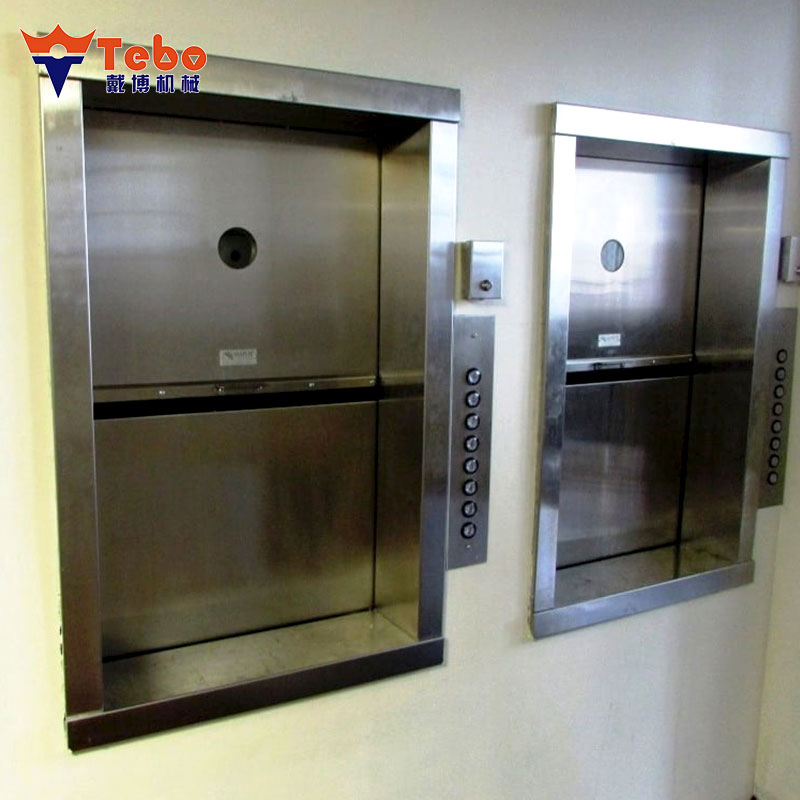

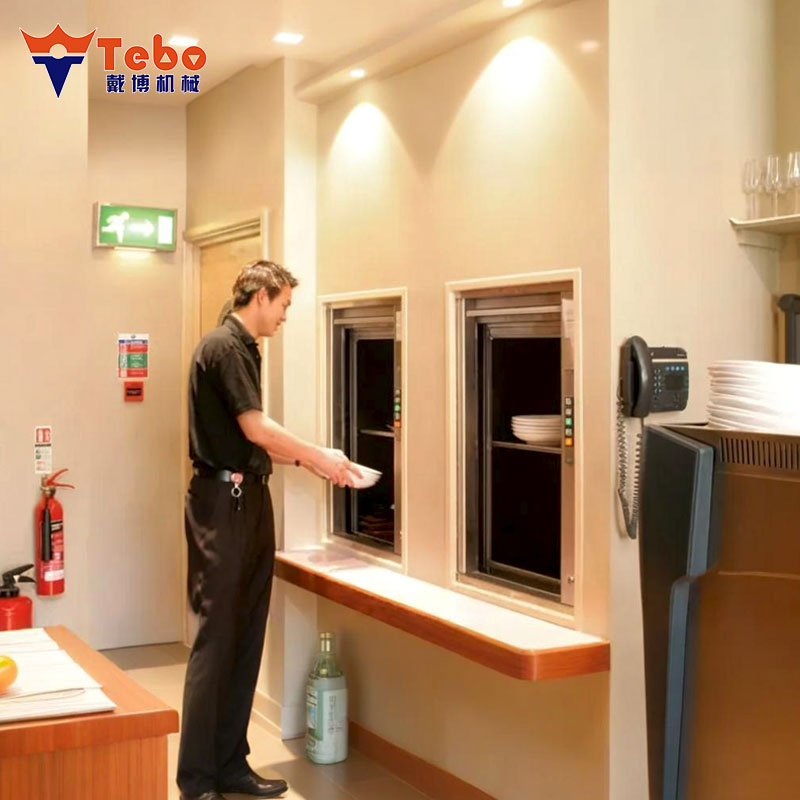

Restaurant Electric Food Elevator Lift Dumbwaiter for Commercial Kitchen Operations

Still deciding? Get samples of $ !
Request Sample

Product Description

i

Basic Specifications

Model NO.
TBD-13
Type
Wellhole
Load Capacity
50kg-300kg
Speed
0.40m/s
Drive Mode
AC
Open & Close Type
Manual
Lift Mechanism
Telescoping Lift
Guide Rail
T Guide
Elevator Door
Center Opening Door
Origin
China
Production Capacity
1000 Sets/Year

Product Description

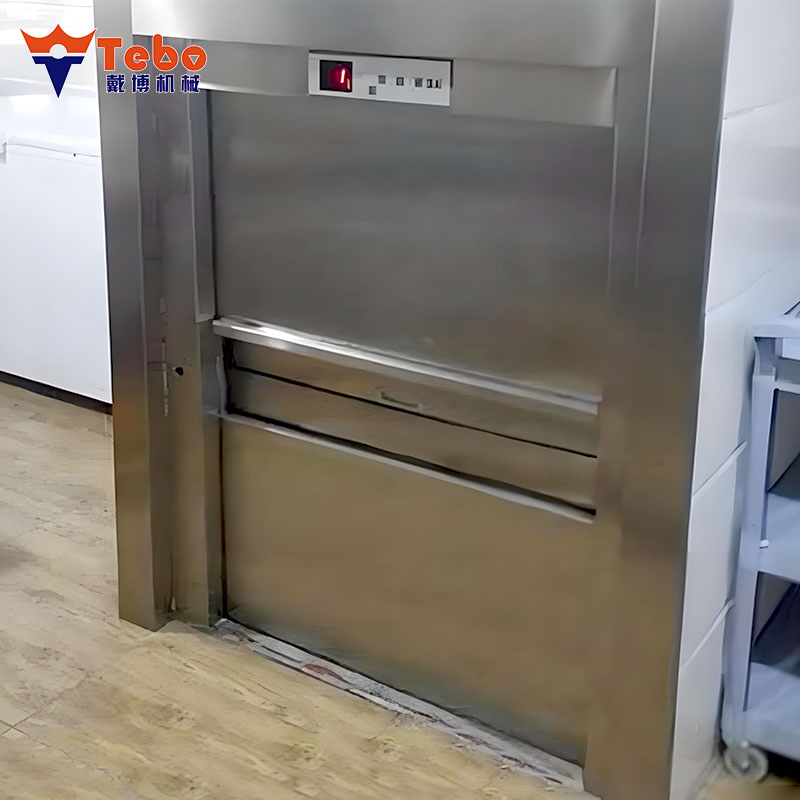

Food Elevator Lift

The food delivery lift is a vertical transportation device designed for restaurants, hotels, cafés, and multi-floor dining environments. It is mainly composed of a shaft structure, a stainless-steel cabin, a driving mechanism, and an intelligent control system. With a durable stainless-steel cabin and a robust steel shaft frame, the lift ensures excellent corrosion resistance and easy cleaning. The traction driving system provides smooth and low-noise movement, fully meeting the hygiene and quietness requirements of food-service settings.

The lift significantly improves operational efficiency by quickly transferring dishes, beverages, and tableware between floors, reducing staff workload and minimizing physical strain. Its enclosed design prevents contamination and meets food-hygiene standards. Thanks to its compact footprint and flexible installation options, it easily adapts to kitchens, dining areas, and other spaces with limited layout conditions.

Dumbwaiter Operation
📋

Technical Parameters

Window Type Parameters
Type Load(kg) Cabin Size W*D*H(mm) Landing Door Cabin Door Door Size W*H(mm) Sill Height Overhead Height
Window Type100600*400*800StandardOptional600*8008002800
100600*600*800StandardOptional600*8008002800
200800*800*800StandardOptional800*8008002800
2001000*1000*1000StandardOptional1000*10008003200
Floor Type Parameters
Type Load(kg) Cabin Size W*D*H(mm) Landing Door Cabin Door Door Size W*H(mm) Pit Depth Overhead Height
Floor Type200800*800*1000StandardOptional800*10006002800
2001000*1000*1000StandardOptional1000*10006002800
3001000*1000*1200StandardOptional1000*12007003200
4001000*1200*1400StandardOptional1200*14008003600

* Above parameters are for reference and support customized services.

🔍

Product Details

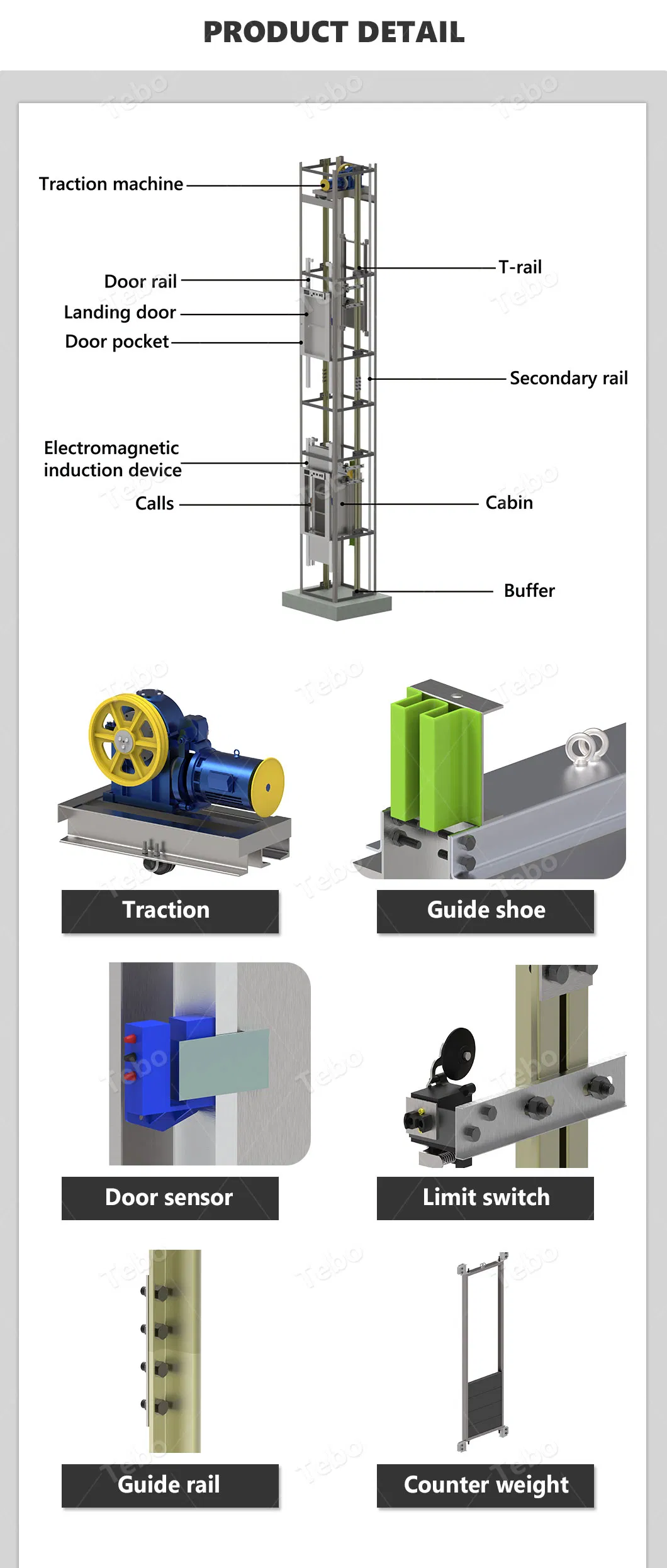

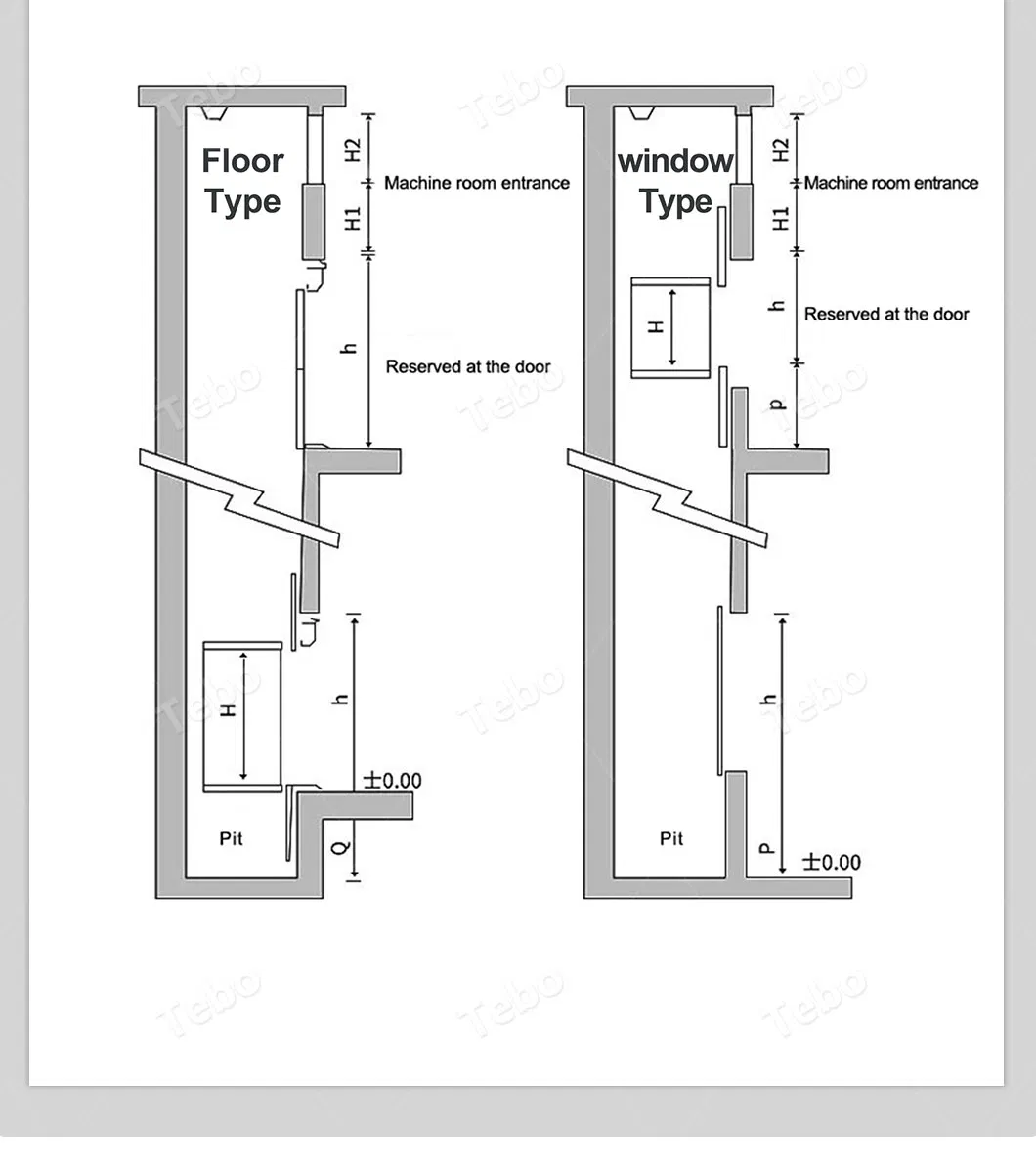

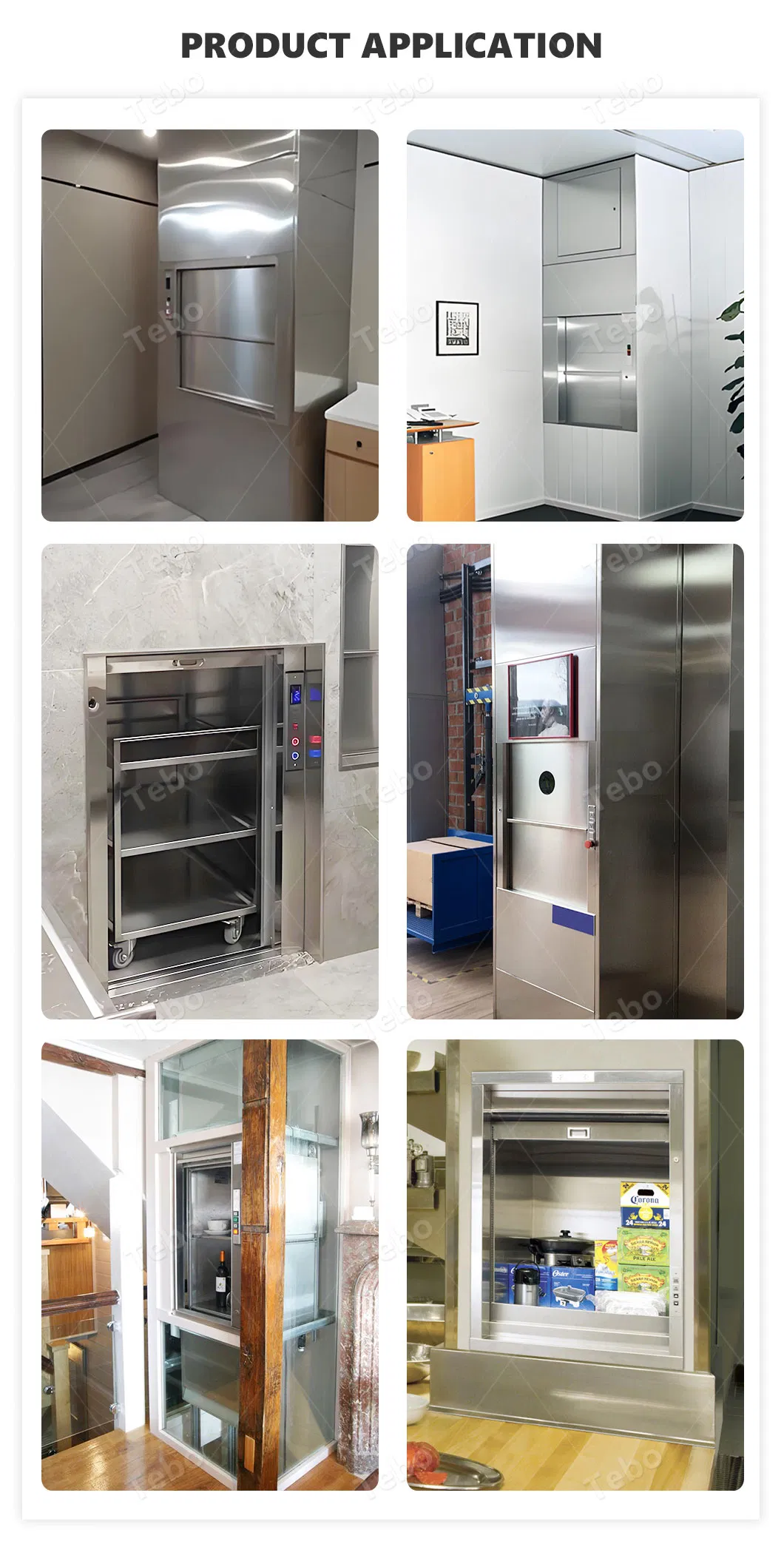

Detail 1 Detail 2 Detail 3
🏢

About Our Manufacturing

Factory View

We are a specialized enterprise in the R&D and manufacturing of mechanical equipment. Our production base is located in a well-connected industrial hub. With an experienced and innovative technical team, we continuously optimize multiple product series, securing numerous independent intellectual property rights and patent technologies.

Our core range includes hydraulic home elevators, freight lifts, car lifts, and scissor lift platforms. Equipped with advanced production facilities like CNC machining centers and automated welding equipment, we ensure high performance and reliability. We offer a comprehensive service system from design to full lifecycle technical support.

📜

Certifications & Logistics

Quality Certificate
Certification 1 Packaging
?

Frequently Asked Questions

What are the main advantages of your lift equipment?
We are among the leading manufacturers in China with a dedicated production base, ensuring competitive pricing and high quality. We provide 12 months of warranty and comprehensive after-sales guidance.
What pre-sales services do you offer?
Our customer advisors offer professional consultation and recommendations. For custom requirements, our engineers provide detailed blueprints and technical specifications before ordering.
How is the after-sales support handled?
We provide detailed assembly and installation manuals with clear drawings. Our team is available to answer operational questions via email, typically responding within 2 hours.
What type of packaging is used for shipping?
We standardly use robust plywood cases for export. Special shipping marks or customized packaging requirements can be accommodated upon request.
What is the typical lead time for delivery?
Shipping time depends on the specific product. Generally, standard orders are processed and ready for shipment within 10 working days after payment confirmation.
What are the accepted payment methods and terms?
We accept various terms including EXW, FOB, CFR, and CIF. Typically, a production deposit is required upon order confirmation, with the balance cleared before delivery.
