Explosion Proof Hoist / Elevator Manufacturer Factory Supplier

Customization: Available
After-sales Service: Yes
Warranty: 12 Month

Product Description

Basic Specifications
Model NO.
SC200/200
Type
Stationary
Load Capacity
1T - 2T
Speed
20M/Min - 40M/Min
Usage
Construction Hoist
Sling Type
Wire Rope
Lift Drive
Electric Motor

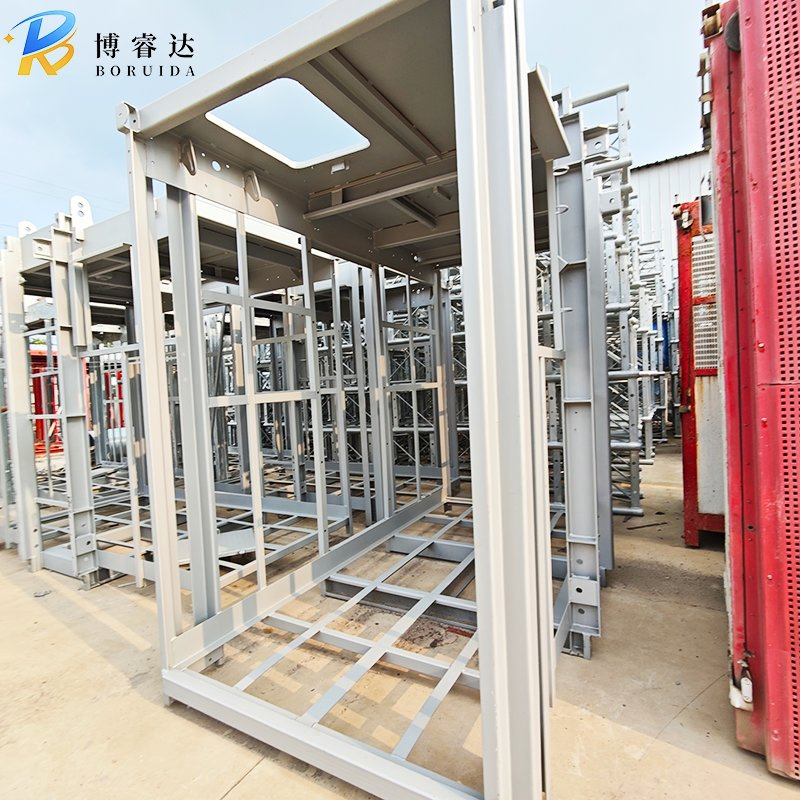

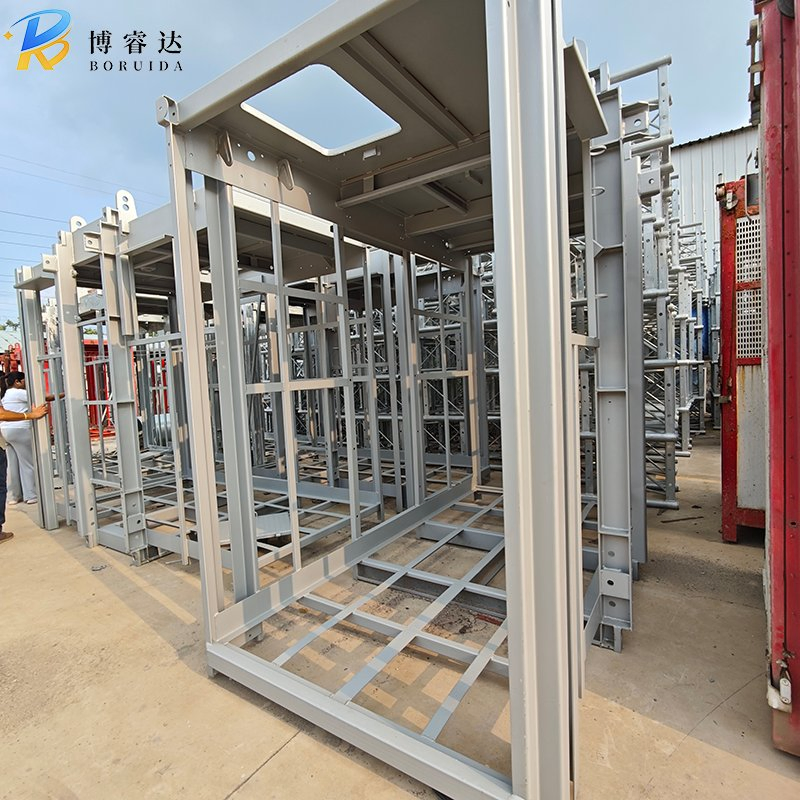

Cage Size
3m*1.5m*2.2m
Motor Number
3 Motor
Mast Section Size
0.65m*0.65m*1.508m
Manufacturing Excellence

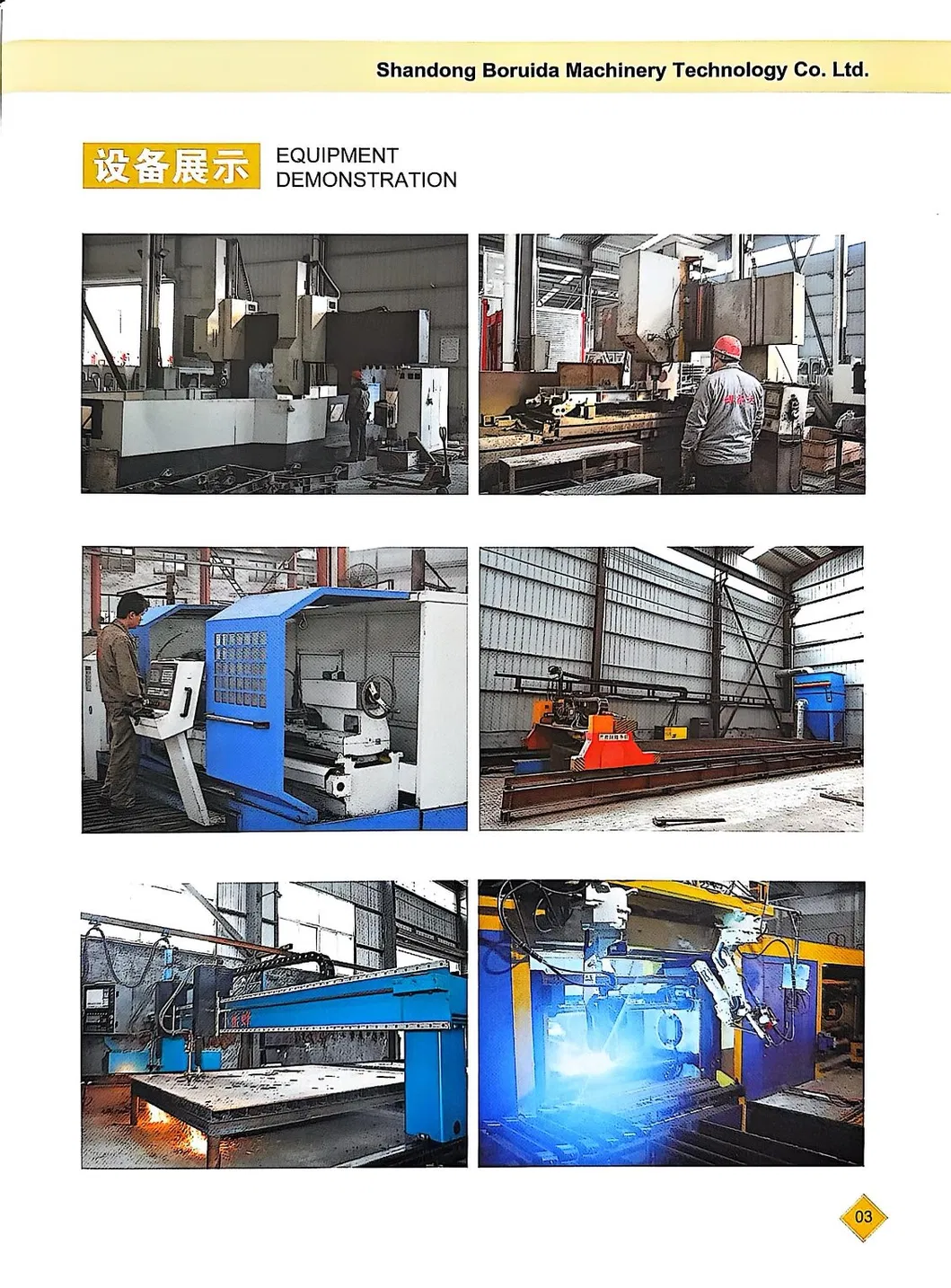

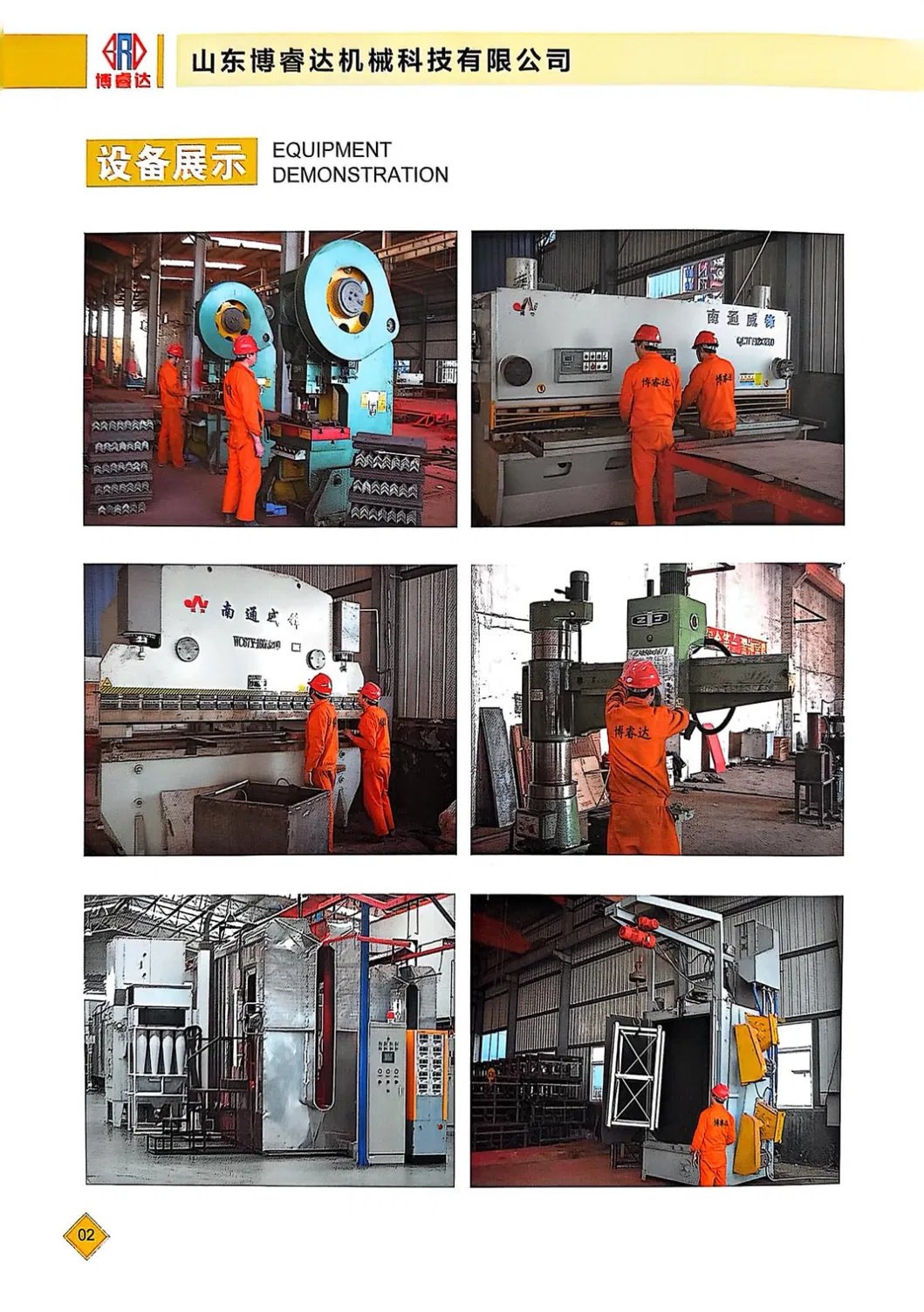

Strict Production Standards: All production lines adopt special fixtures, moulds, and gauges to ensure precise detail in every component.

  • High-quality raw materials sourced from leading steel groups.

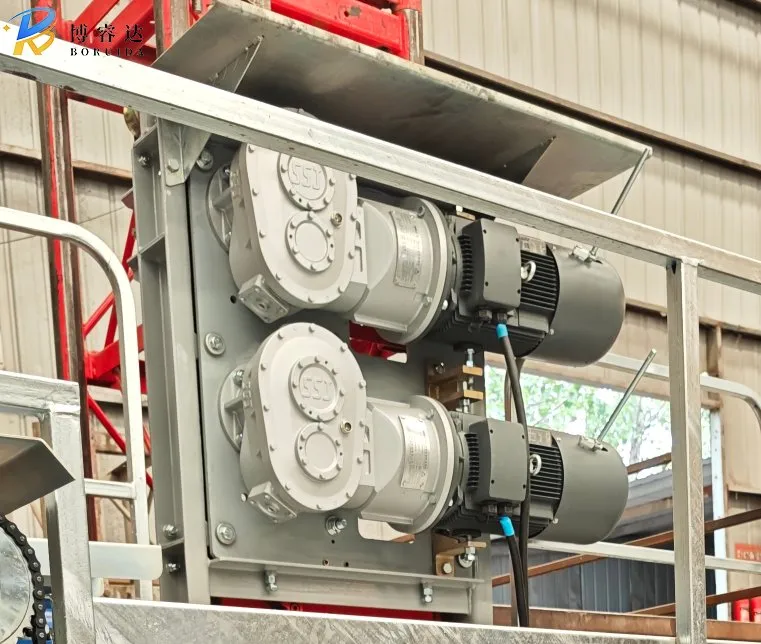

  • Premium motors, reducers, and gearboxes with low noise levels.
  • Electrical components from world-renowned reliable brands like Schneider.
  • Compact and reasonable structural design for easy installation and adjustment.
  • Comprehensive factory testing including motor brake, safety device operation, limit switches, and loading tests.

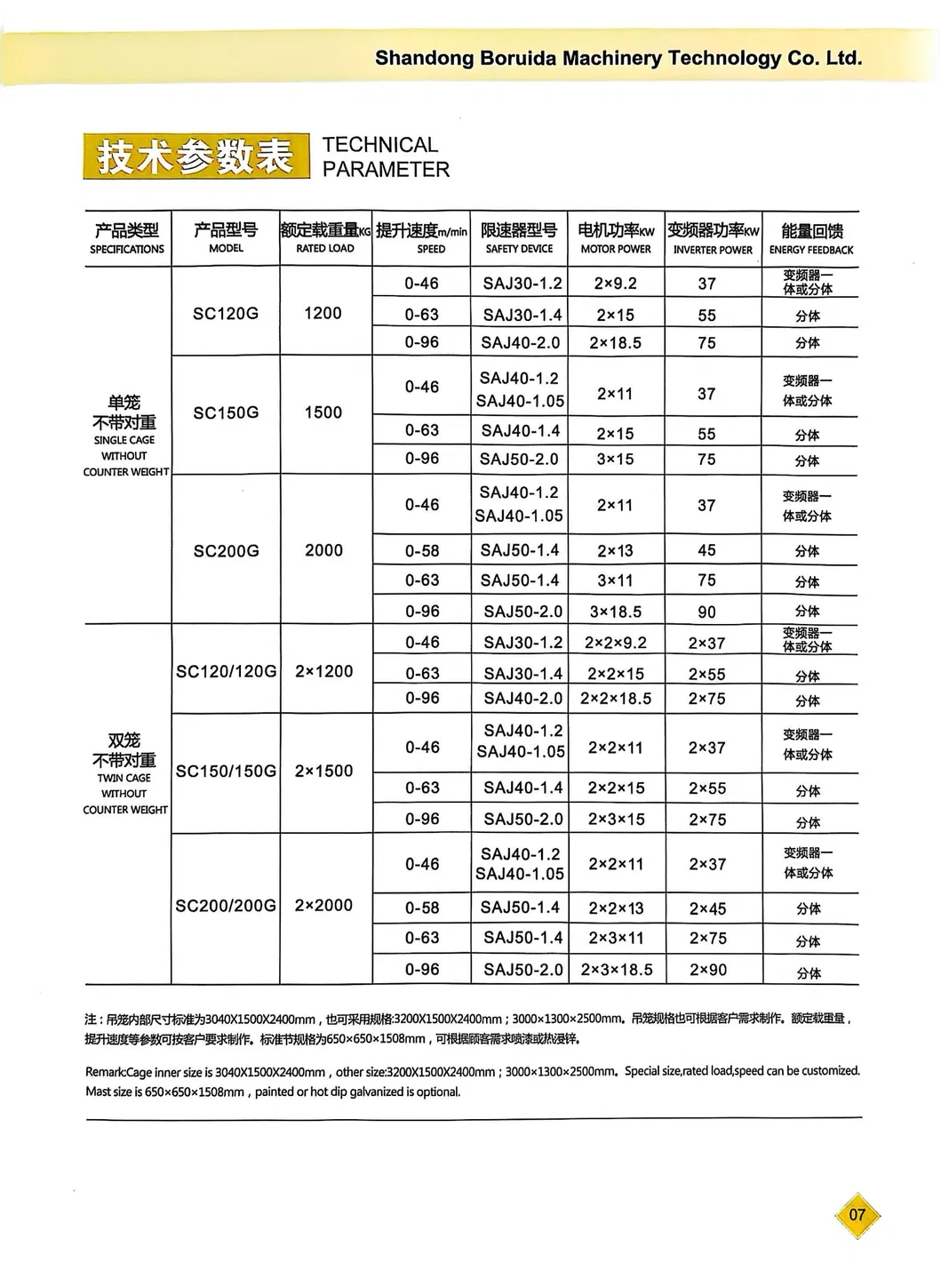

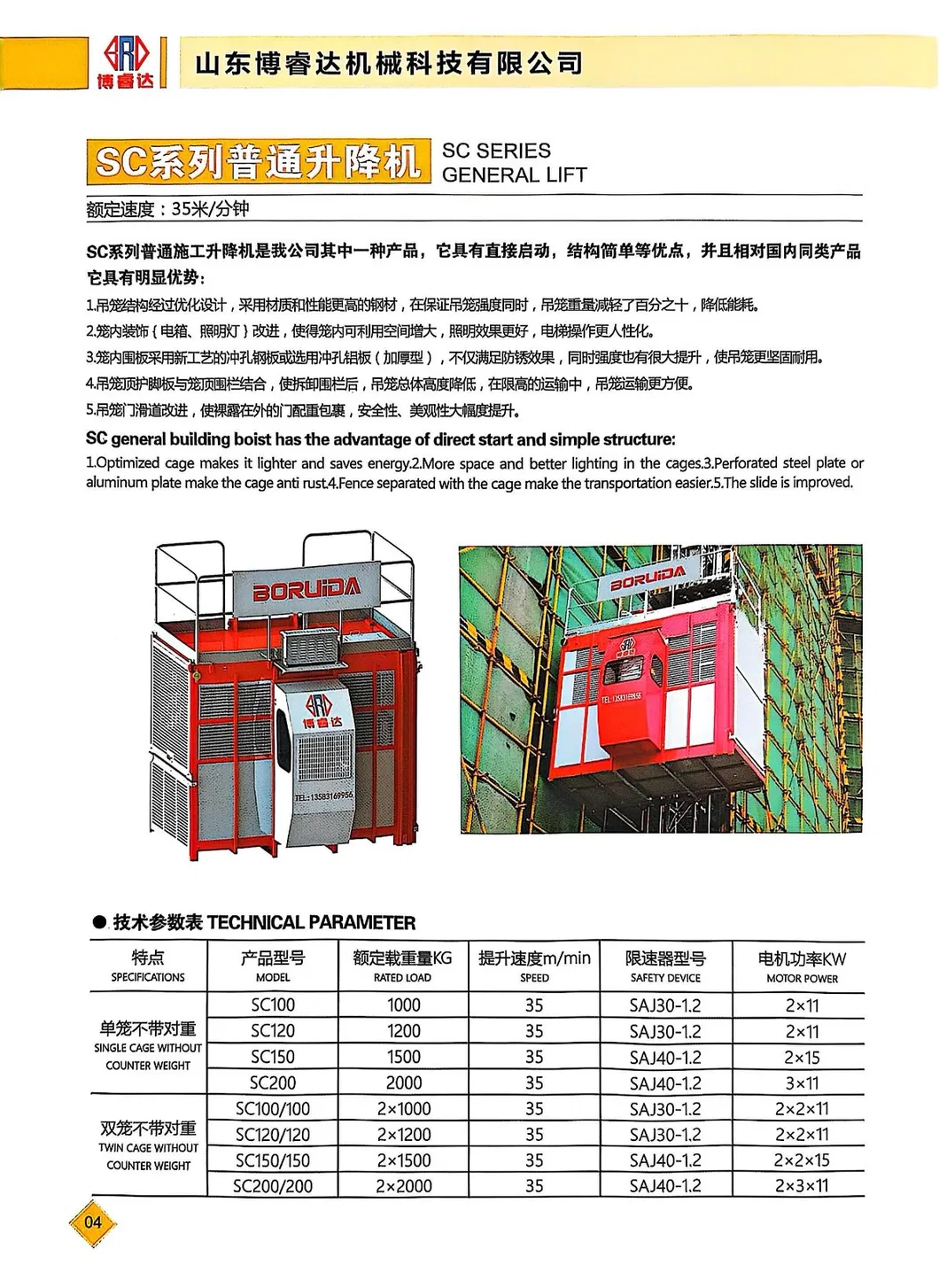

Technical Parameters
Characteristic Model Rated Loading Lifting Speed Motor Power
Double cages SC200/200 2x2000kg 33m/min 2x(3x11kw) / 2x(3x8.5kw)
Double cages SC150/150 2x1500kg 33m/min 2x(2x13kw)
Single cage SC200 2000kg 33m/min 3x11kw / 3x8.5kw

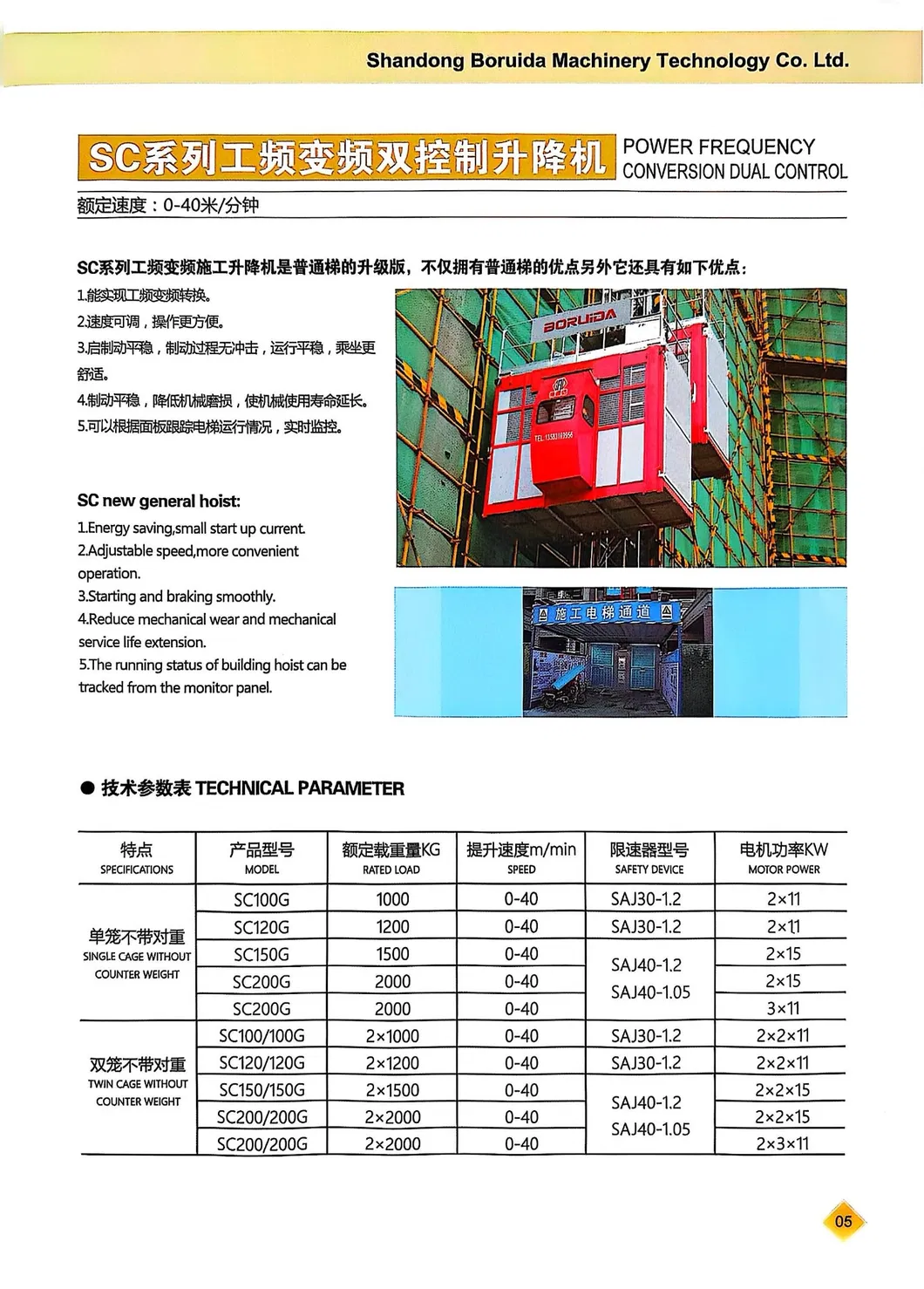

Low speed (Double) SC200/200D 2X2000kg 0-40m/min 2x(3x11kw)/2x(3x8.5kw)
Mid speed (Double) SC200/200Z 2x2000kg 0-60m/min 2x(2x23kw)
Prominent Features
  • Robot Welding: Mast sections are welded by industrial robots to ensure consistent quality and elegant appearance.
  • Surface Treatment: All steel structures undergo blasting technology for rust removal, ensuring outstanding paint adhesion.
  • Lightweight Design: Suspension cage guarding boards use figured aluminum plates, making them artistic and lightweight.

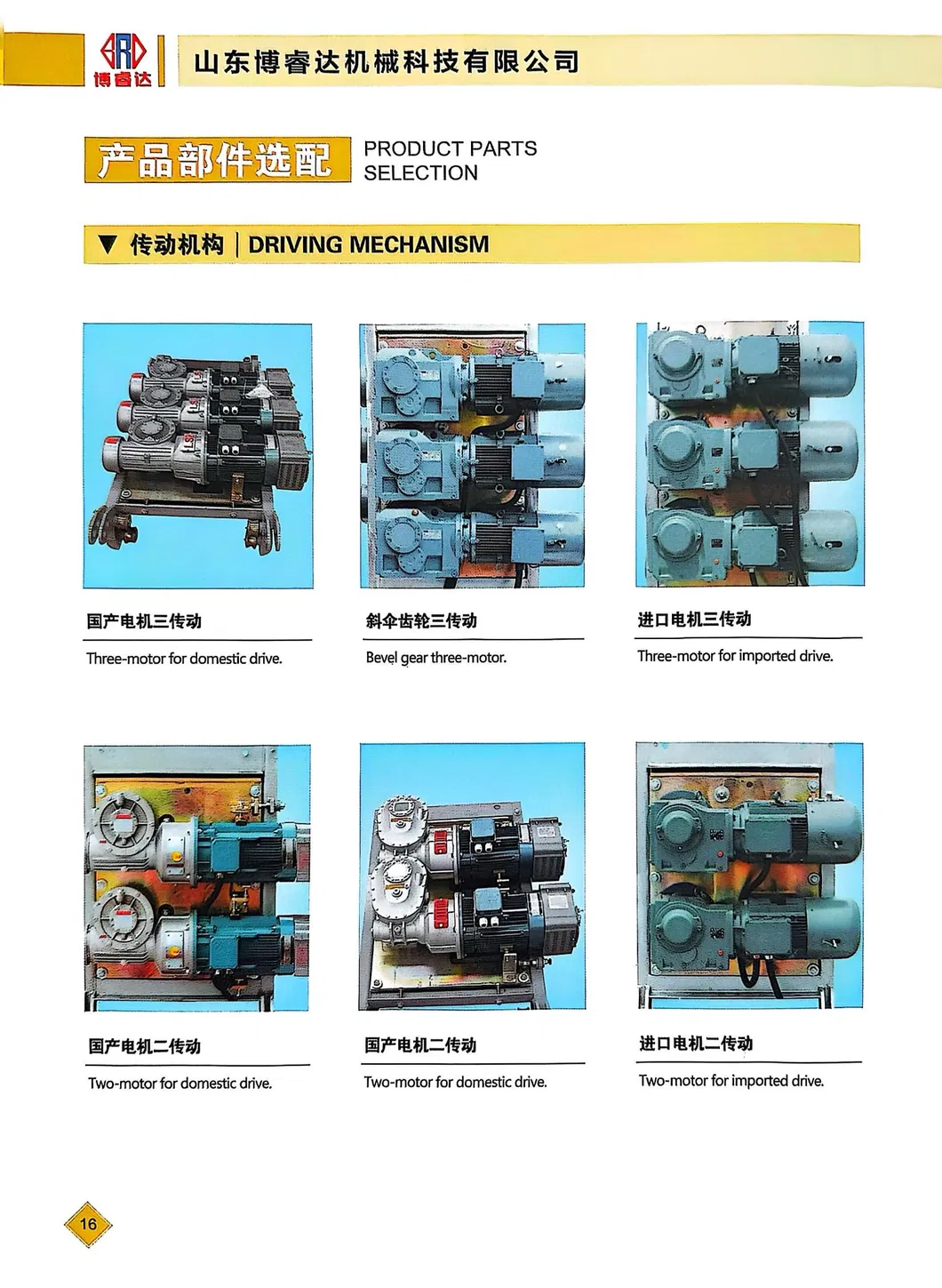

  • Stability: Professional transmission mechanisms offer high efficiency, long service life, and stable performance.

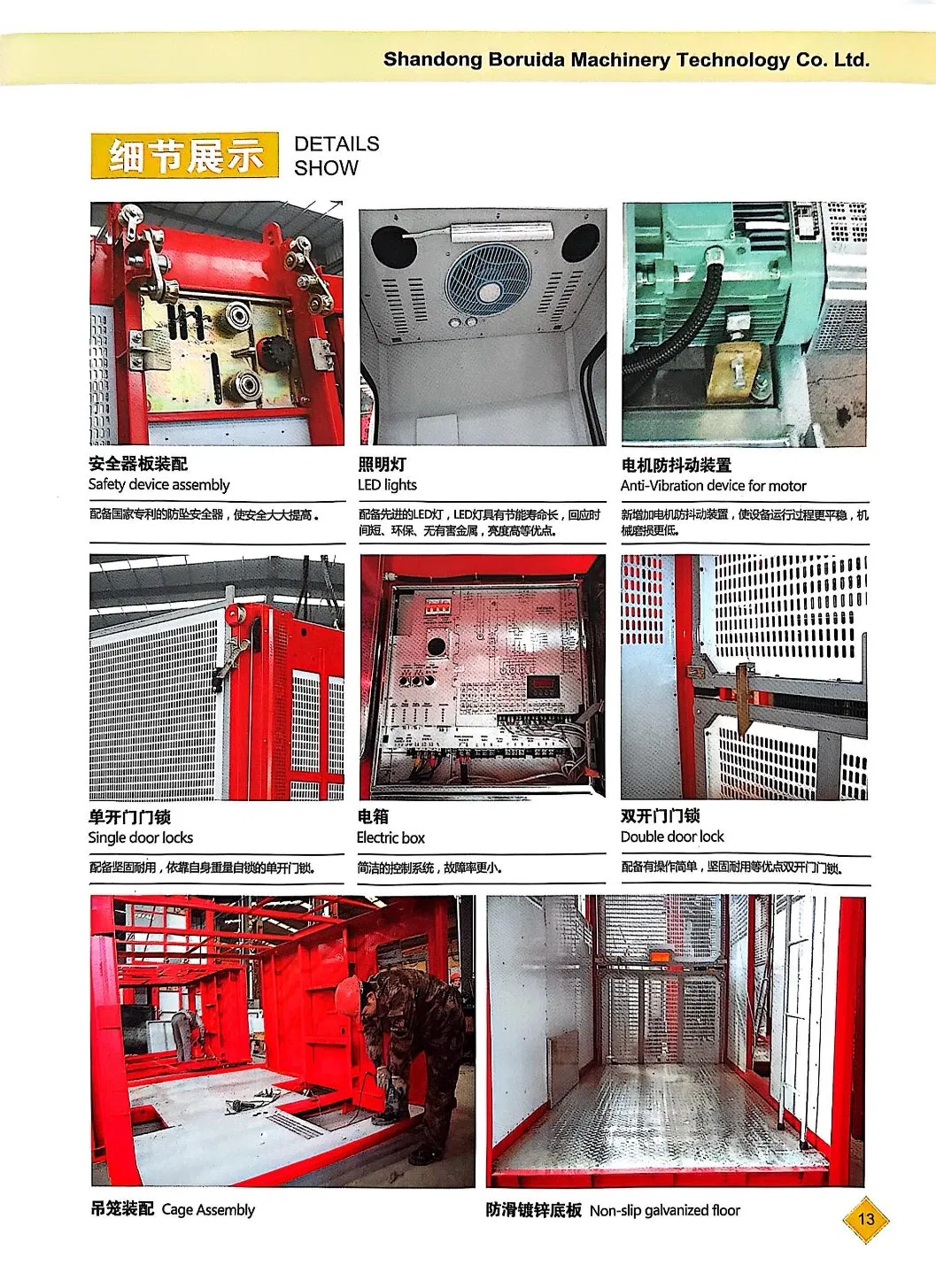

  • Safety Systems: Equipped with SAJ40-1.2 anti-falling devices and a complete set of overload protection limiters.

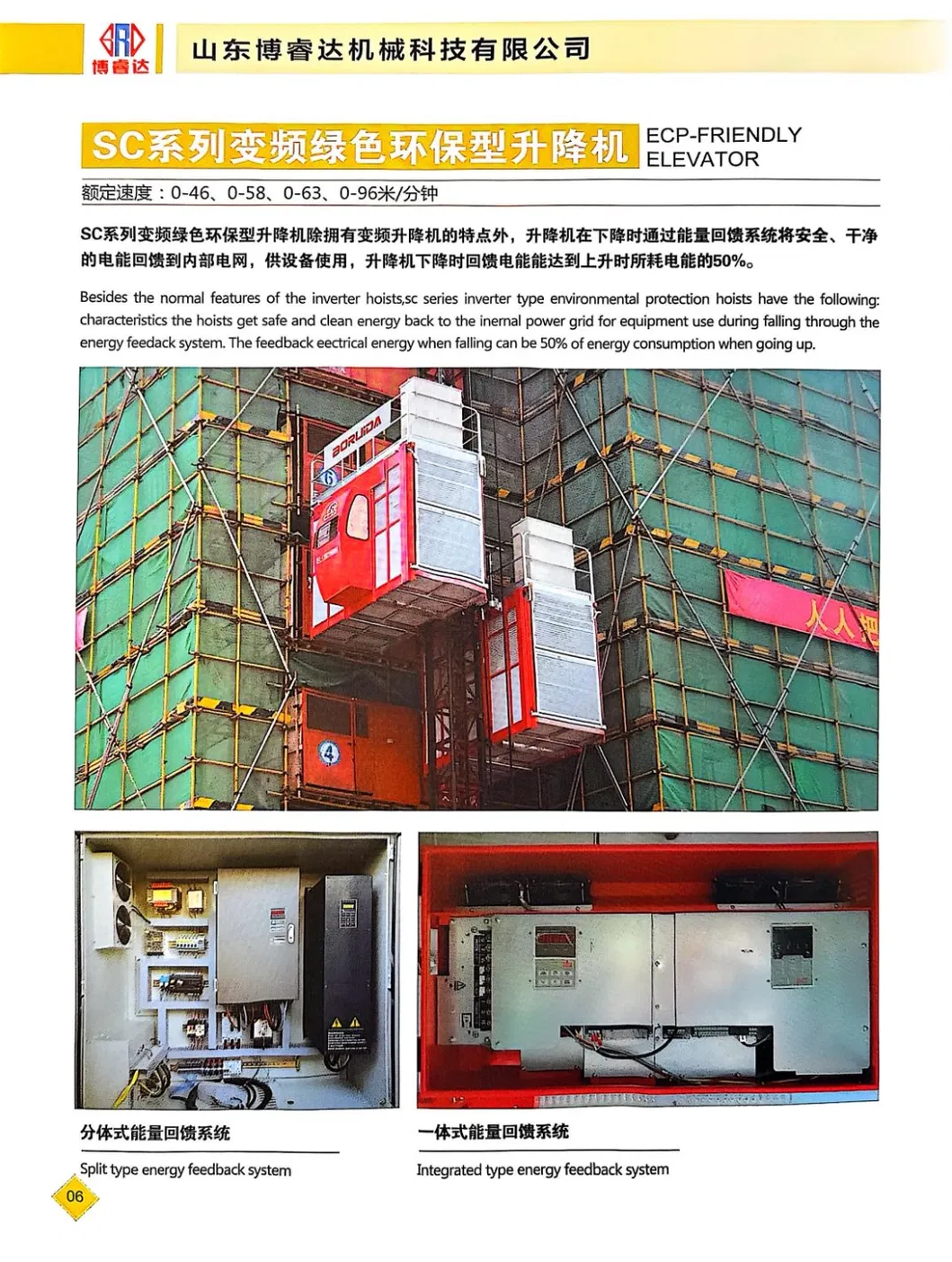

  • Energy Efficiency: Frequency conversion systems provide smooth starting, energy savings, and high efficiency.
Product Gallery
Frequently Asked Questions
What is the standard load capacity for the SC series?
The standard load capacity ranges from 1000kg (1T) to 2000kg (2T) per cage, with options for single or double cage configurations.
What safety devices are included with the hoist?
The hoist is equipped with a SAJ40-1.2 anti-falling safety device, overload protection, various limiters, and mechanical chain devices to ensure maximum reliability.

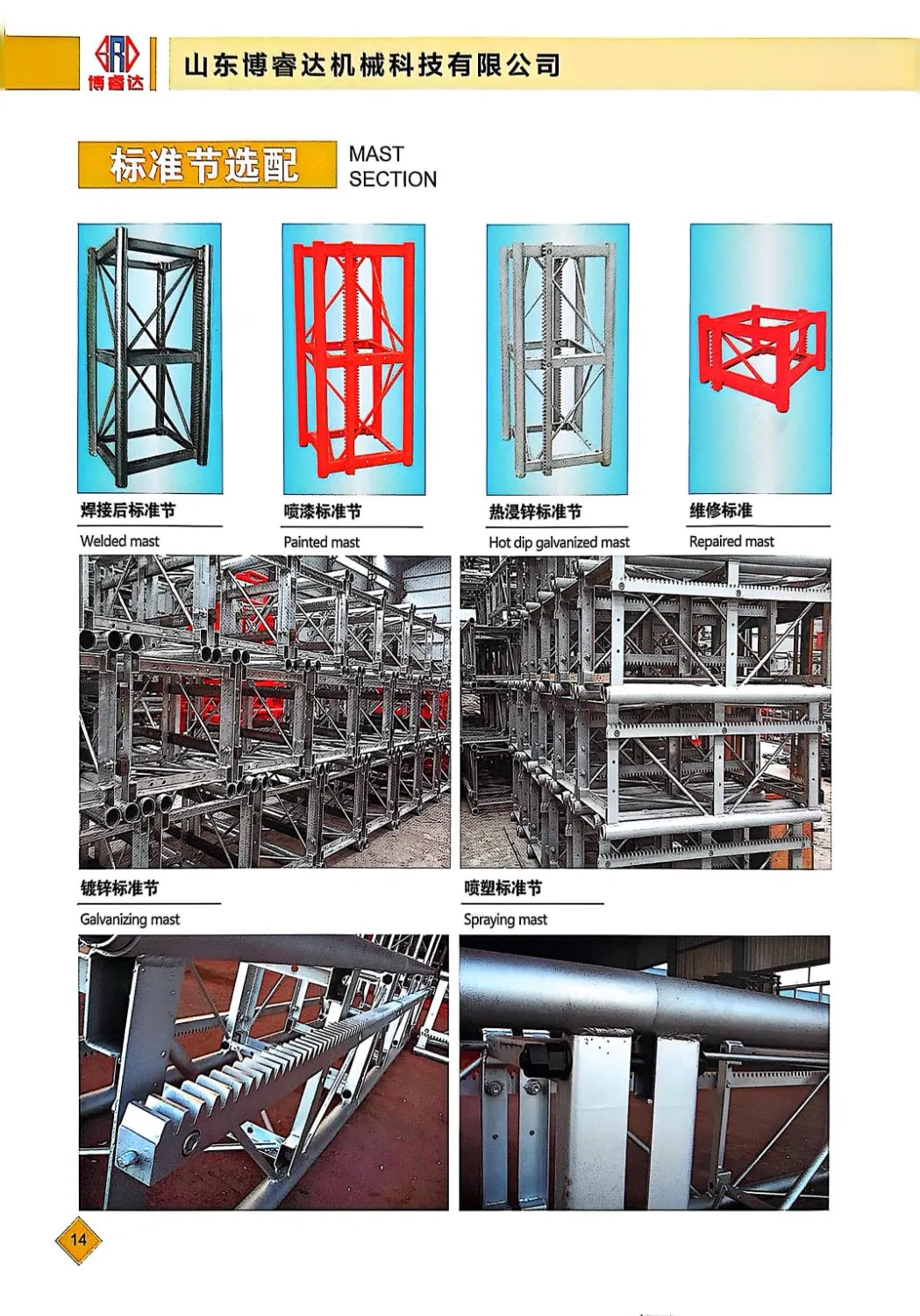

How durable is the mast section?
Our mast sections are made from high-quality seamless steel pipe, offering excellent verticality, anti-pressure properties, and anti-aging durability. They are welded by robots and blasting-processed for rust removal.
What are the available lifting speeds?
We offer low-speed (0-40m/min), mid-speed (0-60m/min), and high-speed options up to 100m/min depending on the specific model and requirements.
Are the electrical components reliable?
Yes, we use high-quality electrical components from reputable brands like Schneider to ensure consistent performance and safety.

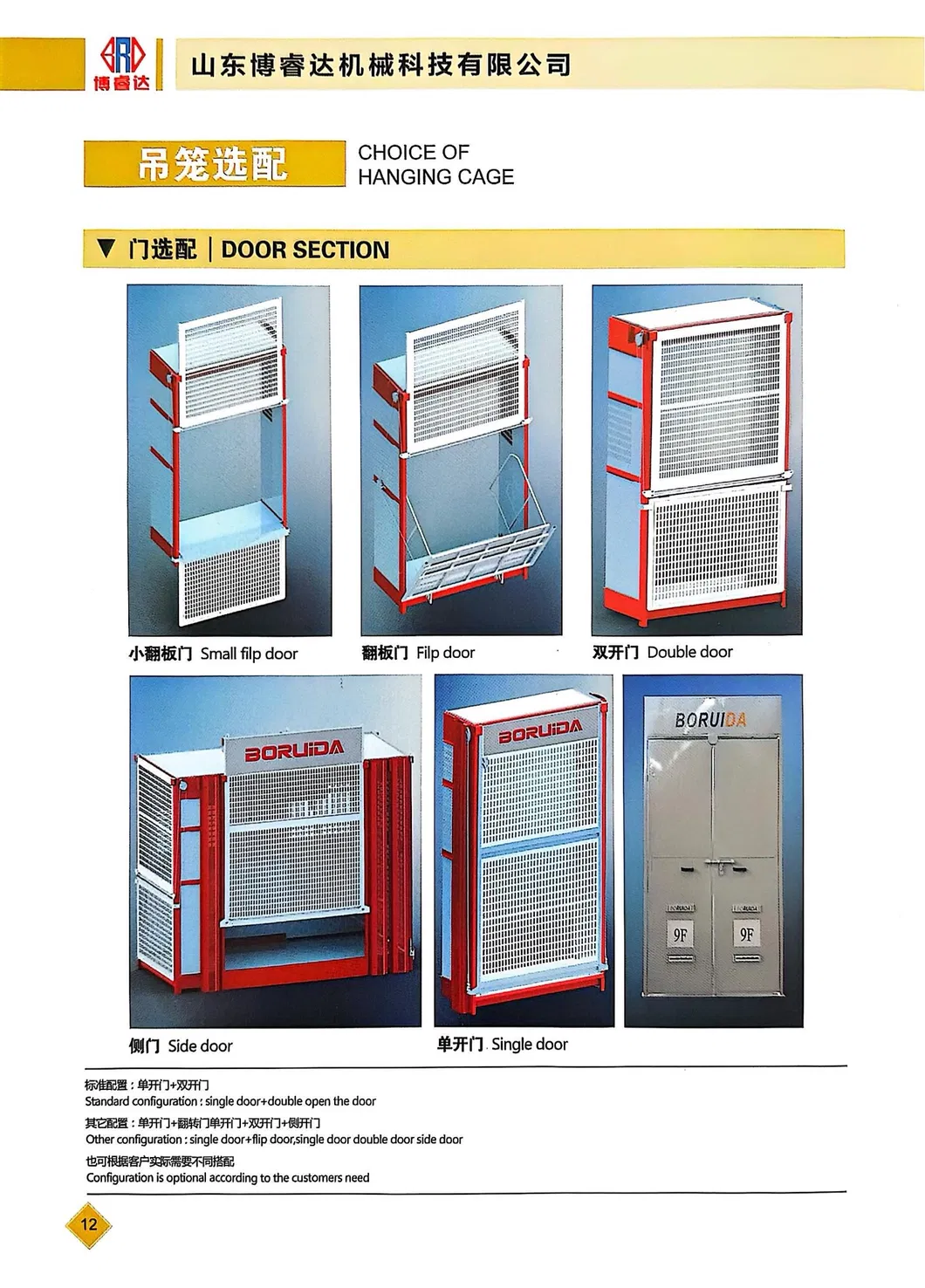

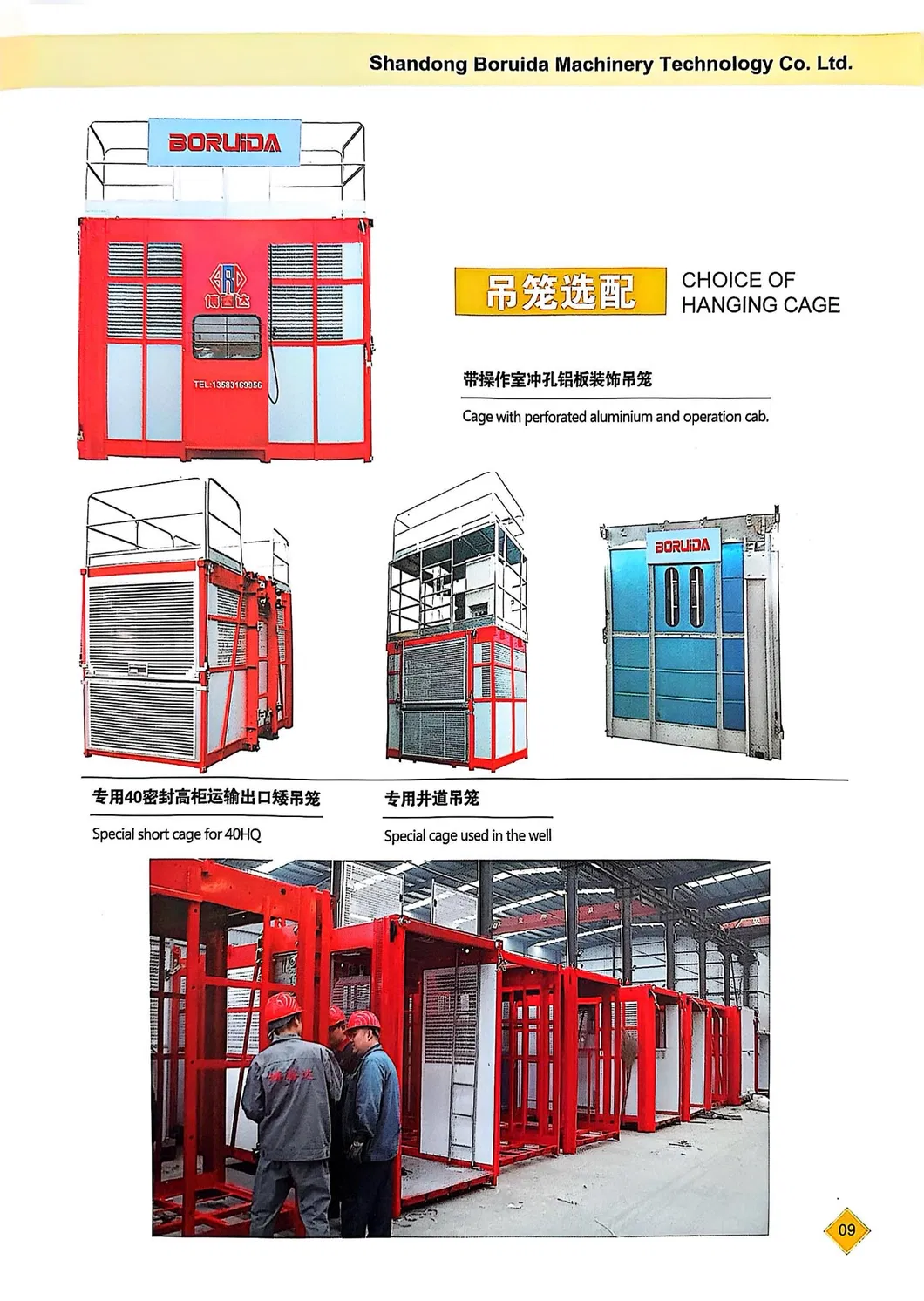

Can the cage size be customized?
The standard cage size is 3m x 1.5m x 2.2m, but specific configurations can be discussed based on the model and project needs.
