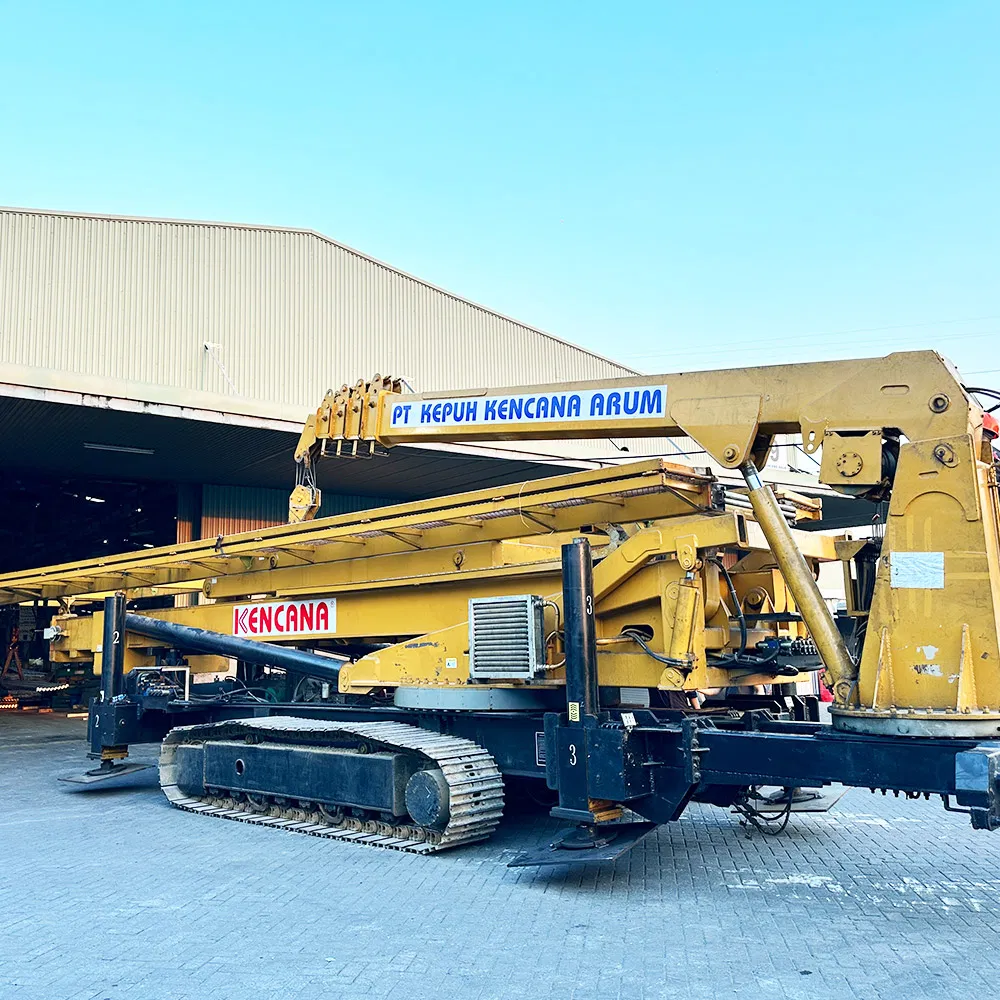

Explosion-Proof Tubing Remote Control Crawler Overhead Tile Elevator

1 / 5

Explosion-Proof Tubing Remote Control Crawler Overhead Tile Elevator

Customization:	Available
After-sales Service:	Excellent After-Sales Service
Warranty:	1 Year

Send Inquiry

Product Description

ℹ️

Basic Information

Model NO.

HYJX-28

Application

Workshop/Building Crane

Lift Mechanism

Telescoping Lift

Driven Type

AC (380V, 18kw)

Lifting Height

26m

Lifting Weight

8 Tons

Output Tile Length

1m - 200m

Feature

Explosion-Proof

📋

Product Description

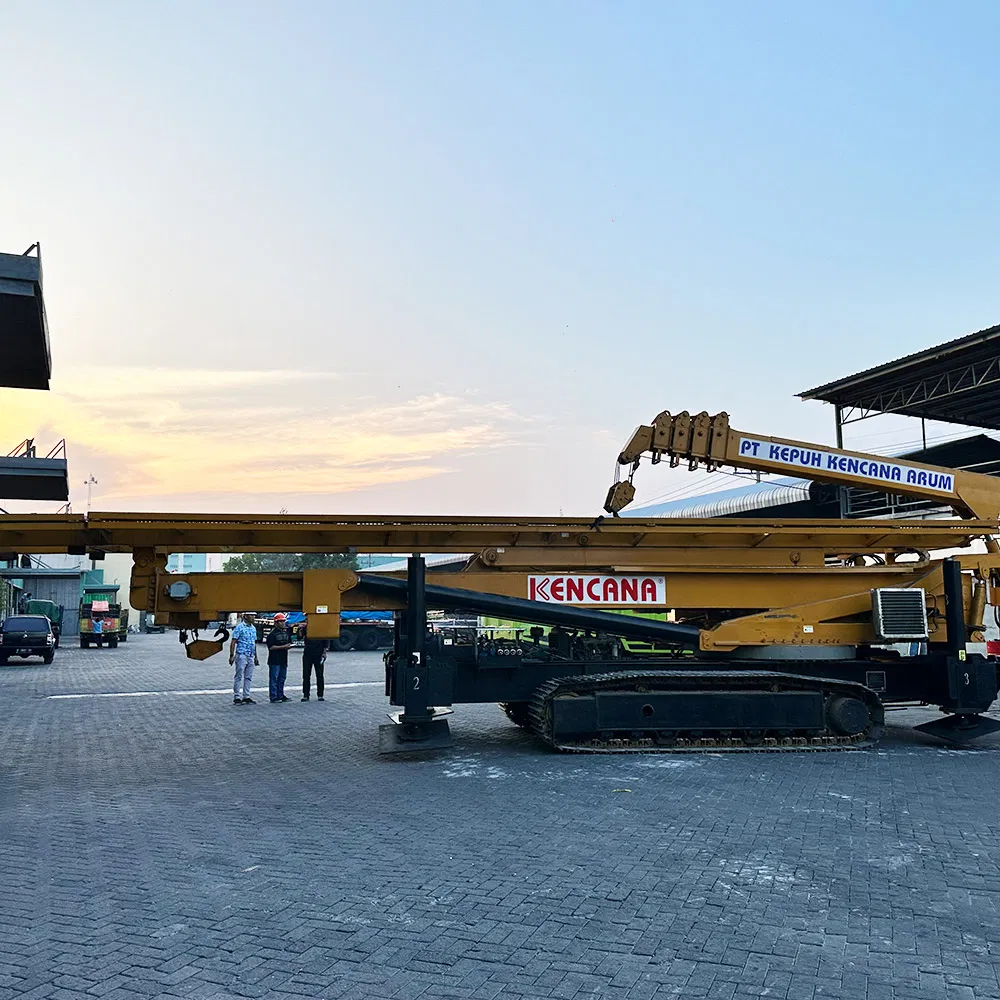

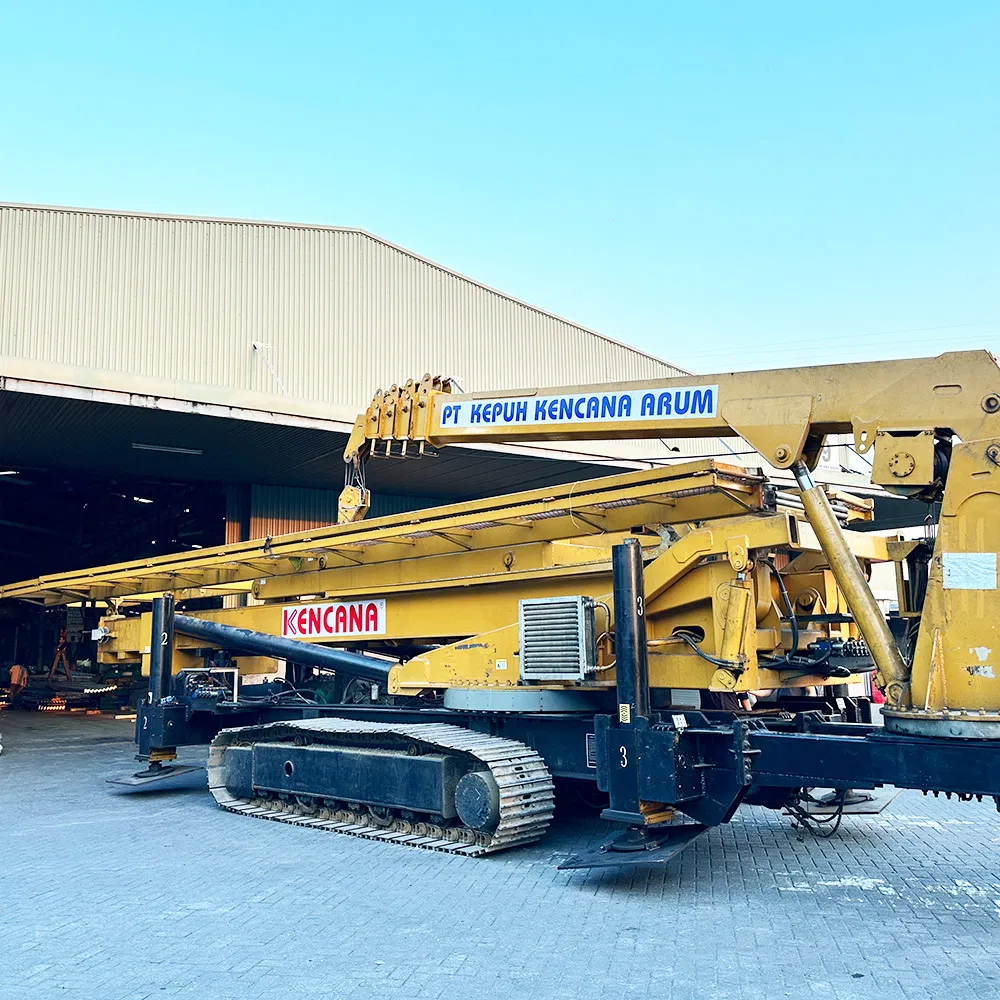

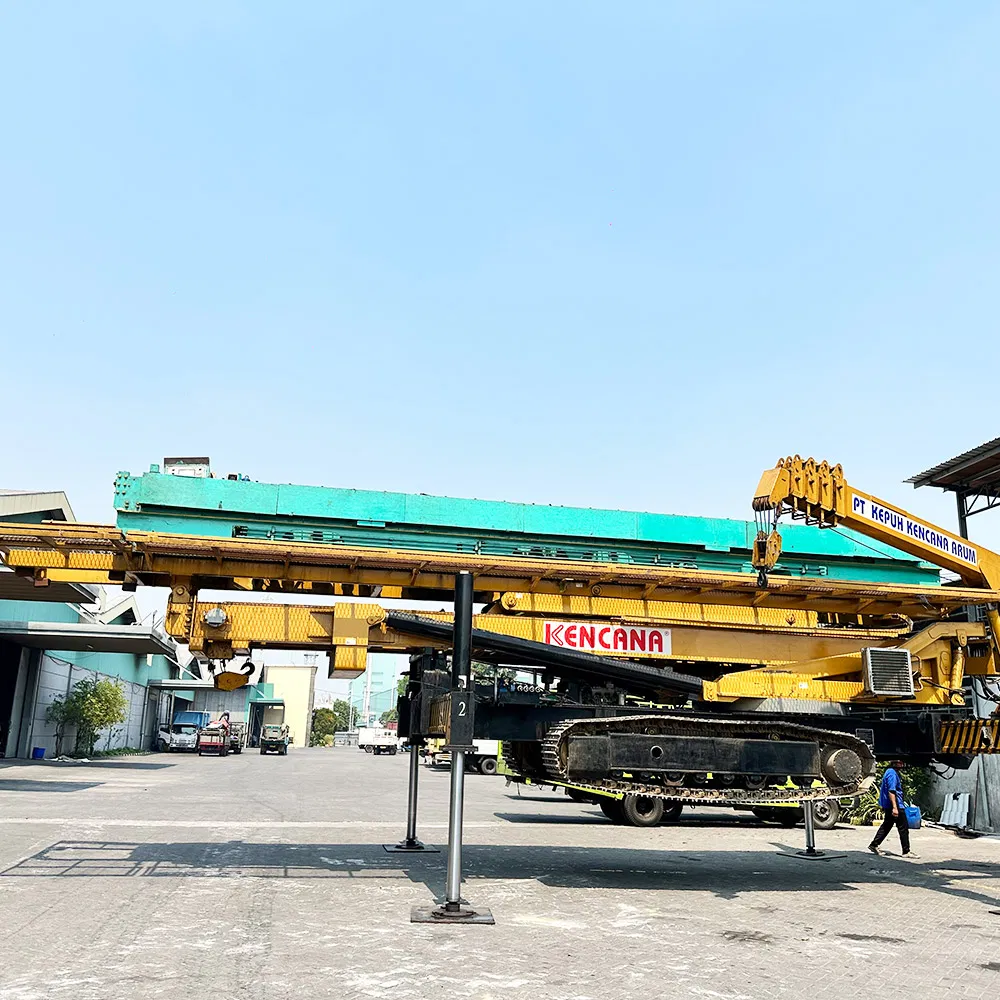

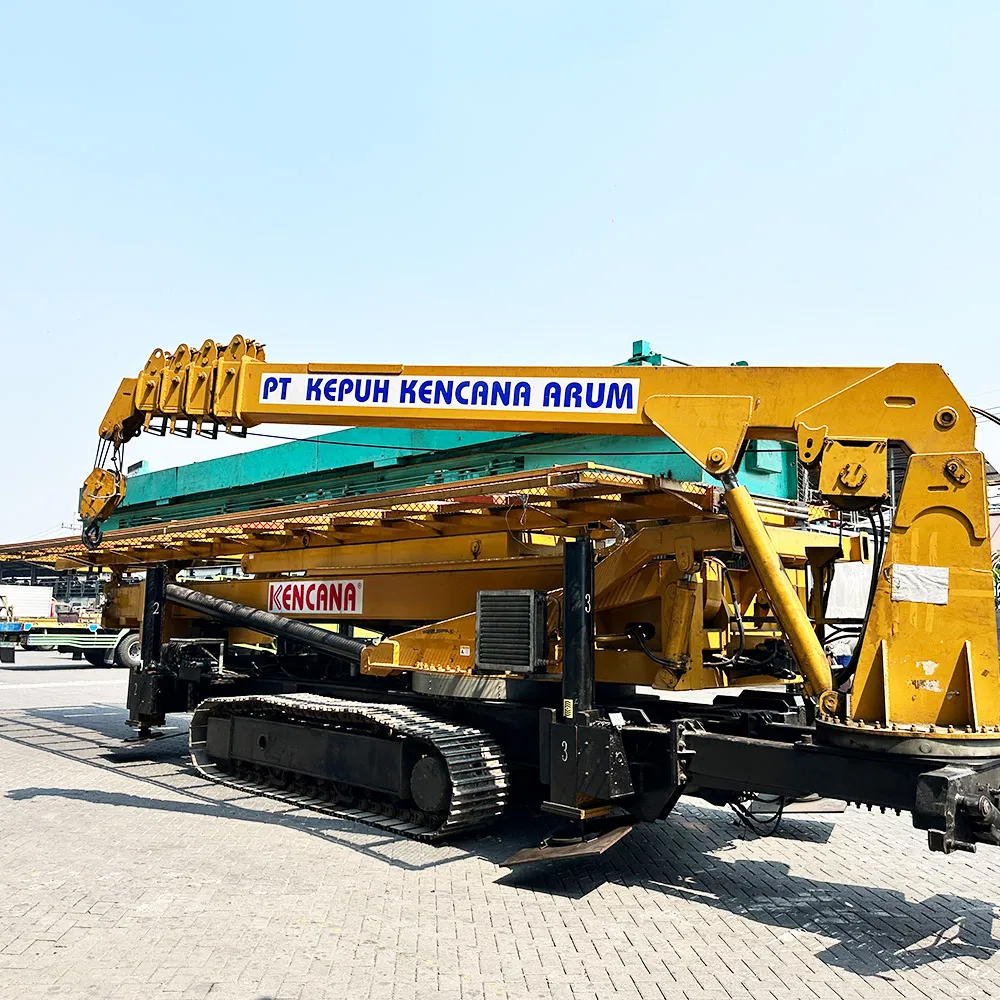

The crawler-type high altitude press is an advanced upgrade of the traditional truck-mounted models. Designed as a fully automatic Angle press, it features a robust track drive system that allows for seamless navigation through muddy and rugged terrain. This equipment is specifically optimized for challenging construction sites where vehicle accessibility is limited, ensuring stability and efficiency in southern regions and rainy conditions.

Sheet Material	Color steel plate, galvanized plate, aluminized manganese plate
Suitable Molding	Kok Chi series, roof plate forming machines, motor + reducer drive
Crane Function	Optional Hydraulic drive, can lift up to 8T
Sheet Thickness	0.3 mm - 1.0 mm
Installation Size	12m x 3m x 3.3m / 12m x 2.4m x 3m

⭐

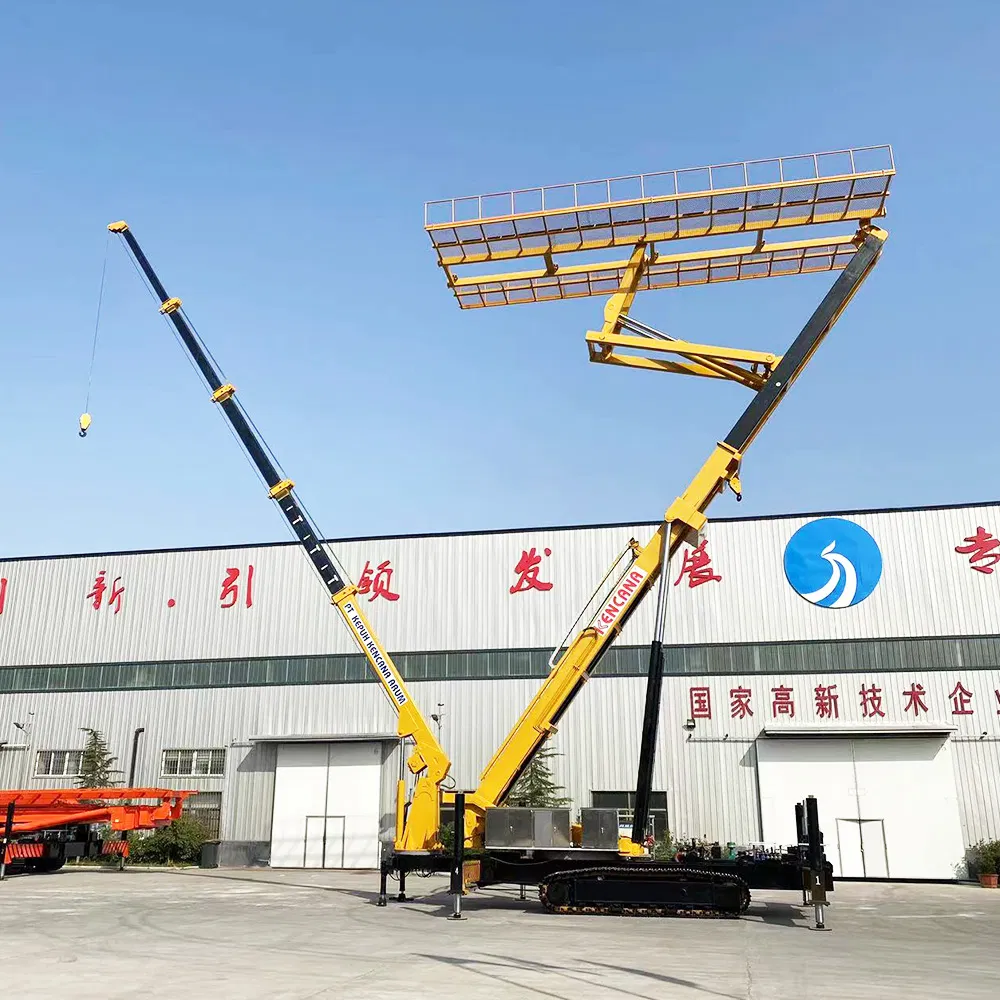

Equipment Features

01
Flexible Lifting: Support heights from 5 to 30 meters, customizable based on project requirements.
02
High Load Capacity: Platform bearing ranges from 6 to 20 tons to accommodate various tile press weights.
03
Remote Operation: Entire system including track movement and lifting can be controlled via remote for enhanced safety.
04
Terrain Adaptability: Self-driven crawler tracks allow for operation on rugged, uneven, and muddy ground.
05
Operational Safety: Operators can manage complex maneuvers from a safe distance of over ten meters.

🔍

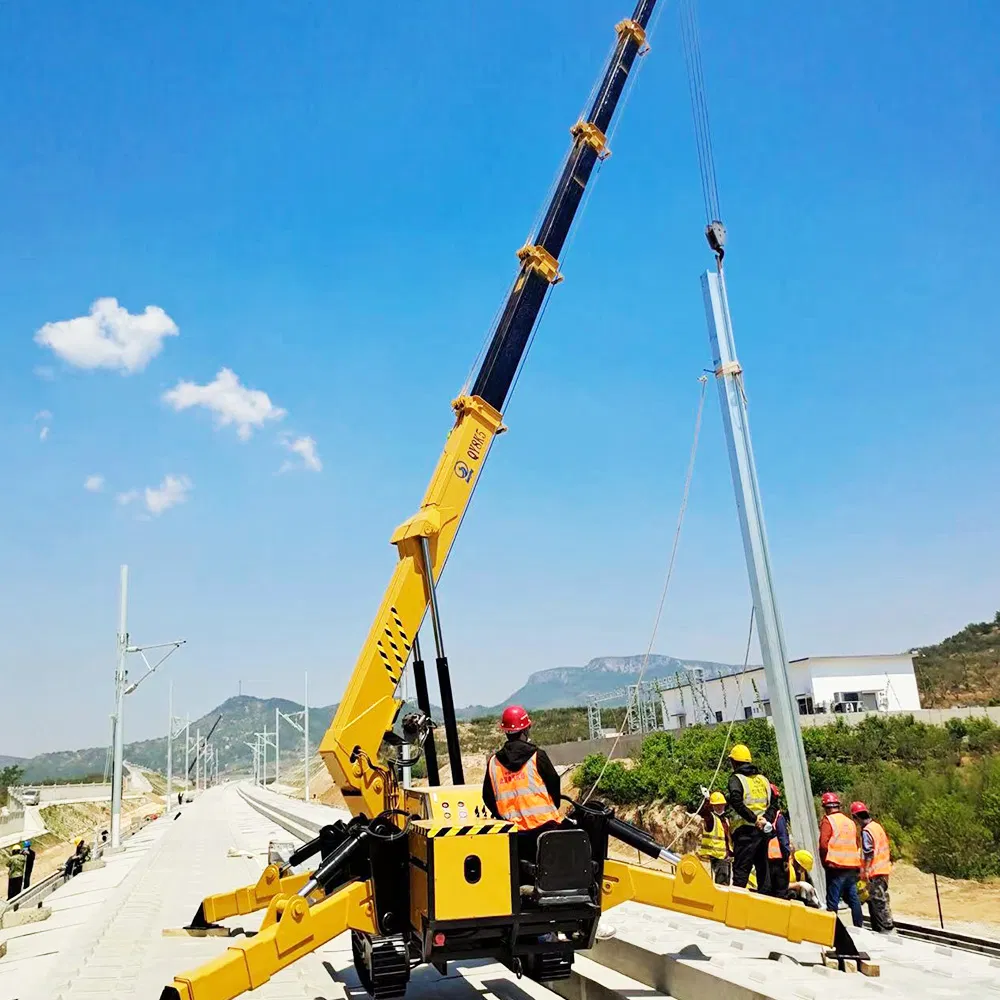

Related Equipment

📸

Exhibition & Dynamics

❓

Frequently Asked Questions

Q1: What causes abnormal noise during operation?

A1: This is usually due to a lack of lubrication in key mechanical joints, causing friction. Regular lubrication of all pivot points is recommended.

Q2: Why is the tile machine failing to lift?

A2: This may stem from hydraulic system damage or contaminated hydraulic oil. Please consult a professional engineer for a system diagnostic.

Q3: What should I do if the platform starts sinking?

A3: Sinking is typically caused by a loss of liquid pressure or leaks in hydraulic valves and seals. Worn seals or damaged valves should be replaced immediately.

Q4: Can this equipment operate on soft soil?

A4: Yes, the crawler-type base is specifically designed for muddy, rainy, and soft soil conditions where wheeled vehicles might get stuck.

Q5: What is the maximum remote control range?

A5: The operator can safely control the equipment from a distance of over ten meters, ensuring full visibility and personal safety.

Q6: Is the voltage customizable for different regions?

A6: The standard configuration is 380V, 18KW, but power systems can be discussed based on specific project requirements and site availability.
