Basic Information
Model NO.PZ-6000
Alarm System TypeSound and Light
Control TypePoint Control
Smoke Detector TypePhotoelectric Style
InstallationCeiling / Wall Mounted
AC Power220V
Standby Battery4*12V/12ah
DisplayLCD 128×64 Lattice
Weight10kg
Specification420*130*470MM
🛡️
Product Description

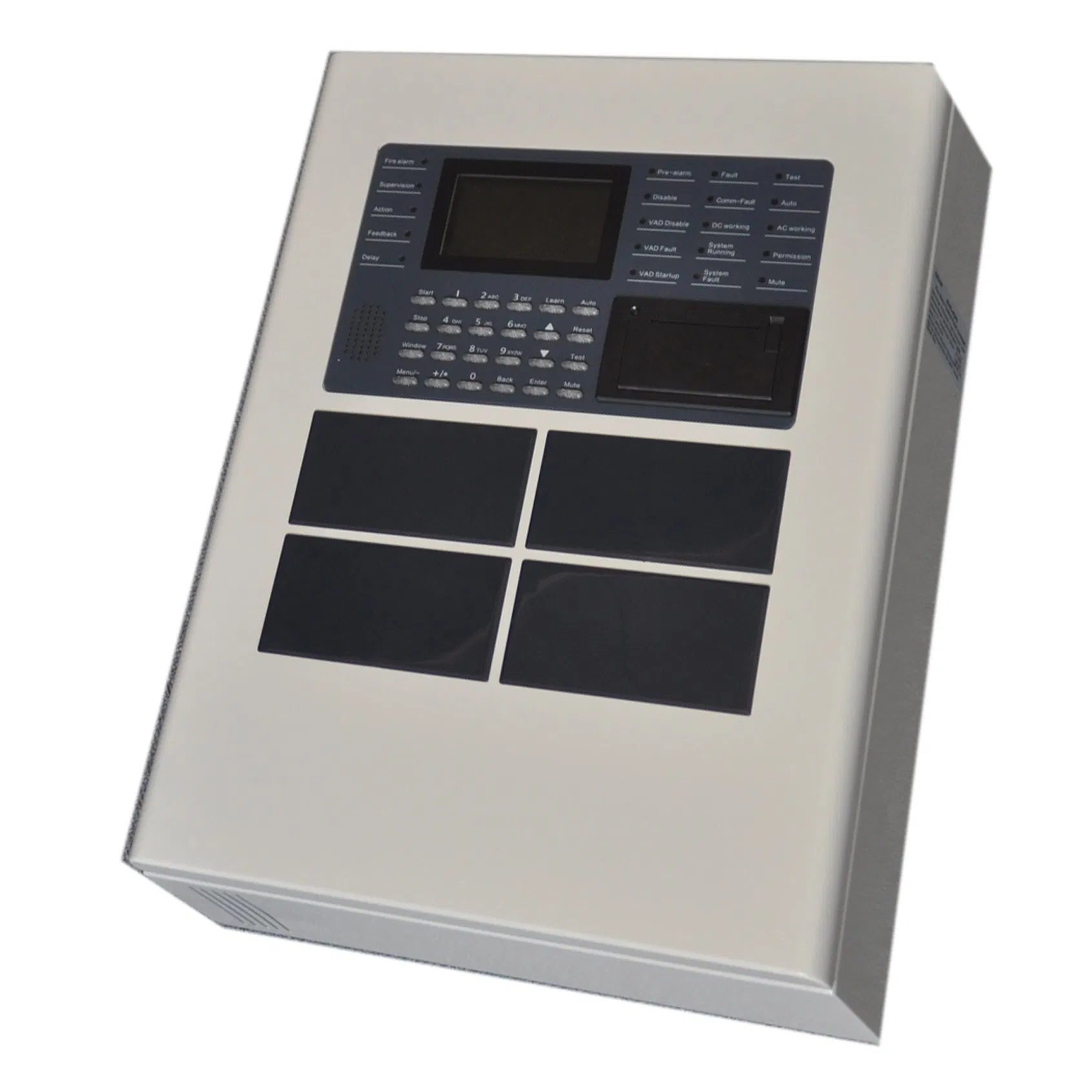

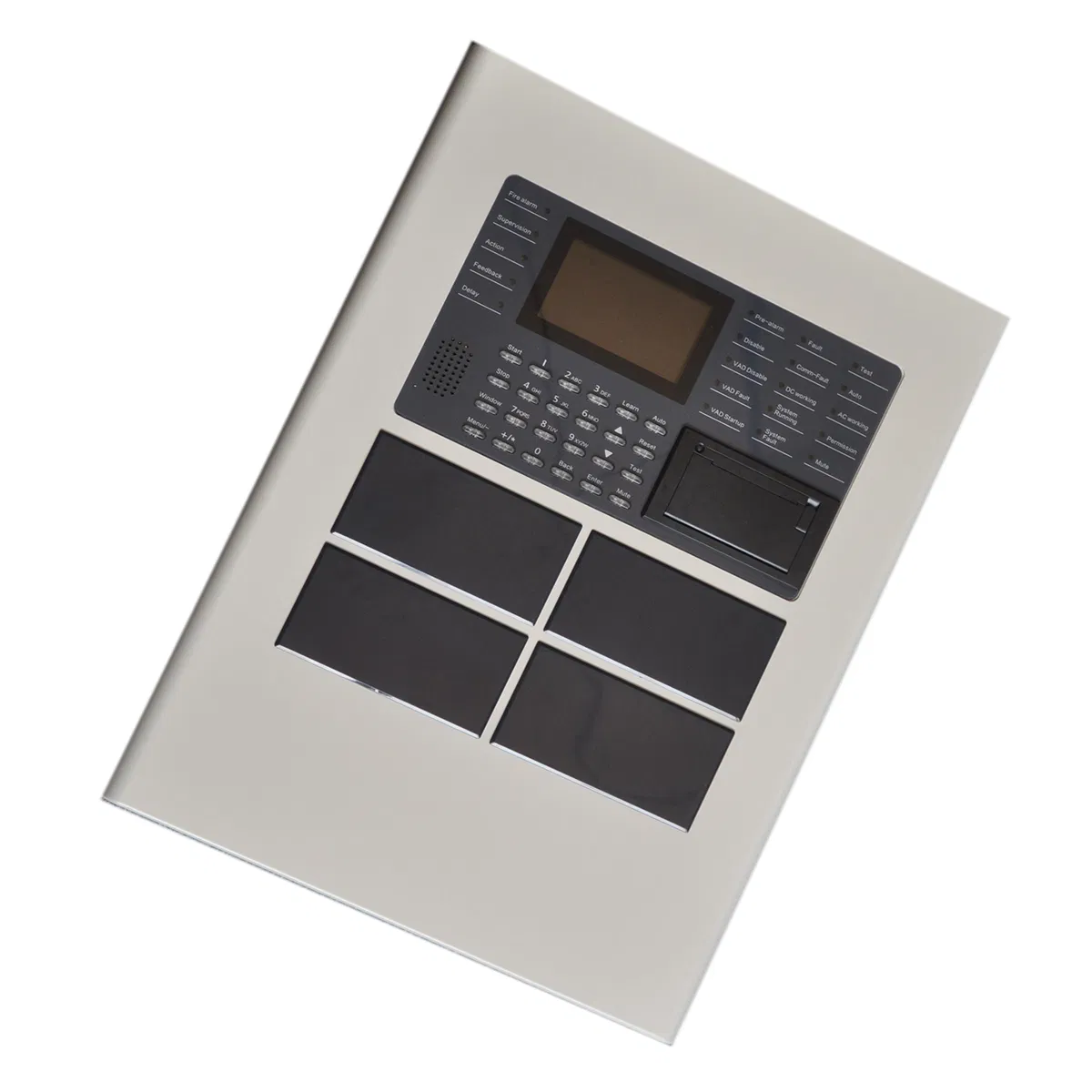

Fire Alarm Control Panel (F.A.C.P) integrates various functions such as fire alarm, linkage control, supervision alarm, and network communication. It meets GB4717-2005 and GB16806-2006 standards. It is widely used in large, medium, and small-sized fire alarm engineering such as hotels, office buildings, residential buildings, gymnasiums, libraries, etc.

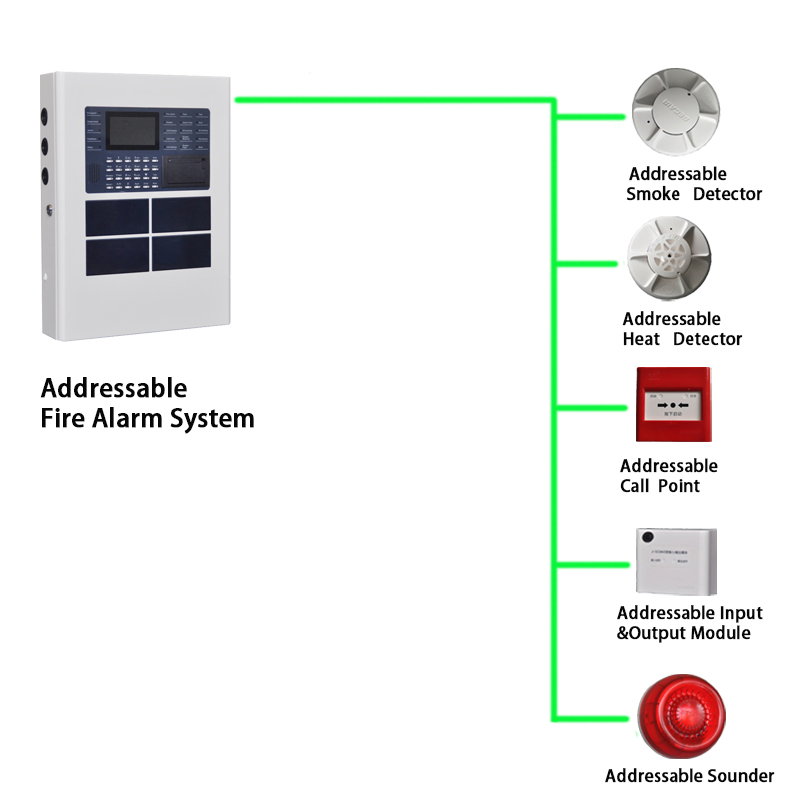

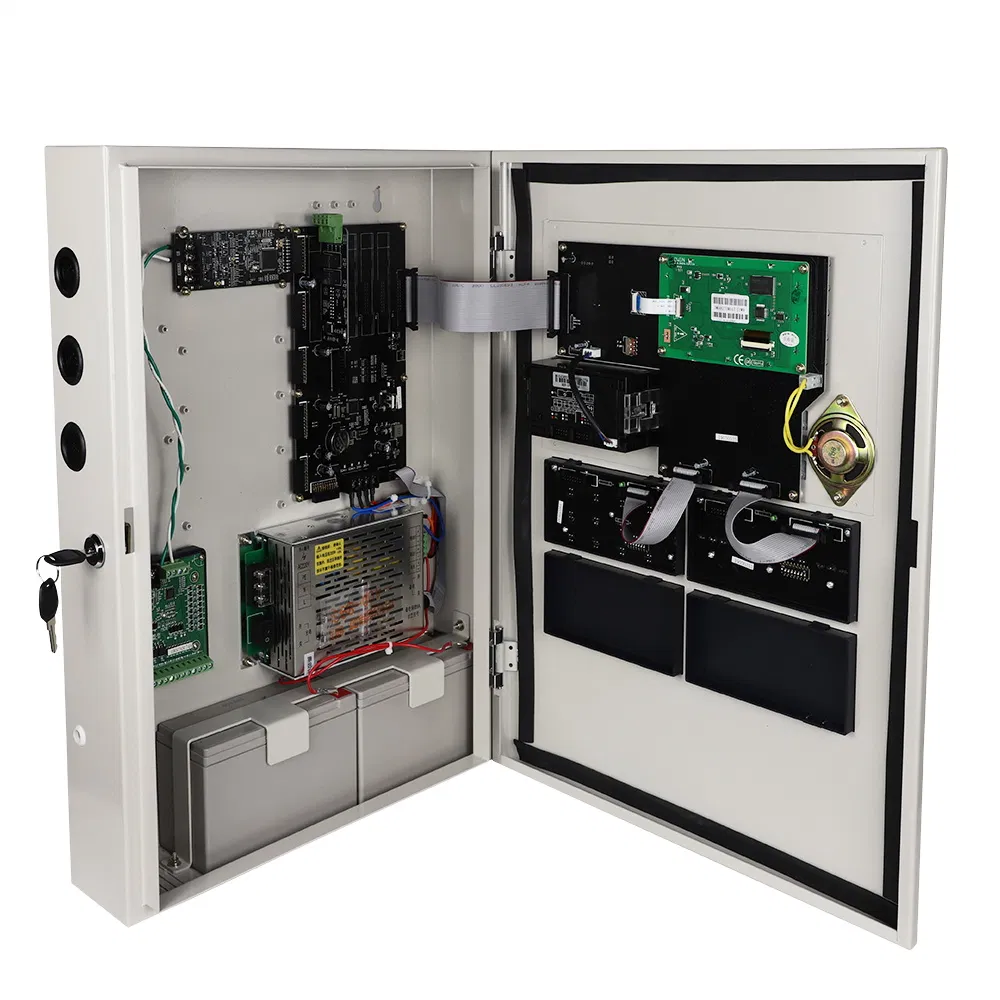

The F.A.C.R adopts high-performance microprocessor and intelligent digital bus technologies to collect alarm signals and environmental parameters (smoke and temperature) in real time. It conducts fire judgment through analysis and processing, setting up linkage logic to automatically control fire-fighting devices. The modular structure ensures strong anti-interference, reliable operation, and easy maintenance.
❓
Frequently Asked Questions
What are the primary applications for this Fire Alarm Control Panel?
It is widely used in hotels, office buildings, residential areas, gymnasiums, libraries, and various fire alarm engineering projects.
Does the system support remote networking?
Yes, it supports multiple communication interfaces including RS485, RS232, LORA, WIFI, and CAN for seamless networking.
How does the system handle power interruptions?
The panel features automatic switching between AC power and backup batteries, with built-in under-voltage protection to safeguard the battery.
What is the maximum response speed of the system?
The system provides extremely high-speed performance, with bus alarming in 0.3 seconds and linkage control in 0.2 seconds.
Is the system expandable for larger buildings?
Yes, the modular design allows for loop expansion cards and multi-line modules to increase the number of connected devices and zones.
How can I monitor the system's history?
The integrated "Black Box" function automatically stores historical records of fire alarms, faults, and operations for later review.
