Customization: Available
After-sales Service: by Factory or Local Agent
Warranty: 18 Months After Shipment
Send Inquiry

Product Description

i

Basic Specifications

Model NO.
16B003
Driving Type
AC Elevator
Capacity
>1000kg
Persons
11 - 19
Speed
1.00 - 2.00m/s
Control Mode
Collective Selective Control
Elevator Type
Passenger/Hospital Elevator
Machine Room
Available with/without
Standard
EN 81-20: 2014, EN 81-50: 2014
Origin
Zhejiang, China
★

Product Description

Our medical and cargo elevator solutions are designed for high-performance sightseeing, hospital bed transport, and wheelchair accessibility. We utilize intelligent data network control technology to maximize lift utilization and minimize waiting times.

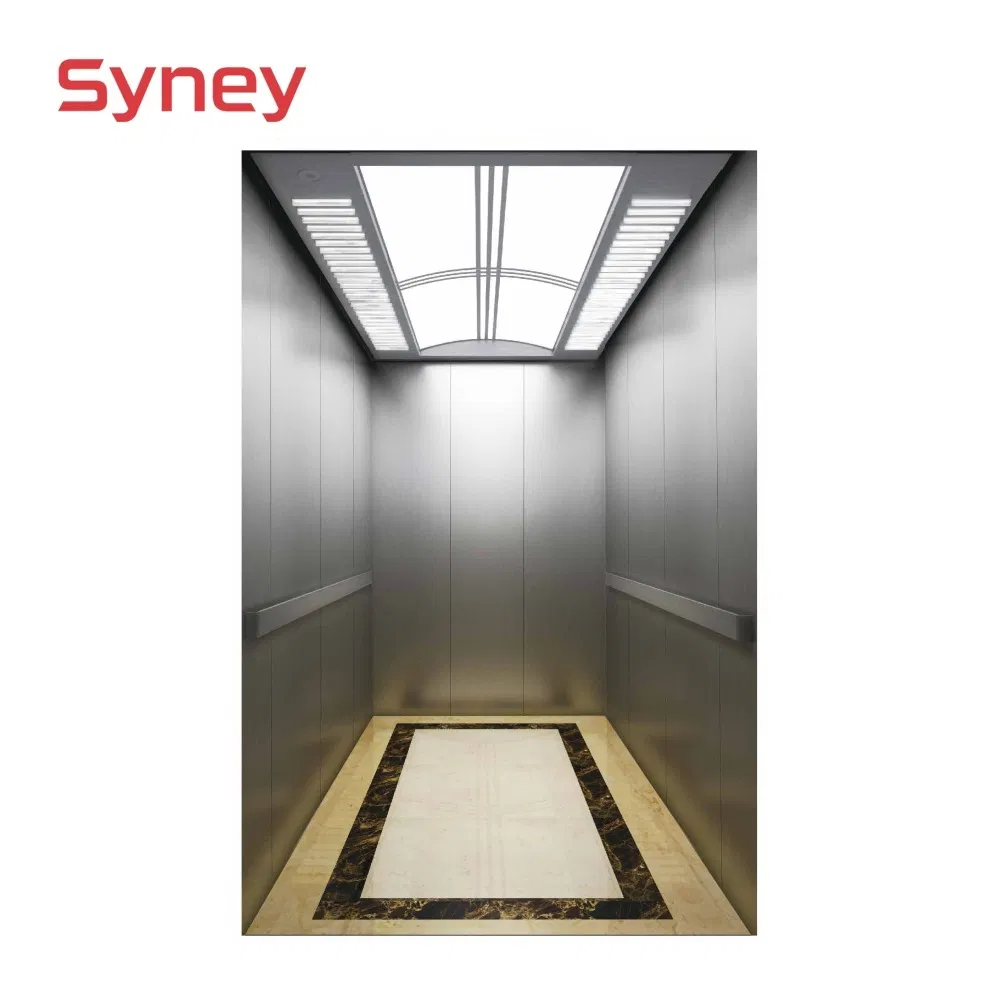

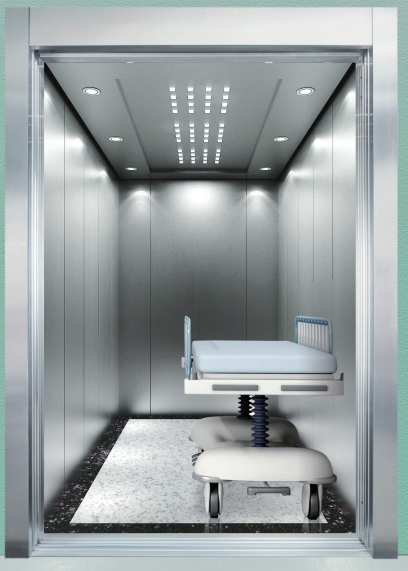

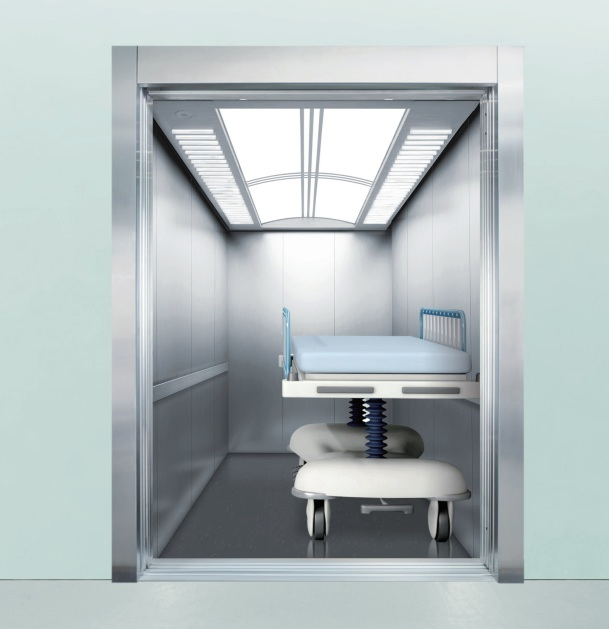

Bed Lift Cabin Design
Safe & ReliableEnsures each passenger's safe delivery with redundant safety systems.
Space EfficiencyNew machine room layouts improve building space availability.
Energy SavingAdopts gearless permanent magnet synchronous machines.
Specialized DesignDeep cabin design and center-opening doors for medical bed access.

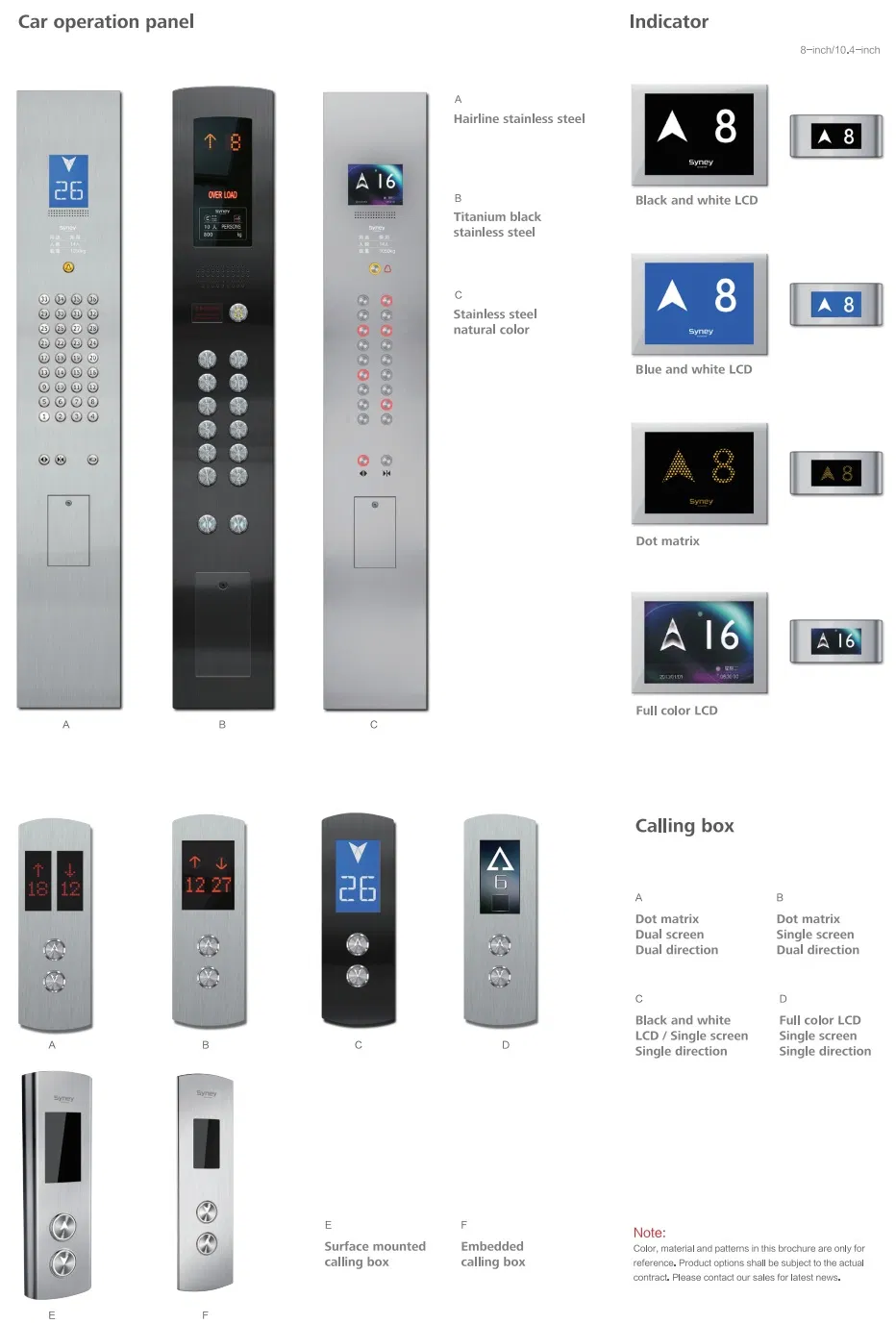

Elevator Feature 1

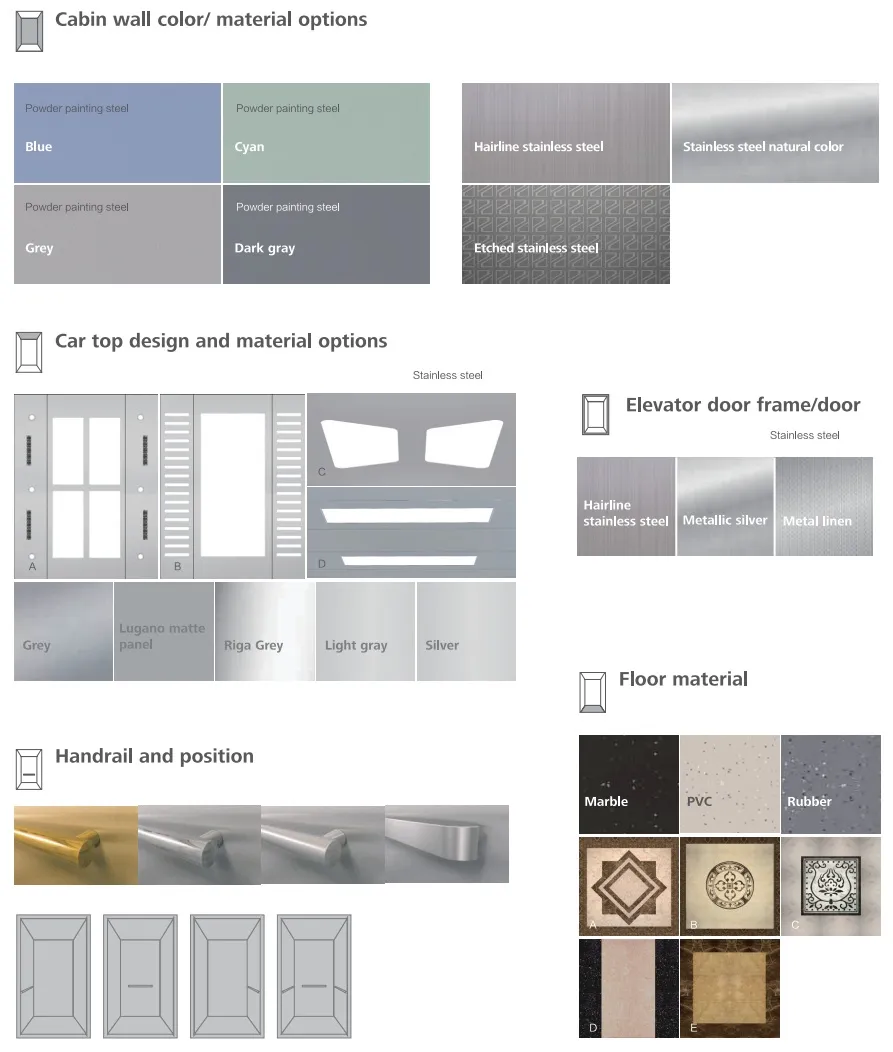

Elevator Feature 2
📋

Technical Parameters

Capacity (kg) Speed (m/s) Cabin Size (CW*CD) Door Opening (mm) Shaft Size (HW*HD) Pit Depth (mm) Overhead (mm)
1350 1.0 - 1.75 1300 * 2300 1000 * 2100 2350 * 2800 1500 4500
1600 1.0 - 1.75 1400 * 2400 1100 * 2100 2500 * 2900 1500 4500

* Above specifications are for reference. Custom designs are available based on site parameters.

⚙

Manufacturing & Quality Control

From raw material entry to finished products, we maintain a strict operation system. All parts are packed in solid plywood boxes suitable for long-term sea shipping.

  • Material Inspection: QC checks all incoming raw materials; only qualified items enter production.
  • Production Management: Weekly schedules and daily digital tracking in every workshop.
  • Testing: Every elevator and escalator undergoes commissioning and match-testing before delivery.

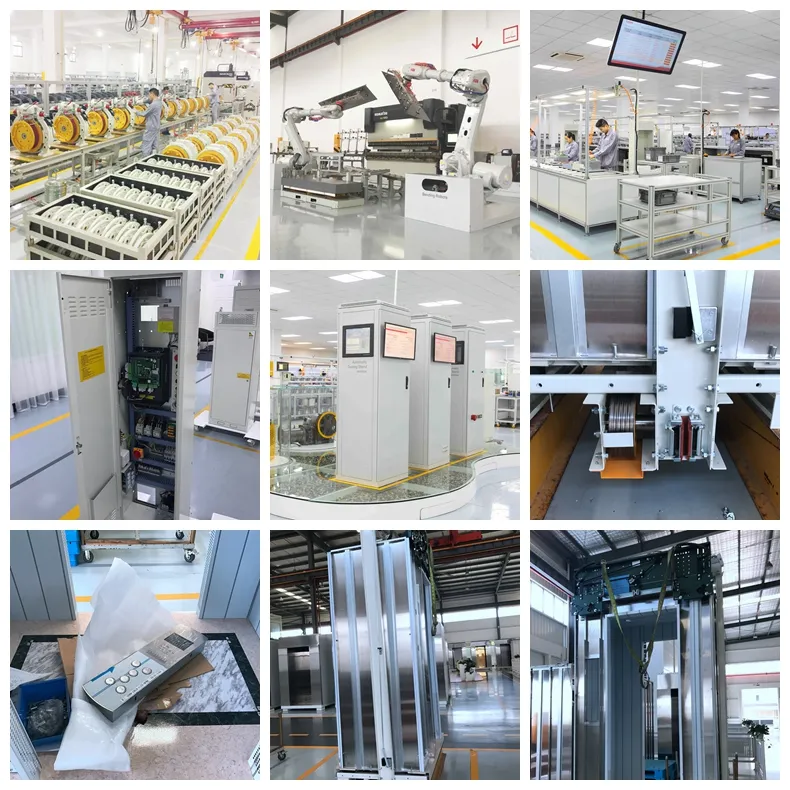

Manufacturing Process

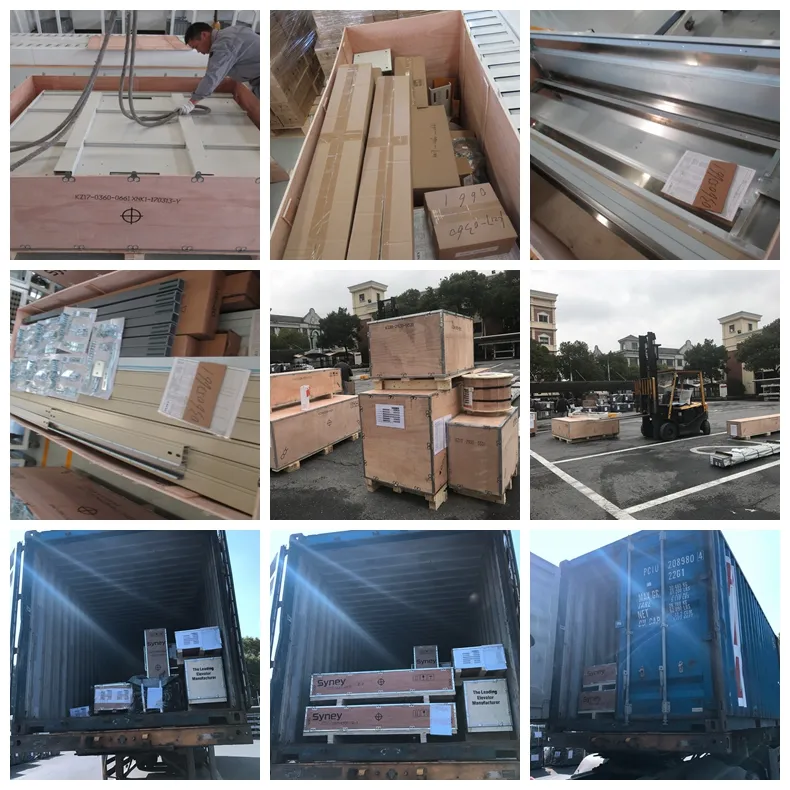

Packing Details
✔

Certifications & Global Projects

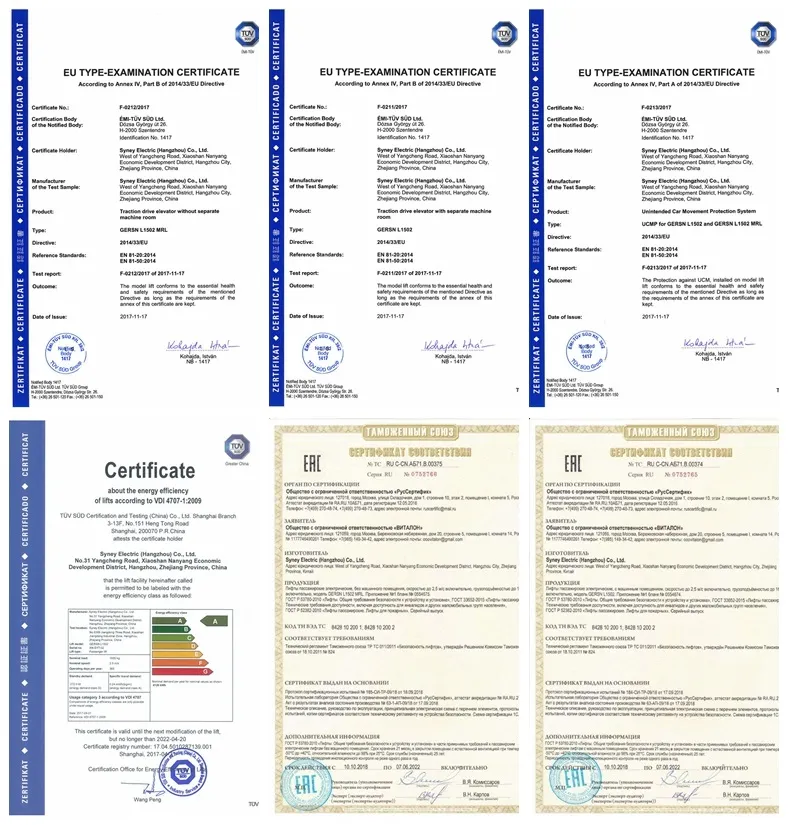

Certifications

Our products have gained the Germany TÜV SÜD mark, CE Certificates for energy efficiency (Grade A), and EAC certification, ensuring compliance with international safety and quality standards.

Project 1
Project 2
?

Frequently Asked Questions

How can I get a fast quote for my project?
Please provide complete shaft information, including capacity (kg or persons), number of floors/stops, speed requirements, and whether a machine room is required.
What is the standard delivery time?
Typically, production takes 15 to 30 days after the deposit is received. Urgent production schedules can be arranged for priority projects.
What is the product warranty period?
We provide a standard warranty of 18 months for all elevators starting from the date of delivery.
Do you provide installation and commissioning support?
Yes, we provide a complete installation manual and remote technical guidance. For special large-scale projects, engineers can be dispatched to the site.
How are the elevators packed for international shipping?
All parts are packed in fumigation-free plywood boxes. Sensitive electronic components are wrapped in protective film with desiccant to prevent moisture damage.
Can you customize the cabin decoration?
Yes, we offer various cabin finishes including hairline stainless steel, mirror etching, and different PVC or marble floor options to suit your building's interior.
