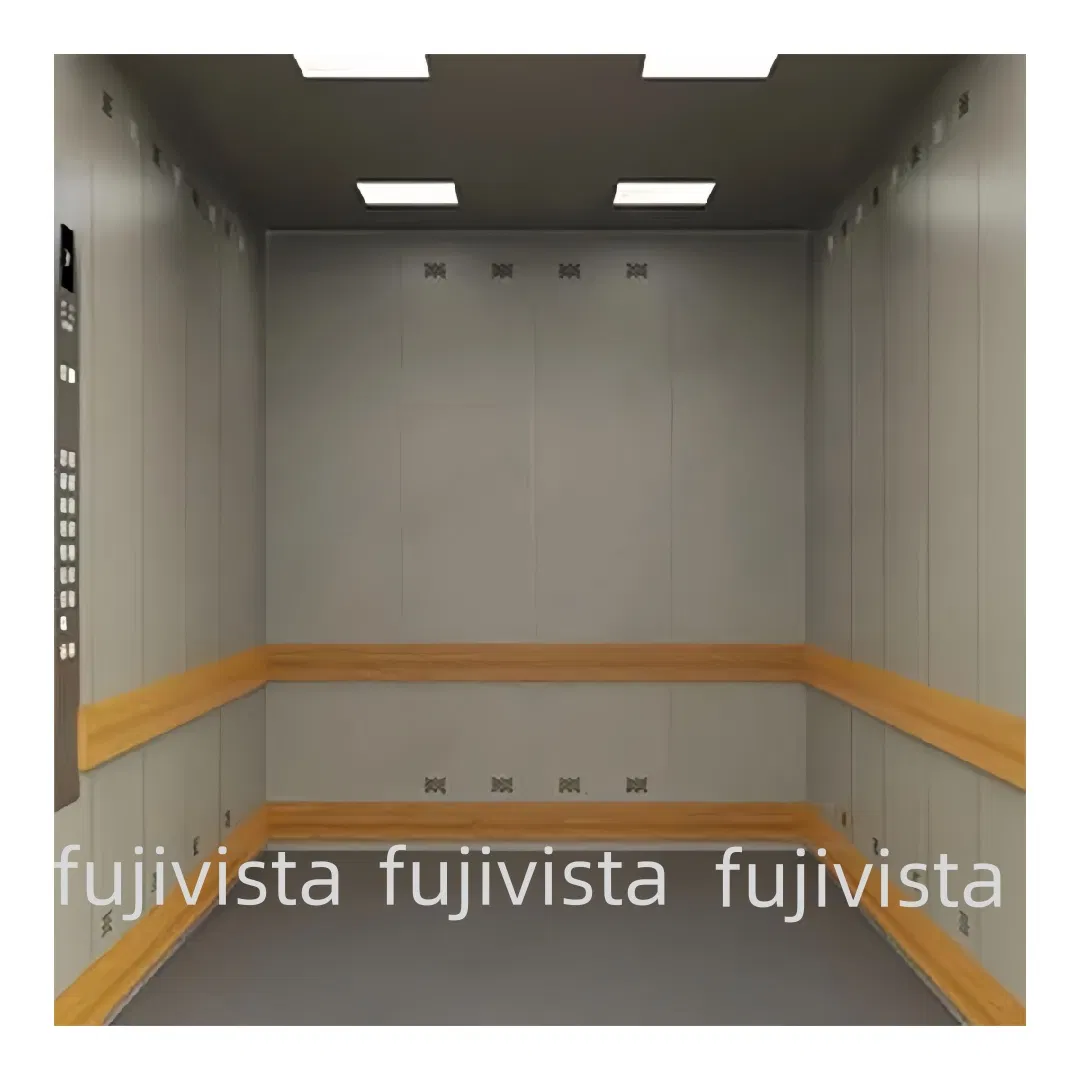

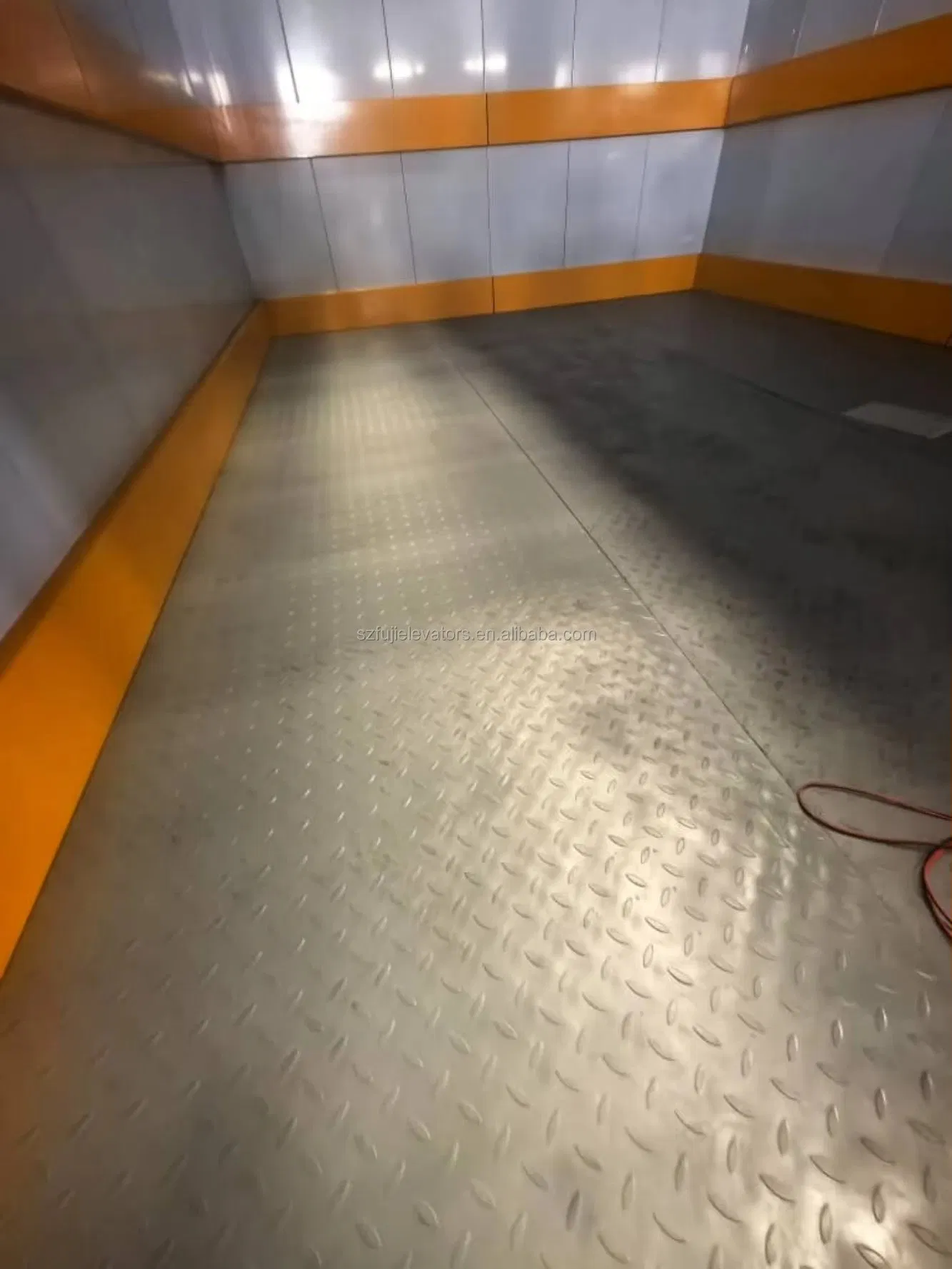

Fujivista Montacargas Cargo Lift 1000kg Freight Elevator for Warehouse and Storage

1 / 5

Fujivista Montacargas Cargo Lift 1000kg Freight Elevator for Warehouse and Storage

Customization:	Available
Type:	Derrick
Load Capacity:	1000kg-6000kg

Send Inquiry

Product Description

Basic Specifications

Model NO.

JH-R01

Speed

0.25m/S - 0.5m/S

Drive Mode

Open Type

Automatic

Lift Mechanism

Lift Chain

Control System

Full Microprocessor Control

Energy Efficiency

Up to 40% Reduction

Capacity

1000kg - 6000kg

Product Overview

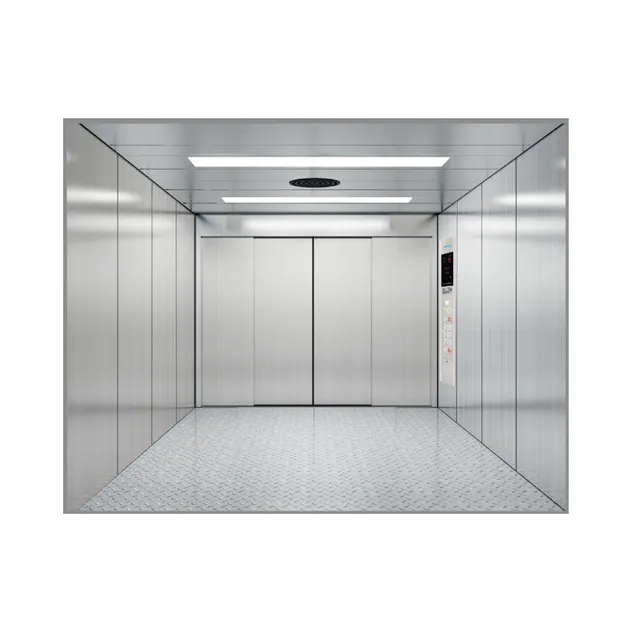

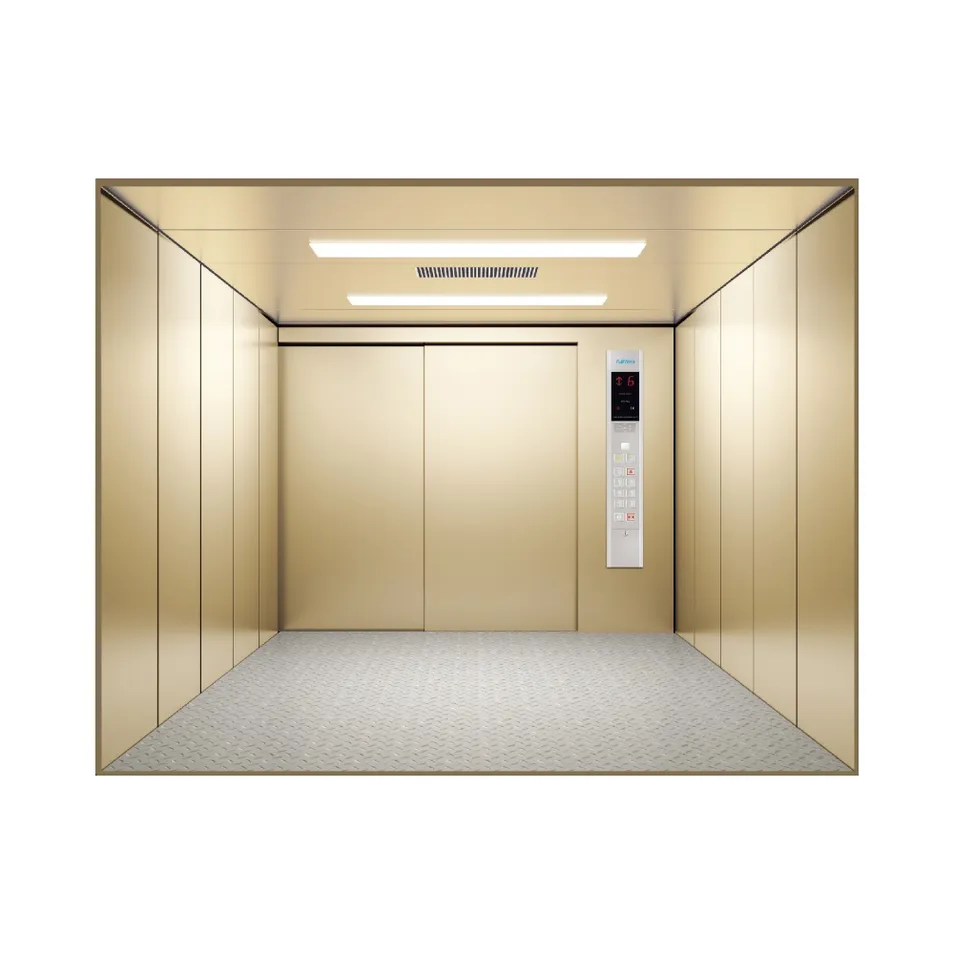

Fuji Vista Freight Elevator: Engineered for Heavy-Duty Logistics

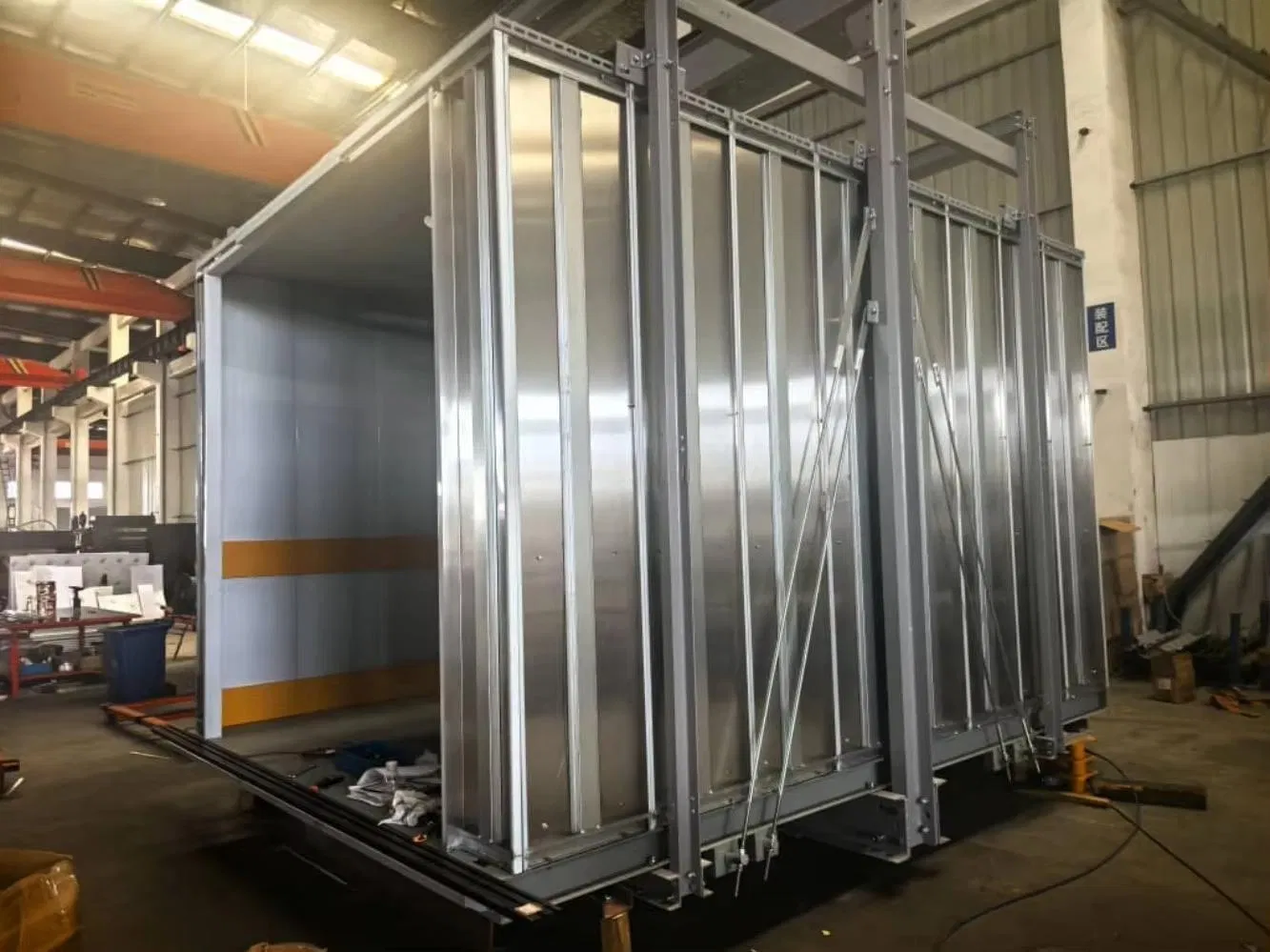

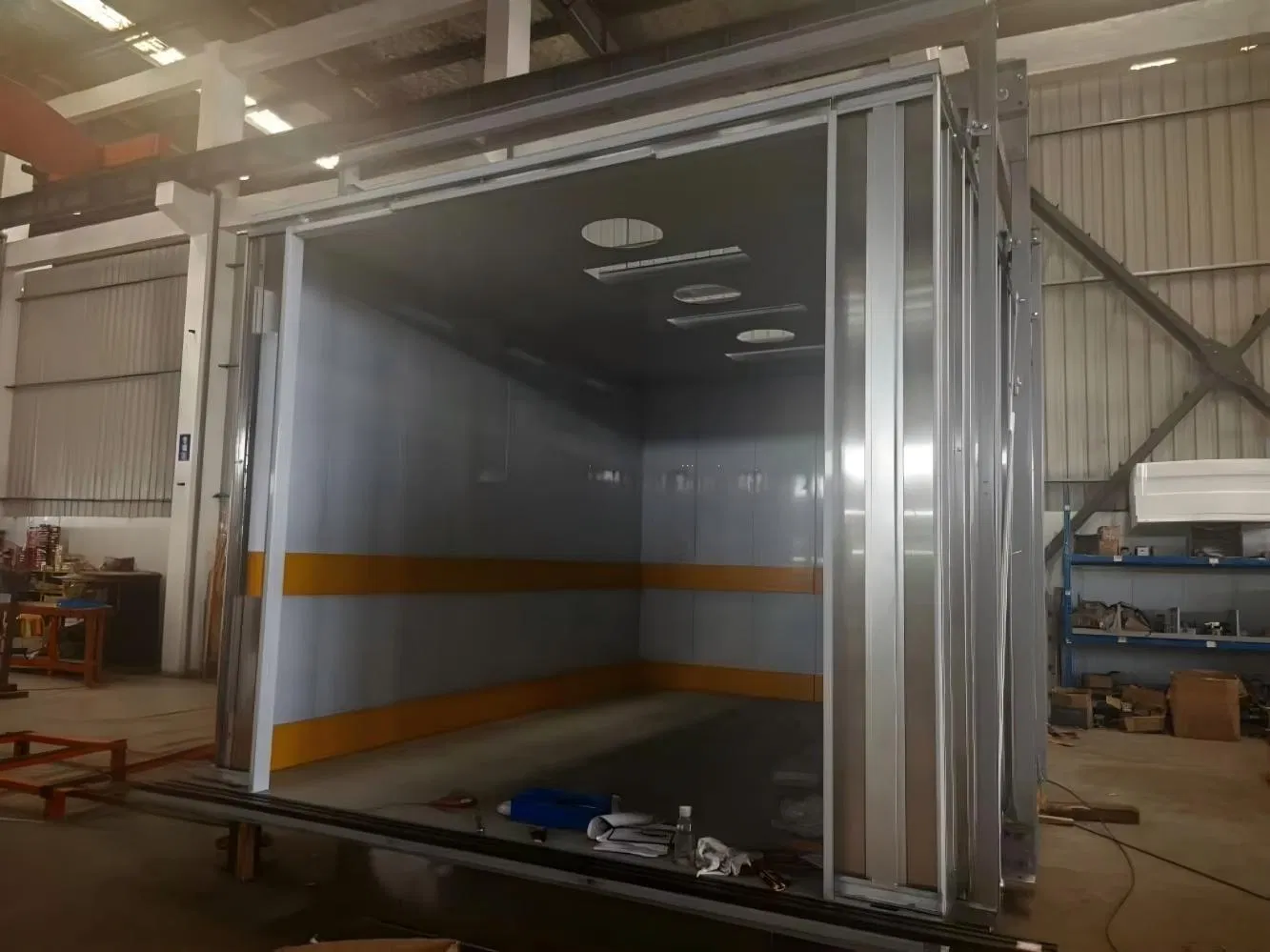

The Fuji Vista Freight Elevator is a robust vertical transport solution built for demanding industrial and commercial applications. Its core features include a high-strength bent-steel car structure, an advanced JMS/ISPG full microprocessor control system for consistent operation, and an AC variable frequency door operator that delivers energy efficiency alongside smooth, precise access.

Customization high load capacities, millimeter-precise leveling, and space-saving designs—including multi-panel folding doors and machine-room less (MRL) configurations—cut energy consumption by up to 40% and reduce building footprint requirements by 10%.

Manufacturing Excellence

Built upon a solid foundation of three decades of dedicated manufacturing experience. We have evolved from a proficient component supplier to a master of integrated, end-to-end elevator solutions, covering pioneering R&D, sophisticated design, and precision manufacturing.

Applications & Solutions

Packing & Delivery

1. Professional Export Packaging: Reinforced wooden crates, anti-corrosion protection with moisture-proof films, and secure internal bracing.

2. Efficient Logistics: Global reach via top-tier shipping lines with flexible trade terms (FOB, CIF, DDP).

Technical Specifications

Rated load (kg)	Speed (m/s)	Car Size (CWxCD mm)	Shaft Size (HWxHD mm)	Pit Depth (mm)	Opening Method
1000	0.5	1400x1700	2250x2200	1400	Double Fold Side
1600	0.5	1700x1950	2650x2450	1500	Double Fold Side
2000	0.5	1800x2300	2750x2800	1500	Double Fold Side
3000	0.5	2000x2800	3400x3400	1500	Double Center
5000	0.25/0.5	2400x3600	4000x4100	1700	Double Center

Frequently Asked Questions

How do I handle installation after purchase?

We provide comprehensive installation manuals and detailed technical drawings. You can hire a local installation team, and our engineers will provide remote technical guidance throughout the process.

How is the risk of damage during sea freight managed?

We use reinforced wooden crates and anti-rust packaging. Additionally, under CIF terms, we provide full insurance coverage for the goods to protect your interests from port to port.

What is the timeline for a customized elevator?

Design proposals are provided within 3 working days. Production begins upon deposit, and orders are typically shipped within 15 working days after the final balance is cleared.

What are the accepted payment terms?

We require a 30% deposit to start production, with the remaining 70% balance due prior to shipment. We primarily accept T/T and other mainstream international payment methods.

What costs are typically included in the quote?

Our pricing includes the product cost, professional export packaging, and depending on Incoterms (CIF), sea freight and insurance. Local import duties and installation labor are usually separate.

Can the elevator be designed for shafts with limited space?

Yes, we specialize in maximizing cabin space within existing dimensions through precision engineering and offer Machine-Room-Less (MRL) designs that reduce the occupied area by 10%.
