1. Safe and Reliable
The FUJI passenger elevator puts safety first, ensuring each passenger is safely delivered to their destination with full responsibility.
2. Spatial Configurability
Provides a new layout for the machine room, increasing space availability and offering flexible building outline designs.
3. Energy Saving
Uses gearless permanent magnet synchronous motors to protect the environment and significantly reduce power consumption.
4. High Performance
Features a stable control system with a maximum capacity of 1600kg and intelligent dispatching solutions.

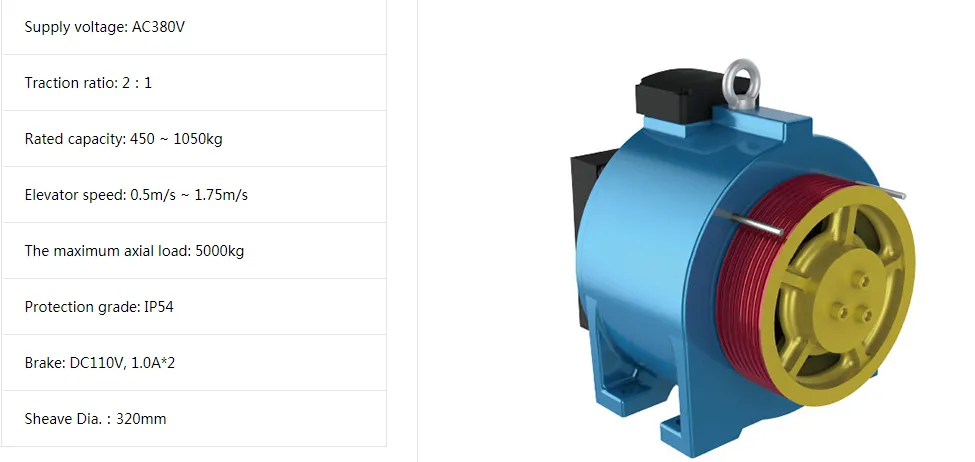

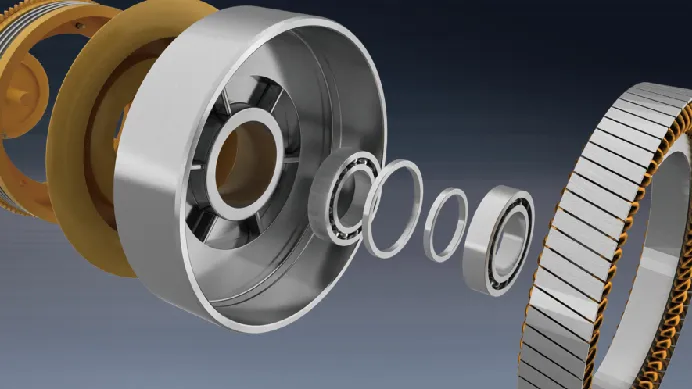

Traction Machine System
Standard Decoration Options
Component
Material / Specification
Car Wall
Hairline stainless steel
Ceiling
LED Fluorescent, according to the car design
Car Bottom
PVC
Jamb Material
First layer hairline, remaining steel plate spraying
Hall Door
First layer hairline, remaining steel plate spraying
Passenger Elevator Parameters
Load (Kg)
Speed (m/s)
Car Size (mm)
Door Opening (mm)
Shaft Size (mm)
Pit Depth (mm)
450
1.0
1100×1100
800×2100
2050×1850
1500
630
1.0 - 1.75
1400×1100
800×2100
2250×1900
1500-1600
800
1.0 - 1.75
1400×1350
800×2100
2200×1950
1500-1600
1000
1.0 - 1.75
1500×1550
900×2100
2350×2150
1600
1600
1.0 - 1.75
1800×2000
1100×2100
2900×2200
1500-1600

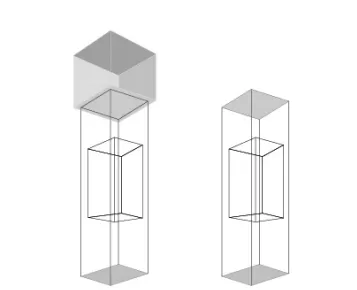

Machine Roomless Technology

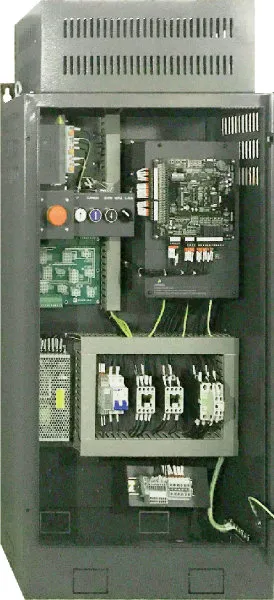

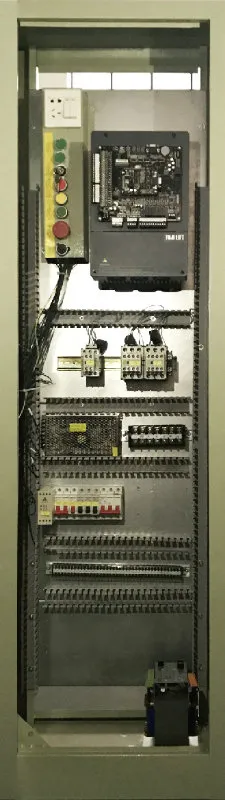

Intellectual Main Control & Synchronization

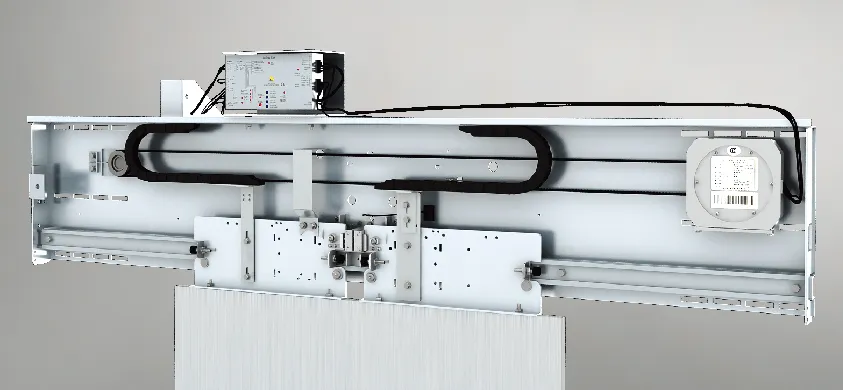

Advanced Door Operator System

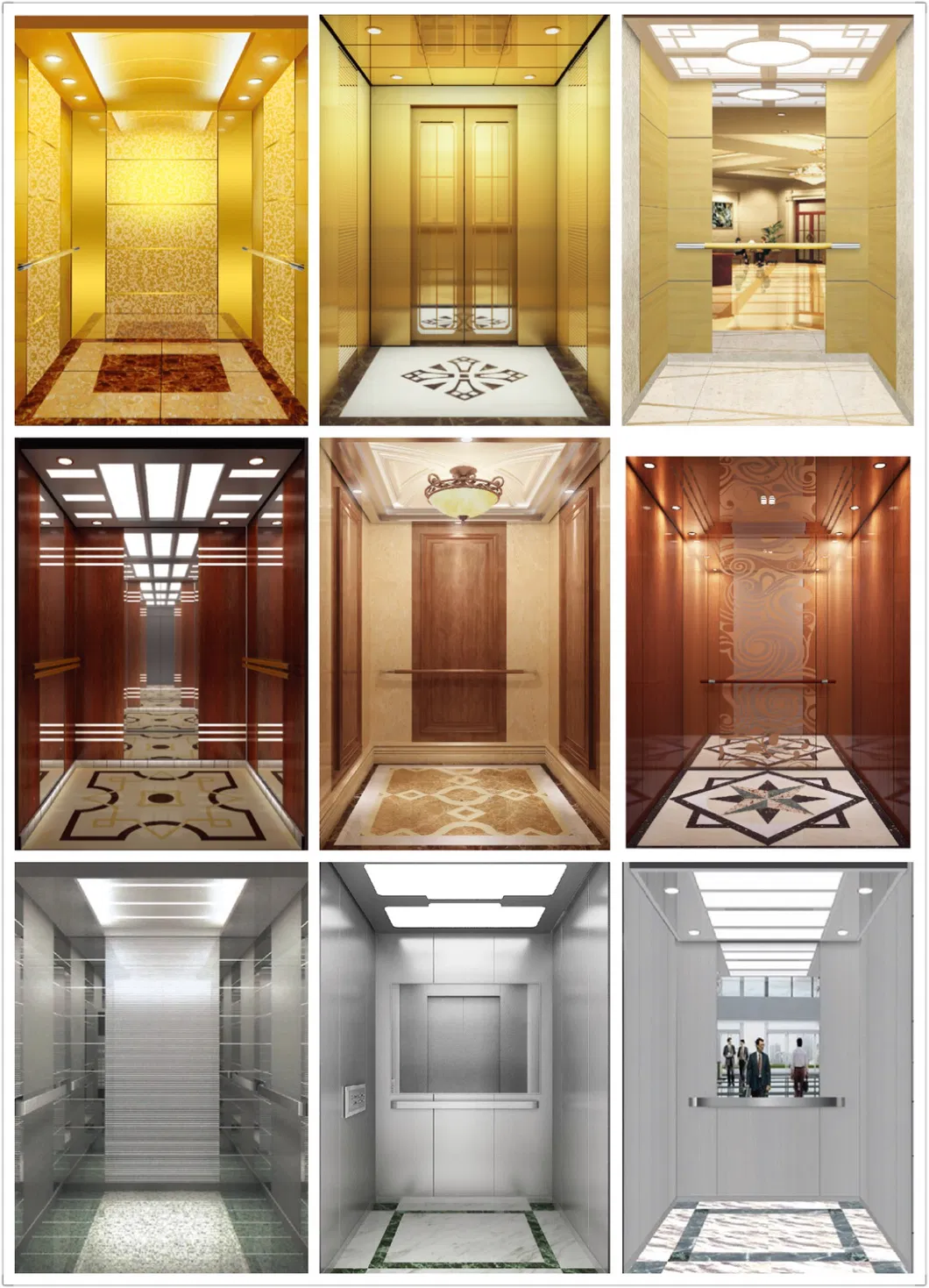

Interior Decoration Styles
Standard Safety Functions
Feature
Description
Feature
Description
Static Protection
Eliminate static electricity during running.
Over-load Protection
Risk protection against motor over-load.
Emergency Stop
Immediate stop button for emergencies.
Step Sagging
Protection against breakage and sagging.
Skirting Protection
Prevents foreign bodies from being jammed.
Chain Protection
Detects breakage or undue elongation.
Over-speed Monitor
Activation if speed exceeds 20% of rated.
Comb Teeth Safety
Protection at the step entry point.
Manufacturing Excellence
Adhering to advanced international elevator management modes and technical innovations, we introduce first-class manufacturing equipment. Our products cover passenger elevators, freight elevators, automobile elevators, escalators, and moving walks. We integrate manufacture, sales, installation, repair, and maintenance into a complete service network.
Frequently Asked Questions
1. What is the typical production time for an elevator?
Standard production time is generally within 25 to 30 days after the confirmation of technical drawings and receipt of the down payment.
2. How do you handle after-sales installation and guidance?
We provide comprehensive installation manuals. Additionally, we offer remote guidance for commissioning. For special projects, engineers can be dispatched to the site to guide the installation.
3. Can the car interior and decoration be customized?
Yes, customers can select from various automotive finishes, designs, ceilings, and flooring materials to match the building's aesthetic.
4. What type of motor is used in your passenger elevators?
We use new-generation permanent magnet synchronous and gearless traction machines, which are more energy-efficient and quieter than traditional motors.
5. Is there a solution for buildings with limited top-floor space?
Yes, our Machine Roomless (MRL) elevator system removes the need for a machine room at the top of the building, offering more flexibility for architectural design.
6. What safety certificates or standards do the elevators comply with?
Our elevators are manufactured under strict international management modes, featuring over 20 standard safety functions including over-speed protection and emergency stop systems.
