Professional Fire Fight Rescue Dron Grande Long Range 150kg Heavy Duty Payload Industrial Fire Fighting Drone with Firefighting Extinguisher Bomb

Customization: Available
Height: Ultra High-Altitude
Operating Radius: Remote

Product Description

📊

Basic Information

Model NO.HZH XF120
SizeLarge
UsageFirefighting
StructureWing UAV
Maximum Load Weight150 Kg
Max. Takeoff Weight257.8 Kg
Max. Flight Altitude500 M
Max. Flight Time45 Min
Axis8
KeywordFire Fighting Drone with Firefighting Extinguisher
Specification4605*4605*990mm
🚀

Product Description

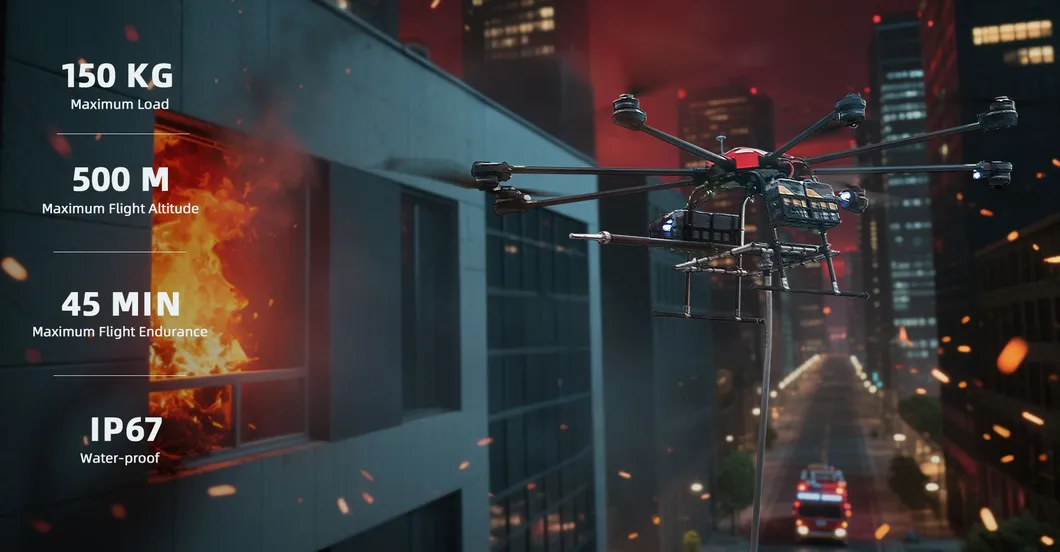

Professional Fire Fight Rescue Drone

Professional Fire Fight Rescue Drone Grande Long Range 150kg Heavy Duty Payload Industrial Fire Fighting Drone with Firefighting Bomb Launcher

HZH XF120 Technical Specifications
Dimensions (Unfolded)4605*4605*990mm

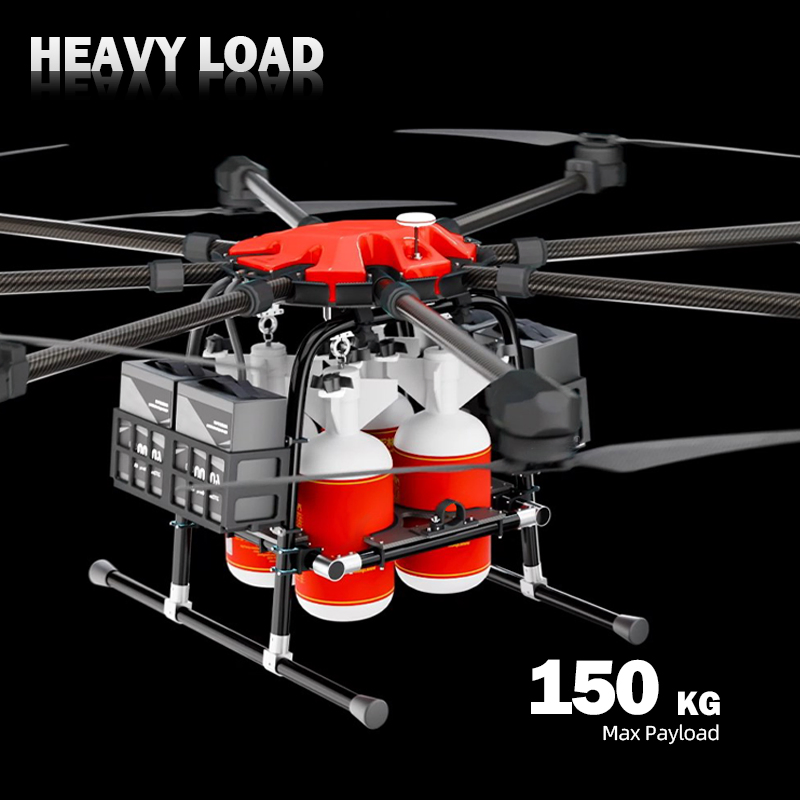

Max. Payload150kg
Max. Takeoff Weight257.8 kg
Max. Flight Altitude500 M
Max. Altitude Limit4500 m
Operation Height≤ 1000m
Max. Flight Time45 minutes
🏢

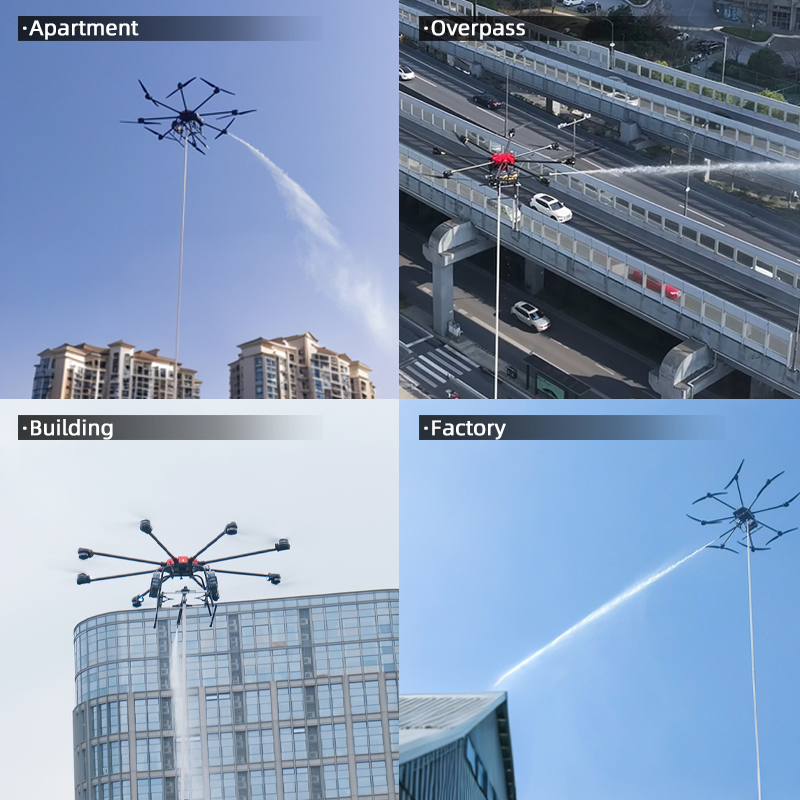

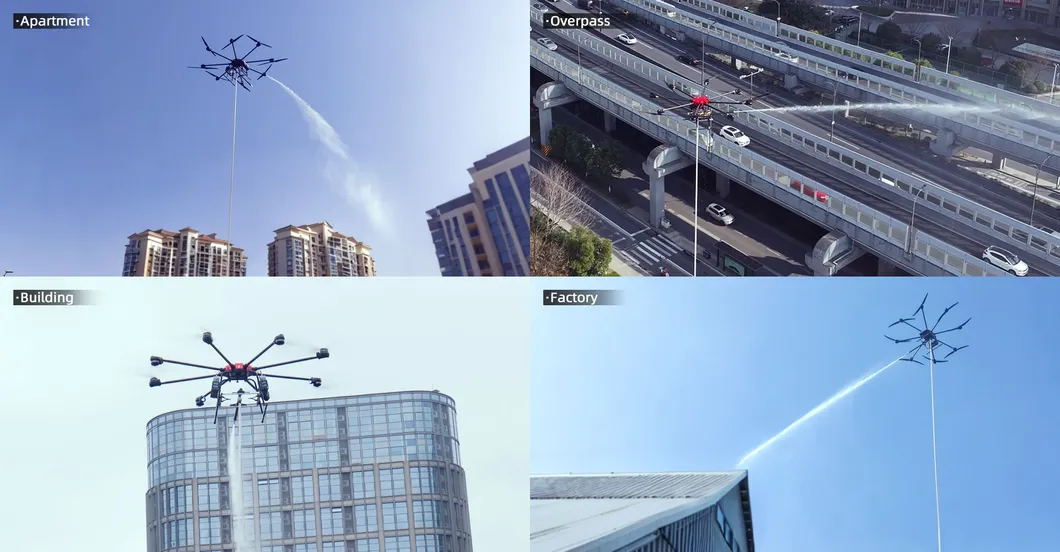

Application Scenarios

Application Scenarios
🔹

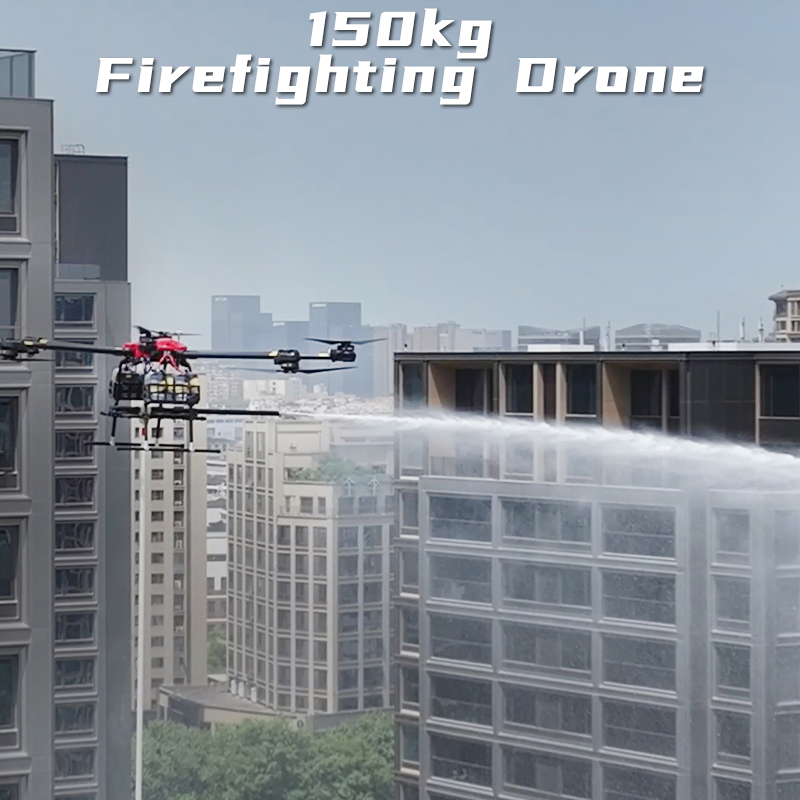

ApartmentsIn densely populated apartment complexes, firefighting drones are invaluable assets. They quickly assess the scale of fire and provide real-time footage. Equipped with high-pressure nozzles, they cool the fire and prevent vertical spread, enhancing resident safety.
🔹
OverpassesDrones excel in overpass fires triggered by accidents. They deploy fire extinguishing bombs precisely, avoiding road congestion. Their ability to hover allows accurate targeting, preventing damage to infrastructure and restoring traffic flow.
🔹
BuildingsIn large commercial structures, drones bypass blocked stairwells to reach upper floors rapidly. By drenching flames with a continuous flow, they curb progression and protect critical infrastructure and valuable assets.
🔹
FactoriesFor environments with combustible materials, drones deploy bombs to smother flames or use water-spraying functions to cool machinery, safeguarding industrial operations and reducing downtime.
⚙️

Standard Configuration & Features

Feature 1
Feature 2
✔️

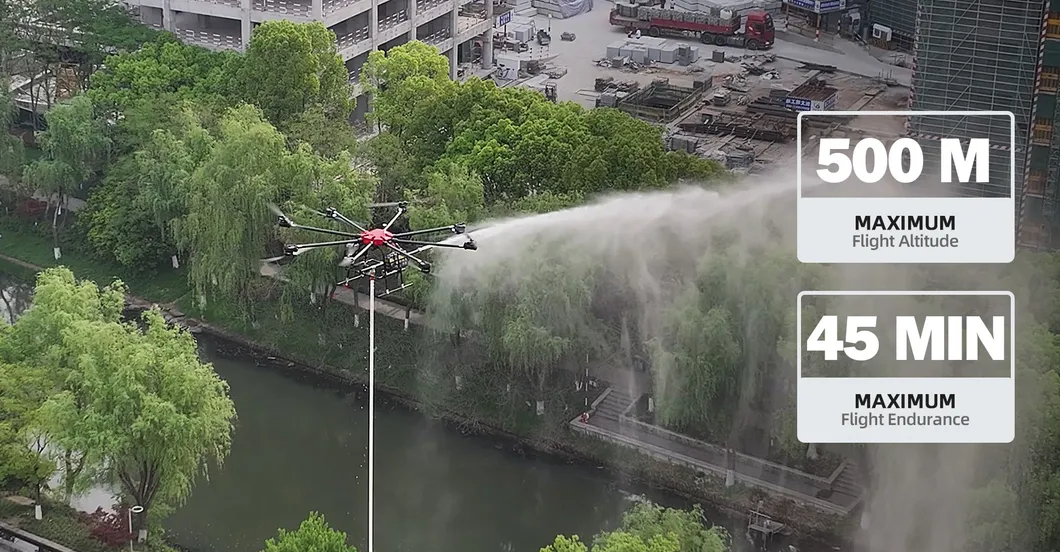

Exceptional Vertical ReachBoasting a 500-meter maximum flight altitude, empowering it to access skyscrapers and tall industrial structures with ease.
✔️
Prolonged Mission EnduranceImpressive 45-minute flight endurance allows for sustained missions without frequent recharging, crucial for large-scale fire scenes.

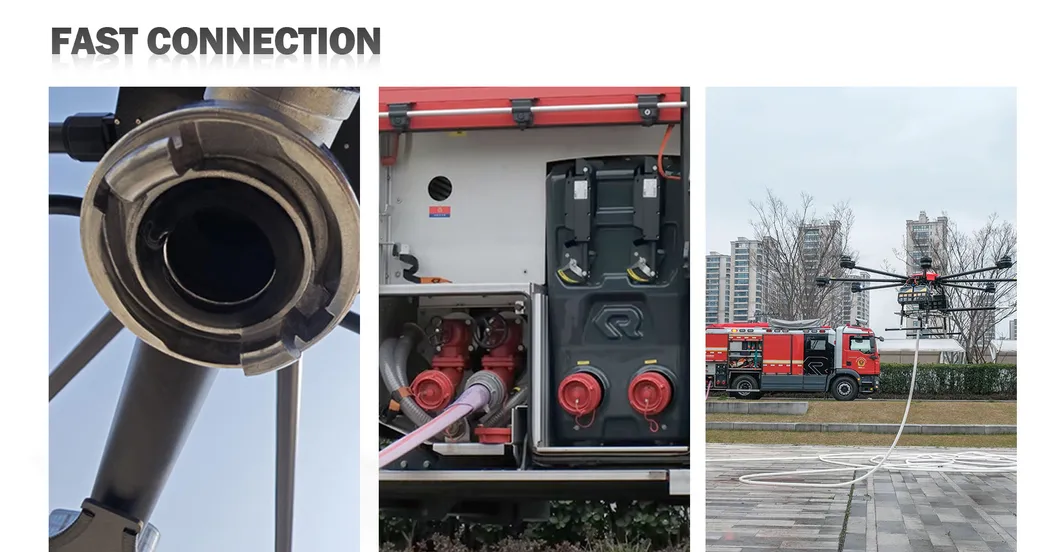

Feature 3
Feature 4
Feature 5
✔️

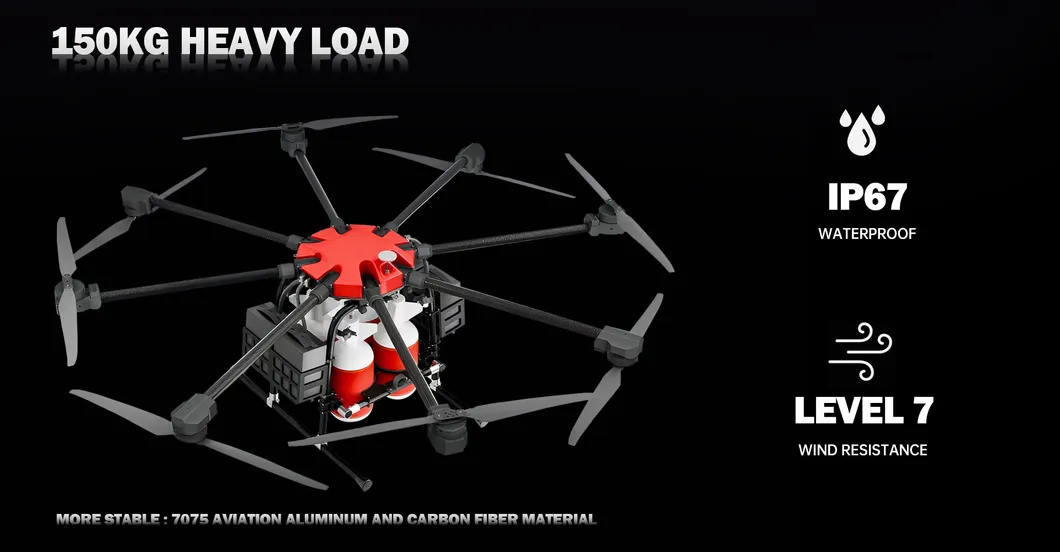

Robust Composite StructureConstructed from 7075 aerospace aluminum and carbon fiber for an optimal balance between durability and agility.
✔️
Superior Waterproof & Wind ResistanceIP67 waterproof rating and capability to resist winds up to level 7 ensure stable operation in harsh weather.
✔️
Rapid DeploymentModular design allows full assembly and operation in just 5 minutes.
✔️

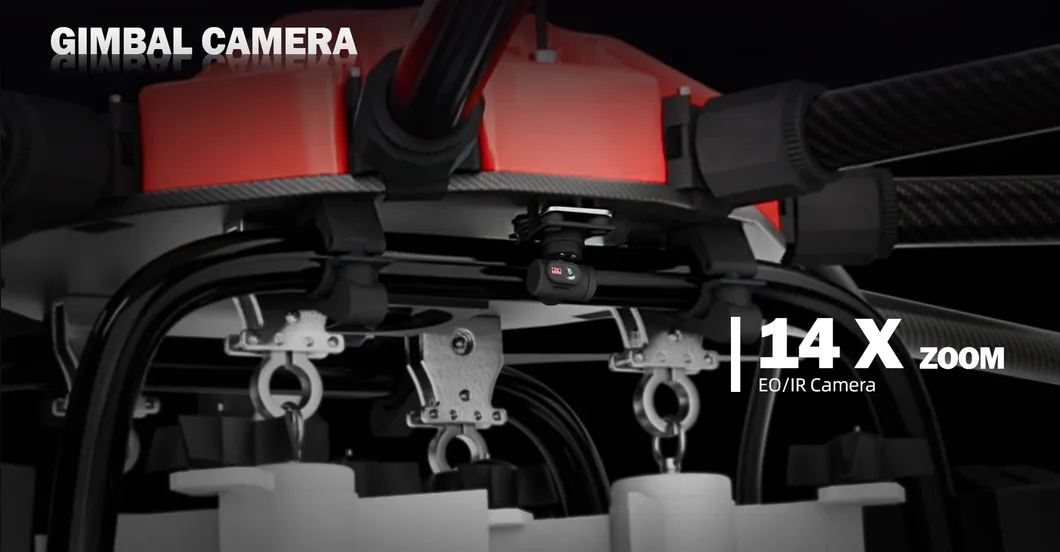

High-Precision ImagingOutfitted with a 14X Zoom EO/IR camera for visible and thermal detection of hotspots and trapped individuals.

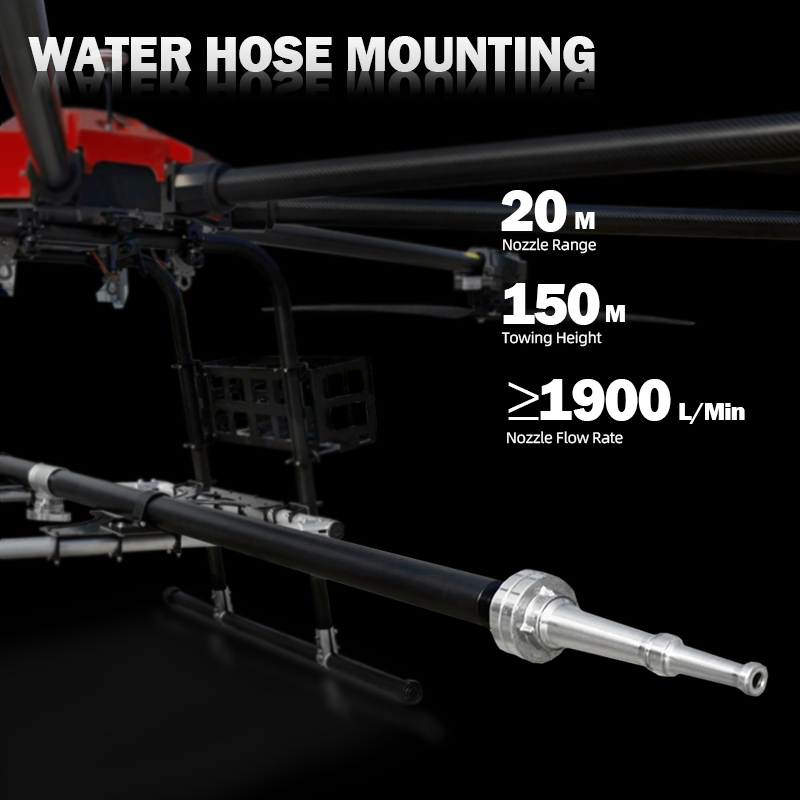

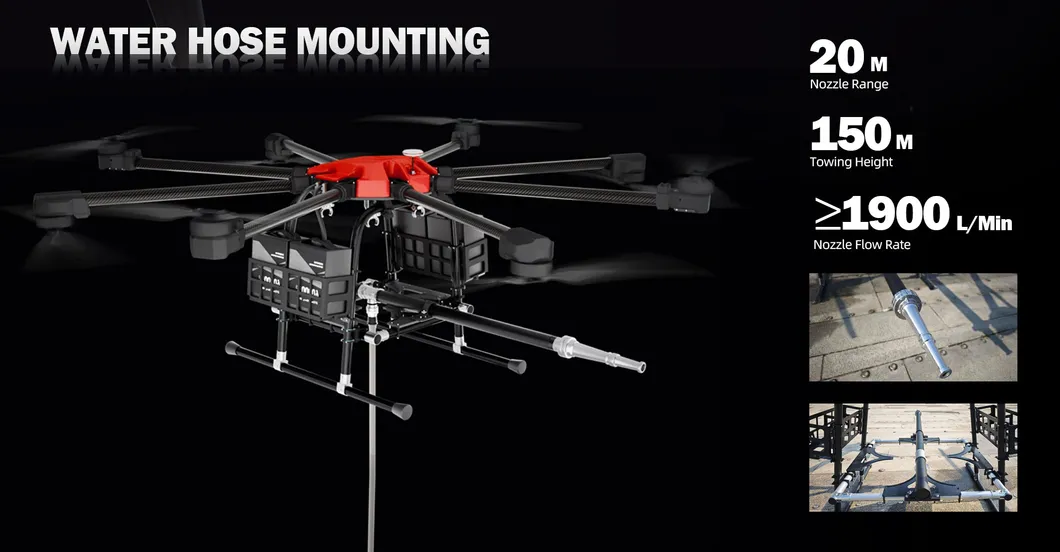

Water Hose Mounting Parameters
Hose Diameter50mm
Nozzle Length3m
Nozzle Range20m
Nozzle Flow Rate≥1900L/min
Towing Height150m

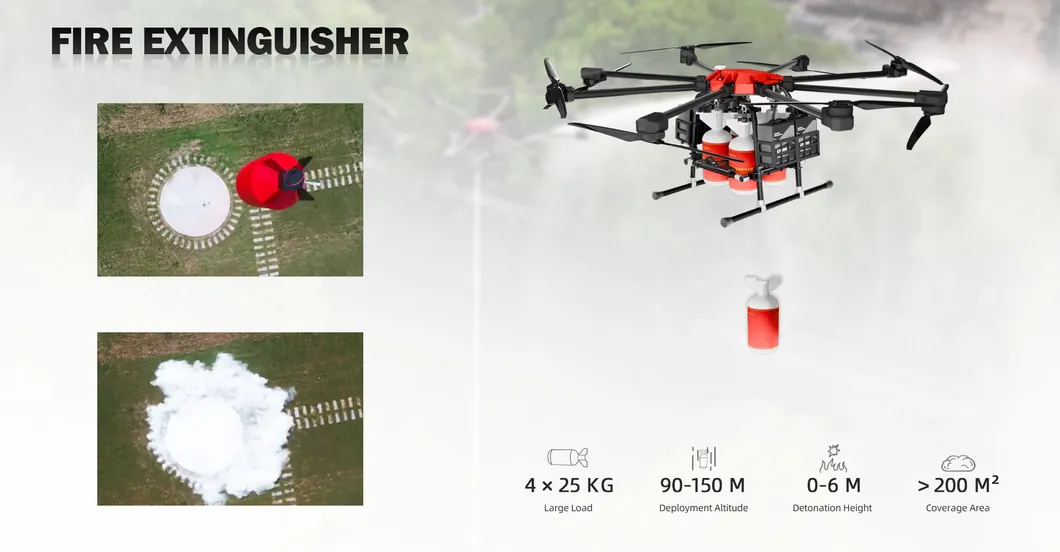

Fire Extinguisher Bomb
Fire-extinguisher Parameters
Caliber≤ φ 260 mm
Total Bomb Length≤ 650 mm
Total Weight≤ 23kg
Net Weight≥ 25 kg
Agent TypeABC dry chemical or water-based
Dispersion Radius≥ 5 m
Coverage Area≥ 50 m²
Safety Radius≥ 20 m

Why Choose Our Solutions

1.
Wide range of drone products to meet diverse requirements.
2.
Strong R&D team with a history of continuous product improvement.
3.
Global sales network ensuring quick and convenient delivery.
4.
Competitive pricing for high-quality, durable equipment.
5.
Commitment to social responsibility and environmental awareness.

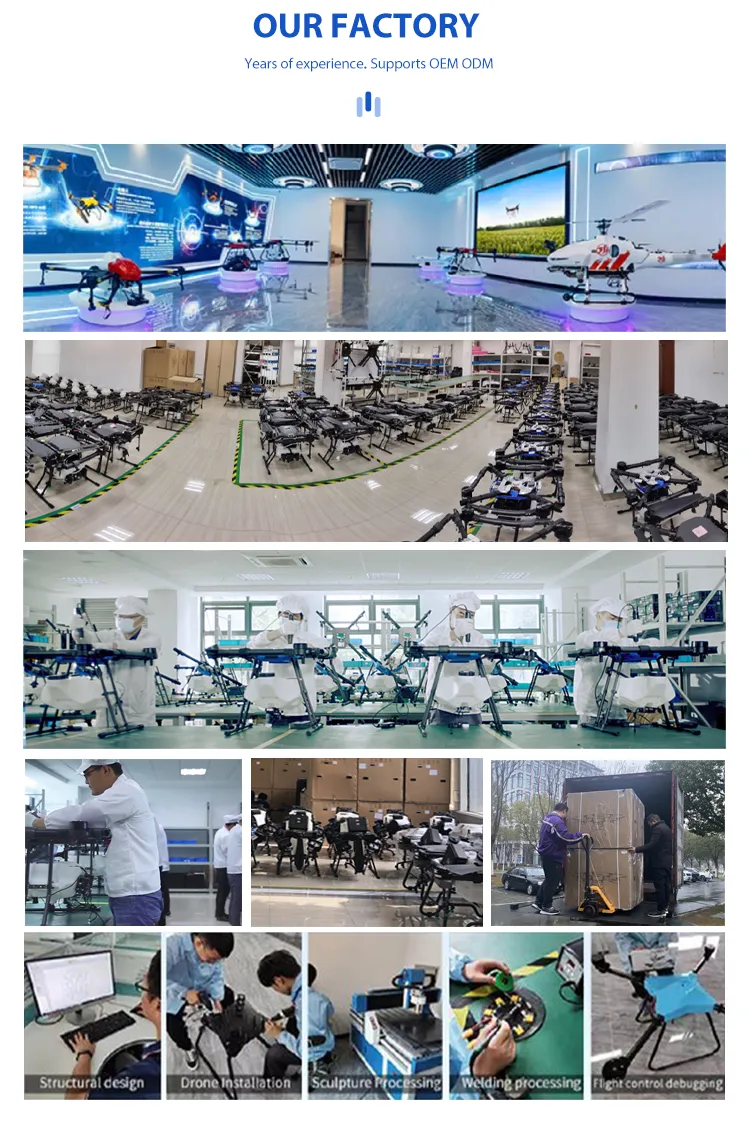

Manufacturing 1
Manufacturing 2
Manufacturing 3
Frequently Asked Questions
What is the maximum payload capacity of the HZH XF120?
The drone is designed for heavy-duty industrial use with a maximum payload capacity of 150kg.
How high can the drone fly during firefighting operations?
It has a maximum flight altitude of 500 meters, allowing it to reach the upper floors of high-rise buildings and skyscrapers.
What is the flight endurance of this drone?
The HZH XF120 offers a prolonged mission endurance of up to 45 minutes on a single flight.
Is the drone capable of operating in bad weather?
Yes, it features an IP67 waterproof design and can resist winds up to level 7, making it highly reliable in adverse conditions.
How long does it take to deploy the drone at an emergency site?
Thanks to its modular design, the drone can be fully assembled and ready for operation within 5 minutes.
What kind of fire extinguishing agents can be used?
The system is versatile and can deploy either ABC dry chemical or water-based extinguishing agents depending on the fire type.
