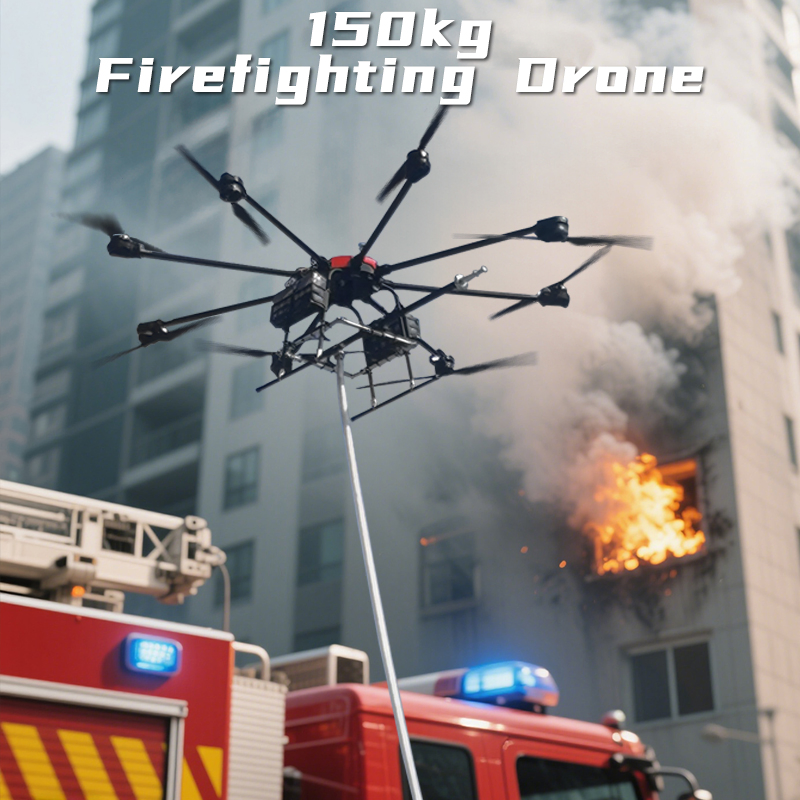

Aerial UAV for Forest, Building, and Industrial Firefighting Operations
| Technical Specifications | |
|---|---|
| Dimensions (Unfolded) | 4605*4605*990mm |
| Max. Payload | 150kg |
| Max. Takeoff Weight | 257.8 kg |
| Max. Flight Altitude | 500 M |
| Max. Altitude Limit | 4500 m |
| Operation Height | ≤ 1000m |
| Max. Flight Time | 45 minutes |

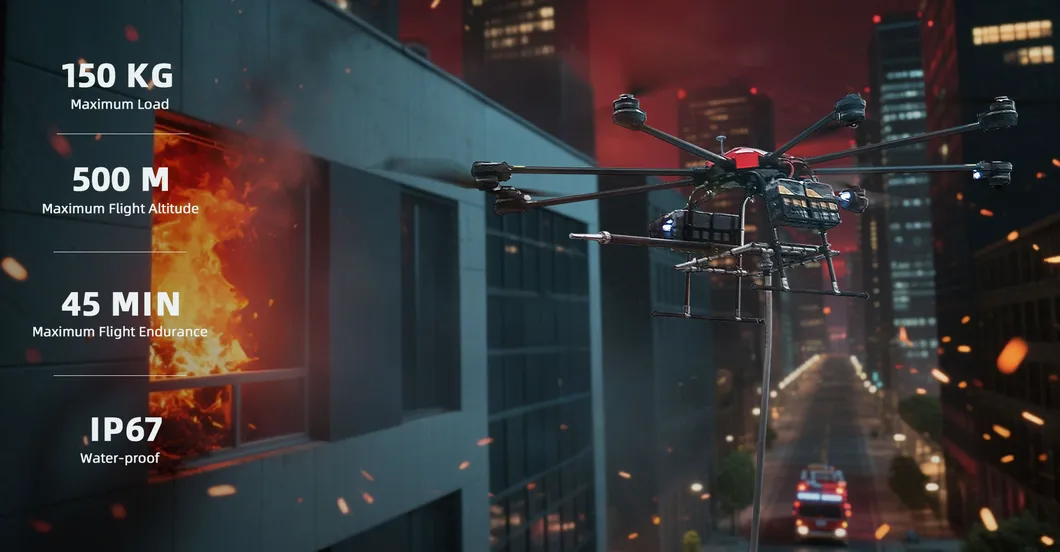

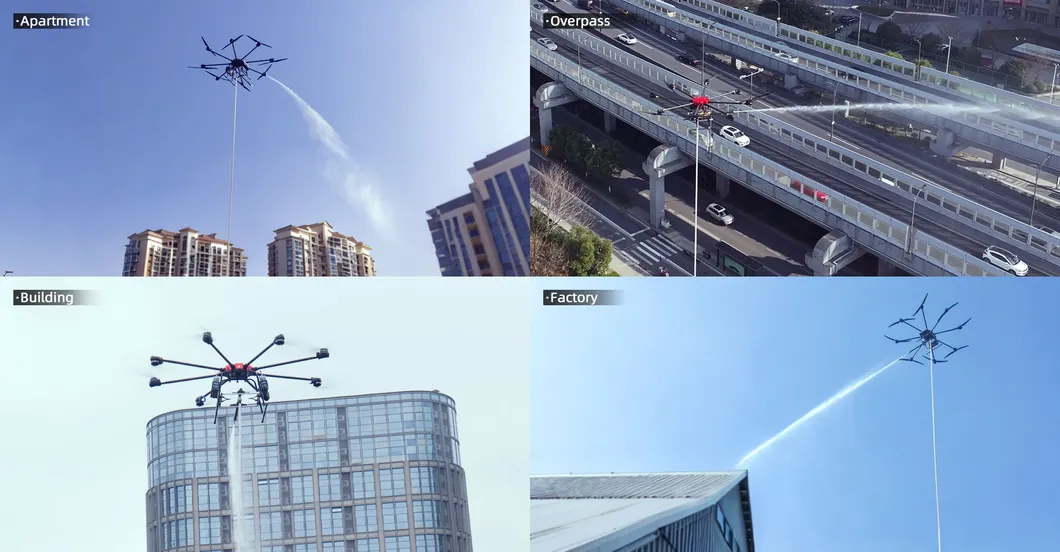

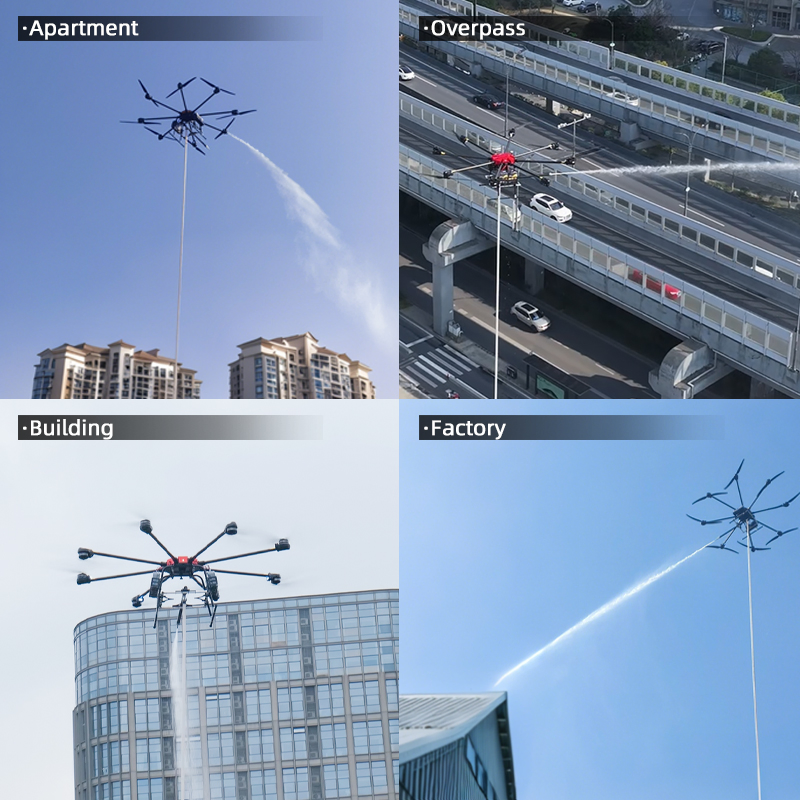

Quickly assess scale and spread in densely populated areas. Equipped with high-pressure nozzles to prevent vertical spread and enhance resident safety.
Bypasses traffic congestion to reach vehicle accidents or hazardous spills. Deploys fire bombs precisely to prevent infrastructure damage.
Ascends rapidly to upper stories, bypassing blocked elevators. Curbing progression where traditional equipment cannot reach.
Versatile solutions for flammable liquids or explosive environments using extinguishing bombs or high-volume water spraying.

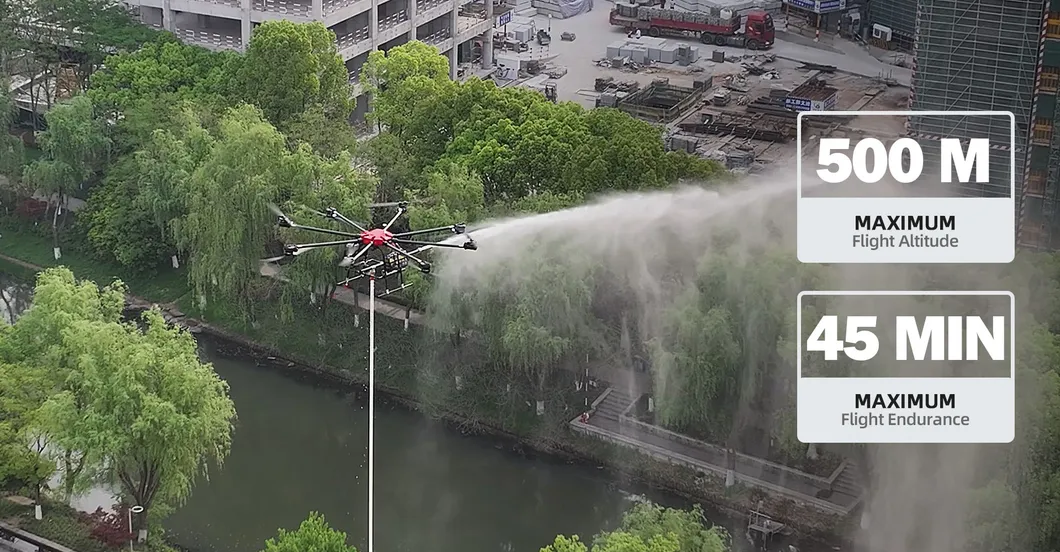

Boasting a 500-meter maximum flight altitude, it accesses skyscrapers and tall industrial structures with ease.
45-minute flight time allows for sustained missions and multiple rounds of fire suppression without frequent recharging.

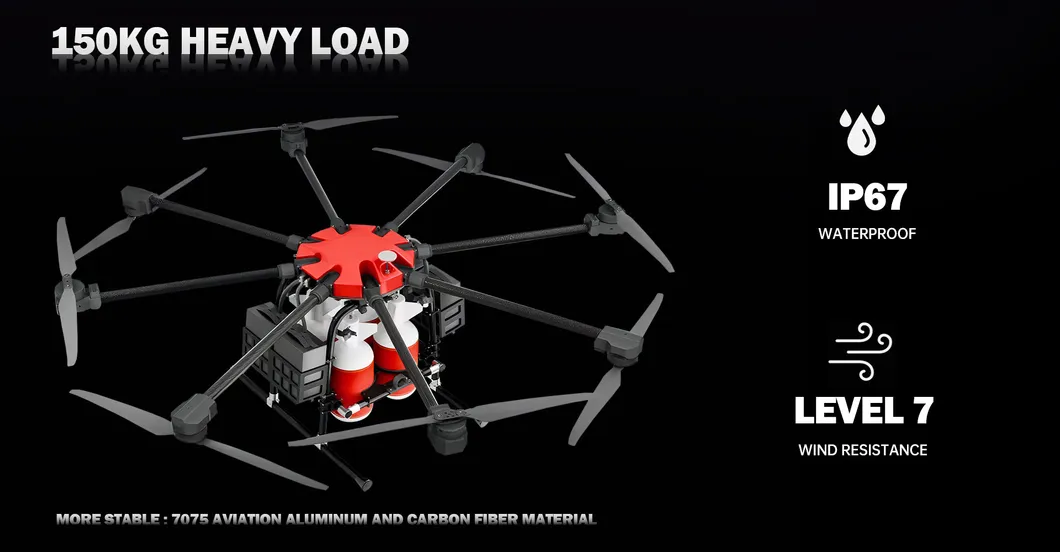

Constructed from 7075 aerospace aluminum and carbon fiber for an optimal balance between durability and agility.
Exceptional protection against water intrusion, expanding operational versatility in water-intensive scenarios.
Advanced aerodynamic design and powerful propulsion system maintain precise control even in high winds.
Compact modular design allows for assembly and operation readiness in just 5 minutes for critical emergencies.

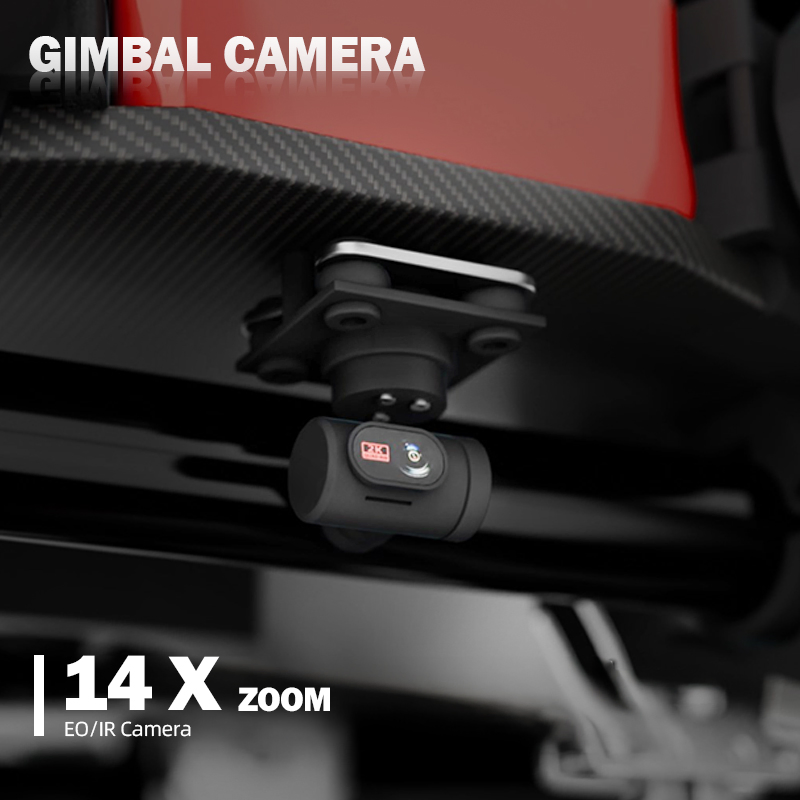

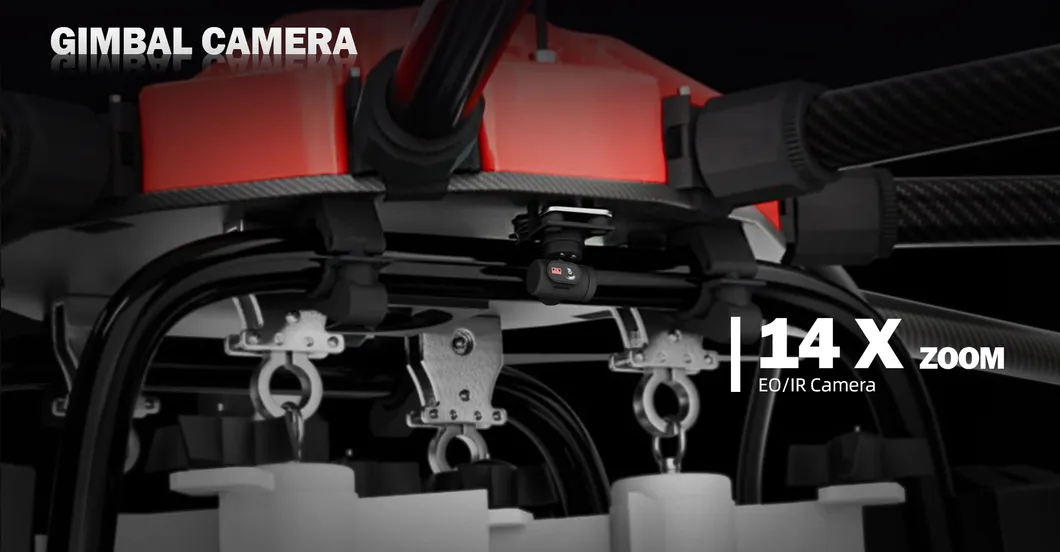

Dual-mode camera identifies hidden heat signatures and trapped individuals in low-visibility environments.

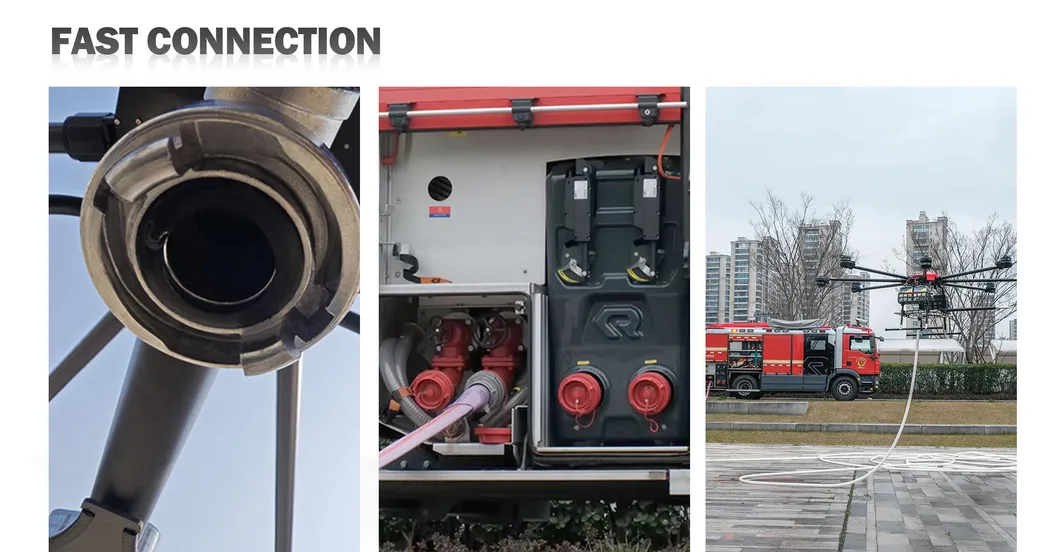

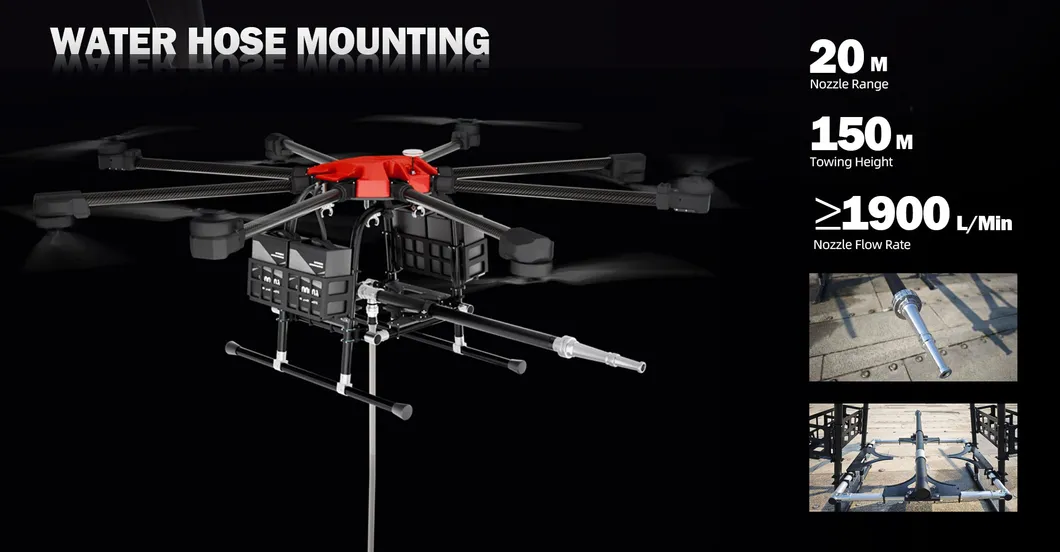

| Water Hose Mounting Parameters | |
|---|---|
| Hose Diameter | 50mm |
| Nozzle Length / Range | 3m / 20m |
| Nozzle Flow Rate | ≥1900L/min |
| Towing Height | 150m |
| Fire-extinguisher Bomb Specs | |
|---|---|
| Total Weight | ≤ 23kg |
| Agent Type | ABC Dry Chemical or Water-based |
| Dispersion Radius | ≥ 5 m |
| Coverage Area | ≥ 50 m² |
| Safety Arming Height | ≥ 50 m |

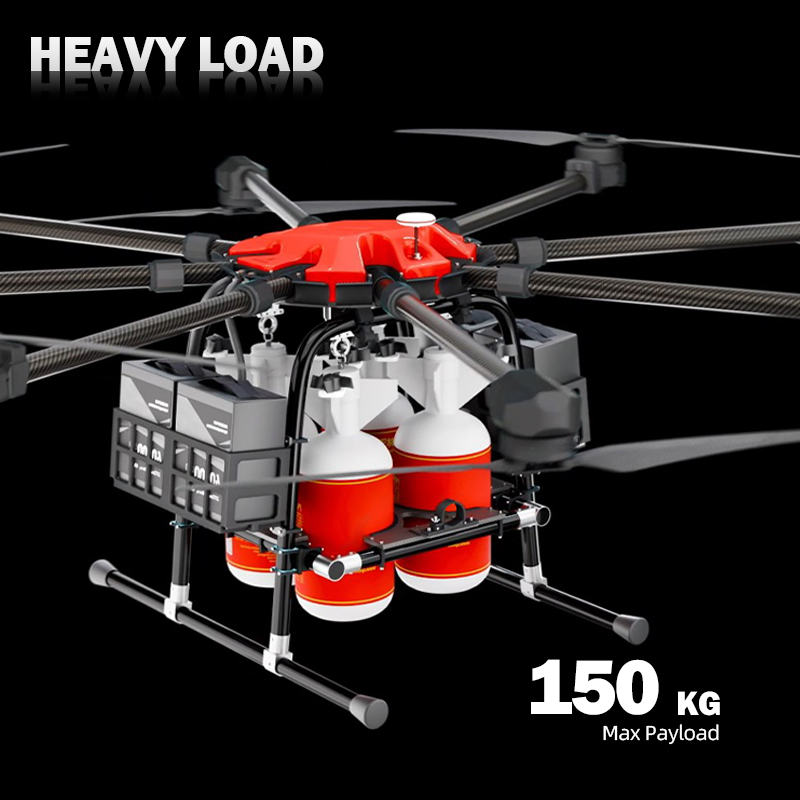

The drone supports a massive maximum payload of 150kg, making it one of the most powerful firefighting UAVs in the industry.
The HZH XF120 features an impressive maximum flight endurance of 45 minutes, allowing for sustained fire suppression and intelligence gathering.
The drone has a maximum flight altitude of 500 meters, which allows it to reach the upper floors of skyscrapers and tall industrial infrastructure.
Thanks to its modular design, the drone can be fully assembled and ready for flight in just 5 minutes after arriving at the scene.
It is versatile and can utilize either ABC dry chemical agents (for industrial/electrical fires) or water-based agents (for residential/forest fires).
Yes, the drone is built with an IP67 waterproof rating and can resist winds up to level 7, ensuring stable performance in difficult environments.
