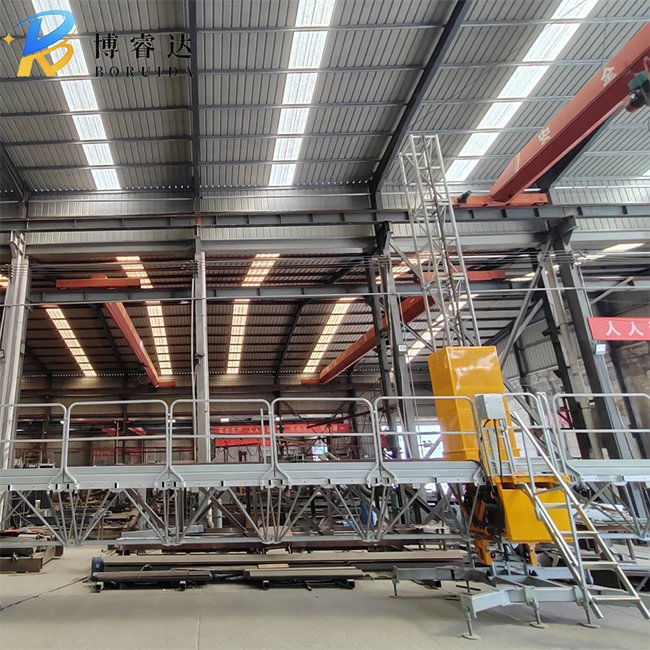

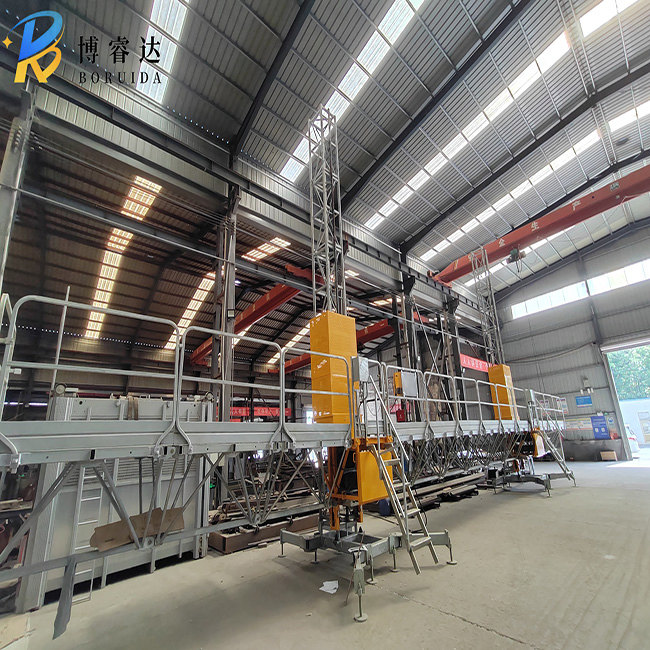

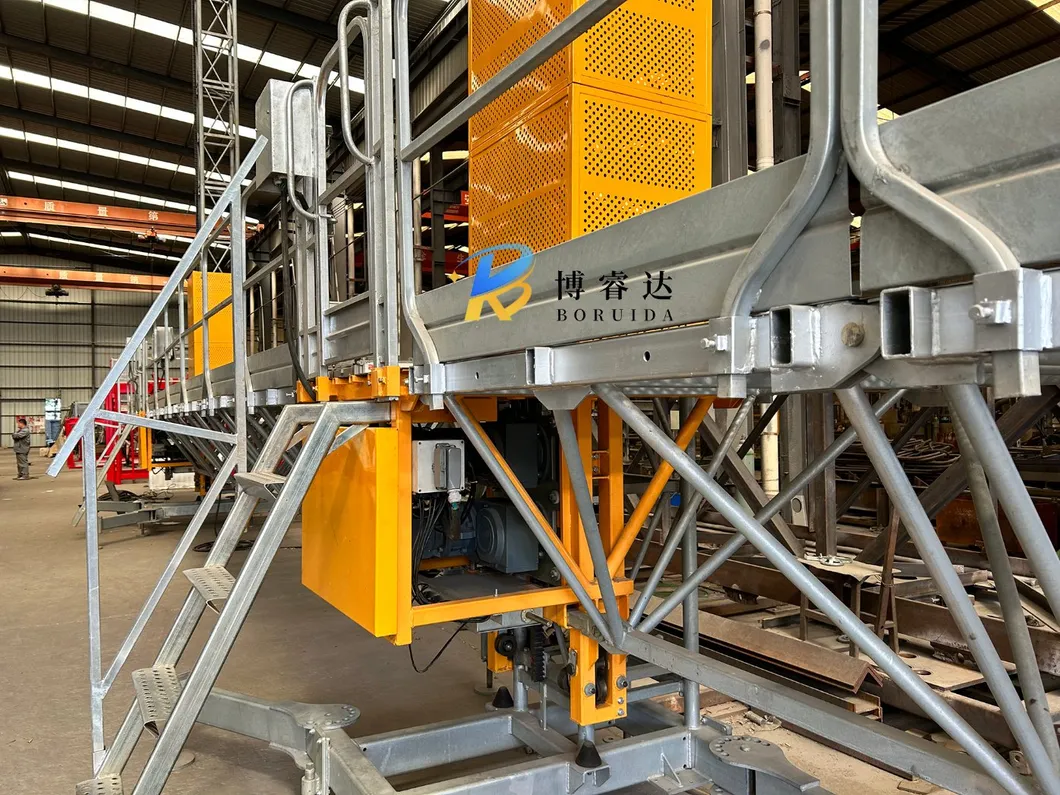

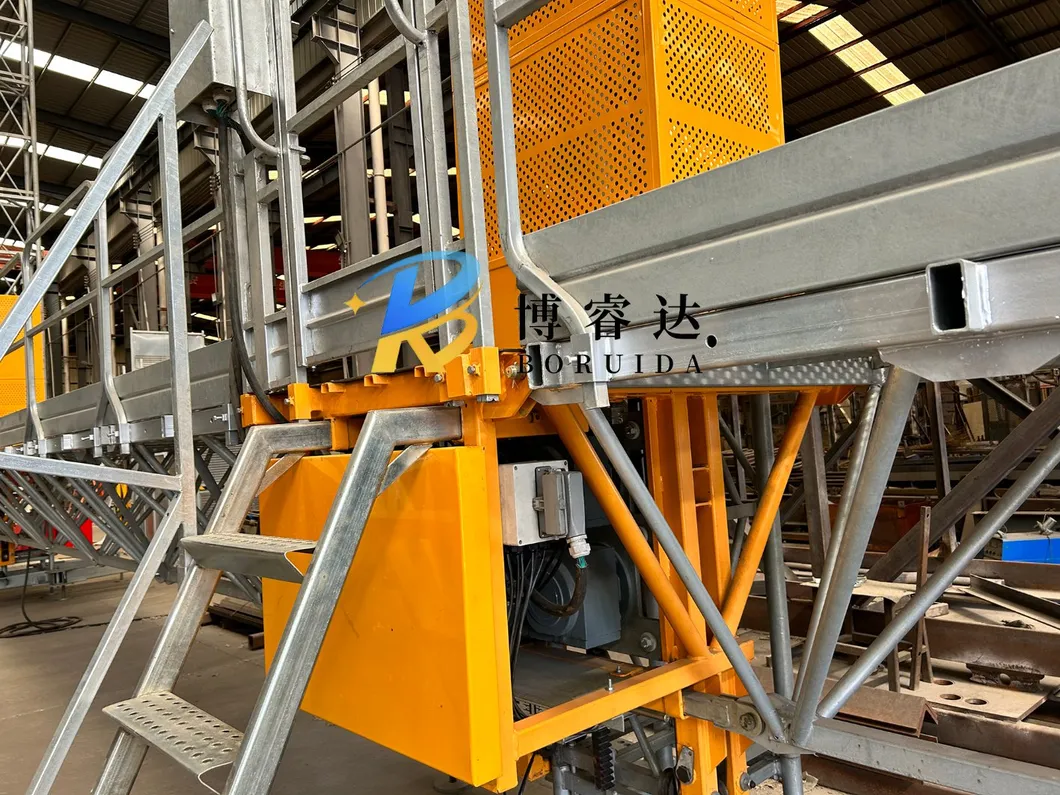

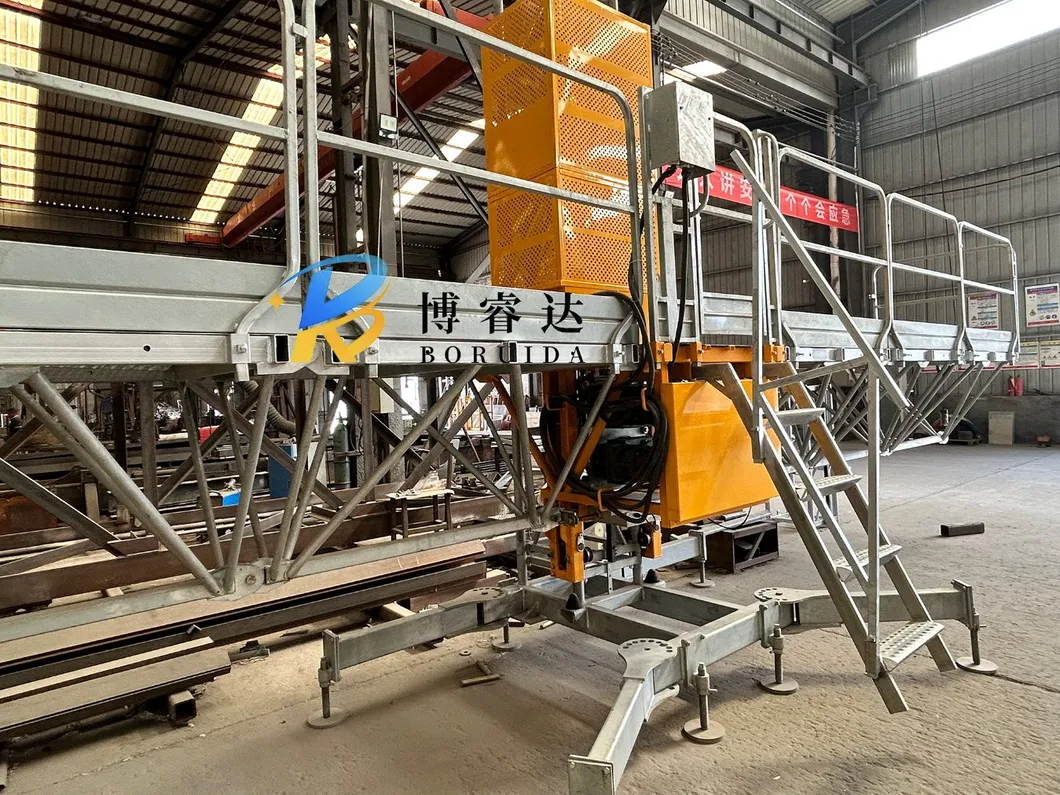

This mast climbing work platform is an ideal solution for work on facades of high and super high rise buildings. It is perfectly suited for facade painting, cleaning, face brick mounting, curtain wall installation, welding of external wall steel structures, and more. It is especially effective for construction applications where suspended scaffolds are impossible to install or where high operating stability and safety are required.
| Configuration | Model Details |
|---|---|
 |

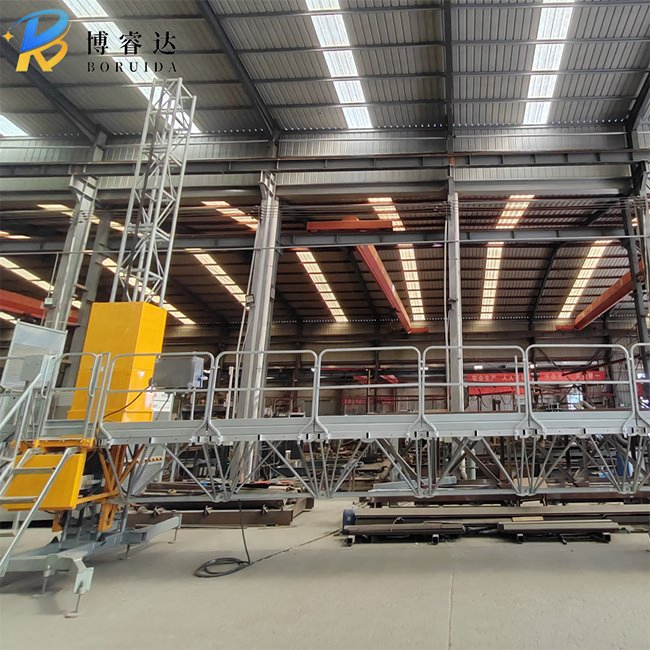

Single Mast Work Platform Model: STC100 - Rated load at max length: 1000 kg - Max carrying capacity: 3 persons - Rated lifting speed: 8.3 m/min |
 |

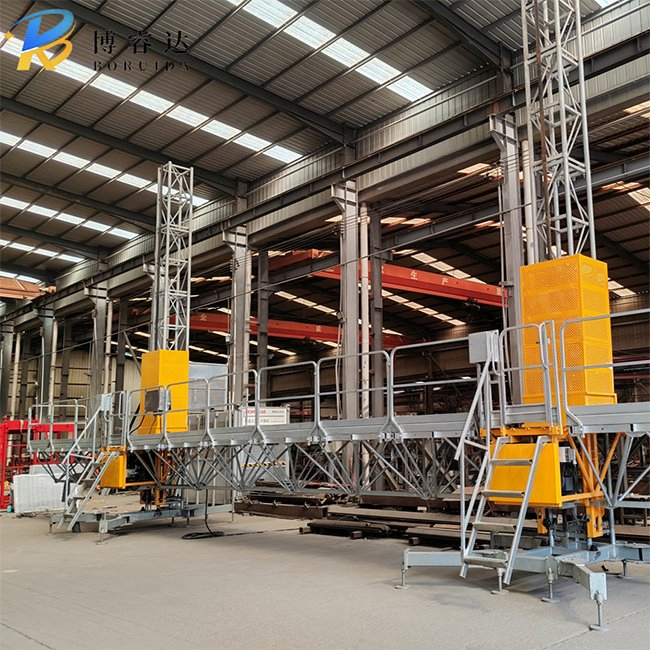

Double Mast Work Platform Model: STC100 - Rated load at max length: 1400kg - Max carrying capacity: 6 persons - Rated lifting speed: 8.3 m/min |
| No. | Item | Specifications (STC100) |
|---|---|---|
| 1 | Rated Load (Max Length) | 1000 kg / 1400 kg |
| 2 | Max Capacity | 3 - 6 Persons |
| 3 | Rated Lifting Speed | 8.3 m/min |
| 4 | Max Operating Height | 150 m |
| 5 | Platform Width | 1.5 m (Extends to 2.5 m) |
| 6 | Standard Section Size | 1508×500×500 mm |
| 7 | Motor Power | 2*2.2kW / 4*2.2 kW |
✅ Quality Assurance: Advanced manufacturing technology ensures high quality; all products are checked by quality control managers.

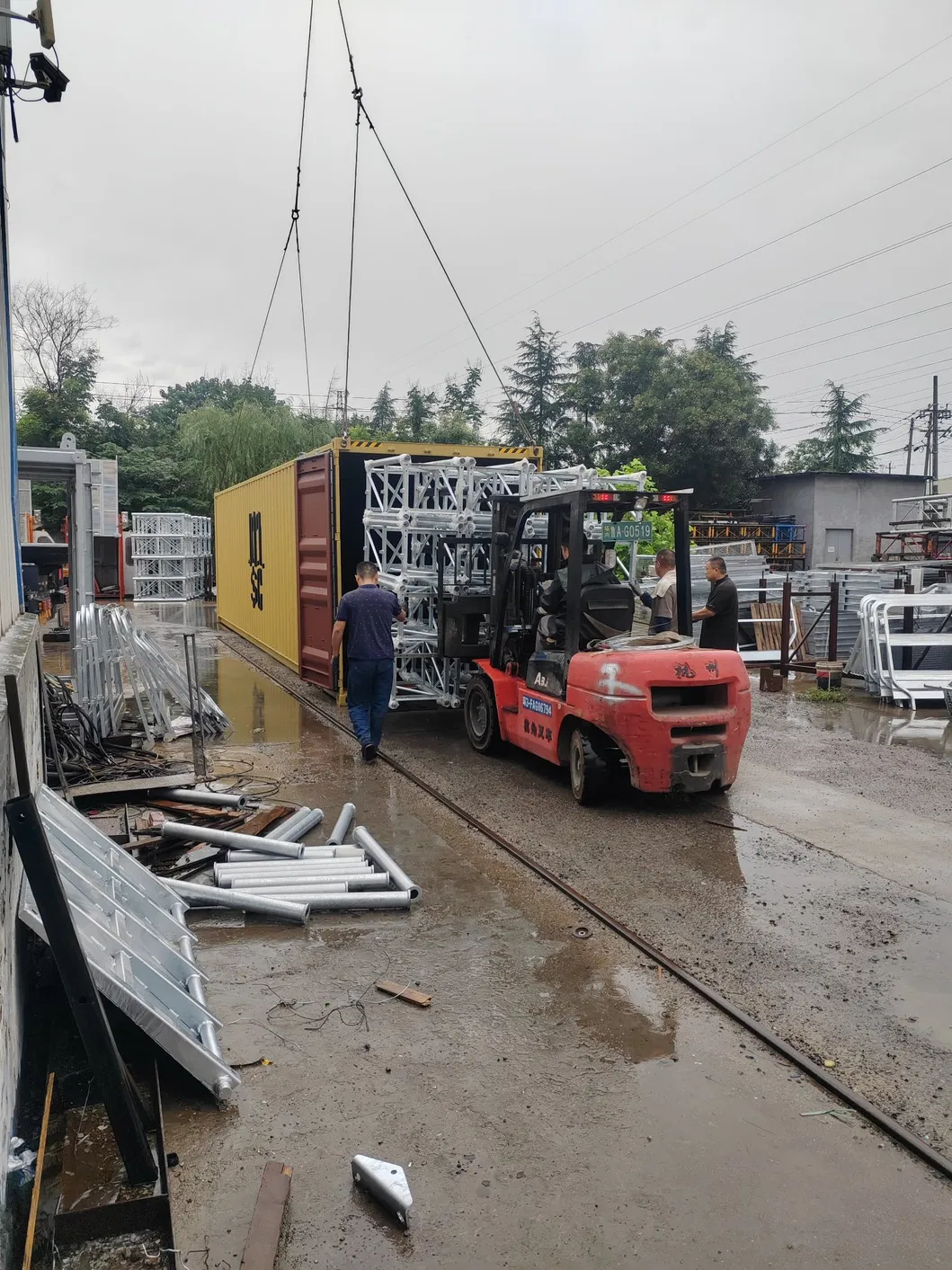

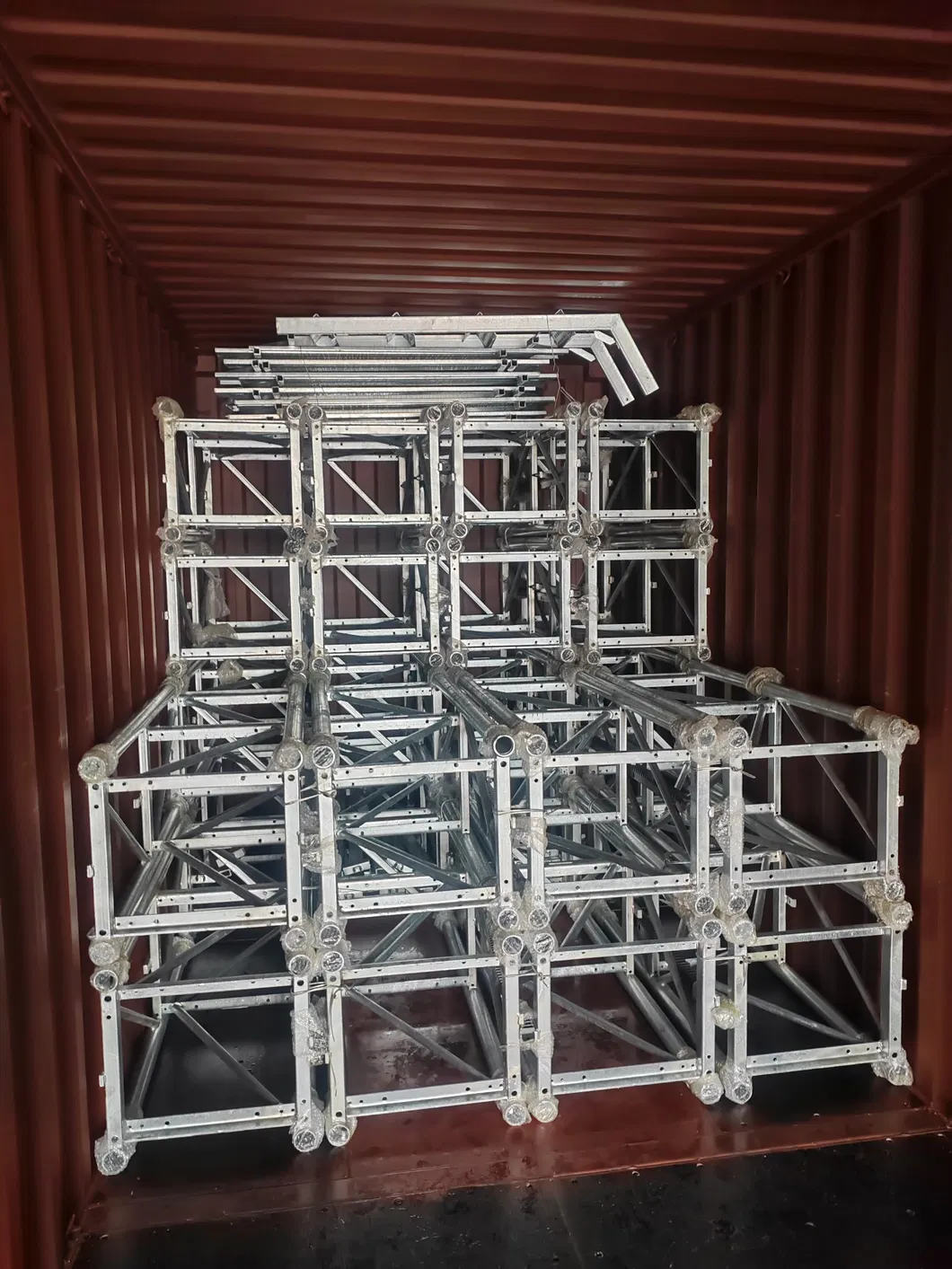

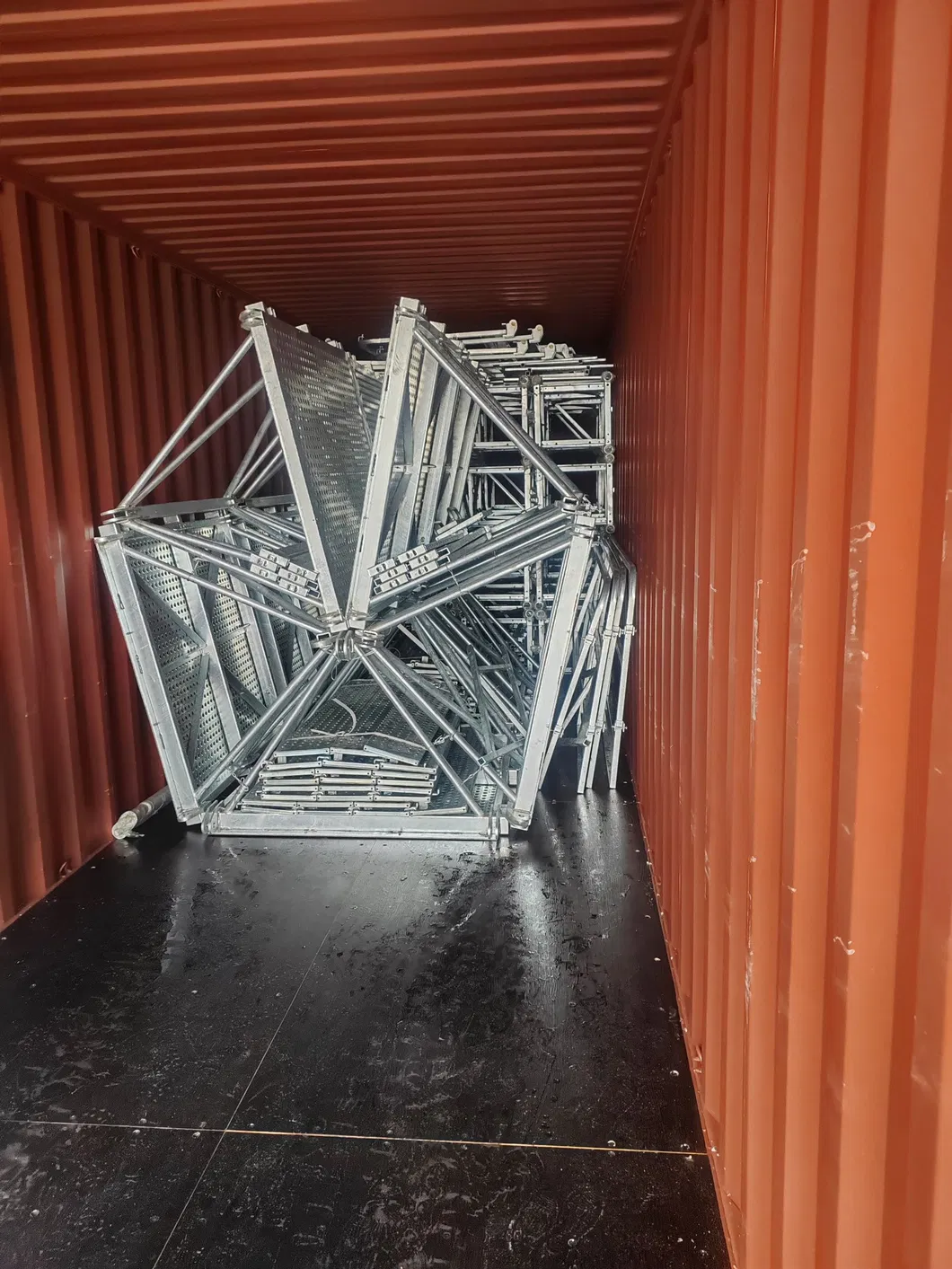

✅ Excellent Packaging: Standard, strong, protective packaging is provided to prevent outer damage during transport.
✅ Quick Response: Detailed specifications and pricing are provided promptly upon receiving an inquiry.
