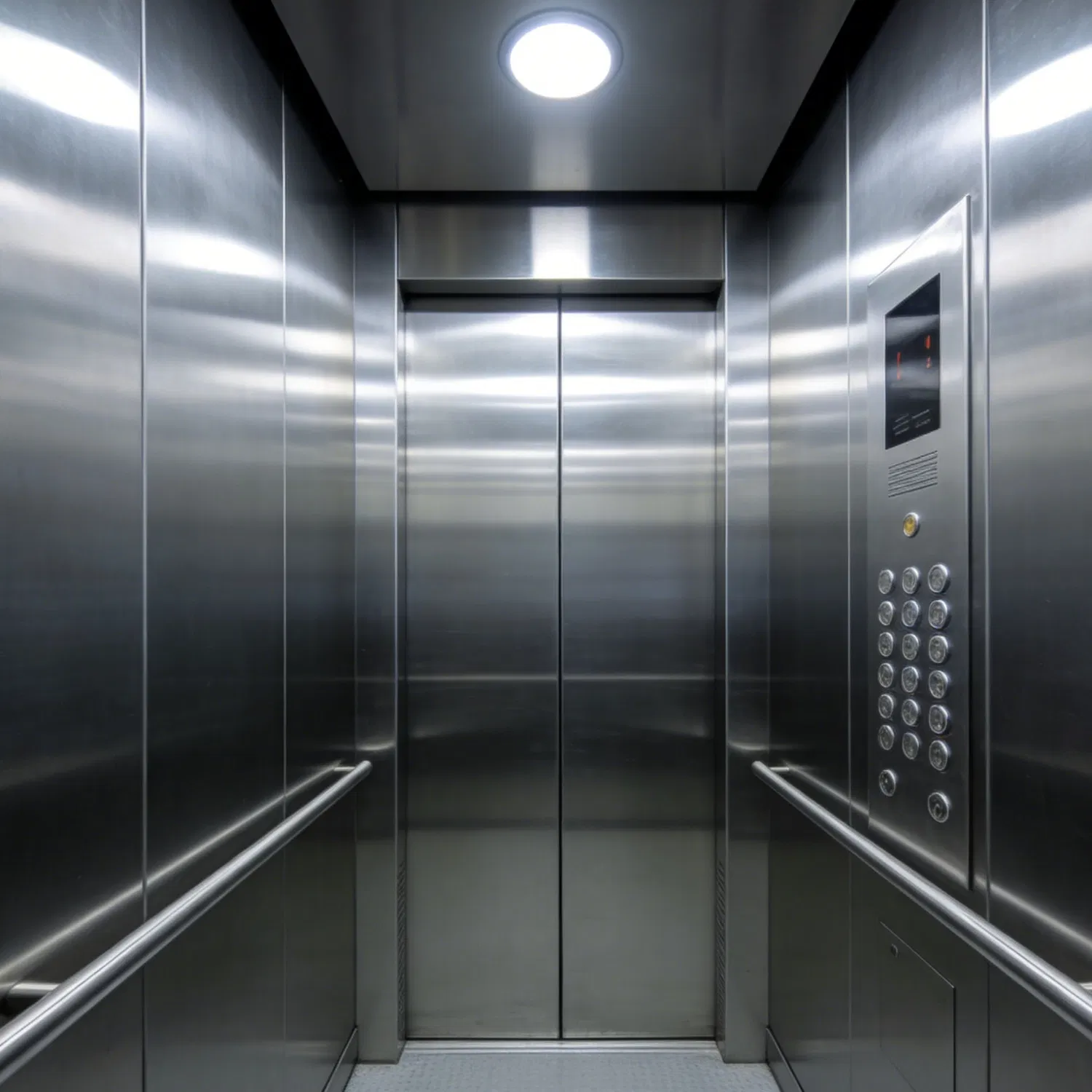

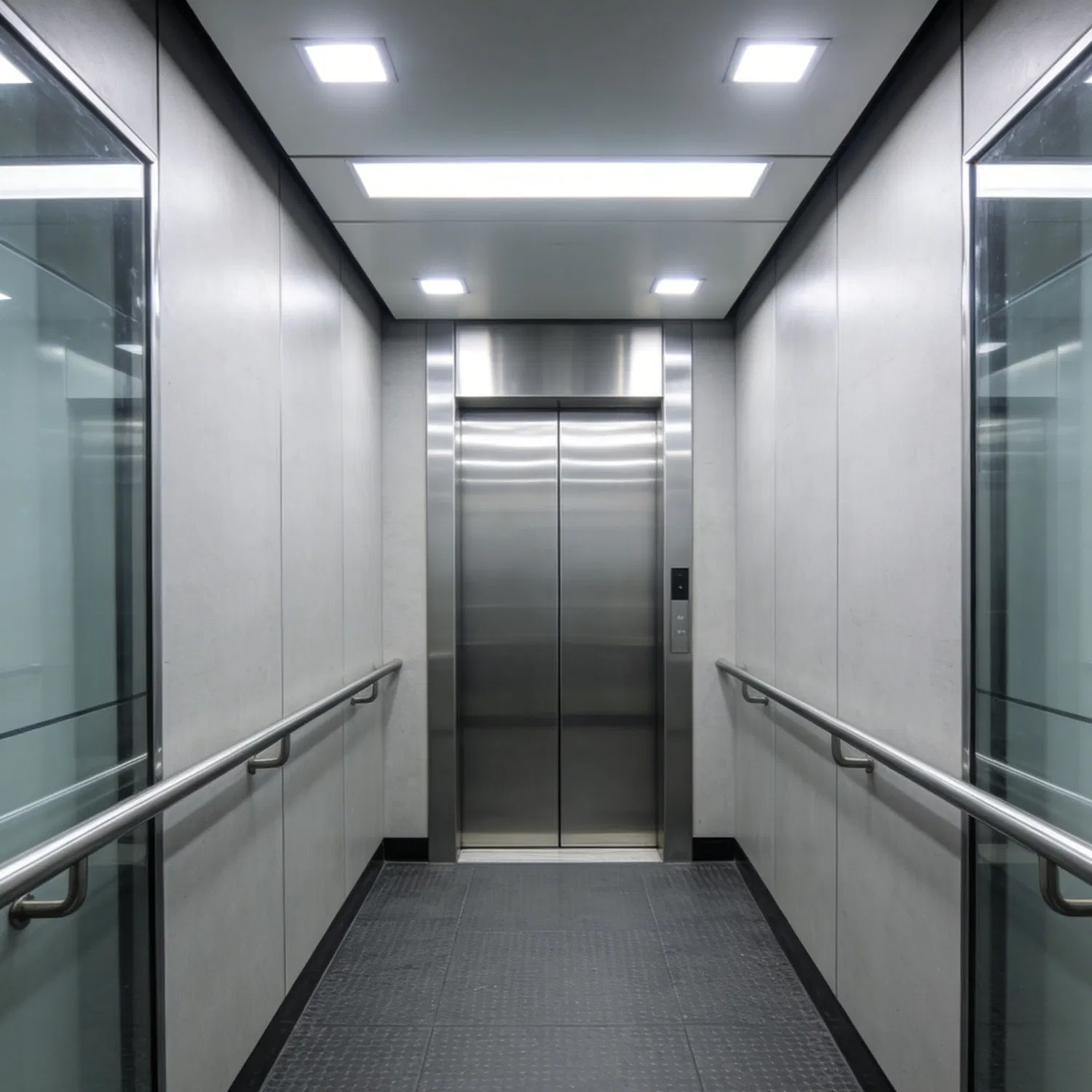

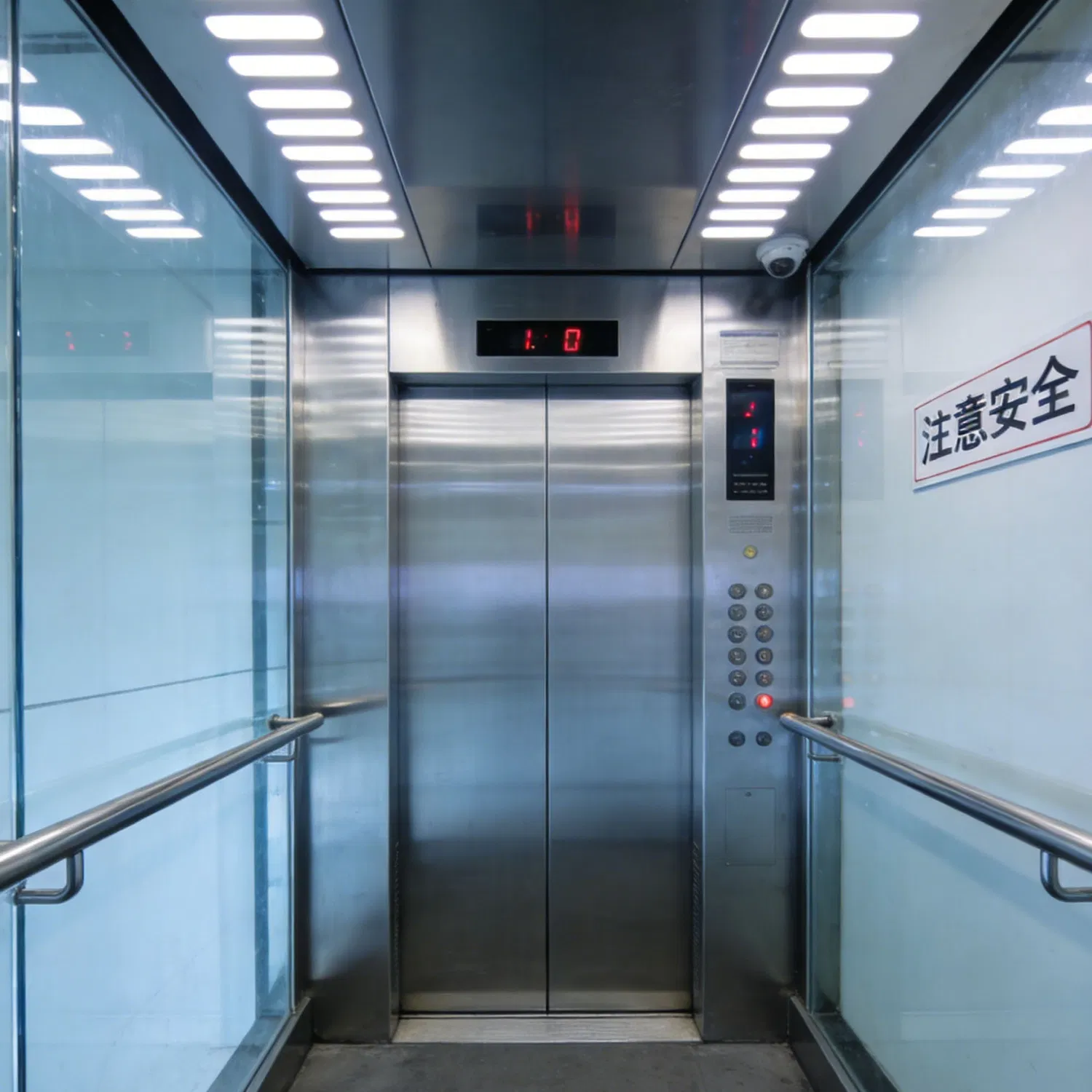

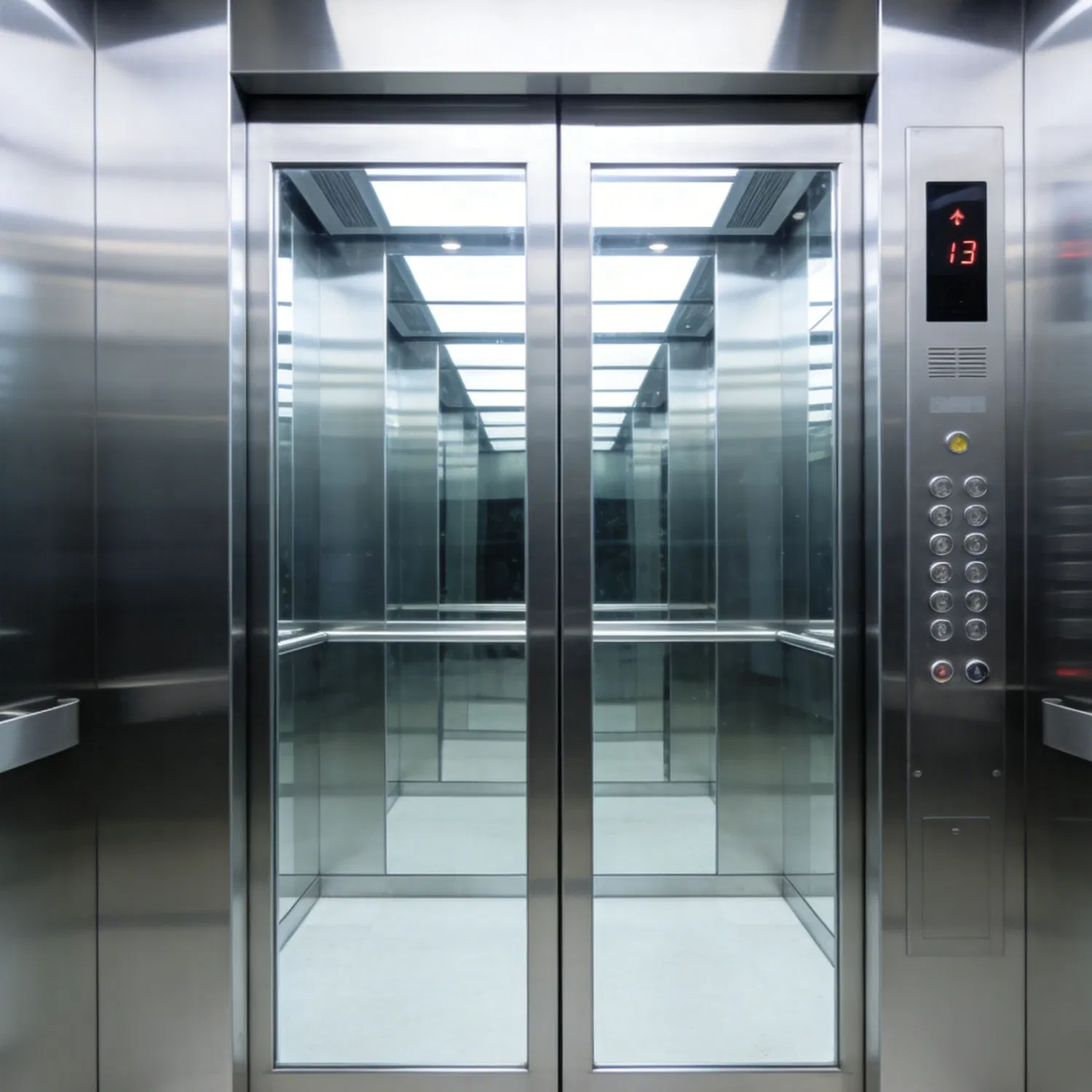

Hospital Service Elevator Includes Separate Ventilation System and Durable Walls

Customization:	Available
After-sales Service:	Technical Support
Warranty:	1year

i

Basic Specifications

Driving TypeDC Elevator

Capacity>1000kg

Persons11 - 19

Speed1.00 - 2.00m/s

Control ModeCollective Selective Control

Computer RoomPositioned Up

Elevator DoorCenter Opening Door

Door KnifeDouble

DecelerationSpeed Control Device

ColorCustomized

FeatureSafe, Durable, Easy Operation

OriginChina

★

Product Description

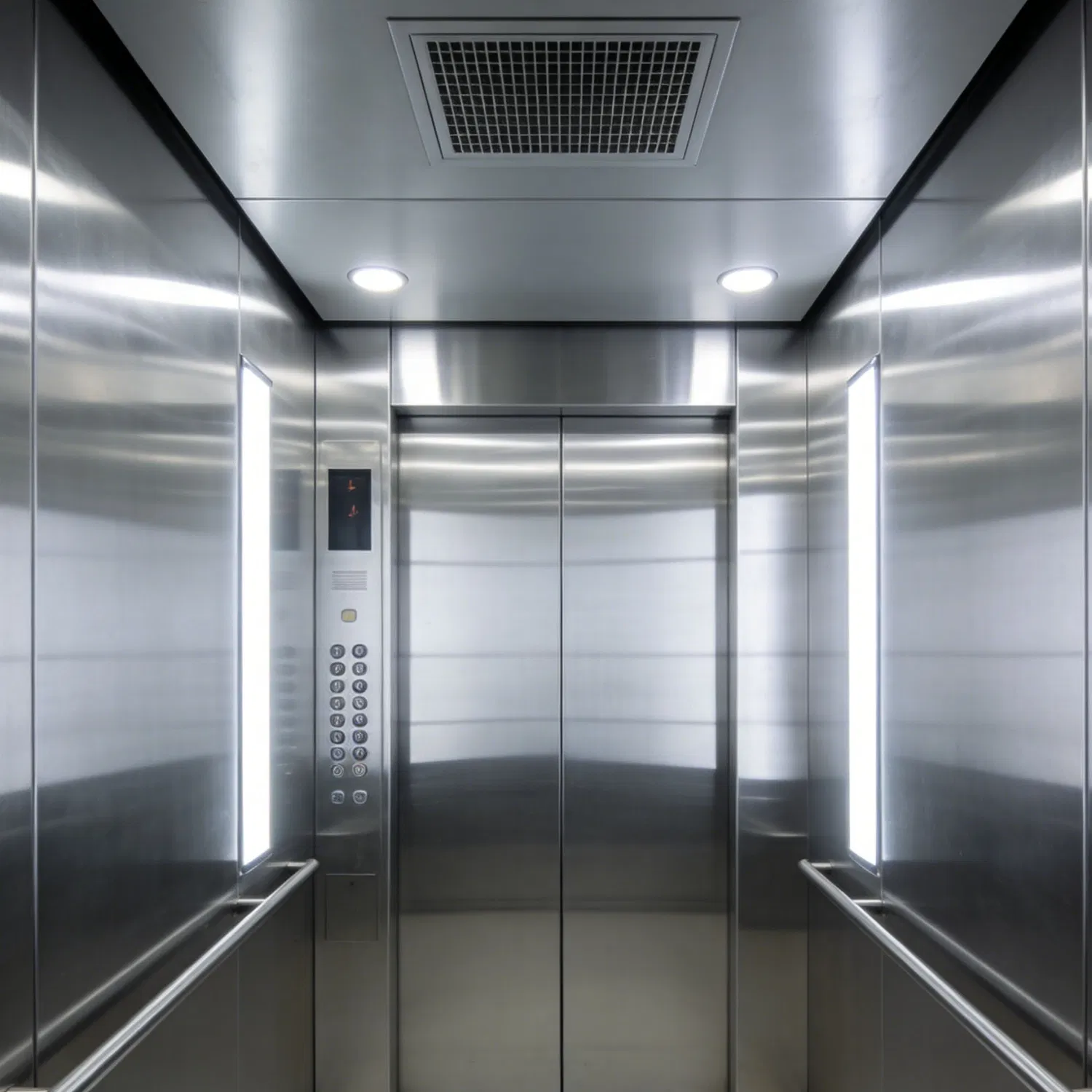

Our medical and service elevators are designed specifically for healthcare environments, featuring separate ventilation systems and durable wall construction to ensure hygiene and longevity.

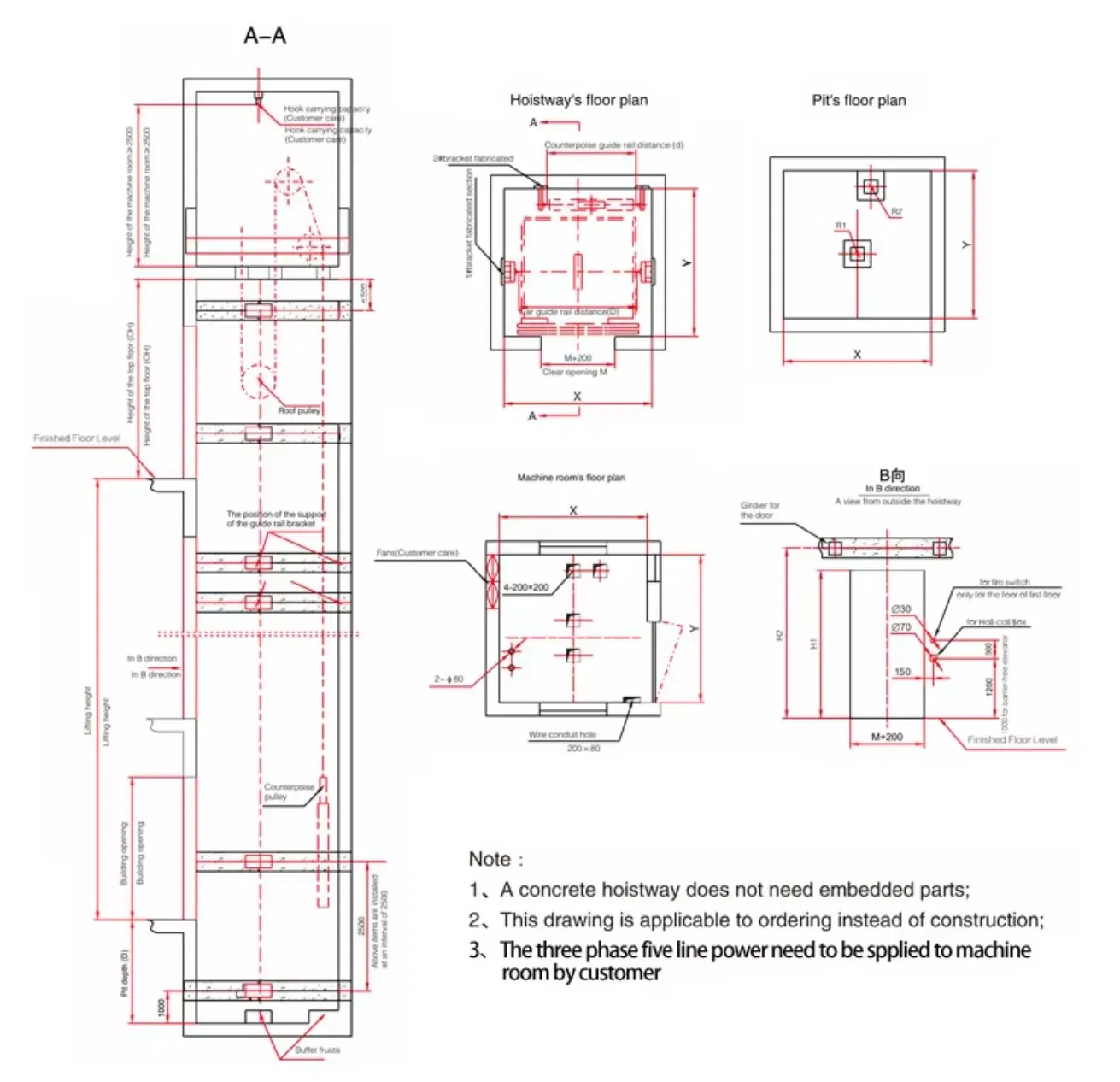

Rated Load (kg)	Counter-weight Position	Car Size (mm)	Landing Door Size (mm)	Hoistway Width (mm)	Hoistway Depth (mm)
630	Side-mounted	1100*2100	800*2100	1900	1800
800	Postposition	1350*1400	800*2100	1850	2050
1000	Postposition	1600*1400	900*2100	2100	2050
1050	Postposition	1600*1500	900*2100	2100	2150
1150	Postposition	1700*1500	1000*2100	2200	2150
1350	Side-mounted	1650*1800	1000*2100	2550	2200

C

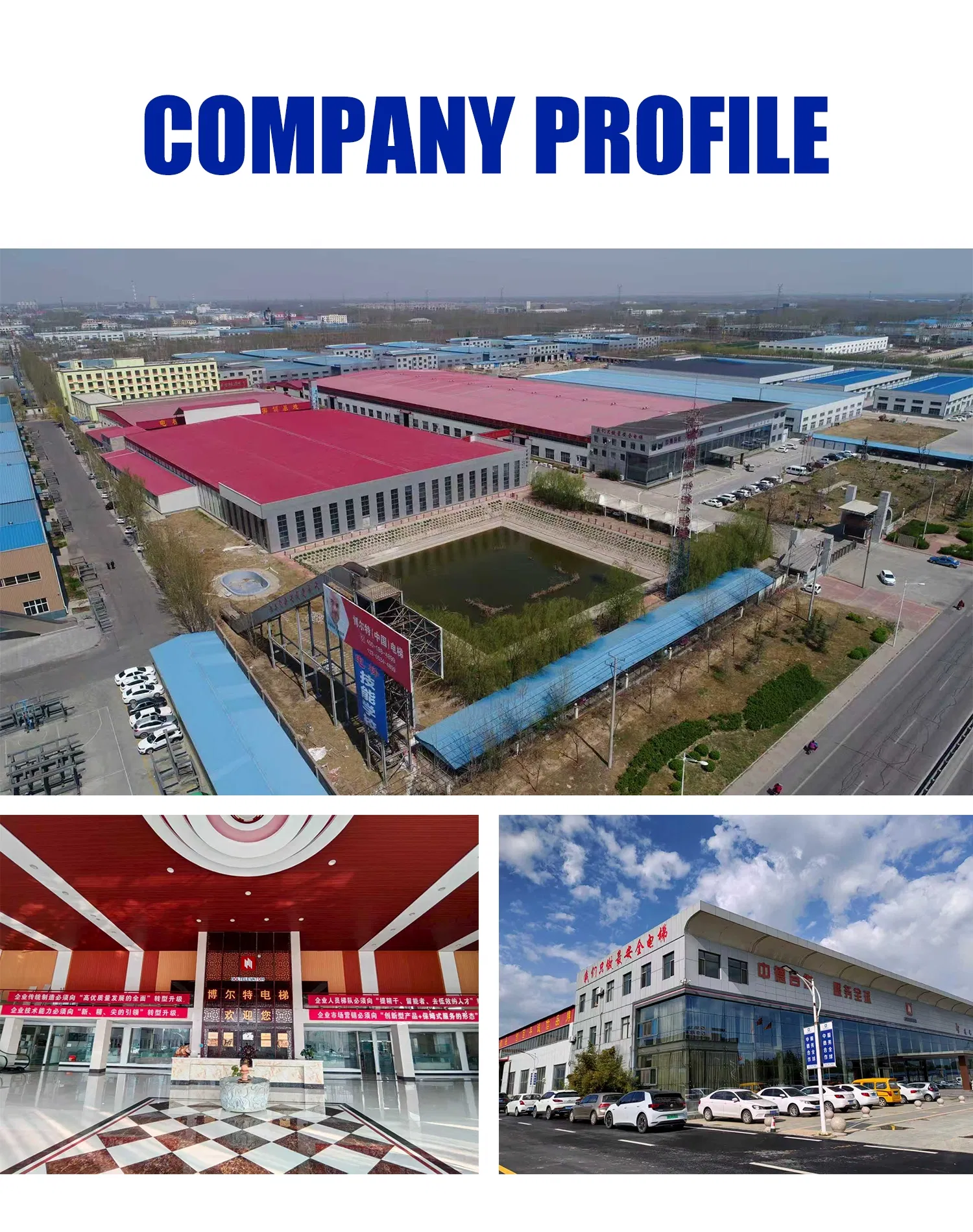

Enterprise Profile

Professional Elevator Solutions Provider

We are a dynamic enterprise covering R&D, design, manufacturing, and service across the industry chain. We offer complete elevator manufacturing, in-house component production, and professional training.

As a national high-tech enterprise, we feature a modern manufacturing and R&D base. Our products include a full range of commercial, residential, medical, freight, car, and luxury villa elevators, as well as escalators and moving walkways.

With service centers in 65 cities, we provide comprehensive installation services, pioneering modular quick-installation with steel structure integration. Our R&D department holds 12 national invention patents and over 60 utility model patents.

P

Packaging & Shipping

Package Size100cm * 100cm * 100cm

Gross Weight200.00kg

?

Frequently Asked Questions

1. Is the Elevator Stable and Safe?

With over 10 years of production expertise, we serve customers in 20+ countries. Our products meet ISO9001, CE/EN81, EAC, and KC standards. Using internationally renowned brands for main parts ensures premium quality.

2. Do you provide Installation & Maintenance guides?

We partner with installation companies in 20+ countries and continue seeking new partners globally to provide excellent quality and professional after-sales service.

3. What safety measures prevent sudden drops?

Our elevators feature six lines of protection in the machine room, door, and shaft bottom. The system automatically activates safety brakes if issues arise, ensuring absolute safety for passengers.

4. Which international certifications do you have?

We are fully certified with CE (EN81), EAC/CU-TR, KC, and TUV certifications, meeting the rigorous safety standards of Europe, Asia, and other global regions.

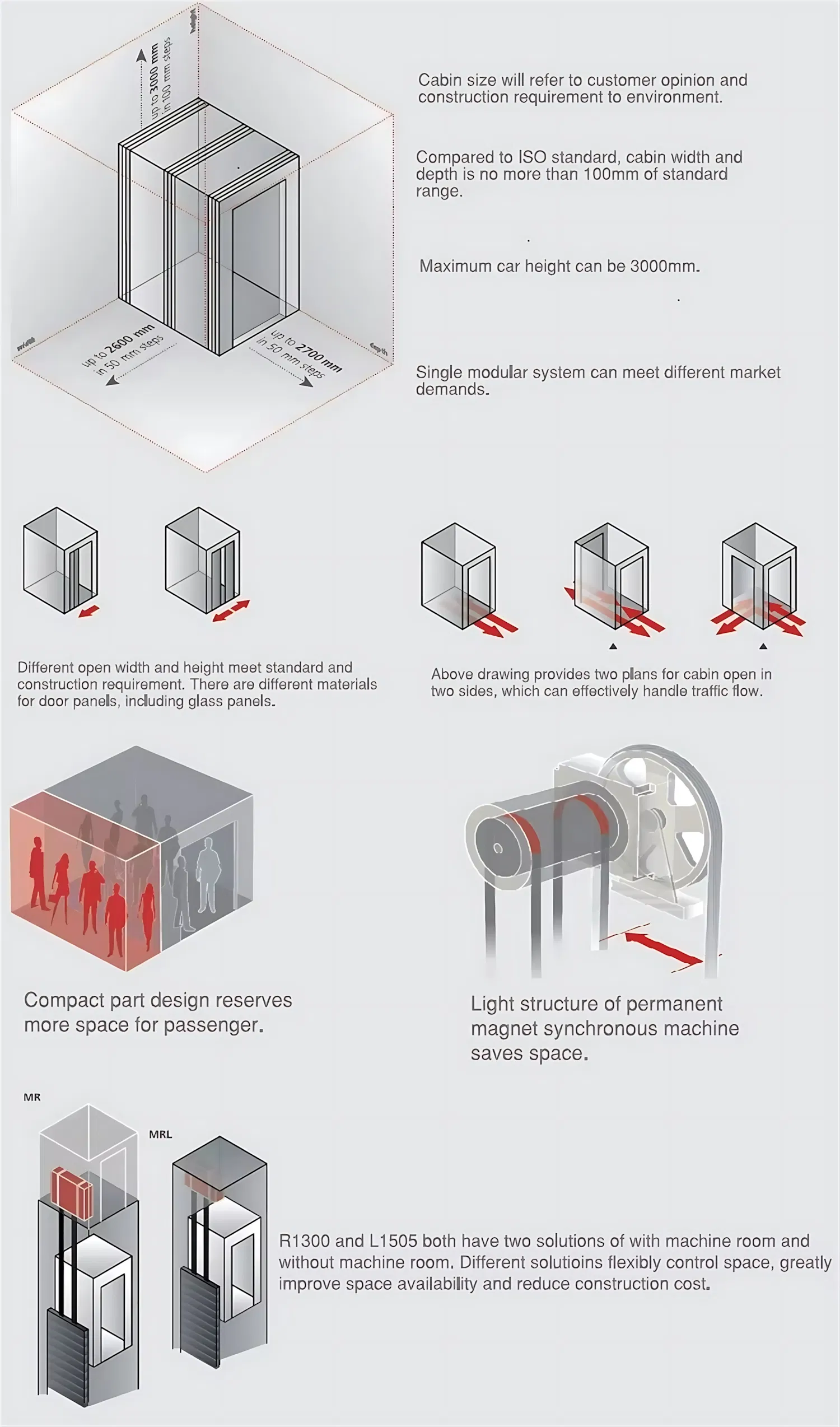

5. Can the car size and color be customized?

Yes, we provide full customization for design styles, dimensions, and interior colors to match the specific aesthetic and architectural requirements of your building.

6. What is the typical lead time for an order?

Lead times vary based on customization requirements and quantities, but typically we aim for efficient manufacturing cycles supported by our modern production base to ensure timely delivery.
