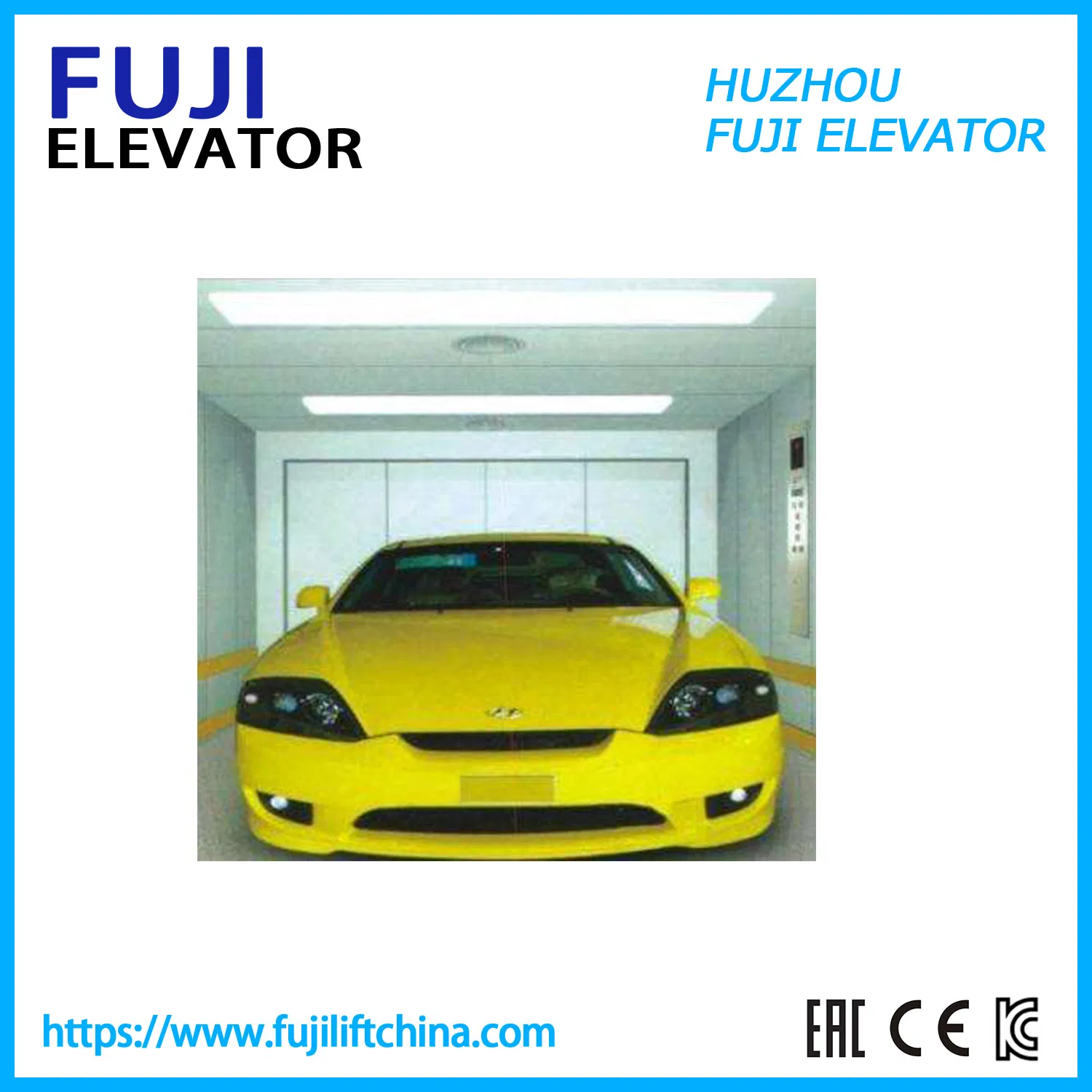

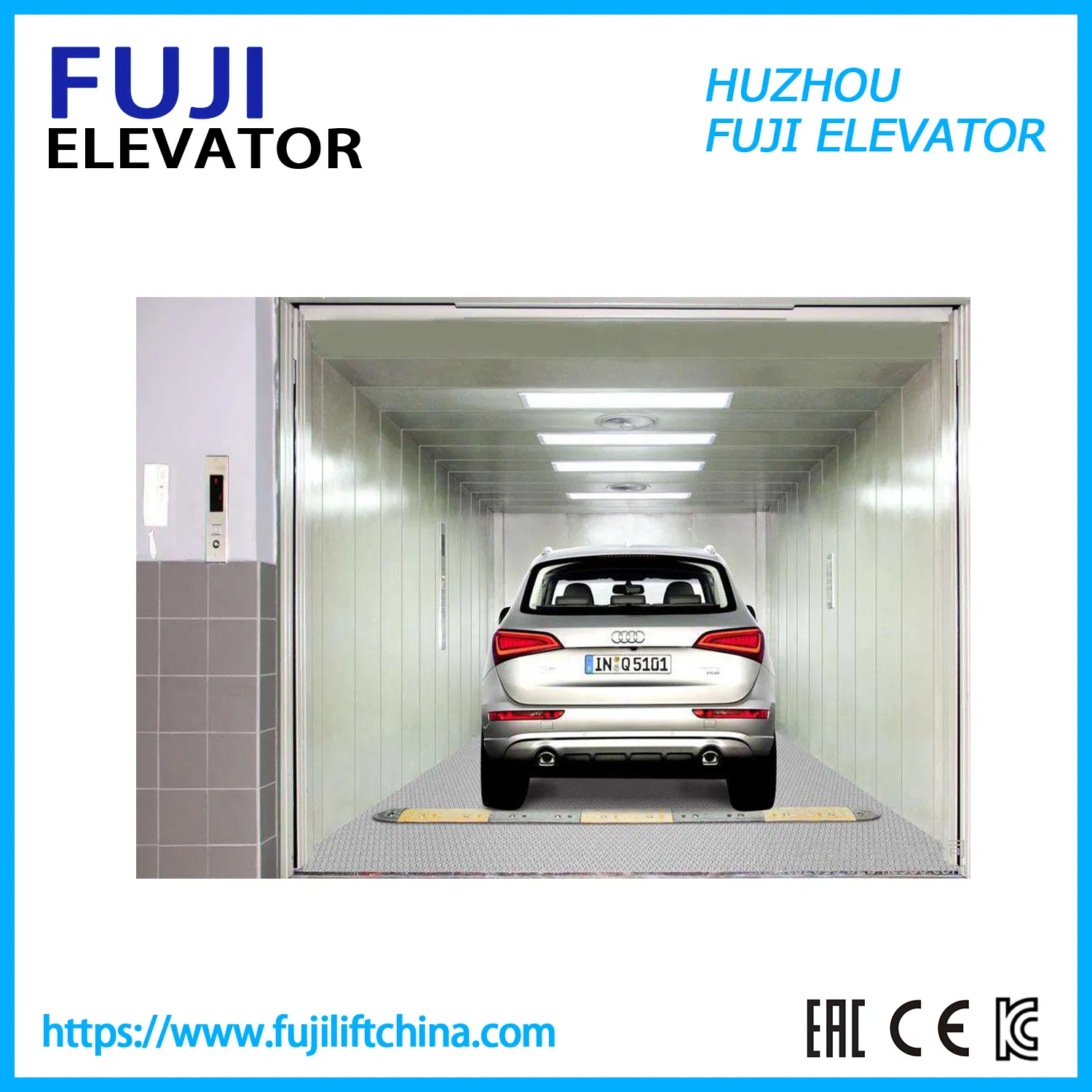

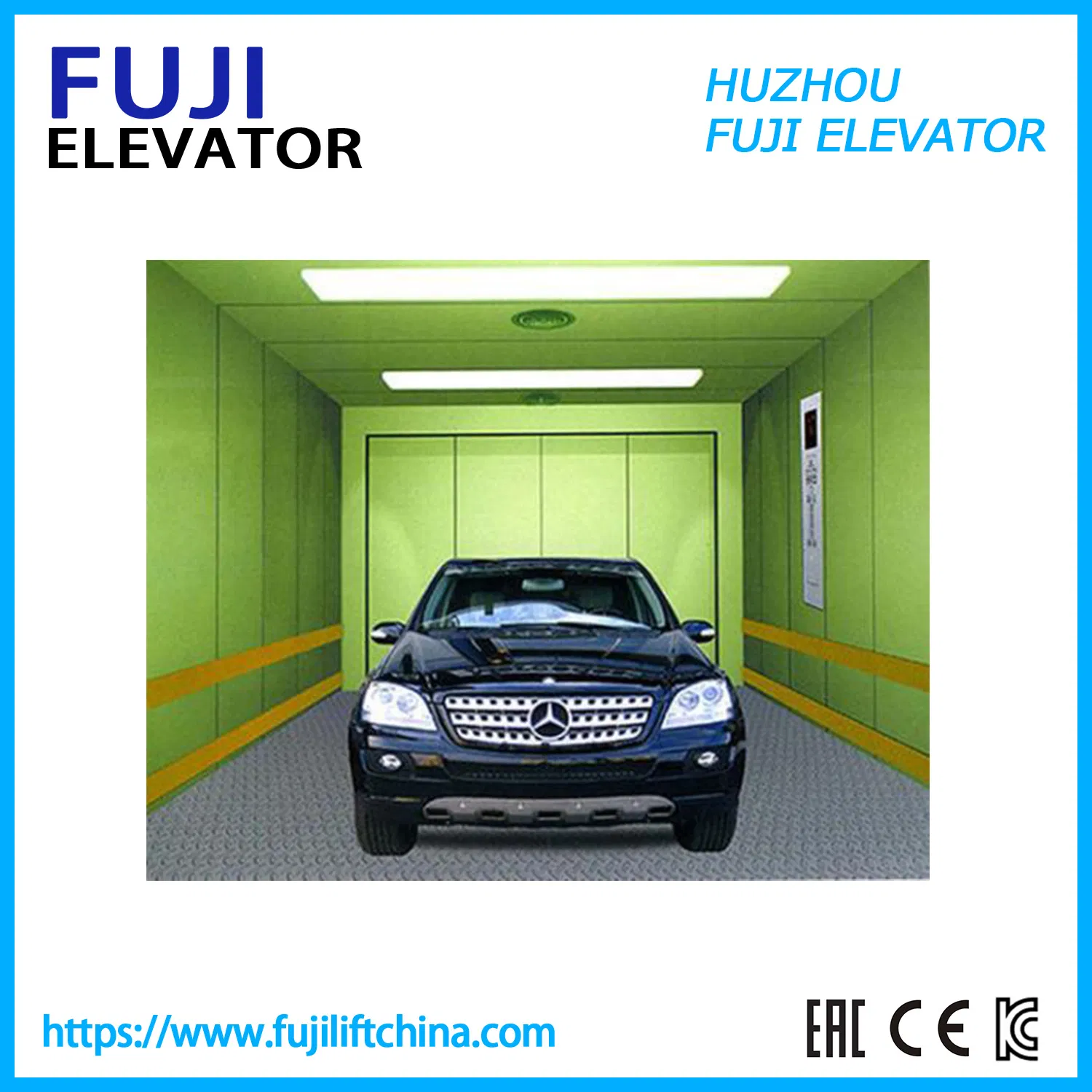

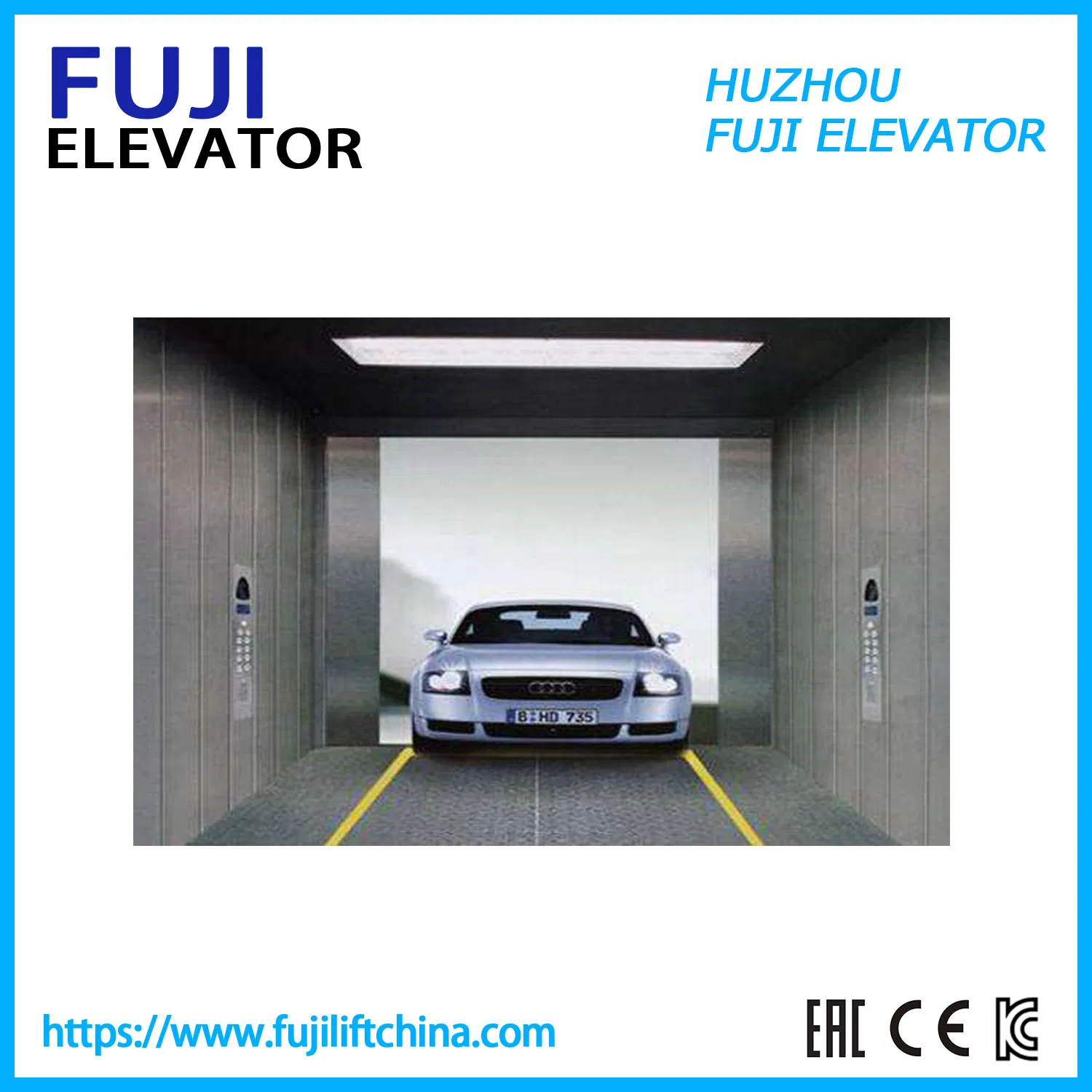

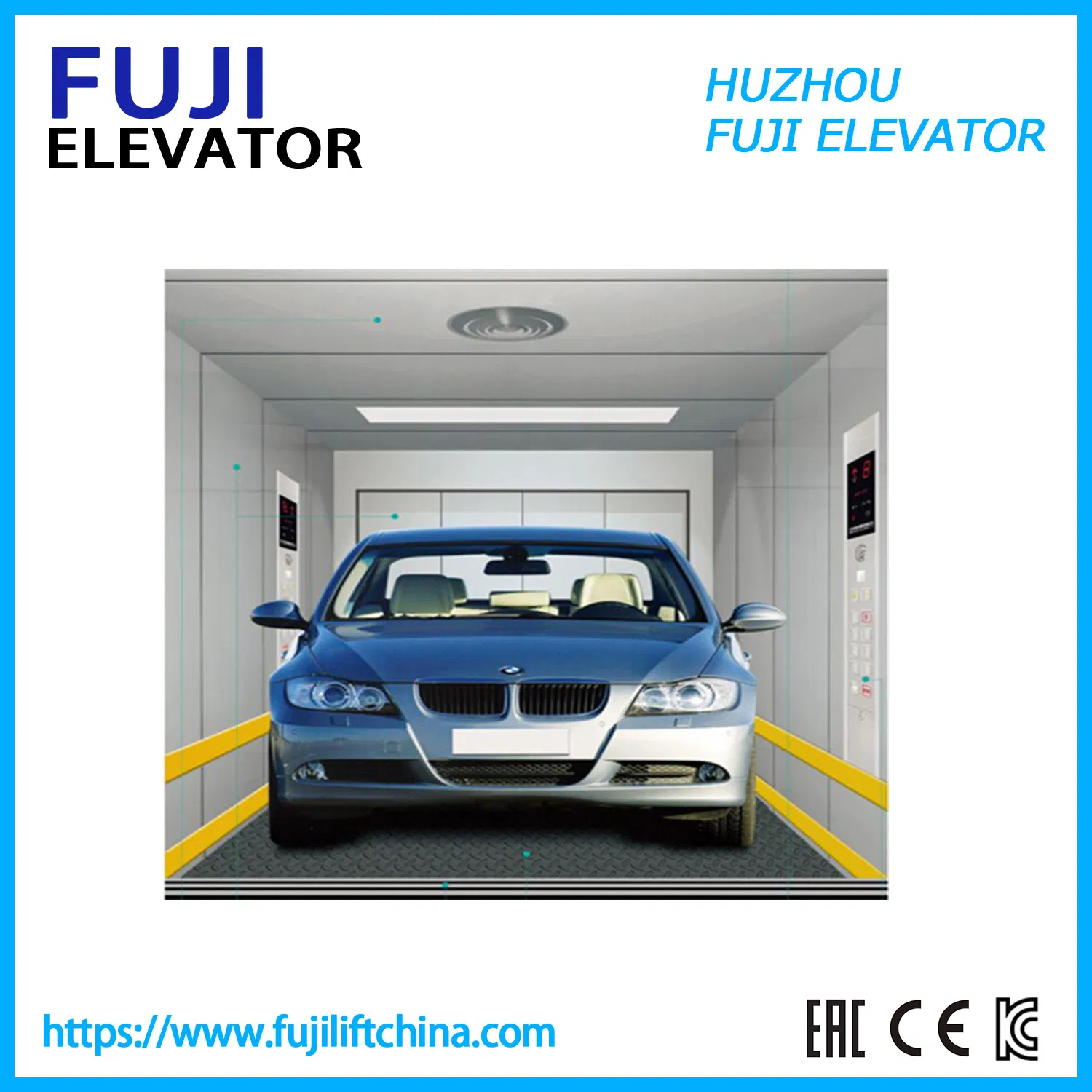

Automobile Car Elevator with Large Space

1 / 5

Automobile Car Elevator with Large Space

Customization:	Available
Type:	Wellhole
Load Capacity:	3000kg

Send Inquiry

Product Description

Technical Specifications

Model NO.

D-Series

Speed

0.25-0.5 M/S

Drive Mode

Open & Close Type

Automatic

Lift Mechanism

Lift Chain

Deceleration

With Deceleration Device

Guide Rail

T Guide

Elevator Door

Center Opening Door

Door Knife

Single

Attendant

Without Attendant

Product Price

$9000-30000/Unit

Production Time

Within 25-30 Days

Origin

China

HS Code

8428109000

About Automobile Elevator

Intelligent automobile elevator technology introduces well-developed international standards. It has been developed and manufactured through absorption, conversion, and enhancement. Advanced technology removes bad factors such as shaking, noise from burdened traction systems, and uneven force to the car, optimizing the product series' characteristics.

Service & Support

🛠️

After-Sales Service:

Installation manual provided for technical staff.
Remote guidance for accurate commissioning.
Engineer site visits for special requirements to guide installation.
Technician training available at the factory.

Key Features

✅

Adaptive load design for rapid weight changes.

✅

Dual control button boxes for operation without leaving the vehicle.

✅

Rated capacity over 3 tons with spacious area for various cars.

✅

Front and rear through-door configuration for easy access.

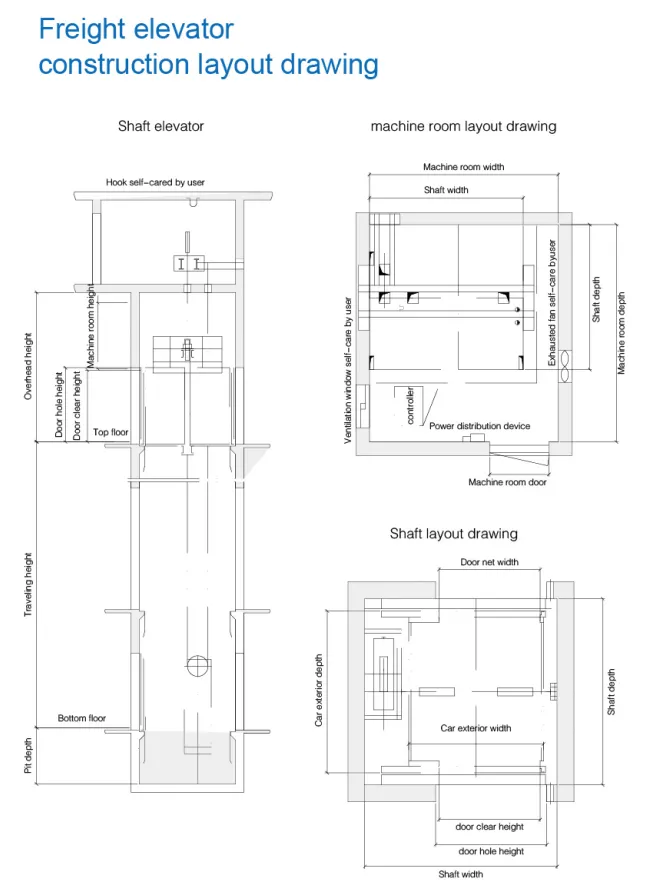

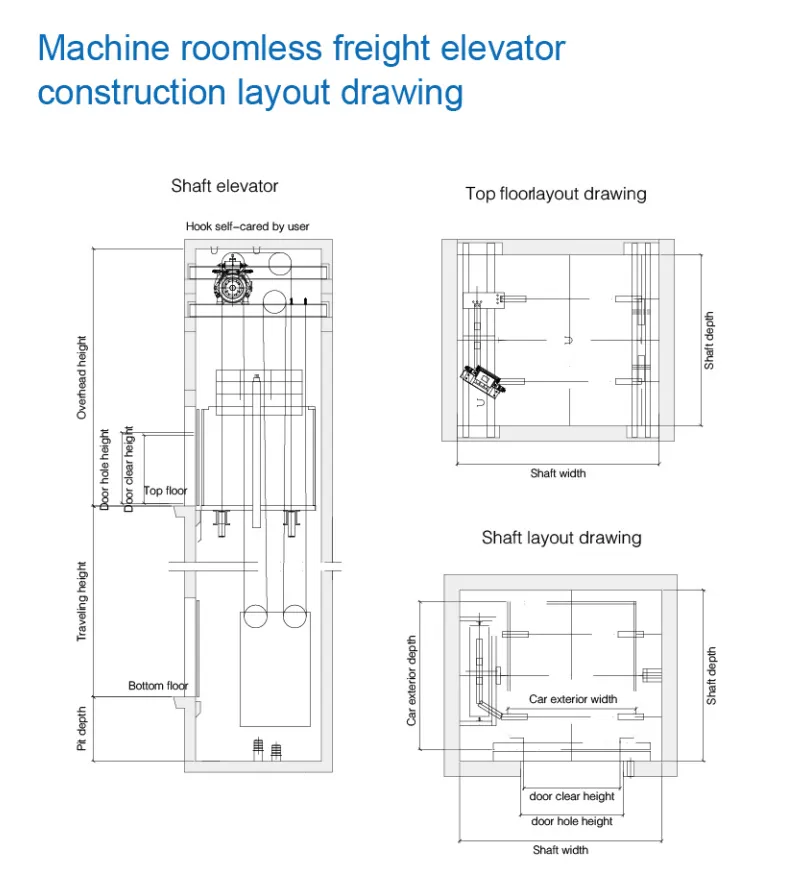

Parameters & Capacity

Capacity(KG)	Speed(m/s)	Car Size (WxDxH)mm	Door Opening(WxD)mm	Shaft Size(WxD)	OH(mm)	Pit(mm)
3000	0.25/0.5	2700x5800	2400x2200	4100x6160	4800	1600
5000	0.25/0.5	3500x7200	2600x2200	4750x7560	4800	1600

Standard Functions

1. Automatic stop	16. Anti-mischief function
2. Call button self-diagnostic	17. Auto-running full-load
3. Auto light/ventilation shut off	18. Hall button re-opening
4. Repeat open/close door	19. Door load sensor
5. Infrared Light curtain	20. Arrival tip
6. Fire running function	21. Fault self-diagnostic
7. Auto lock/unlock door	22. Current floor auto-opening
8. Speed adjustment enforcement	23. Terminal landing prevention
9. Driver/Non-driver operation	24. Overhaul operation
10. Orientation selection	25. Auto-stop rescue

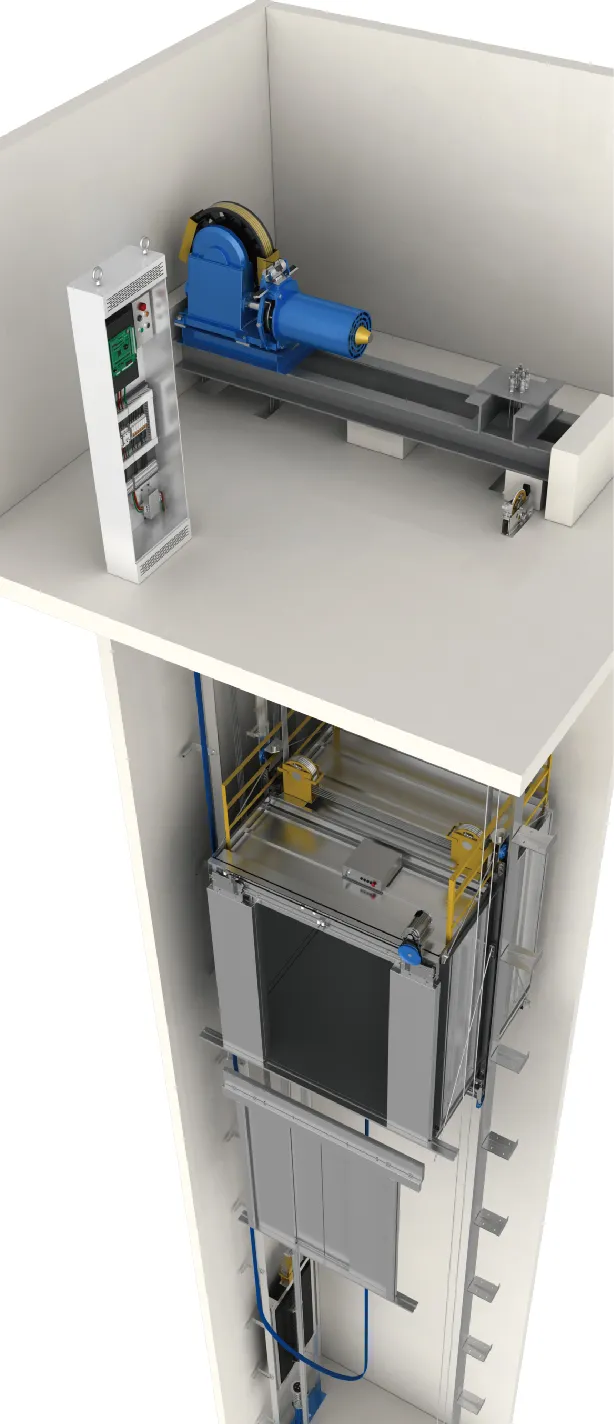

Safety & Construction

Outstanding structure and high-strength car design make these elevators applicable for various environments: production lines, exhibition halls, warehouses, and shopping centers. High-strength section materials ensure the car can bear heavy loads without deformation, featuring doubled consolidation at the bottom.

Frequently Asked Questions

What are the available load capacities for the car elevator?

The elevator is available in high-capacity options including 3000KG and 5000KG, designed to handle various vehicle sizes safely.

Can the driver operate the elevator without leaving the vehicle?

Yes, the car is equipped with two control button boxes, allowing the driver to control the elevator functions directly from inside the car.

What safety features are included as standard?

Standard safety features include infrared light curtain protection, overload voice-light alarms, fire running functions, and fault self-diagnostics.

How is after-sales support managed?

We provide comprehensive support through detailed installation manuals, remote technical guidance, and the option to send engineers to the site for specialized installation needs.

Is the elevator car durable enough for heavy freight?

Absolutely. The car is manufactured using high-strength section materials with a doubled consolidation design at the bottom to prevent deformation under heavy loads.

How do I report a technical issue?

You can report issues by providing the factory number or contract number, which allows technical staff to check specifications and provide a rapid solution.
