| Basic Information | |
|---|---|
| Model NO. | HZH XF120 |
| Size | Large |
| Usage | Firefighting |
| Structure | Wing UAV |
| Maximum Load Weight | 150 Kg |
| Max. Takeoff Weight | 257.8 Kg |
| Max. Flight Altitude | 500 M |
| Max. Flight Time | 45 Min |
| Axis | 8 |
| Specification | 4605*4605*990mm |

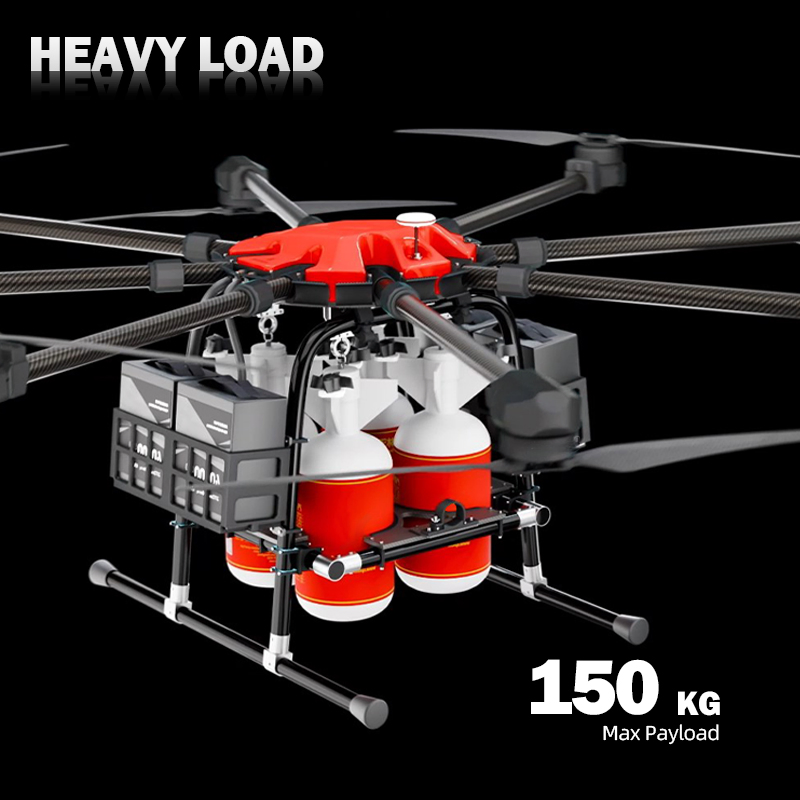

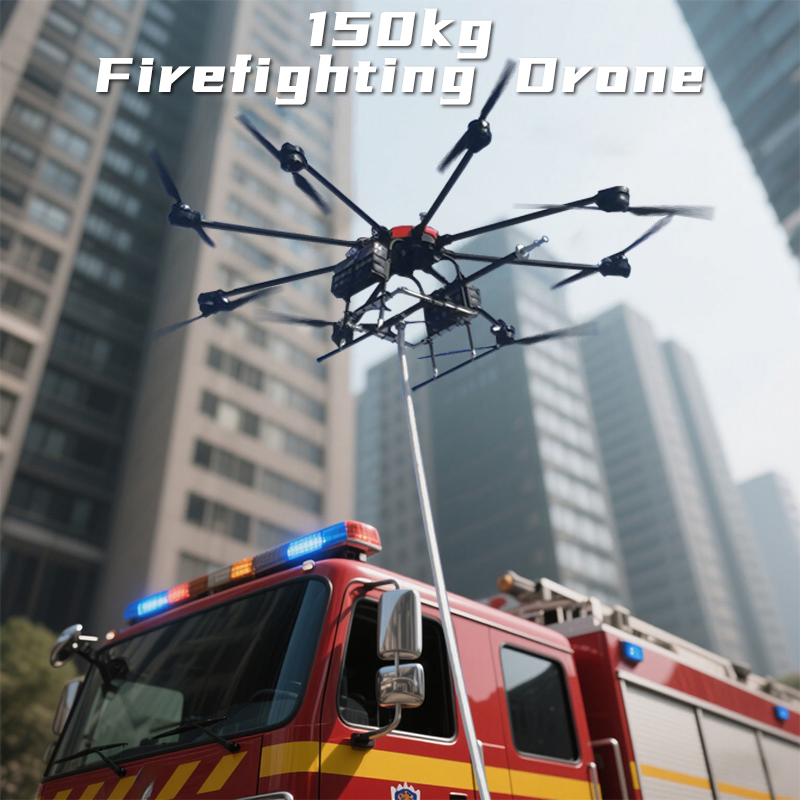

Long Endurance Remote Control Wild Firefighting UAV: An industrial 150kg heavy lift payload fire extinguisher delivery transport drone designed for building and forest fire suppression.
| HZH XF120 Technical Specifications | |
|---|---|
| Dimensions (Unfolded) | 4605*4605*990mm |
| Max. Payload | 150kg |
| Max. Takeoff Weight | 257.8 kg |
| Max. Flight Altitude | 500 M |
| Max. Altitude Limit | 4500 m |
| Operation Height | ≤ 1000m |
| Max. Flight Time | 45 minutes |

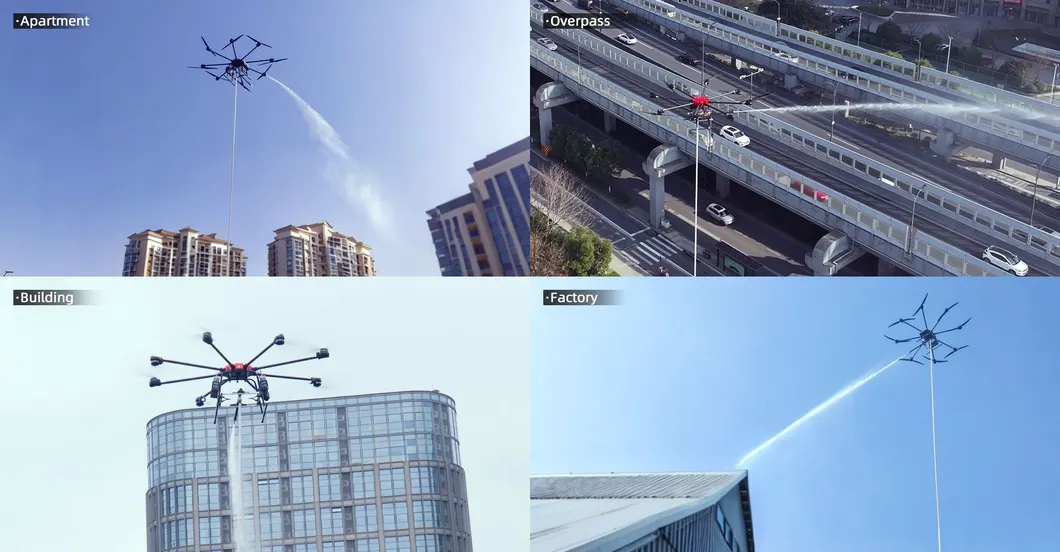

In densely populated apartment complexes, firefighting drones quickly assess the scale and spread of fire, providing real-time footage and cooling fires with high-pressure water nozzles to prevent vertical spread.
Excels in reaching elevated incident sites rapidly, deploying fire extinguishing bombs precisely while avoiding road congestion.
Ascends rapidly to upper stories of commercial and office buildings, bypassing blocked stairwells to drench flames and reduce critical infrastructure damage.
Versatile solutions for industrial environments, capable of deploying dry chemical bombs for flammable liquid fires or water-spraying for machinery cooling.

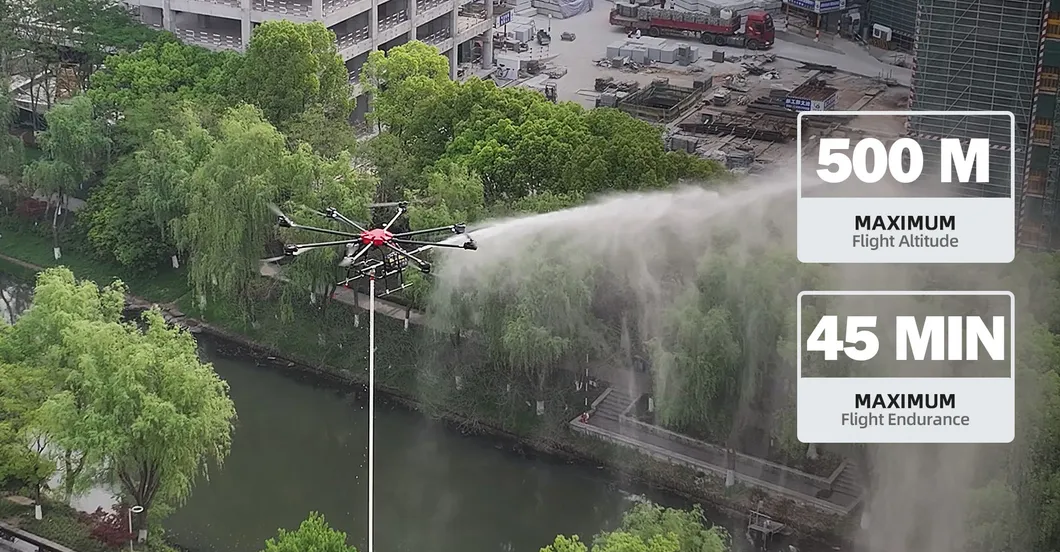

Exceptional Vertical Reach: Boasting a 500-meter maximum flight altitude, empowering access to skyscrapers and tall industrial structures.
Prolonged Mission Endurance: 45-minute maximum flight time allows for sustained missions in large-scale fire scenes.

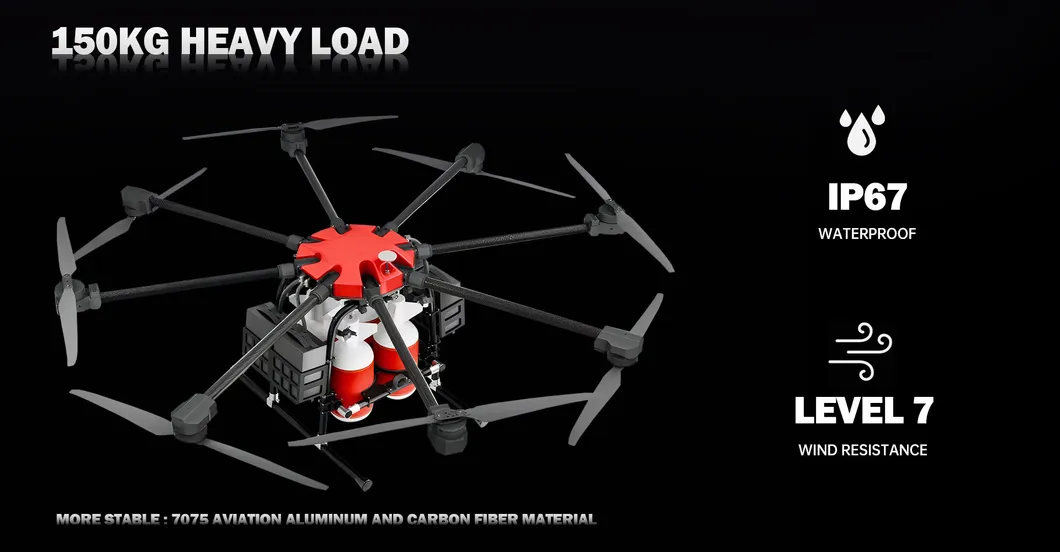

Robust Composite Structure: Constructed from 7075 aerospace aluminum and carbon fiber for optimal balance between durability and agility.
Superior Waterproof & Wind Resistance: IP67 waterproof rating and capability to resist level 7 winds ensure stable operation in harsh environments.

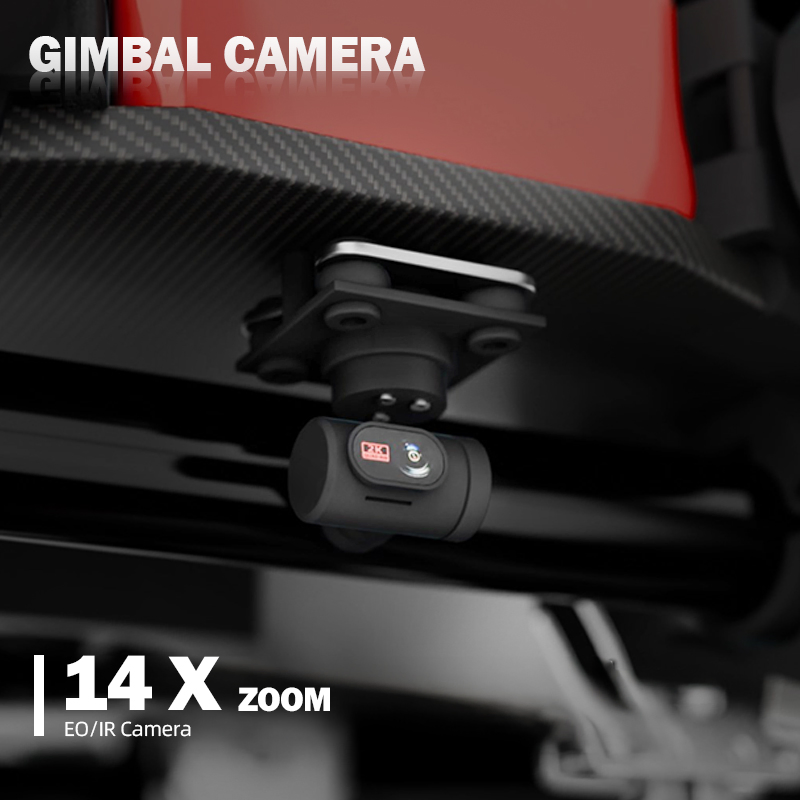

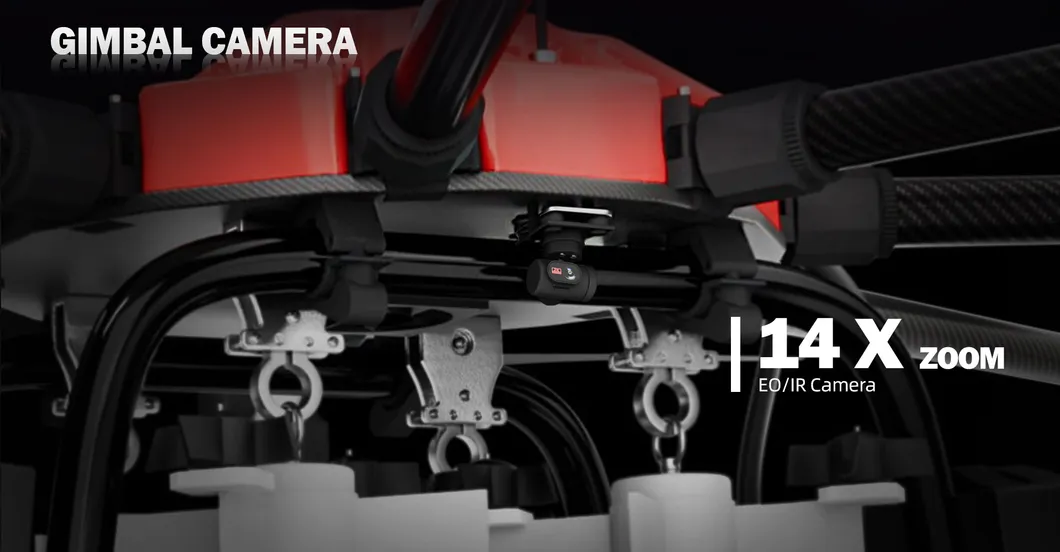

Rapid Deployment: Fully assembled and ready for operation in just 5 minutes. Outfitted with a 14X Zoom EO/IR camera for high-precision imaging and heat signature detection.

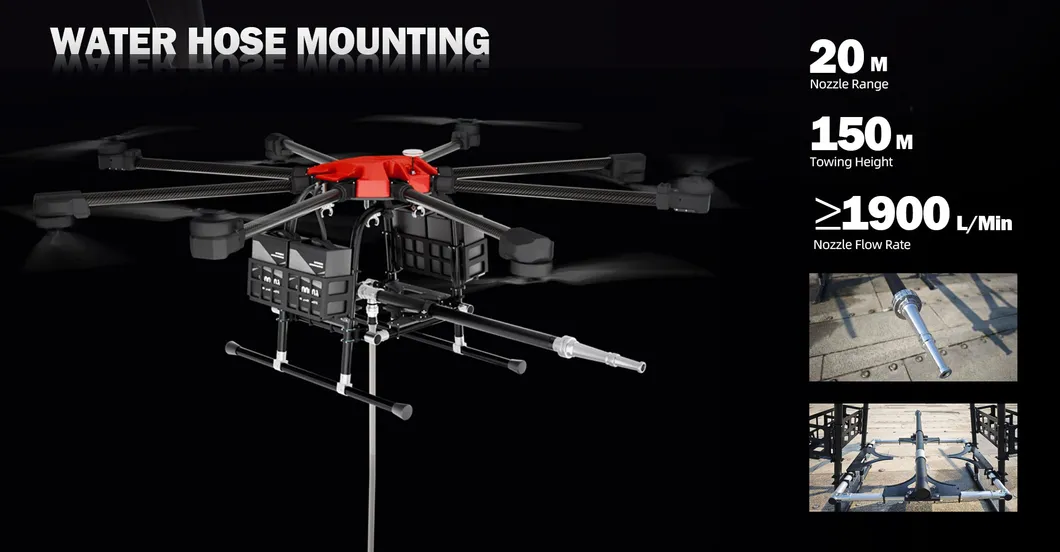

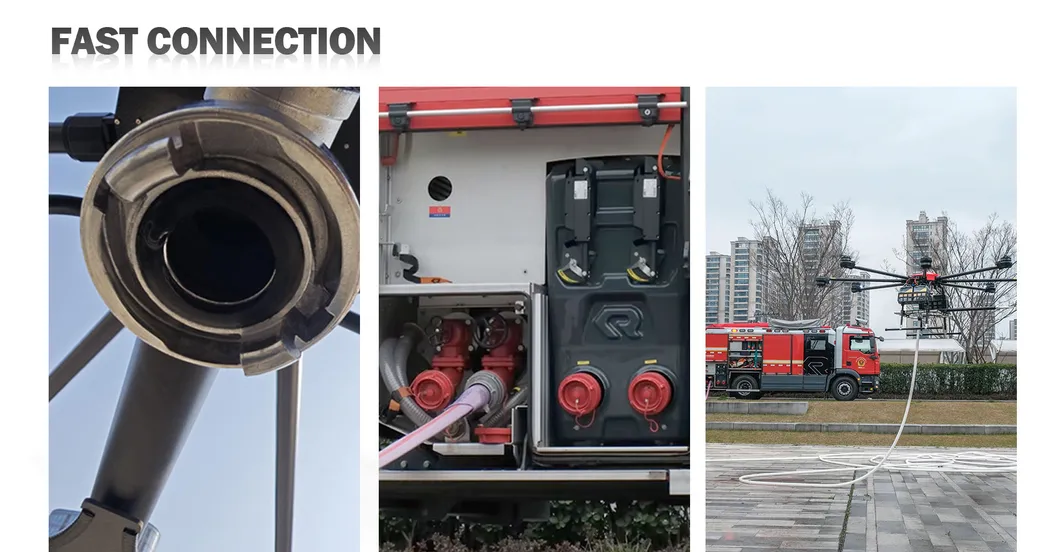

| Water Hose Mounting Parameters | |
|---|---|
| Hose Diameter | 50mm |
| Nozzle Length | 3m |
| Nozzle Range | 20m |
| Nozzle Flow Rate | ≥1900L/min |
| Towing Height | 150m |

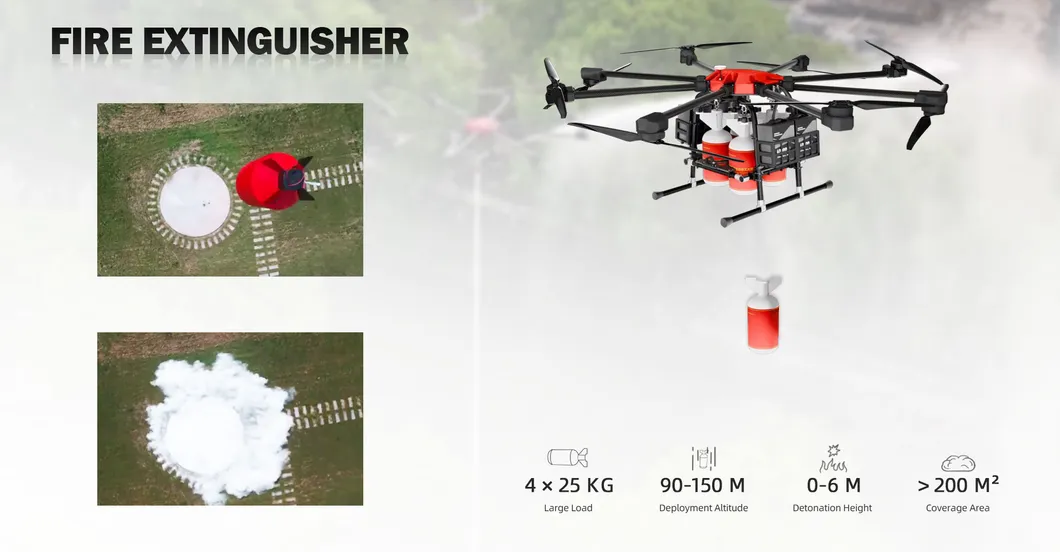

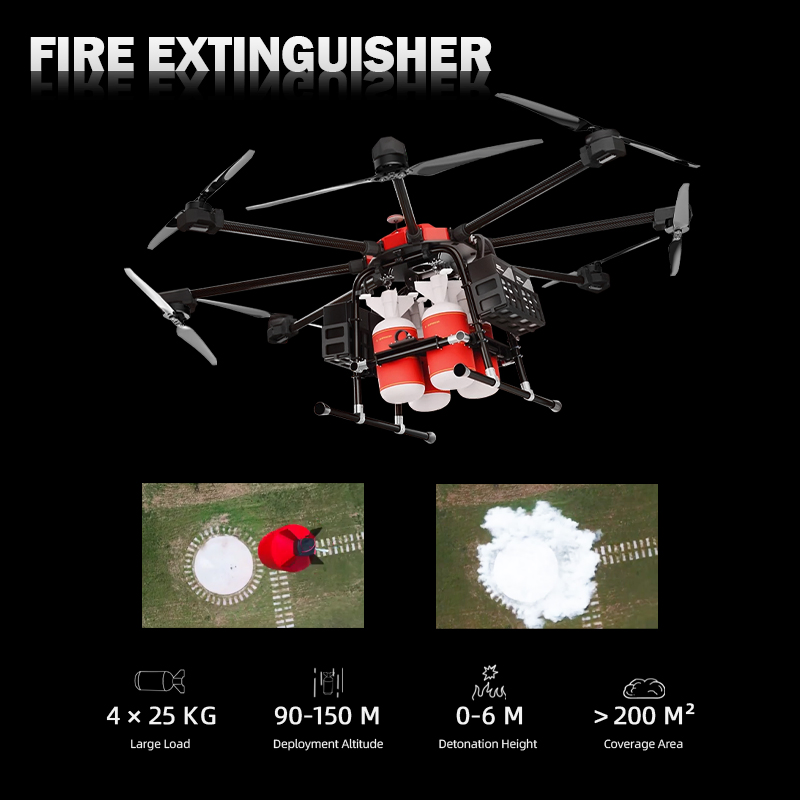

| Fire-extinguisher Bomb Specifications | |
|---|---|
| Caliber | ≤ φ 260 mm |
| Total Length | ≤ 650 mm |
| Total Weight | ≤ 23kg |
| Net Weight | ≥ 25 kg |
| Agent Type | ABC dry chemical or water-based |
| Dispersion Radius | ≥ 5 m |
| Coverage Area | ≥ 50 m² |
| Safety Radius | ≥ 20 m |
The drone is designed for heavy-lift industrial applications with a maximum payload capacity of 150kg.
The HZH XF120 offers a prolonged mission endurance of up to 45 minutes of flight time.
The drone has a maximum flight altitude of 500 meters, making it highly effective for skyscraper and high-building fire suppression.
Yes, the drone is engineered with an IP67 waterproof rating, protecting critical systems from water intrusion during firefighting operations.
The modular design allows for rapid deployment, with the drone being fully assembled and ready for flight within 5 minutes.
It can use both ABC dry chemical bombs (for liquid or electrical fires) and water-based extinguishing agents, providing versatile solutions for different fire classes.
