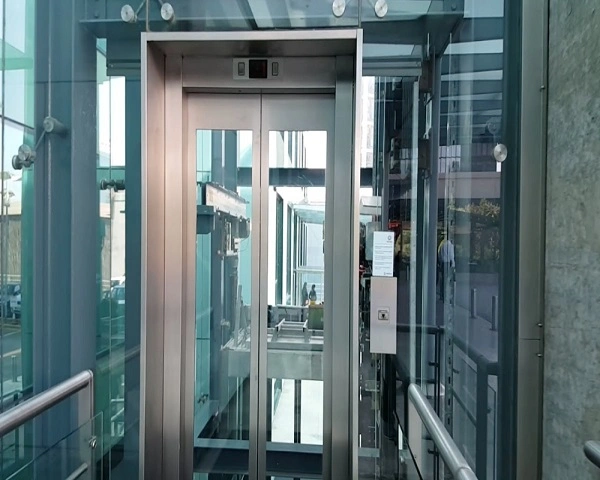

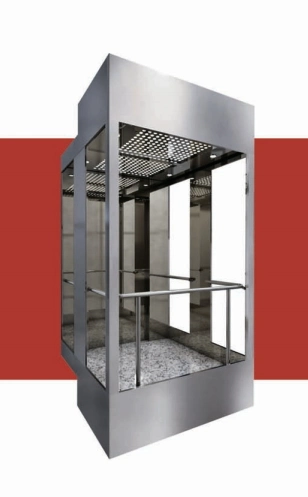

Machine Room-Less Panoramic Passenger Elevator

1 / 5

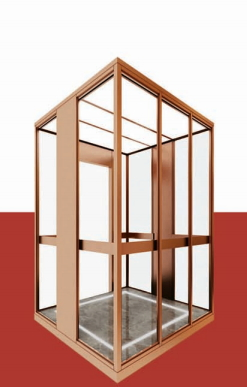

Machine Room-Less Panoramic Passenger Elevator

Customization:	Available
After-sales Service:	18mths
Warranty:	18mths

Send Inquiry

Product Description

Basic Specifications

Model NO.

IP-MRL

Driving Type

AC Elevator

Capacity

>1000kg

Persons

11 - 19

Speed

1.00 - 2.00m/s

Control Mode

Group Control

Machine Room

Without Machine Room

Elevator Door

Center Opening Door

Standard

En81

Certificate

ISO9001, Soncap, Saso

Lead Time

30 Days

Origin

China

Product Overview

Utilizing advanced technologies, we have developed the MRL panoramic passenger elevator designed specifically for shopping malls and airport terminals. The "Machine Room-Less" design ensures that building space is utilized effectively while significantly reducing energy consumption.

Maximized Rentable Space

Reduced Construction Costs

Substantial Energy Savings

Modern elevators are primarily composed of traction machines (winches), guide rails, counterweight devices, and safety systems including speed limiters, safety gears, and buffers. These components are strategically installed within the hoistway, eliminating the need for a separate machine room. The steel wire rope friction transmission system connects the car and counterweight, driven by a high-efficiency motor to ensure safe, reliable, and comfortable transportation.

Visual Presentation

Frequently Asked Questions

Q1: What are the advantages of a Machine Room-Less (MRL) elevator? A: MRL elevators save significant building space by integrating the traction machinery into the hoistway, reducing construction costs and improving energy efficiency.

Q2: What is the maximum load capacity for this model? A: This model supports a rated load capacity of over 1000kg, typically accommodating between 11 to 19 passengers.

Q3: Which safety standards do these elevators comply with? A: Our elevators are built to meet the rigorous EN81 international standards and hold ISO9001, Soncap, and Saso certifications.

Q4: What is the typical speed range of the MRL passenger elevator? A: The elevator offers a rated speed ranging from 1.00m/s to 2.00m/s, ensuring efficient vertical transportation.

Q5: How long does the production and delivery process take? A: The standard production lead time is approximately 30 days, with units being shipped in secure, export-standard wooden boxes.

Q6: Are these elevators suitable for high-traffic public areas? A: Yes, the group control mode and high conveying efficiency make them ideal for shopping malls, airport terminals, and other commercial buildings.
