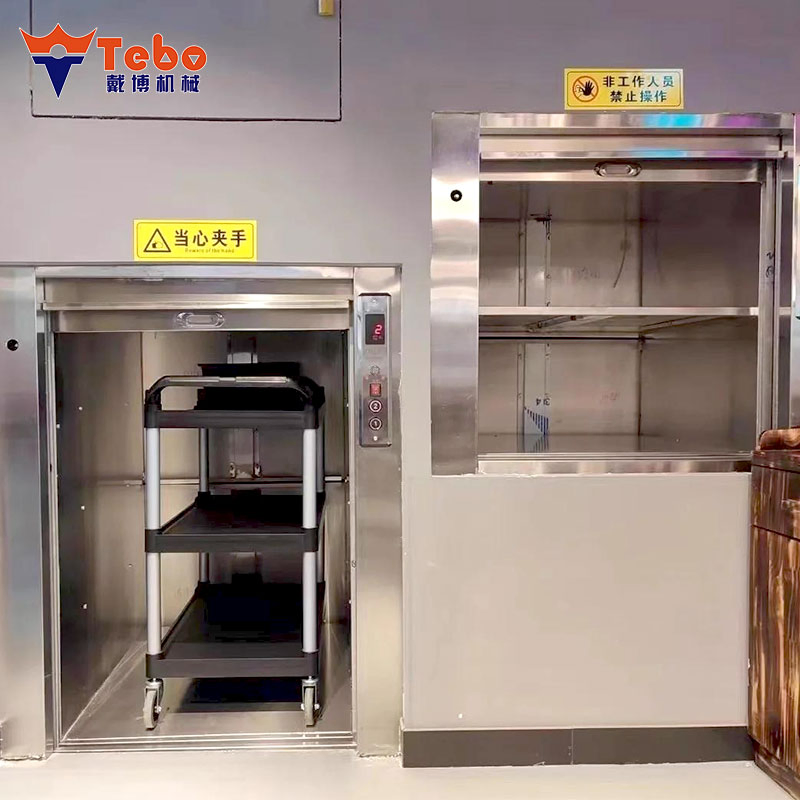

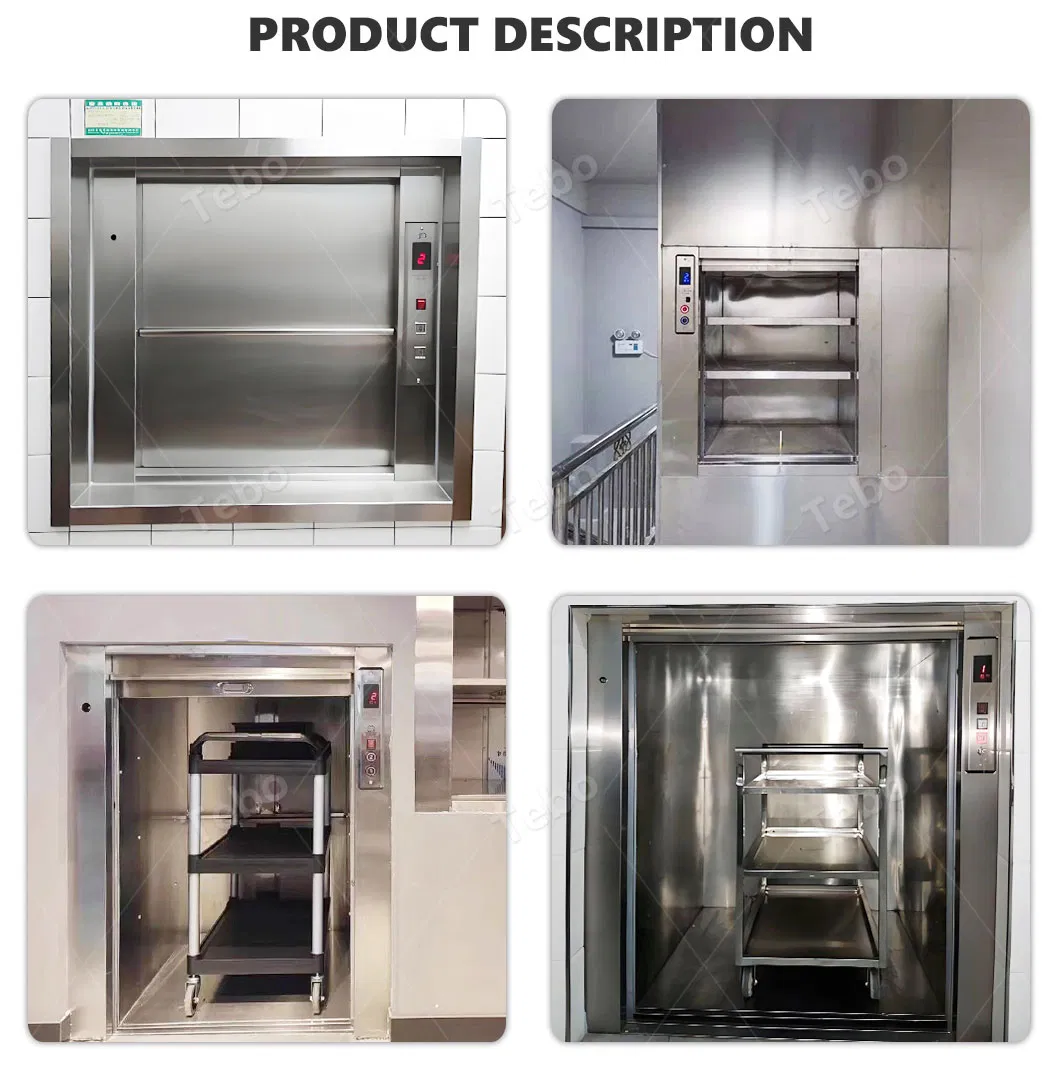

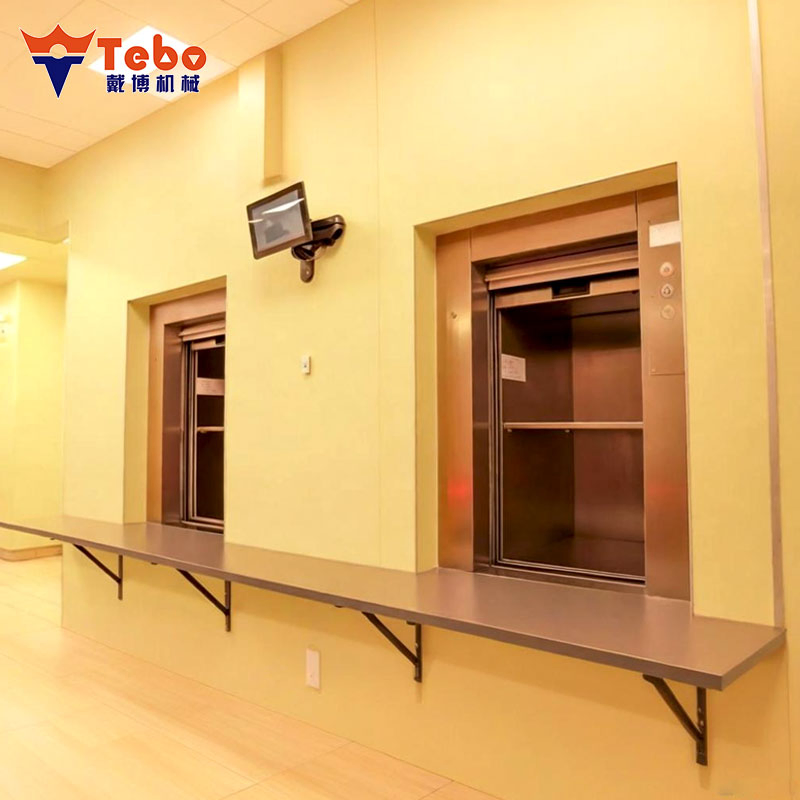

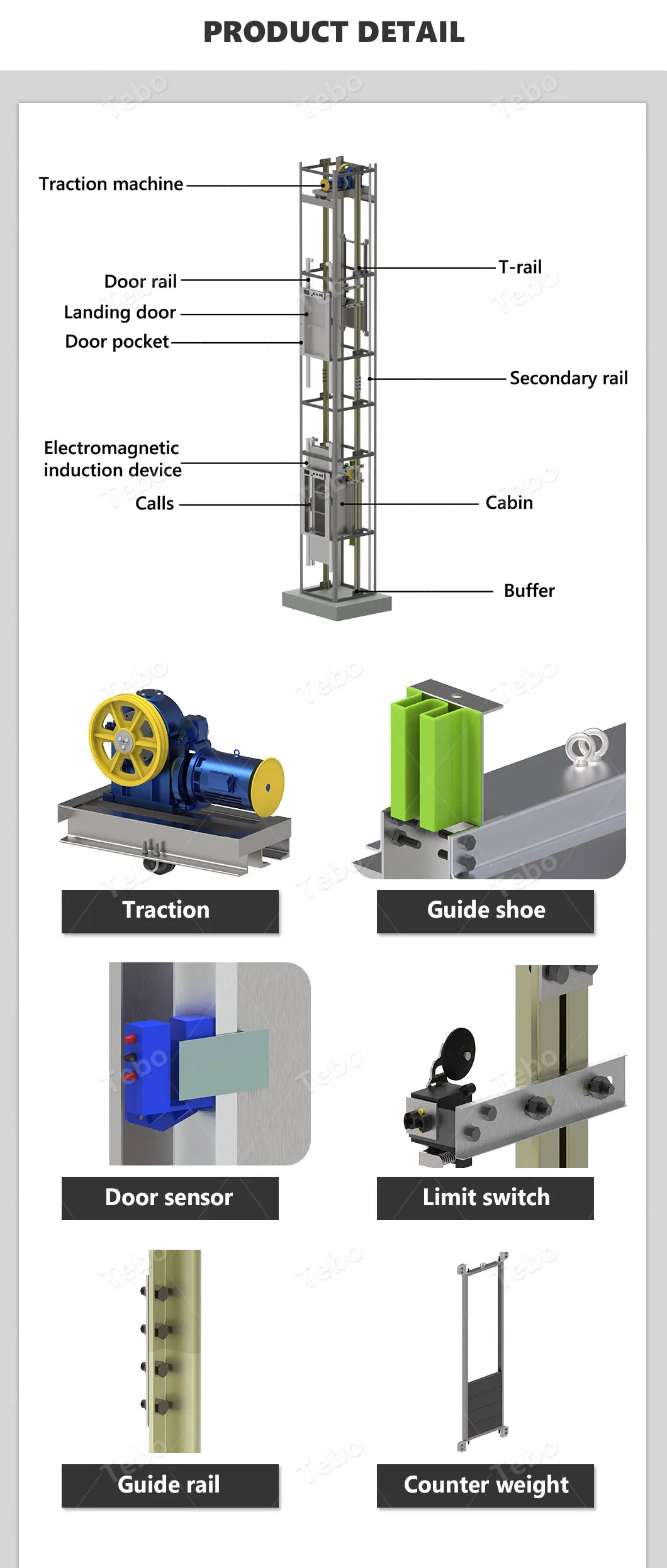

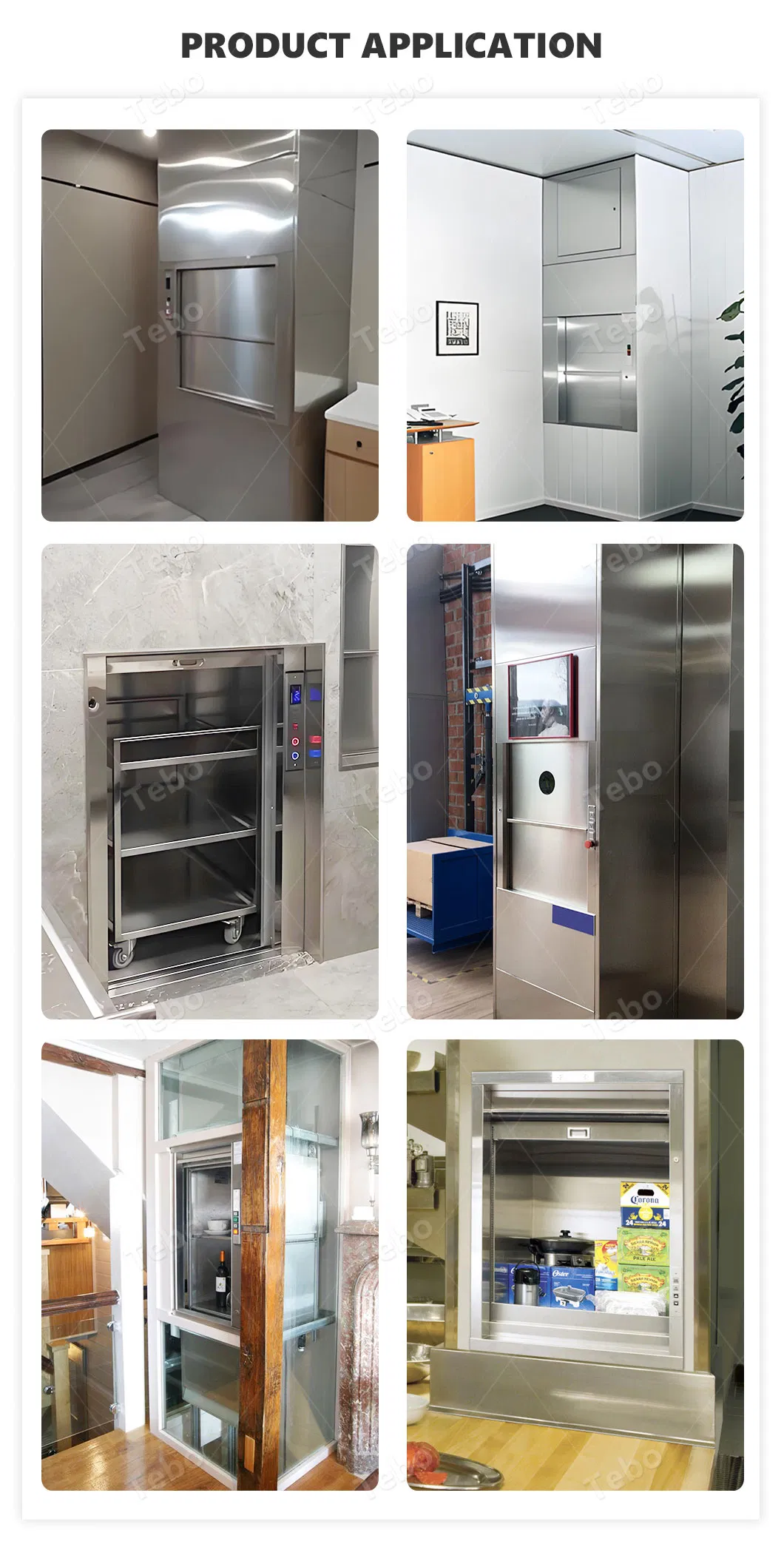

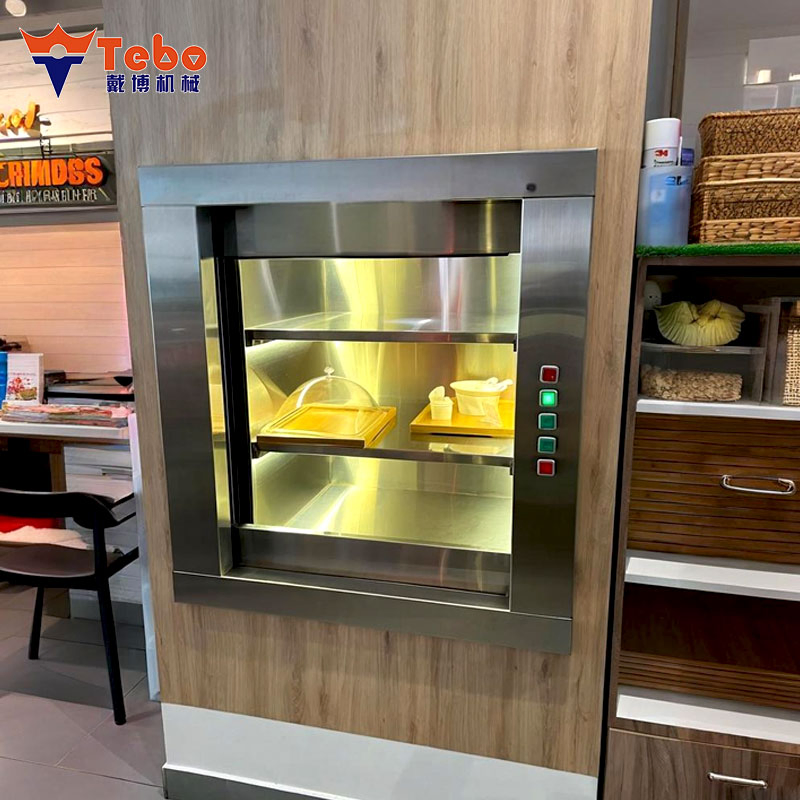

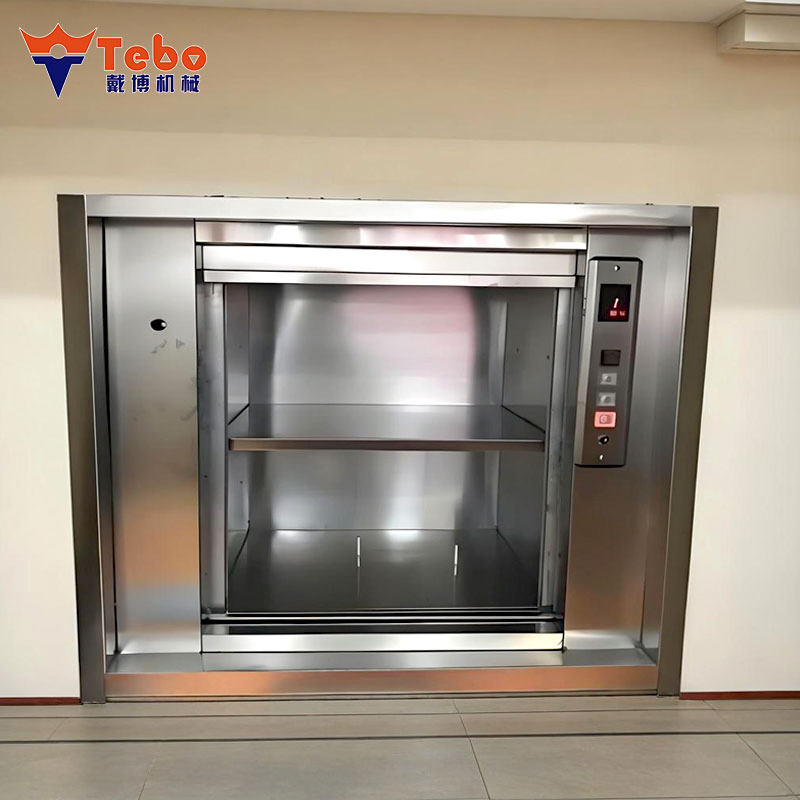

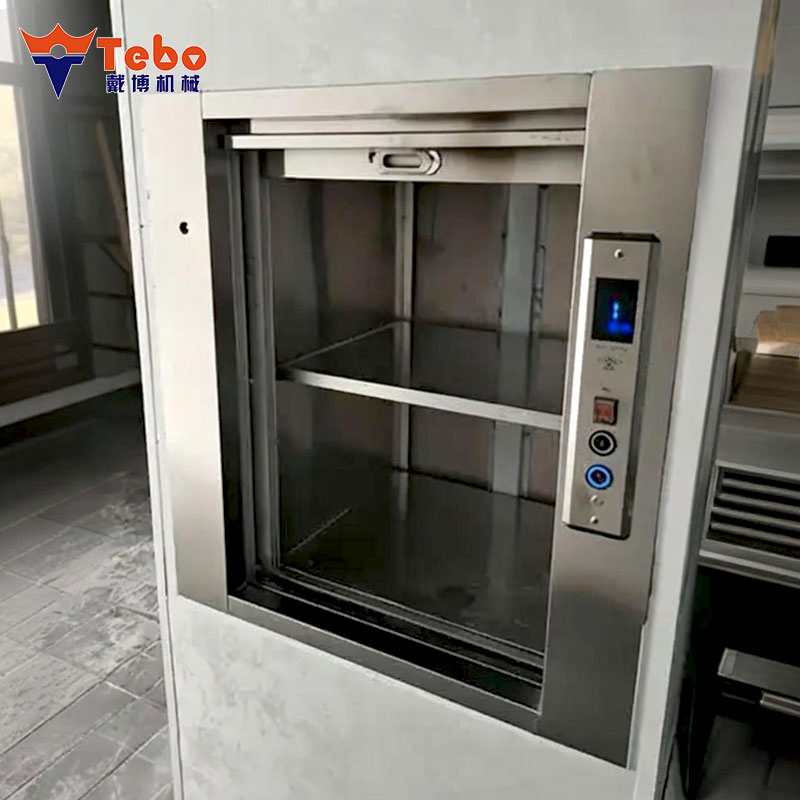

The food delivery lift is a vertical transportation device designed for restaurants, hotels, cafés, and multi-floor dining environments. It is mainly composed of a shaft structure, a stainless-steel carbin, a driving mechanism, and an intelligent control system. With a durable stainless-steel cabin and a robust steel shaft frame, the lift ensures excellent corrosion resistance and easy cleaning.
The lift significantly improves operational efficiency by quickly transferring dishes, beverages, and tableware between floors, reducing staff workload and minimizing the physical strain caused by frequent stair use. Its enclosed design prevents contamination and meets food-hygiene standards.

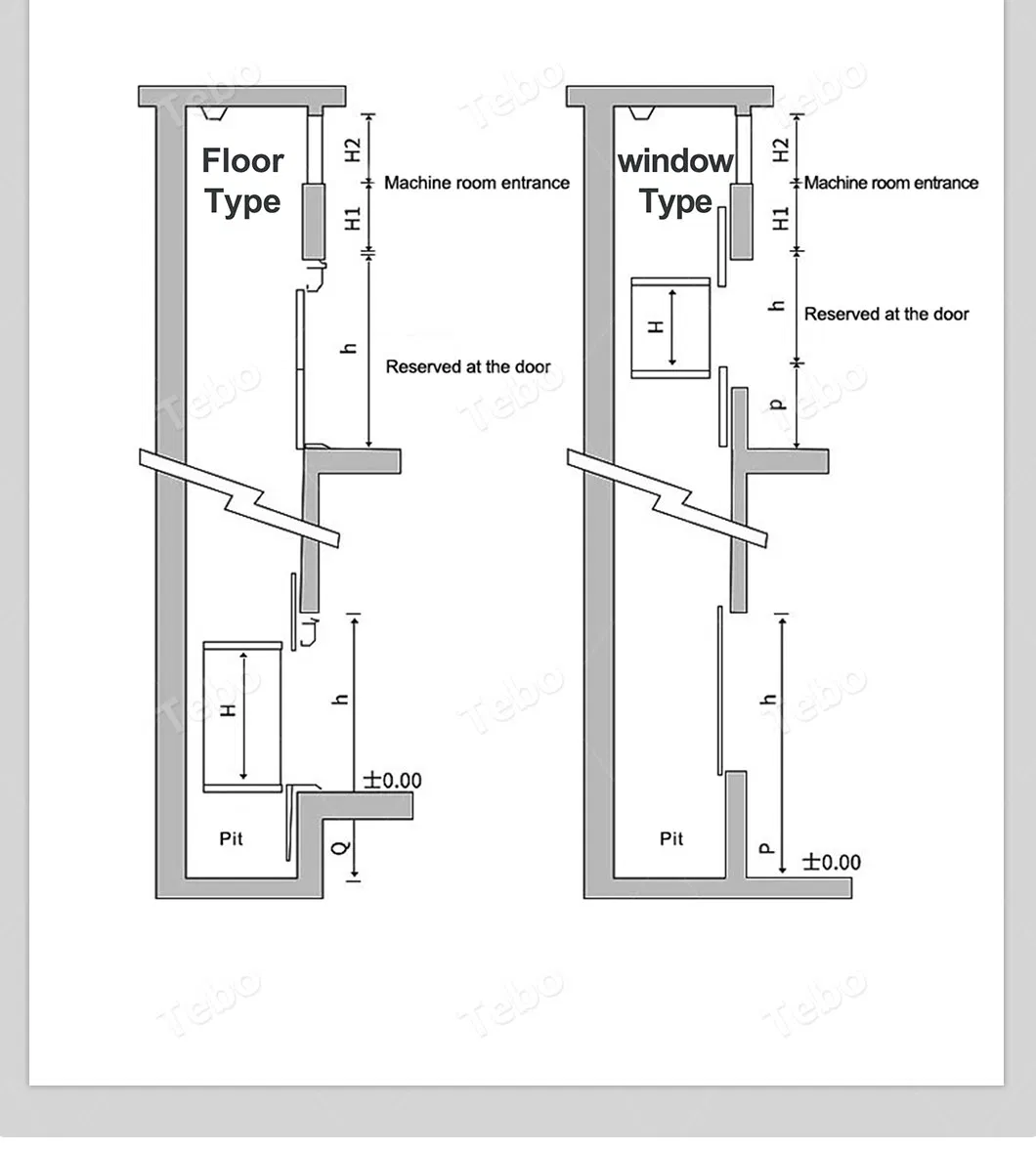

| Type | Load(kg) | Cabin size W*D*H(mm) | Landing door | Door size W*H(mm) | Window sill height | Overhead height |
|---|---|---|---|---|---|---|
| Window Type | 100 | 600*400*800 | Standard | 600*800 | 800 | 2800 |
| Window Type | 100 | 600*600*800 | Standard | 600*800 | 800 | 2800 |
| Window Type | 200 | 800*800*800 | Standard | 800*800 | 800 | 2800 |
| Window Type | 200 | 800*800*1000 | Standard | 800*1000 | 800 | 3000 |
| Type | Load(kg) | Cabin size W*D*H(mm) | Landing door | Door size W*H(mm) | Min pit depth | Overhead height |
|---|---|---|---|---|---|---|
| Floor Type | 200 | 800*800*1000 | Standard | 800*1000 | 600 | 2800 |
| Floor Type | 300 | 1000*1000*1200 | Standard | 1000*1200 | 700 | 3200 |
| Floor Type | 400 | 1000*1200*1400 | Standard | 1200*1400 | 800 | 3600 |
We are a professional enterprise specializing in the R&D and manufacturing of mechanical equipment. Our operational and production base is located in a well-connected industrial city. Our company has assembled an experienced and highly innovative technical team, continuously developing and optimizing multiple product series. We possess significant advantages in structural design, operational efficiency, and stability.
Our core product range includes hydraulic home elevators, hydraulic freight lifts, hydraulic car lifts, and hydraulic scissor lift platforms. By leveraging stable hydraulic drive systems and exceptional load-bearing capacity, these products provide smooth and quiet vertical transportation solutions for both residential and industrial settings.
