Customization: Available
Type: Bed Elevator
Speed: 1.0-2.5 M/S
Send Inquiry

Product Description

i

Basic Info

Model NO.
FUJI-F
Capacity
1600-2000 Kgs
Persons
>20
Driving Type
AC Elevator
Control Mode
Collective Selective Control
Elevator Door
Center/Side Opening
Door Knife
Single
Buffer Device
Energy Consumption
Production Time
25-30 Days
Origin
China
HS Code
8428101090
Specification
Hairline Stainless Steel
Hospital Elevator
Stretcher Lift
★

Product Description

Warm concern, a beautiful human-oriented world

Our series bed lift products fully reflect the "human oriented" design principle, creating a moving space full of warmth and comfort for both patients and medical staff to the utmost. With soft light and simple color tones, you can practically feel the tender concern at all times.

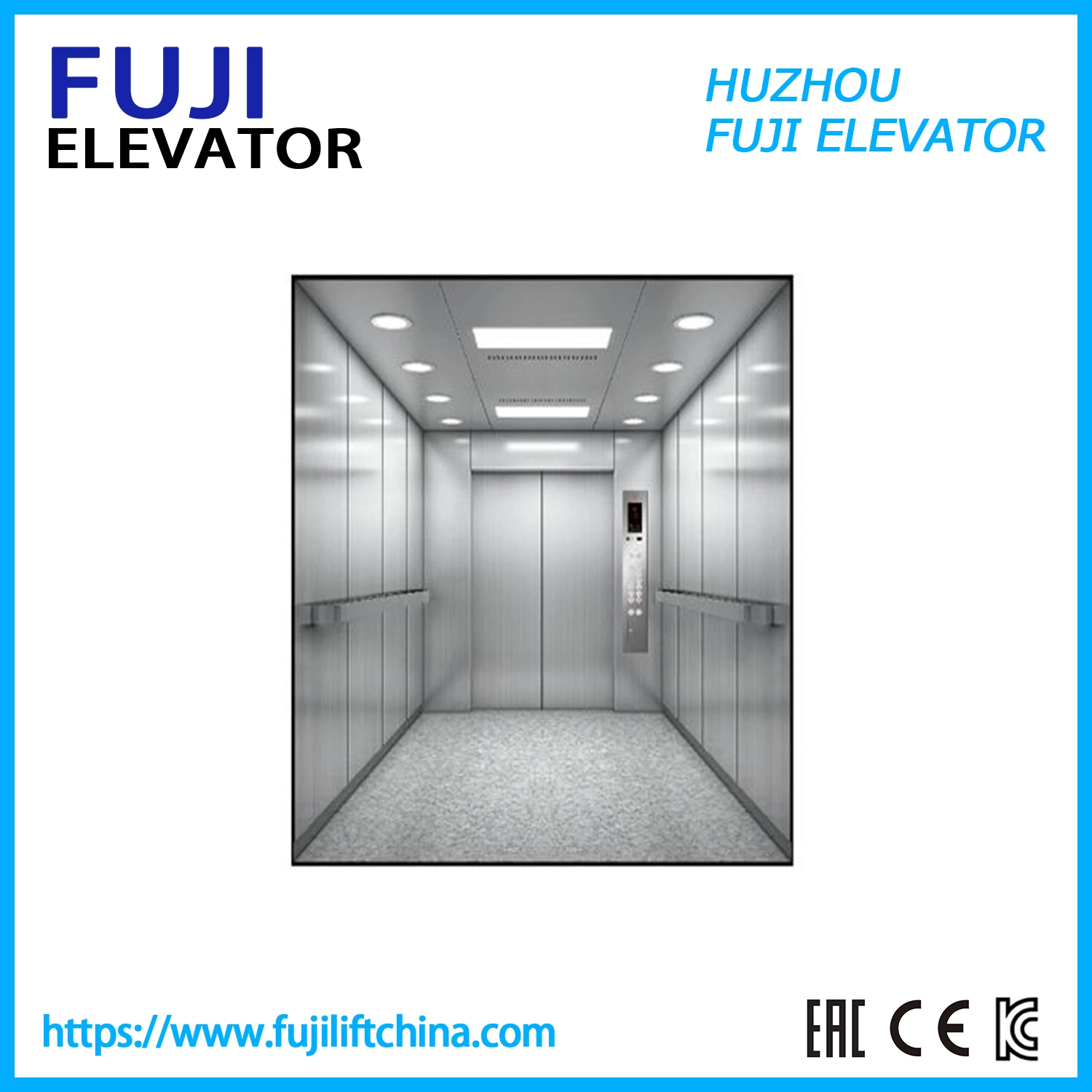

Bed Elevator Interior

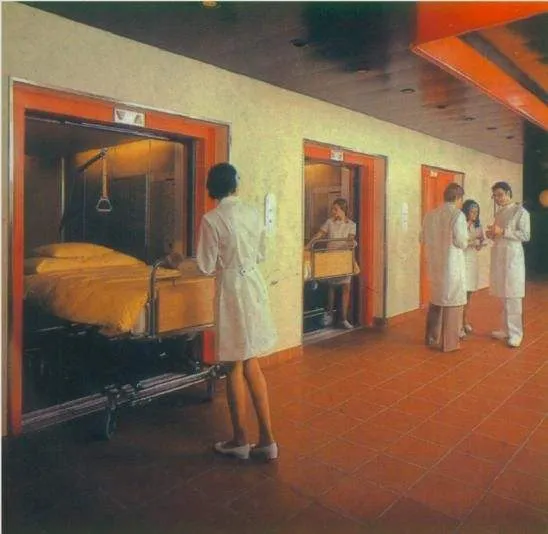

Opening Mechanism

Three ways to open the door to meet the different requirements of the hospital, enabling the construction of a flexible hospital layout.

Persons Rated Capacity (kg) Rated Speed (m/s) Car Net Size Door Net Size Shaft Size Machine Room Size
CW*CD*DH Opening HW*HD HRH PIT MRW*MRD MRH
21 1600 1.0 1400*2400*2300 1100*2100 2550*2900 4500 1500 2550*2900 2500
1.5/1.75 4700 1600
2.0 4900 1800
2.5 5100 2000
24 1600 1.0 1600*2400*2300 1200*2100 2750*2900 4500 1500 2750*2900 2500
1.5/1.75 4700 1600
2.0 4900 1800
Technical Drawing 1
Technical Drawing 2
?

Frequently Asked Questions

What is the carrying capacity of this hospital bed elevator?
The rated capacity ranges from 1600kg to 2000kg, capable of accommodating more than 20 persons or large medical stretchers.
What door opening options are available?
The elevator supports both center opening and side opening configurations to meet different hospital architectural requirements.
What is the standard production lead time?
The production time for these units is typically within 25 to 30 days.
What material is used for the elevator construction?
The elevator features hairline stainless steel specifications, ensuring durability and ease of cleaning in medical environments.
Is the ride quality suitable for patients?
Yes, the AC elevator uses advanced deceleration devices and collective selective control to ensure a low-noise, smooth, and comfortable ride.
How is the product packaged for international transport?
All units are packed in high-quality export wooden cases to ensure maximum protection during transit.
