| Model NO. | XF120 |
| Size | Large |
| Usage | Firefighting |
| Structure | Wing UAV |
| Maximum Load Weight | 150 Kg |
| Max. Takeoff Weight | 257.8 Kg |
| Max. Flight Altitude | 500 M |
| Max. Flight Time | 45 Min |
| Axis | 8 |
| Keyword | Industrial UAV Drone with Fire Extinguisher |
| Specification | 4605*4605*990mm |

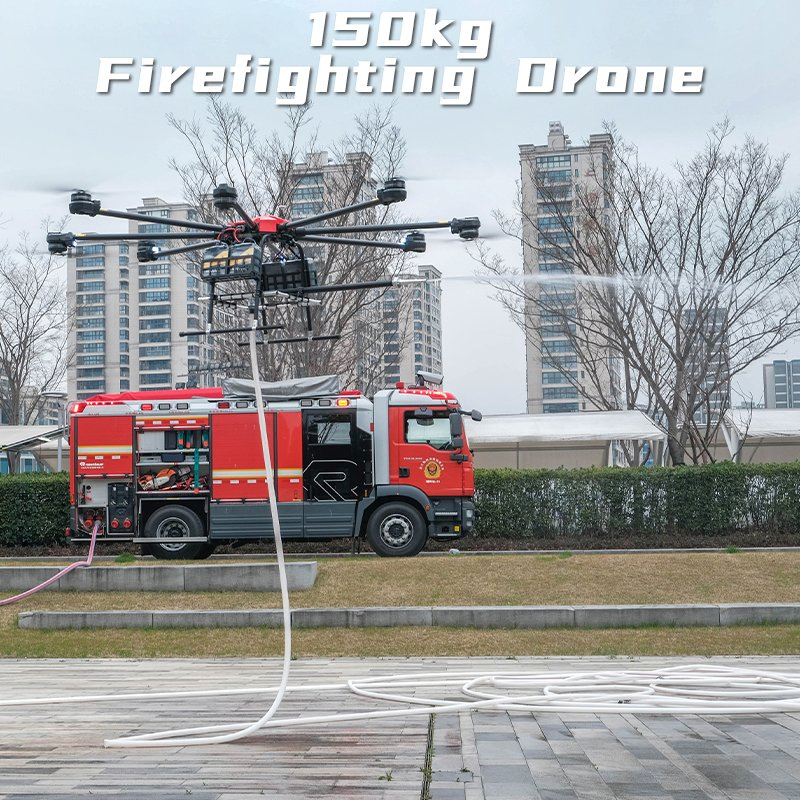

Professional Firefighting UAV - 150kg Heavy Lifting Industrial Drone
| Technical Specifications | |
|---|---|
| Dimensions (Unfolded) | 4605*4605*990mm |

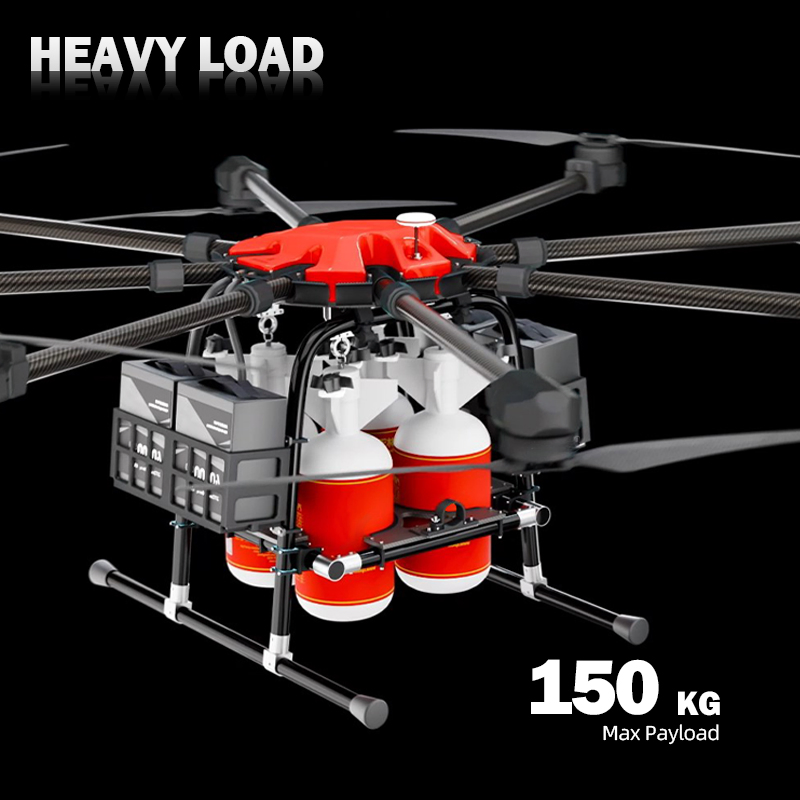

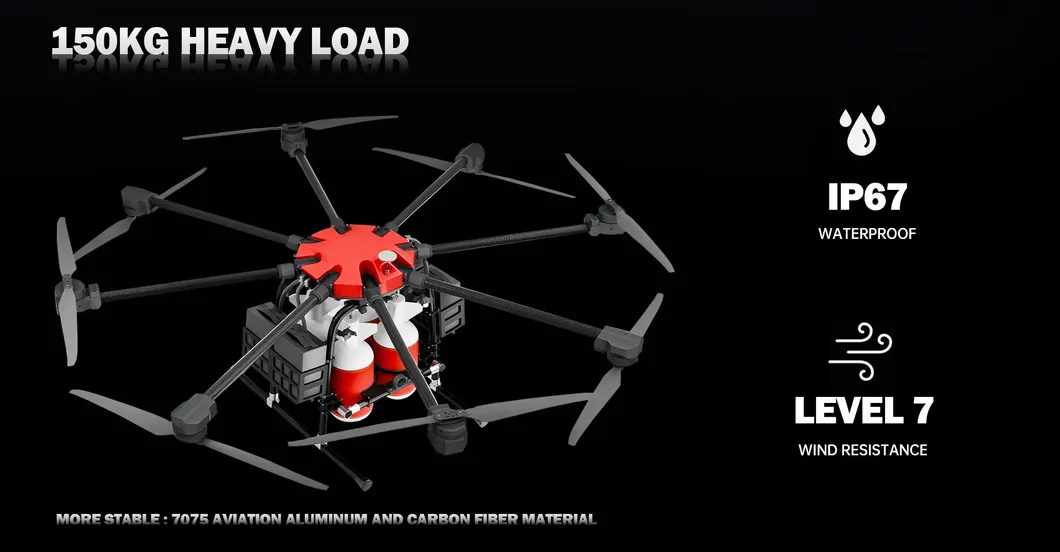

| Max. Payload | 150kg |
| Max. Takeoff Weight | 257.8 kg |

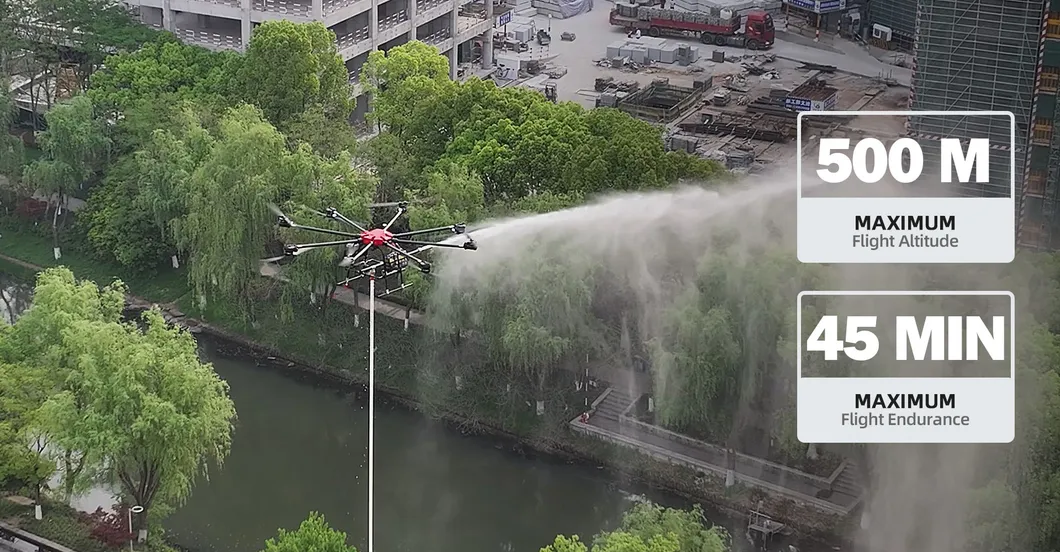

| Max. Flight Altitude | 500 M |
| Max. Altitude Limit | 4500 m |
| Operation Height | ≤ 1000m |
| Max. Flight Time | 45 minutes |

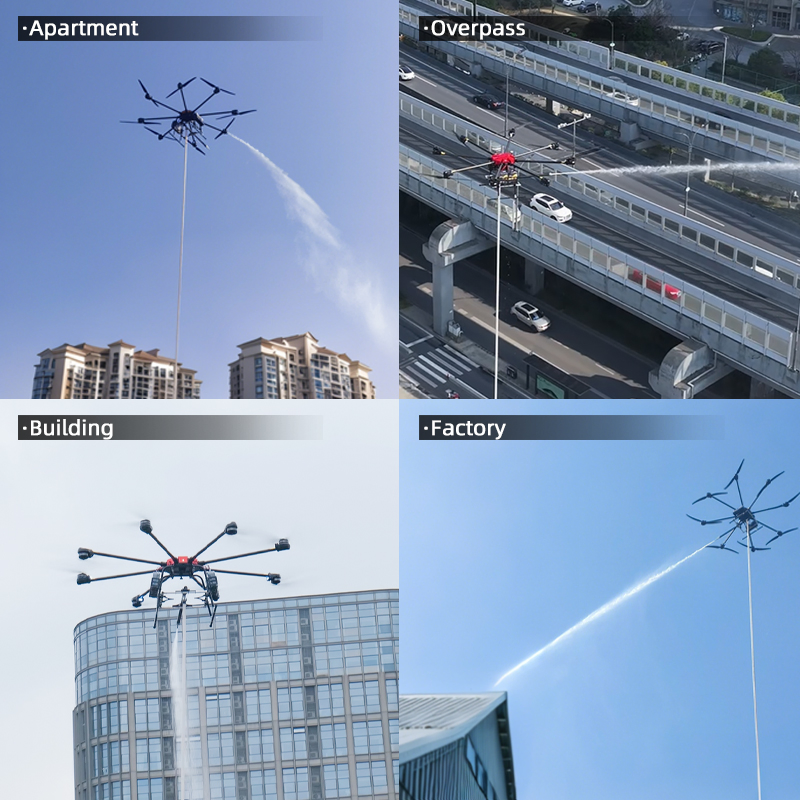

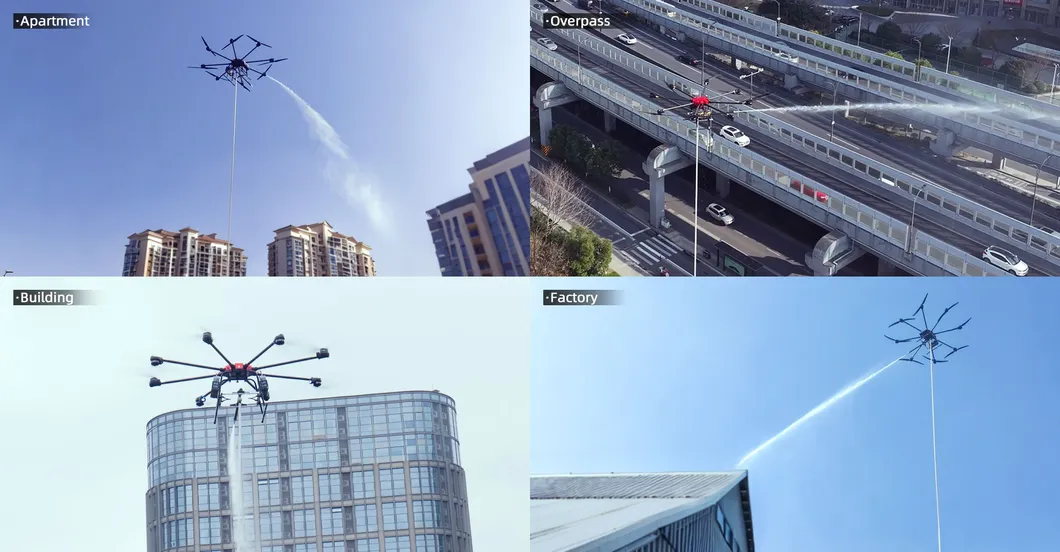

Quickly assess scale and spread in densely populated areas. Equipped with high-pressure nozzles to cool fires and prevent vertical spread, enhancing resident safety.
Reaches incident sites rapidly above traffic congestion. Deploys fire extinguishing bombs precisely to suppress vehicle fires and restore traffic flow.
Ascends rapidly to upper stories, bypassing blocked stairwells. Curbs vertical progression and protects critical infrastructure and valuable documents.
Handles flammable liquids and combustible materials. Uses both water-spraying and extinguishing bombs to safeguard industrial operations and equipment.

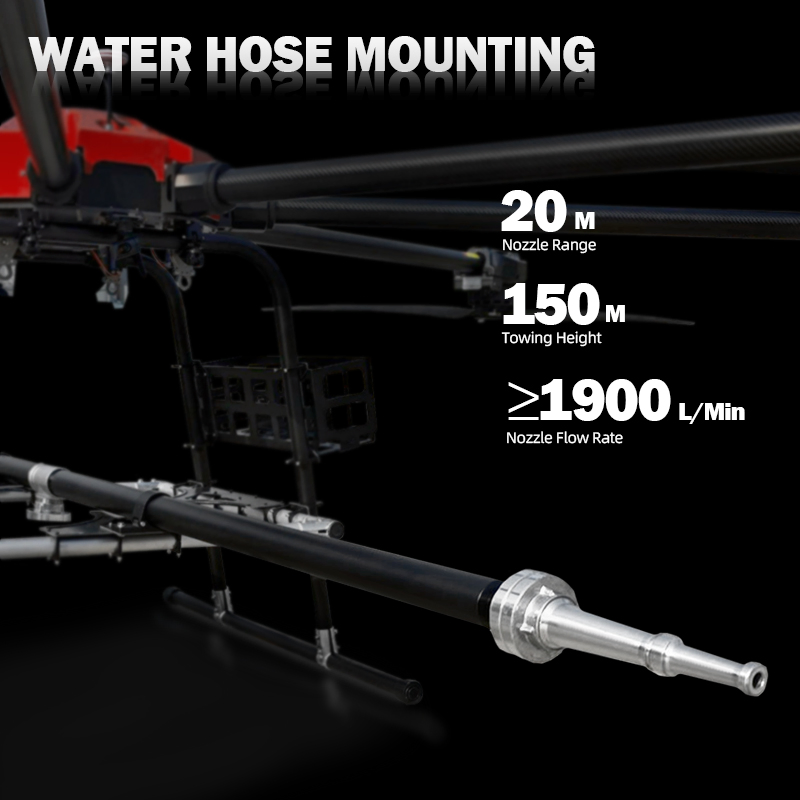

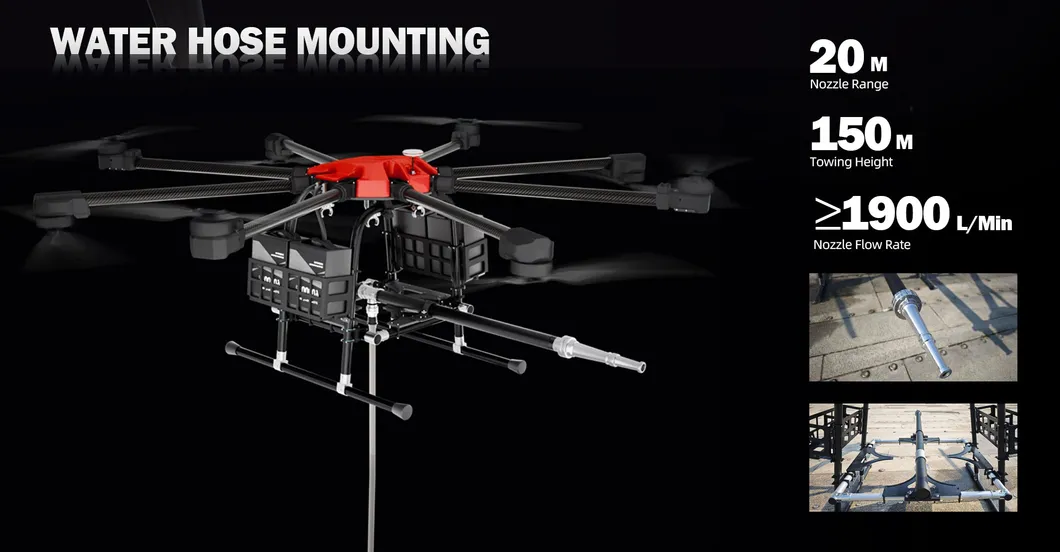

| Water Hose Parameters | |
|---|---|
| Hose Diameter | 50mm |
| Nozzle Length | 3m |
| Nozzle Range | 20m |
| Nozzle Flow Rate | ≥1900L/min |
| Towing Height | 150m |
| Fire Extinguisher Bomb | |
|---|---|
| Caliber | ≤ φ 260 mm |
| Total Weight | ≤ 23kg |
| Agent Type | ABC Dry / Water-based |
| Dispersion Radius | ≥ 5 m |
| Coverage Area | ≥ 50 m² |
