🔷 Basic Information
Mechanism
Articulated Lift
Elevator Door
Straight Fractional Door
Cage Size
3040*1500*2400mm

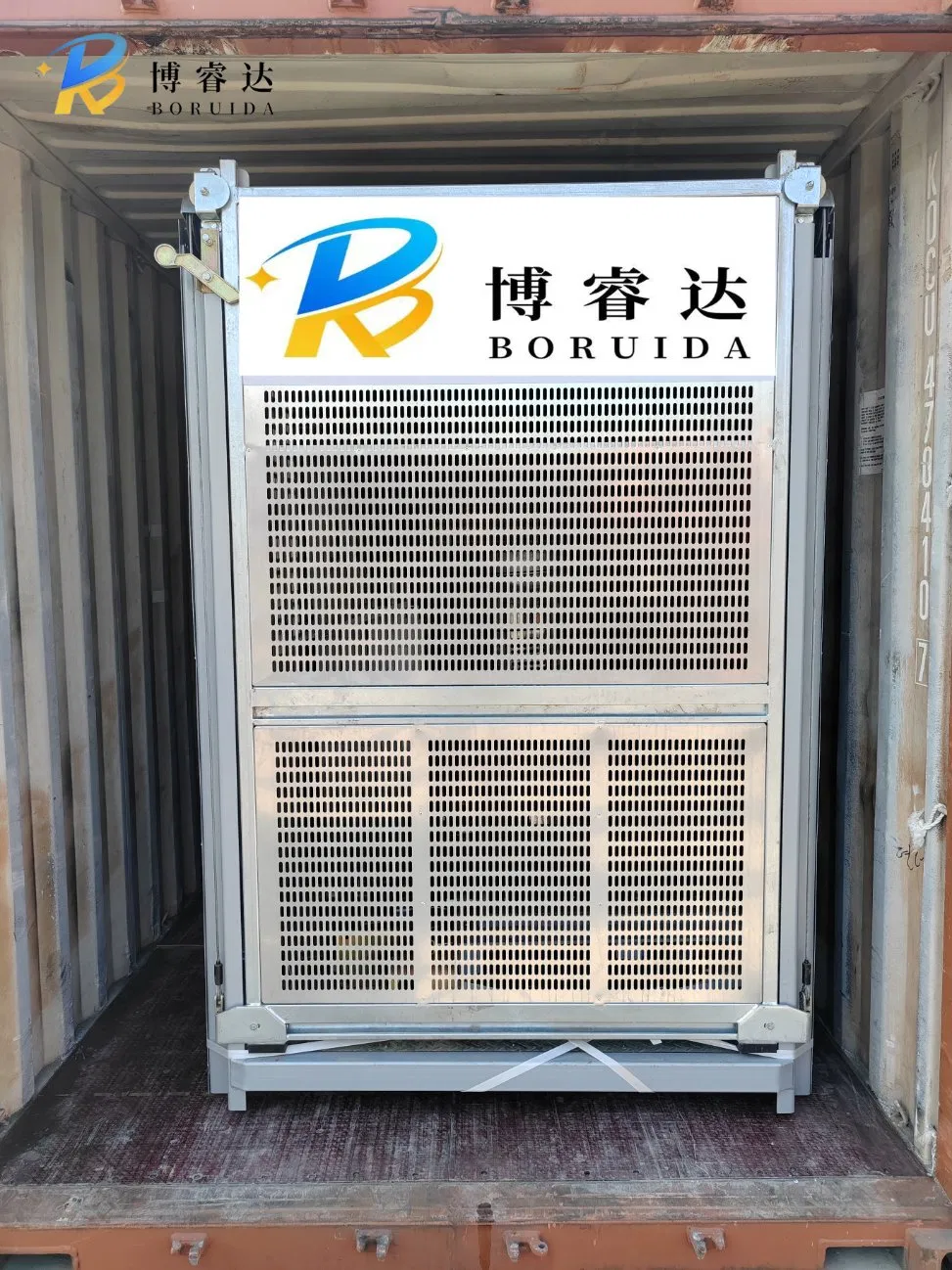

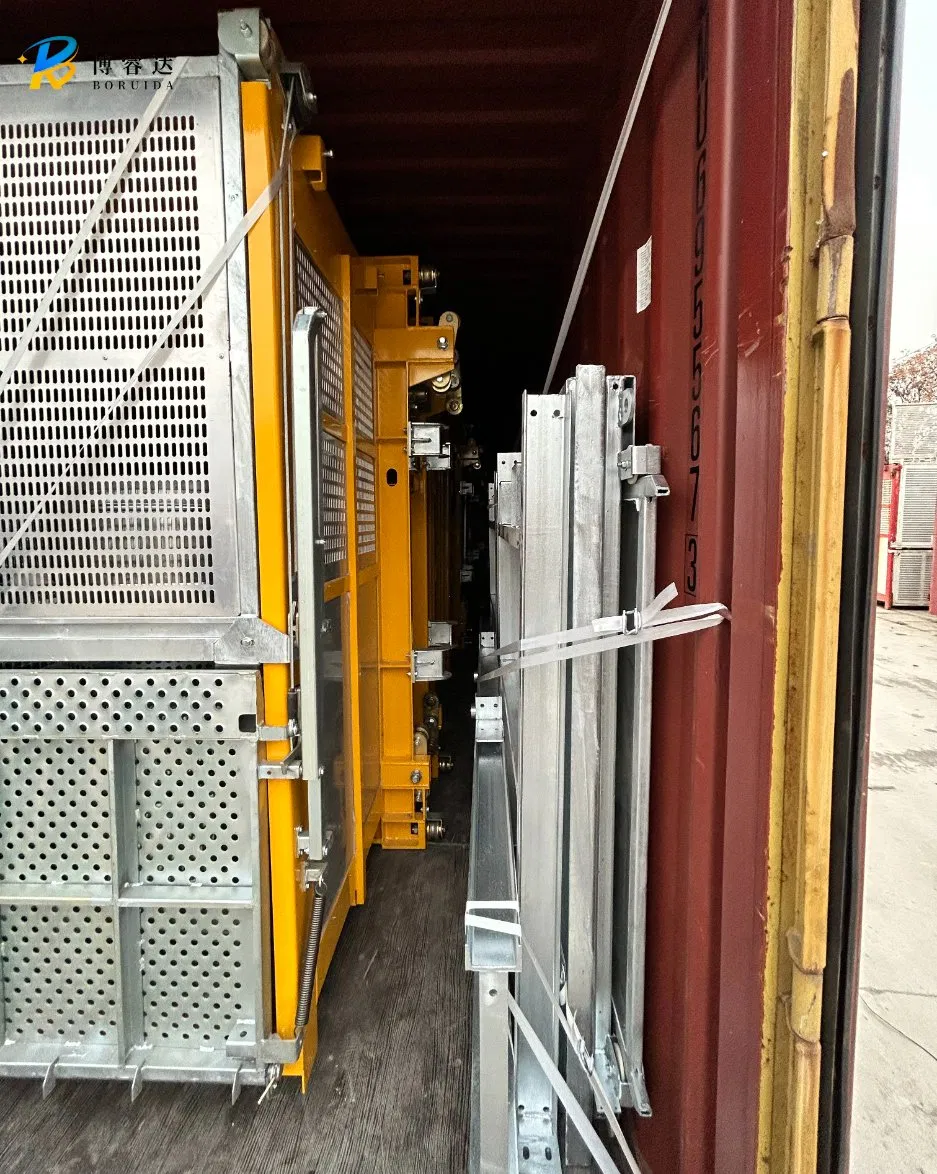

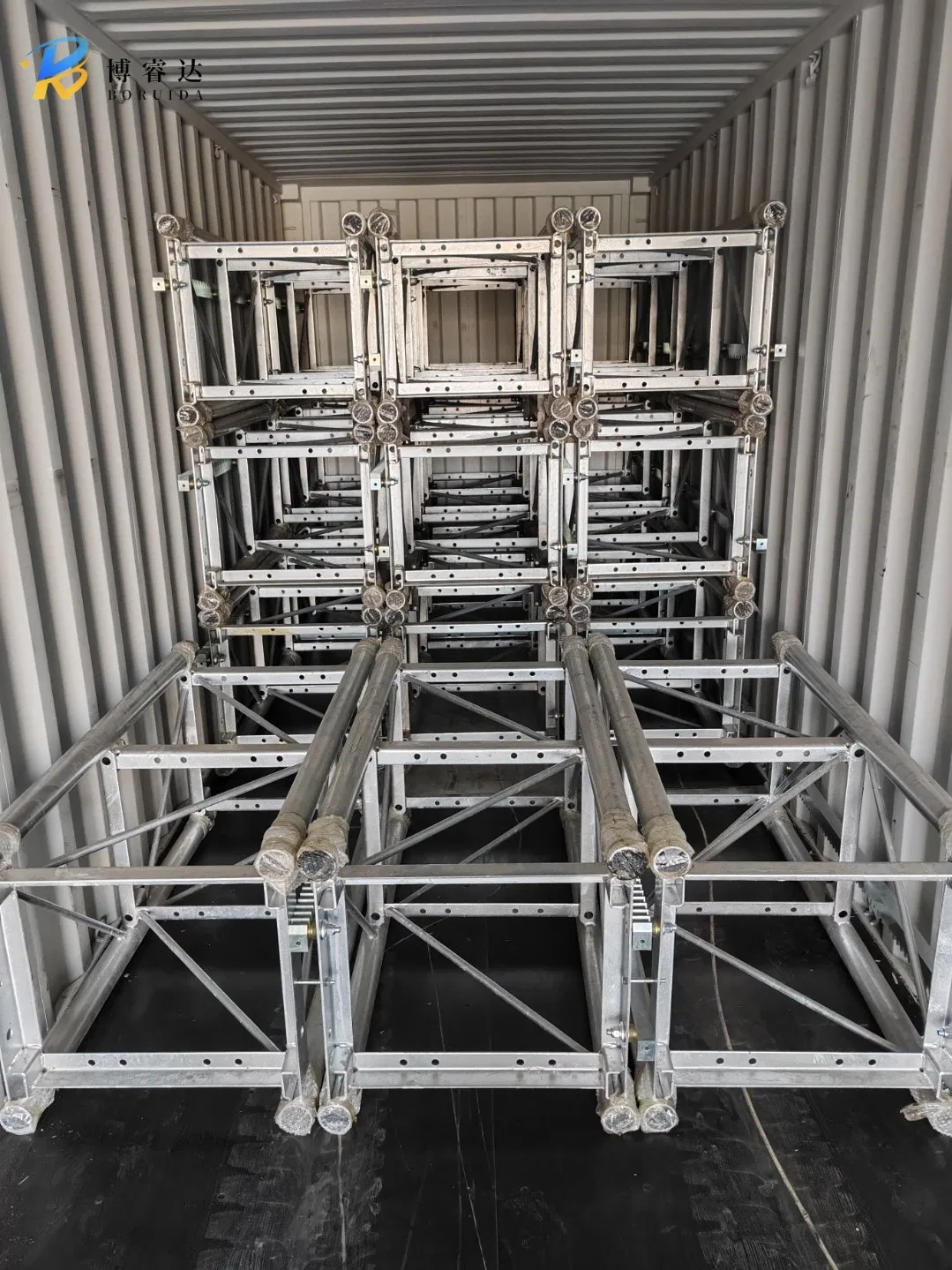

📦 Packaging & Delivery
Package Size
320.00cm * 150.00cm * 240.00cm
🛠️ Product Description
Excellence in Product Design and Manufacturing:
- Production lines utilize specialized fixtures, moulds, and gauges to ensure precise dimensional accuracy.
- High-quality raw materials sourced from major steel groups; high-performance motors, reducers, and safety devices with low noise.
- Compact and reasonable structure designed for easy installation and adjustment.
- Rigorous factory testing including motor brakes, safety devices, limit switches, dropping tests, and loading tests.
📊 Specifications
| Characteristic |
Model |
Rated Loading |
Lifting Speed |
Motor Power |
| Double Cages | Standard | SC200/200 | 2x2000kg | 33m/min | 2x(3x11kw) |
| Standard | SC150/150 | 2x1500kg | 33m/min | 2x(2x13kw) |
| Standard | SC100/100 | 2x1000kg | 33m/min | 2x(2x11kw) |
| Single Cage | Standard | SC200 | 2000kg | 33m/min | 3x11kw |
| Standard | SC150 | 1500kg | 33m/min | 2x13kw |
| Standard | SC100 | 1000kg | 33m/min | 2x11kw |
| Double Cages | Low Speed | SC200/200D | 2x2000kg | 0-40m/min | 2x(3x11kw) |
| Mid Speed | SC200/200Z | 2x2000kg | 0-60m/min | 2x(2x23kw) |
✅ Prominent Features
- Robot Welding: Mast sections are welded by robots for reliable quality and elegant appearance.
- Rust Removal: All steel structures are processed with blasting technology for outstanding paint adhesion.
- Advanced Guarding: Suspension cages utilize lightweight figured aluminum plates.

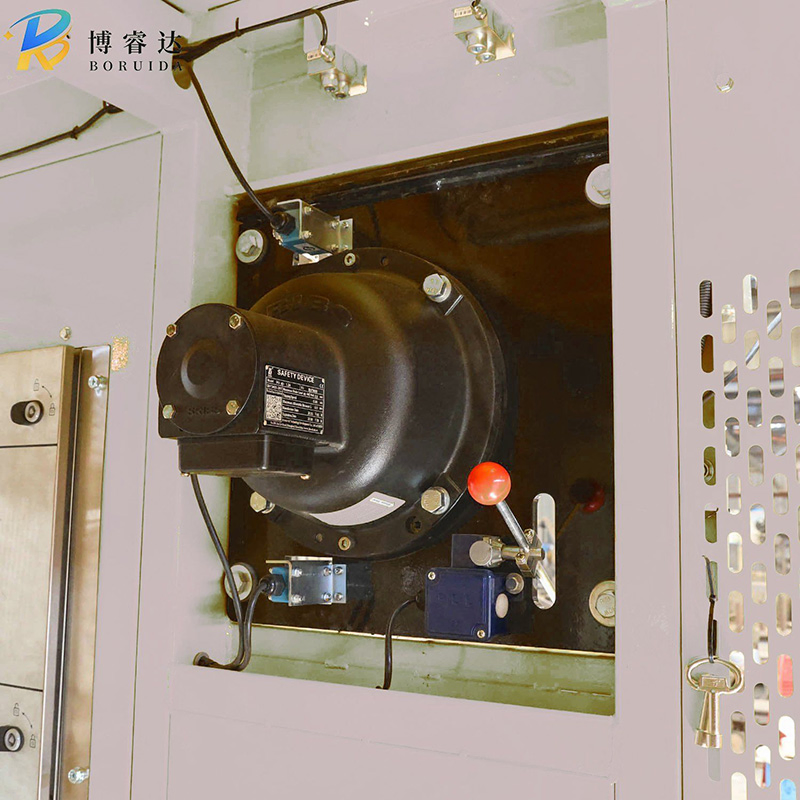

- Safety Systems: Equipped with SAJ40-1.2 anti-falling safety devices and complete overload protection.

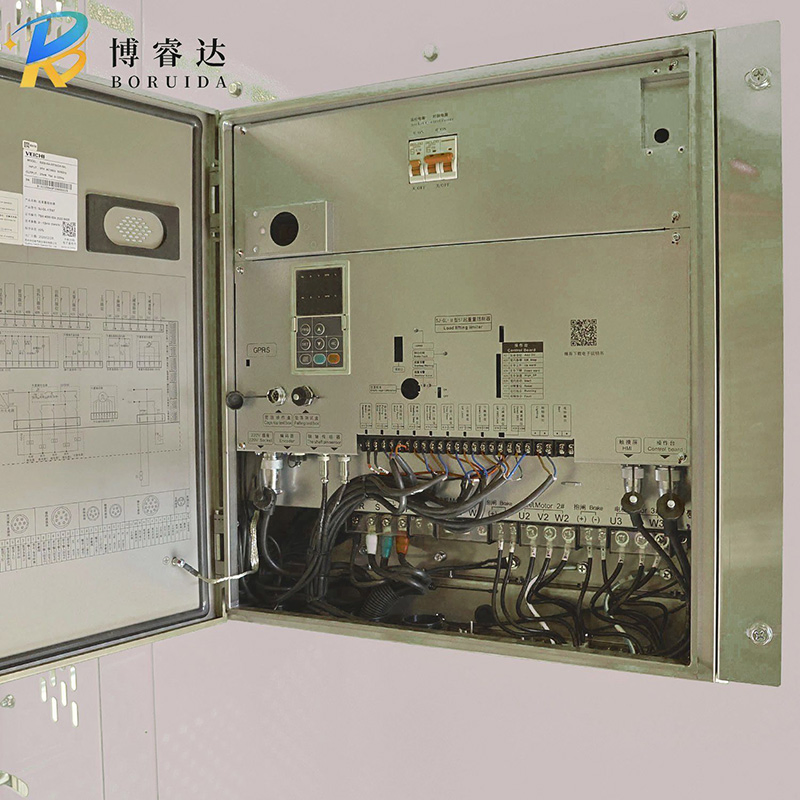

- Frequency Conversion: Stable, comfortable operation with energy-saving efficiency.

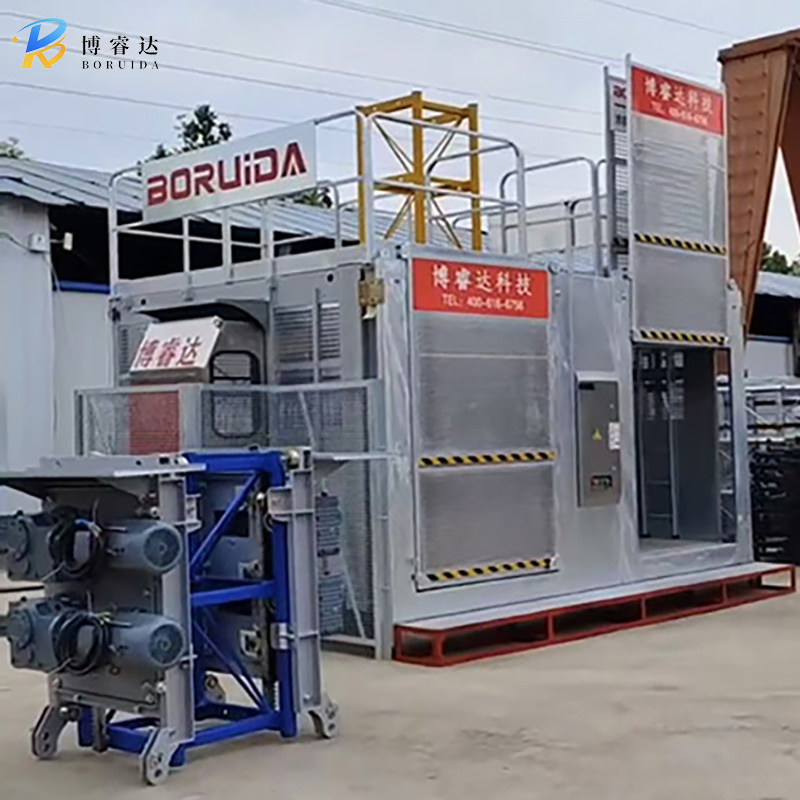

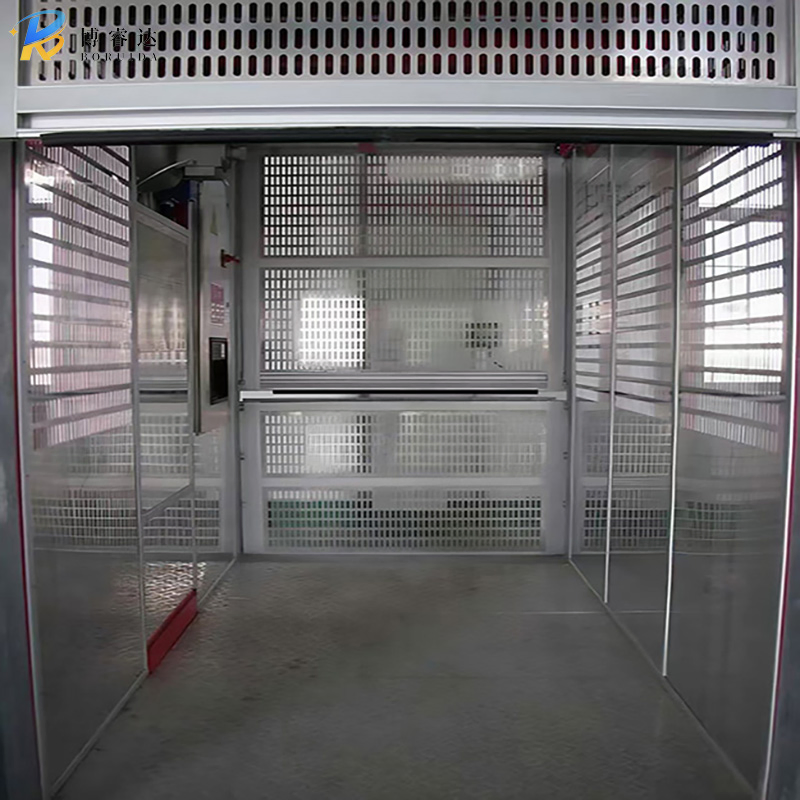

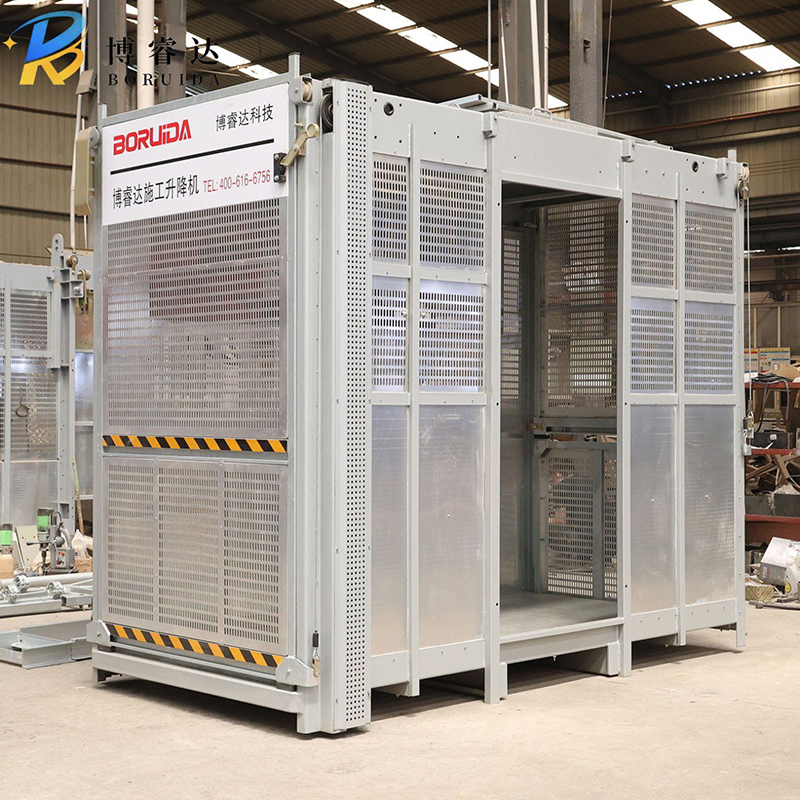

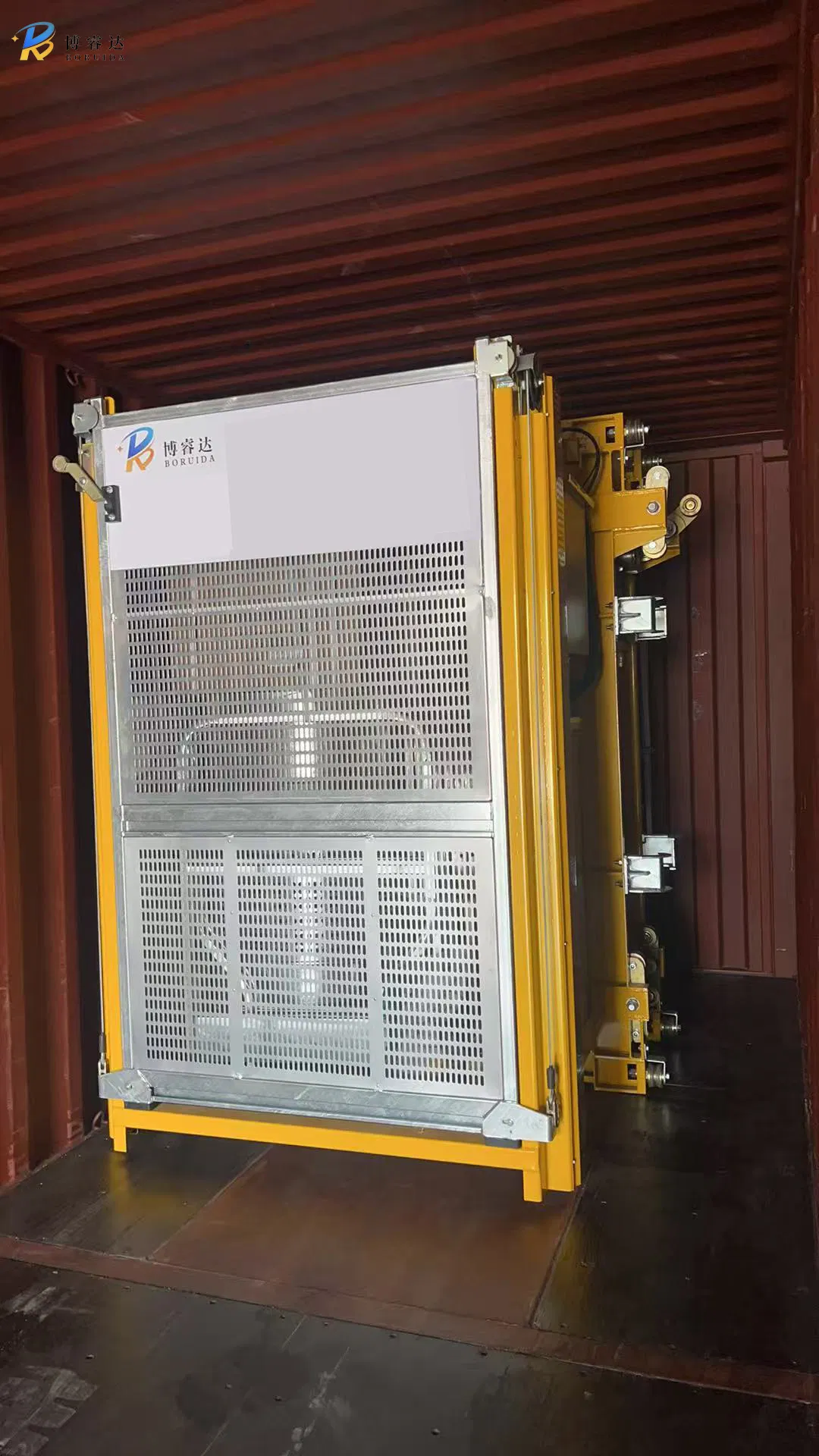

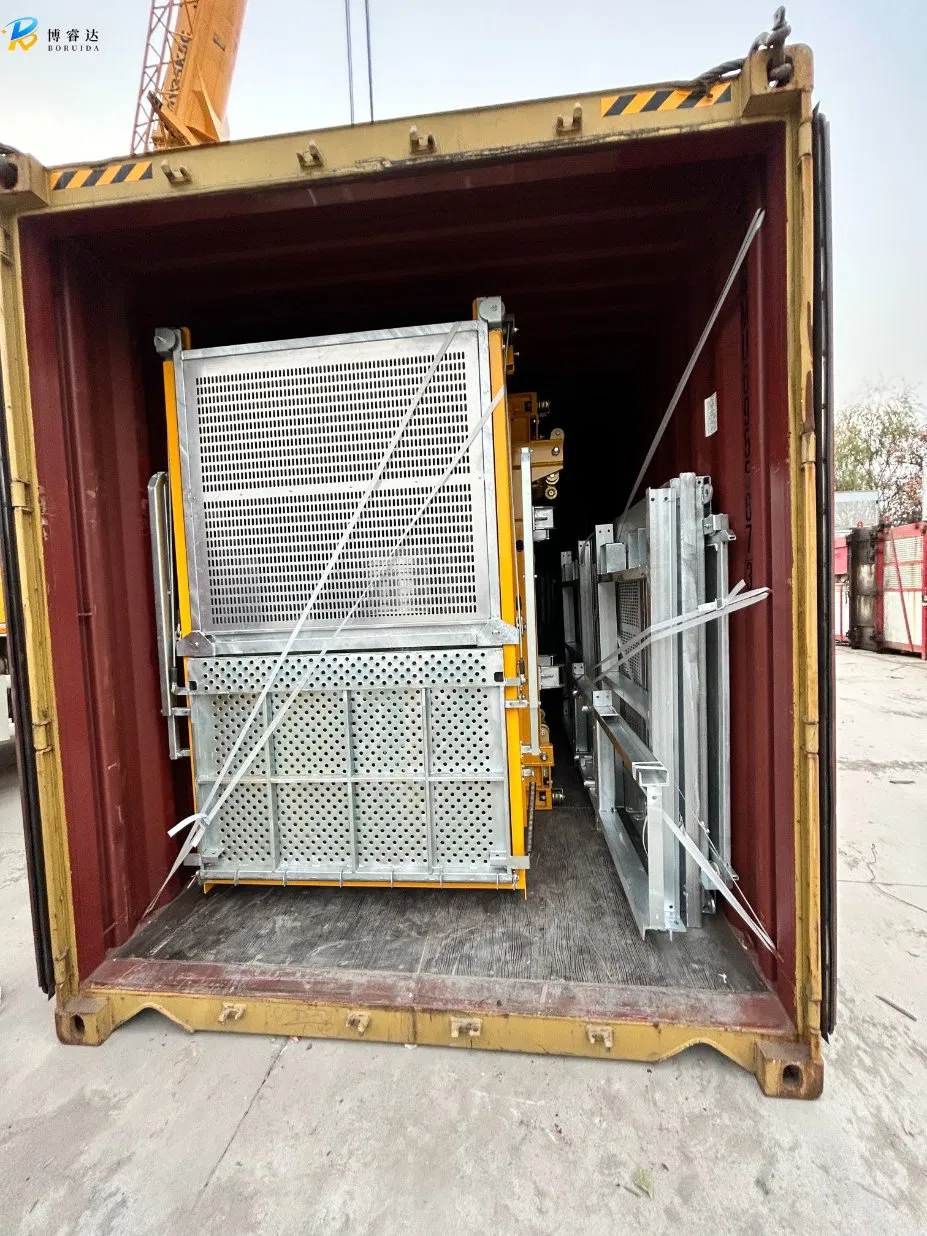

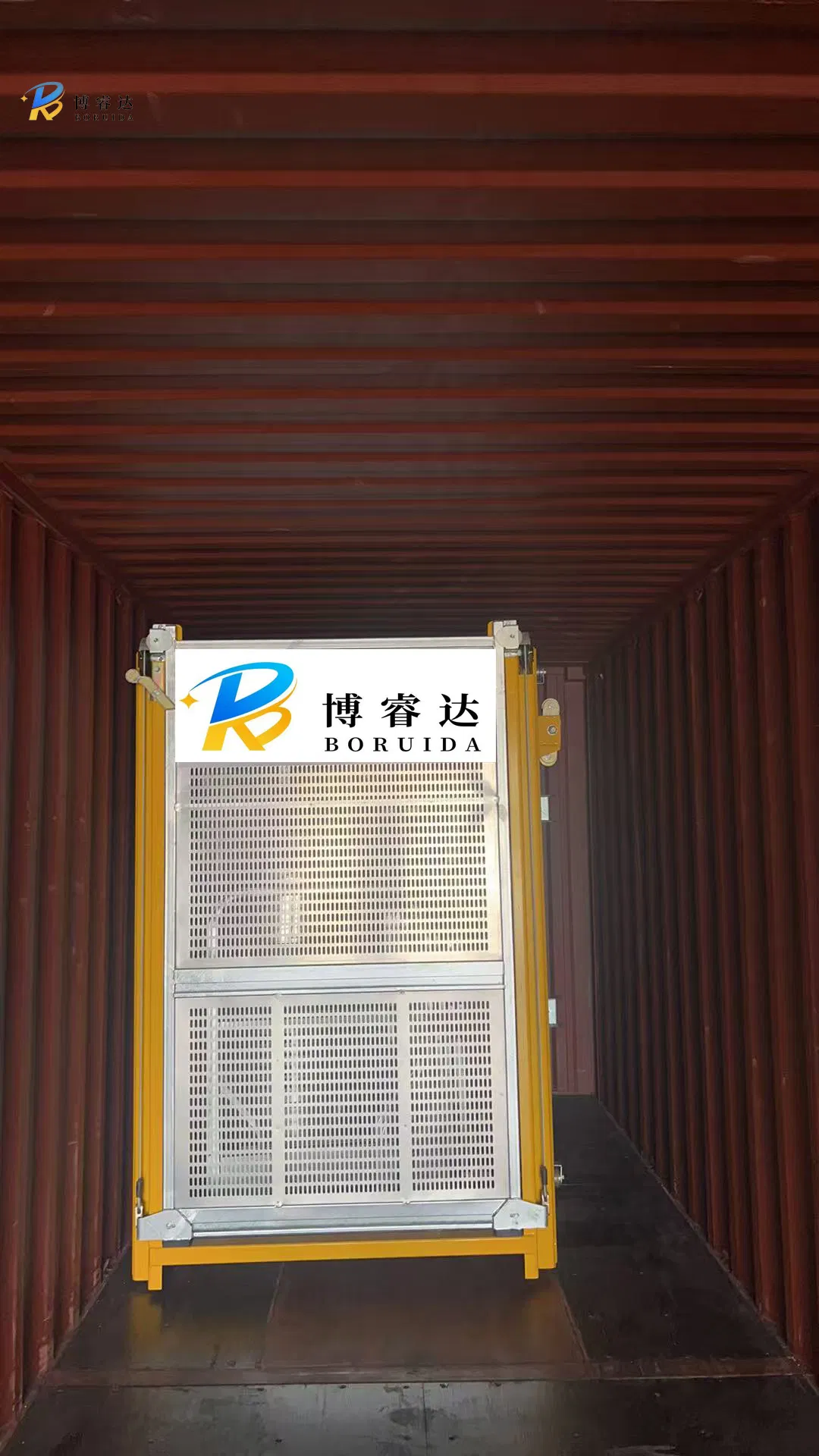

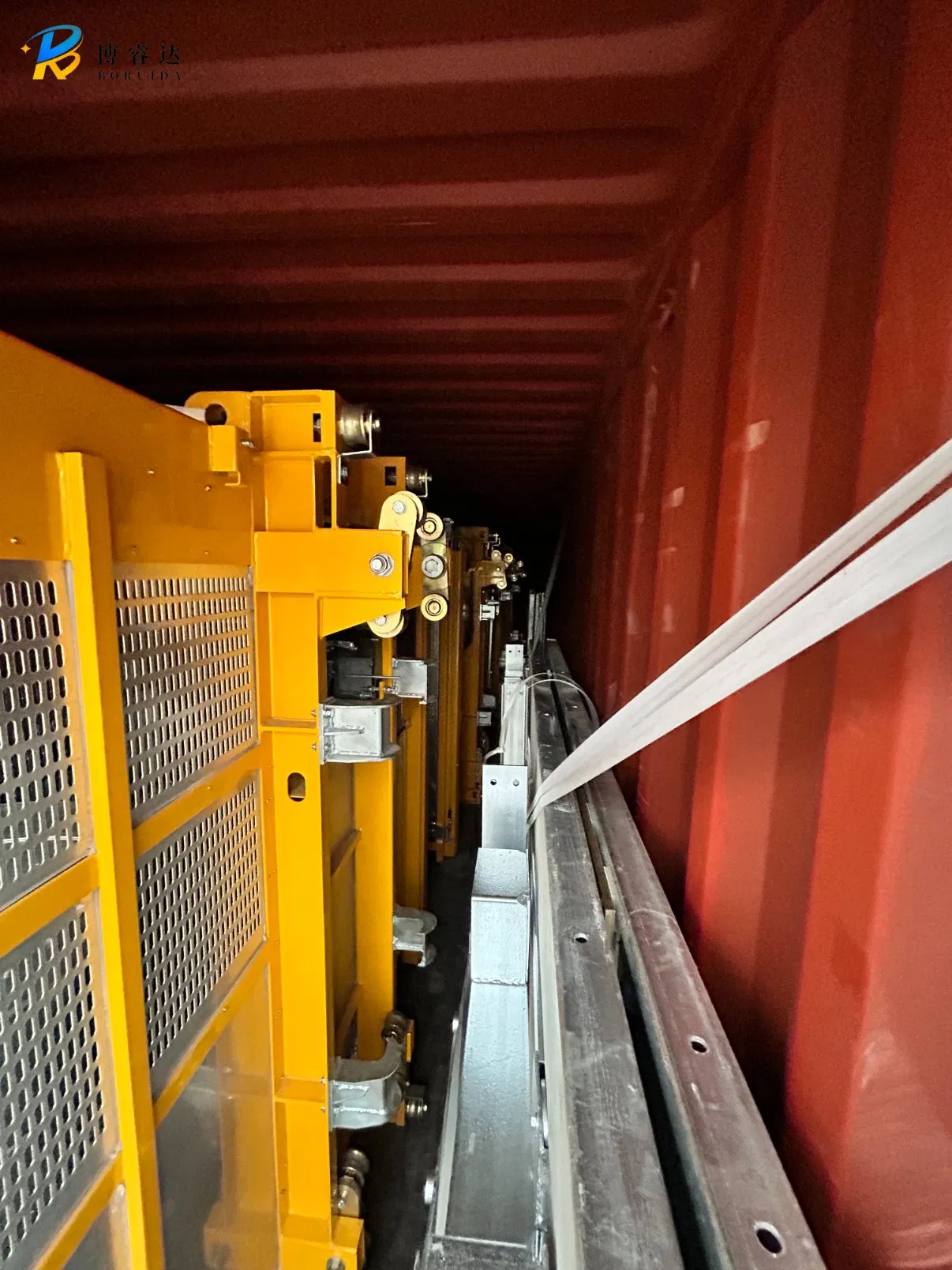

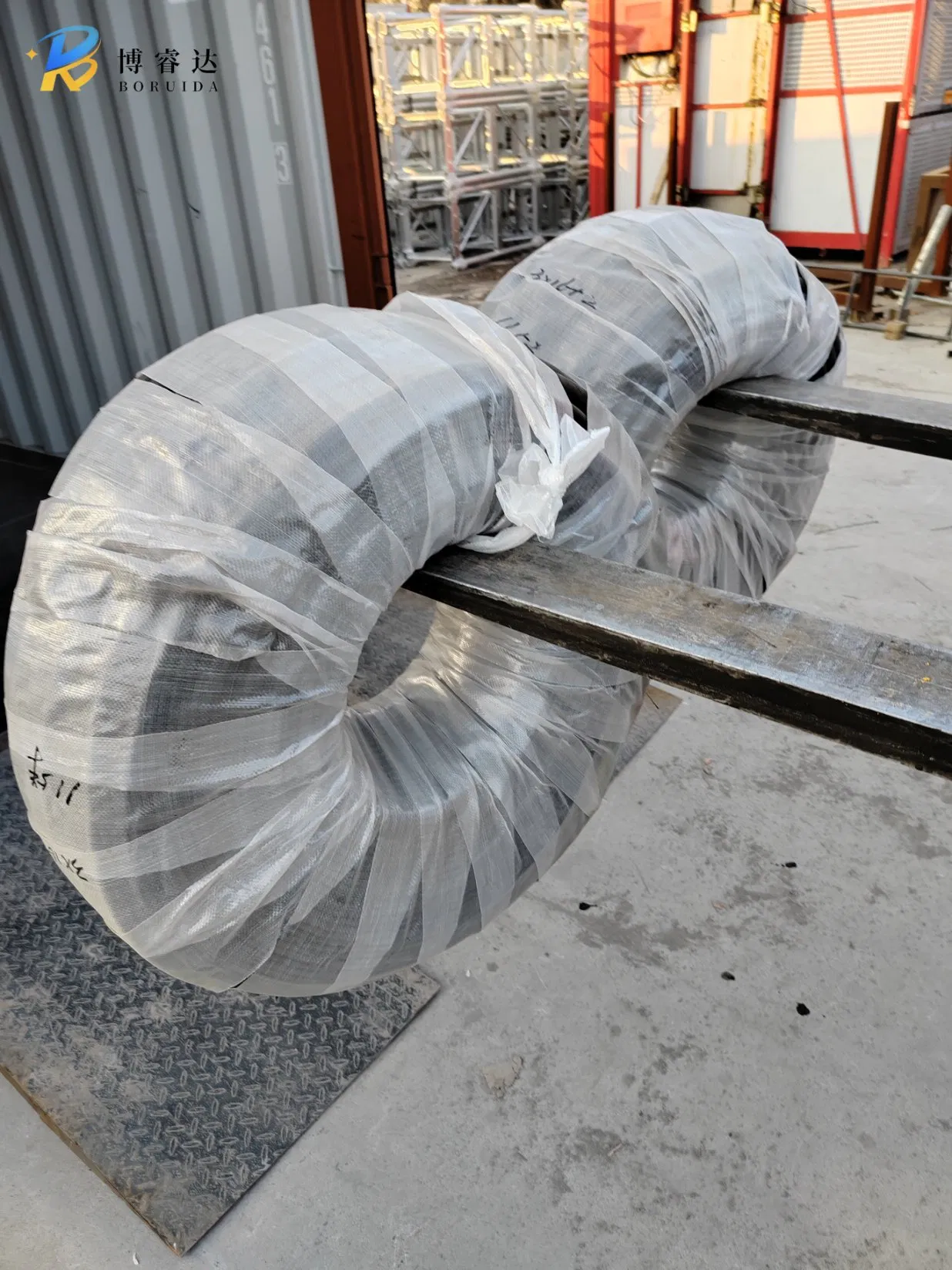

🖼️ Product Details & Pictures
❓ FAQ
What are your main products?
We produce construction hoists (also called construction elevators or construction lifts) and their associated spare parts.
Are all construction hoists the same across manufacturers?
Our hoists feature significant improvements: mast section stulls use a U-shape structure, and diagonal bracing adopts solid round steel for superior stability. We also utilize high-end electrical components and gear reducers.
Do your products have quality certifications?
Yes, our products are fully certified with CE, ISO, and BV certificates.
What are the payment terms and delivery times?
Payment terms are typically T/T and LC. Cargo is generally shipped within 20-30 days after receipt of the initial deposit.
Are you a manufacturer or a trader?
We are a professional manufacturer with our own factory and dedicated Research and Development team.
What information is needed for a quotation?
Please provide: 1) Lift height (m), 2) Load capacity (ton), 3) Single or double cage preference, and 4) Local power supply specifications (kV, Hz).
