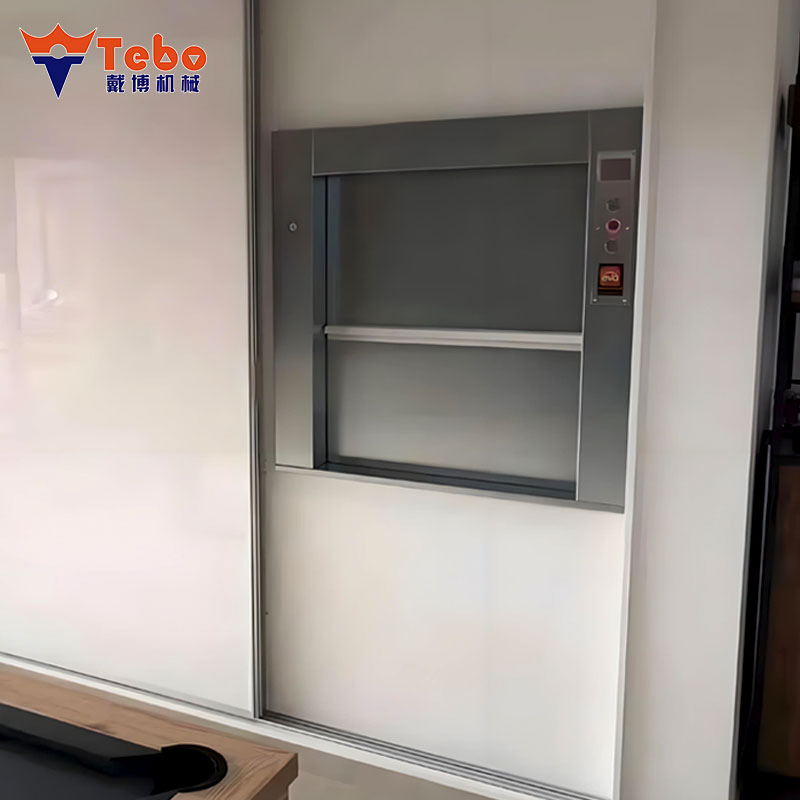

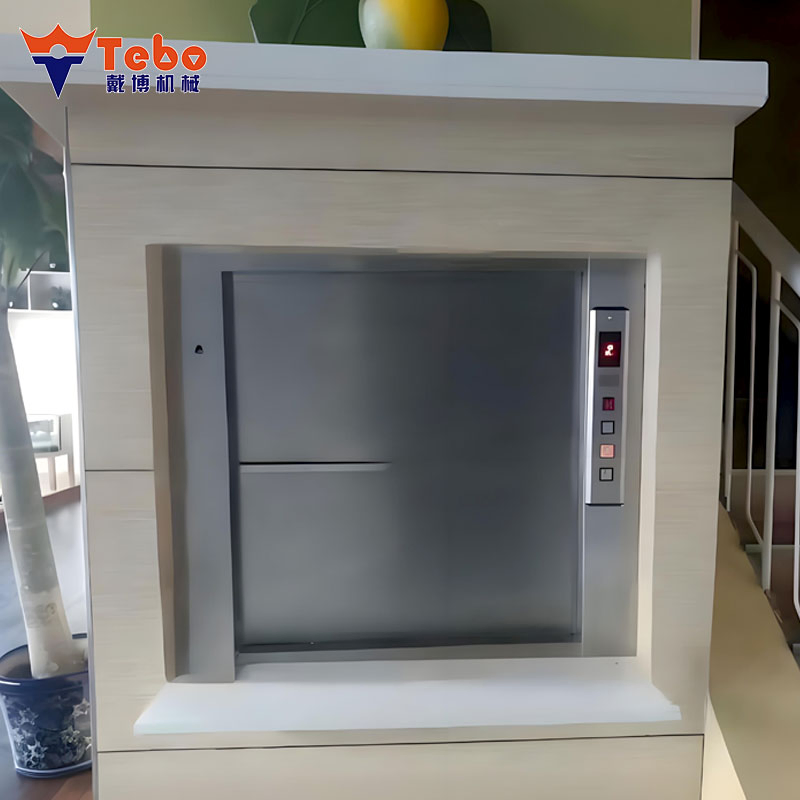

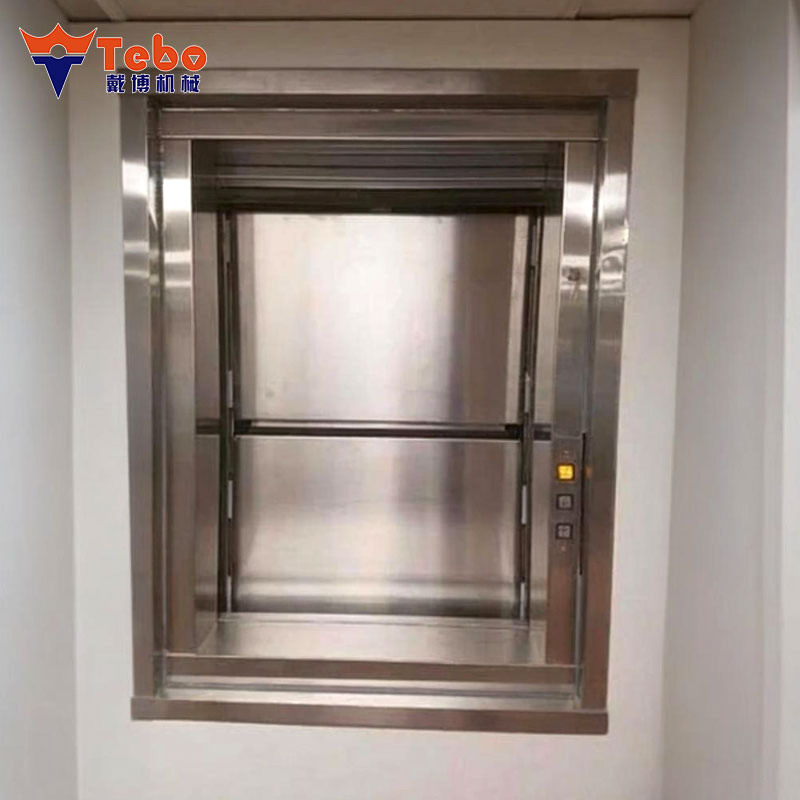

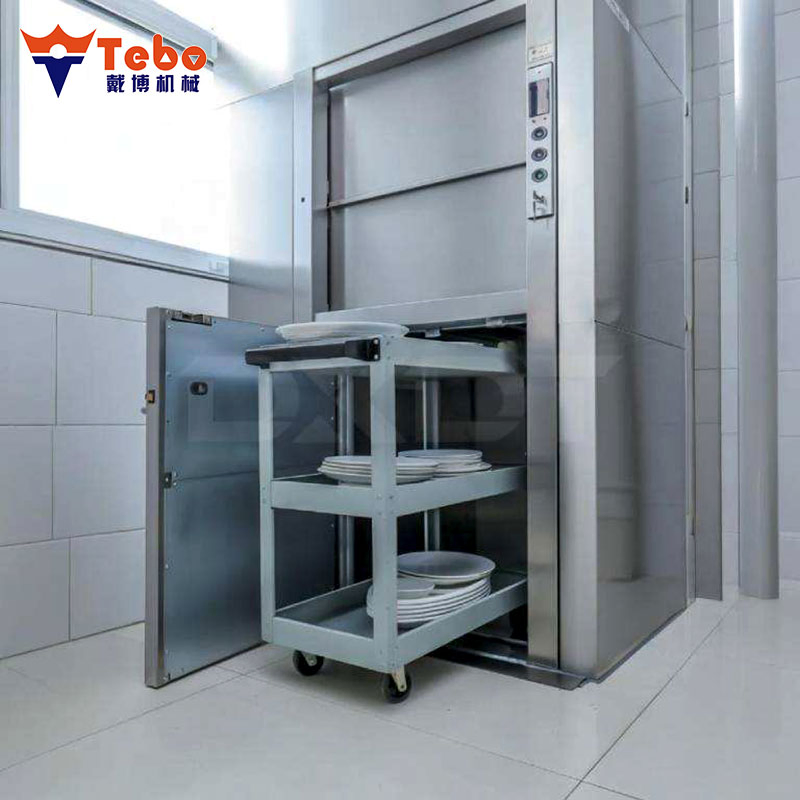

SGS Audited Supplier 200kg Service Elevator Dumbwaiter - 304 Stainless Steel Lifting Solution

i

Basic Specifications

Model NO.:TBDW-04

Type:Wellhole

Load Capacity:50kg-300kg

Speed:0.40m/s

Drive Mode:AC

Open & Close Type:Manual

Lift Mechanism:Telescoping Lift

Guide Rail:T Guide

Elevator Door:Center Opening Door

Origin:China

★

Product Description

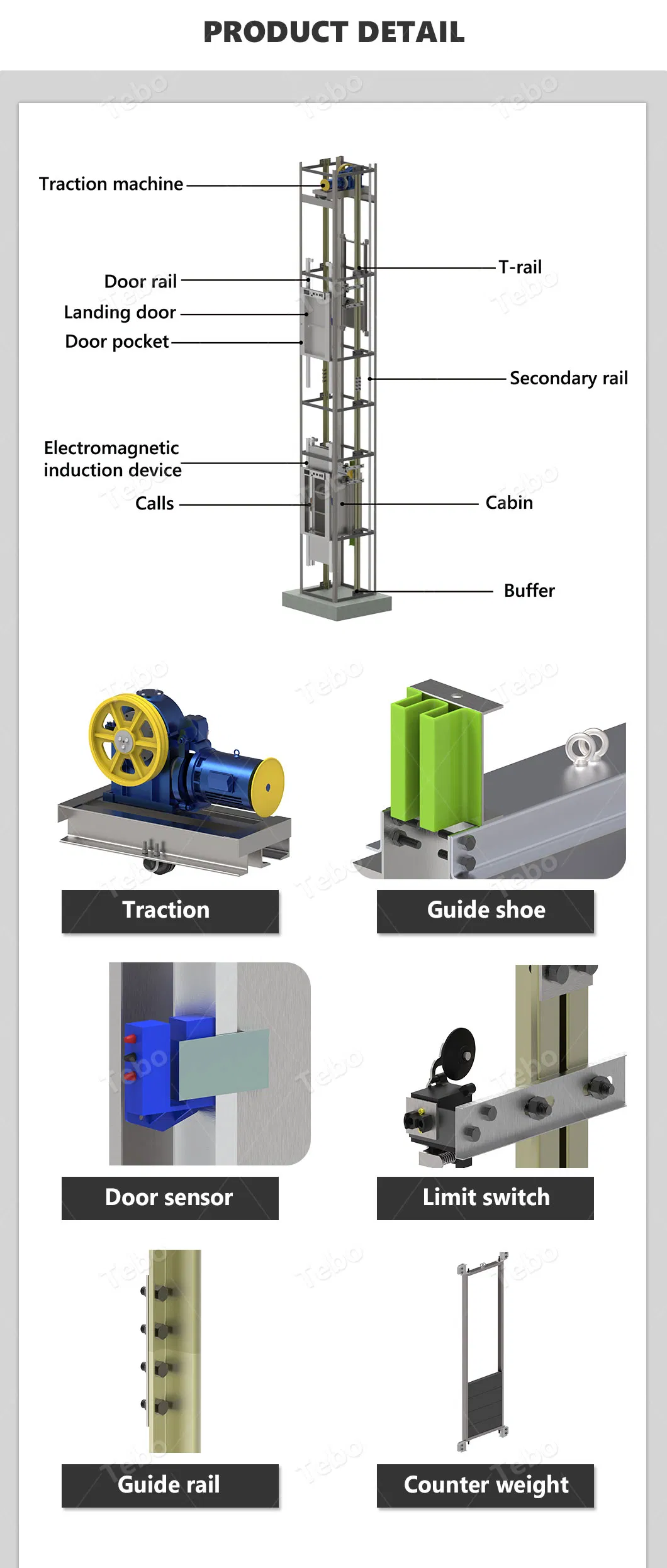

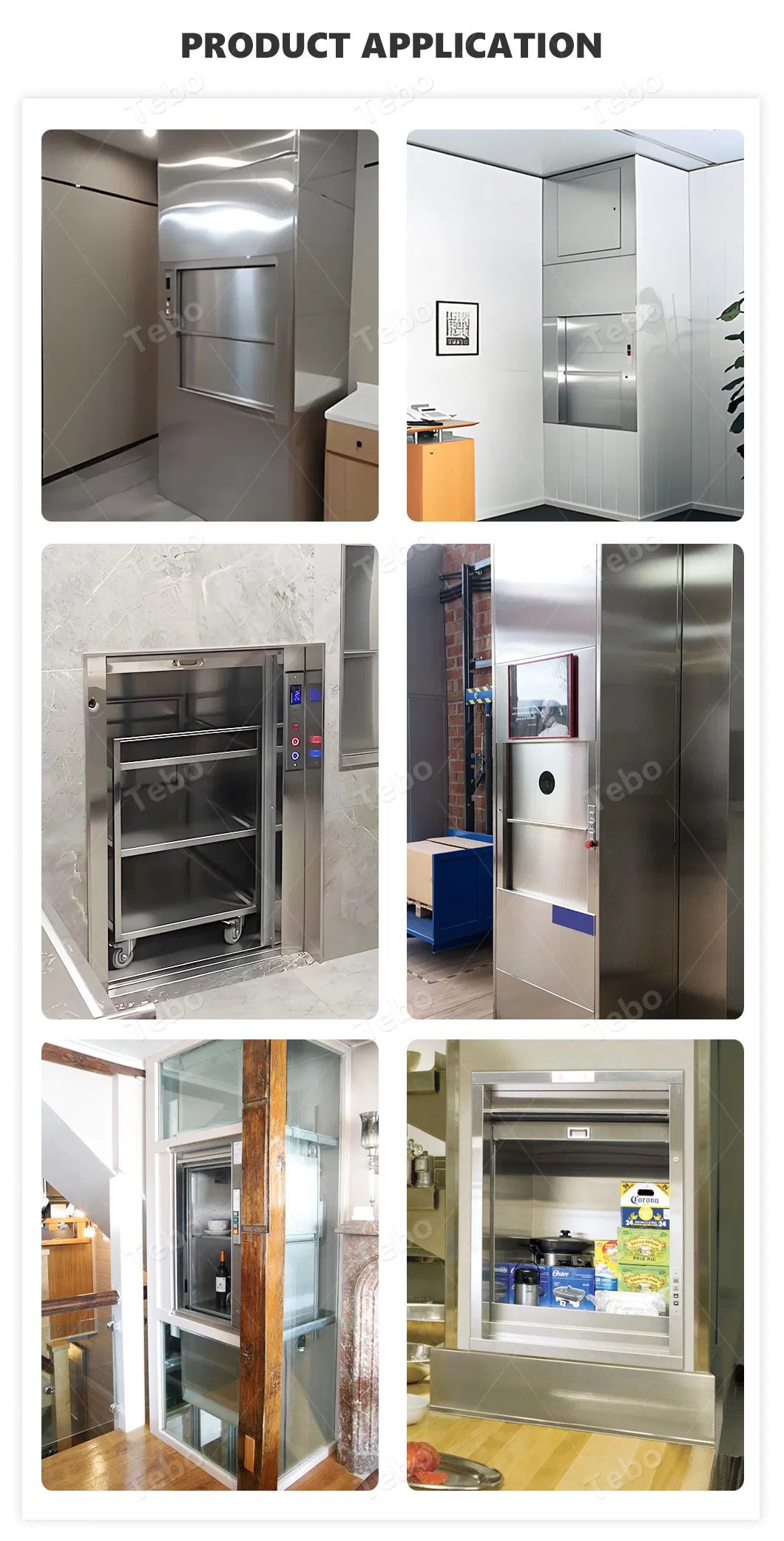

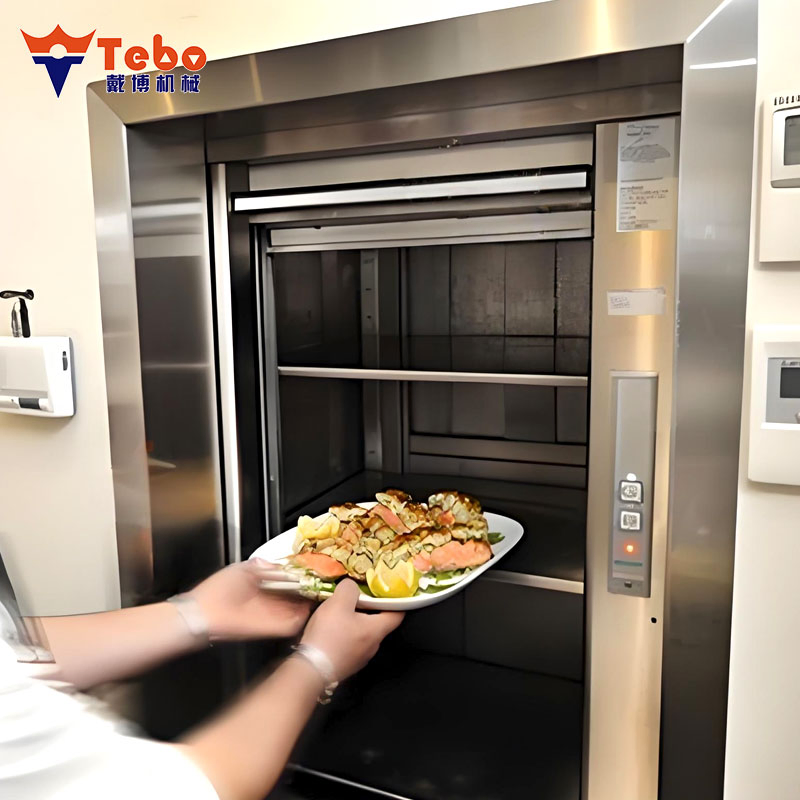

The food delivery lift is a vertical transportation device designed for restaurants, hotels, cafés, and multi-floor dining environments. It is mainly composed of a shaft structure, a stainless-steel cabin, a driving mechanism, and an intelligent control system. With a durable stainless-steel cabin and a robust steel shaft frame, the lift ensures excellent corrosion resistance and easy cleaning.

The traction driving system provides smooth and low-noise movement, fully meeting the hygiene and quietness requirements of food-service settings. Its control system enables floor calling, one-touch operation, and multiple safety functions, including door locks, anti-fall devices, limit switches, and overload protection to ensure safe and reliable transportation of meals.

📊

Technical Parameters

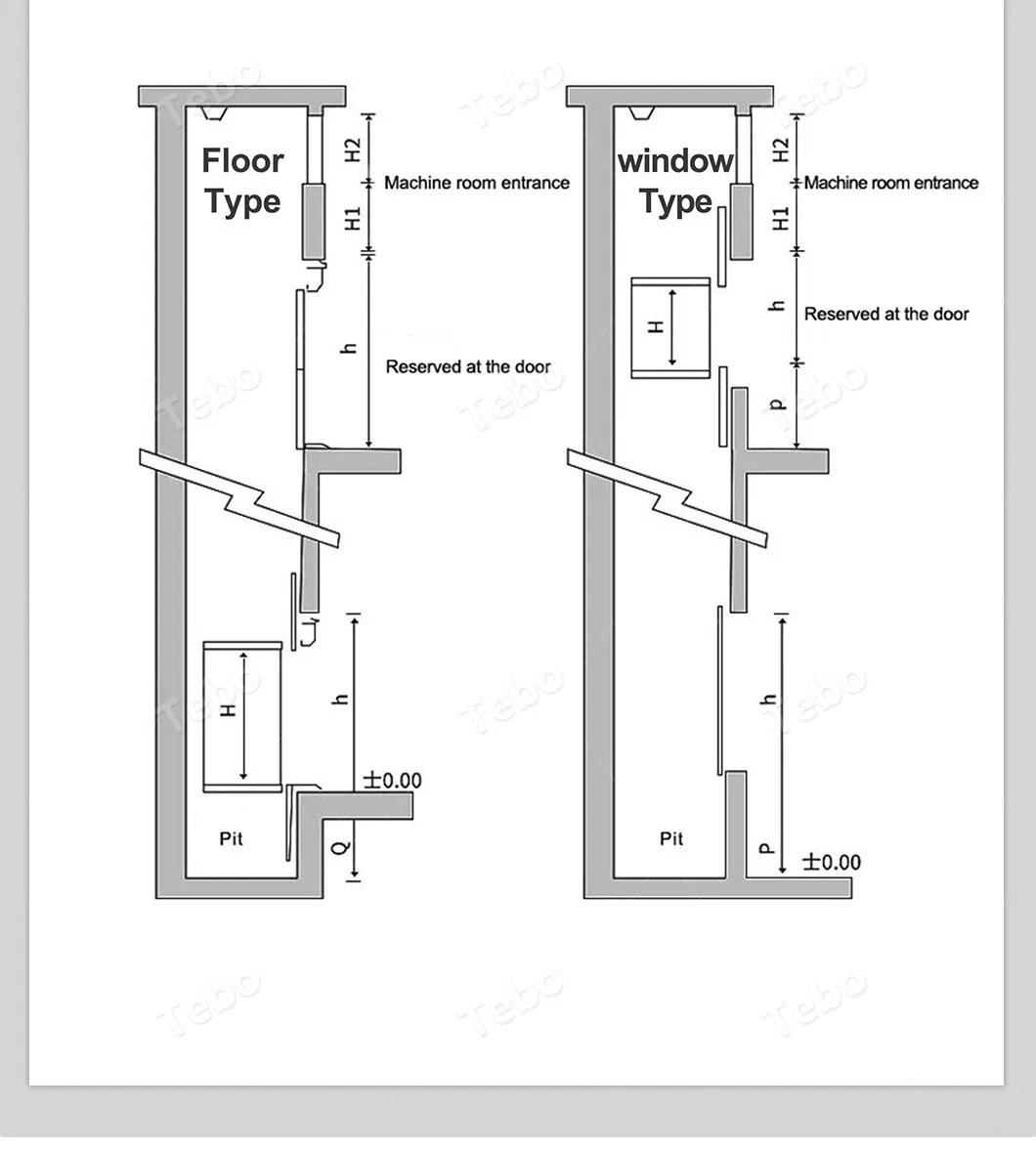

Window Type Parameters
Type	Load(kg)	Cabin Size (WDH)	Landing Door	Cabin Door	Door Size (W*H)	Sill Height	Overhead Height
Window	100	600400800	Standard	Optional	600*800	800	2800
Window	100	600600800	Standard	Optional	600*800	800	2800
Window	200	800800800	Standard	Optional	800*800	800	2800
Window	200	100010001000	Standard	Optional	1000*1000	800	3200

Floor Type Parameters
Type	Load(kg)	Cabin Size (WDH)	Landing Door	Cabin Door	Door Size (W*H)	Pit Depth	Overhead Height
Floor	200	8008001000	Standard	Optional	800*1000	600	2800
Floor	300	100010001200	Standard	Optional	1000*1200	700	3200
Floor	400	100012001400	Standard	Optional	1200*1400	800	3600

🔍

Product Details

🏢

Production Excellence

Our company is a professional enterprise specializing in the R&D and manufacturing of mechanical lifting equipment. We have assembled an experienced and highly innovative technical team, continuously developing and optimizing multiple product series. We possess significant advantages in structural design, operational efficiency, and stability.

Equipped with advanced production facilities, we employ sophisticated manufacturing processes, supported by robust technical expertise and rigorous quality control systems. Utilizing modern CNC machining centers and automated welding equipment, we ensure efficient production and reliability.

📜

Certifications & Shipping

?

Frequently Asked Questions

1. What are the main advantages of your lift equipment?

We are among the leading manufacturers in the region, offering significant advantages in quality and market pricing. We provide comprehensive after-sales service, including on-site installation guidance and a 12-month warranty for the entire unit.

2. What pre-sales services do you provide?

Our team offers professional consultation before ordering. For custom requirements, our expert engineers provide detailed blueprints of bespoke machines to ensure the equipment meets your specific space and load needs.

3. How is the product installed after delivery?

We provide detailed drawings, assembly manuals, and installation guides. Most customers can successfully install the machines by following these clear steps. Technical support is available via email with a fast response time.

4. What type of packaging is used for international shipping?

We standardly use robust plywood cases to protect the equipment during transit. Special shipping marks or customized packaging requirements can be accommodated based on your needs.

5. What is the typical lead time for an order?

Shipping speed is prioritized. Typically, it takes about 10 working days after receiving payment, though this can vary slightly depending on the specific product and level of customization.

6. What are the accepted payment methods and terms?

Standard terms include payment before production and the remaining balance before delivery. We operate under common international trade terms such as EXW, FOB, CFR, and CIF.
