Ultra-White Tempered Explosion-Proof Glass Home Villa Elevator Lift

Customization:	Available
After-sales Service:	Onsite Training, Other
Warranty:	1 Year

Send Inquiry

Product Description

Overview

Model NO.

CREATMAN E series

Driving Type

AC Elevator

Capacity

<500kg

Persons

6 - 10

Speed

<1.00m/s

Control Mode

Signal Control

Computer Room

Without Computer Room

Elevator Door

Center Opening Door

Elevator Type

Passenger / Residential Elevators

Power Supply

AC380V

Car Wall

Hairline Stainless Steel

Flooring

PVC Flooring

✓

Product Description

E-series villa elevator features advanced gantry structure construction. Equipped with a permanent magnet synchronous gear-less host, it is perfectly suitable for various types of shaft strips. Outstanding safety performance combined with multiple customization options and efficient installation makes it ideal for high-end home life.

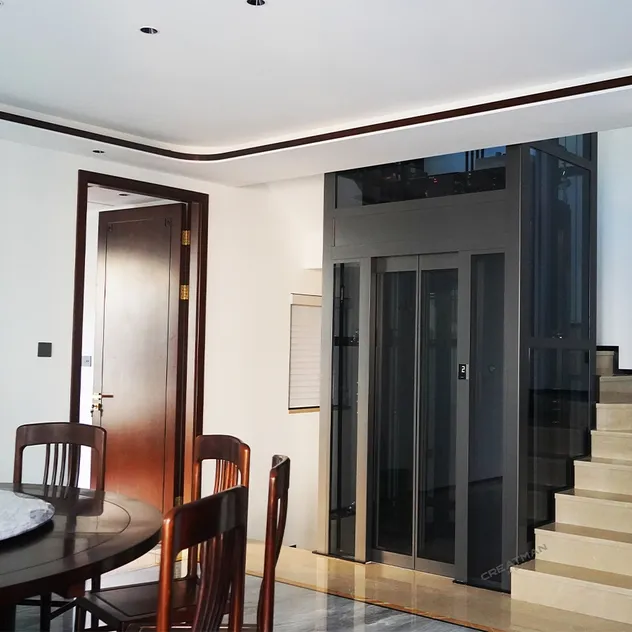

Case 1

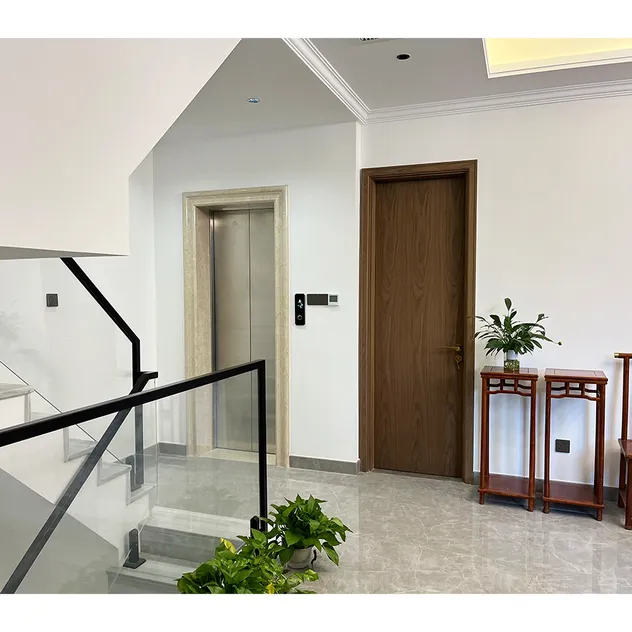

Case 2

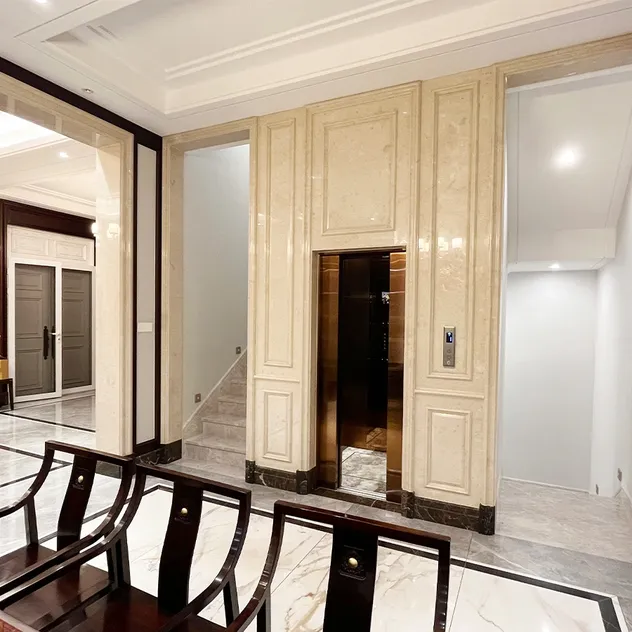

Case 3

⚙

Technical Specifications

Model	E-Series Elevator	X-Series Elevator	S-Series Elevator
Speed (m/s)	0.3m/s~1m/s	0.3m/s~0.63m/s	0.4m/s
Power supply	AC380V	AC380V	AC380V
Load capacity	180~630kg	180~630kg	180~630kg
Control cabinet position	superposition	superposition	superposition
Counterweight position	Rear-Mounted / Side-Mounted	Rear-Mounted / Side-Mounted	Rear-Mounted / Side-Mounted
Minimum Hoistway Size	1.5m²	1.5m²	1m²

🛡

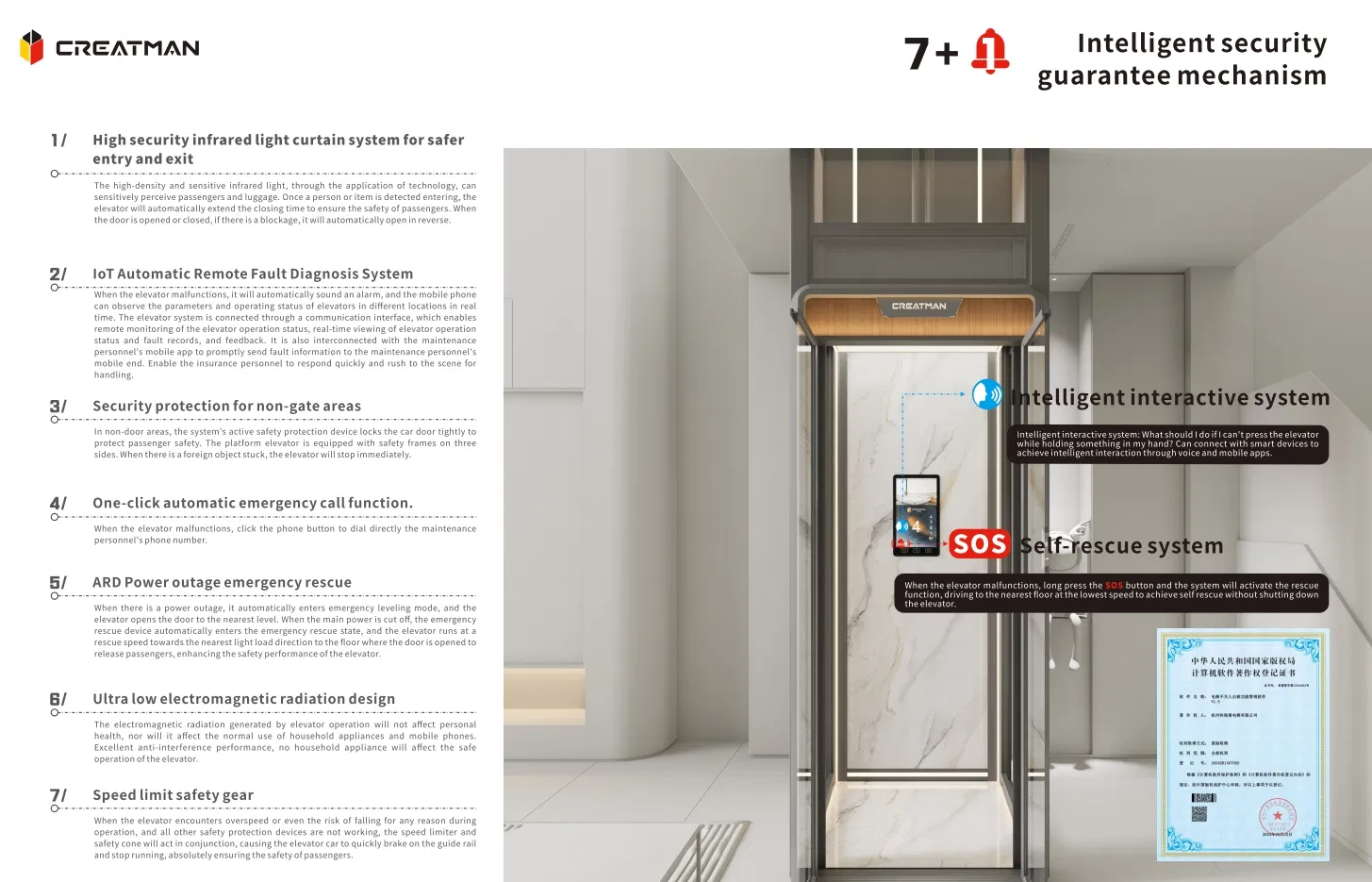

7+1 Intelligent Security Guarantee

1. High security infrared light curtain system

2. loT Automatic Remote Fault Diagnosis System

3. Security protection for non-gate areas

4. One-click automatic emergency call function

5. ARD Power outage emergency rescue

6. Ultra low electromagnetic radiation design

7. Speed limit safety gear

☎

After Sales Service

Standard Warranty

12 months or 2,000 operating hours

Extended Warranty

Optional coverage up to 36 months

Global Support

24/7 technical assistance and spare parts supply

Training

On-site or remote operation and maintenance training

▶

Visual Introduction

Sample Chamber

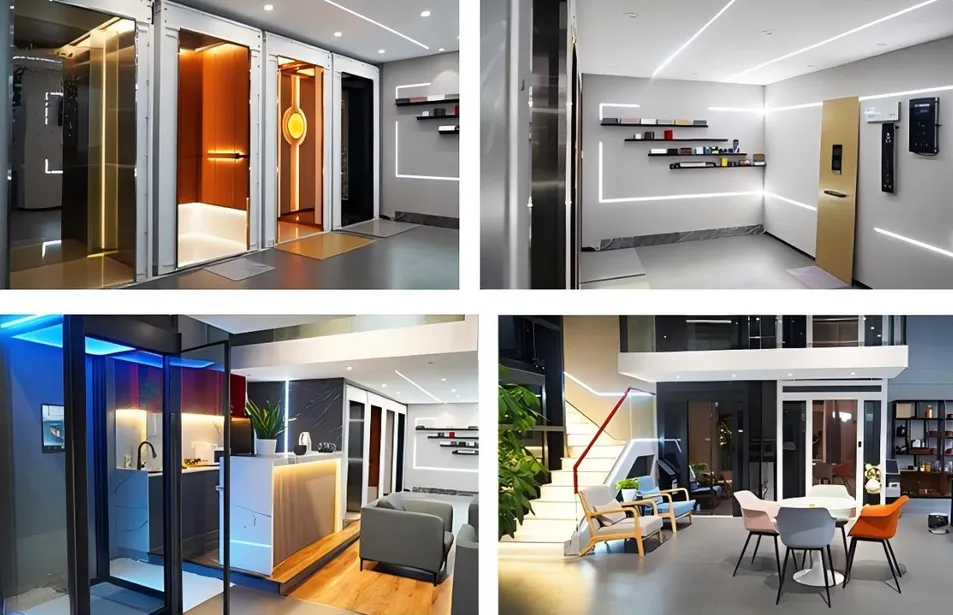

Sample Showcase

FAQ

What is the load capacity of the E-Series villa elevator?

The E-Series elevator supports a load capacity ranging from 180kg to 630kg, making it suitable for 6-10 persons depending on the configuration.

Does this elevator require a dedicated machine room?

No, the E-Series is designed as a Machine Room-Less (MRL) system, which saves space and simplifies installation within residential shafts.

Can the elevator color and design be customized?

Yes, all kinds of colors and finishes can be customized to meet the specific aesthetic needs of your home.

What safety mechanisms are in place for power outages?

The elevator is equipped with an ARD (Automatic Rescue Device) that ensures the car moves to the nearest floor and opens the doors during a power failure.

What is the standard power supply requirement?

The standard power supply required for the operation of these units is AC380V.

How is technical support handled for international customers?

We provide complete installation manuals and remote technical support via email and instant messaging. If necessary, technicians can be sent to assist on-site.
