Customization: Available
After-sales Service: 12 Months
Warranty: 1 Year
Send Inquiry

Product Description

📋 Basic Specifications
Model NO.
S-VRC
Type
Hydraulic Cylinders
Lifting Capacity
2,000-10,000 Kg
Driving Type
Hydraulic
Certification
CE, ISO
Rated Capacity
1000-10000kg
Lifting Height
2000-15000mm
Platform Sizes
1000-6000mm
Power Pack
7.5kw Hydraulic Pump
Rising / Descending Speed
4m/Min
Finishing
Powder Coating
Platform Material
Diamond Steel Sheet / 4mm Aluminum Steel
Voltage
200V-480V, 3 Phase, 50/60Hz
Production Time
35 - 50 Days
HS Code
84289020
Production Capacity
210 Units/Month
🚗 Product Introduction

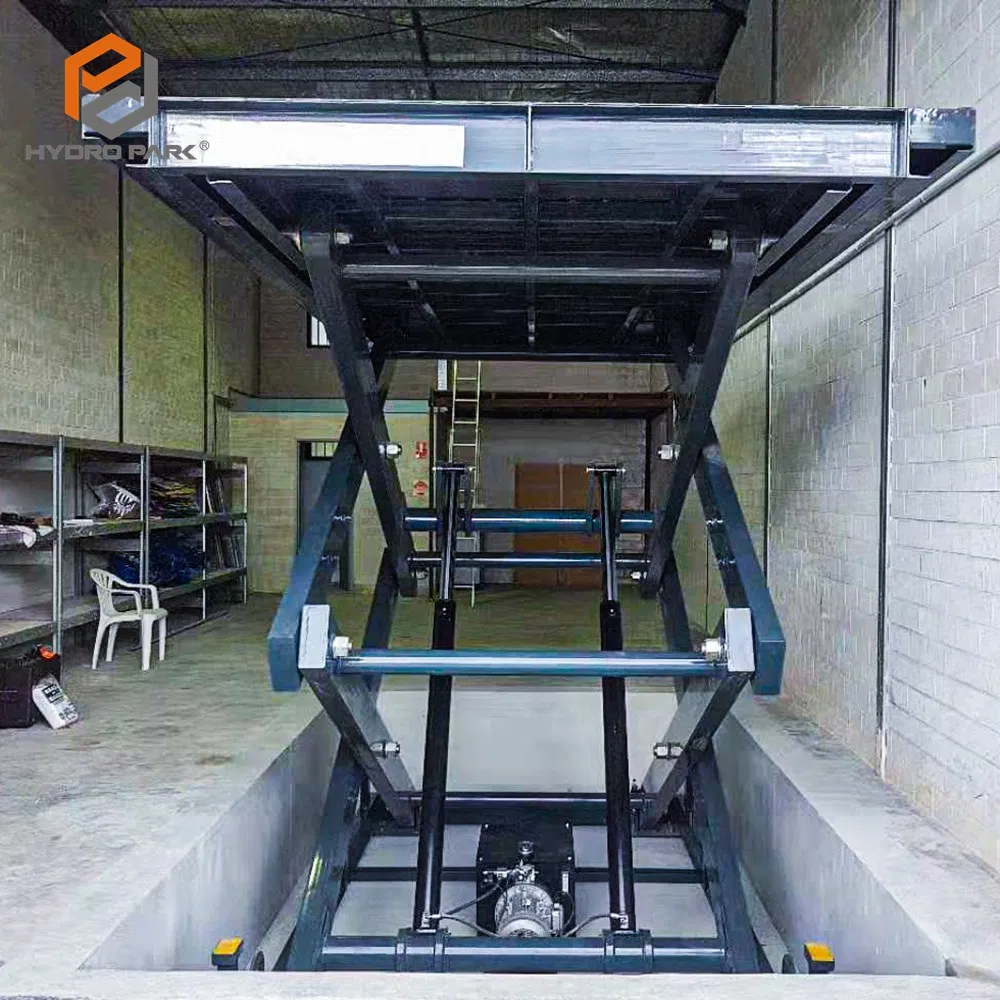

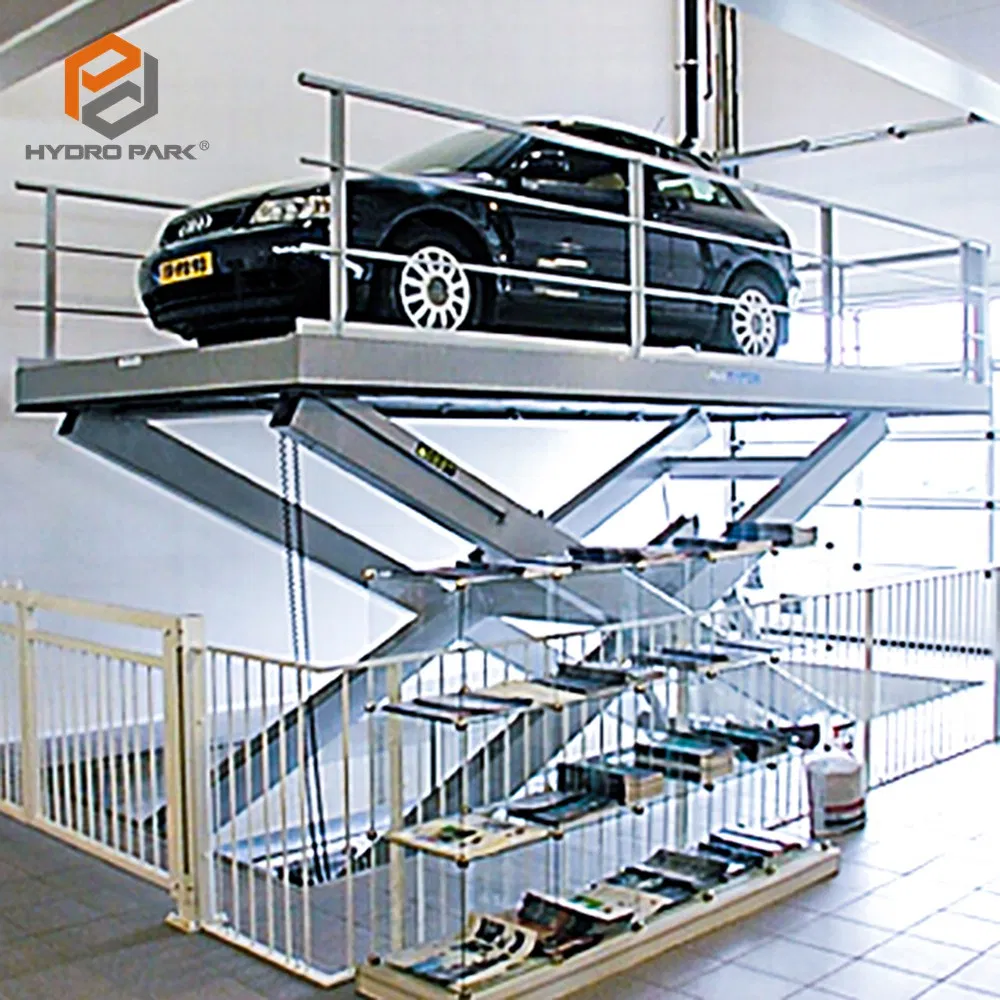

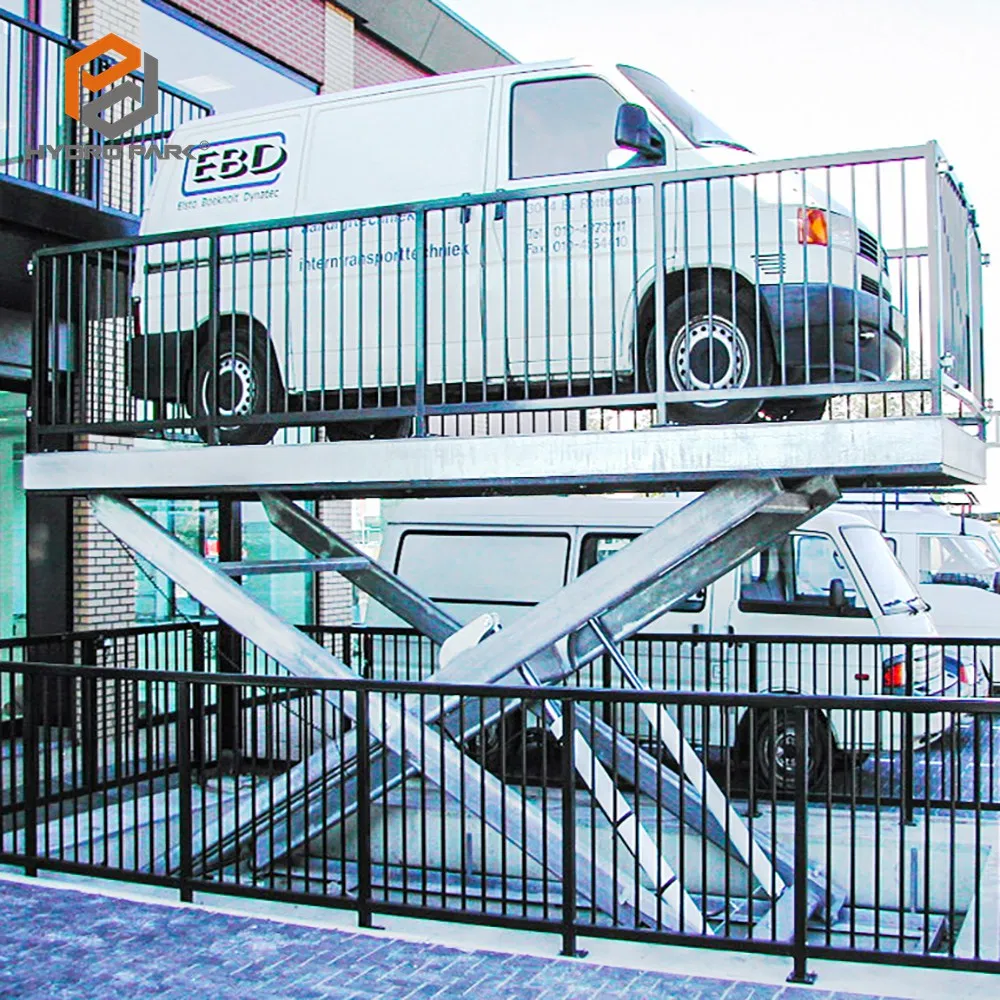

S-VRC is a simplified scissor-type car elevator, primarily designed for transporting vehicles between floors. It serves as an ideal alternative to traditional ramps. While a standard S-VRC features a single platform, an optional second top platform can be added to cover the shaft opening when the system is lowered. Additionally, S-VRC can function as a parking lift, providing 2 or 3 hidden parking spaces within the footprint of a single spot, with a top platform that can be customized to match the surrounding environment.

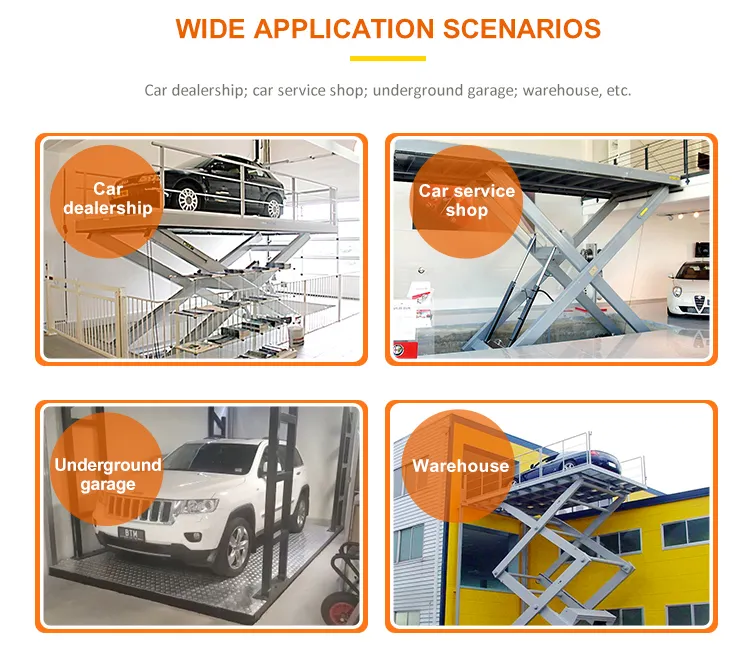

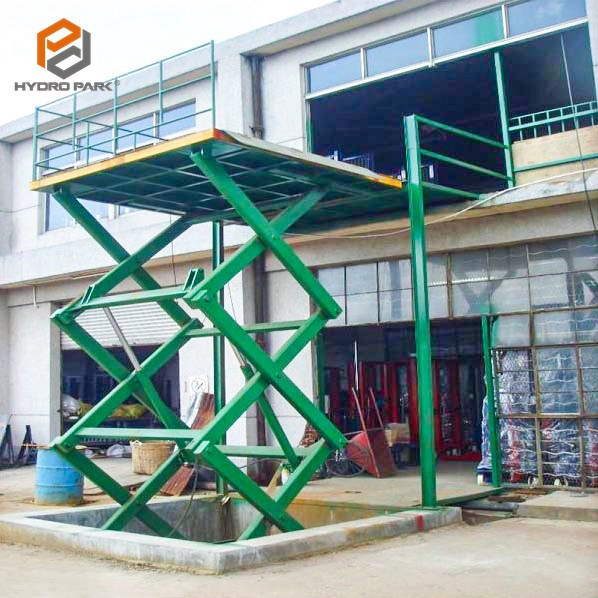

✔Vertical lift for cars, goods, and industrial use.
✔Hydraulic cylinder direct drive system with double cylinders.
✔High precision and stable hydraulic performance.
✔Automatic shut-off safety mechanism.
✔Small space occupation with easy installation.
✔Optional remote control and double-level platforms.
✔Top quality diamond steel plate with overloading protection.
Vehicle Elevator
Car Lift System
Scissor Car Lift
Hydraulic Platform
Automobile Elevator

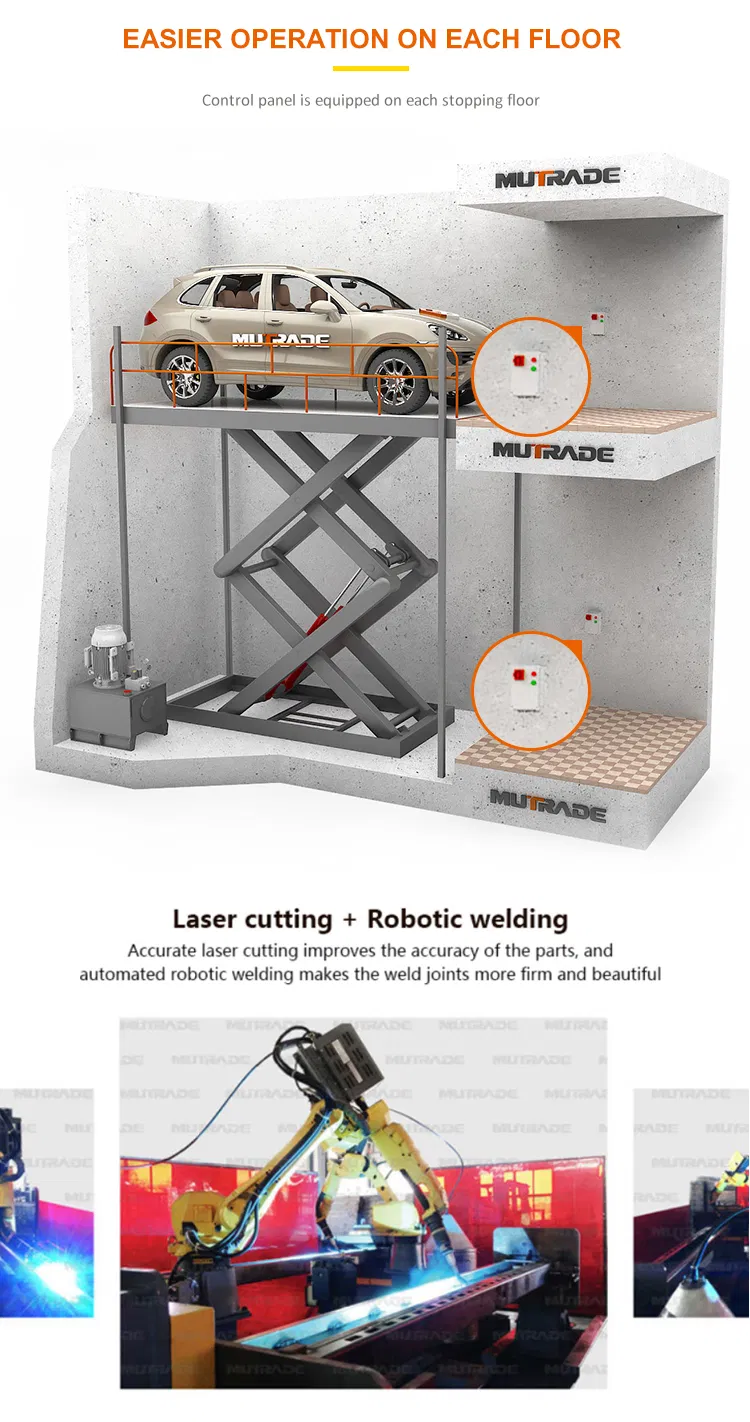

Floor to Floor Lift
Cargo Goods Lift

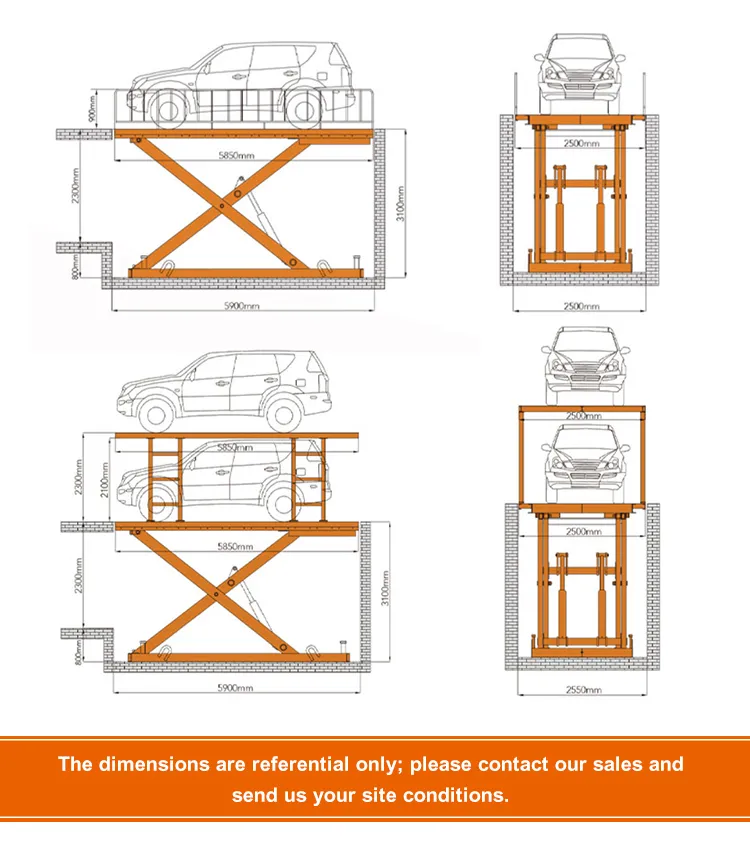

Technical Drawing
❓ Frequently Asked Questions
What is the primary use of the S-VRC elevator?
S-VRC is mainly used to transport vehicles or goods between different floor levels, serving as a space-saving alternative to concrete ramps.
What is the maximum lifting capacity of this system?
The S-VRC system can handle a rated capacity ranging from 2,000kg up to 10,000kg, depending on the specific configuration.
Does the installation require a foundation pit?

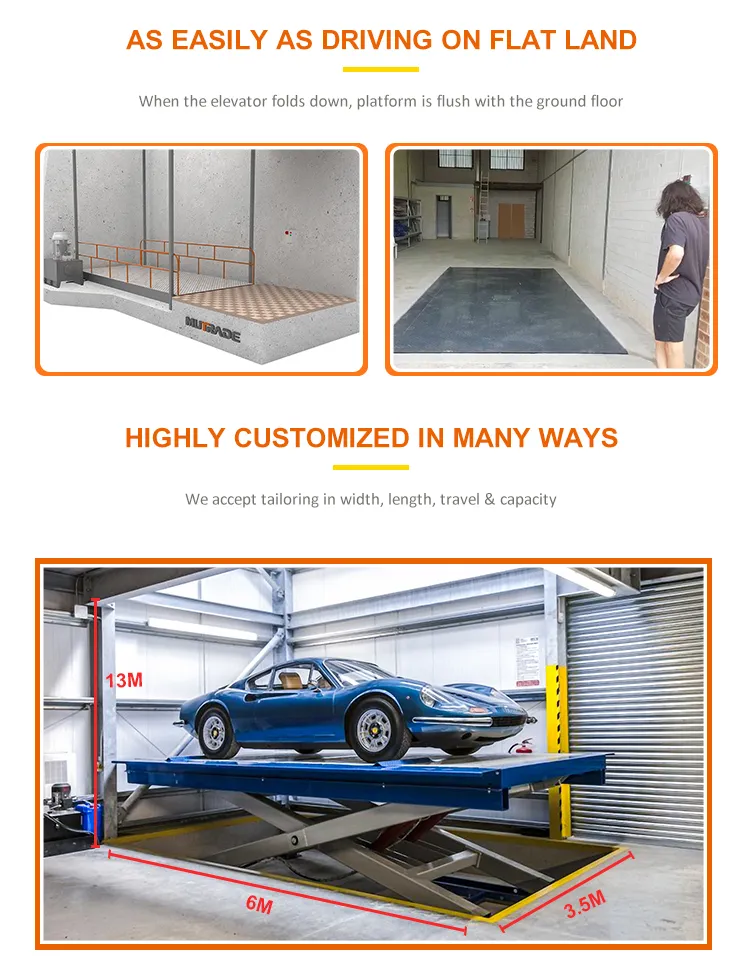

Yes, a foundation pit is required so that the platform can sit flush with the ground when it is in its lowest position.
Is the platform material durable for heavy vehicles?
Absolutely. The platform is made of top-quality diamond steel plate or optional 4mm aluminum steel to ensure durability and traction.

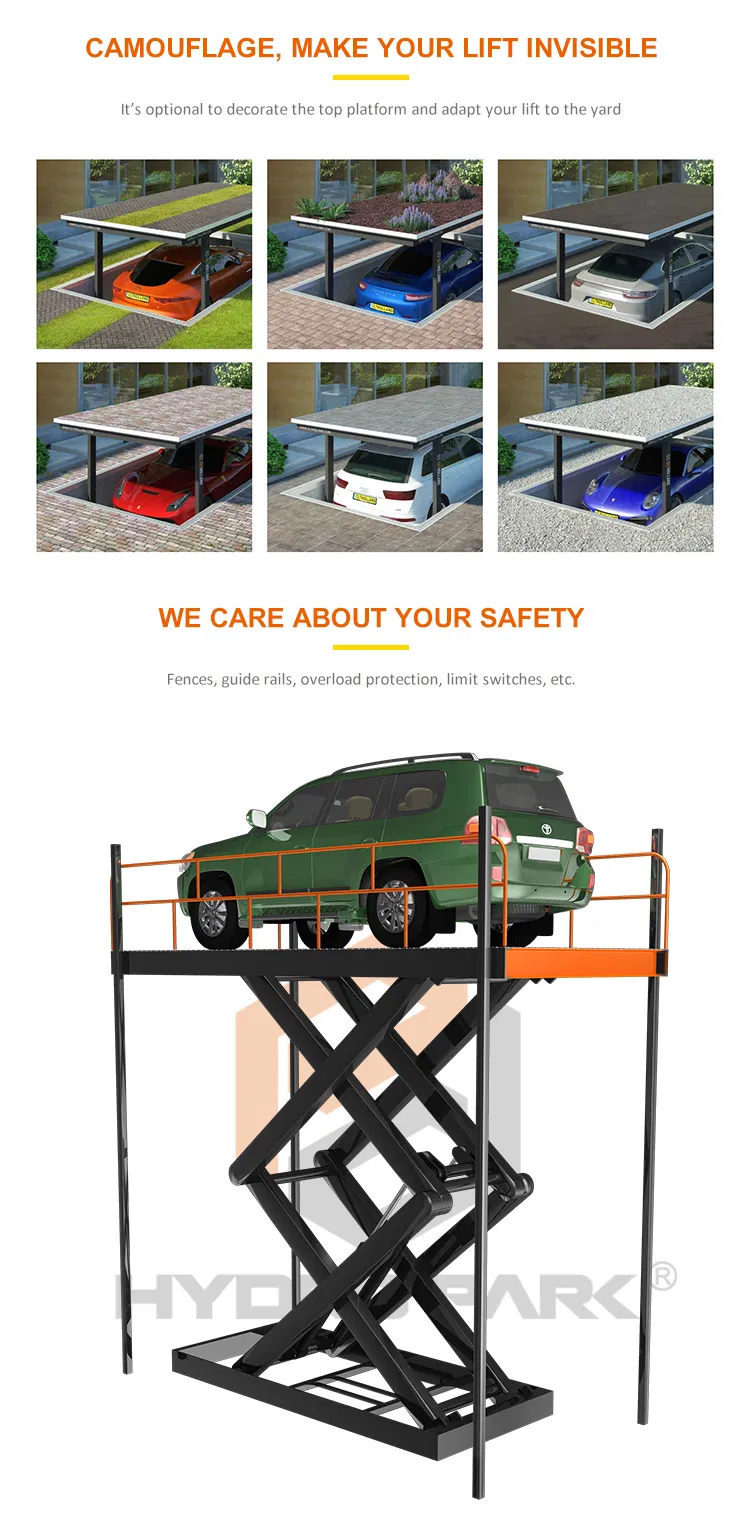

Can the top platform be customized?
Yes, the top platform can be decorated or finished to match the surrounding environment, making the lift virtually invisible when lowered.
What safety features are included?
The system includes a hydraulic overloading protection system, automatic shut-off switches, and optional anti-falling mechanical locks.
