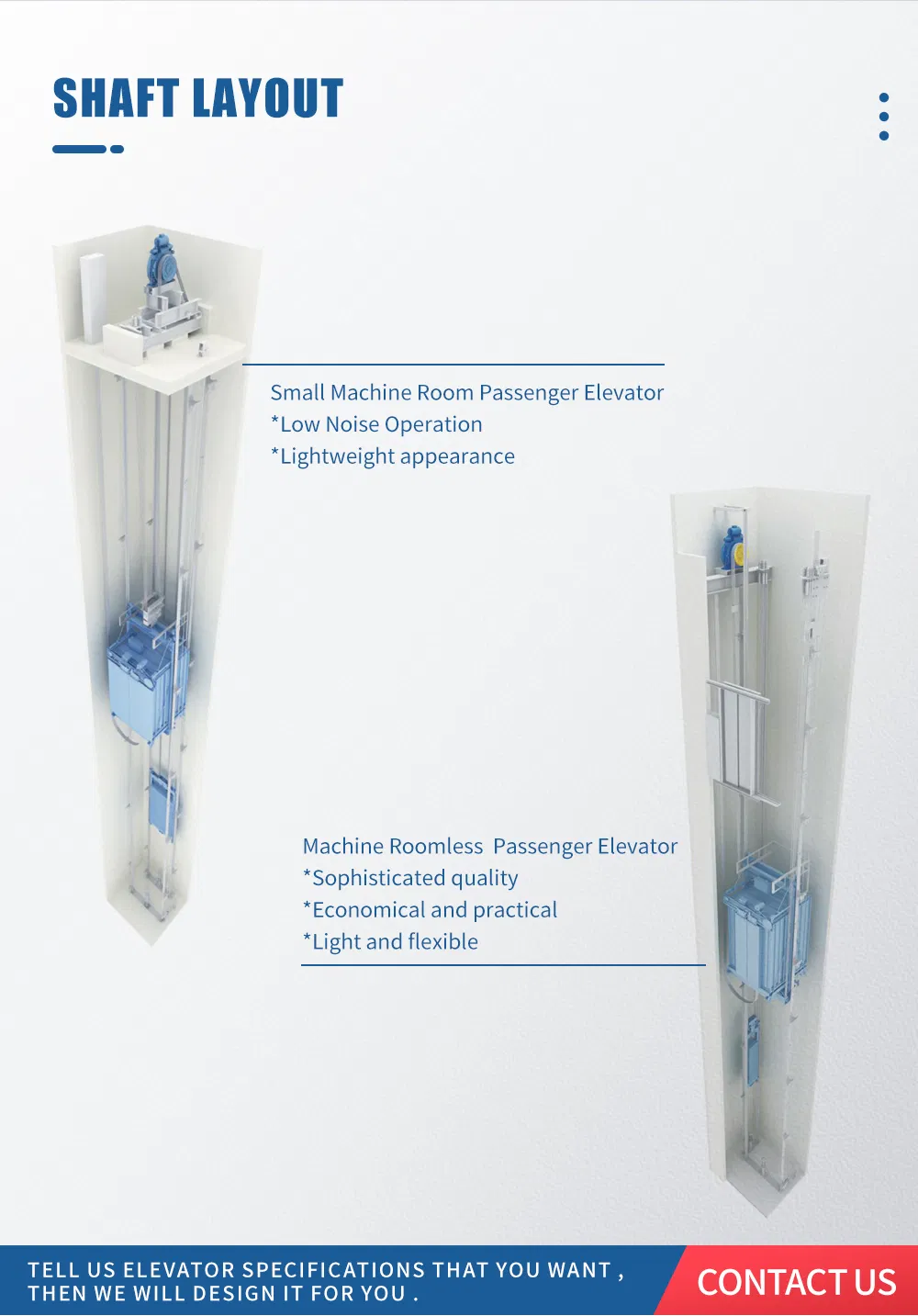

| Small Machine Room Elevator | ||||||
| Passenger | Capacity (Kg) | Speed (m/s) | Car Size (W*D*H) | Shaft (W*D) | Overhead | Rise (Max) |
| 6 | 450 | 1.0 | 1100*1100*2400 | 1700*1800 | 4500 | 45m |
| 8 | 630 | 1.0-1.75 | 1400*1100*2400 | 2000*1800 | 4500 | 95m |
| 10 | 800 | 1.0-2.5 | 1400*1300*2400 | 2000*2000 | 4500 | 120m |
| 13 | 1000 | 1.0-3.0 | 1600*1500*2400 | 2200*2200 | 4500 | 150m |
| Machine Roomless Elevator | ||||||
| 6 | 450 | 1.0 | 1100*1100*2400 | 1900*1500 | 4500 | 45m |
| 10 | 800 | 1.0-2.5 | 1400*1300*2400 | 2200*1700 | 4500 | 120m |

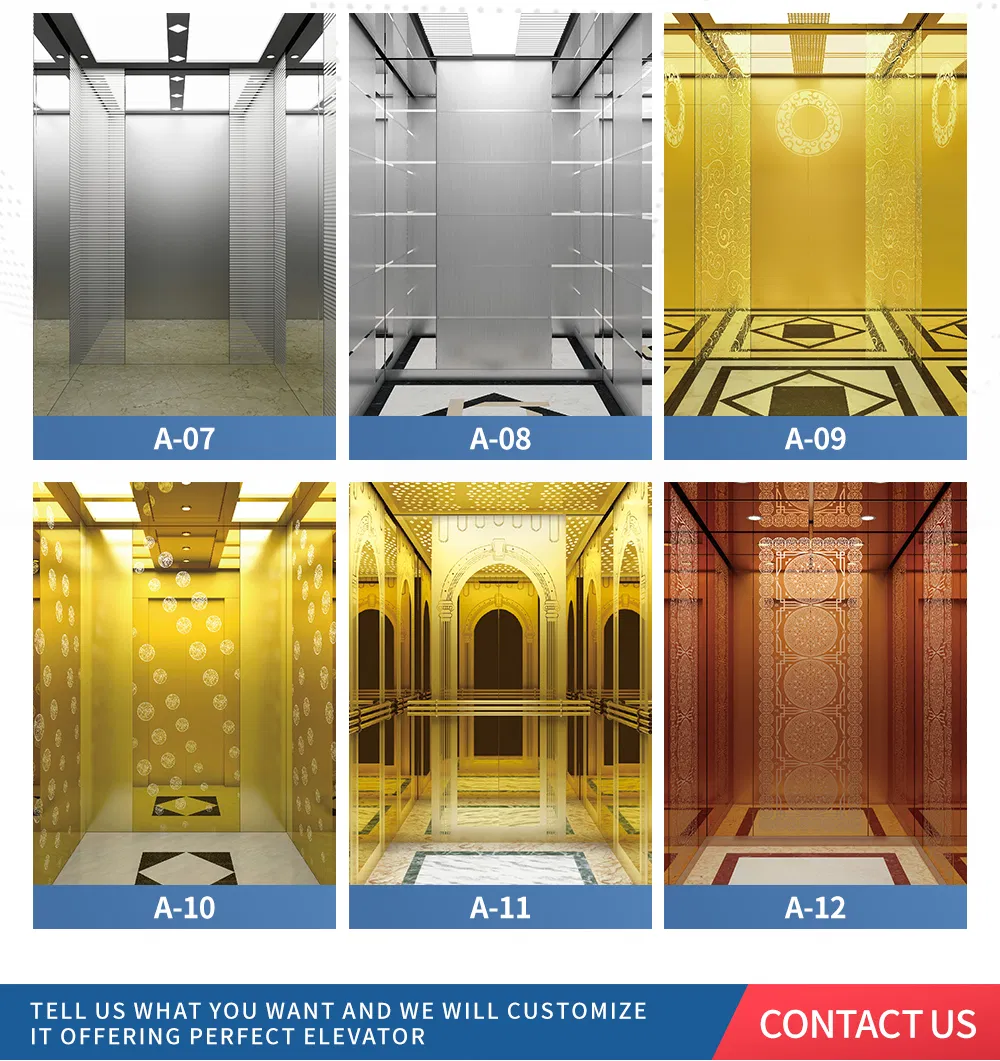

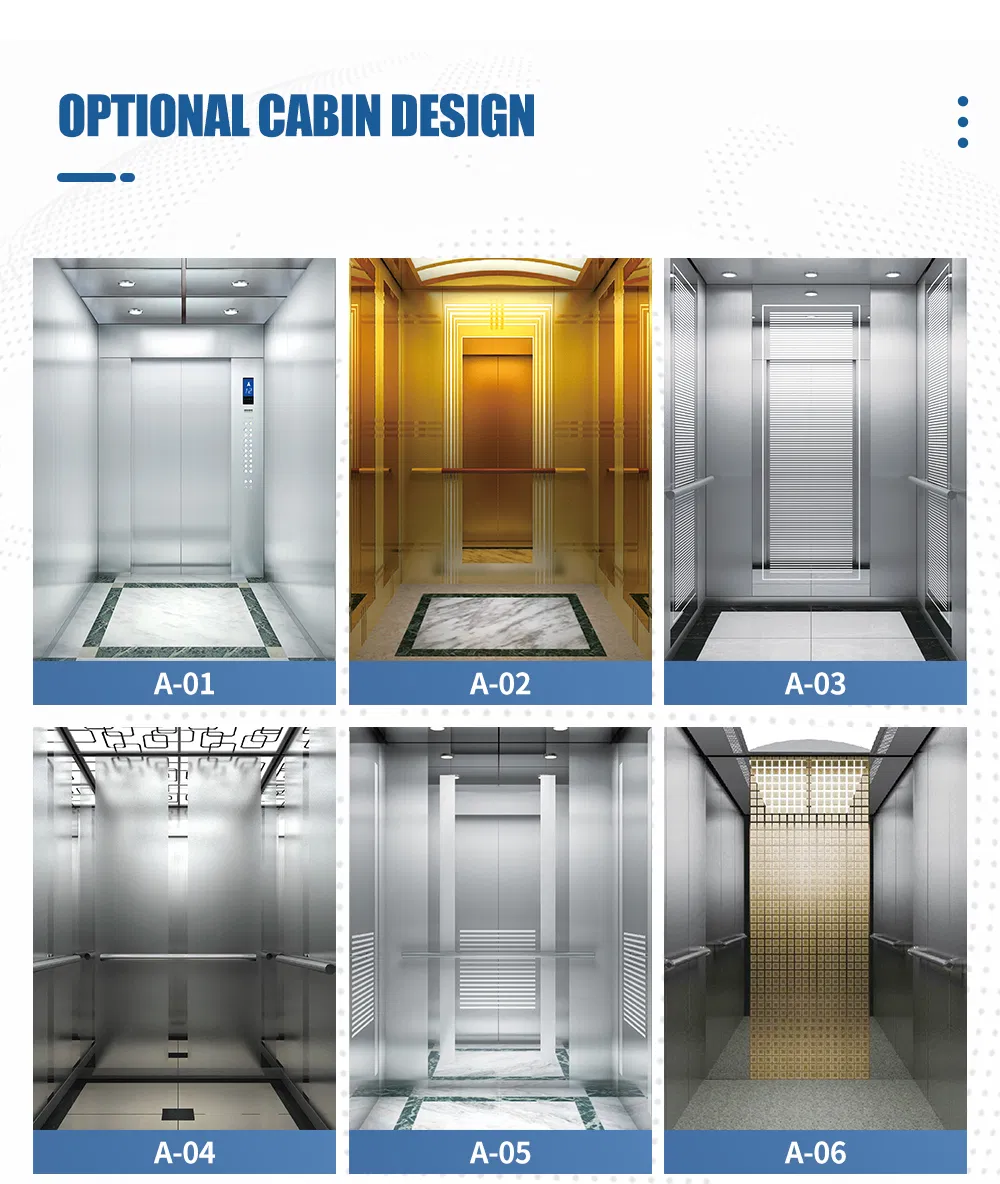

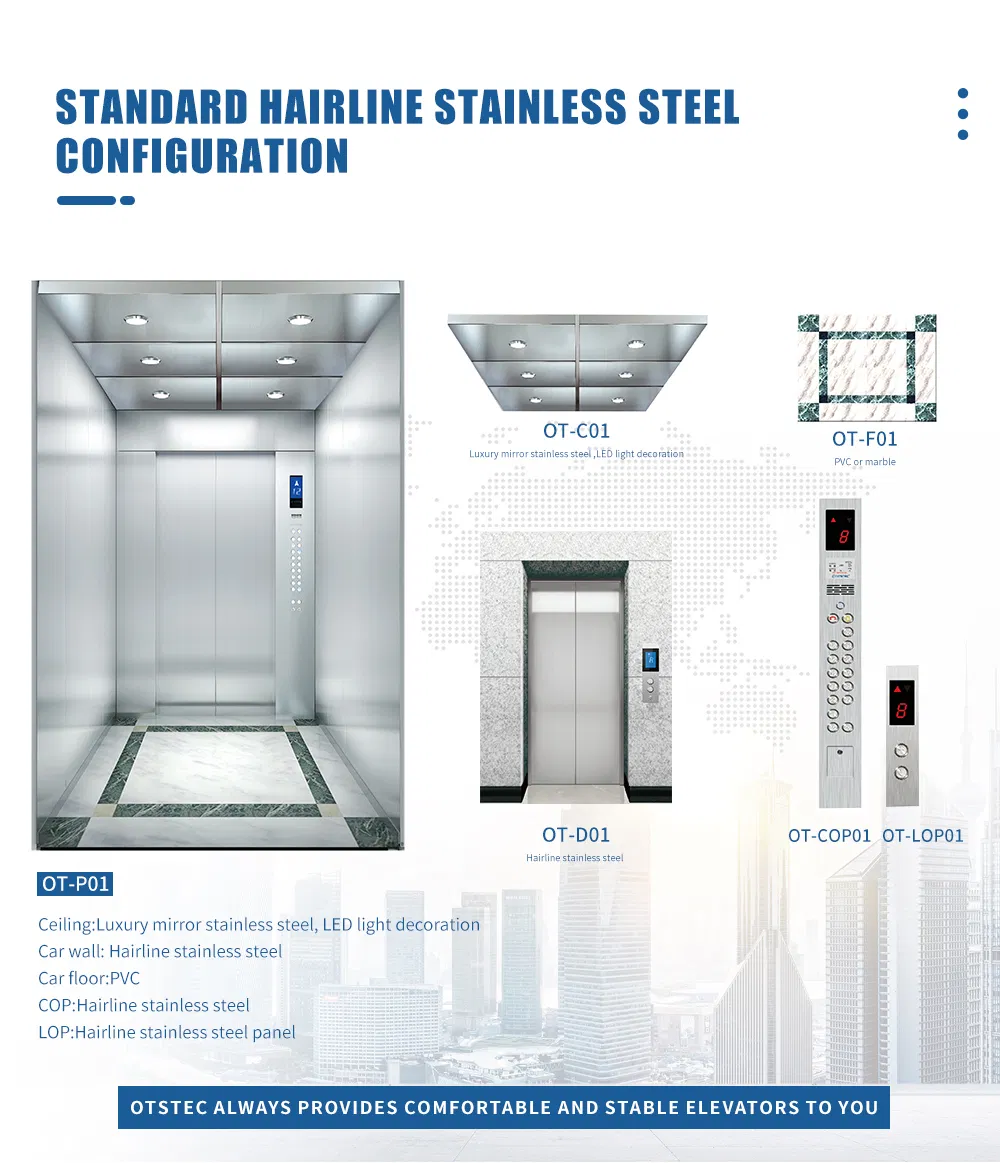

Materials: Painted, Hairline stainless steel, mirror, etched, Titanium gold, rose gold, golden recess, glass.
Speed Range: 0.4m/s, 1.0m/s, 1.5m/s, 1.75m/s, 2.0m/s.
System: Monarch Control System & VVVF New Controller.

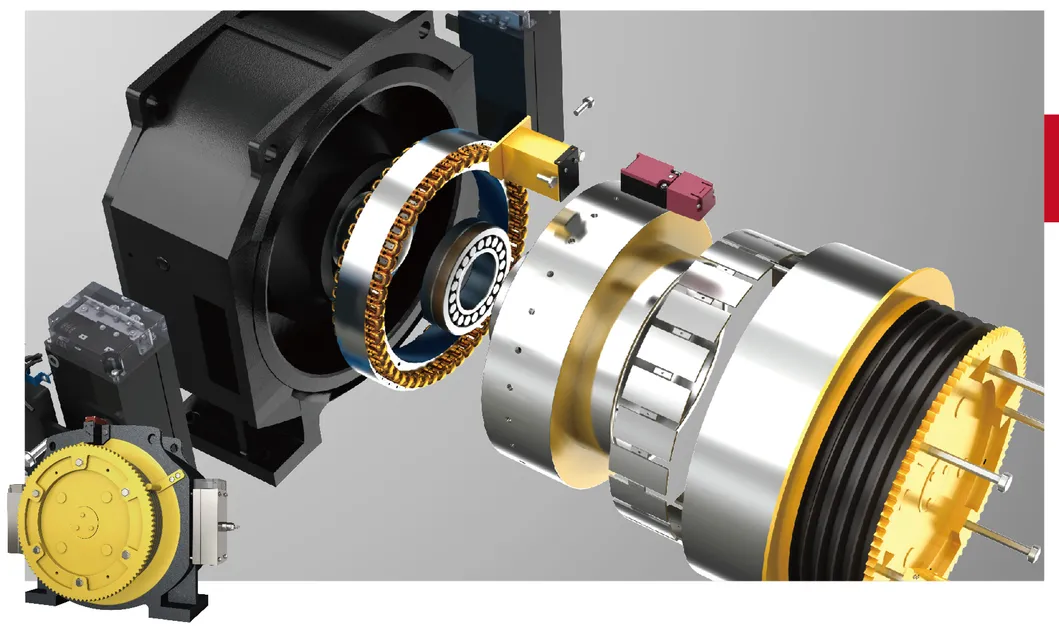

Uses rare earth materials and coaxial transmission technology. High-efficient and energy-saving, saving up to 40% energy compared with traditional technology. No oil contamination and low noise design.
Advanced VVVF control ensures smooth and quiet door operation. The door load detector with self-learning ability improves sensitivity and safety during opening and closing.
We use the best parts for our elevators: gearless motors from XIZI, door operators from Shenling or Wittur, and control systems from Monarch or STEP. Our strict management ensures that every elevator is installed seamlessly and runs stably.
