Product Overview

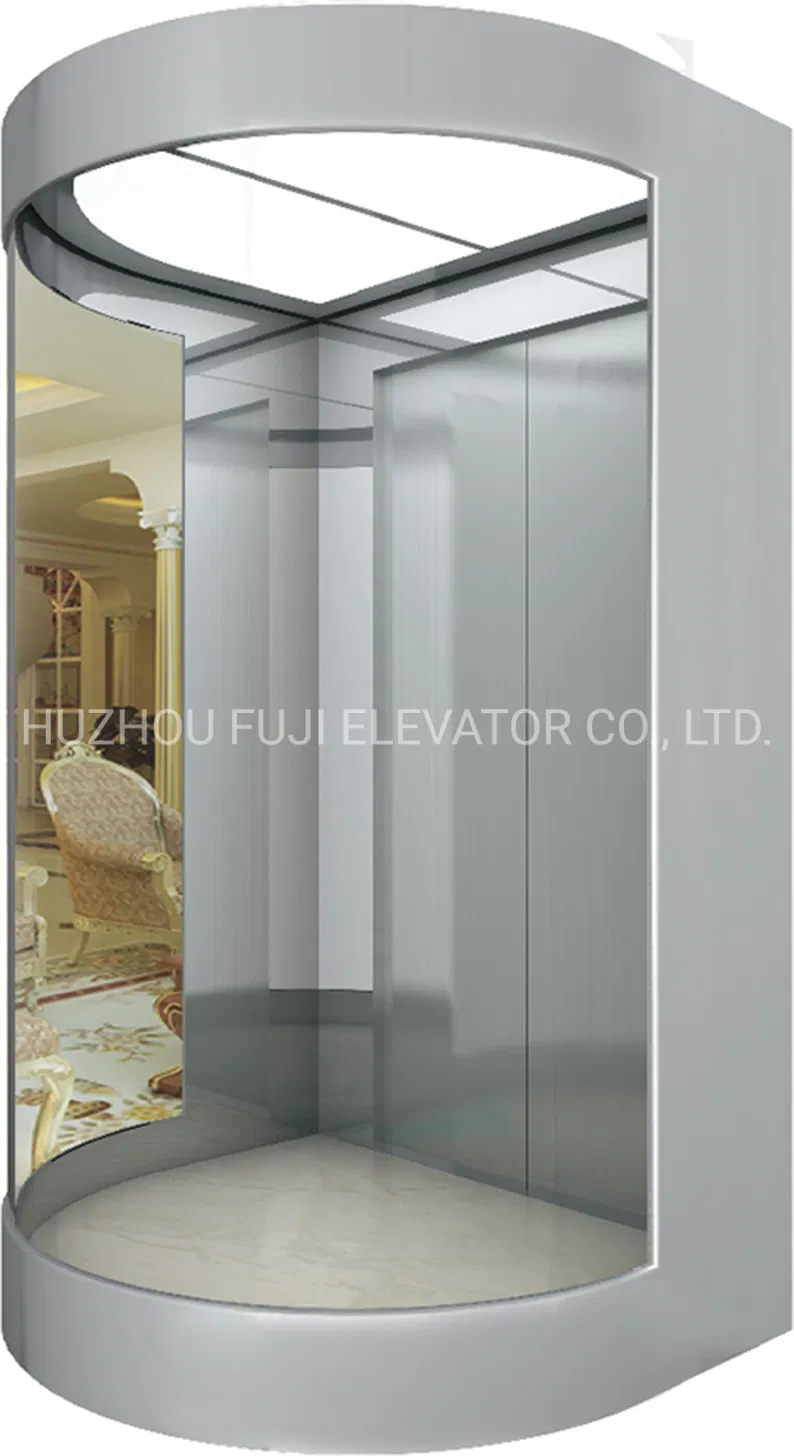

Standard Decoration Options
| Component | Material / Description |
|---|
| Wall | Hairline stainless steel |
| Ceiling | LED Fluorescent, according to the car design |
| Car Bottom | PVC |
| Jamb Material | First layer hairline, remaining steel plate spraying |
| Hall Door | First layer hairline, remaining steel plate spraying |
Passenger Elevator Parameters
| Load (Kg) |
Speed (m/s) |
Car Size (mm) |
Door Opening (mm) |
Shaft Size (mm) |
| 450 | 1 | 1100×1100 | 800×2100 | 2050×1850 |
| 630 | 1 - 1.75 | 1400×1100 | 800×2100 | 2250×1900 |
| 800 | 1 - 1.75 | 1400×1350 | 800×2100 | 2200×1950 |
| 1000 | 1 - 1.75 | 1500×1550 | 900×2100 | 2350×2150 |
| 1600 | 1 - 1.75 | 1800×2000 | 1100×2100 | 2900×2200 |

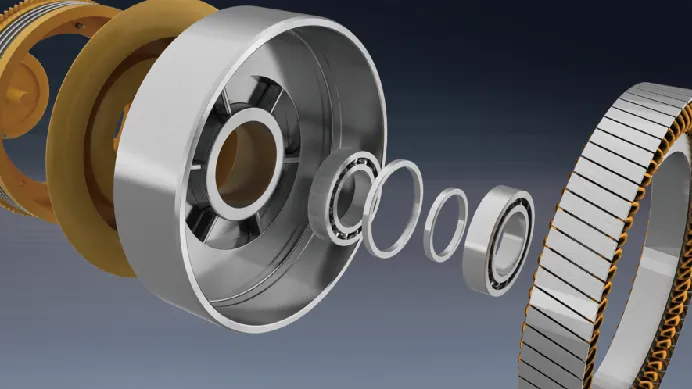

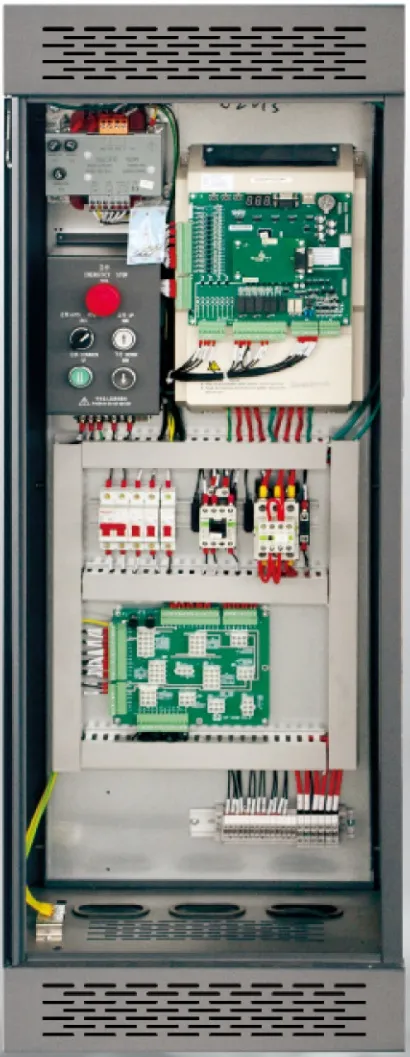

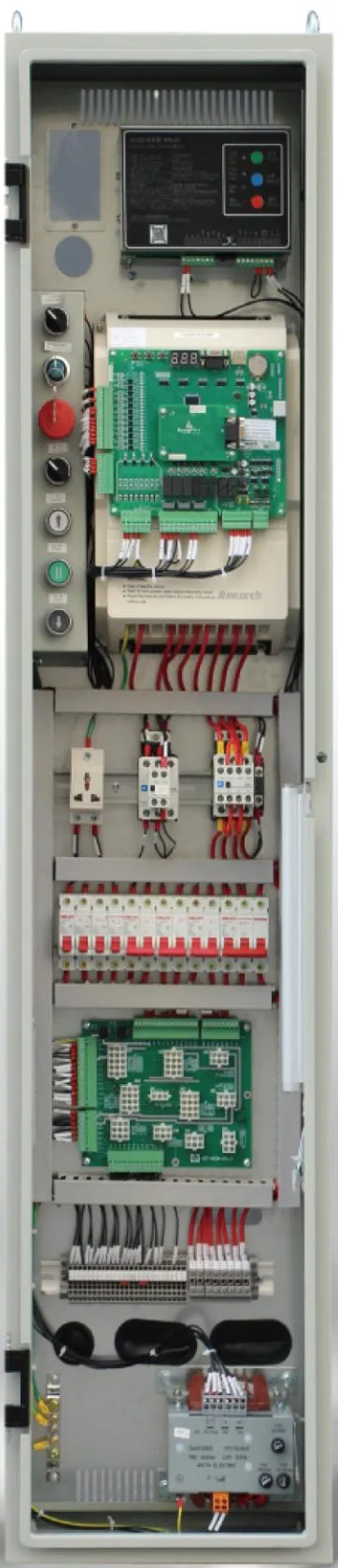

Advanced Control & Traction System
The system gives first priority to effectiveness in the vertical transport field. To fully optimize service efficacy, the intellectual management system utilizes multi-computer, modular, and network control. It instantly feeds back running conditions to provide the most efficient service.
Standard Safety Functions
| No. |
Function |
Description |
| 1 | Static Electricity Protection | Eliminate static electricity raised from running steps. |
| 2 | Emergency Stop Button | Stops the escalator immediately in case of emergency. |
| 3 | Over-speed Protection | Protection if speed exceeds 20% of rated speed. |
| 4 | Step Missing Detection | Detects if a step is missing in the stairway. |
| 5 | Short Circuit Protection | Prevents risks against electrical short circuits. |
Frequently Asked Questions
Q1: What is the maximum load capacity for this passenger elevator?
A: The elevator supports a load capacity range from 450 Kgs to 1600 Kgs, suitable for 5 to 25 persons.

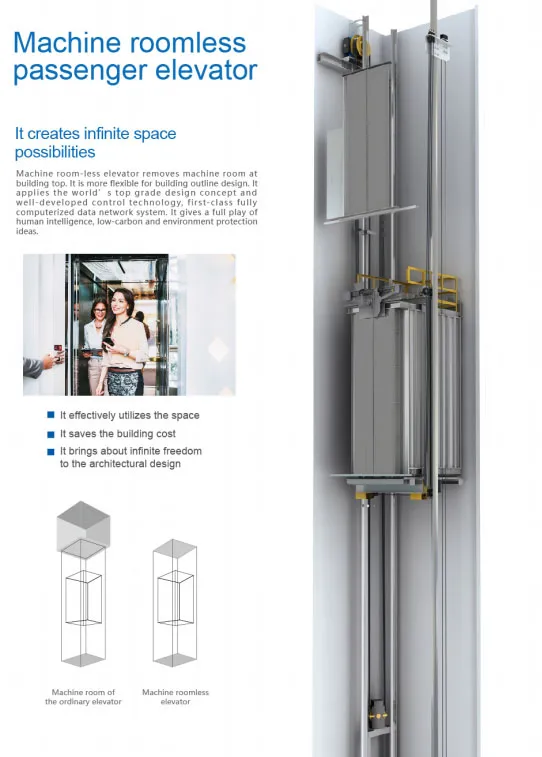

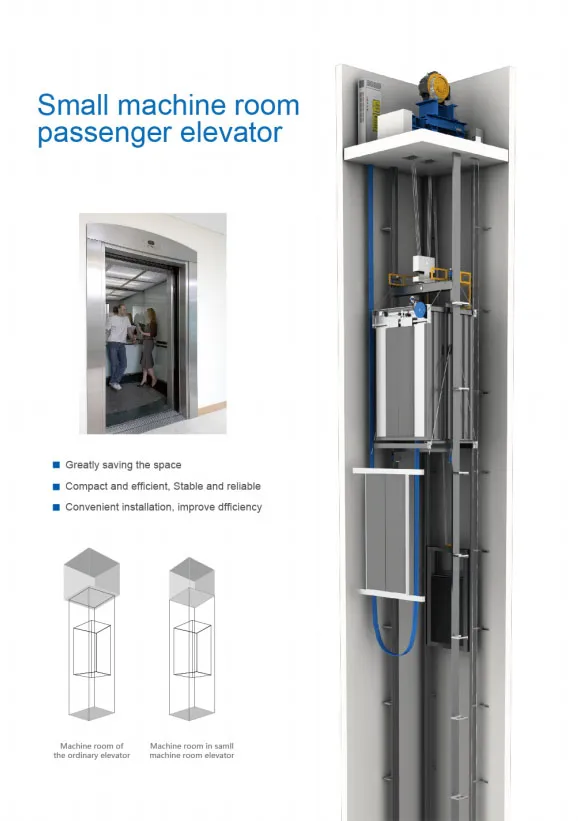

Q2: Can this elevator be installed in a building without a machine room?
A: Yes, we provide options for both small machine room (SMR) and machine roomless (MRL) configurations to fit different architectural needs.
Q3: What safety features are included as standard?
A: Standard safety features include over-speed protection, emergency stop buttons, static electricity protection, short circuit protection, and step missing detection.

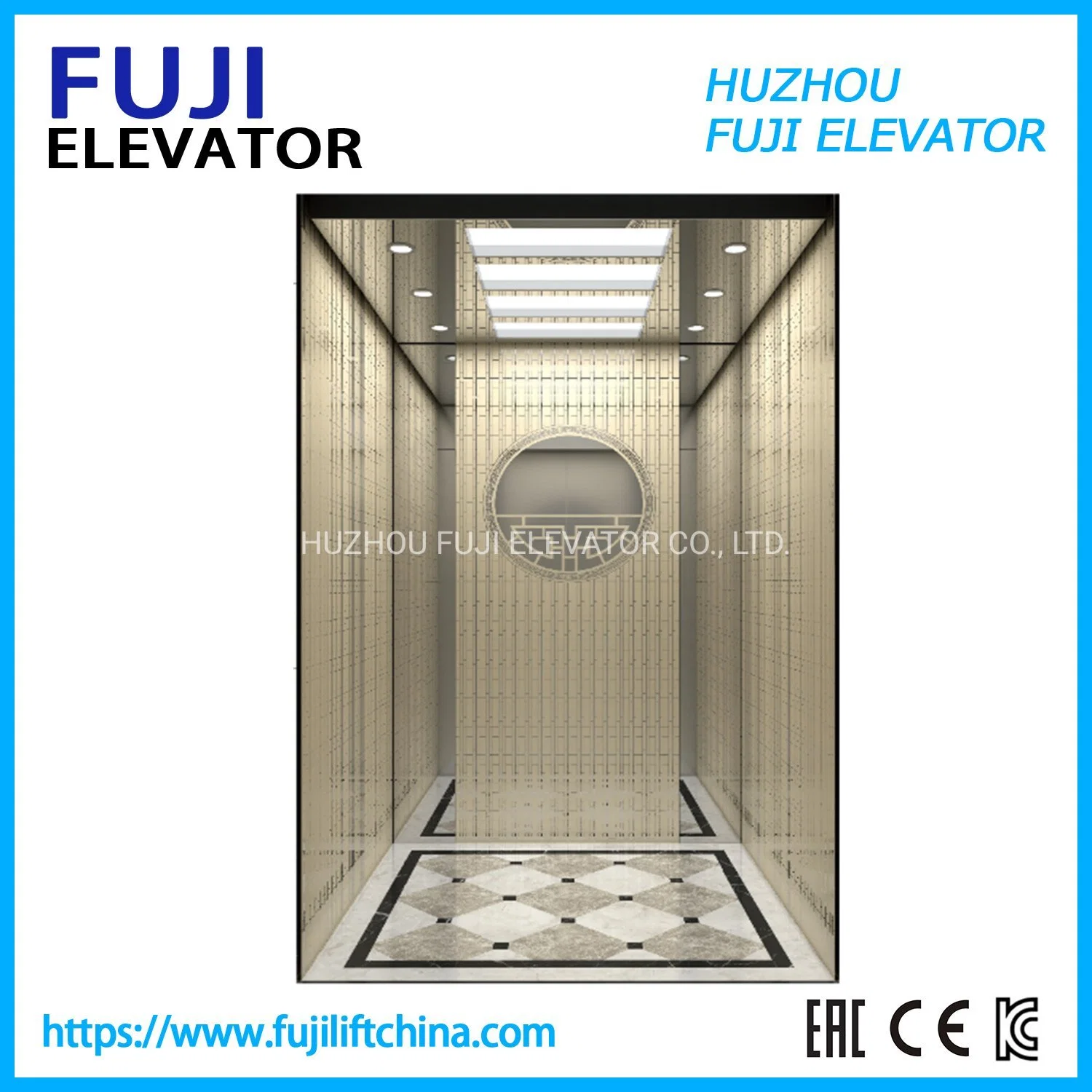

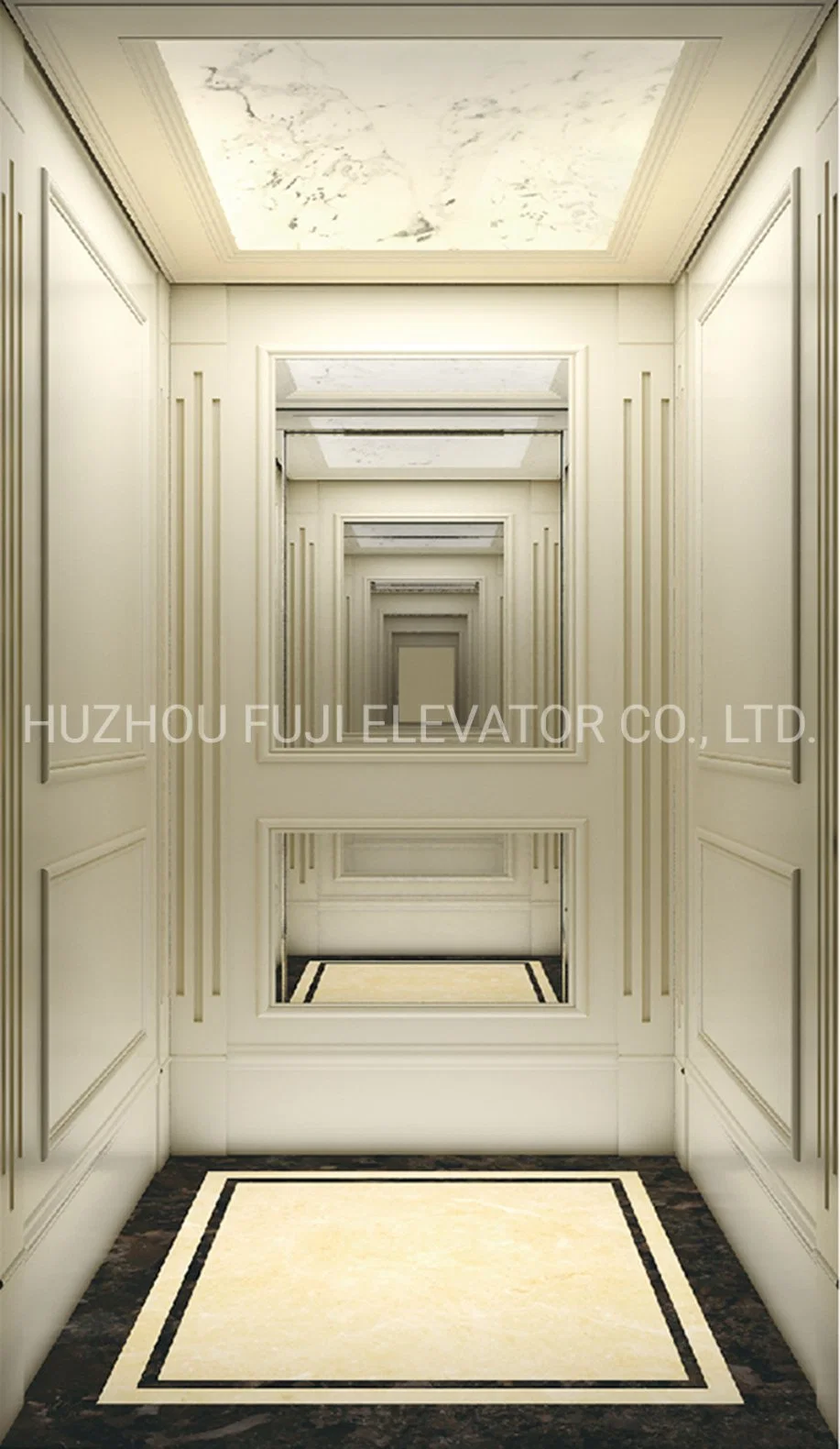

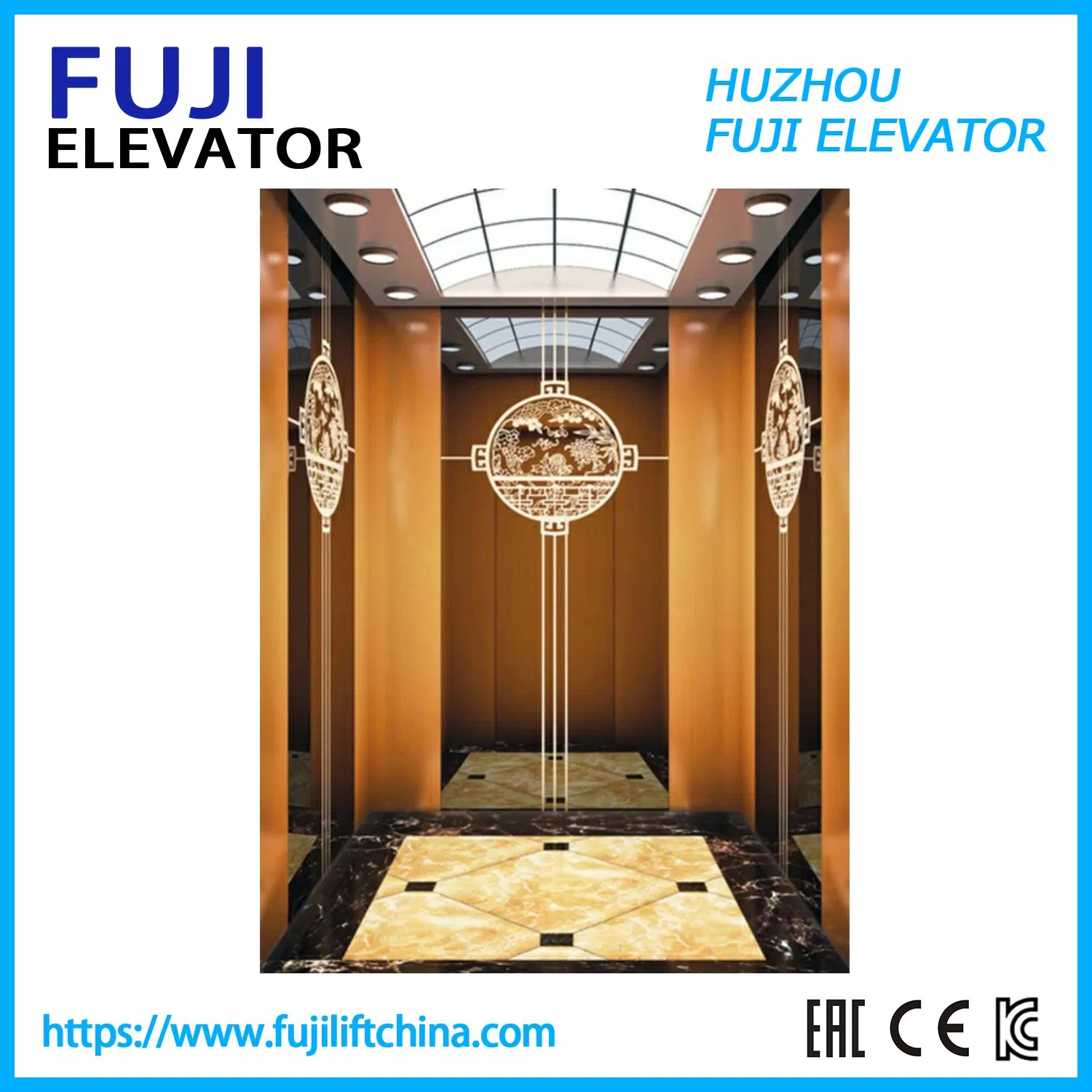

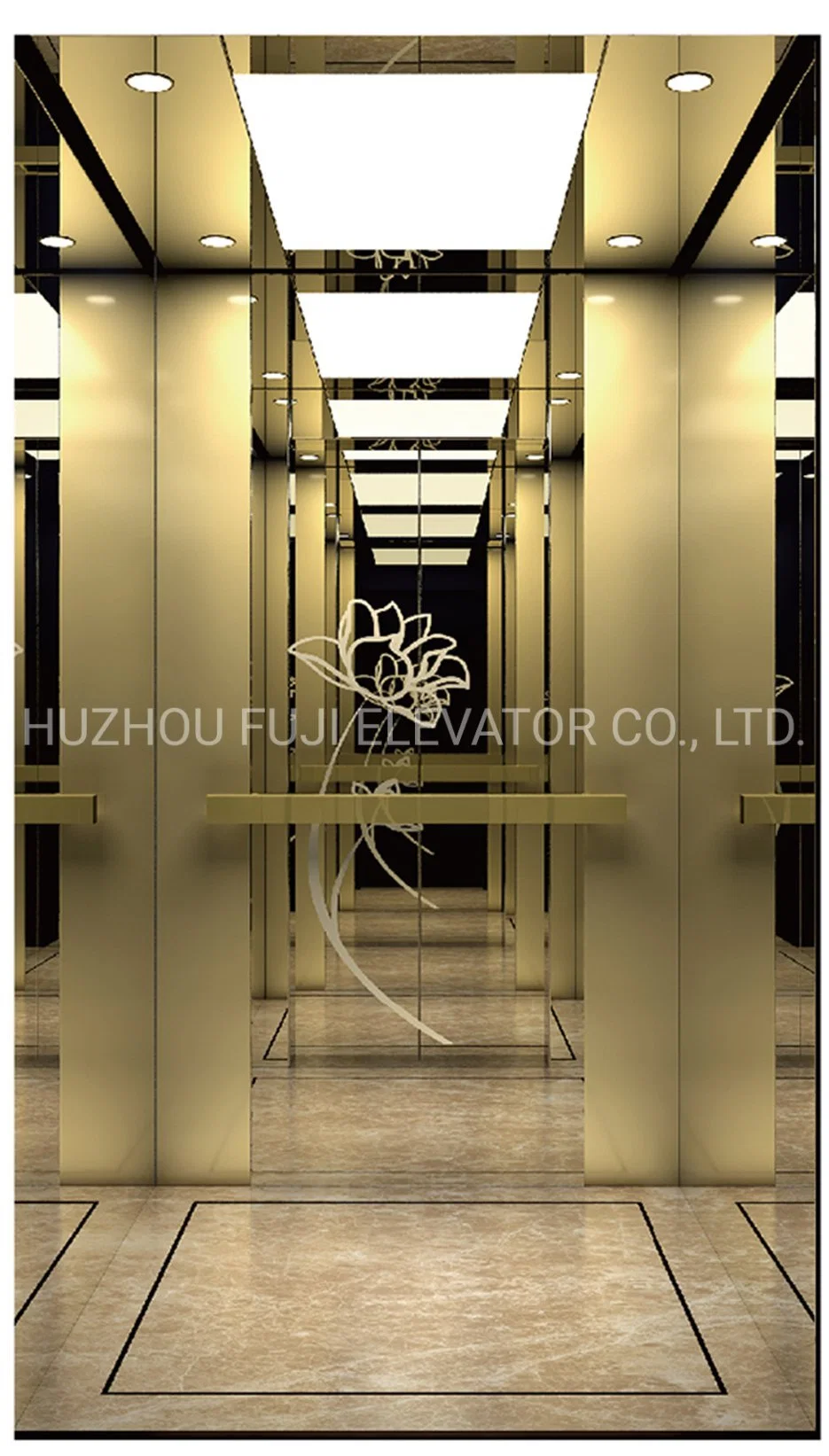

Q4: What materials are used for the elevator car interior?
A: The standard car walls and hall doors are made of hairline stainless steel, with PVC flooring and LED lighting for a modern finish.
Q5: How long does it take to produce and deliver the elevator?
A: The typical production lead time is within 25 to 30 days after order confirmation.
Q6: What is the rated speed of the Fuji-A model?
A: Depending on the configuration and load, the rated speed ranges from 1.0 M/S to 1.75 M/S.
