Small Residential Villa Home Lift Elevator Home Lift Elevators Small Villa Glass Passenger Elevator

Customization:	Available
After-sales Service:	One-Year Free Warranty
Warranty:	One Year

Basic Info Overview

Model NO.

Passenger Elevator-XW-K05-1 (7)

Driving Type

AC Elevator

Capacity

500-1000kg

Persons

6 - 10

Speed

2.00 - 3.50m/s

Control Mode

Collective Selective Control

Elevator Door

Center Opening Door

Production Capacity

10000 Units /Year

Trademark

XIWEI

Origin

China

Product Description

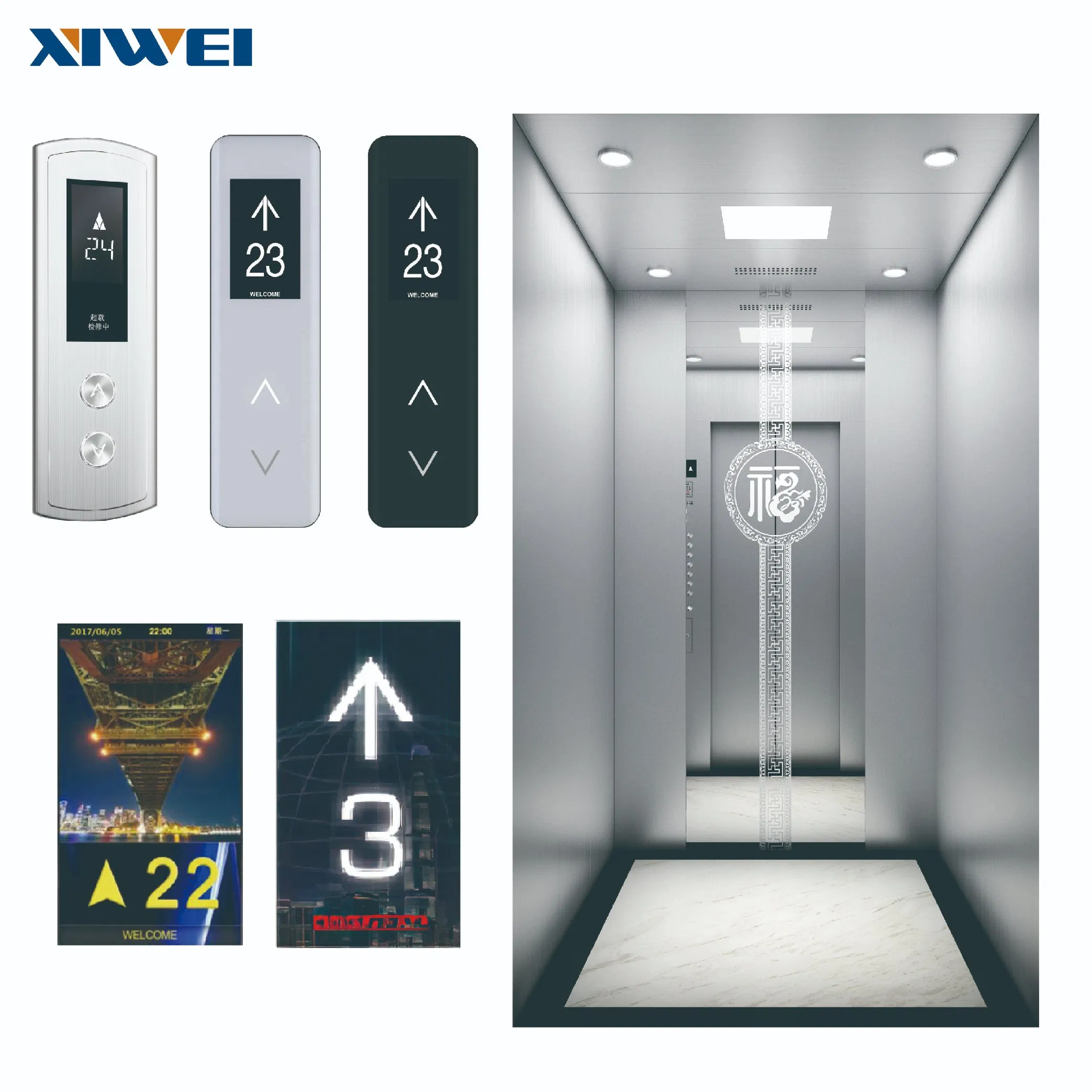

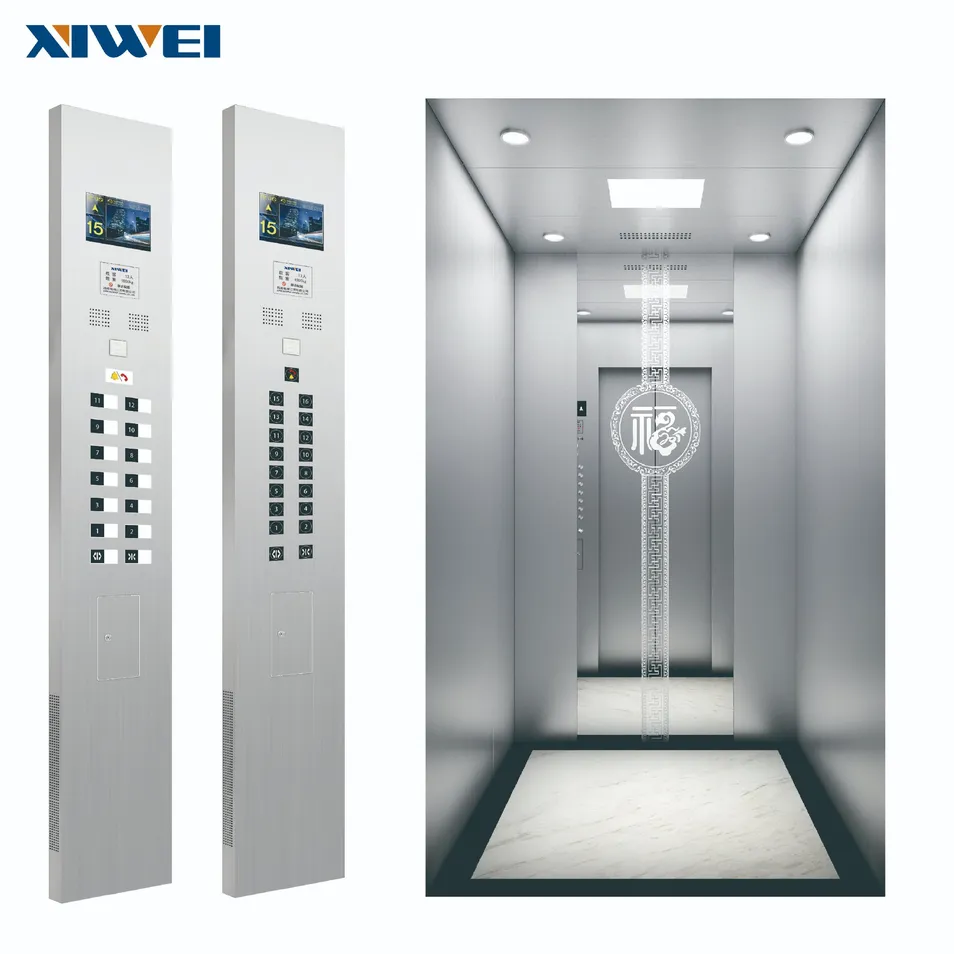

XW-K05-1 Premium Design

Split ceiling (XW-DD15): Hairline stainless steel + acrylic plate + energy saving light
Car wall: Hairline stainless steel + rear-wall center mirror etched
Front wall: Hairline stainless steel

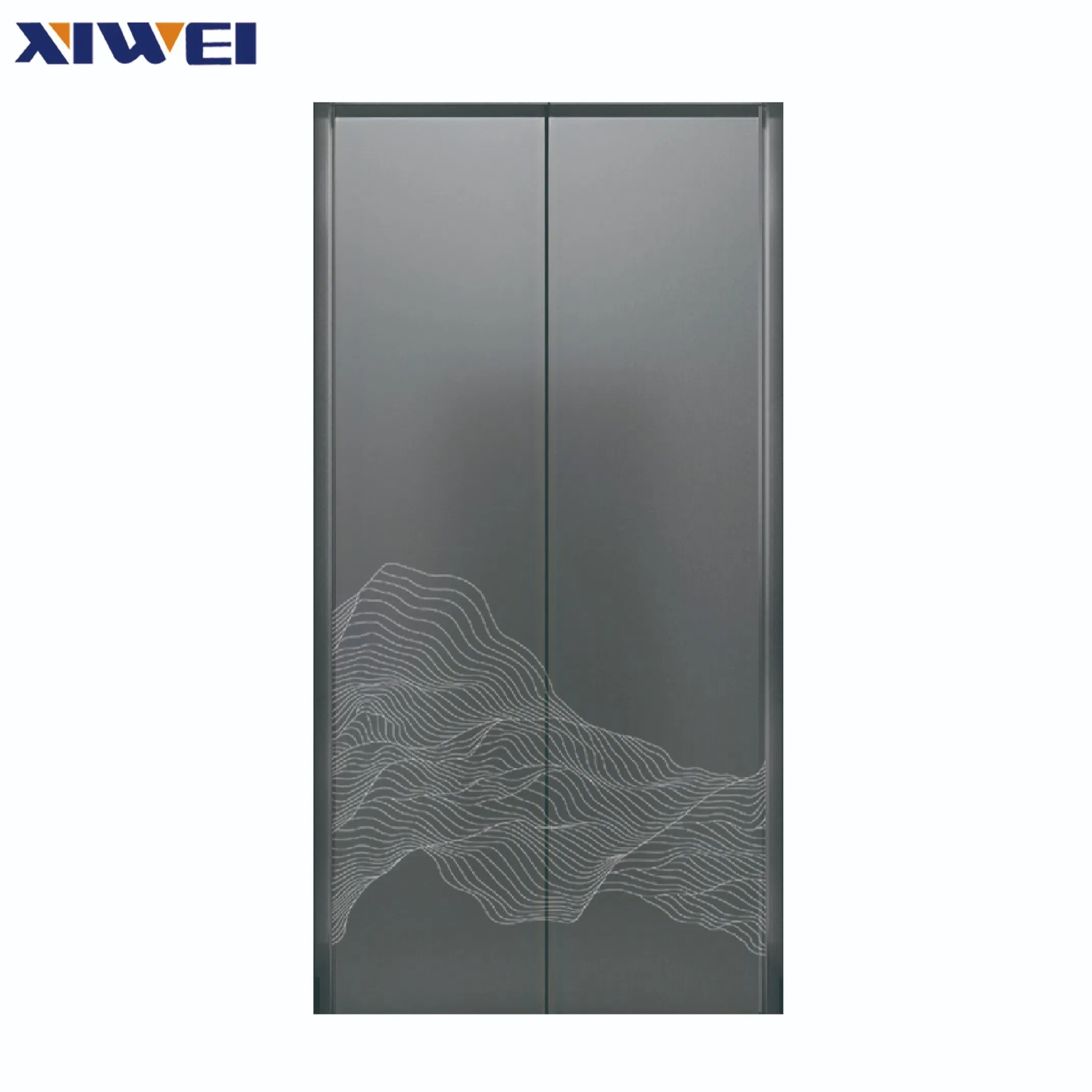

Car door: Hairline stainless steel

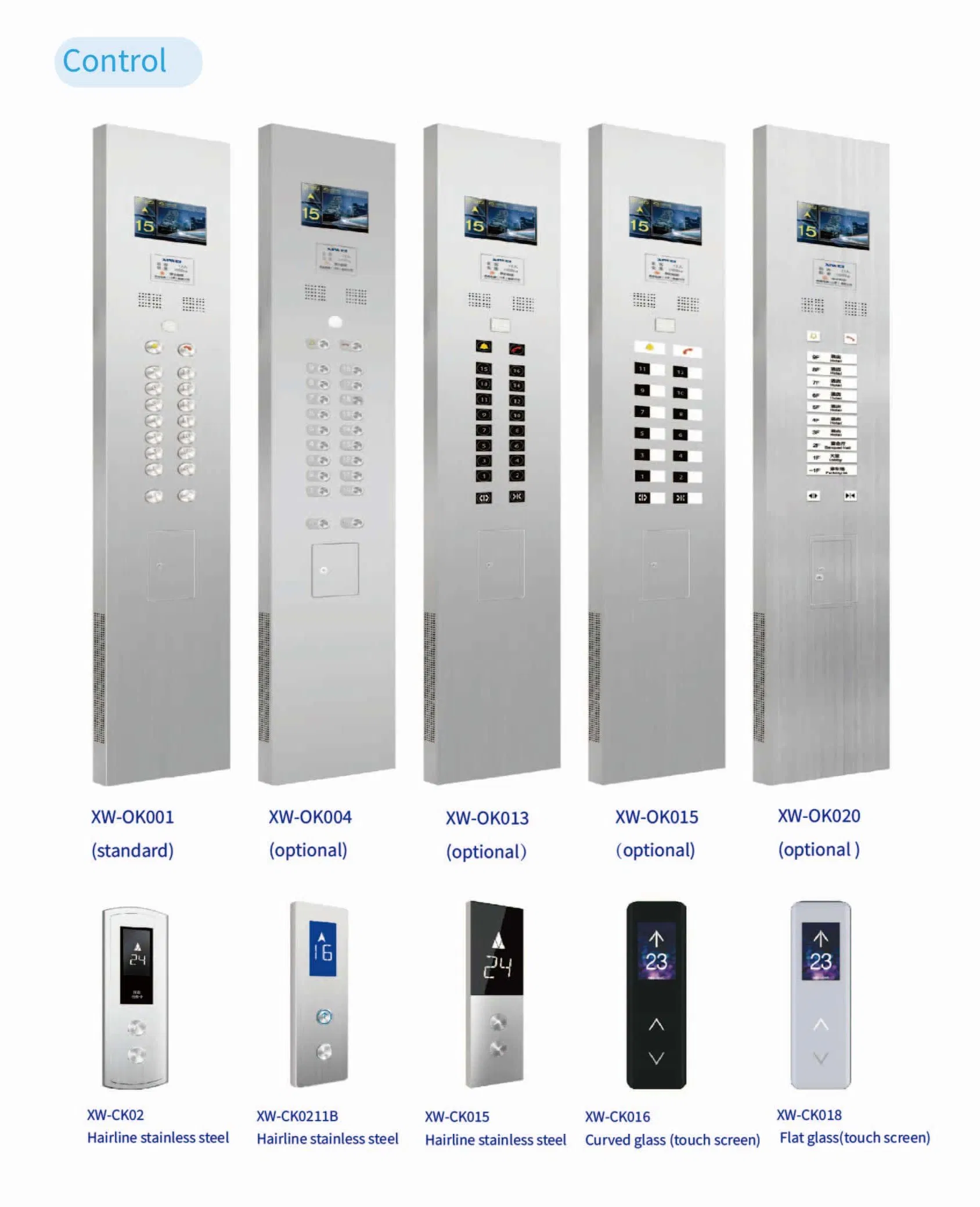

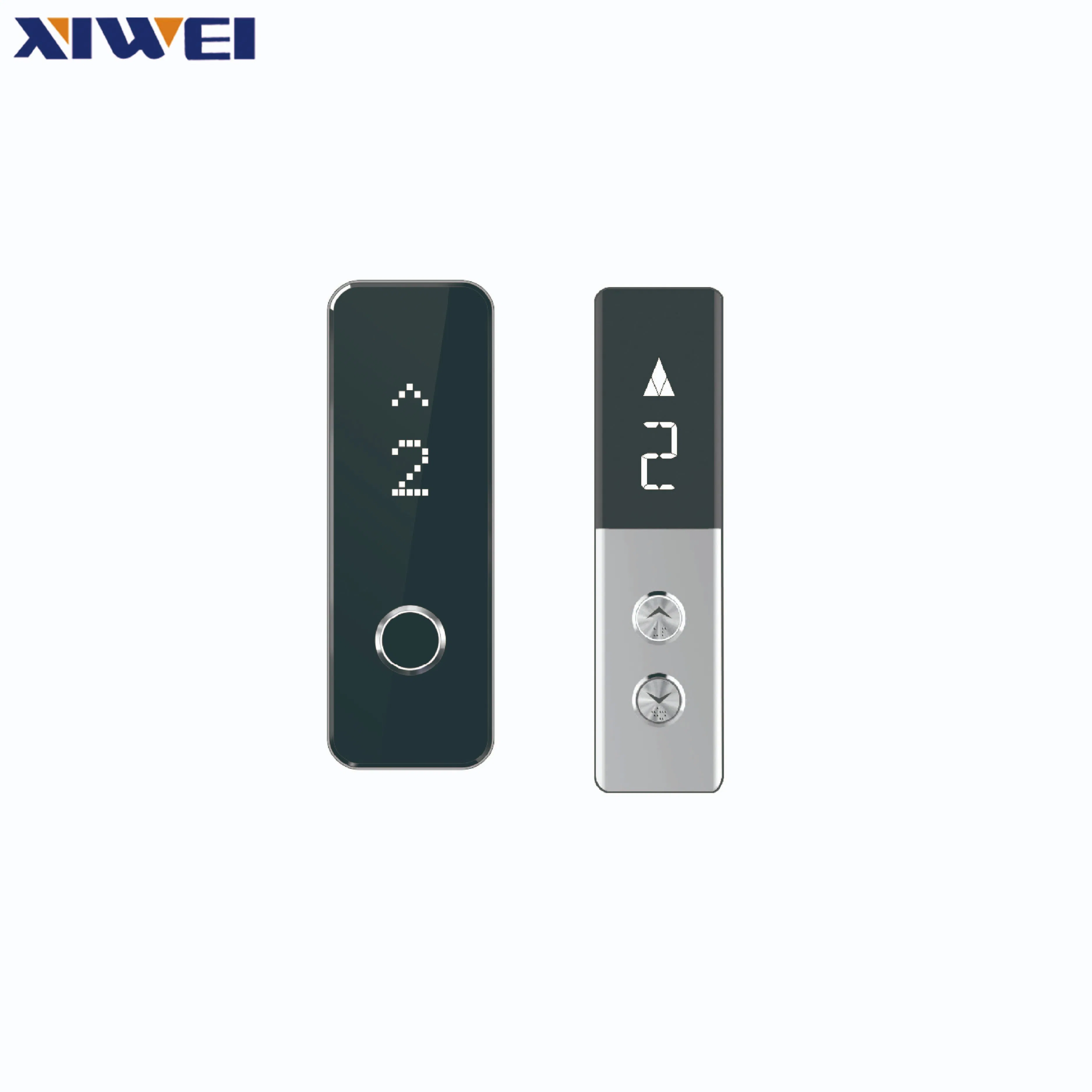

Operation panel: Integrated (XW-0K001), hairline stainless steel
Handrail (XW-F01): Stainless steel round handrail on the rear wall
Floor (XW-DB10): Full body brick or PVC

Applications: Combined with modern technology and fashion art, this passenger lift satisfies all needs of hotels, office buildings, shopping malls, etc., providing a safe and comfortable riding experience.

Technical Specification

Rated load (kg)	Rated speed (m/s)	Net car size (CWxCD)	Net door size (DWxPH)	Net hoistway (HWxHD)	OH (mm)
450	1.0 - 1.75	1100x1150	700x2100	1850x1600	4700-4900
630	1.0 - 1.75	1200x1300	800x2100	2000x1750	4700-4900
800	1.0 - 2.5	1400x1400	800x2100	2100x1800	4700-5300
1000	1.0 - 2.5	1600x1500	900x2100	2300x1900	4700-5300
1150	1.0 - 2.5	1700x1500	1000x2100	2450x1900	4700-5300

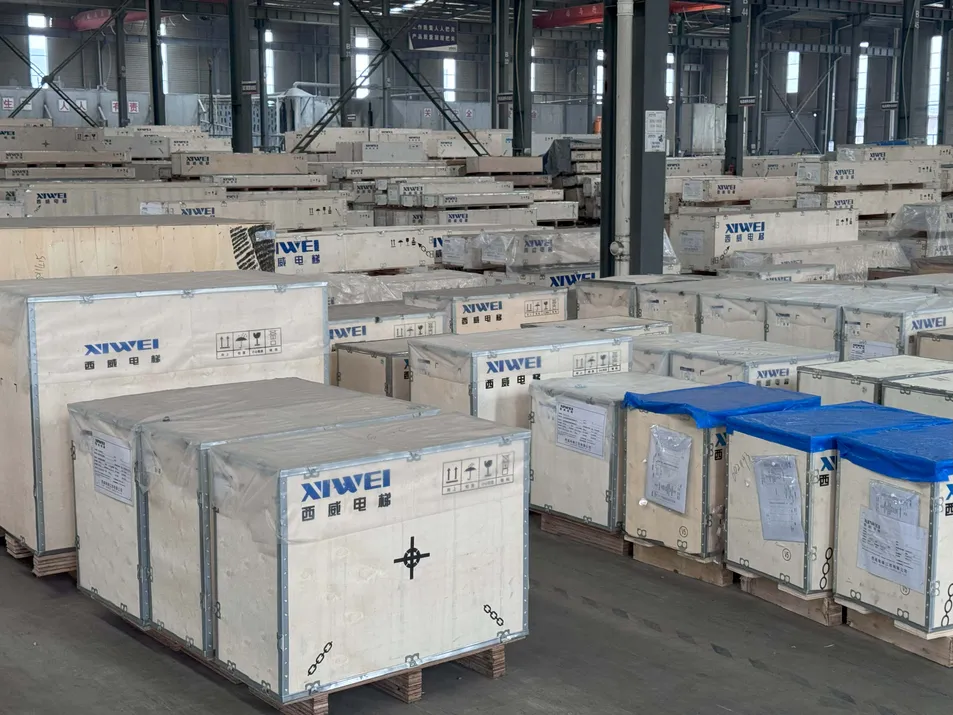

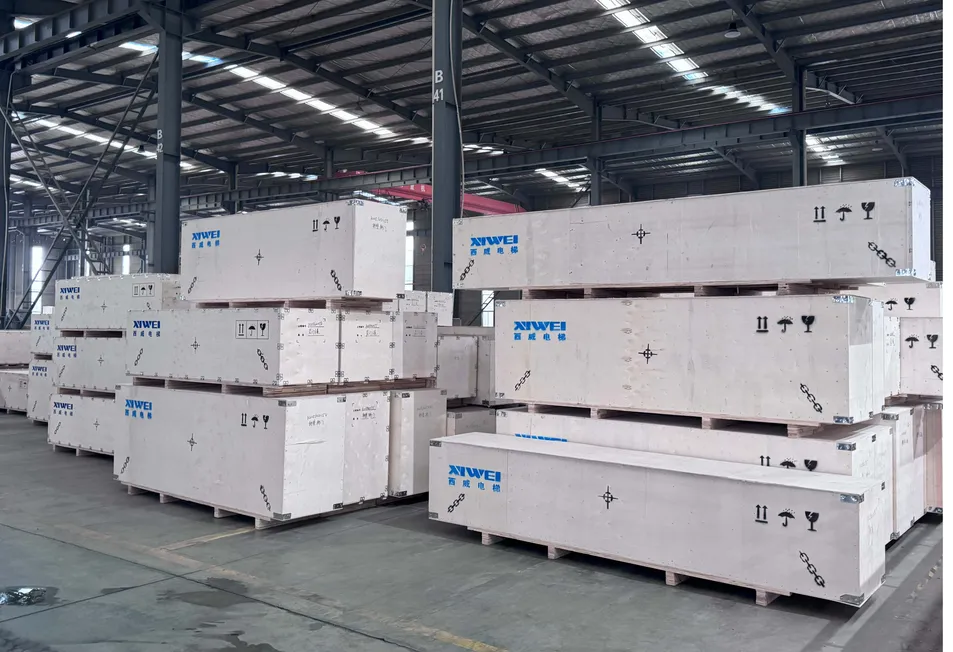

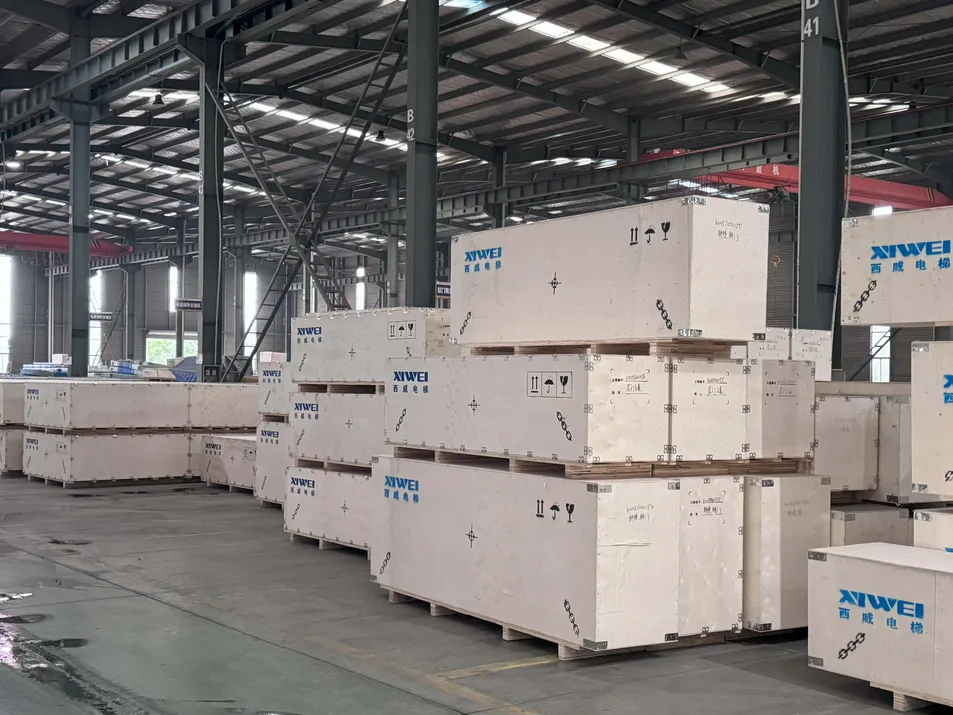

Packing & Delivery

Estimated Shipping Time

DHL: 3-5 working days
UPS/TNT: 5-7 working days
FedEx: 7-9 working days
EMS: 12-15 working days
Sea Freight: Depends on destination country

Certifications & Quality

After Sales Service

Warranty Period: 1 year overall warranty. Core components (traction machines, control cabinets, safety gears, and speed governors) are extended to 5 years.

During the warranty period, all costs for maintenance and component replacement caused by manufacturing defects will be borne by us.

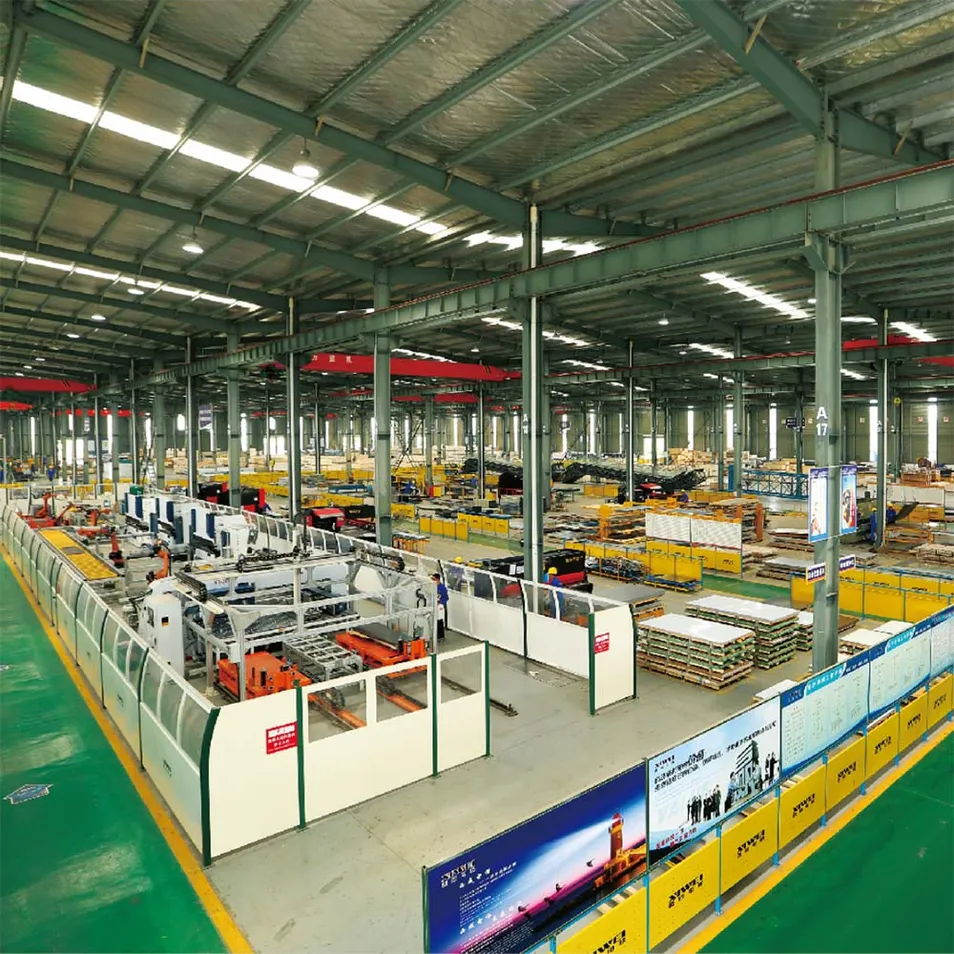

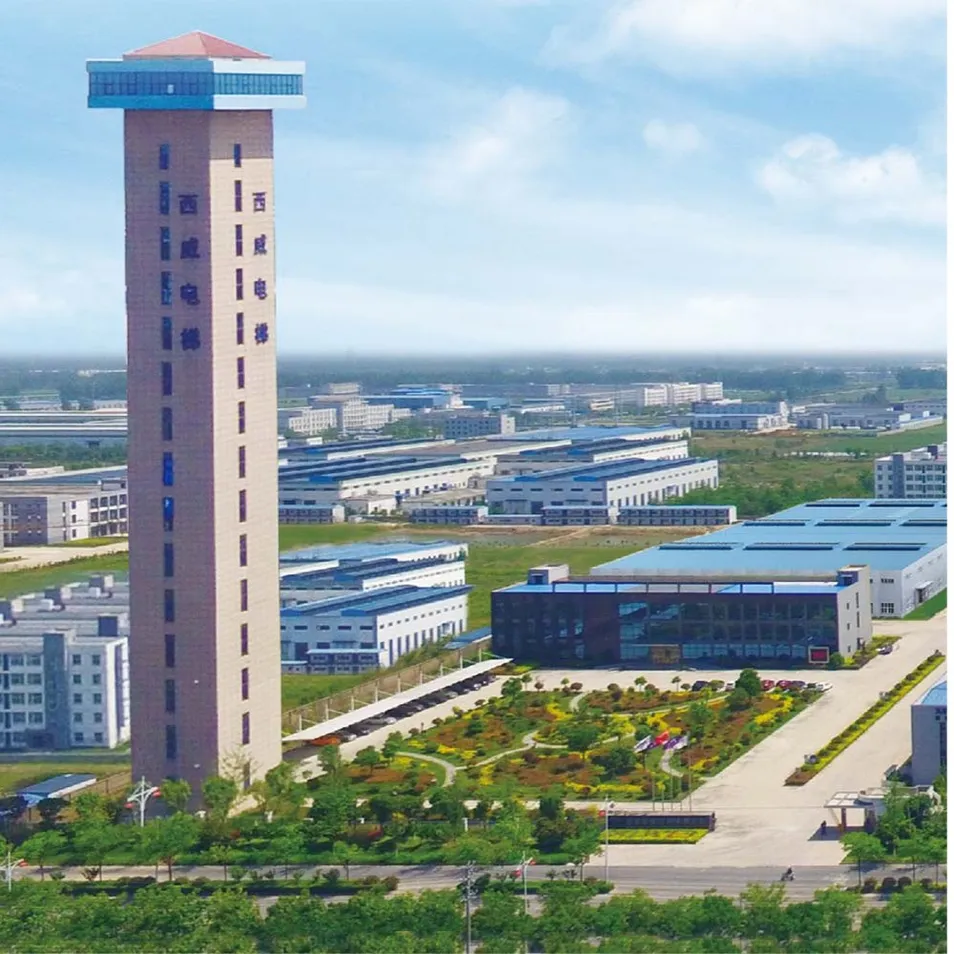

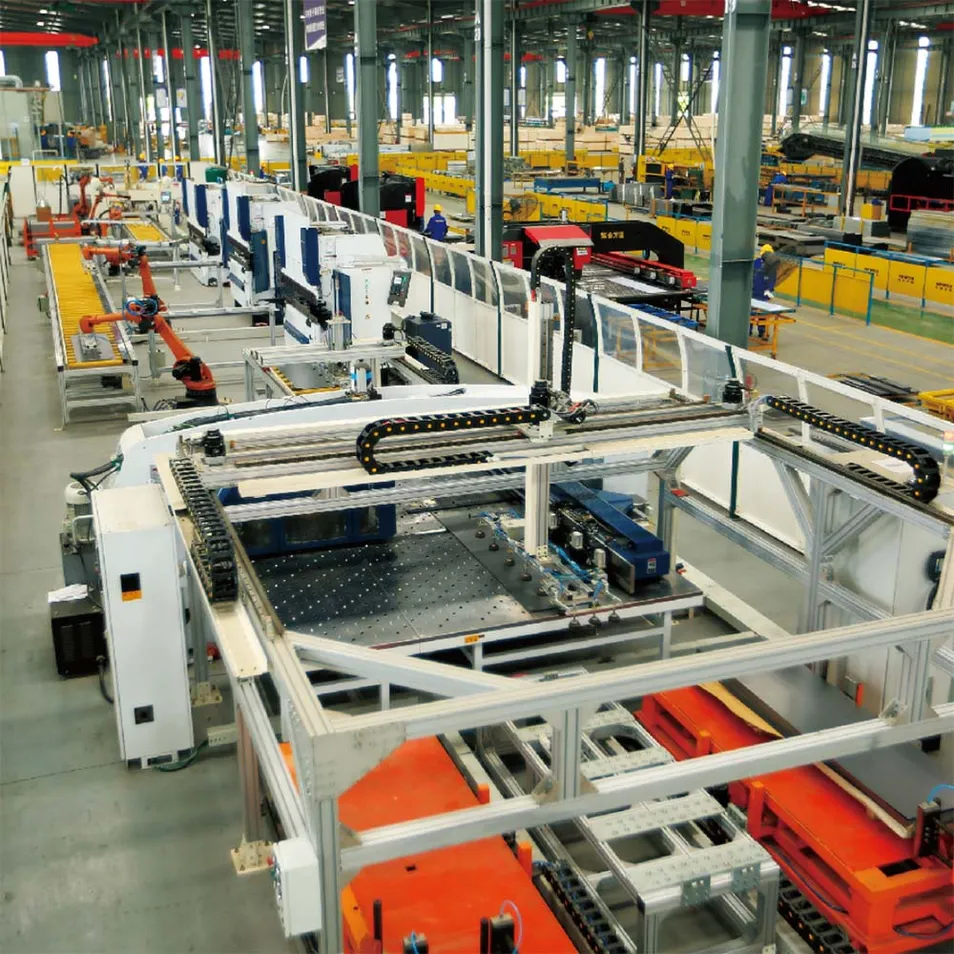

Our Factory & Manufacturing

The company introduces advanced intellectual devices such as automatic feed warehouses, automatic painted flow-lines, and robot flow-lines. We adopt advanced elevator production technology and scientific management systems to ensure safe, smooth, and advanced product designs with low trouble rates.

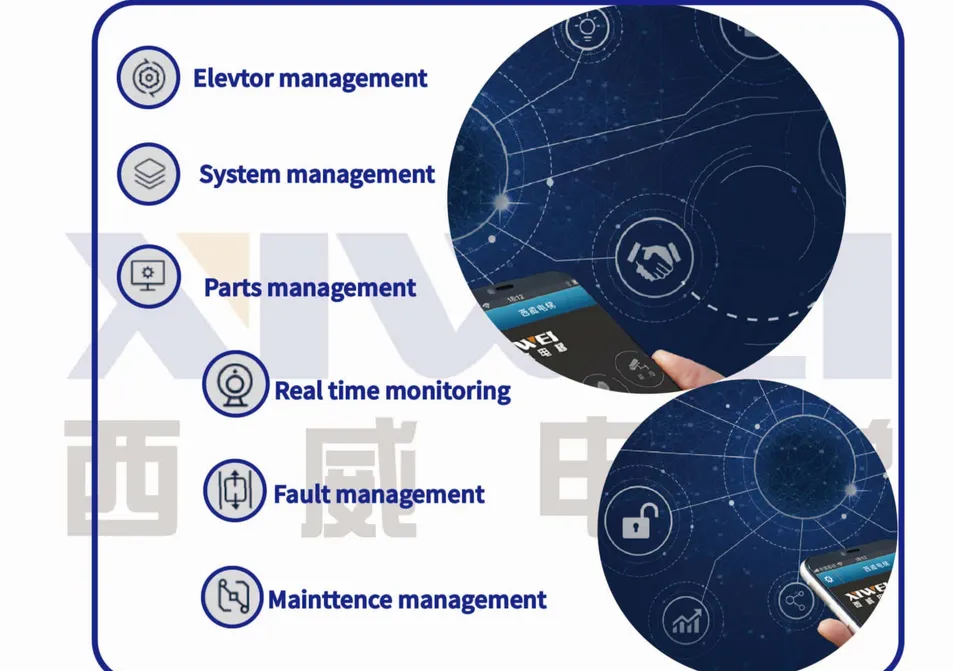

Technical Systems & IoT

Frequently Asked Questions

Are the elevator wire ropes durable?

The elevator wire rope has special provisions and requirements. Configuration is not only for wire rope and rated load, but also considers the size of the traction. As a result, the tensile strength of the wire rope is greater than the weight of the lift. The safety factor is equipped with more than four wire ropes, so they won't break at the same time.

Is it dangerous if power failure occurs suddenly during operation?

No. If it occurs, the elevator will automatically stop due to the electrical and mechanical safety devices. In case of power failure, elevator brakes will automatically activate.

Will passengers be hurt if doors close suddenly?

In the closing process, if people touch the hall door, the door will automatically restart without danger. Equipped with anti-clamping switches, any touch will trigger the elevator to reopen immediately.

How does the elevator operate?

Elevators are operated with a counterweight wire rope through the traction drive, moving up and down along the guide rail system.

Is escalator installation complicated?

We utilize an integrated structure for our escalators, making the equipment more precise and efficient while allowing for easier and more convenient commissioning and installation.

Do you have international certifications?

Yes, our products carry ISO9001, CCC, and CE Certificates to meet global safety and quality standards.
